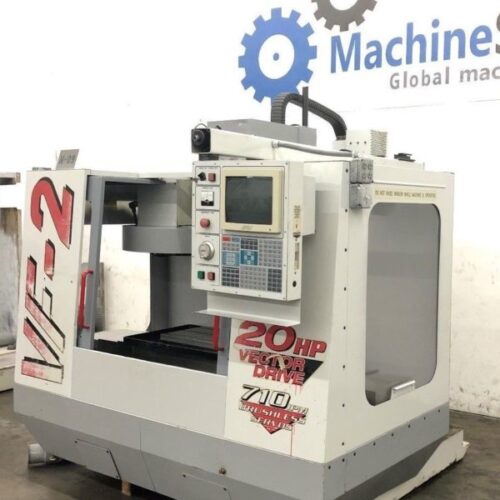

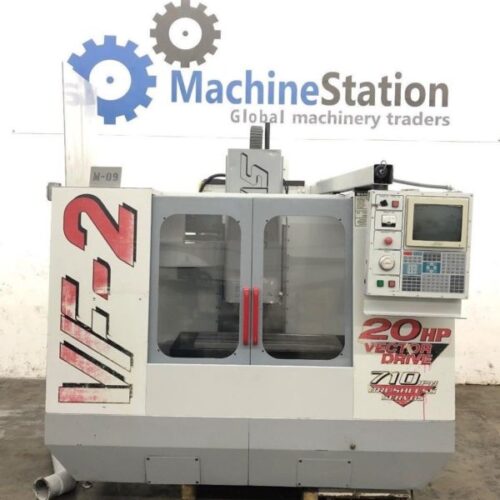

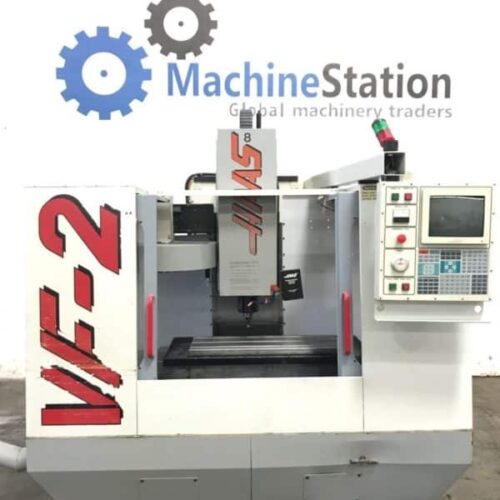

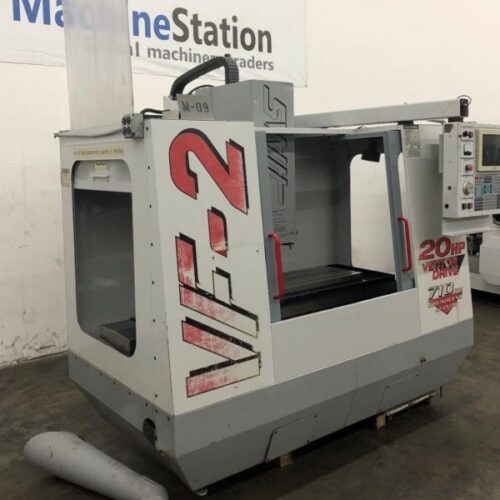

Haas VF-2 CNC Vertical Machining Center
Out of stock
| HAAS VF-2 VERTICAL MACHINING CENTER 4TH AXIS READY |
| Make |
Haas |
| Model No. |
VF-2 |
| Year of Manufacture: |
1997 |

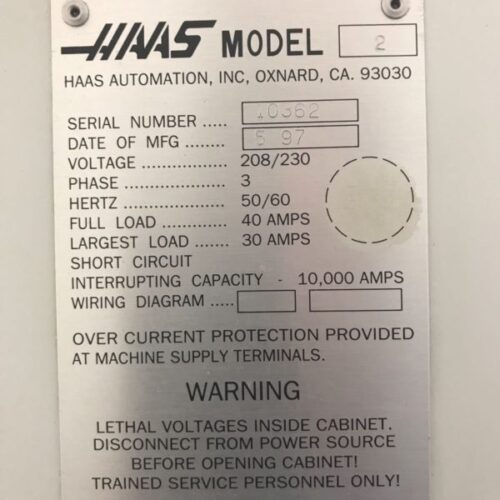

| Serial # |
10362 |
| Condition |
Very Good |
- HAAS VF-2 VERTICAL MACHINING CENTER Features:
- 20HP High Torque Spindle
- 4th Axis Ready ( drives and wiring installed )
- Rigid Tapping
- Power Failure Detection Module
- User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
- Brushless servo drive motors on all axis
- 20 + 1 automatic tool changer

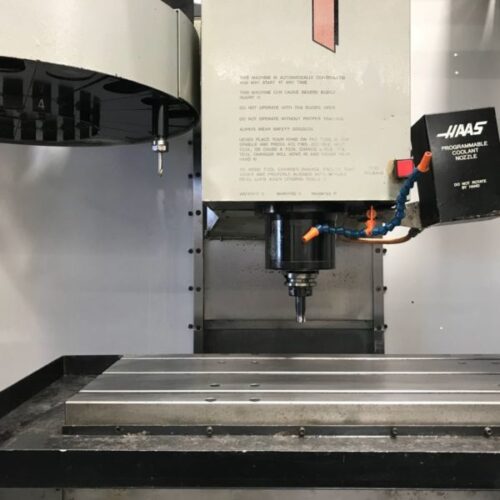

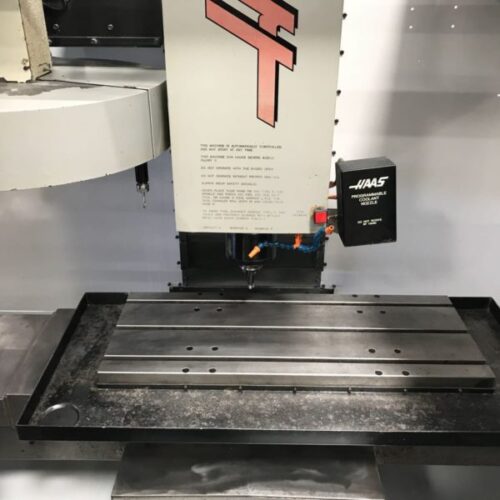

- Programmable coolant

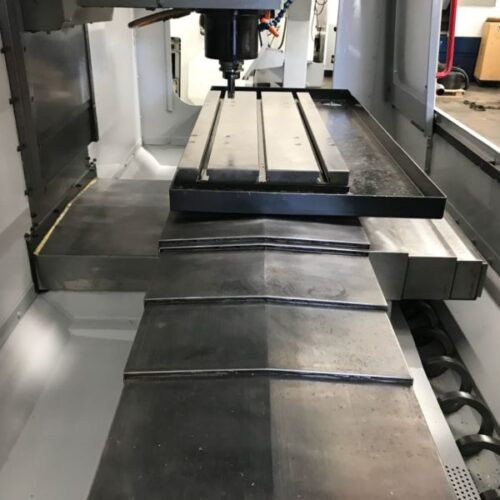

- Telescopic way covers
- Chip auger
- Floppy Drive
- Flood Coolant system
- RS-232 Port
- HAAS VF-2 VERTICAL MACHINING CENTER Specifications:
- Travels:
- X-Axis: 30″
- Y-Axis: 16″
- Z-Axis: 20″
- Rapid Traverse Rates: 710 Inch Per Minute
- Cutting Feed Rates: 500 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 24″

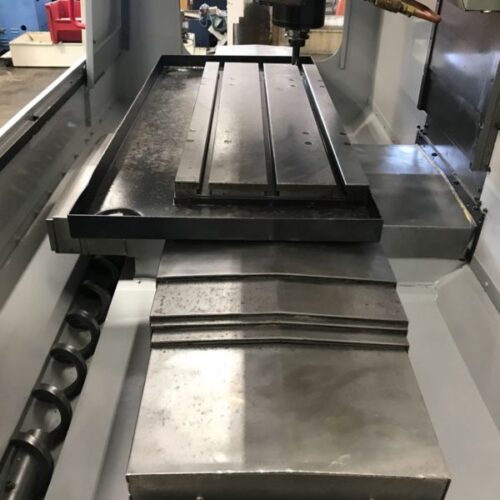

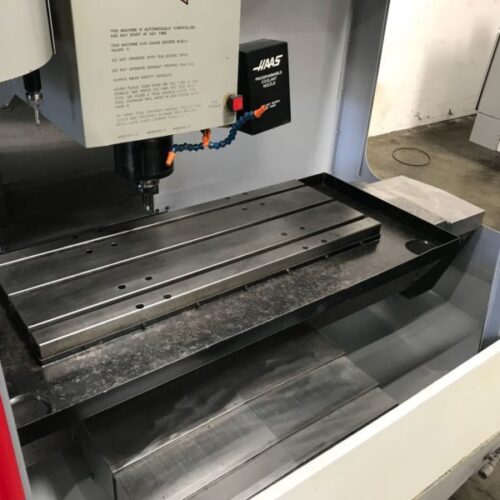

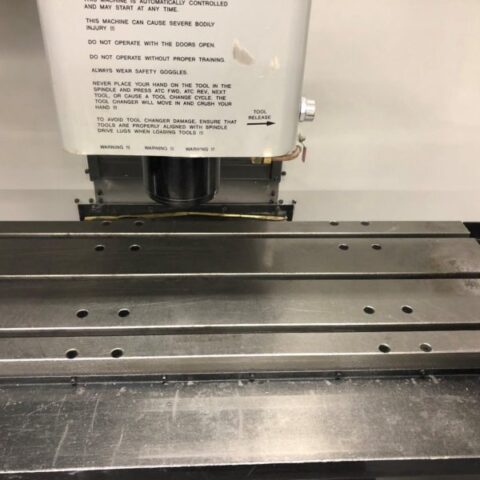

- Table:
- Length: 36″
- Width: 14″
- Number of Std T-Slots: 3
- T-Slot Width: 5/8″
- Max Weight on Table: 1500 lbs

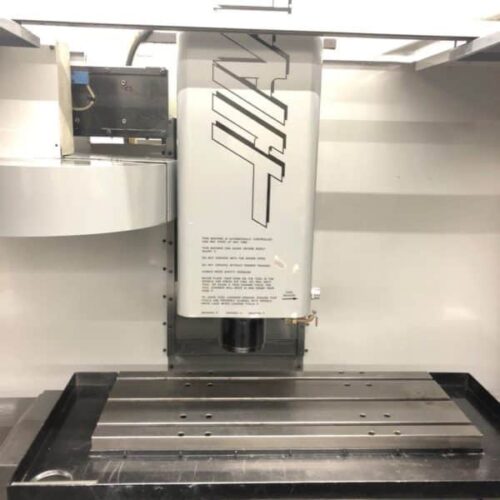

- Spindle:
- Taper Size: 40
- Speed Range: 0 – 7500 RPM
- Spindle Power: 20 HP Vector Dual Drive
- Max Torque: 90ft-lb @ 2000 RPM

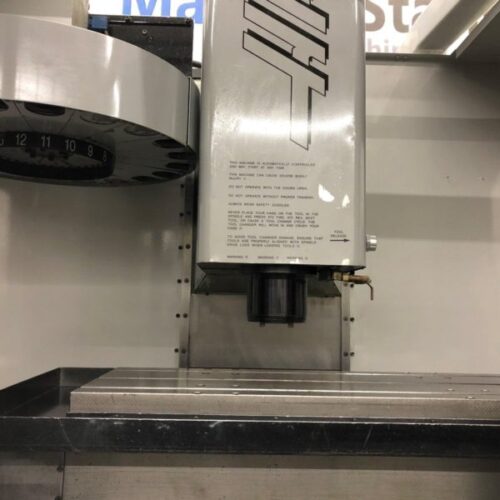

- Automatic Tool Changer:
- Capacity: 20 + 1
- Max Tool Weight: 12 lbs
- Max Tool Dia: 3.6″
- Max Tool Length: 13″
- Tool Changing Time: 3.2 Seconds
- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 90″ x 88″ x 100″ High
- Weight: 7500 lbs
