*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

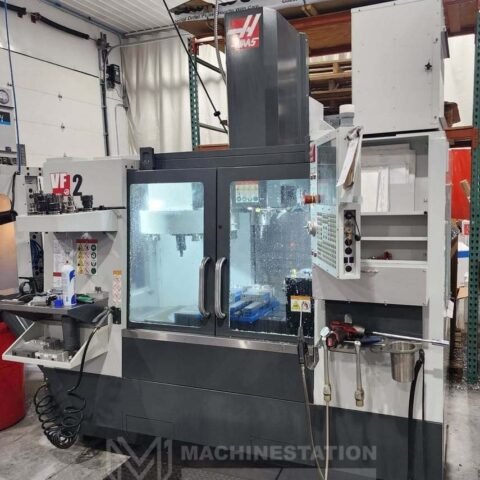

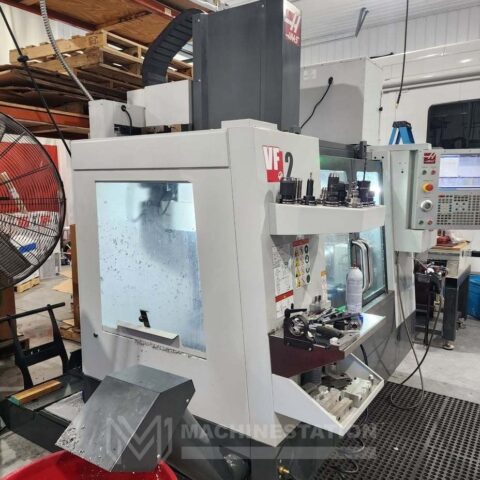

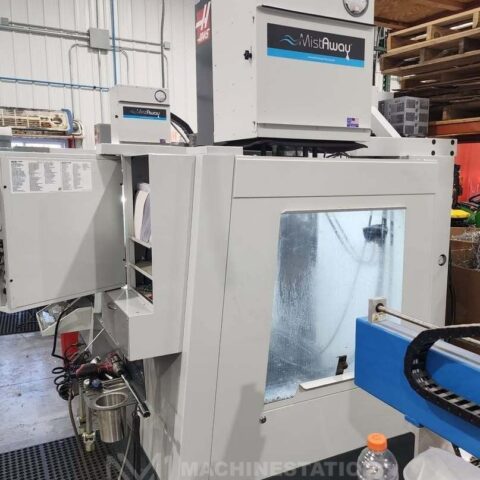

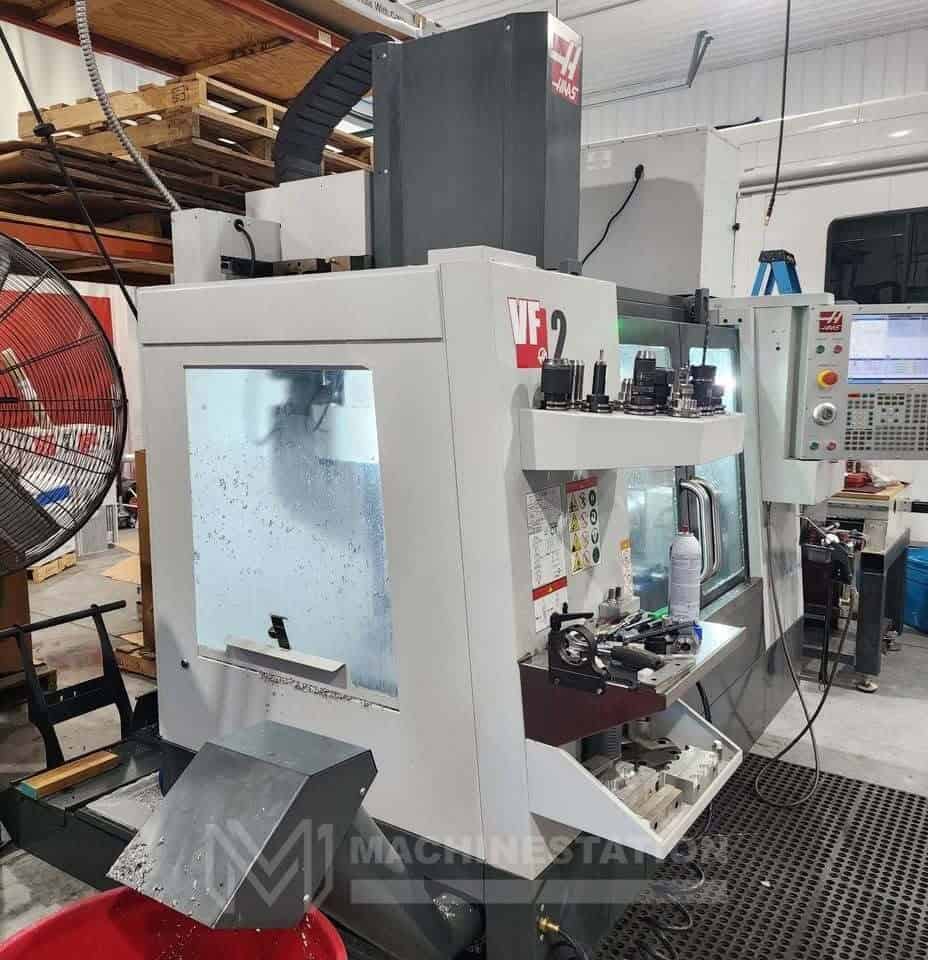

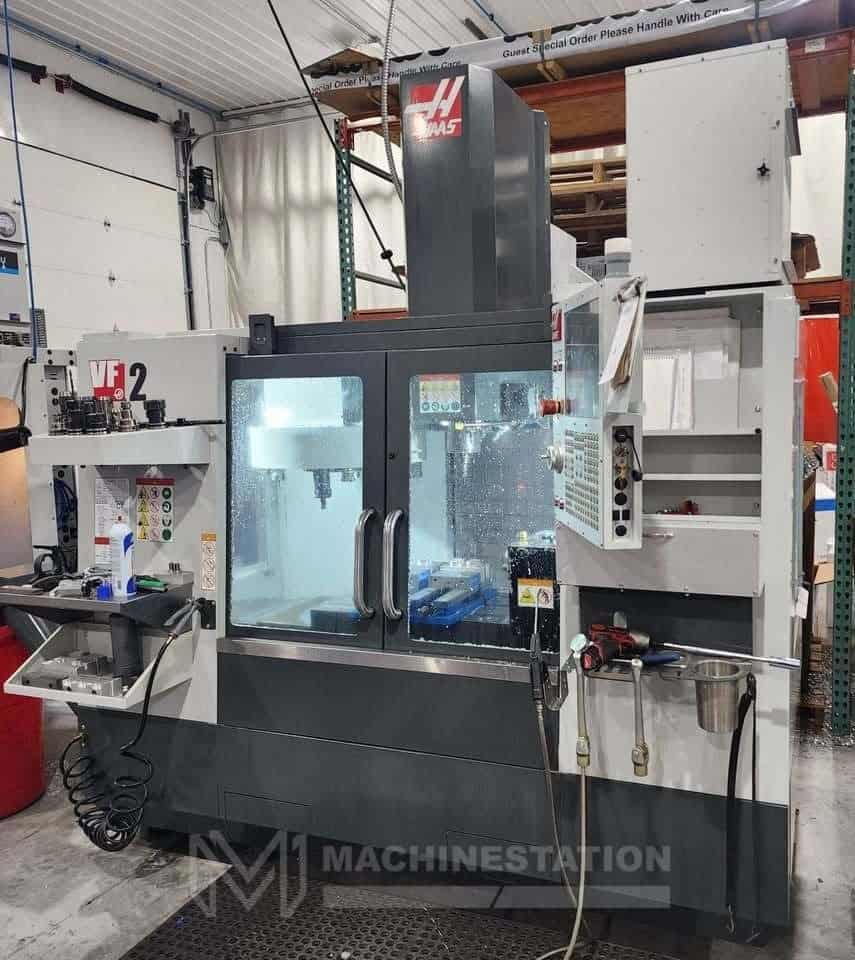

| Make | Haas |
| Model: | VF-2 |
| Year: | 2020 |
| Condition: | Used – Good |
| Features: |
|---|
| Haas CNC Control |
| 4th Axis Ready (Upgraded $3195 value Included) |
| 10,000 RPM Spindle (Upgraded $8495 value Included) |
| 20 Station Tool changer |
| 30 HP High Torque Spindle |
| WIPS-R Renishaw Probing System (Upgraded $5795 value Included) |
| Probe Riser Block (Upgraded $495 value Included) |
| Through Spindle Coolant Ready (Upgraded $1195 value Included) |
| High Speed Machining (Upgraded $3495 value Included) |
| Rigid Tapping |
| USB Port |
| Coolant System |
| Chip Auger (Upgraded $3695 value Included) |
| Note: 4th Axis Rotary Table Not Included with Machine. |
| Travels: |
|---|
| X-Axis: 30″ |
| Y-Axis: 16″ |
| Z-Axis: 20″ |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |
| Rapid Traverse Rates: 1000 Inch Per Minute |
| Cutting Feed Rates: 650 Inch Per Minute |

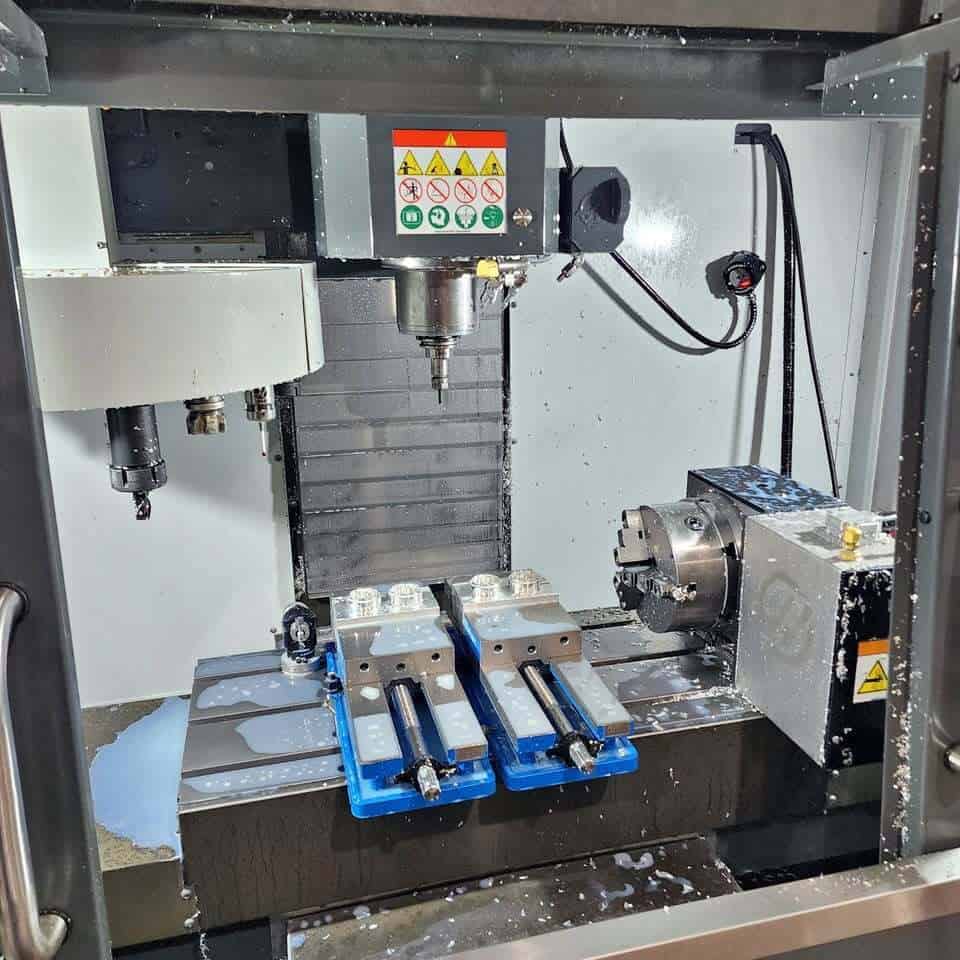

| Table: |
|---|
| Length: 36.0″ |
| Width: 14.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 3000 lbs |

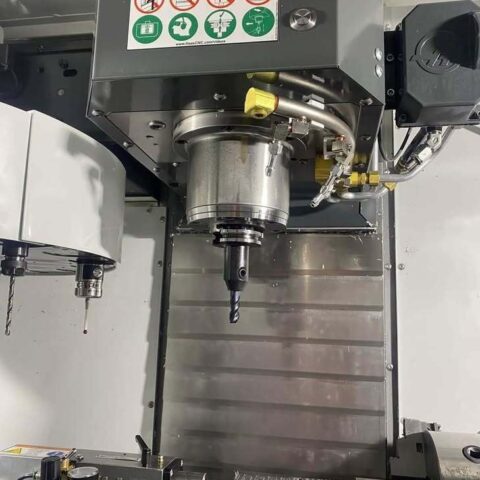

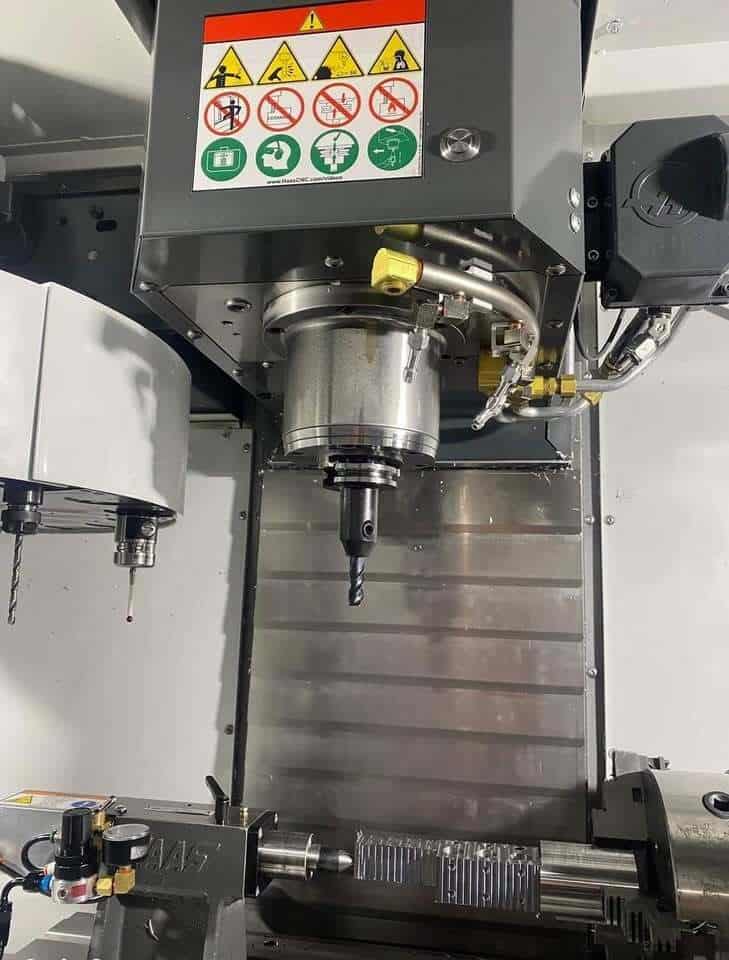

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 30 HP |
| Vector Drive Max Torque: 90 ft-lb @ 2000 RPM |
| Automatic Tool Changer: |
|---|
| Capacity: 20 Station Carousel Type |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 3.5″ |
| Tool Changing Time: 4.2 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 101″ x 99″ x 101″ High |
| Machine Weight: 7800 lbs |
