HAAS VF-2 VERTICAL MACHINING CENTER 4TH AXIS | |
---|---|
Make | Haas |
Model No. | VF-2 |
Year of Manufacture: | 11-94 |

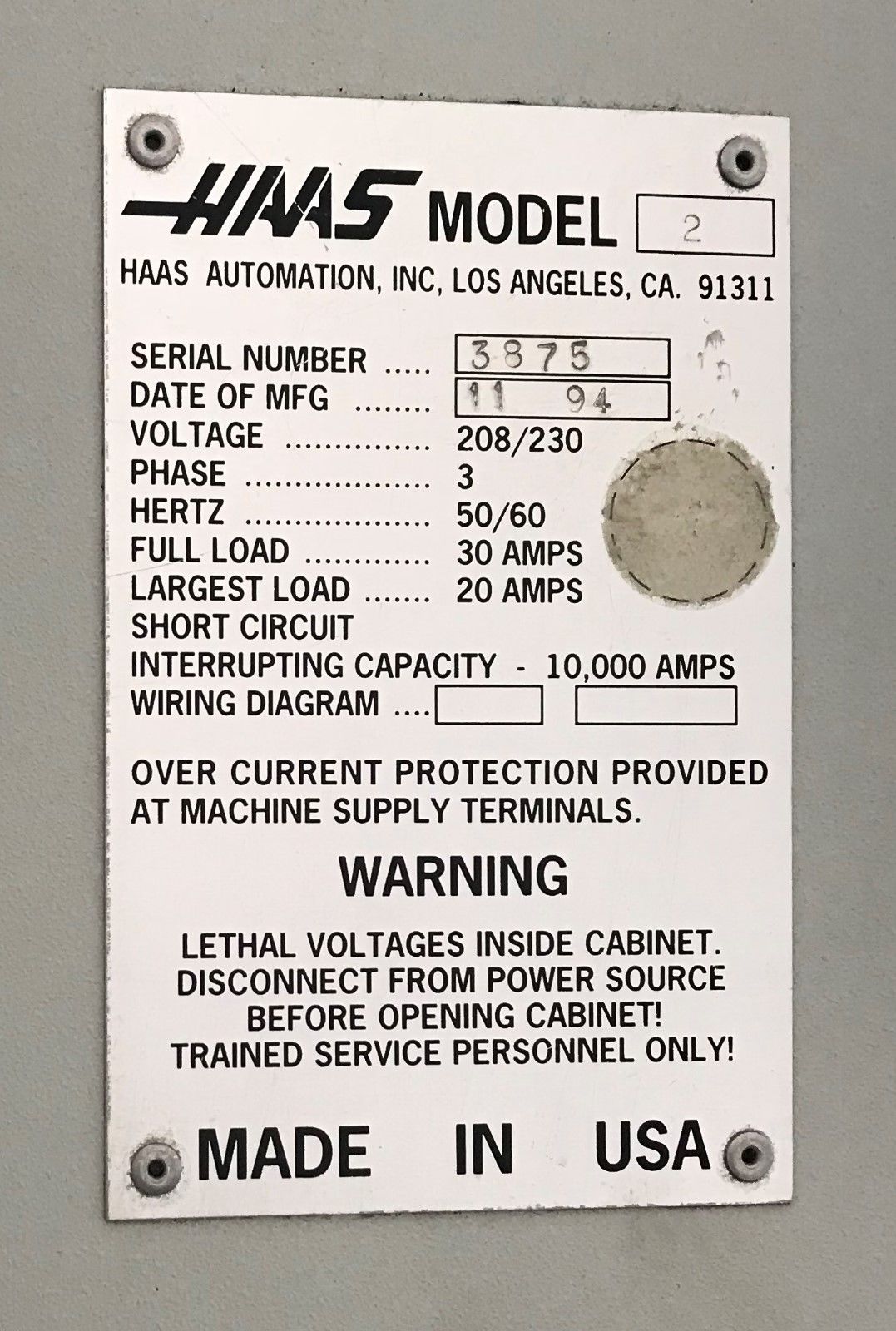

Serial # | 3875 |
Condition | Very Good |
All specifications are approximations and are subject to verification.
“One Owner Machine equipped with 20HP Gear Head Spindle, 7500rpm, 4th Axis Ready. On our Floor now, fully powered / tested & is in Great working condition.”
- HAAS VF-2 Features:
- 20HP High Torque Geared Head Spindle
- 2 Speed Gearbox
- 4th Axis Ready ( drives and wiring installed )

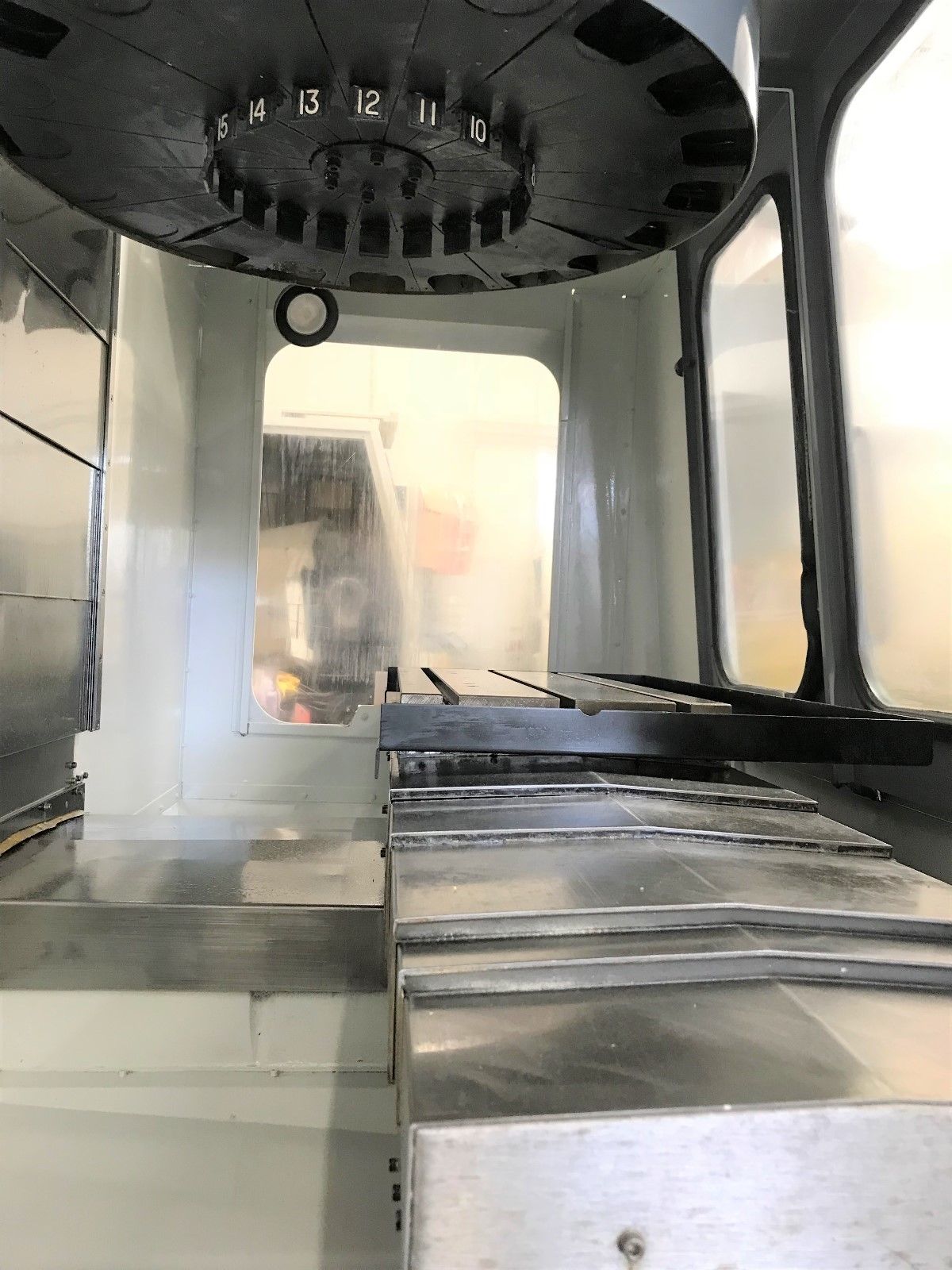

- 20 + 1 automatic tool changer
- Programmable coolant
- Telescopic way covers
- Flood Coolant system
- HAAS VF-2 Specifications:
- Travels:
- X-Axis: 30″
- Y-Axis: 16″
- Z-Axis: 20″
- Rapid Traverse Rates: 710 Inch Per Minute
- Cutting Feed Rates: 500 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 29″

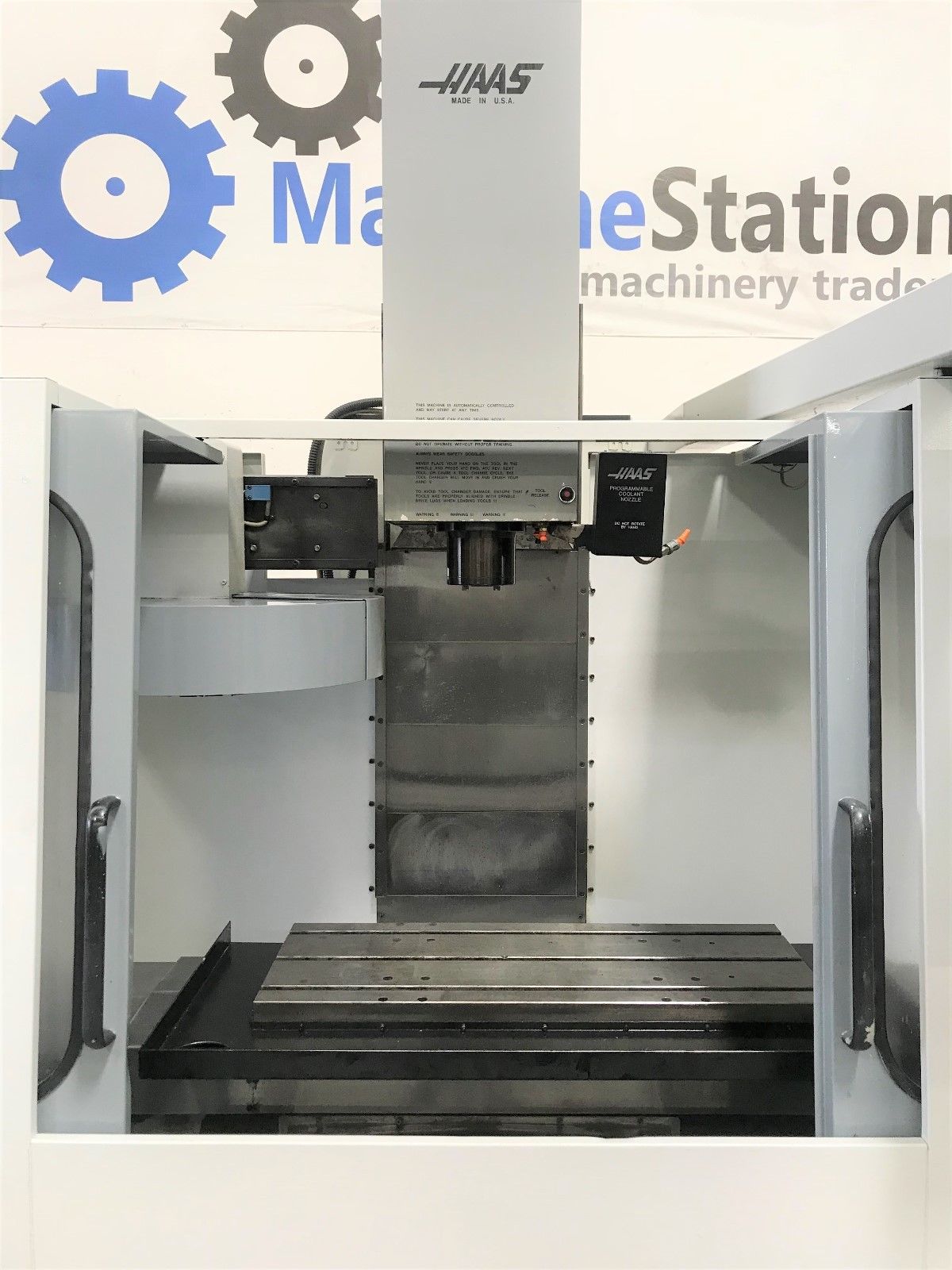

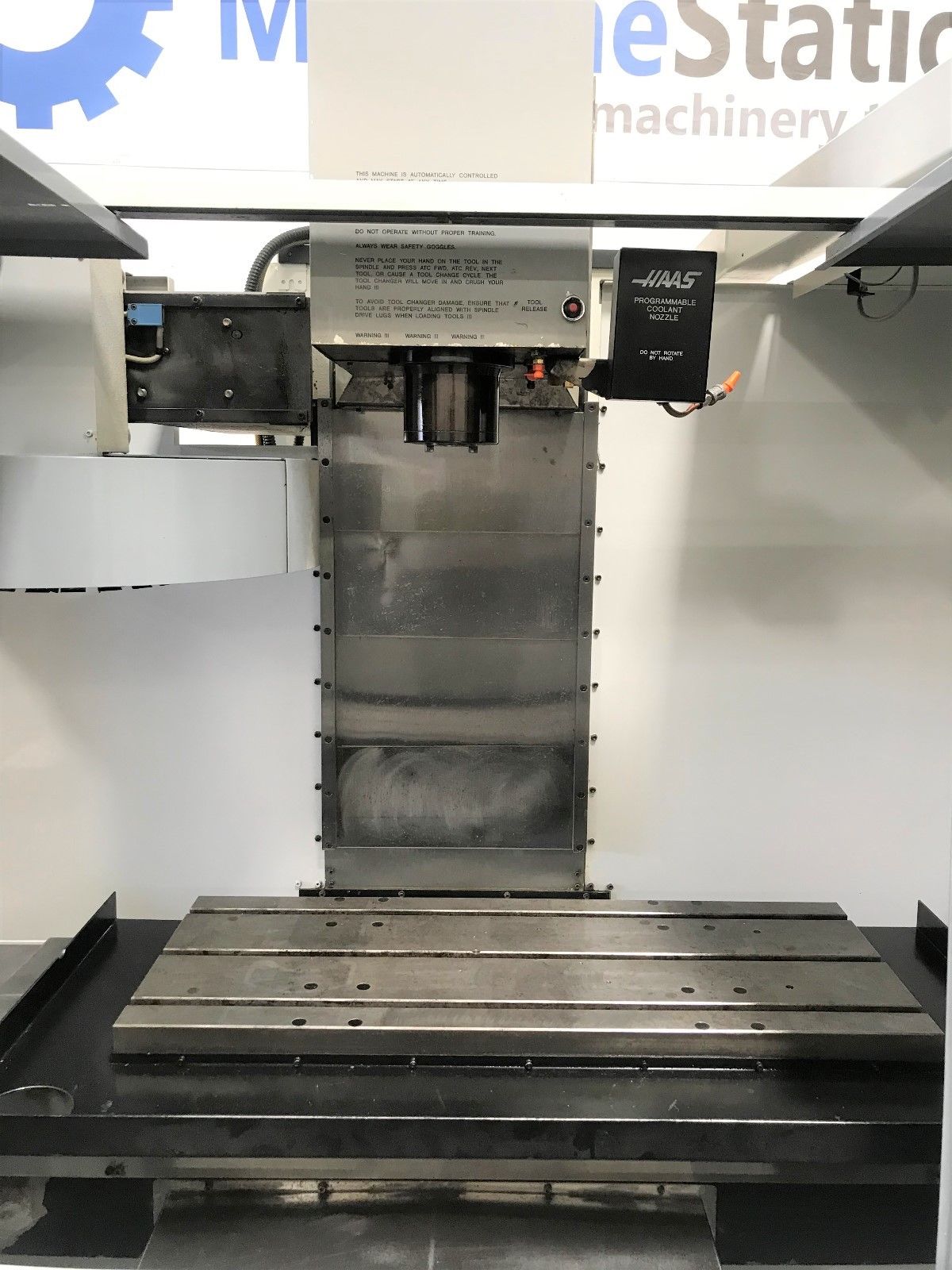

- Table:
- Length: 36″
- Width: 14″
- Number of Std T-Slots: 3
- T-Slot Width: 5/8″
- Max Weight on Table: 1500 lbs
- Spindle:
- Taper Size: 40
- Speed Range: 0 – 7500 RPM
- Spindle Type: Gear Head
- Spindle Power: 20 HP Vector Dual Drive
- Max Torque: 90ft-lb @ 2000 RPM
- Automatic Tool Changer:
- Capacity: 20 + 1
- Max Tool Weight: 12 lbs
- Max Tool Dia: 3.6″
- Max Tool Length: 13″
- Tool Changing Time: 4.2 Seconds
- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 90″ x 88″ x 100″ High
- Weight: 7500 lbs

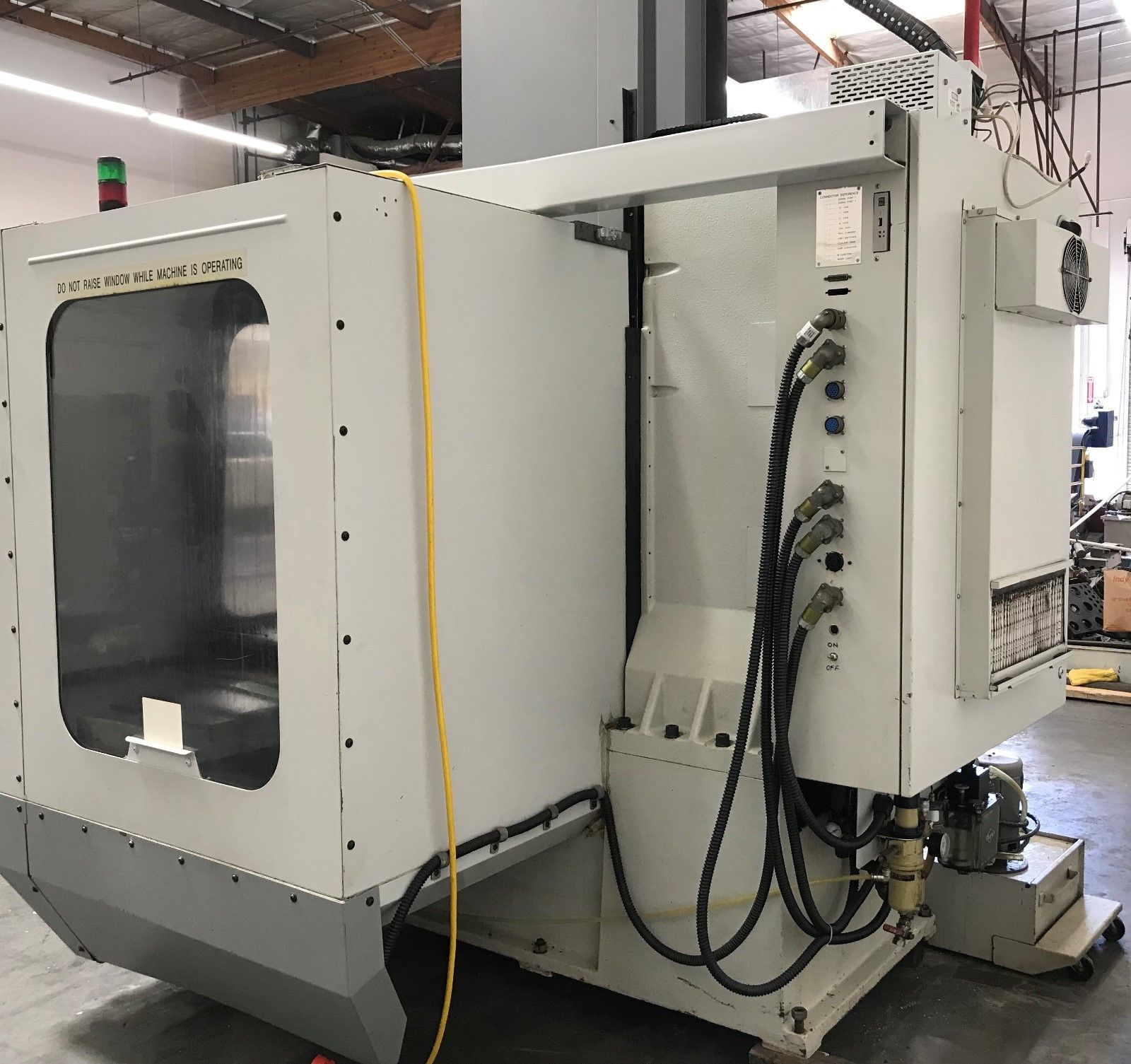

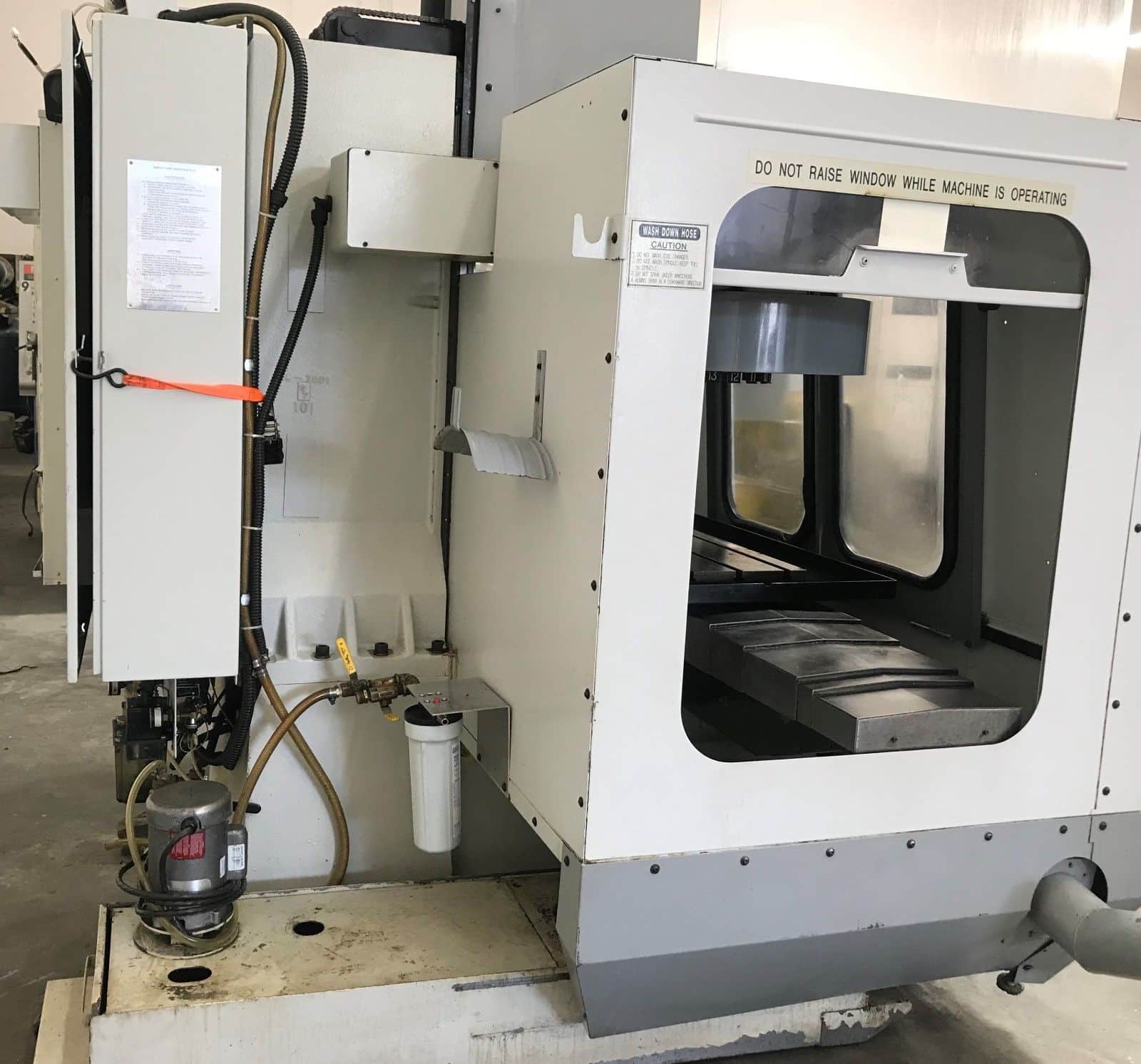

HAAS VF-2 Comes as shown in pictures..
