HAAS VF-2 VMC 4TH AXIS READY | |
---|---|
Make | Haas |
Model No. | VF-2 |
Year of Manufacture: | 1995 |
Serial # | 5929 |
Condition | Very Good |
All specifications are approximations and are subject to verification.
“This Machine was cutting Aluminium only. Equipped with 7500rpm, 4th Axis Ready upgraded LCD Monitor. On our Floor now, fully powered / tested & is in Great working condition.”
- HAAS VF-2 VMC Features:
- Upgraded LCD Monitor
- 4th Axis Ready ( drives and wiring installed )
- Rigid Tapping
- Power Failure Detection Module
- User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
- 20 + 1 automatic tool changer
- Programmable coolant
- Telescopic way covers
- Chip auger
- Floppy Drive
- Flood Coolant system
- RS-232 Port
- HAAS VF-2 VMC Specifications:
- Travels:
- X-Axis: 30″
- Y-Axis: 16″
- Z-Axis: 20″
- Rapid Traverse Rates: 710 Inch Per Minute
- Cutting Feed Rates: 500 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 24″
- Table:
- Length: 36″
- Width: 14″
- Number of Std T-Slots: 3
- T-Slot Width: 5/8″
- Max Weight on Table: 1500 lbs
- Spindle:
- Taper Size: 40
- Speed Range: 0 – 7500 RPM
- Spindle Power: 20 HP Vector Dual Drive
- Max Torque: 90ft-lb @ 2000 RPM
- Automatic Tool Changer:
- Capacity: 20 + 1
- Max Tool Weight: 12 lbs
- Max Tool Dia: 3.6″
- Max Tool Length: 13″
- Tool Changing Time: 3.2 Seconds
- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 90″ x 88″ x 100″ High
- Weight: 7500 lbs

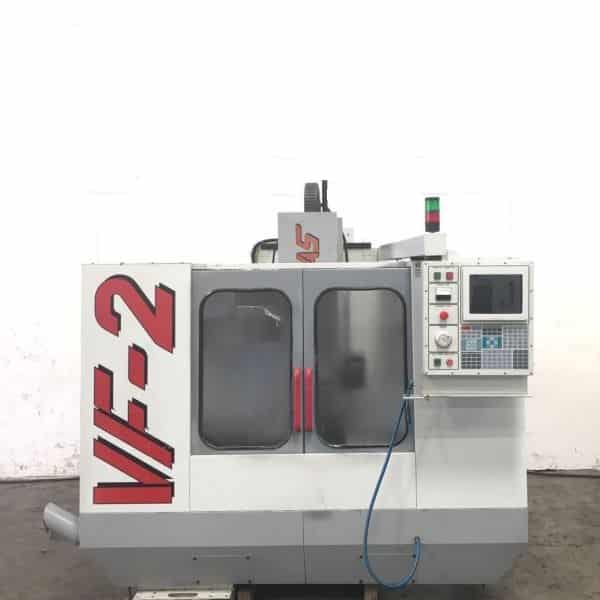

HAAS VF-2 VMC Comes as shown in pictures..
