*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2342 |

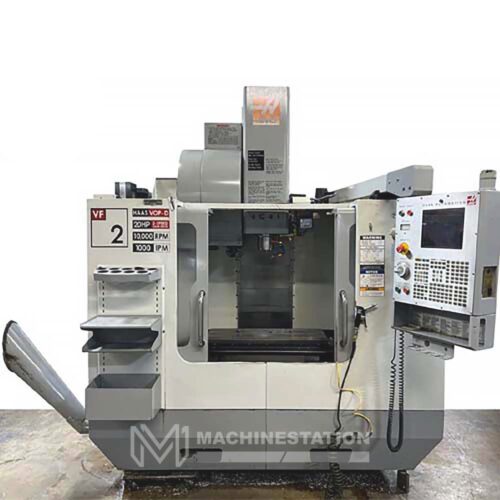

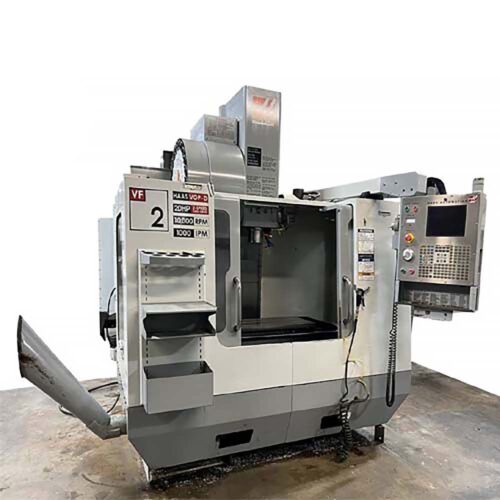

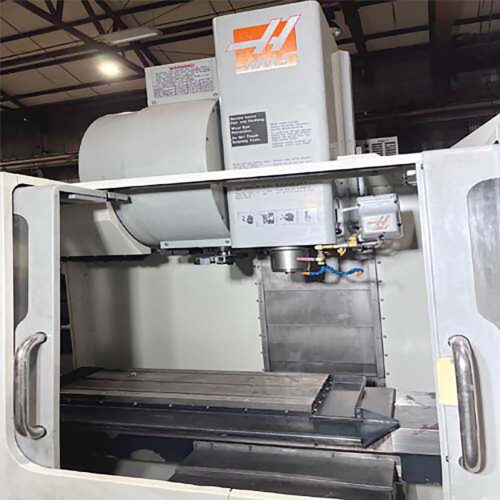

| Make: | Haas |
| Model: | VF-2B |

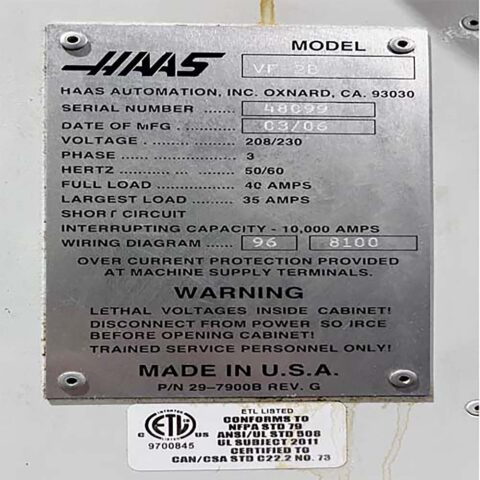

| Serial: | 48099 |
| Year: | 08/2006 |
| Condition: | Very Good |
| Features: |
|---|

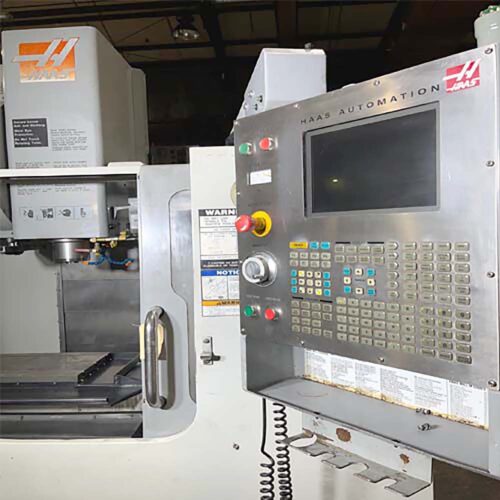

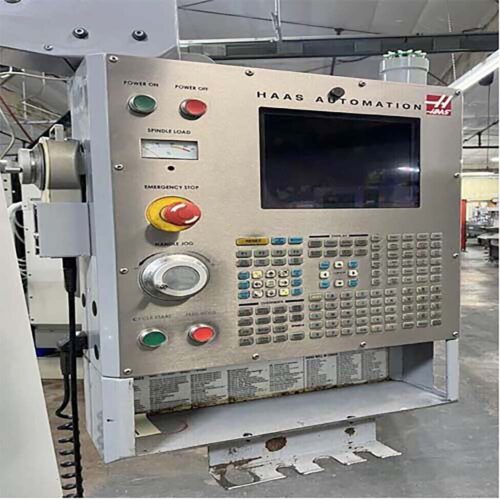

| Haas CNC Control |
| Haas VOP-D Package |
| 20 HP High Torque Spindle Motor |
| 10000 RPM High-Speed Gear-Driven Spindle |

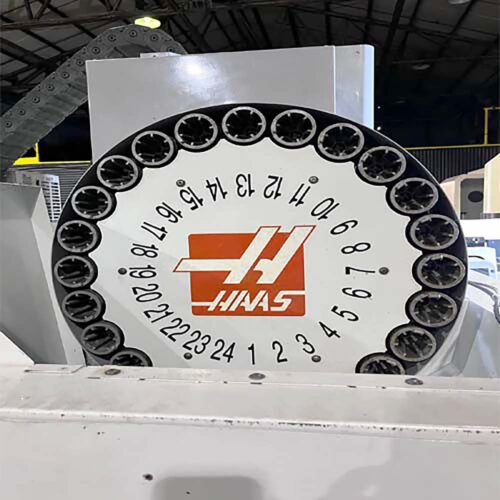

| 24 Station Side Mount Automatic tool changer |
| 1000 IPM Fast Rapid |
| Hand Wheel MPG Control |
| Expanded Memory |
| Quick Code Programming |
| Programmable Coolant |

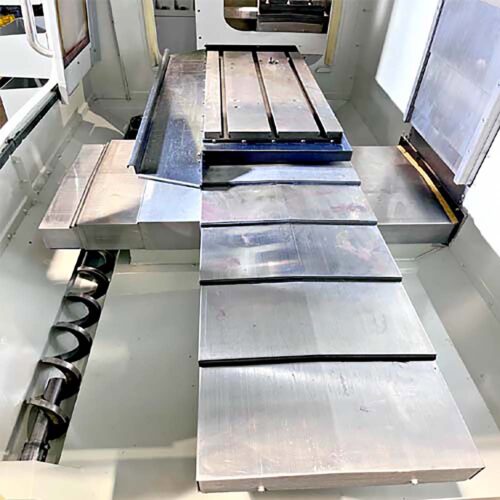

| Telescopic Way Covers |
| Automatic Chip Auger |

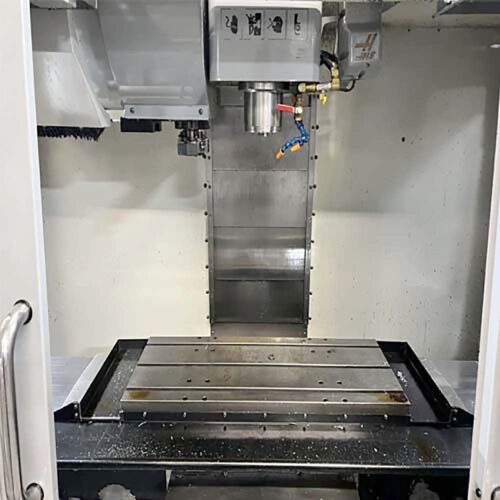

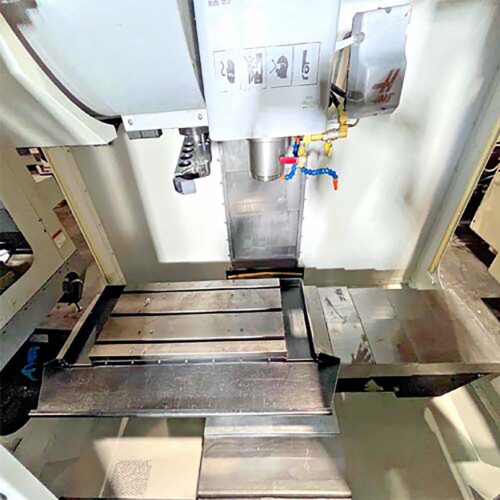

| Table: |
|---|
| Length: 36.0″ |
| Width: 14.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 3000 lbs |
| Automatic Tool Changer: |
|---|
| Capacity: 24 |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 3.5″ |
| Max Tool Length: 11″ |
| Tool Changing Time: 2.2 Seconds |
| Travels: |
|---|
| X-Axis: 30″ |
| Y-Axis: 16″ |
| Z-Axis: 20″ |
| Rapid Traverse Rates: 1000 Inch Per Minute |
| Cutting Feed Rates: 650 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 10000 RPM |
| Spindle Power: 20 HP |
| Vector Dual Drive Max Torque: 90 ft-lb @ 2000 RPM |
| Max Torque w/opt Gearbox : 250 ft-lbf @ 450 RPM |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 101″ x 99″ x 101″ High |
| Weight: 9200 lbs |
