Description

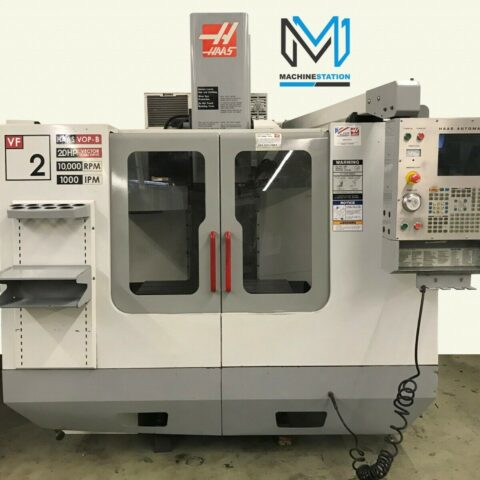

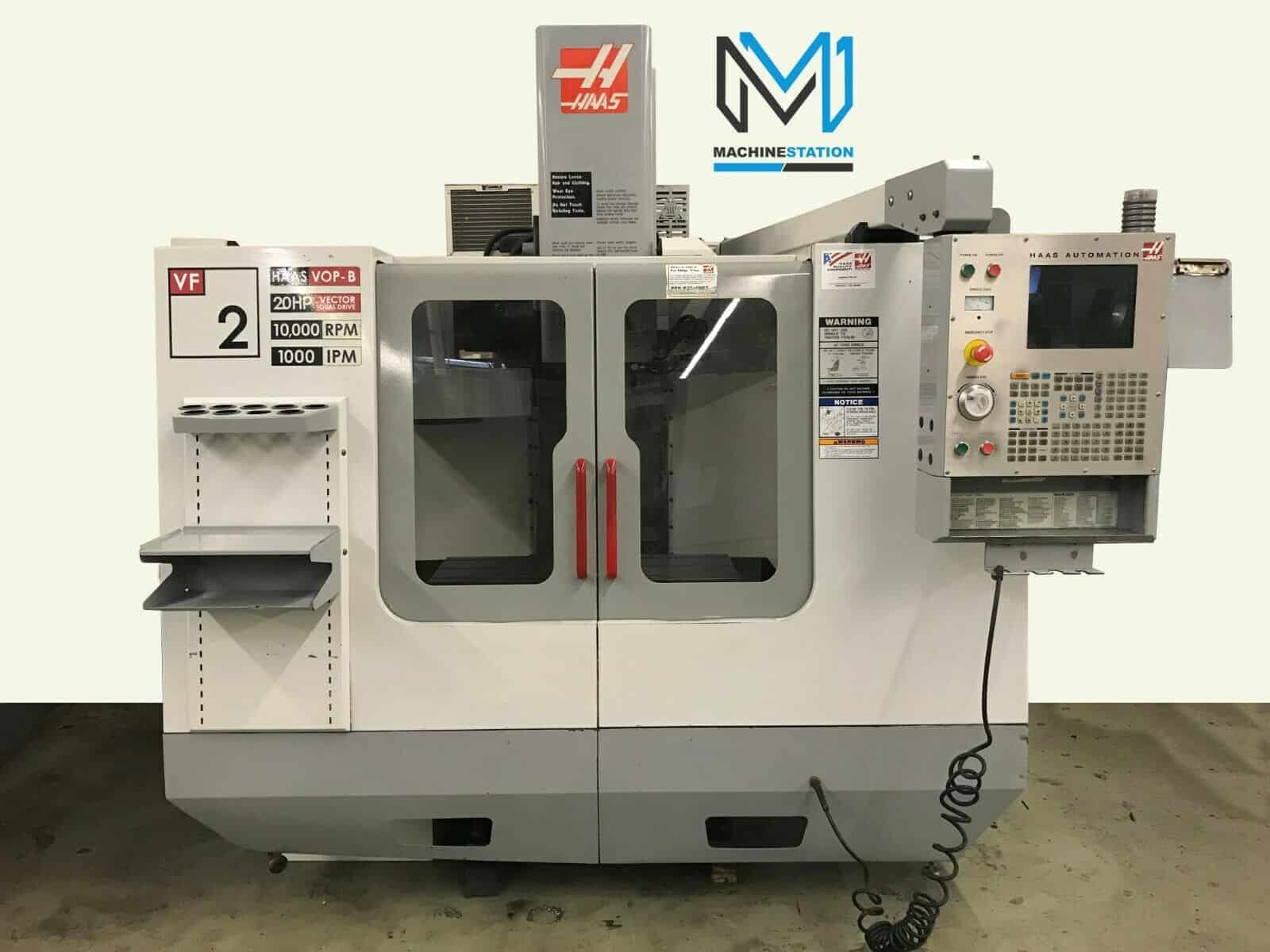

HAAS VF-2D VERTICAL MACHINING CENTER
SKU2074
MakeHaas
Model No.VF-2D
Year04/05
Serial #41831
ConditionVery Good
Servo Time10093
  • Haas VF-2D Features:
  • Haas CNC Control
  • 20 HP High Torque Spindle Motor
  • 10,000 RPM Spindle
  • 20 Automatic tool changer
  • 1000 inch per minute rapids
  • Rigid Tapping
  • Spindle Orientation
  • Programmable Coolant

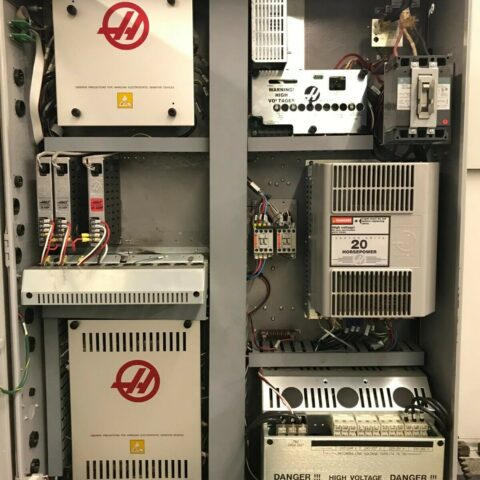

  • Brushless-type servo drive motors on all axis

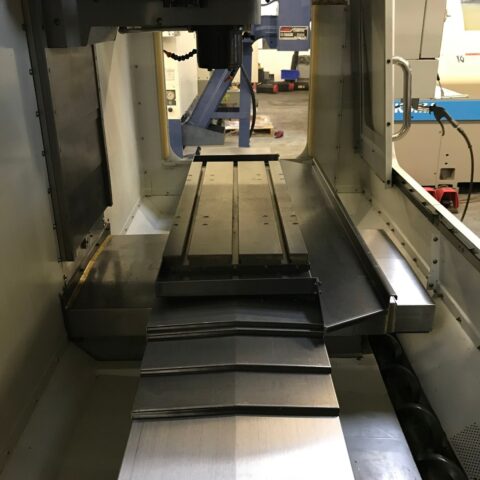

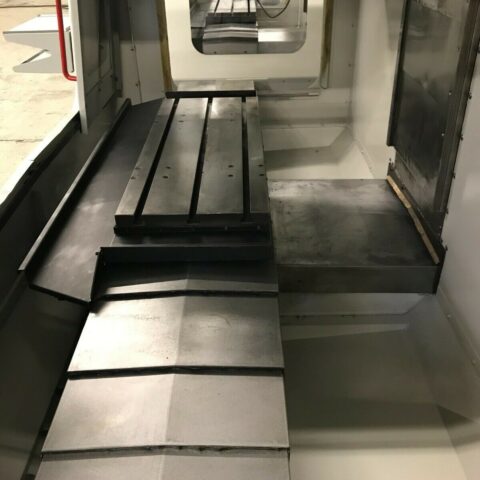

  • Telescopic way covers
  • Chip auger
  • Work Lights
  • Haas VF-2D Specifications:
  • Travels:
  • X-Axis: 30″
  • Y-Axis: 16″
  • Z-Axis: 20″
  • Rapid Traverse Rates: 1000 Inch Per Minute
  • Cutting Feed Rates: 630 Inch Per Minute
  • Spindle Nose to Table (Min.- Max.): 4″ – 24″

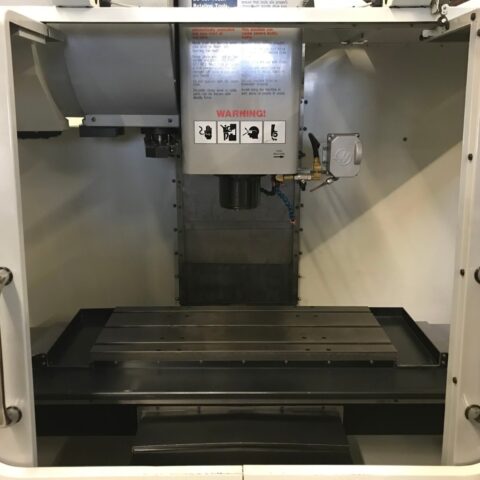

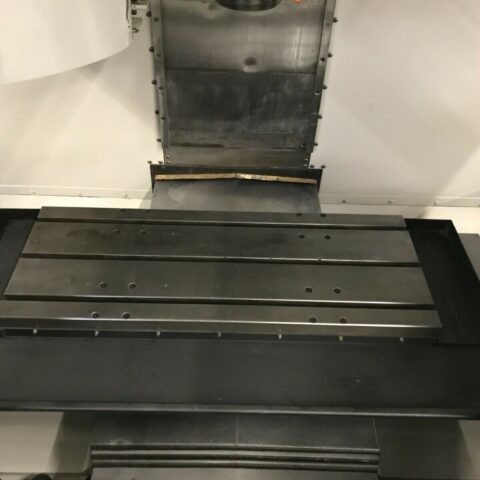

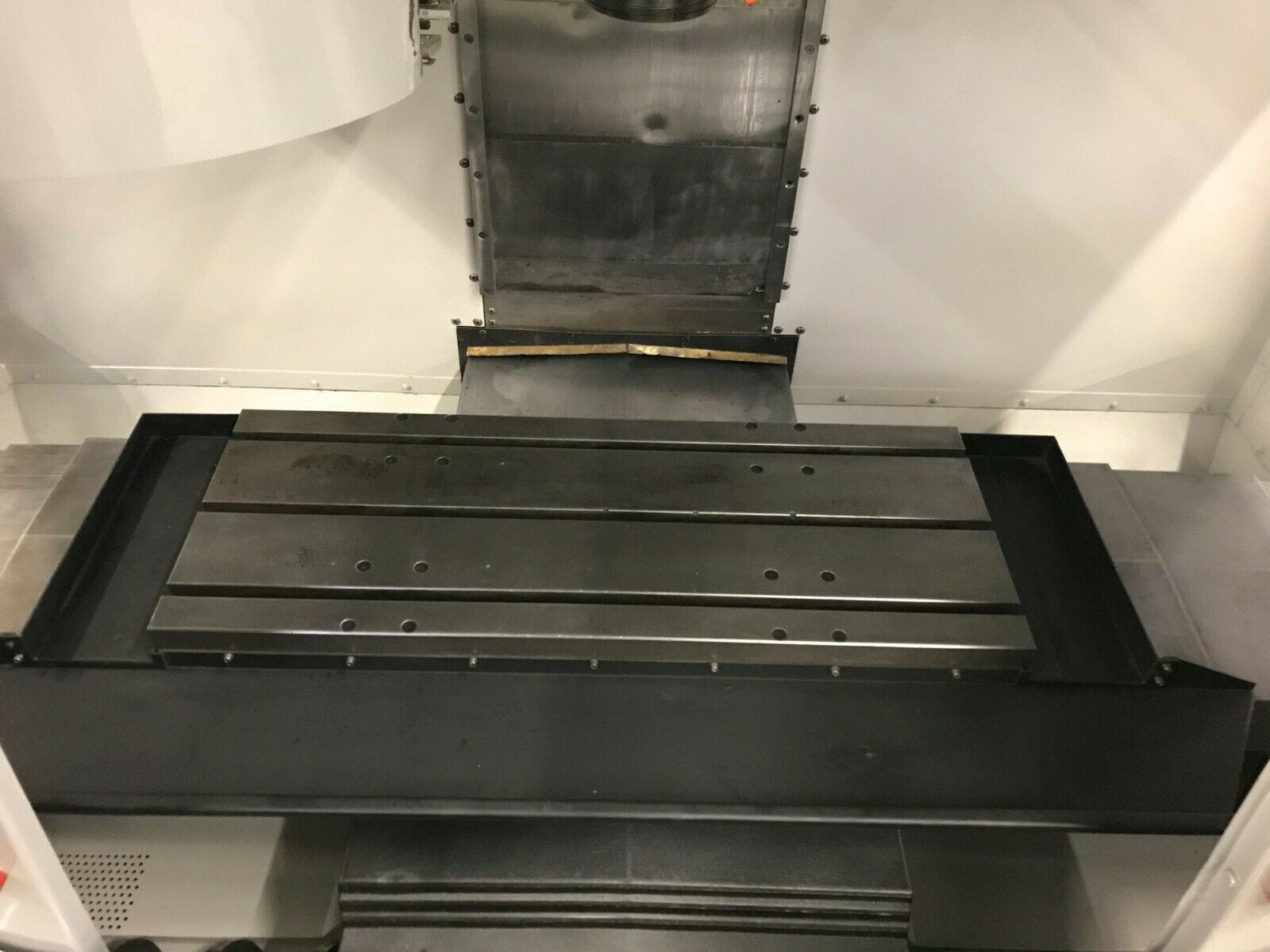

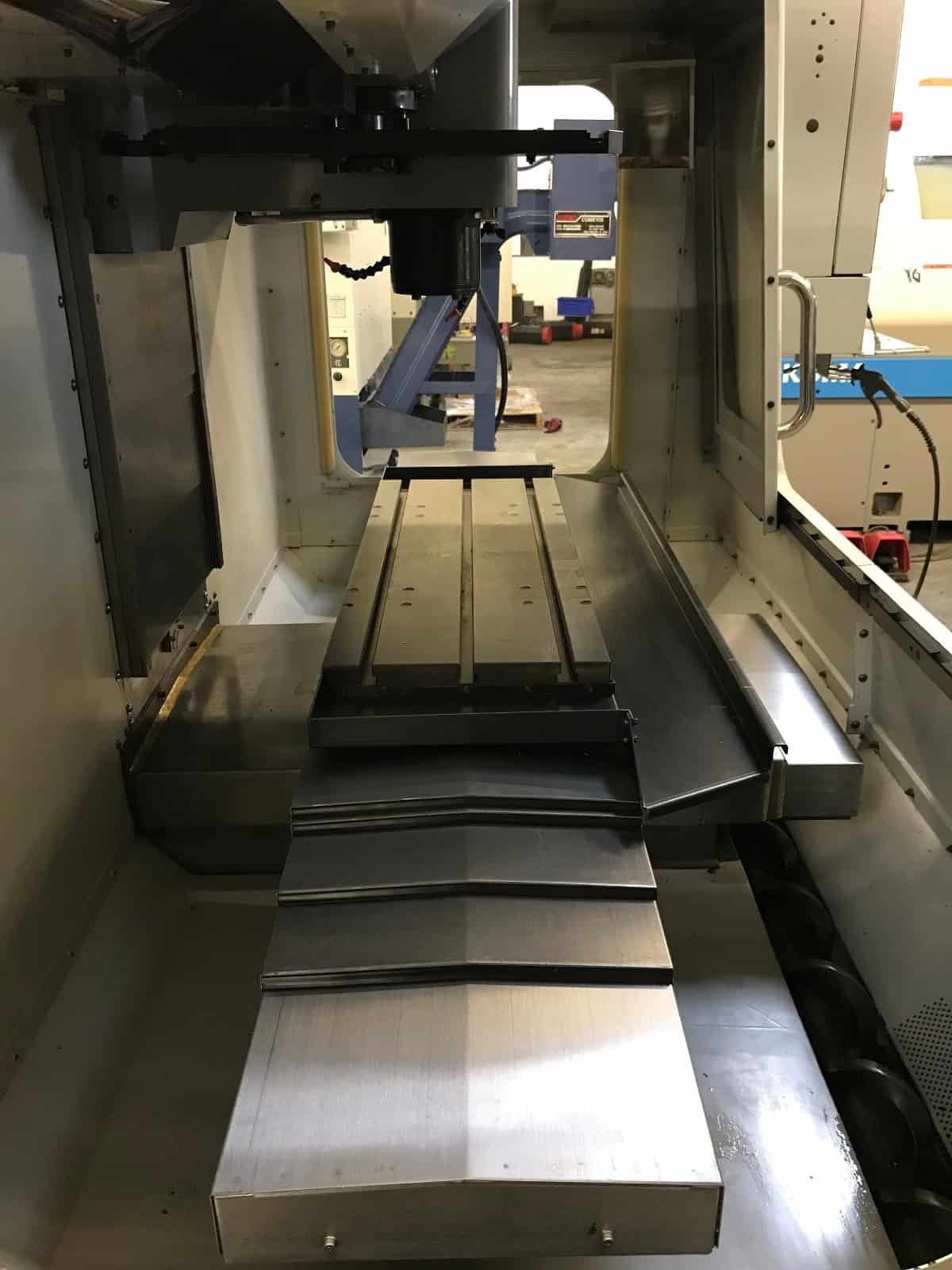

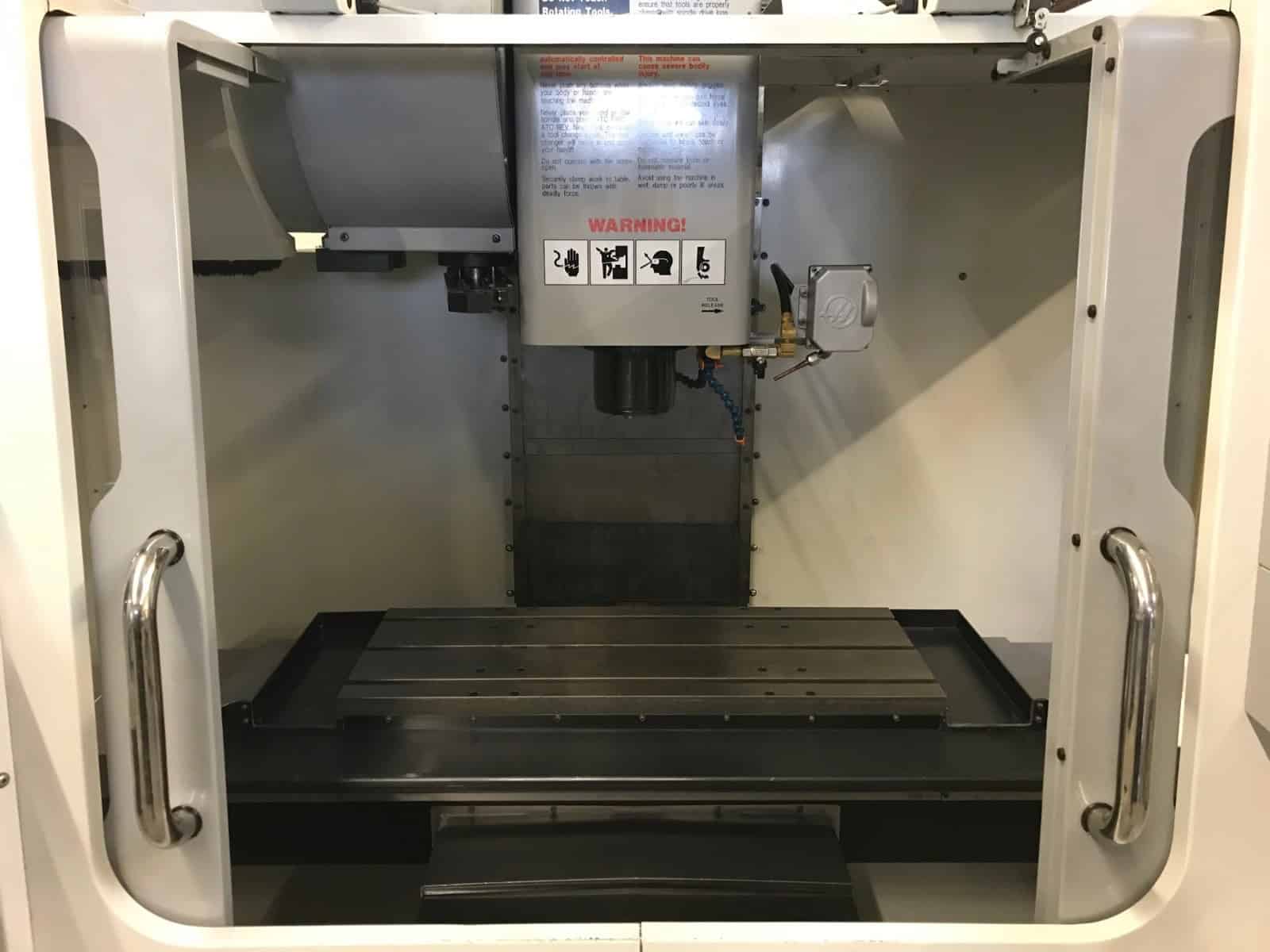

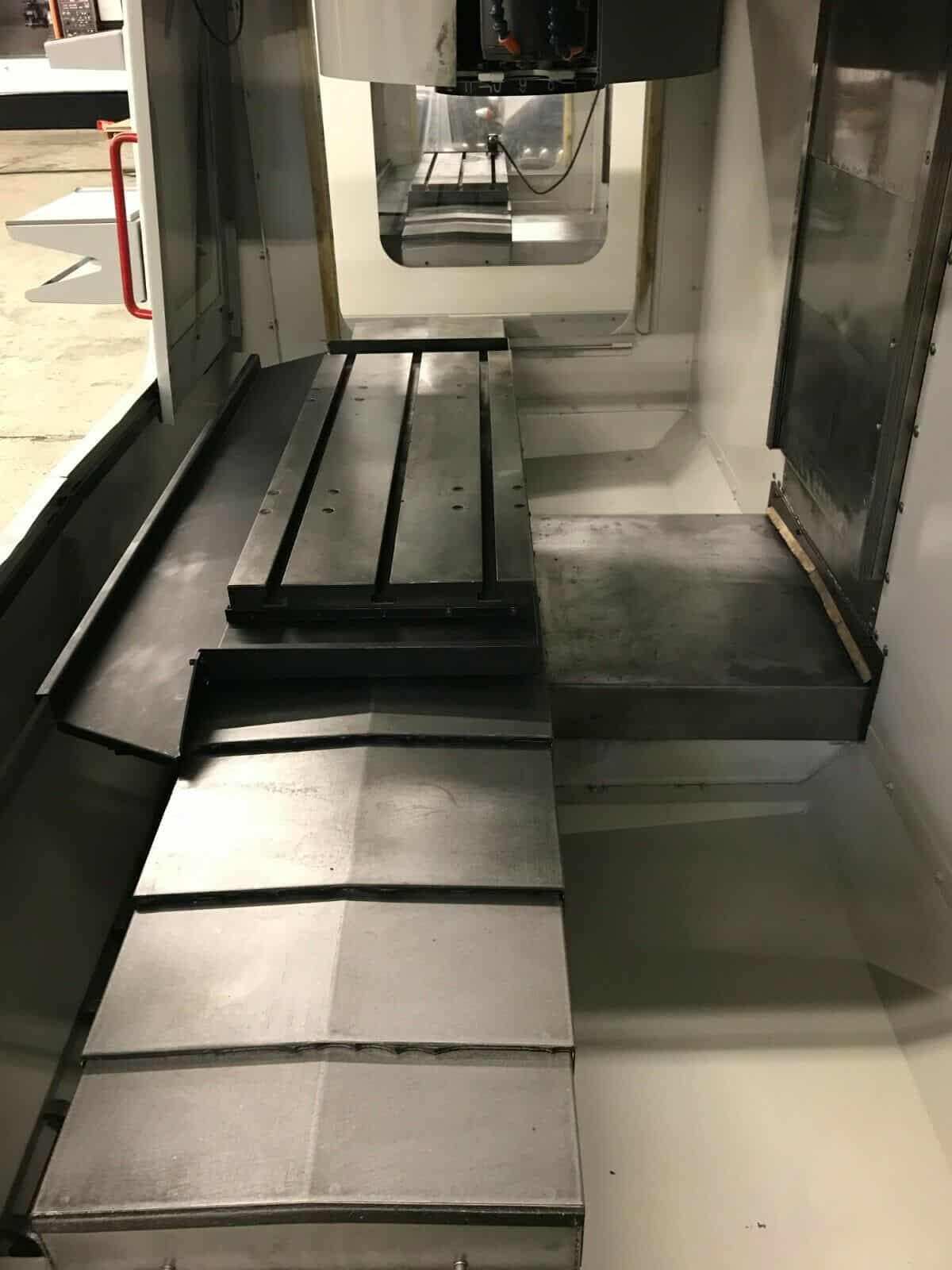

  • Table:
  • Length: 36″
  • Width: 14″
  • Number of Std T-Slots: 3
  • T-Slot Width: 5/8″
  • Max Weight on Table: 1800 lbs

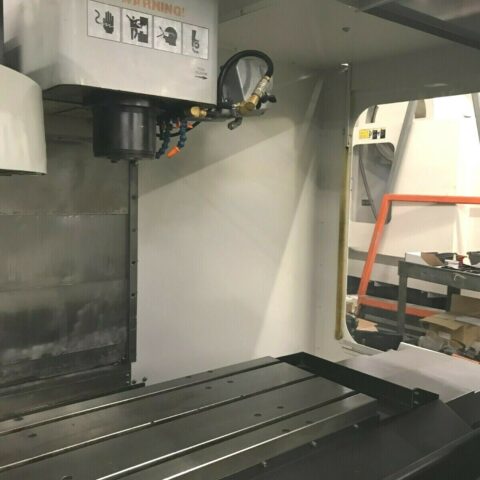

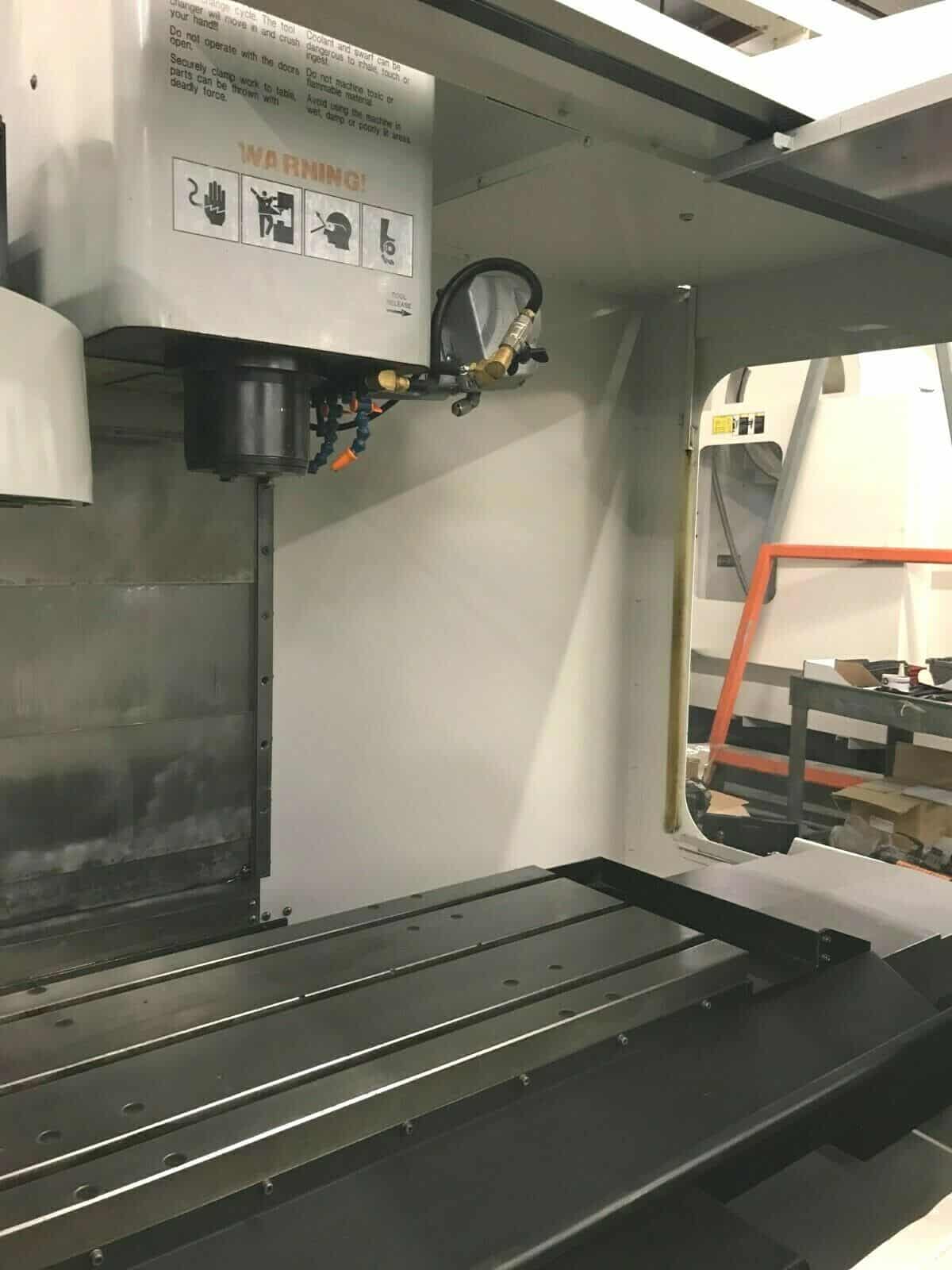

  • Spindle:
  • Taper Size: 40
  • Speed Range: 10,000 RPM
  • Spindle Power: 20 HP
  • Vector Dual Drive Max Torque: 90ft-lb @ 2000RPM

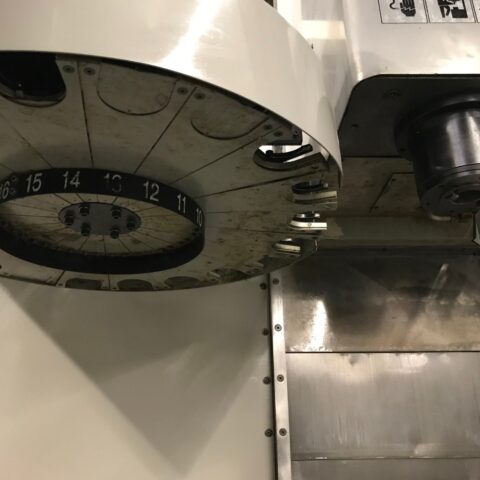

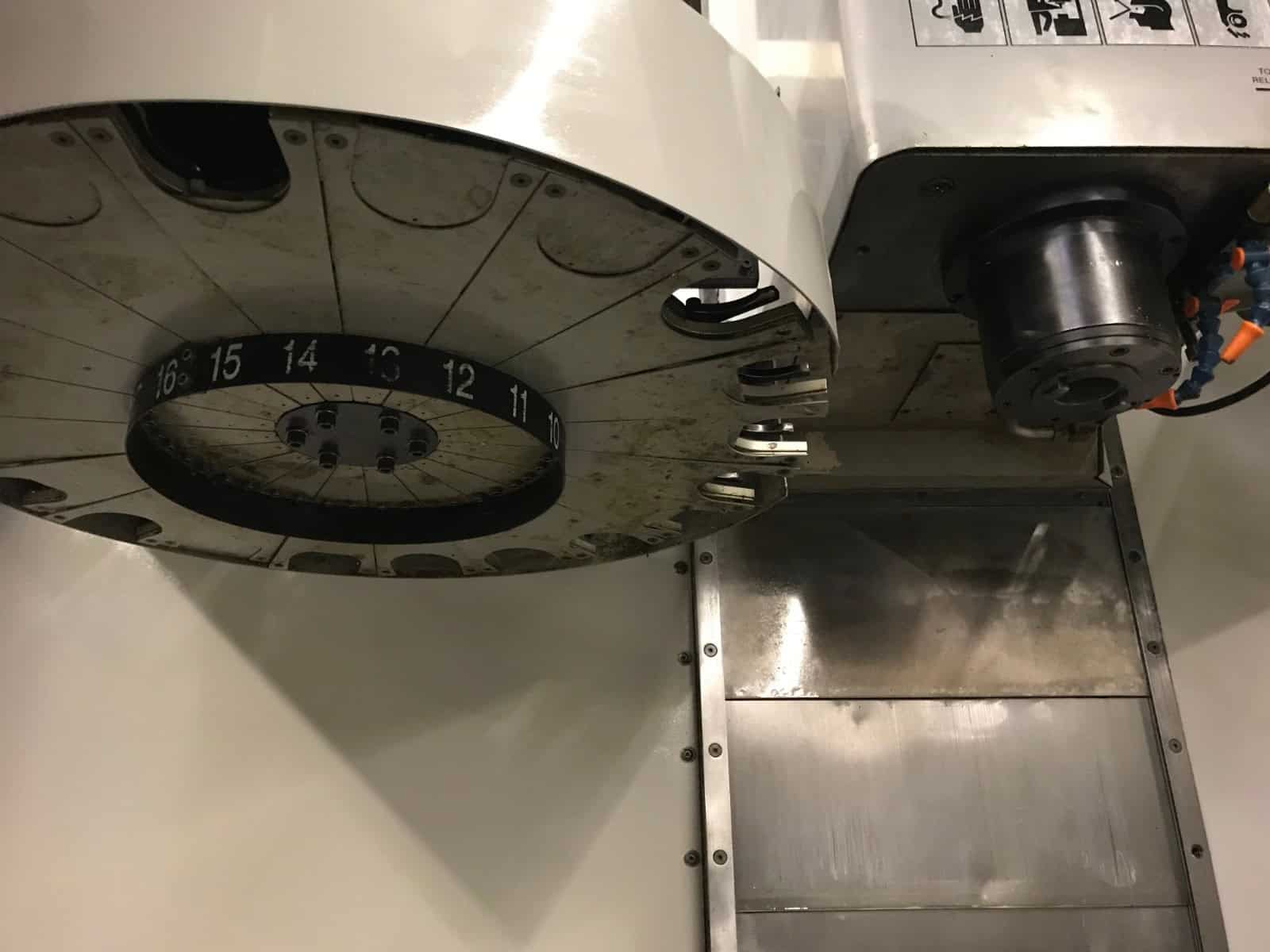

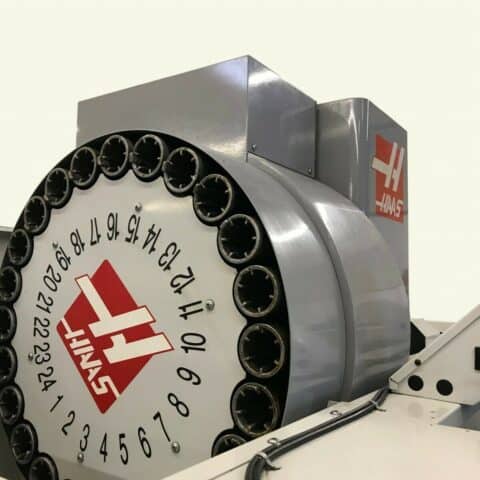

  • Automatic Tool Changer:
  • Capacity: 20
  • Max Tool Weight: 12 lbs
  • Max Tool Dia: 3.6″
  • Max Tool Length: 11″
  • Tool Changing Time: 2.2 Seconds
  • General:
  • Air Required: 100 psi, 4 scfm

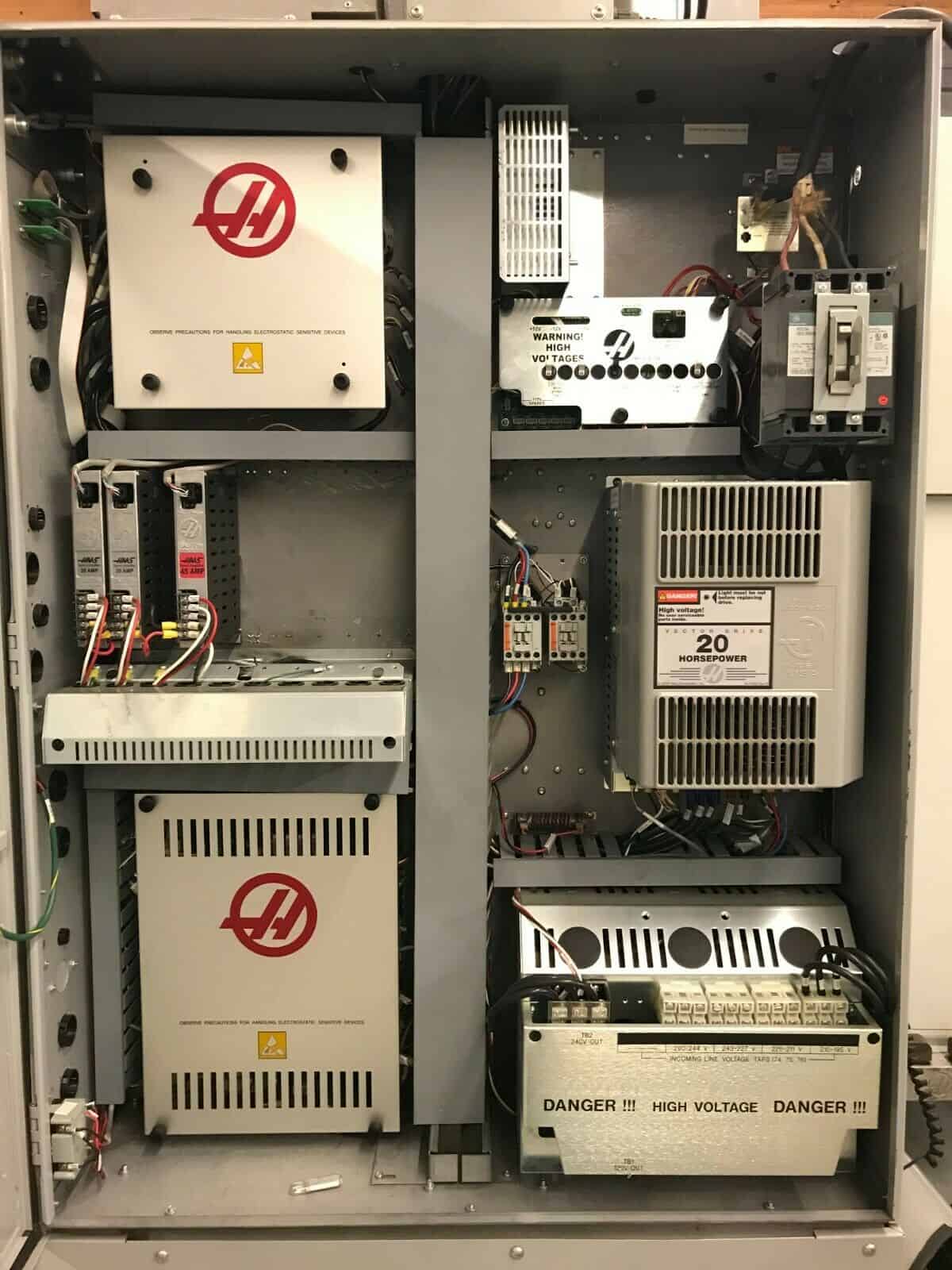

  • Power: 220v / 66FLA / 3-Phase
  • Overall Dimensions: 90″ x 80″ x 100″ High
  • Weight: 9200 lbs
