Haas VF-2SS CNC Vertical Machining Center

Out of stock
SKU: 1564
Make/Model: Haas VF-2SS
Video: [fusion_button link=”https://www.youtube.com/watch?v=Ws3l2DTNjQo” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1564

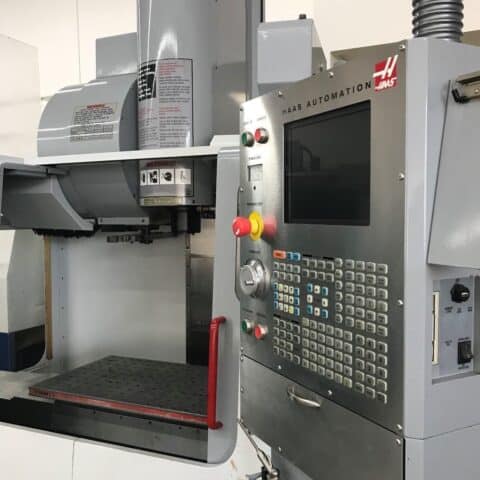

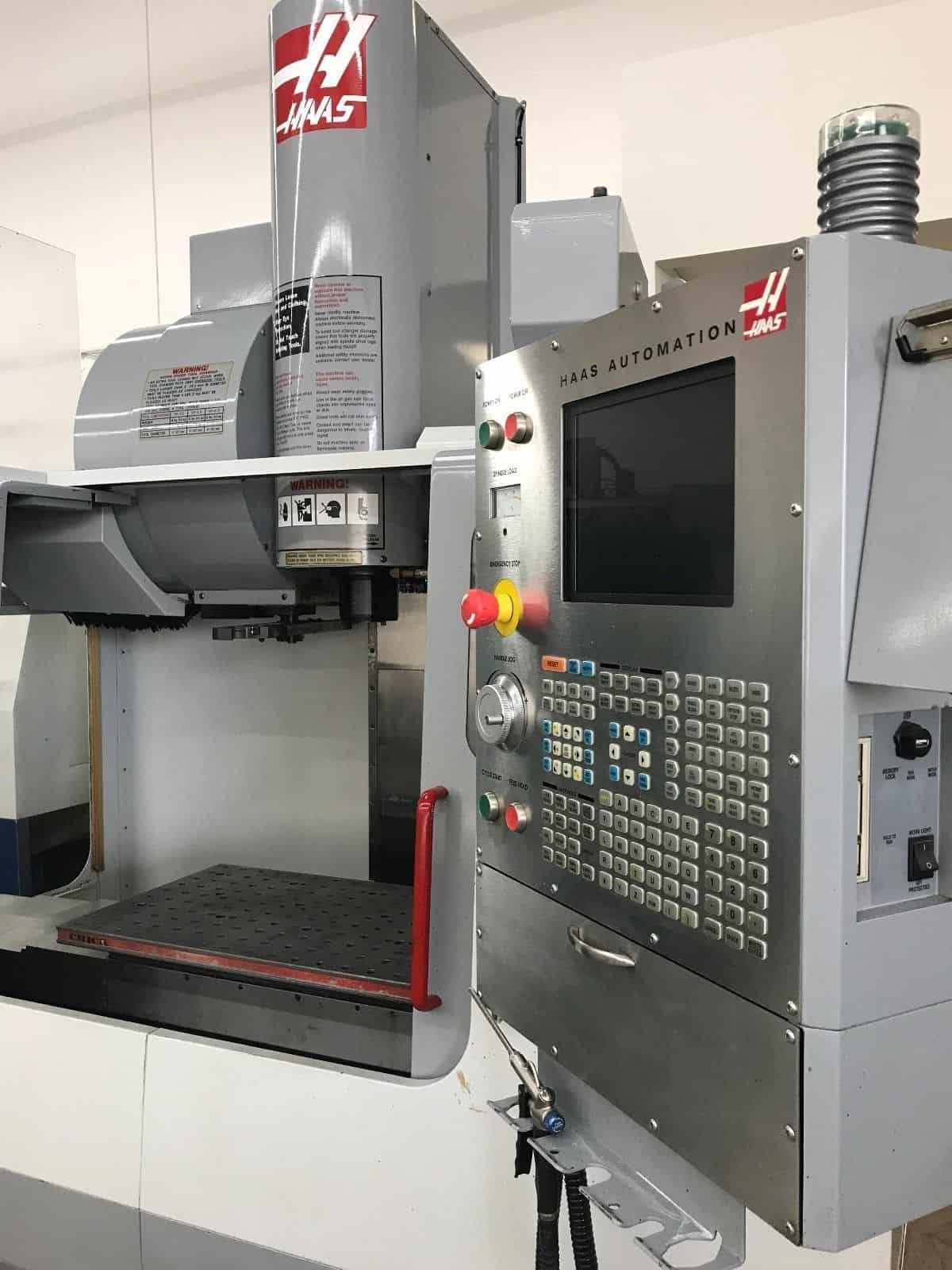

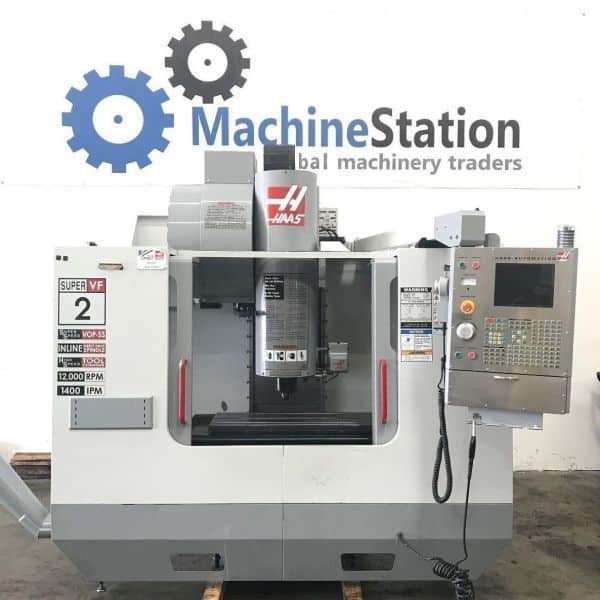

HAAS VF-2SS VERTICAL MACHINING CENTER
Make Haas
Model No. VF-2SS

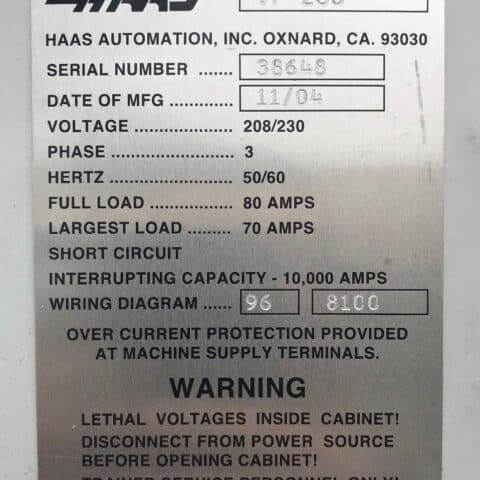

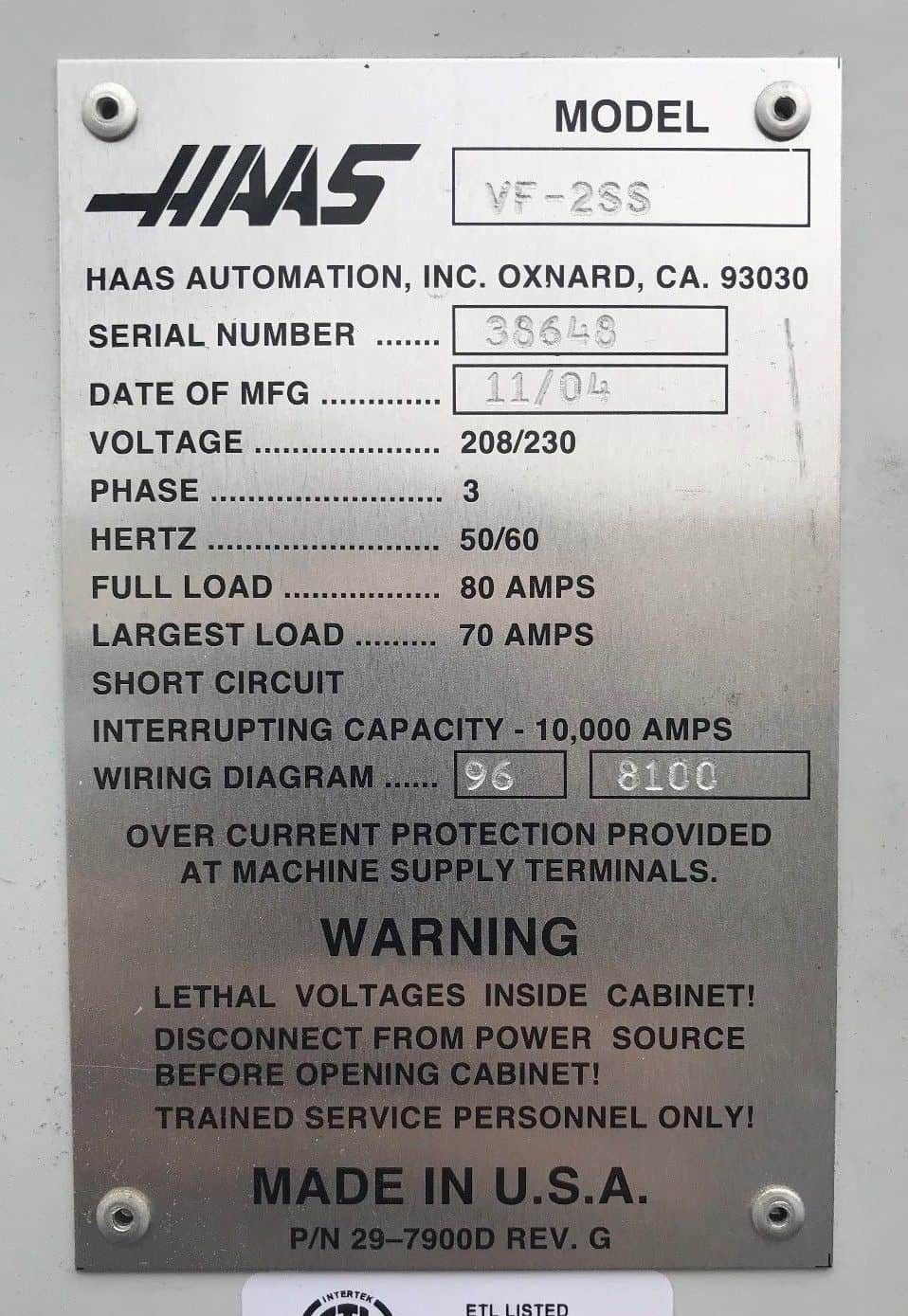

Serial # 38648
Condition Very Good
  • HAAS VF-2SS VERTICAL MACHINING CENTER Equipped With:
  • 12,000 RPM Direct Drive Spindle
  • 4th Axis Ready
  • Automatic Air Gun
  • 1400 Inch Per Min. Rapid
  • Rigid Tapping
  • USB Drive
  • User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling

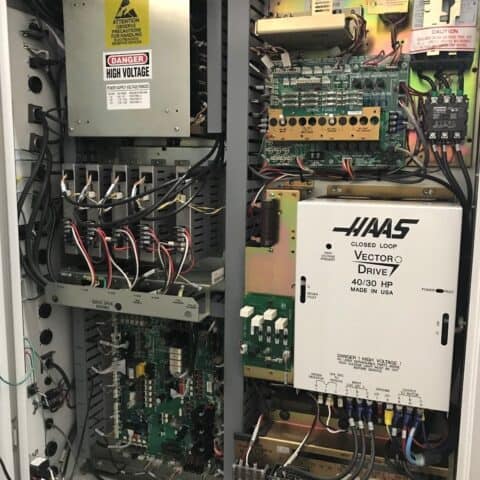

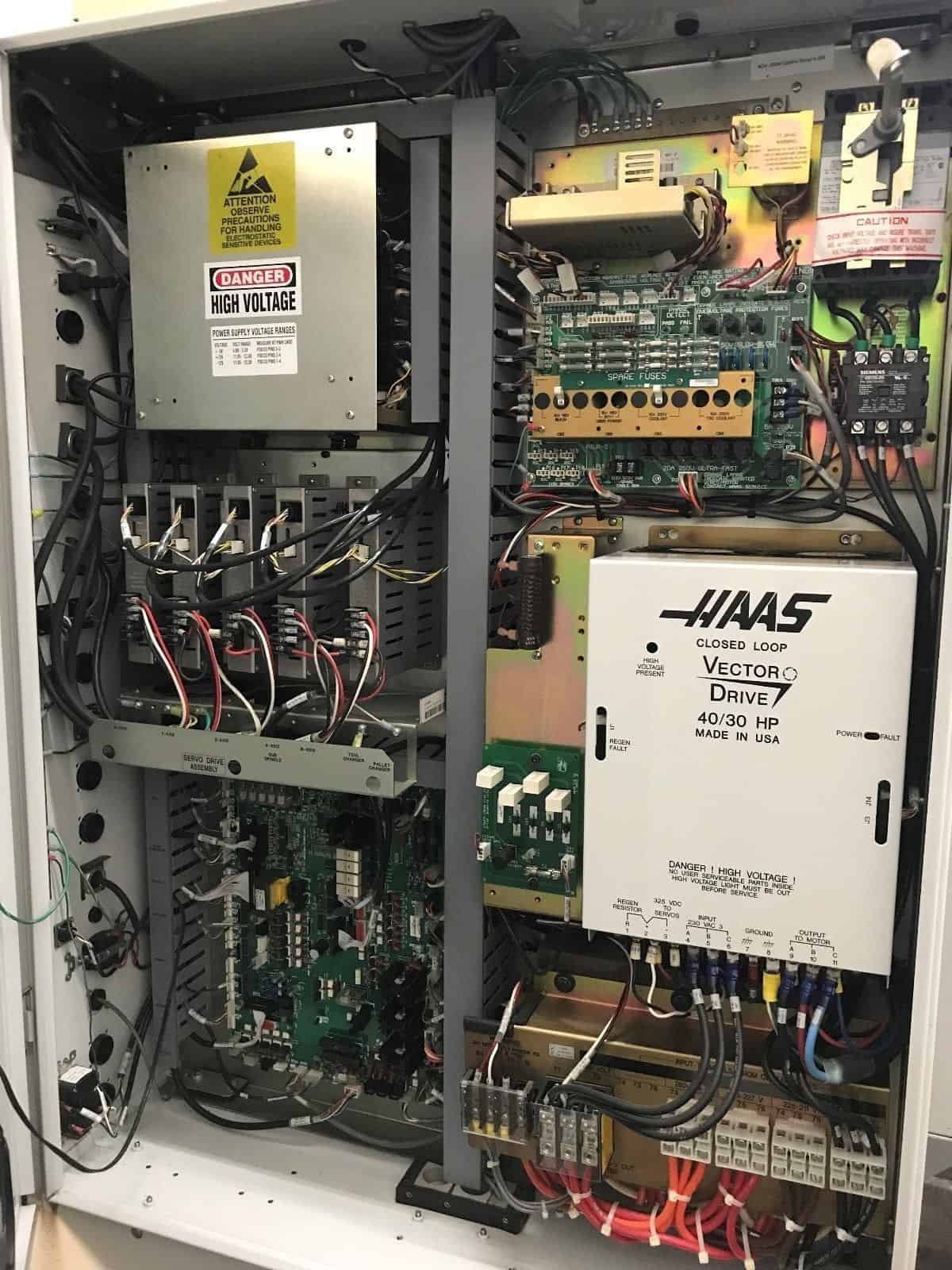

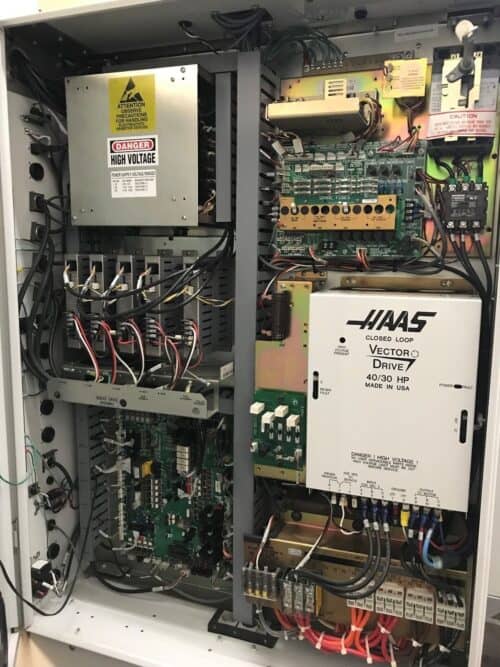

  • Brushless servo drive motors on all axis
  • 24 + 1 automatic high speed tool changer
  • Programmable coolant

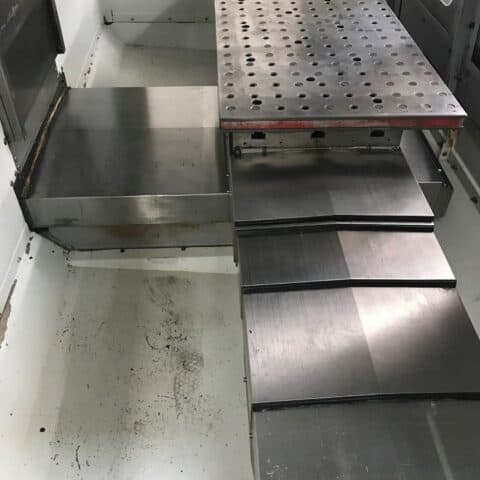

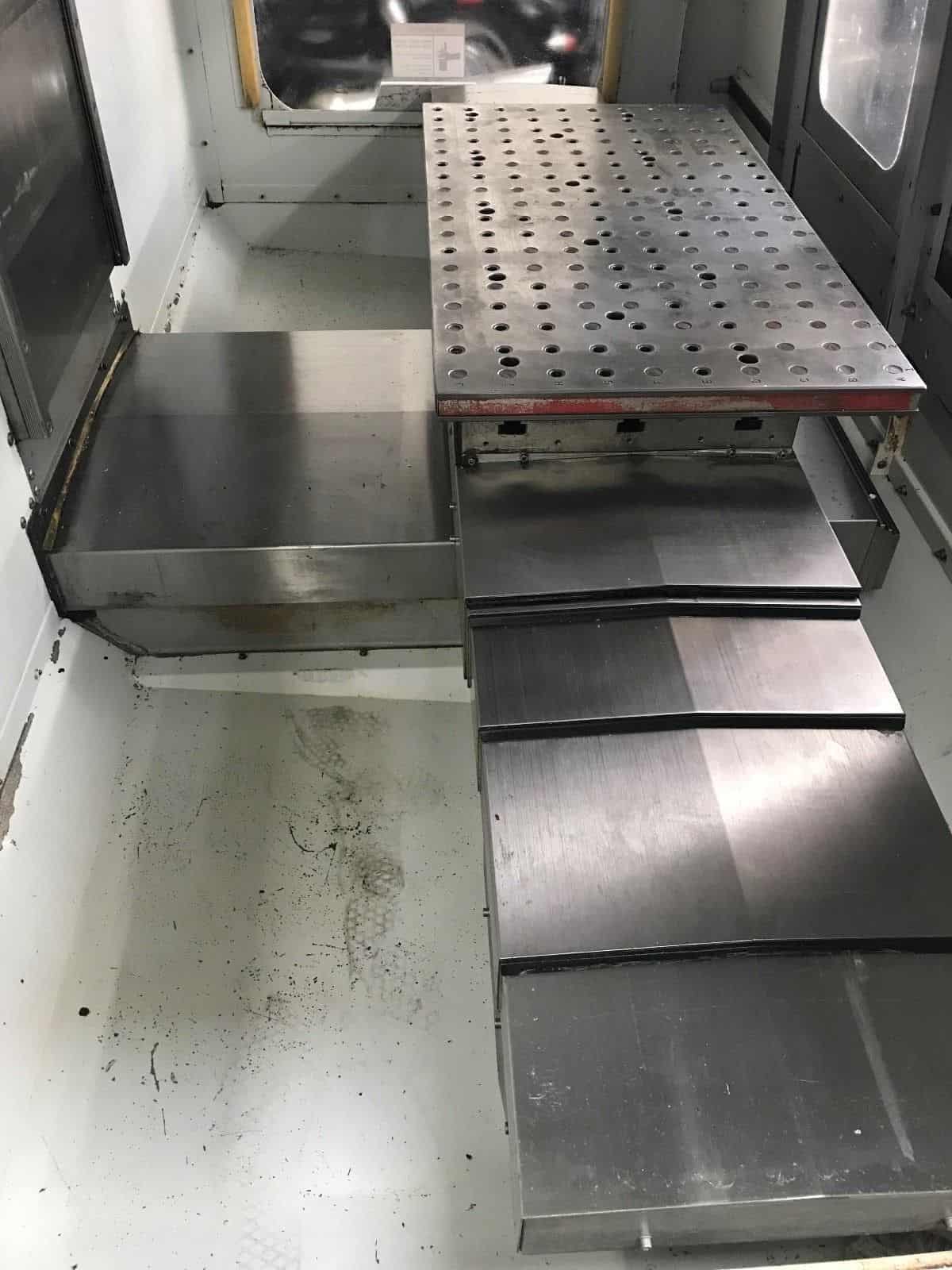

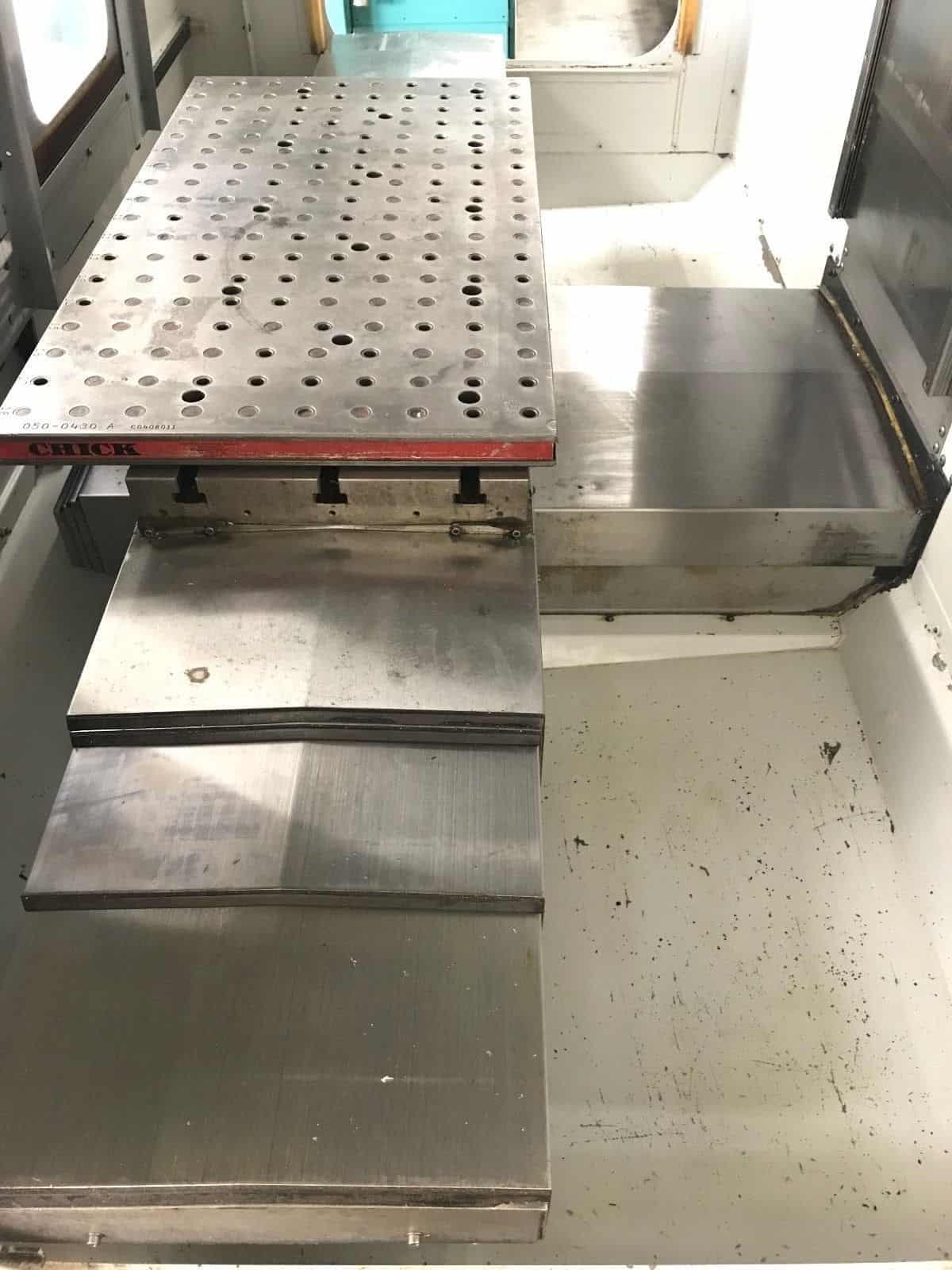

  • Telescopic way covers
  • Chip auger
  • Flood Coolant system
  • Tooling Shelves
  • Tool Clamping Vise
  • Levelling Pads
  • Original Manuals
  • HAAS VF-2SS VERTICAL MACHINING CENTER Specifications:
  • Travels:
  • X-Axis: 30″
  • Y-Axis: 16″
  • Z-Axis: 20″
  • Rapid Traverse Rates: 1400 Inch Per Minute
  • Cutting Feed Rates: 833 Inch Per Minute
  • Spindle Nose to Table (Min.- Max.): 4″ – 24″

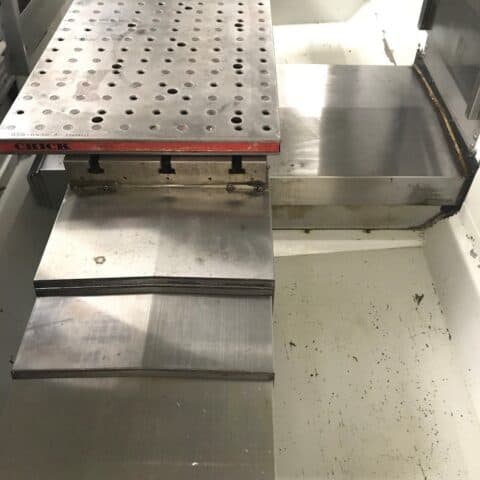

  • Table:
  • Length: 36″
  • Width: 14″
  • Number of Std T-Slots: 3
  • T-Slot Width: 5/8″
  • Max Weight on Table: 1500 lbs
  • Spindle:
  • Taper Size: 40
  • Speed Range: 0 – 12,000 RPM
  • Spindle Power: 30 HP
  • Max Torque: 90ft-lb @ 2000RPM
  • Automatic Tool Changer:
  • Capacity: 24 + 1
  • Max Tool Weight: 12 lbs
  • Max Tool Dia: 5″
  • Max Tool Length: 11″
  • Tool-to-Tool (avg.): 1.6 seconds
  • Chip to Chip (avg.): 2.2 seconds
  • General:
  • Air Required: 100 psi, 4 scfm
  • Power: 220v / 66FLA / 3-Phase
  • Overall Dimensions: 89″ x 92″ x 104″ High
  • Weight: 9200 lbs
