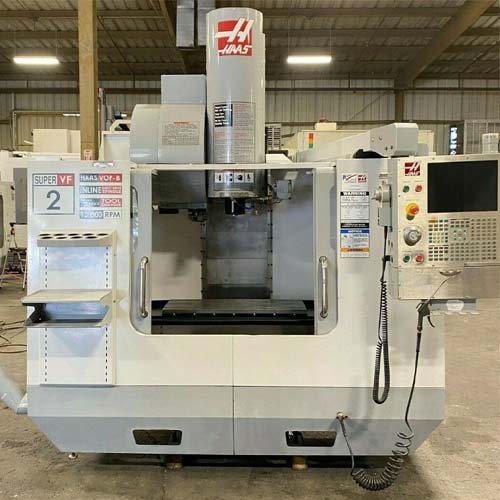

Haas VF-2SS CNC Vertical Machining Center
Out of stock
| HAAS VF-2SS CNC CNC VERTICAL MACHINING CENTER |
| SKU |
2297 |
| Make |
Haas |
| Model No. |
VF-2SS |
| Serial # |
1063011 |
| Year |
2007 |
| Condition |
Very Good |
| Cutting Hours: |
only |
- Features:

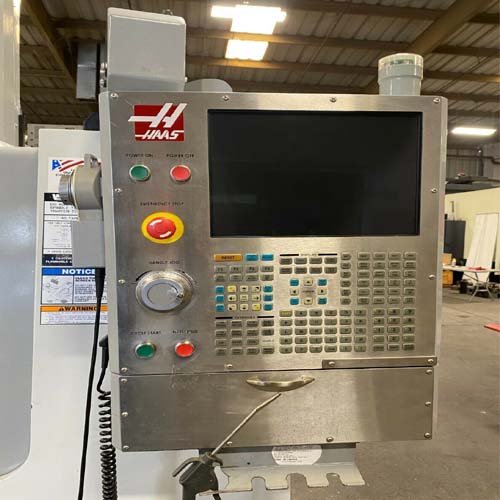

- Haas CNC Control
- 12000 RPM Inline Direct Drive Spindle

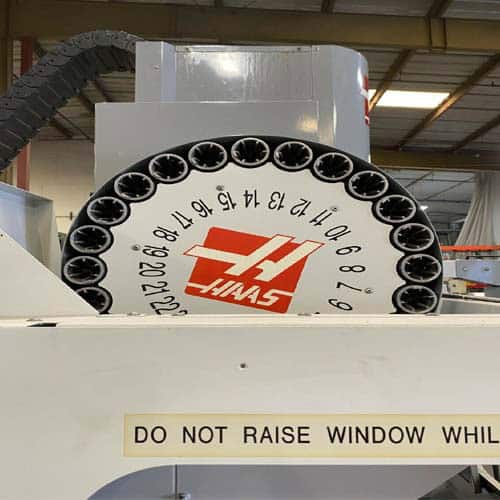

- 24 Side Mount Automatic tool changer
- Remote Jog Handle
- 4th Axis Ready
- Coordinate Scale
- Rigid Tapping
- Spindle Orientation
- Programmable Coolant
- Automatic Chip Auger
- Coolant Tank and Pump
- Specifications:
- Travels:
- X-Axis: 30″
- Y-Axis: 16″
- Z-Axis: 20″
- Rapid Traverse Rates: 1400 Inch Per Minute
- Cutting Feed Rates: 833 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 24″

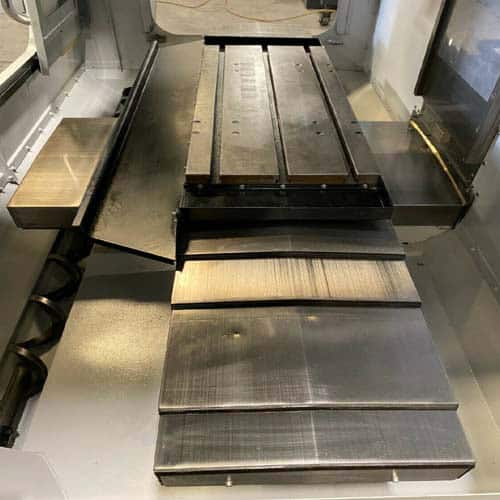

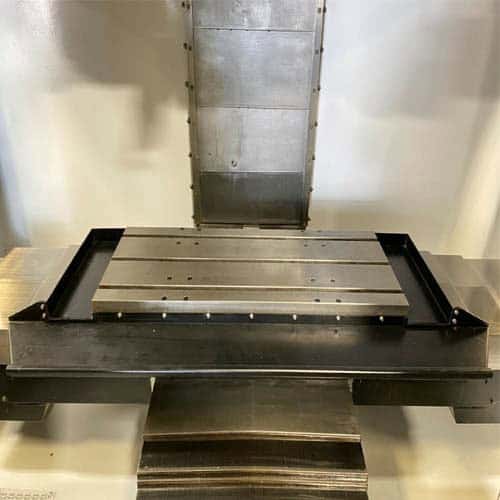

- Table:
- Length: 36.0″
- Width: 14.0″
- Number of Std T-Slots: 3
- T-Slot Width: “
- Max Weight on Table: 1500 lbs
- Spindle:
- Taper Size: 40
- Speed Range: 12000 RPM
- Spindle Power: 30 HP
- Vector Dual Drive Max Torque: ft-lb @ RPM
- Automatic Tool Changer:
- Capacity: 24
- Max Tool Weight: 12 lbs
- Max Tool Dia: 5″
- Max Tool Length: 11″
- Tool Changing Time: 1.6 Seconds
- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: ” x ” x ” High
- Weight: 9200 lbs
