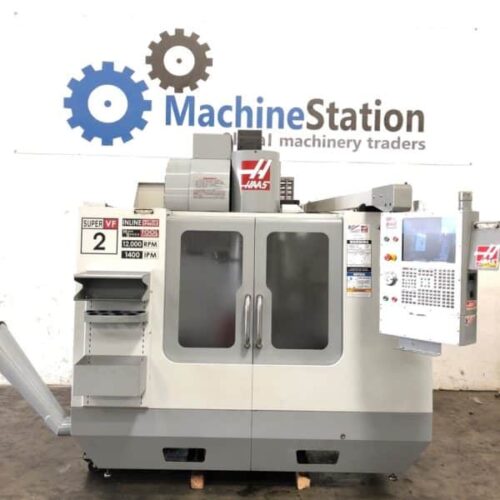

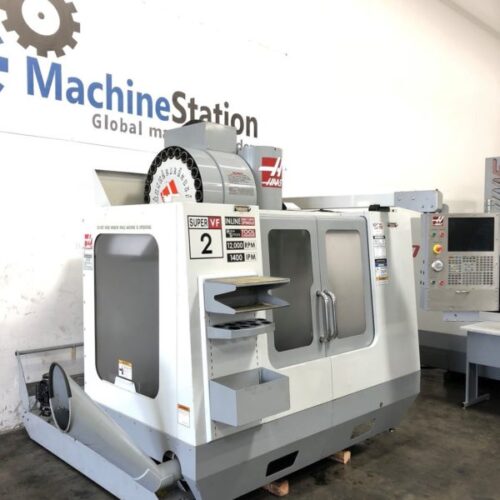

| HAAS VF-2SS SUPER SPEED VERTICAL MACHINING CENTER | |
|---|---|
| Make | Haas |
| Model No. | VF-2SS |
| Year of Manufacture: | 2007 |

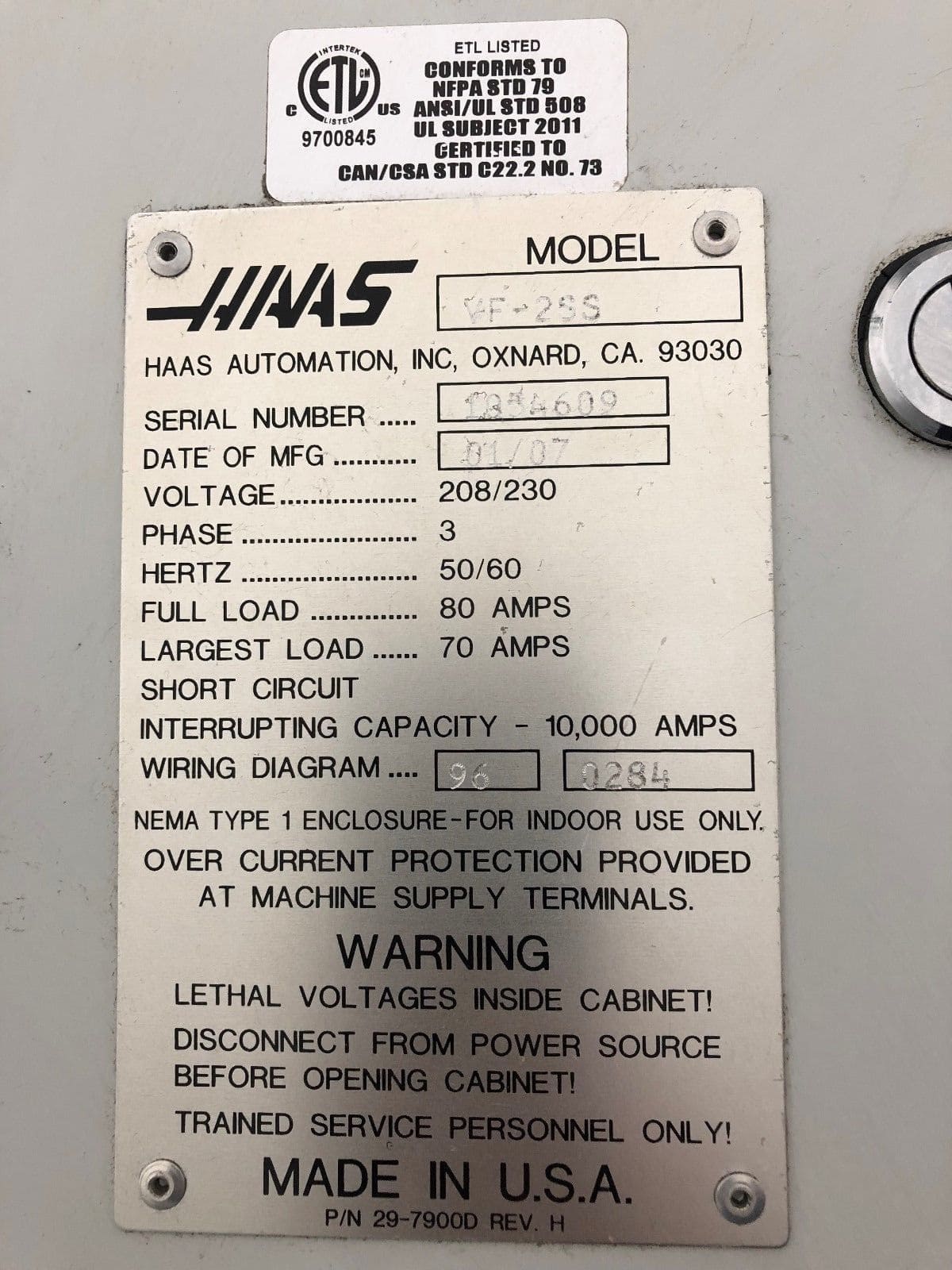

| Serial # | 1054609 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.
“This One Owner Machine has only Spindle Hours, was cutting aluminium only. Original Paint Machine Equipped with 12000rpm, 24 tool High speed Side Mount tool changer, 1400 IPM, 4th Axis ready, expanded Memory and many more features. On our Floor now, fully powered / tested & is in Great working condition.”
- HAAS VF-2SS SUPER SPEED Equipped With:
- 12,000 RPM Direct Drive Spindle
- 4th Axis Ready
- 1400 Inch Per Min. Rapid
- Rigid Tapping
- USB Drive
- User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling

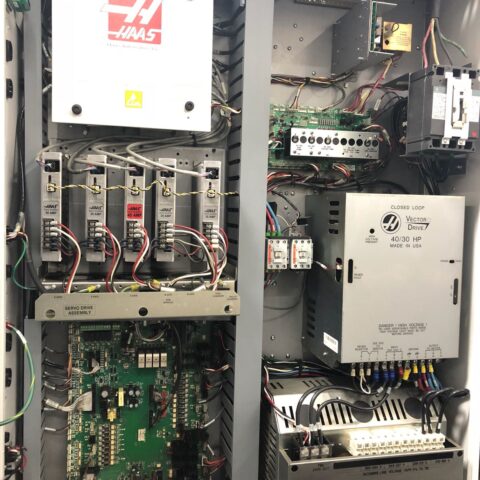

- Brushless servo drive motors on all axis
- 24 + 1 automatic high speed tool changer
- Programmable coolant

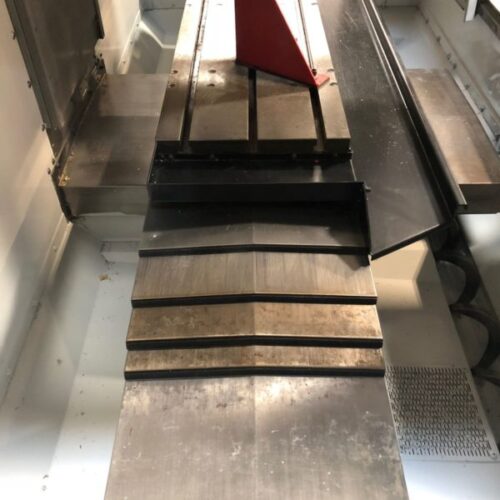

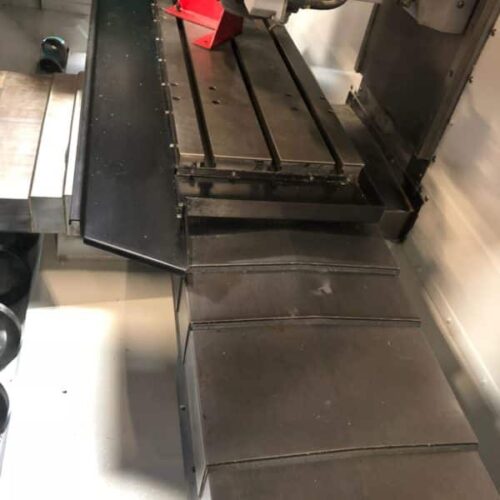

- Telescopic way covers
- Chip auger
- Flood Coolant system
- Tooling Shelves
- Levelling Pads
- Original Manuals
- General:
- Air Required: 100 psi, 4 scfm

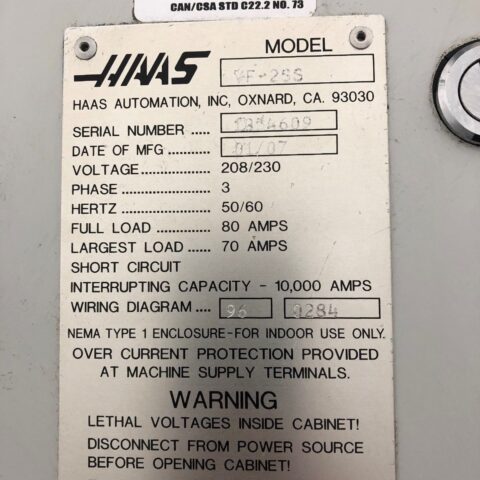

- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 89″ x 92″ x 104″ High
- Weight: 9200 lbs
- HAAS VF-2SS SUPER SPEED Specifications:
- Travels:
- X-Axis: 30″
- Y-Axis: 16″
- Z-Axis: 20″
- Rapid Traverse Rates: 1400 Inch Per Minute
- Cutting Feed Rates: 833 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 24″

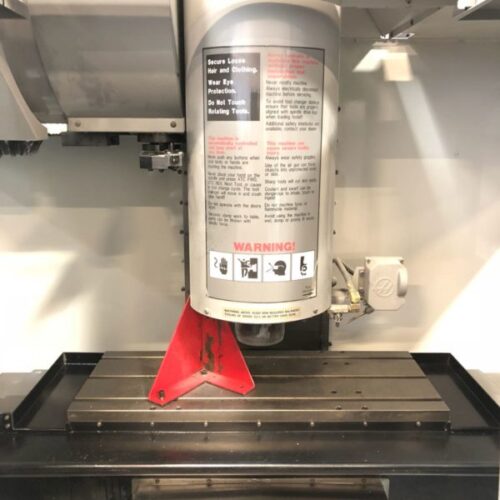

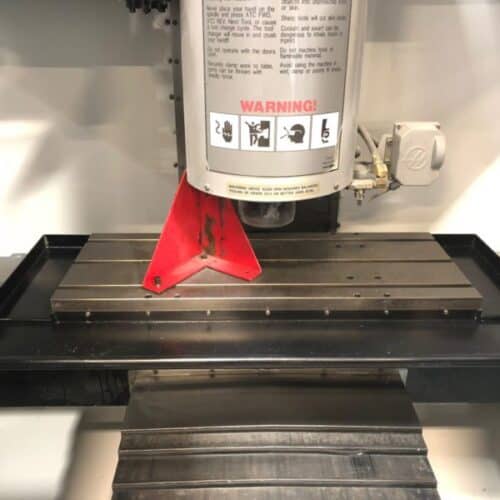

- Table:
- Length: 36″
- Width: 14″
- Number of Std T-Slots: 3
- T-Slot Width: 5/8″
- Max Weight on Table: 1500 lbs
- Spindle:
- Taper Size: 40
- Speed Range: 0 – 12,000 RPM
- Spindle Power: 30 HP
- Max Torque: 90ft-lb @ 2000RPM
- Automatic Tool Changer:
- Capacity: 24 + 1
- Max Tool Weight: 12 lbs
- Max Tool Dia: 5″
- Max Tool Length: 11″
- Tool-to-Tool (avg.): 1.6 seconds
- Chip to Chip (avg.): 2.2 seconds
- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 89″ x 92″ x 104″ High
- Weight: 9200 lbs
HAAS VF-2SS SUPER SPEED Comes as shown in pictures..
