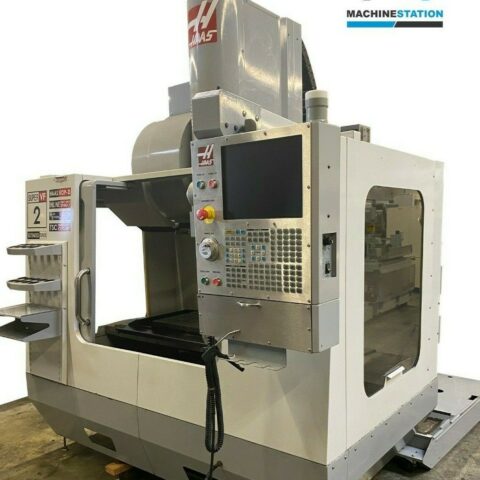

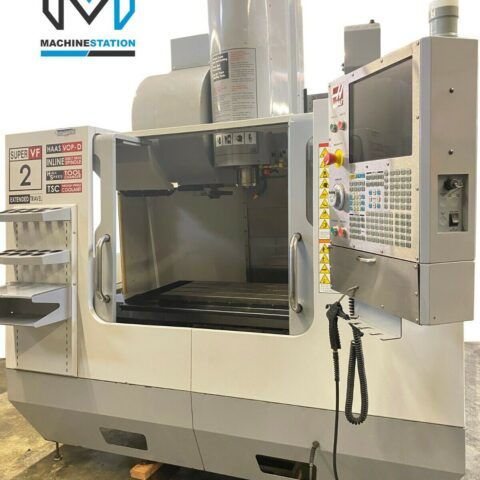

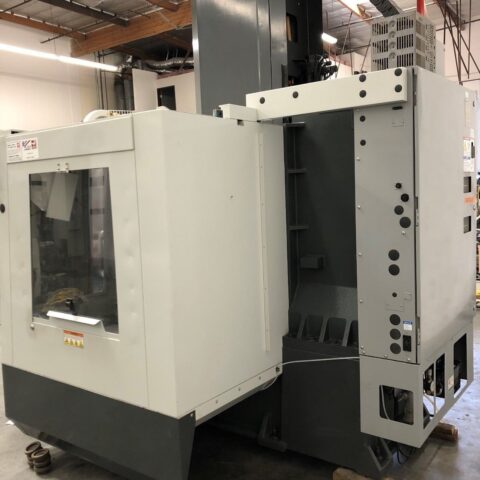

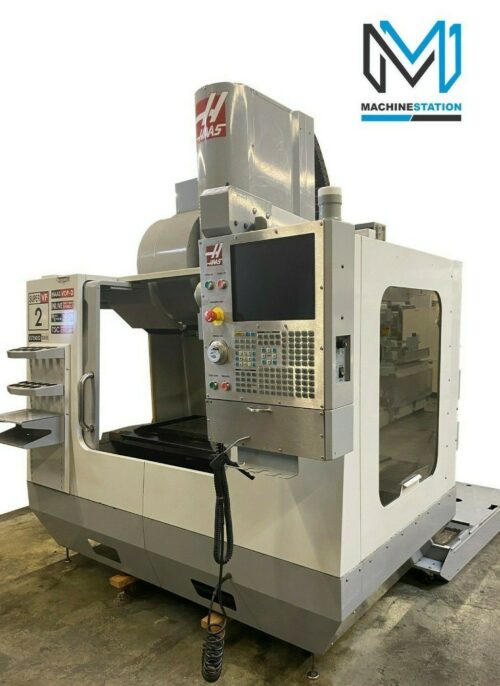

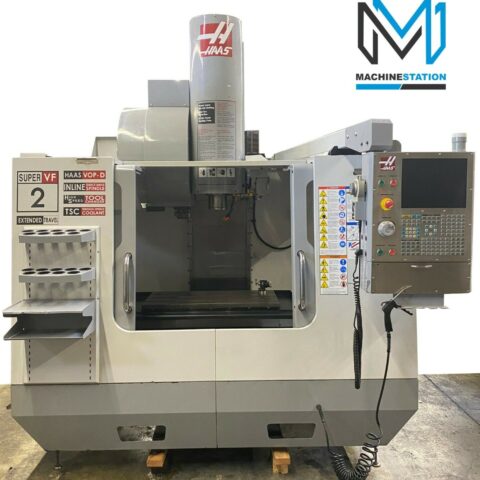

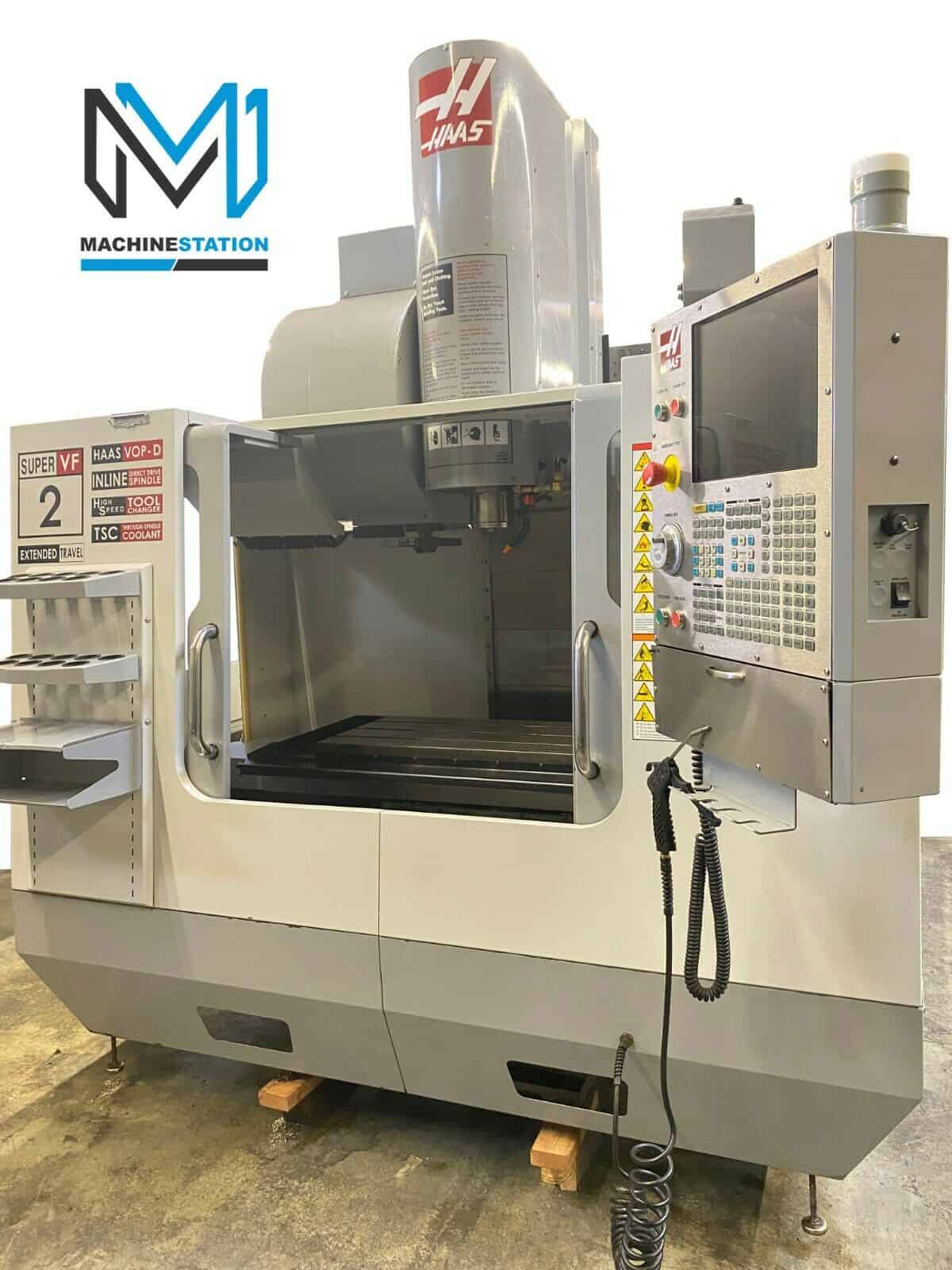

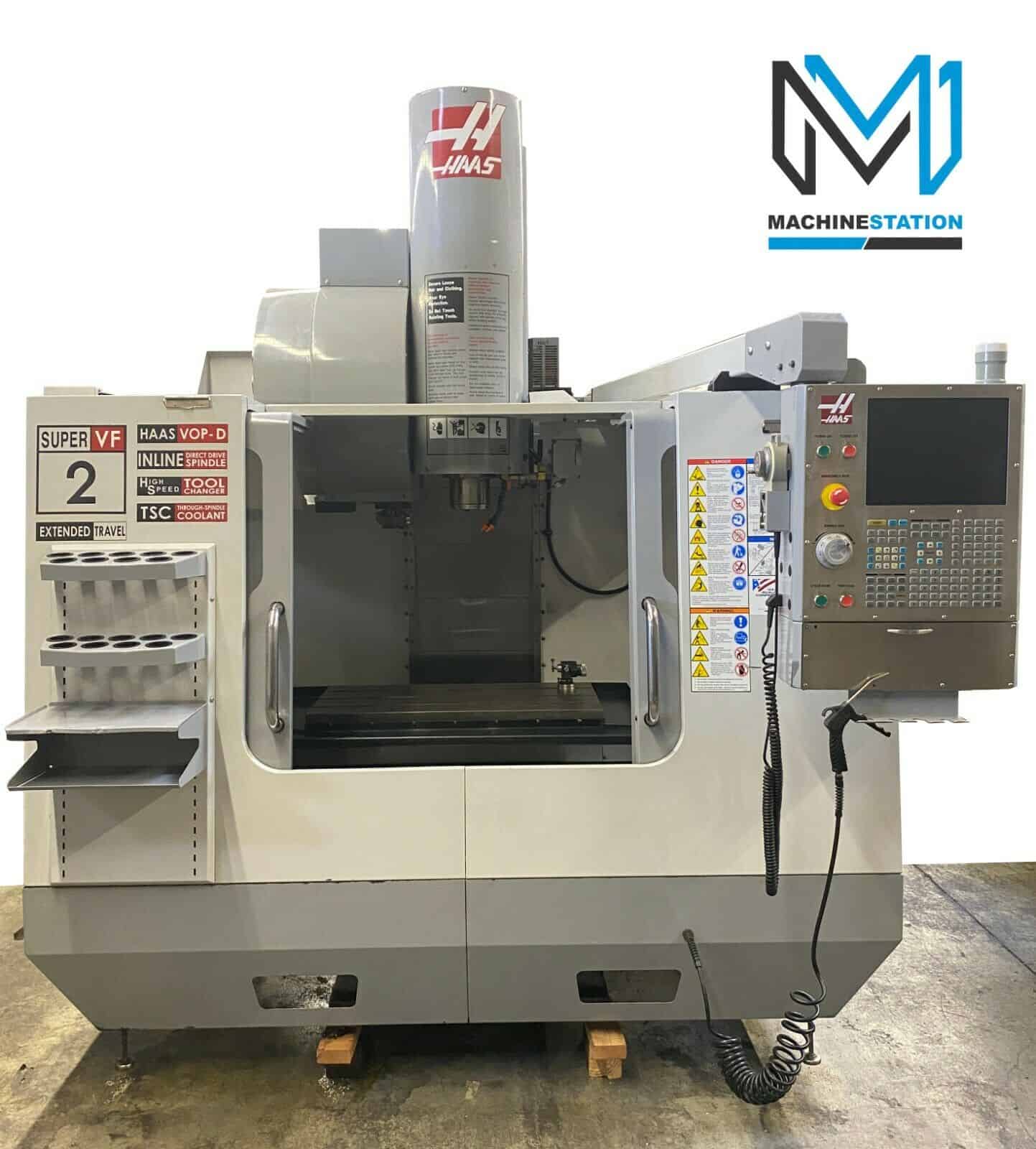

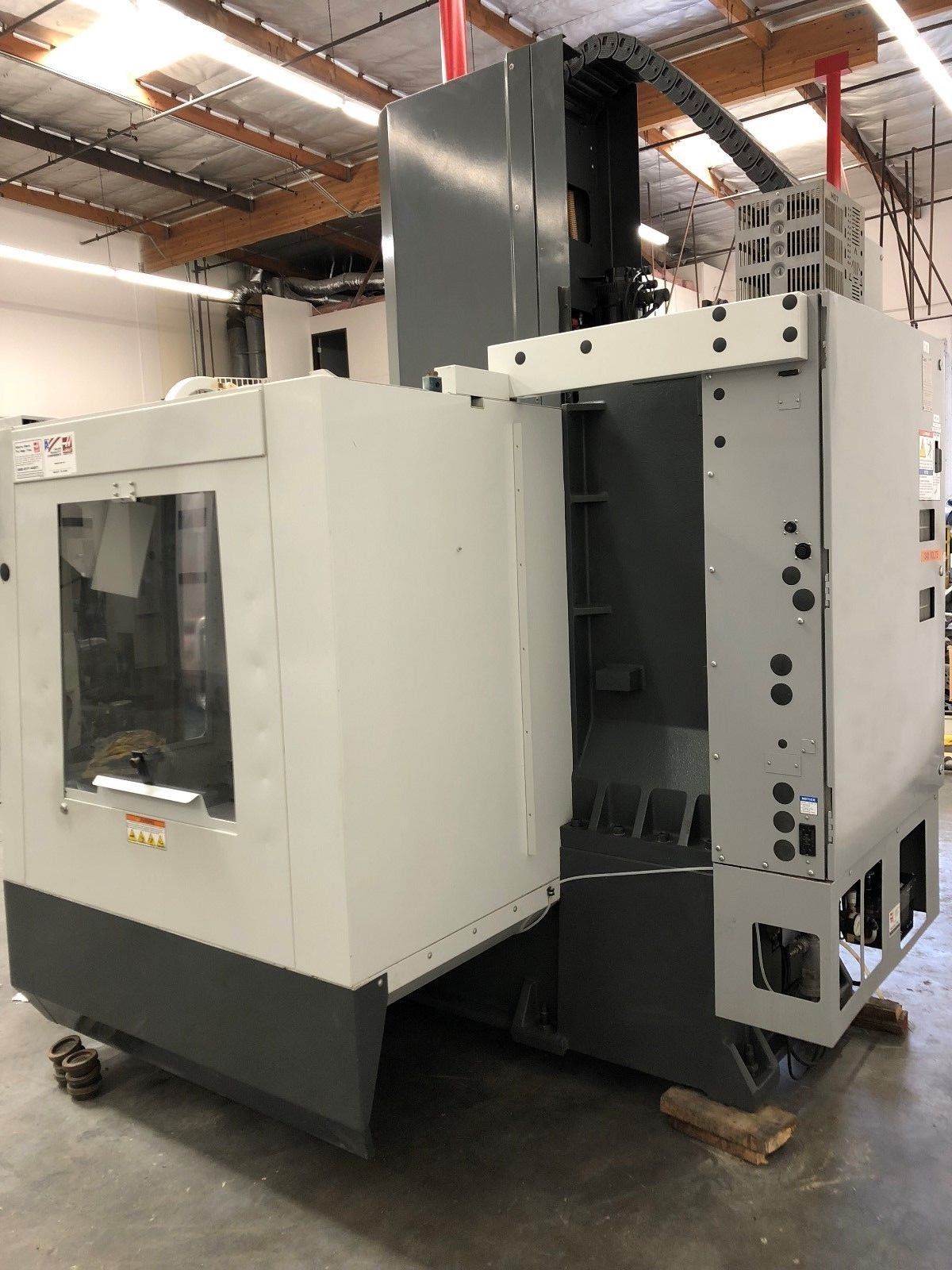

Haas VF-2SSYT CNC Vertical Machining Center
Out of stock
- Features:

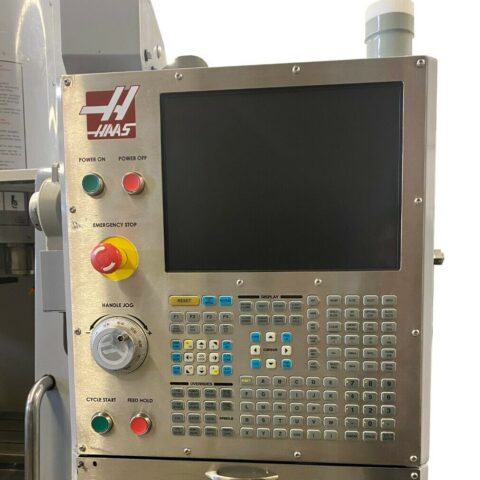

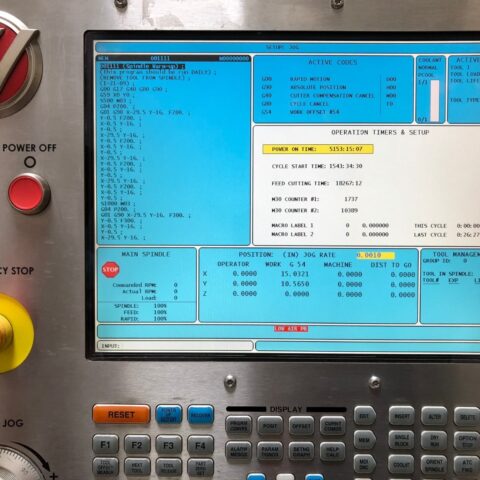

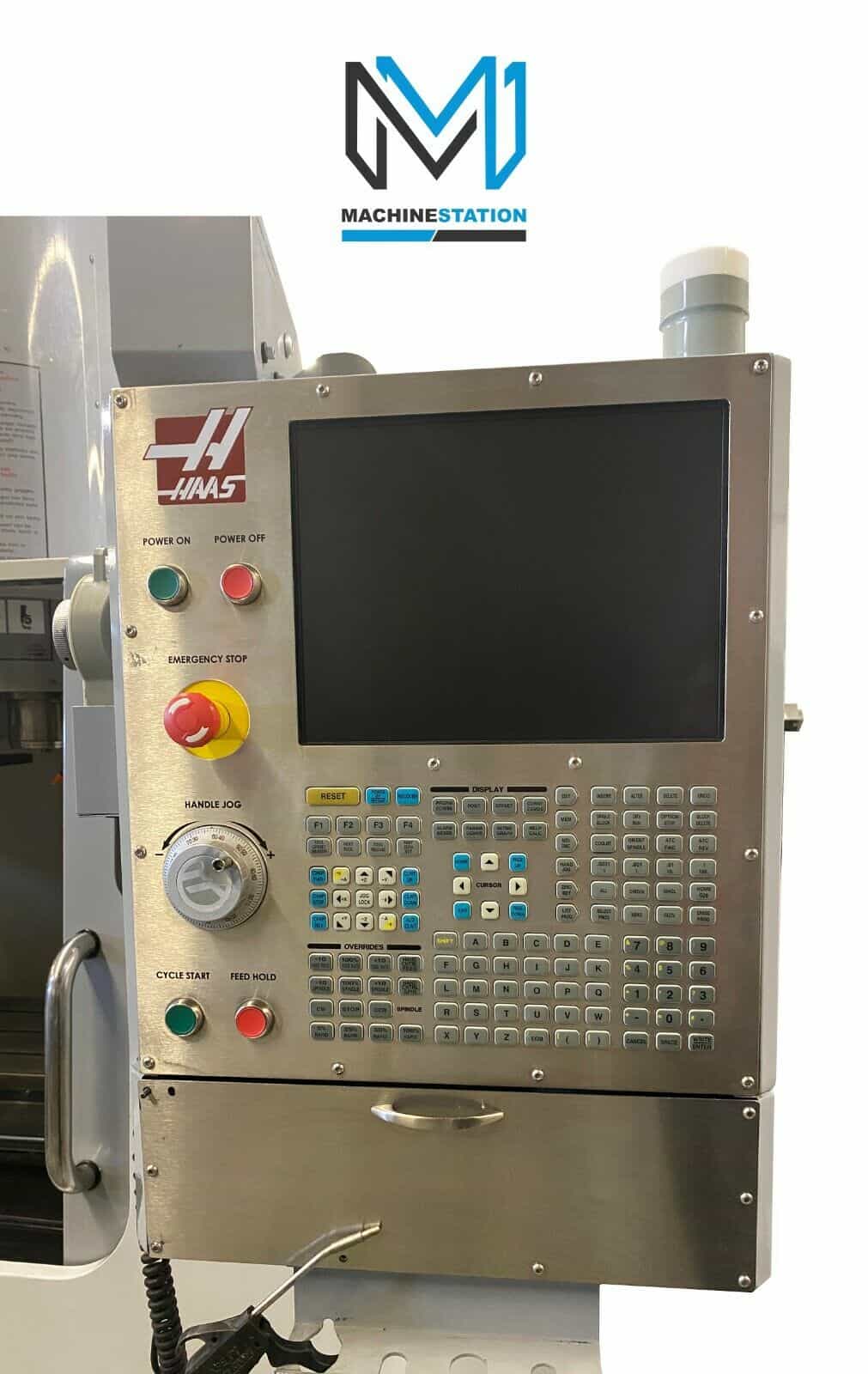

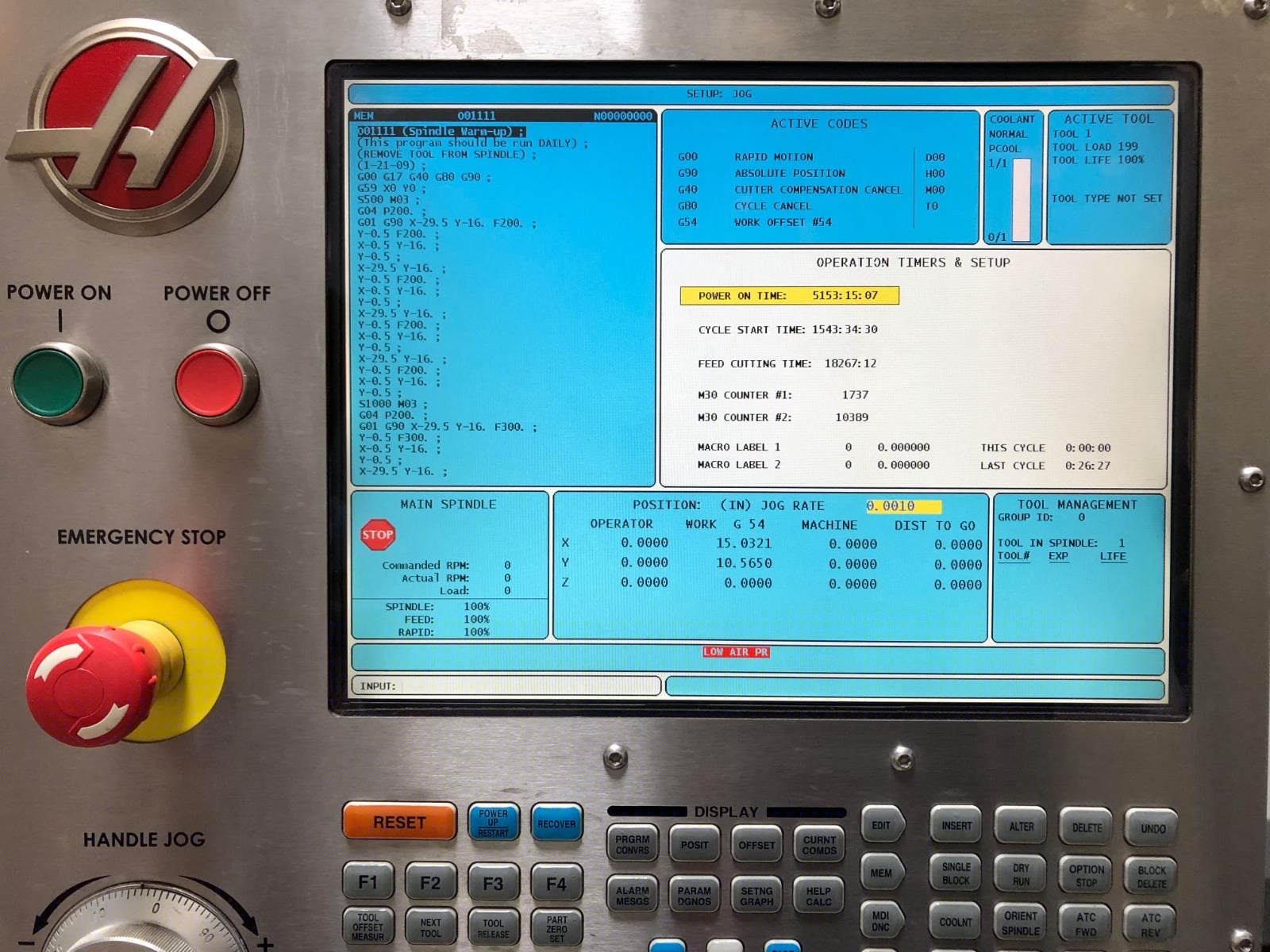

- Haas CNC Control
- Extended Y Travel
- 12,000 RPM Inline Direct Spindle
- 4th Axis Ready
- Thru Spindle Coolant

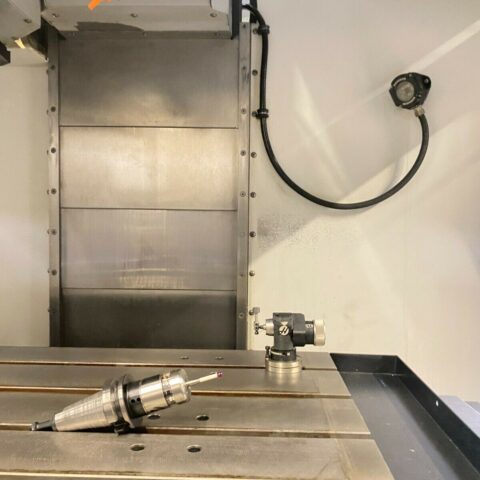

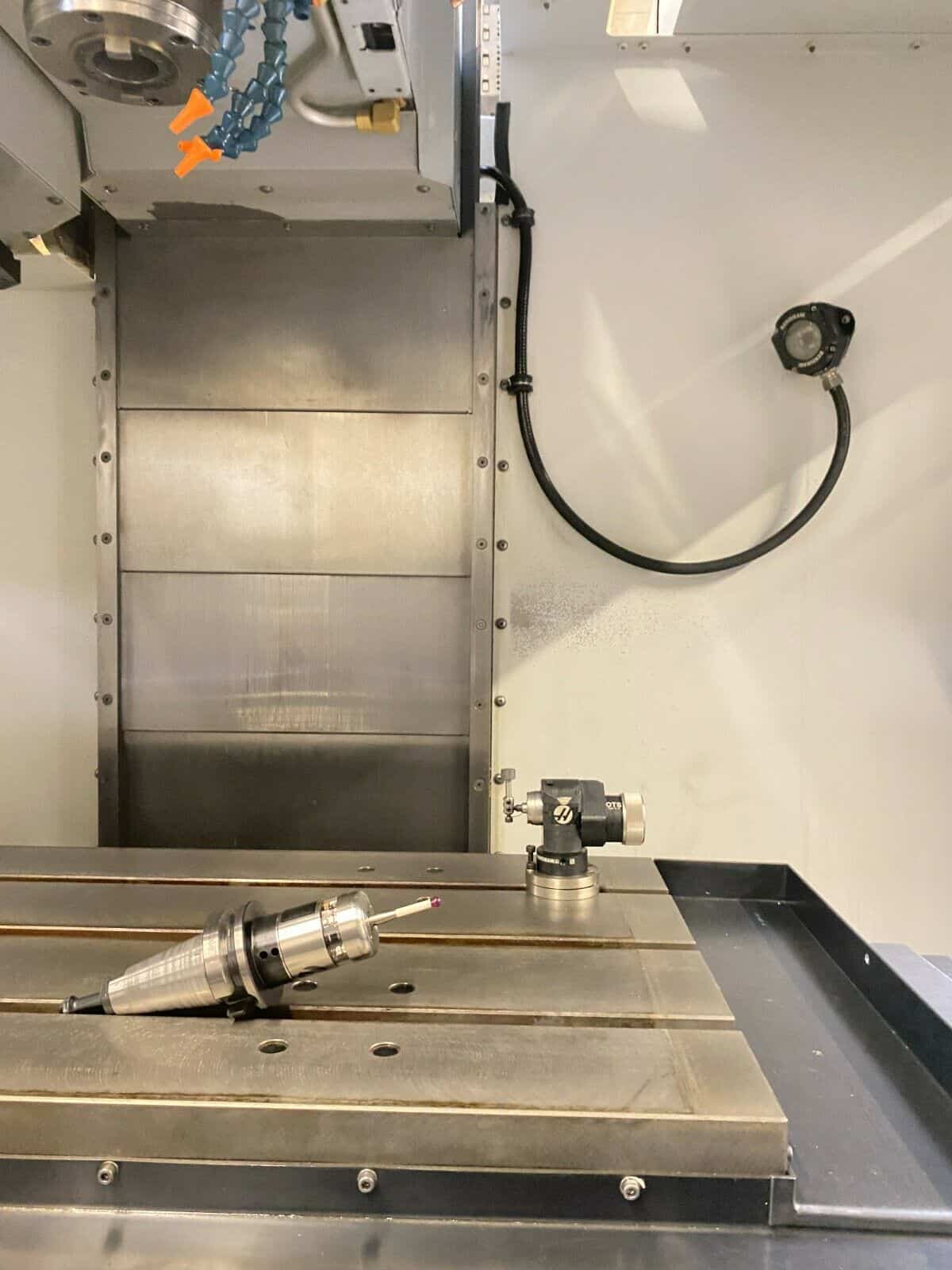

- Wireless Probing (WIPS) with OMP
- 24 Side Mount Automatic tool changer
- MPG Control
- USB Drive
- 1400 inch per minute rapids
- Rigid Tapping
- Spindle Orientation
- Programmable Coolant
- Brushless-type servo drive motors on all axis
- Telescopic way covers

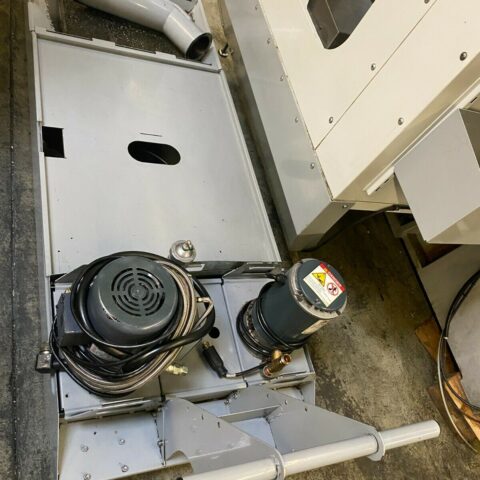

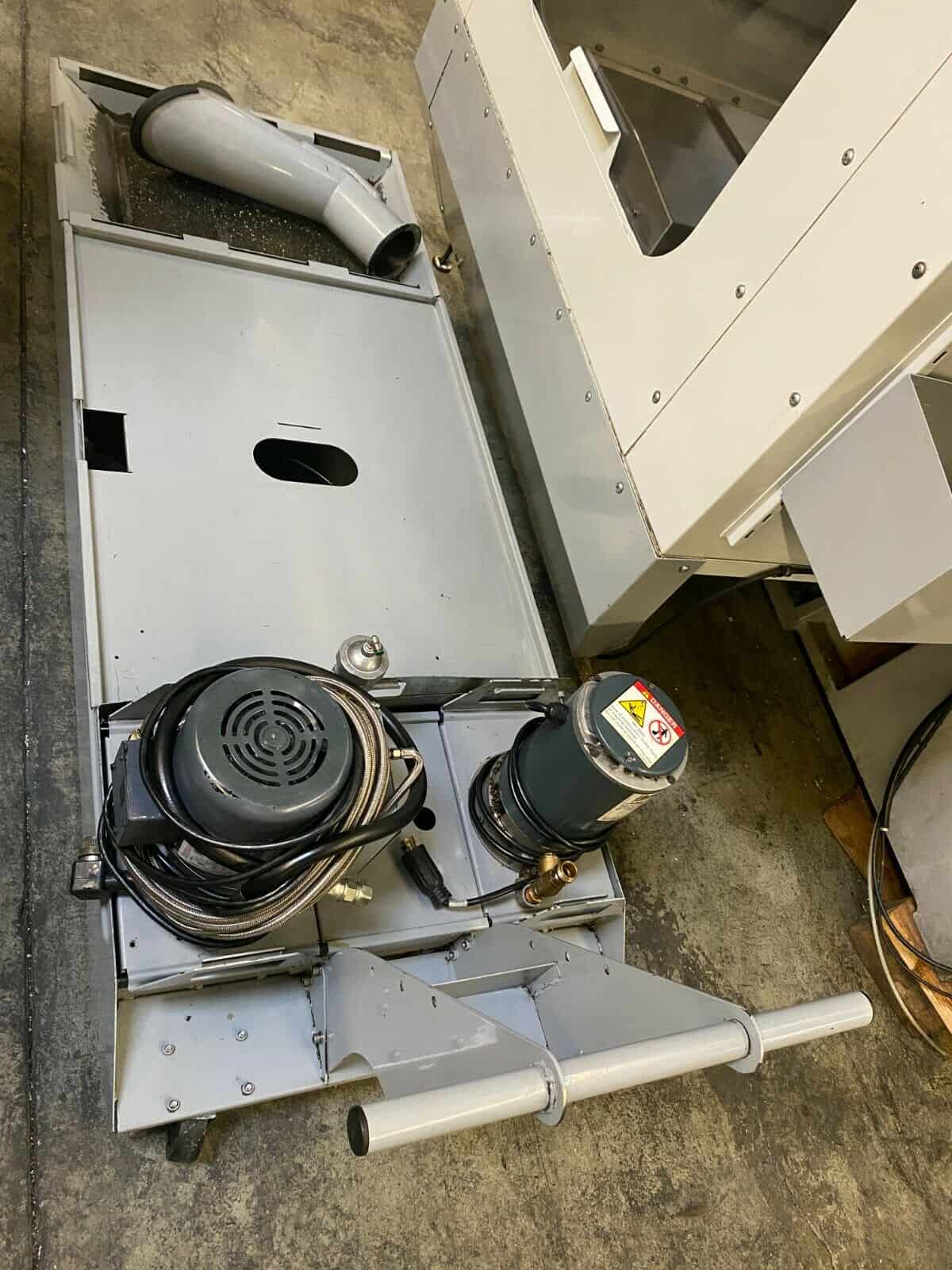

- Chip auger
- Work Lights
- Specifications:
- Travels:
- X-Axis: 30″
- Y-Axis: 20″
- Z-Axis: 20″
- Rapid Traverse Rates: 1400 Inch Per Minute
- Cutting Feed Rates: 630 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 24″

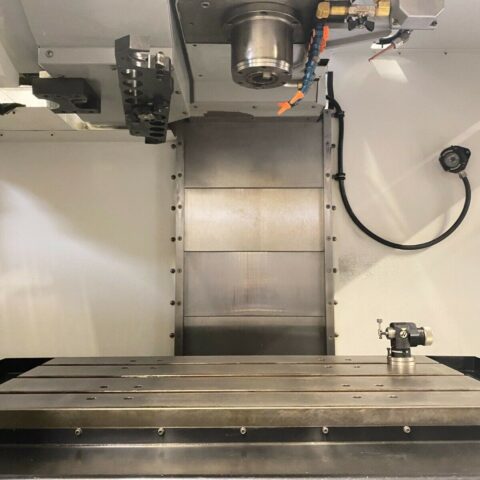

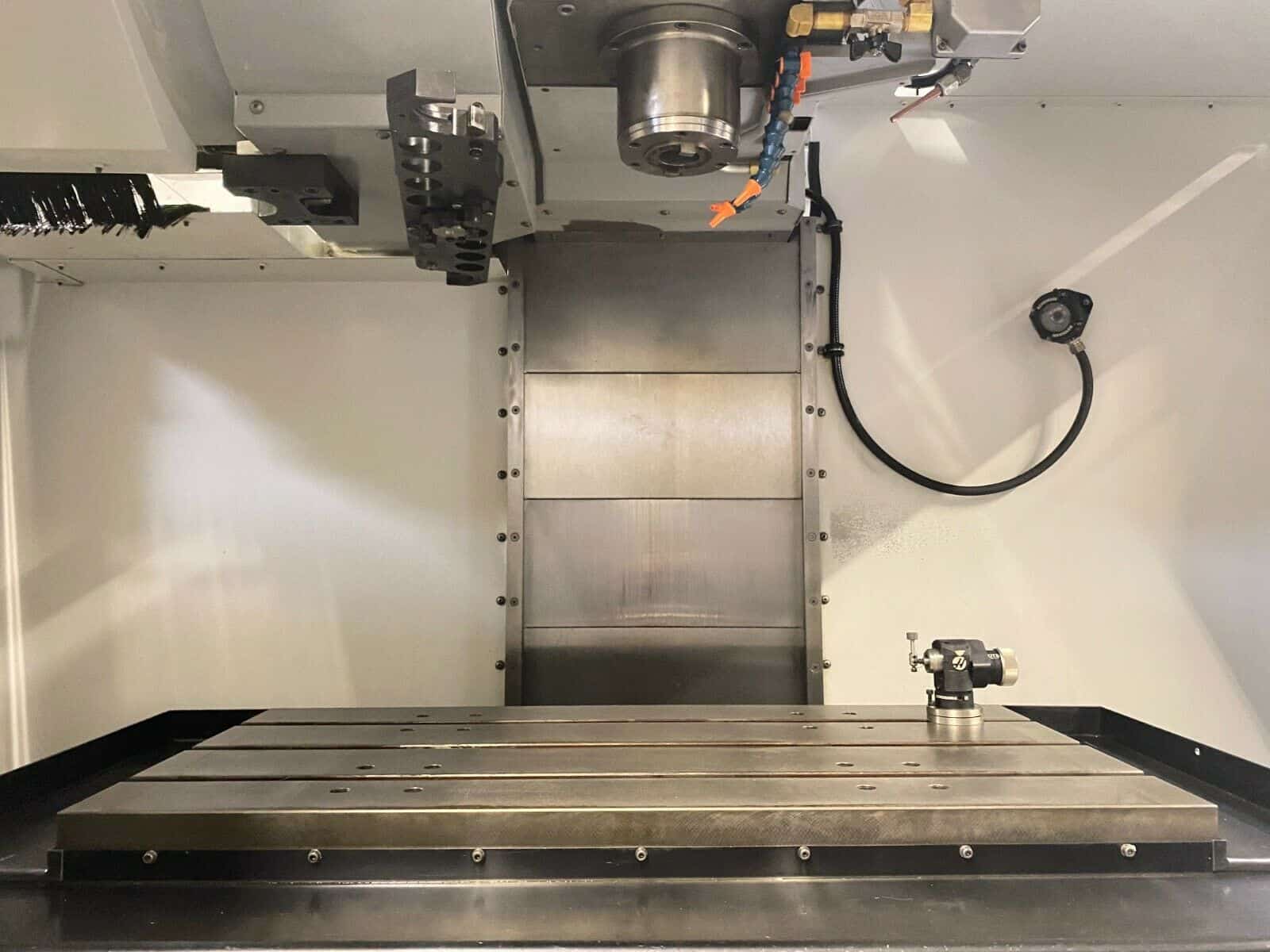

- Table:
- Length: 36″
- Width: 14″
- Number of Std T-Slots: 3
- T-Slot Width: 5/8″
- Max Weight on Table: 1800 lbs
- Spindle:
- Taper Size: 40
- Speed Range: 12,000 RPM
- Spindle Power: 20 HP
- Vector Dual Drive Max Torque: 90ft-lb @ 2000RPM
- Automatic Tool Changer:
- Capacity: 24
- Max Tool Weight: 12 lbs
- Max Tool Dia: 3.6″
- Max Tool Length: 11″
- Tool Changing Time: 2.2 Seconds
- General:
- Air Required: 100 psi, 4 scfm

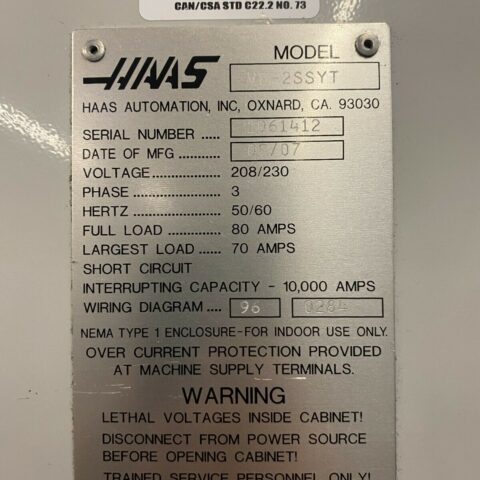

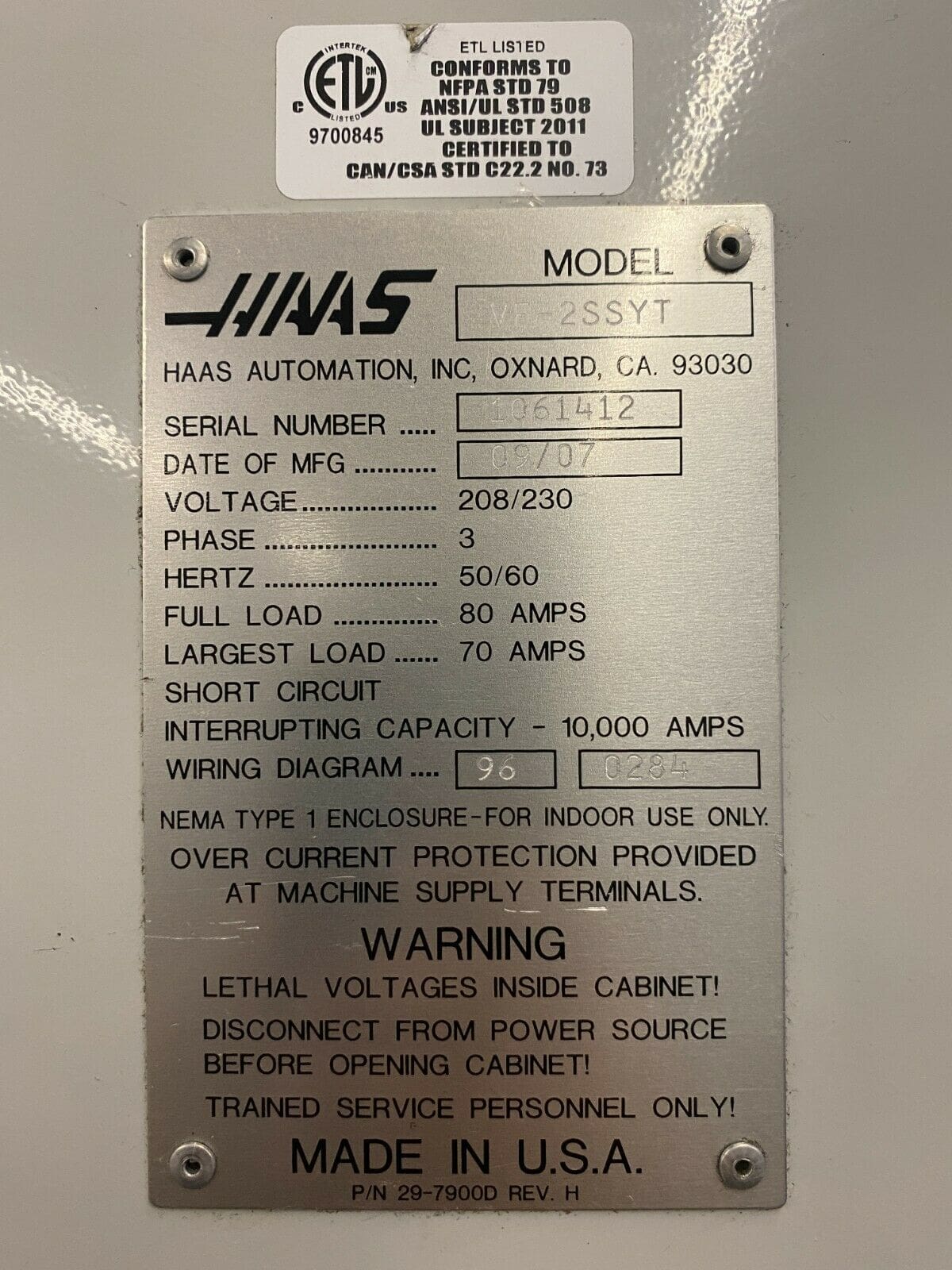

- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 90″ x 80″ x 100″ High
- Weight: 9200 lbs
