*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

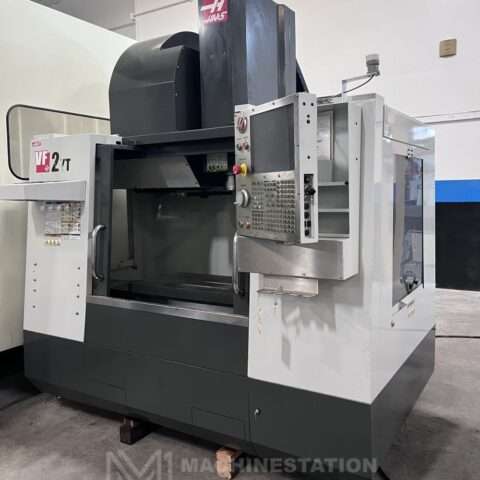

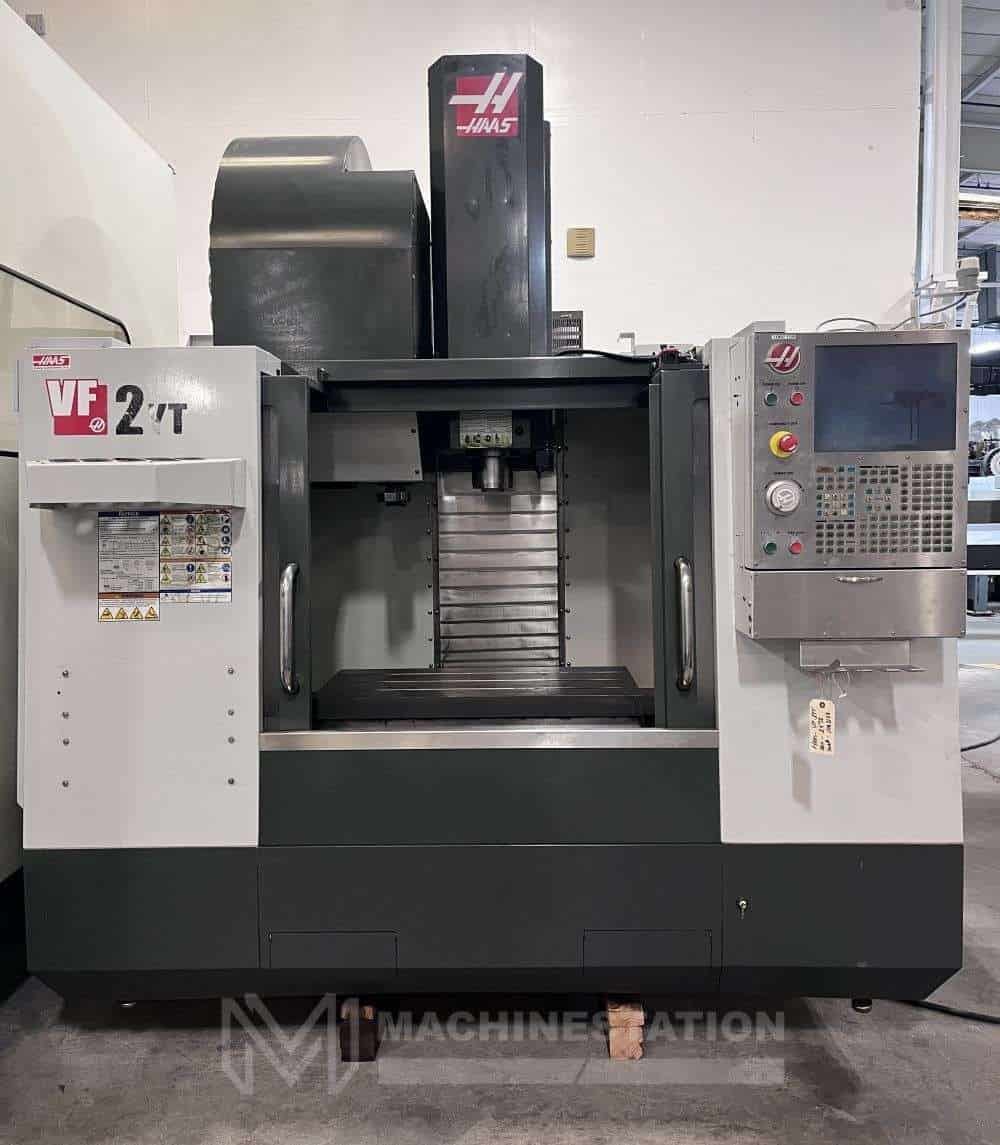

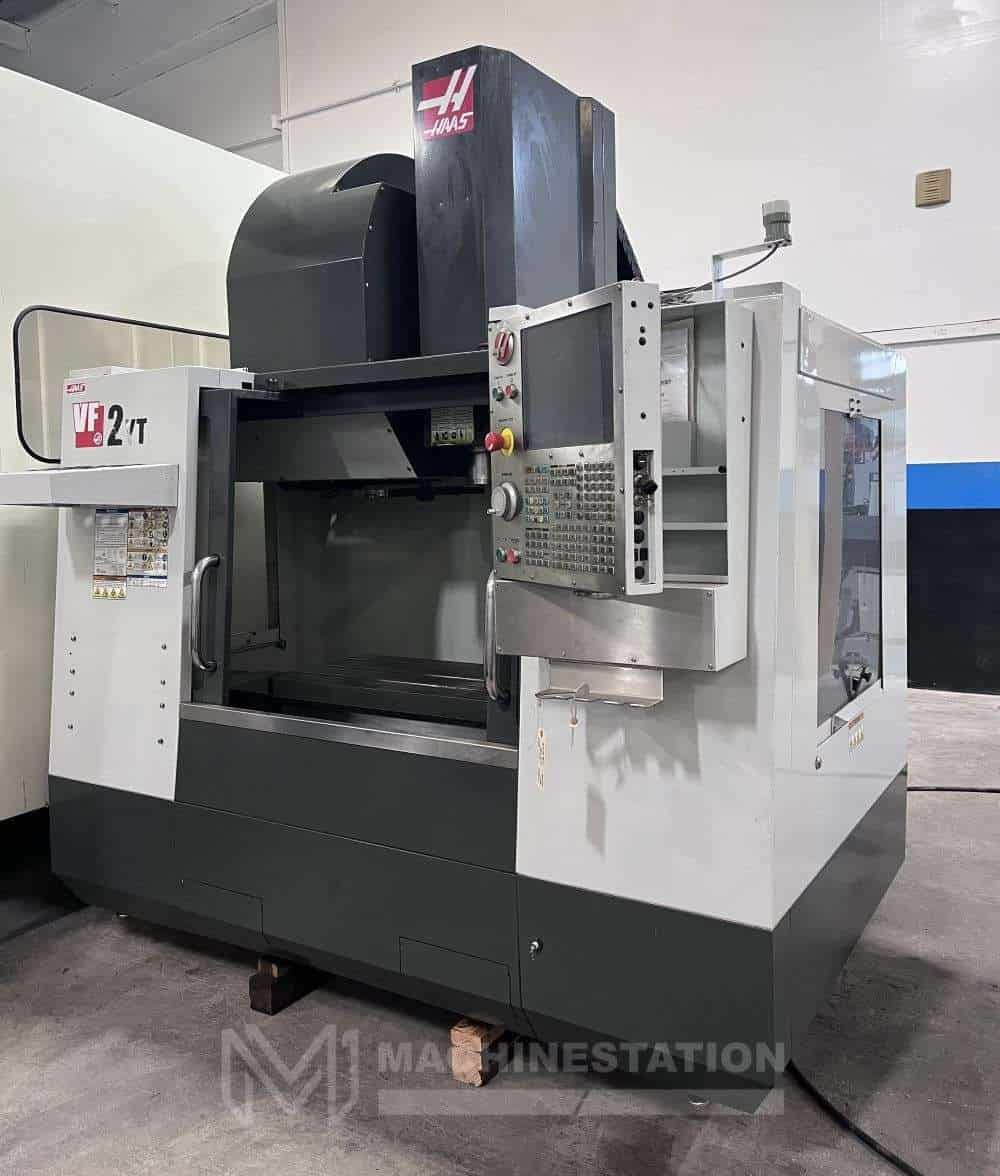

| Make: | HAAS |
| Model: | VF-2YT |
| Year: | 2010 |
| Condition: | Used – Good |
| Features: |
|---|

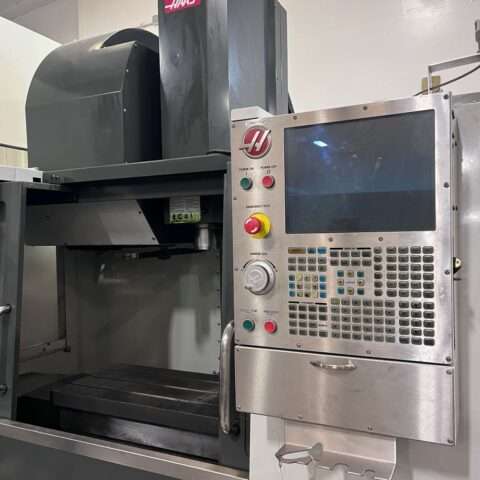

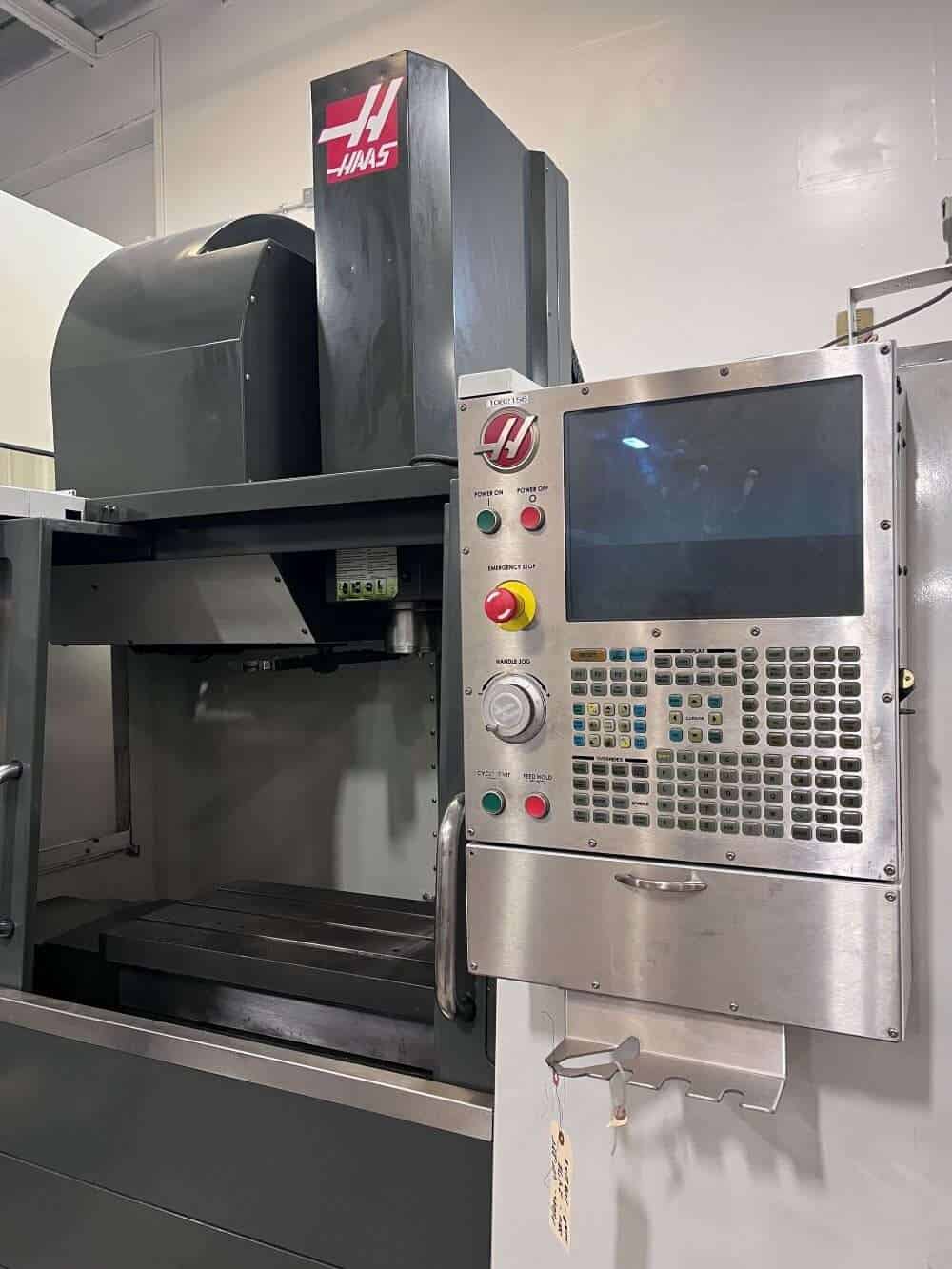

| Haas CNC Control |
| 15000 RPM Spindle |

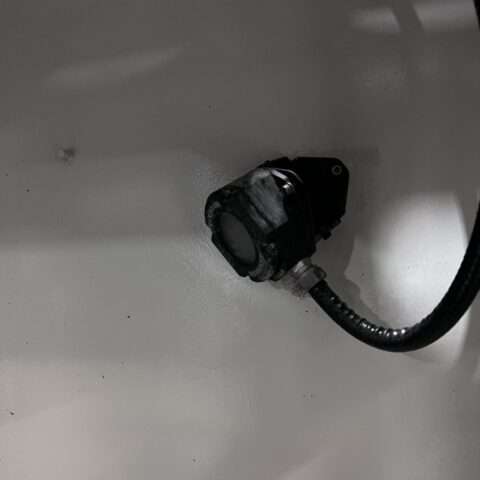

| WIPS – Wireless Intuitive Probing System Ready (Upgraded $5795 value Included) |
| 20 HP High Torque Spindle |

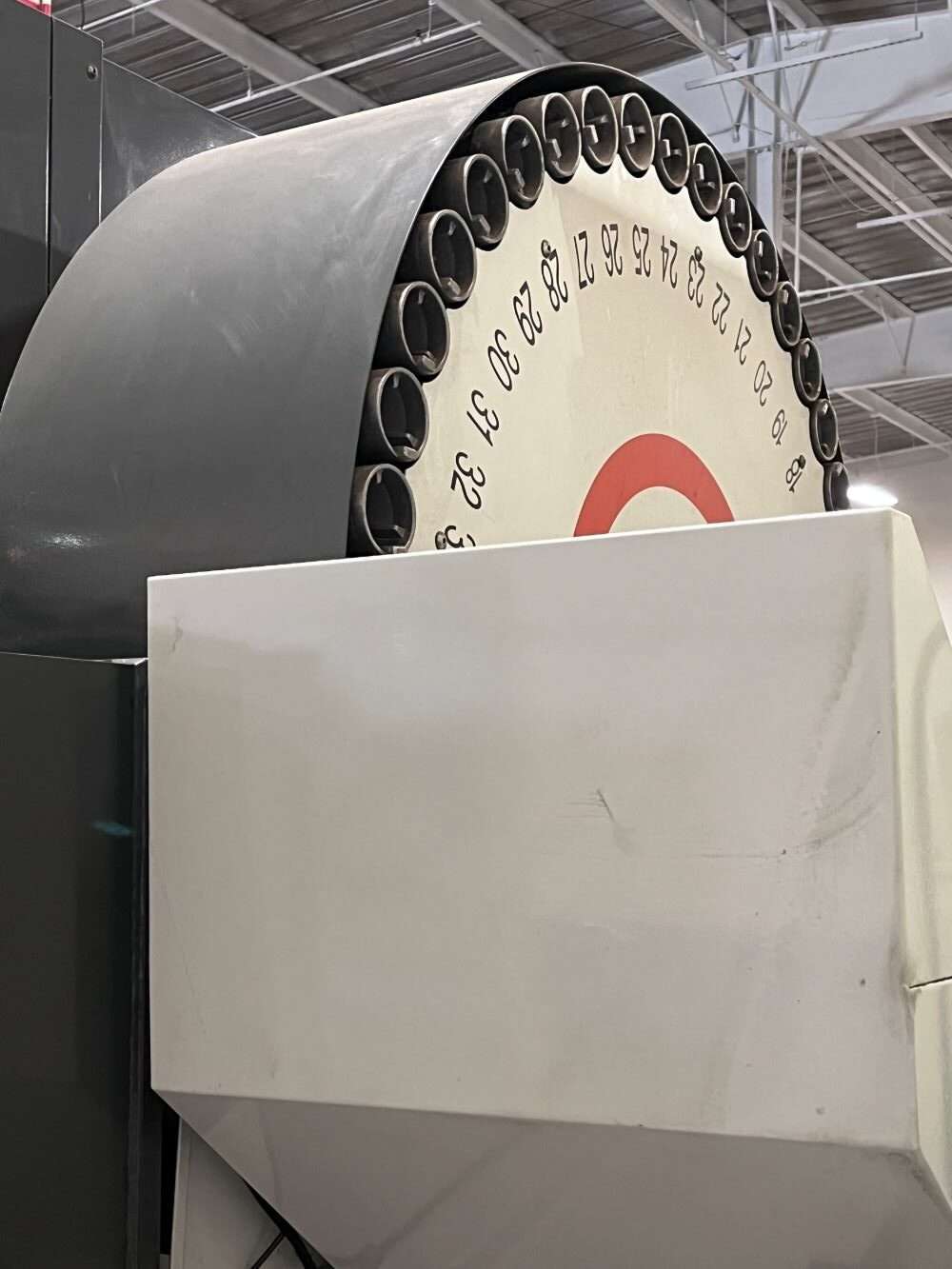

| 40 Station Automatic Tool Changer (Upgraded $15000 value Included) |
| Ethernet Interface |
| MPG Control |
| Rigid Tapping |
| Spindle Orientation |
| Programmable Coolant |
| Coolant Tank and Pump |
| Chip Auger |
| Travels: |
|---|
| X-Axis: 30″ |
| Y-Axis: 20″ |
| Z-Axis: 20″ |
| Rapid Traverse Rates: 1000 Inch Per Minute |
| Cutting Feed Rates: 650 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |

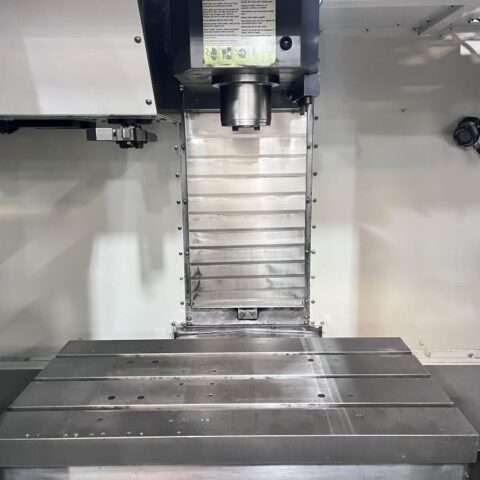

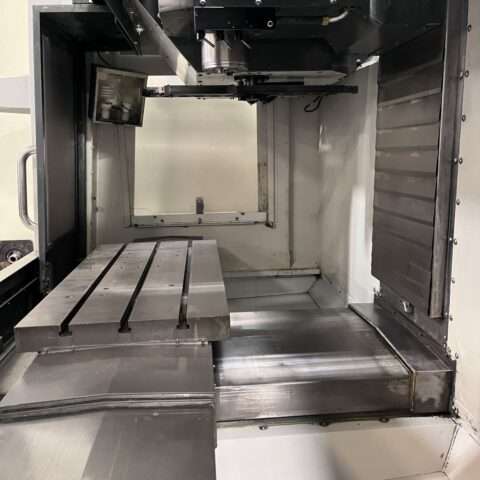

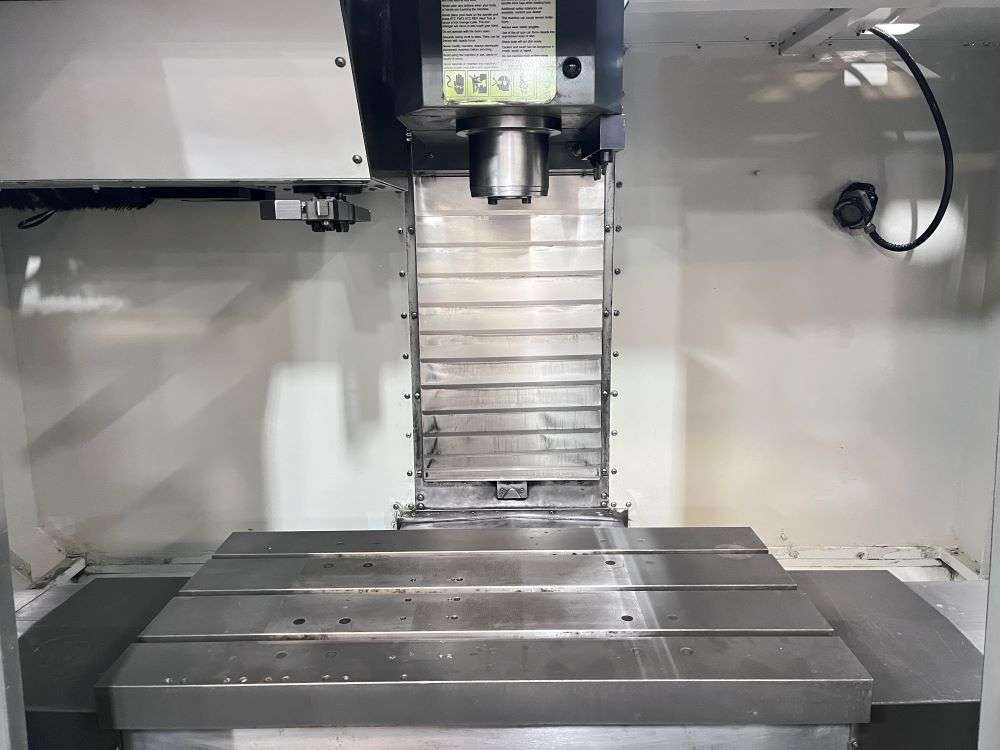

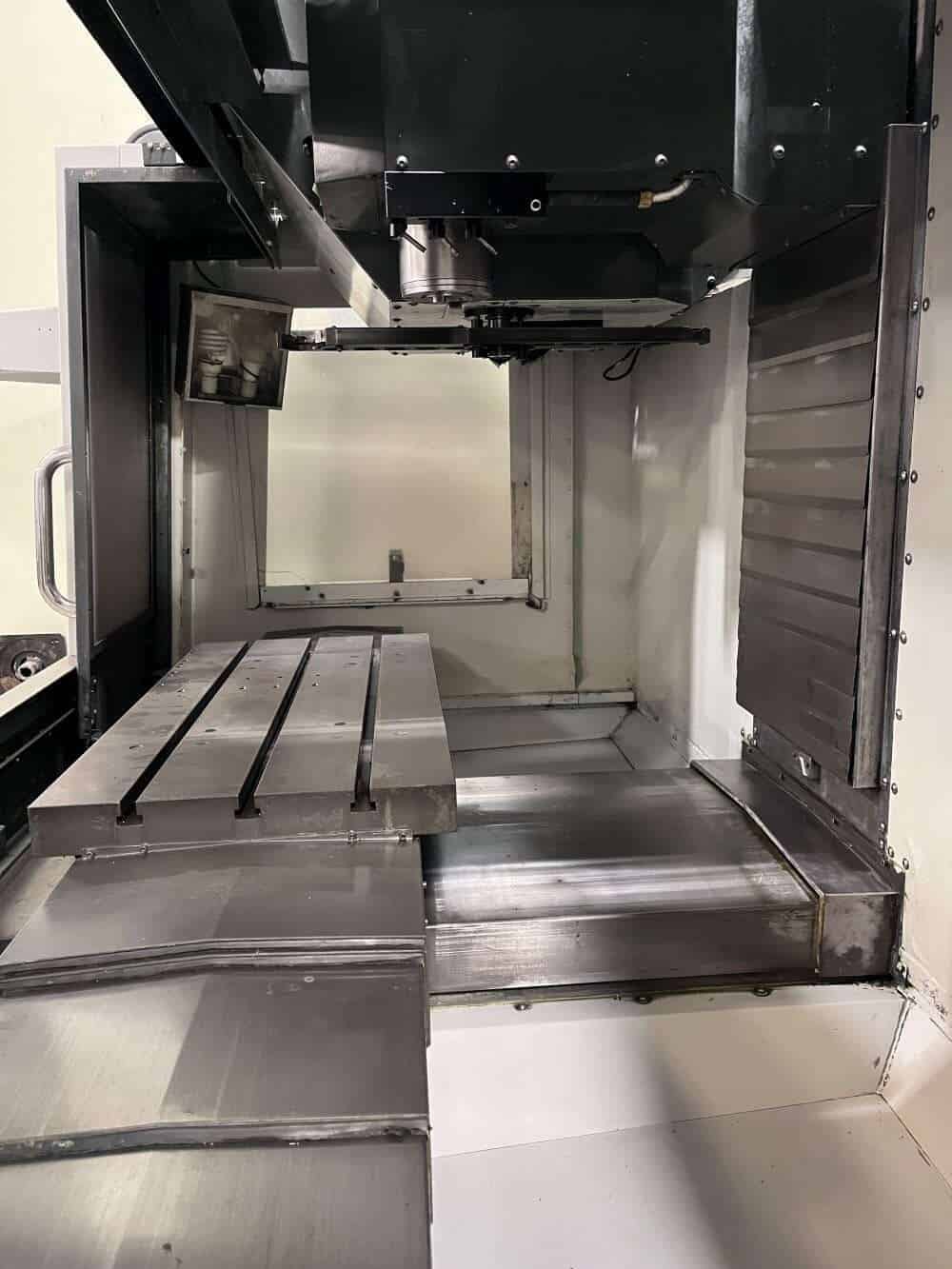

| Table: |
|---|
| Length: 36.0″ |
| Width: 18.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 3000 lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 15000 RPM |
| Spindle Power: 20 HP |

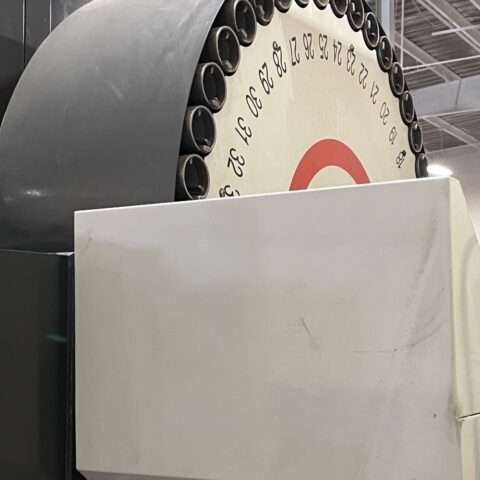

| Automatic Tool Changer: |
|---|
| Capacity: 40 |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 3.5″ |
| Max Tool Length: 11″ |
| Tool Changing Time: 4.2 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

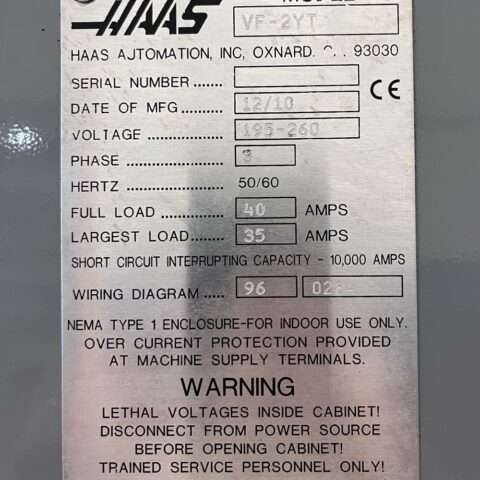

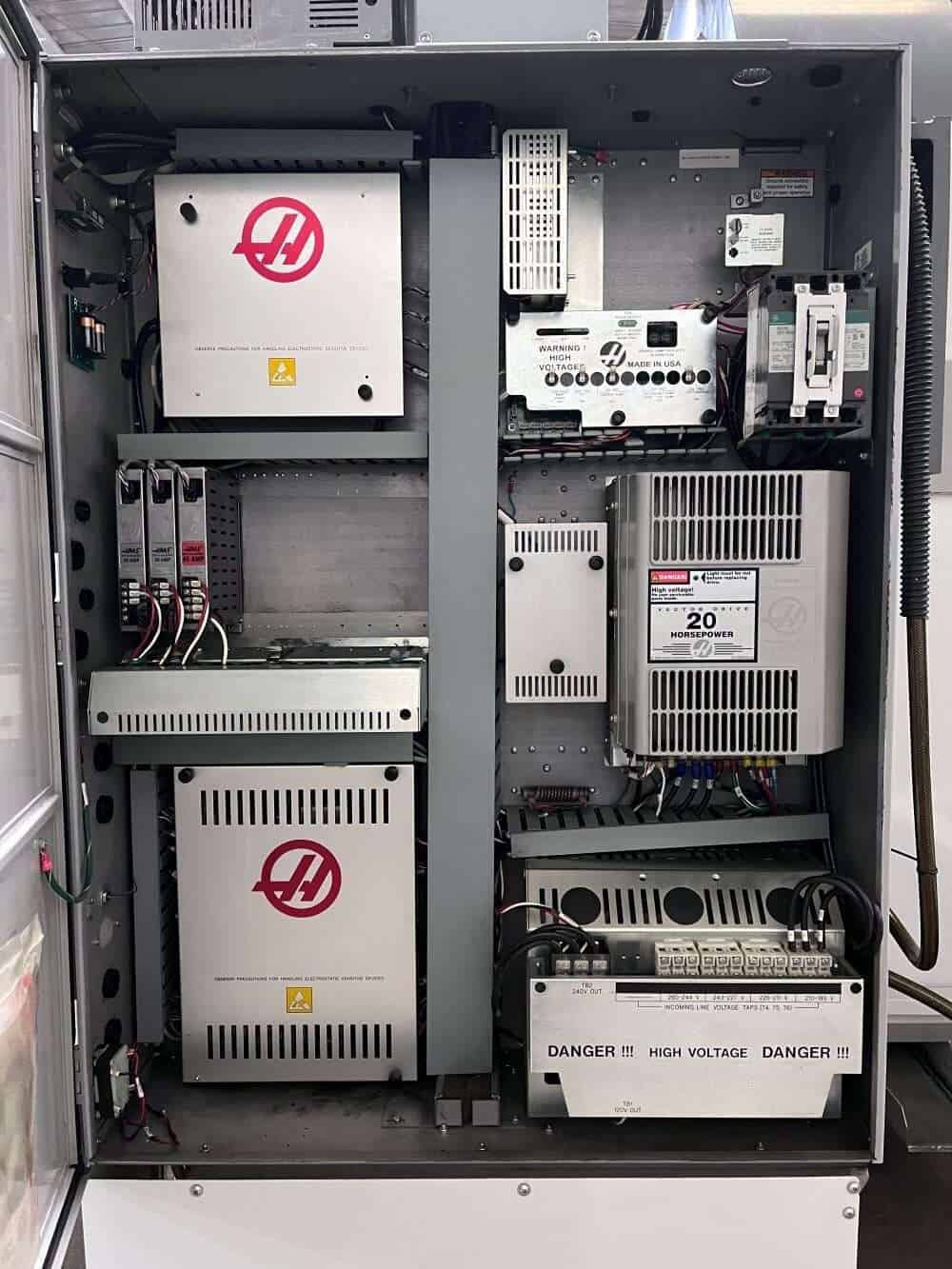

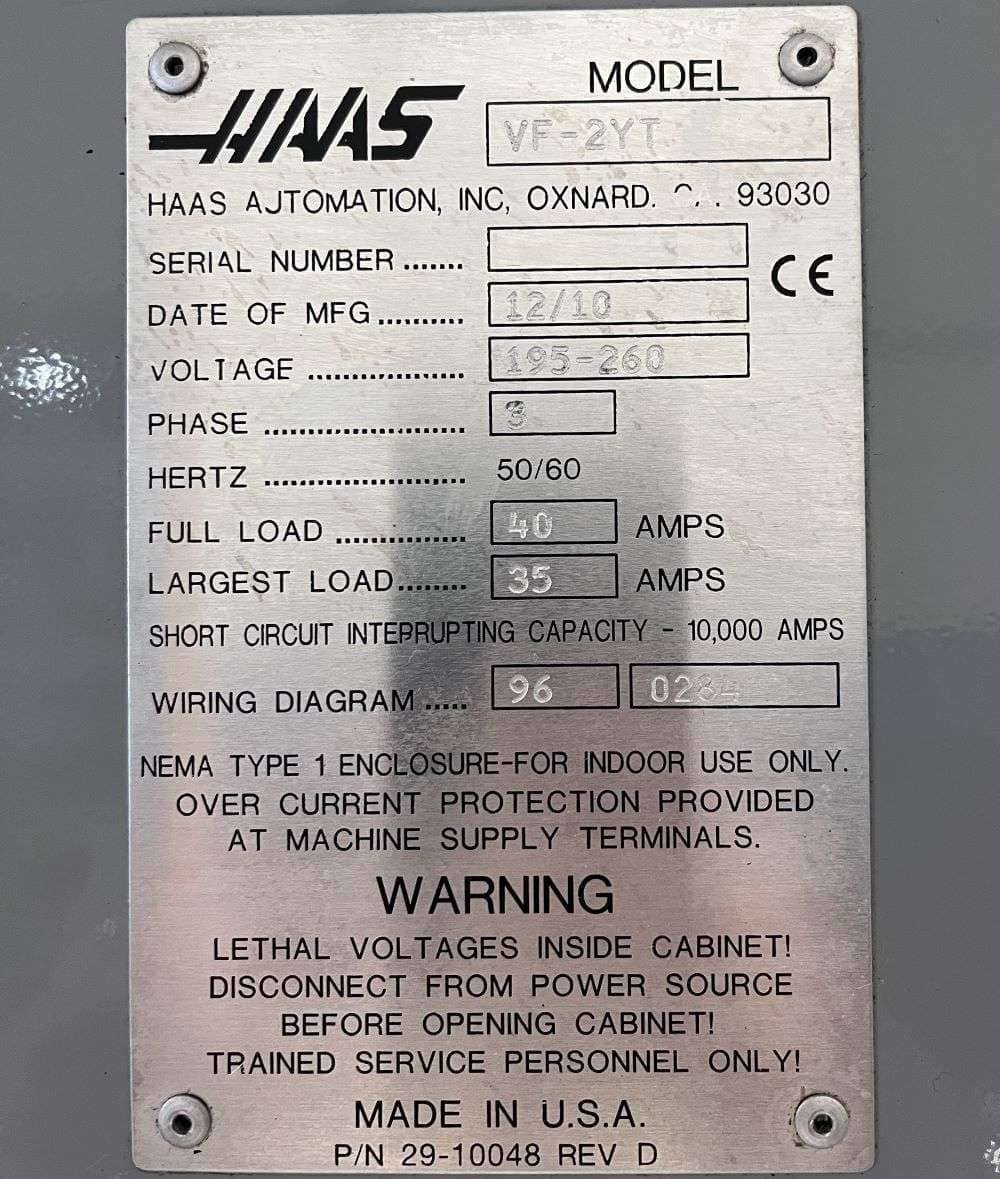

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 106″ x 101″ x 101″ High |
| Weight: 7800 lbs Approx.. |
