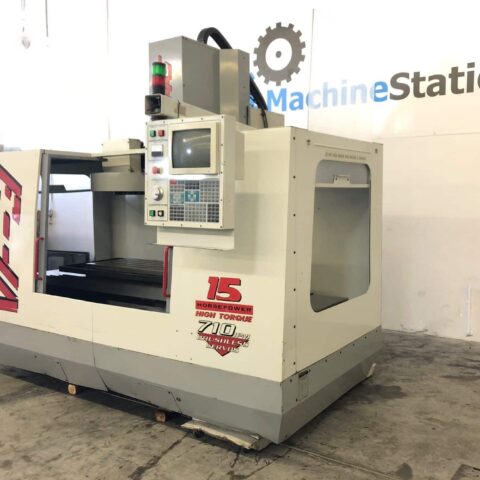

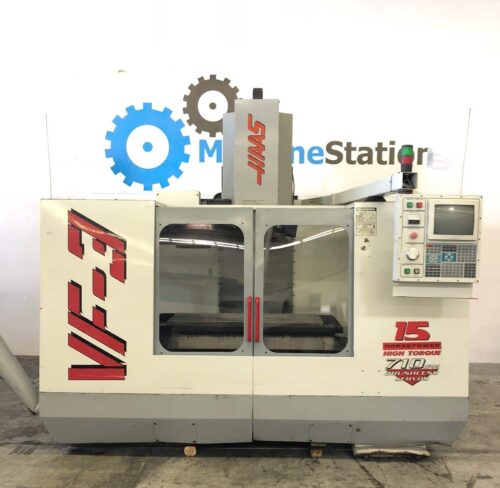

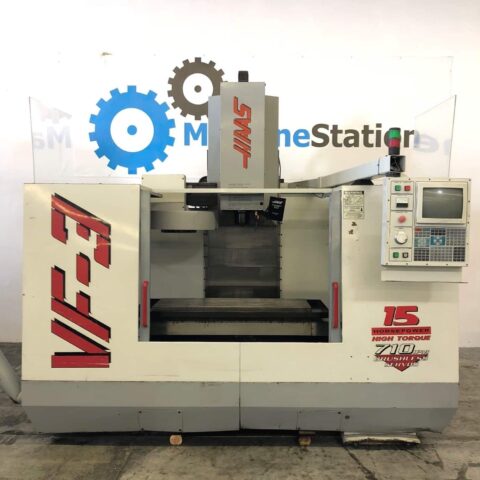

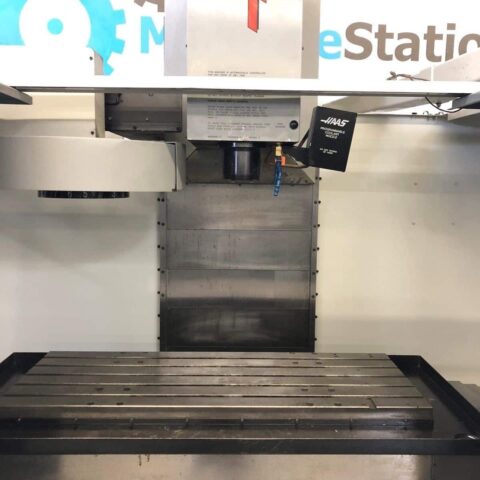

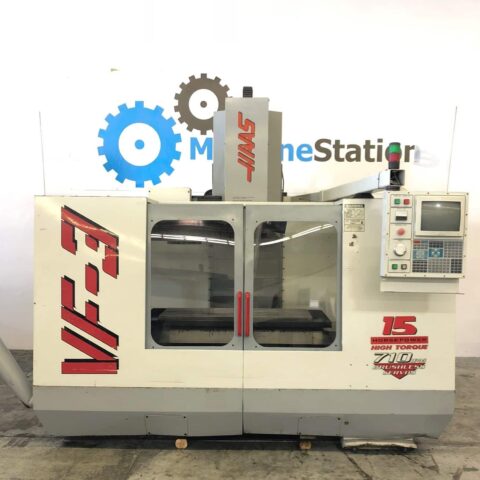

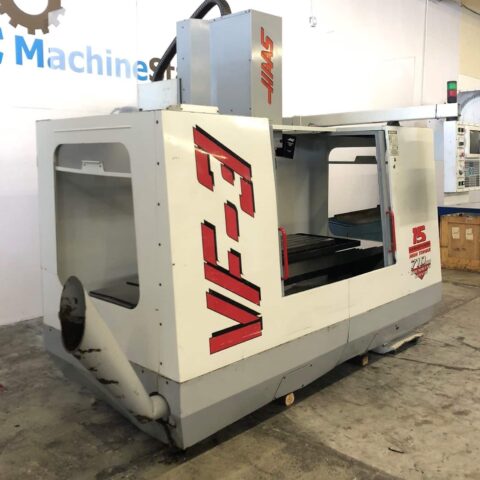

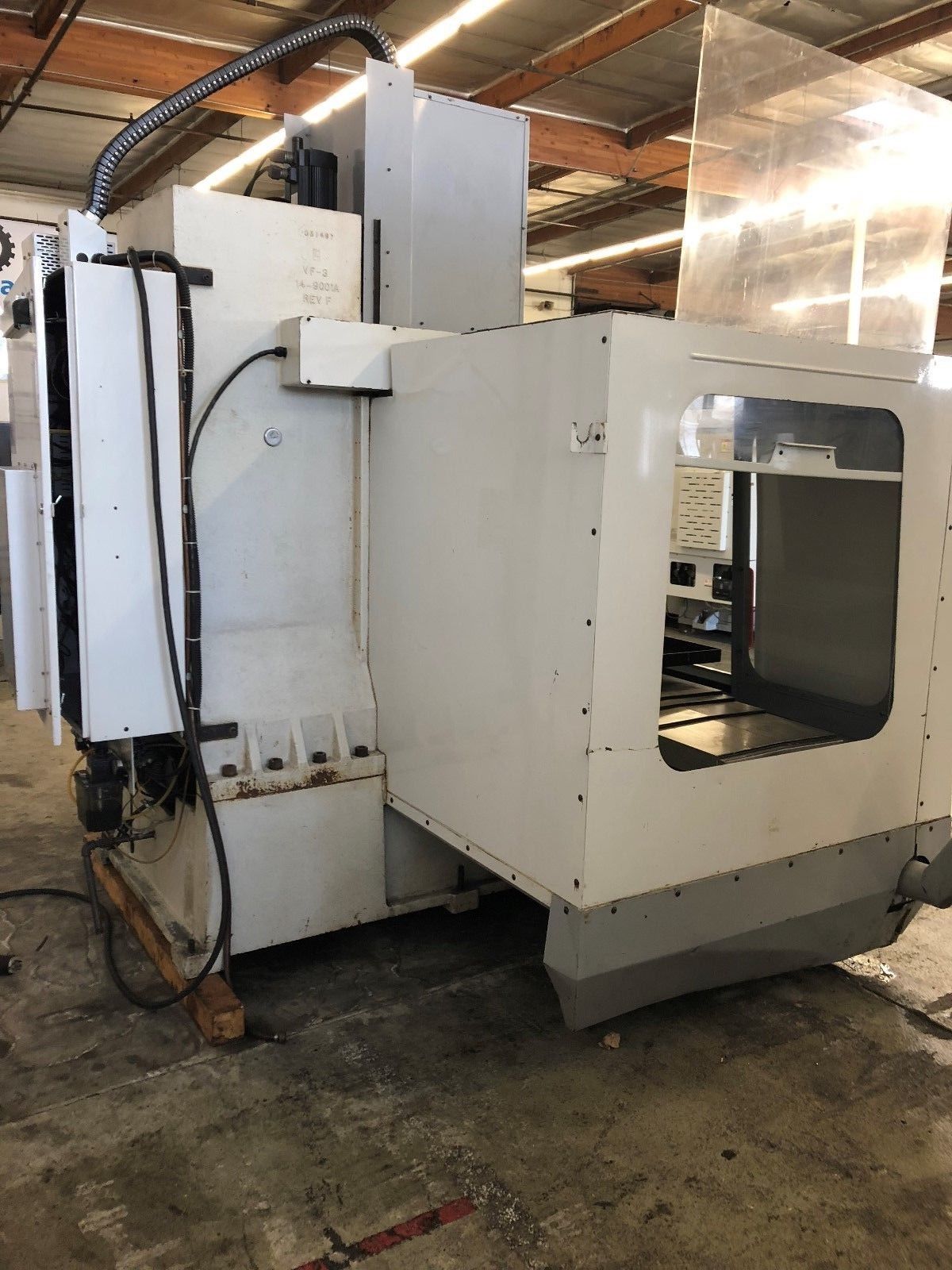

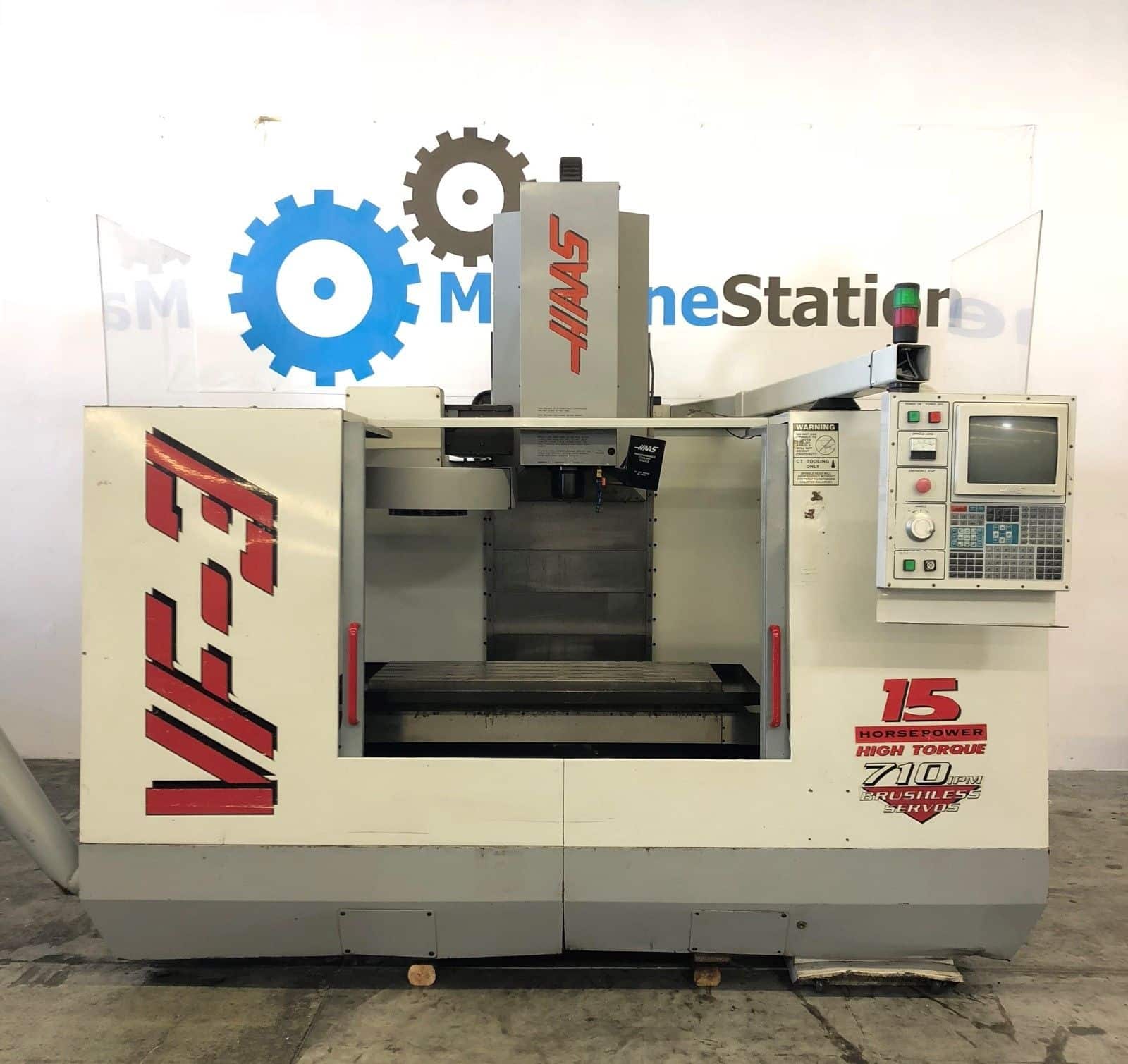

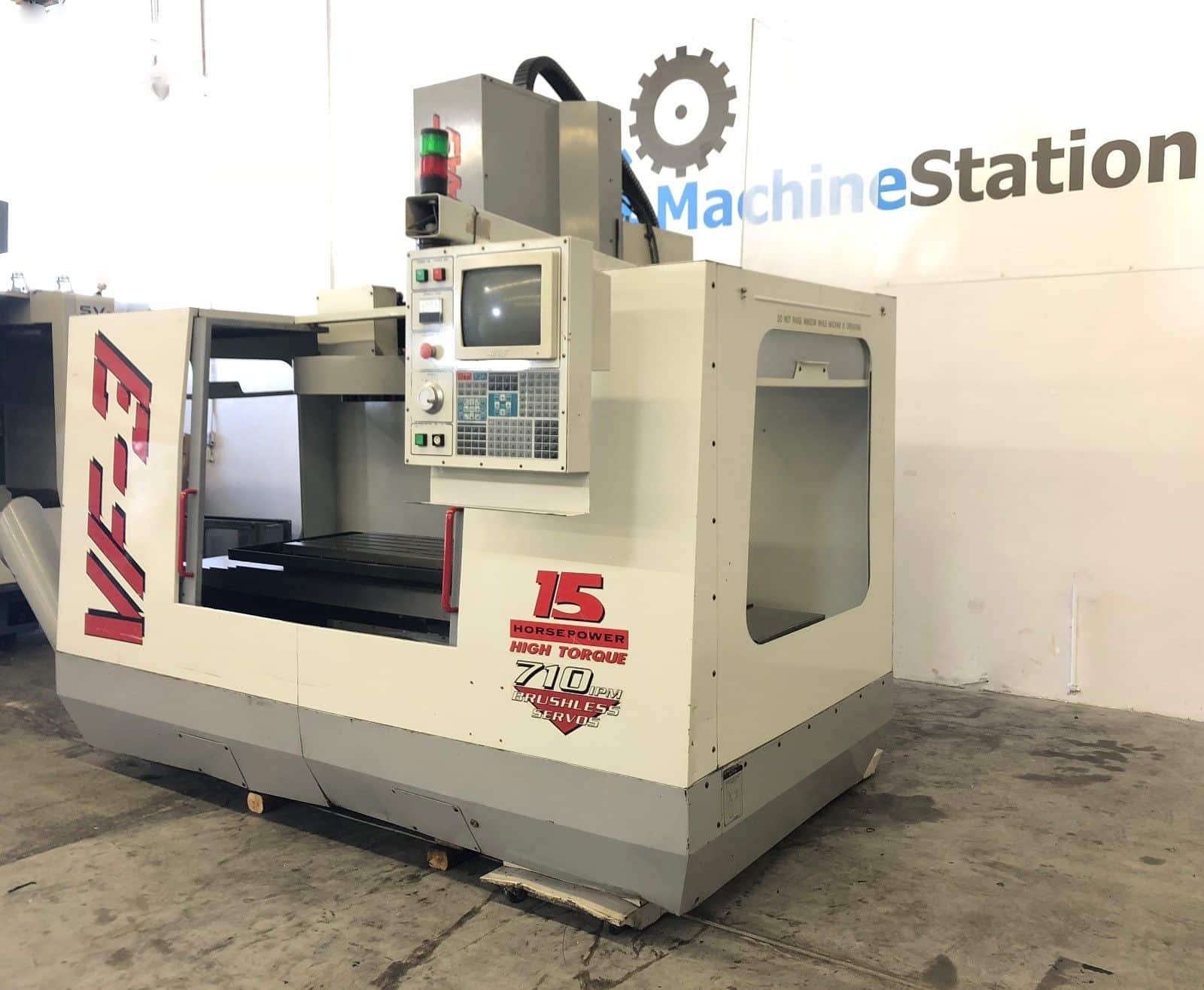

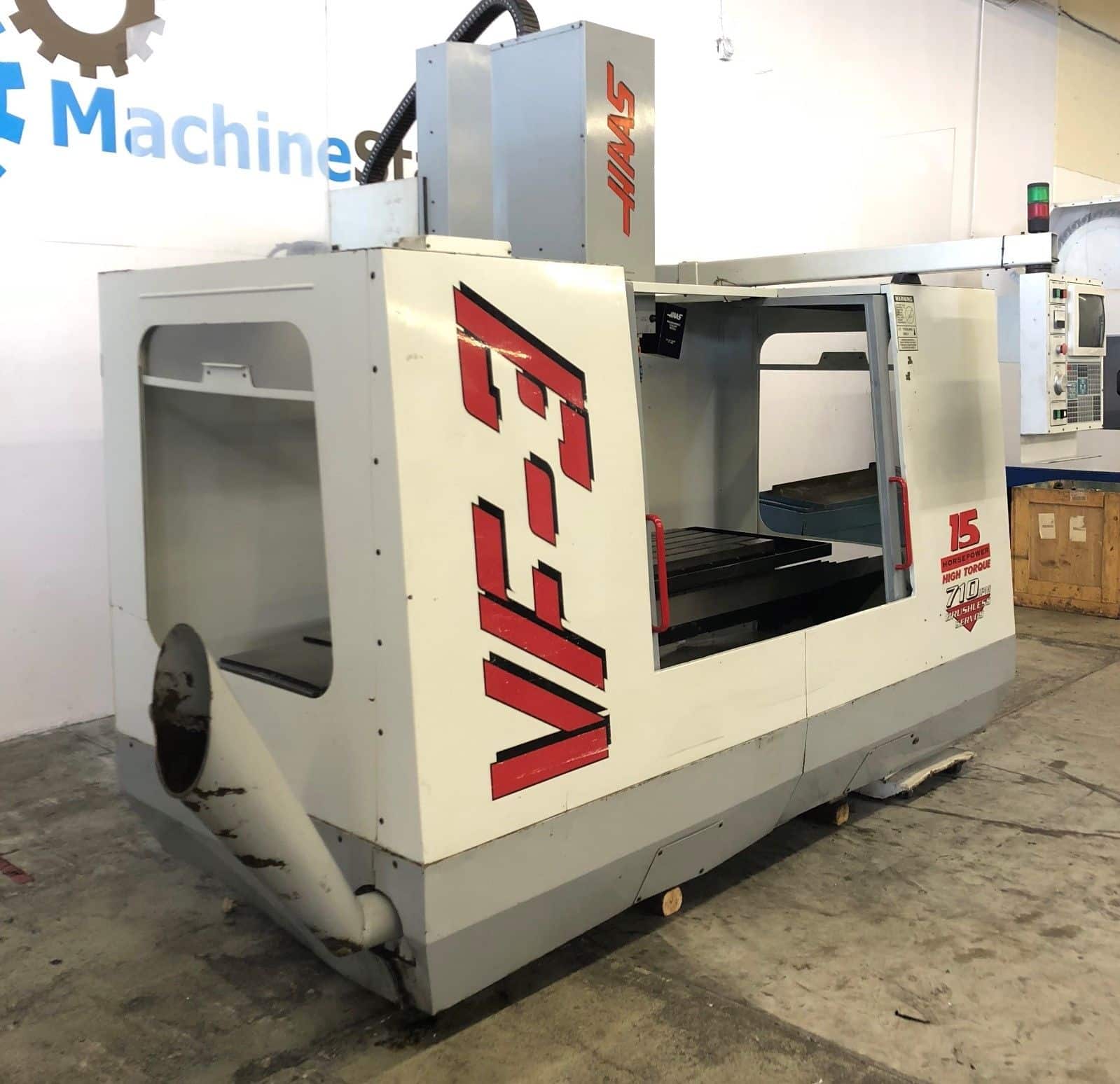

Haas VF-3 CNC Vertical Machining Center

Out of stock
SKU: 1647
HAAS VF-3 VERTICAL MACHINING CENTER 4TH AXIS GEARHEAD
Make Haas
Model No. VF-3
Year of Manufacture: 05/1997

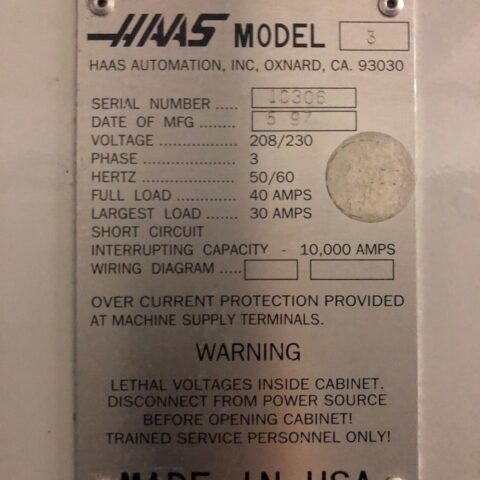

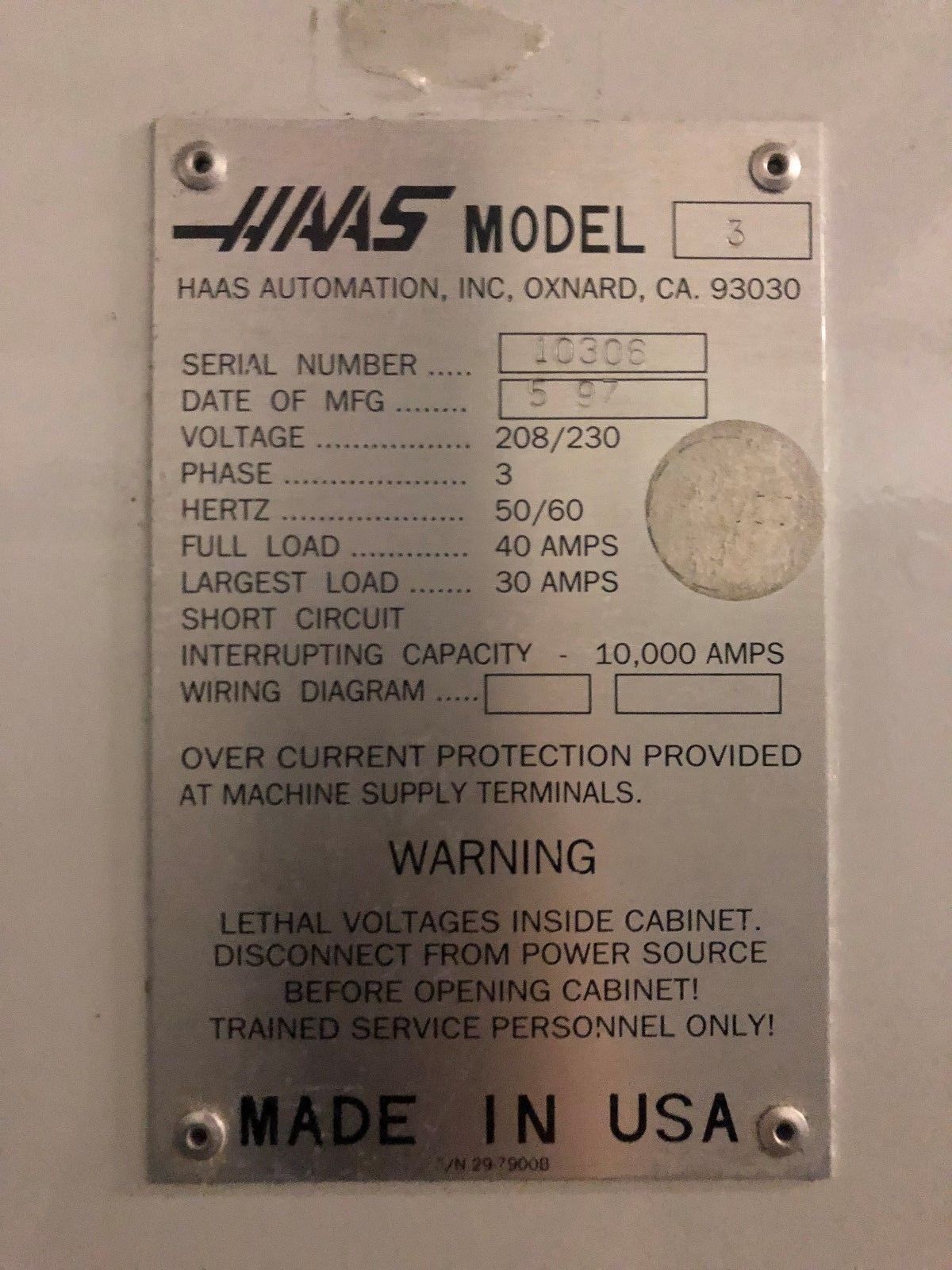

Serial # 10306
Condition Very Good
  • HAAS VF-3 Features:
  • 15HP High Torque Geared Head Spindle
  • 2 Speed Gearbox
  • 4th Axis Ready ( drives and wiring installed )
  • 20 + 1 automatic tool changer
  • Programmable coolant

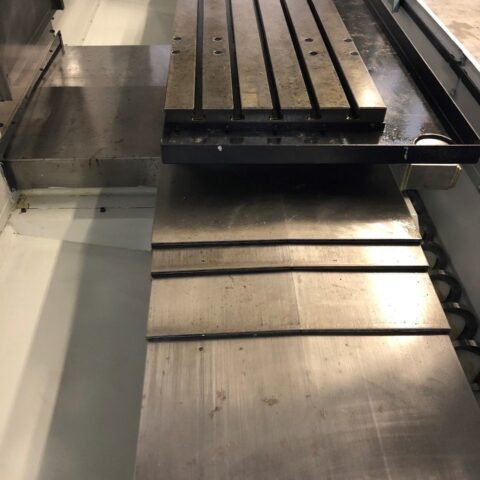

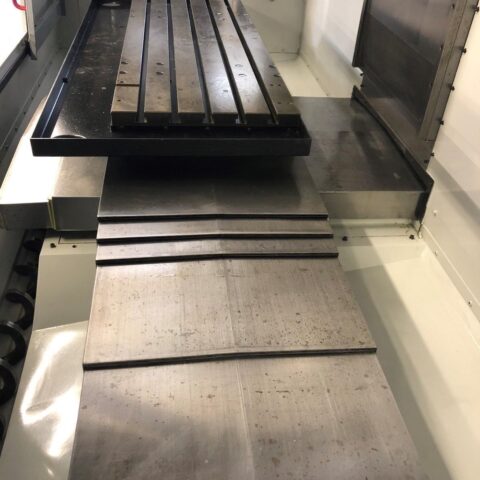

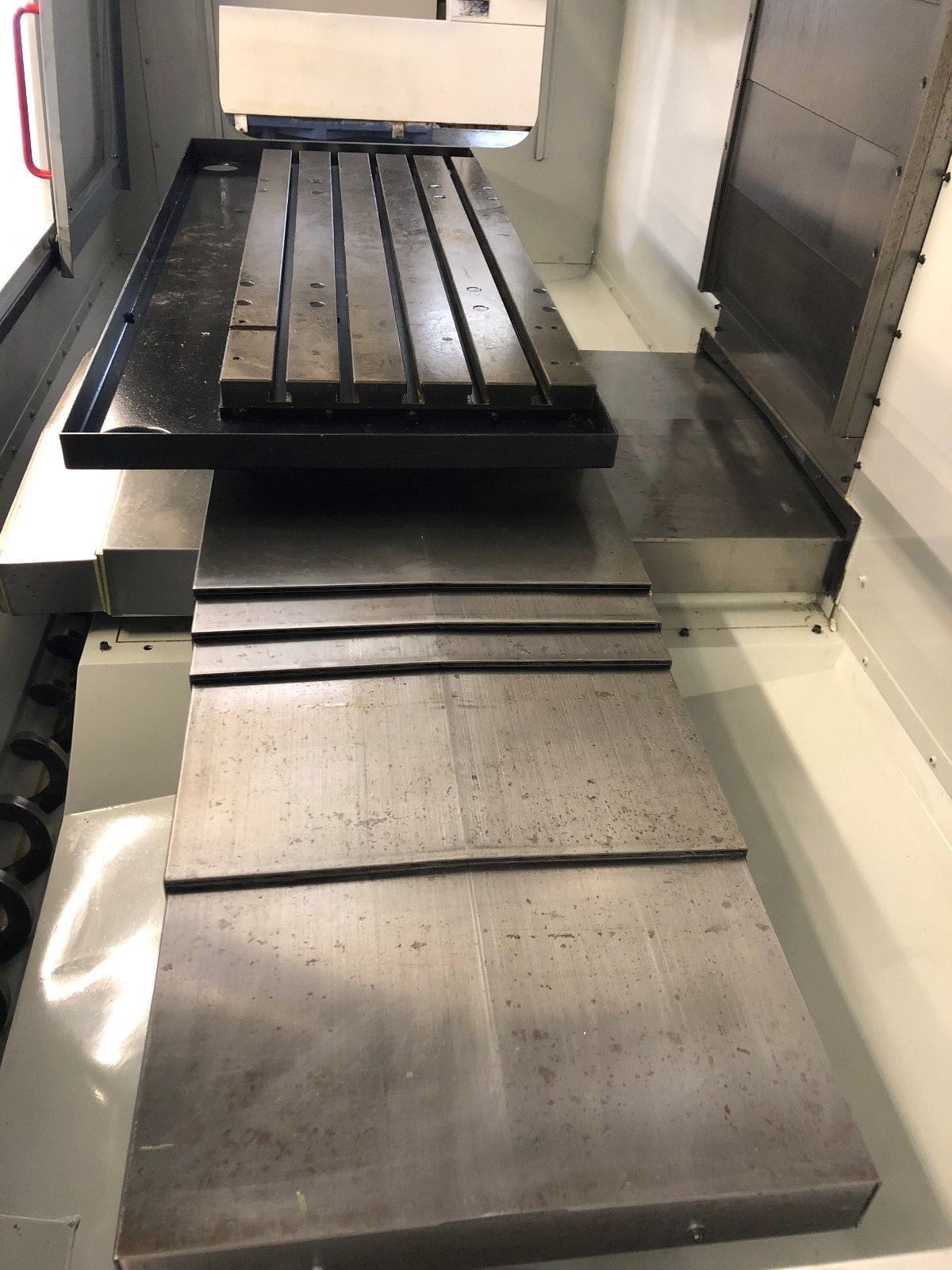

  • Telescopic way covers
  • Flood Coolant system
  • HAAS VF-3 Specifications:
  • Travels:
  • X-Axis: 40″
  • Y-Axis: 20″
  • Z-Axis: 25″
  • Rapid Traverse Rates: 710 Inch Per Minute
  • Cutting Feed Rates: 500 Inch Per Minute
  • Spindle Nose to Table (Min.- Max.): 4″ – 29″

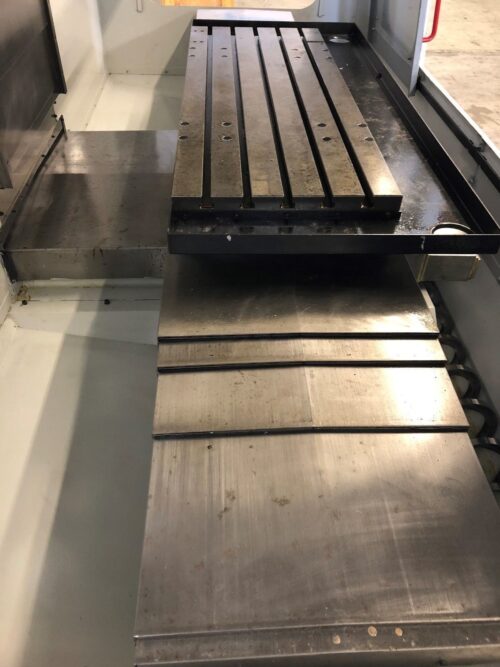

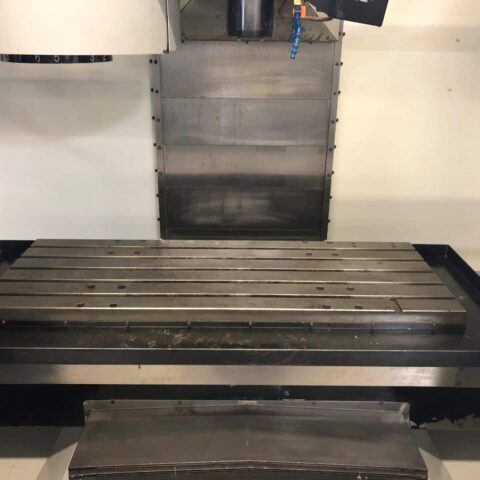

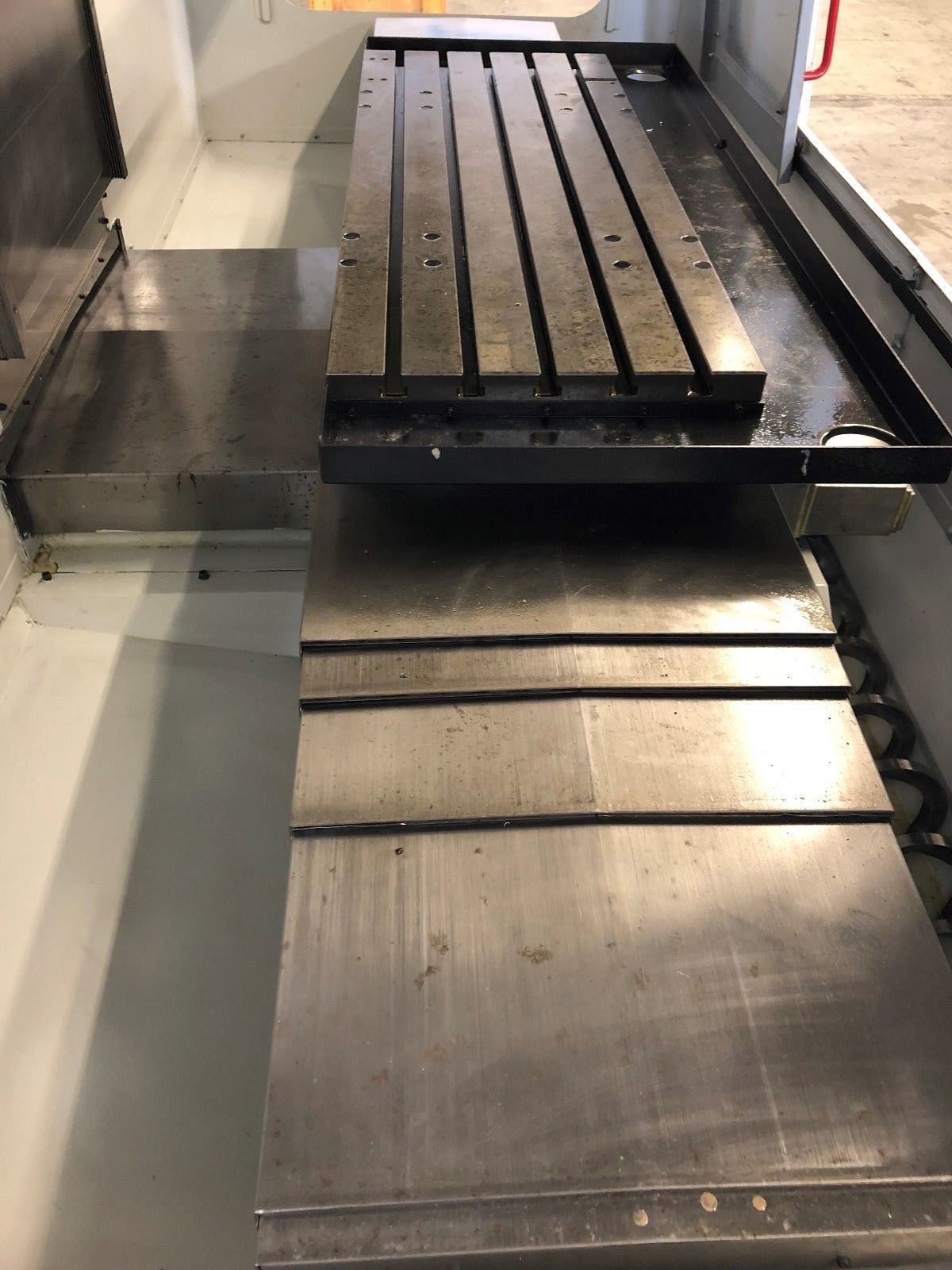

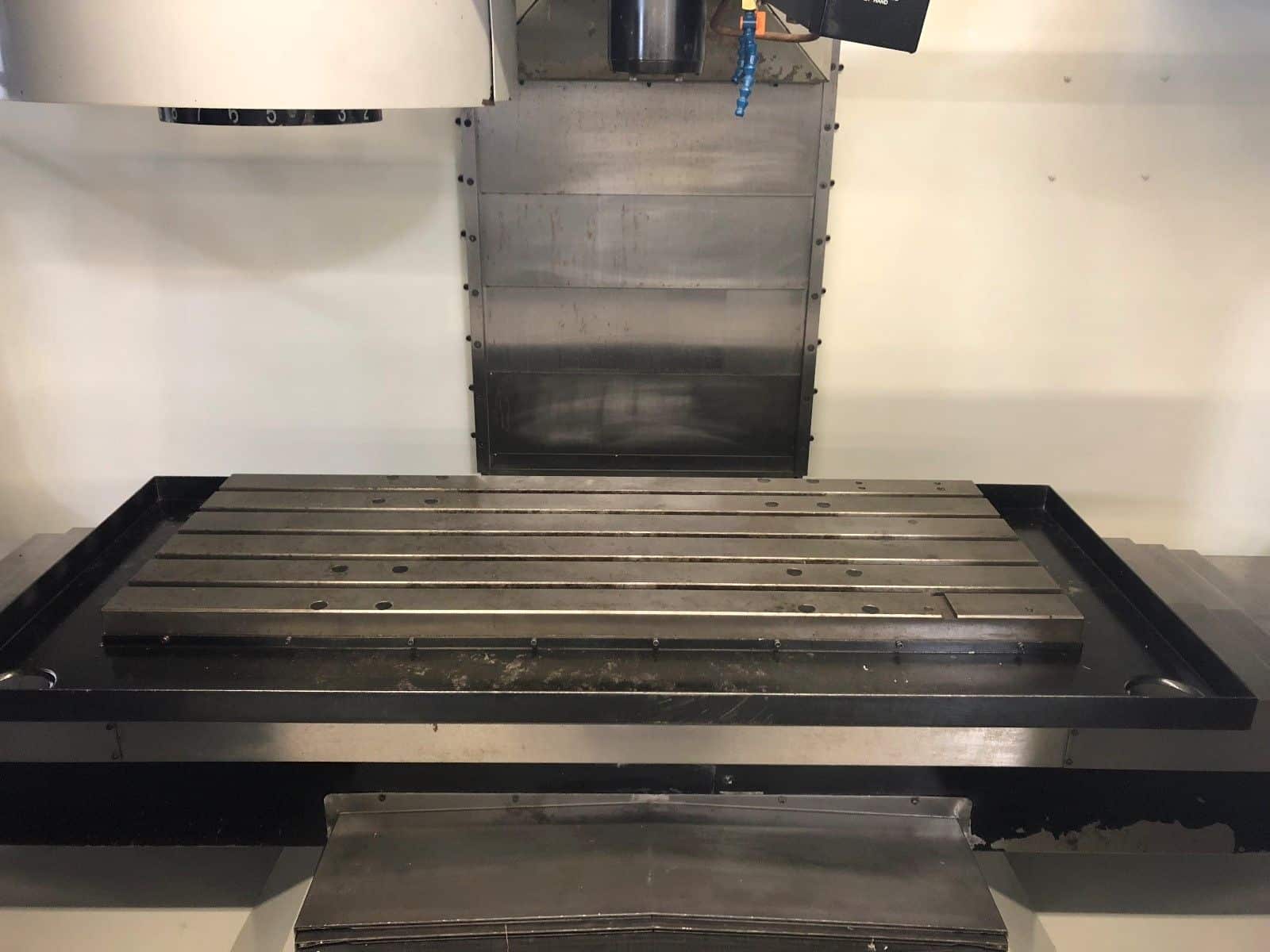

  • Table:
  • Length: 48″
  • Width: 18″
  • Number of Std T-Slots: 5
  • T-Slot Width: 5/8″
  • Max Weight on Table: 1500 lbs

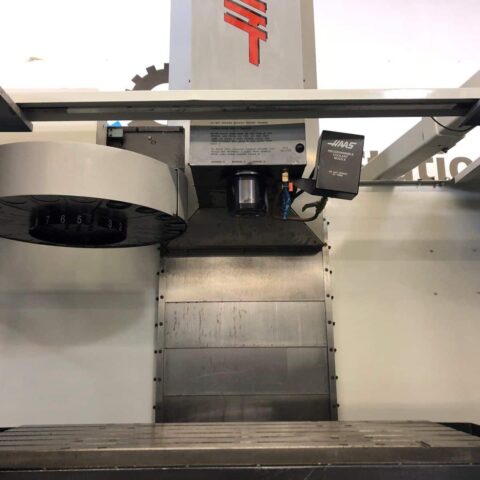

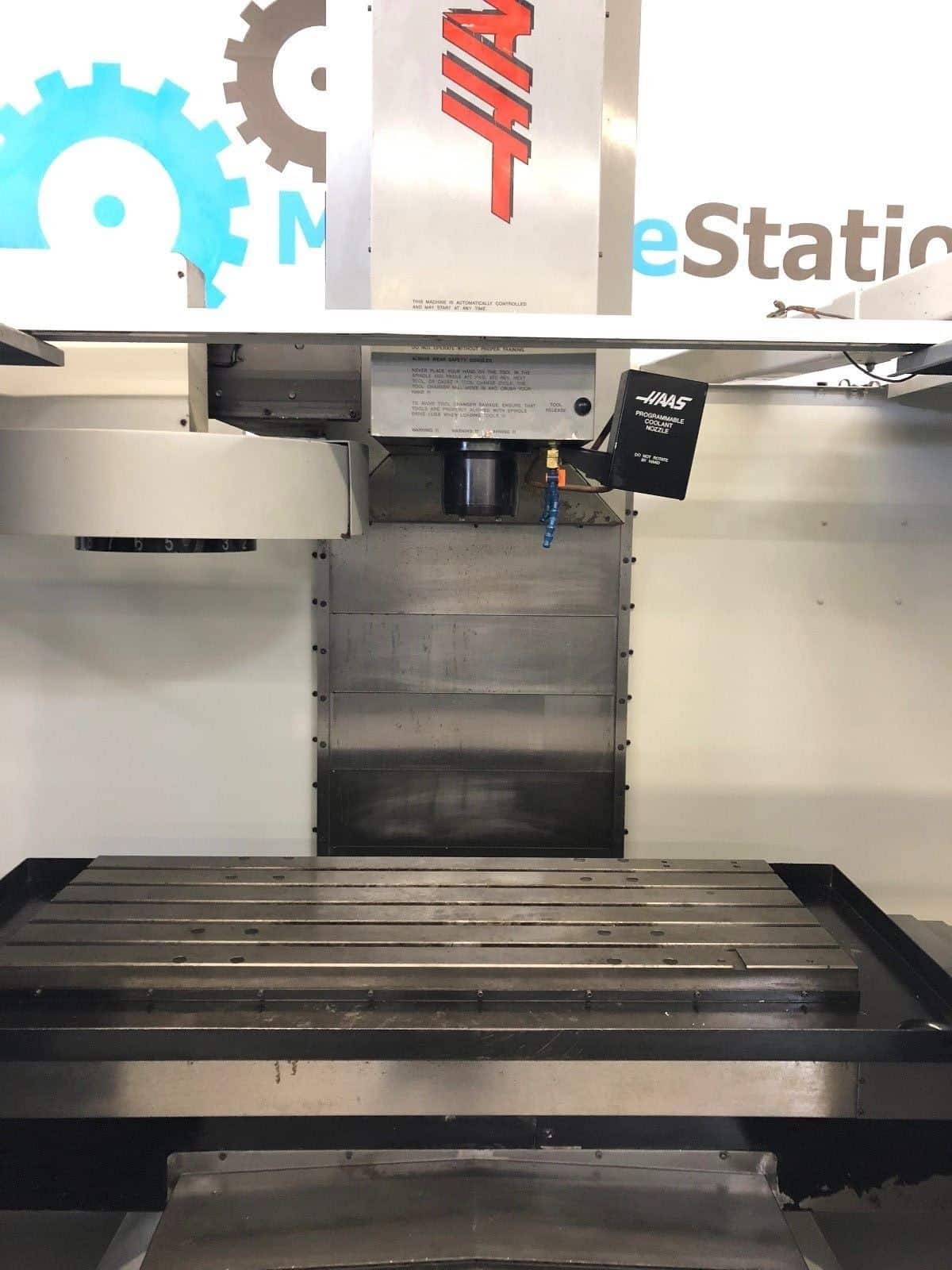

  • Spindle:
  • Taper Size:  40
  • Speed Range: 0 – 7500 RPM
  • Spindle Type: Gear Head
  • Spindle Power: 15 HP Vector Dual Drive
  • Max Torque: 90ft-lb @ 2000 RPM

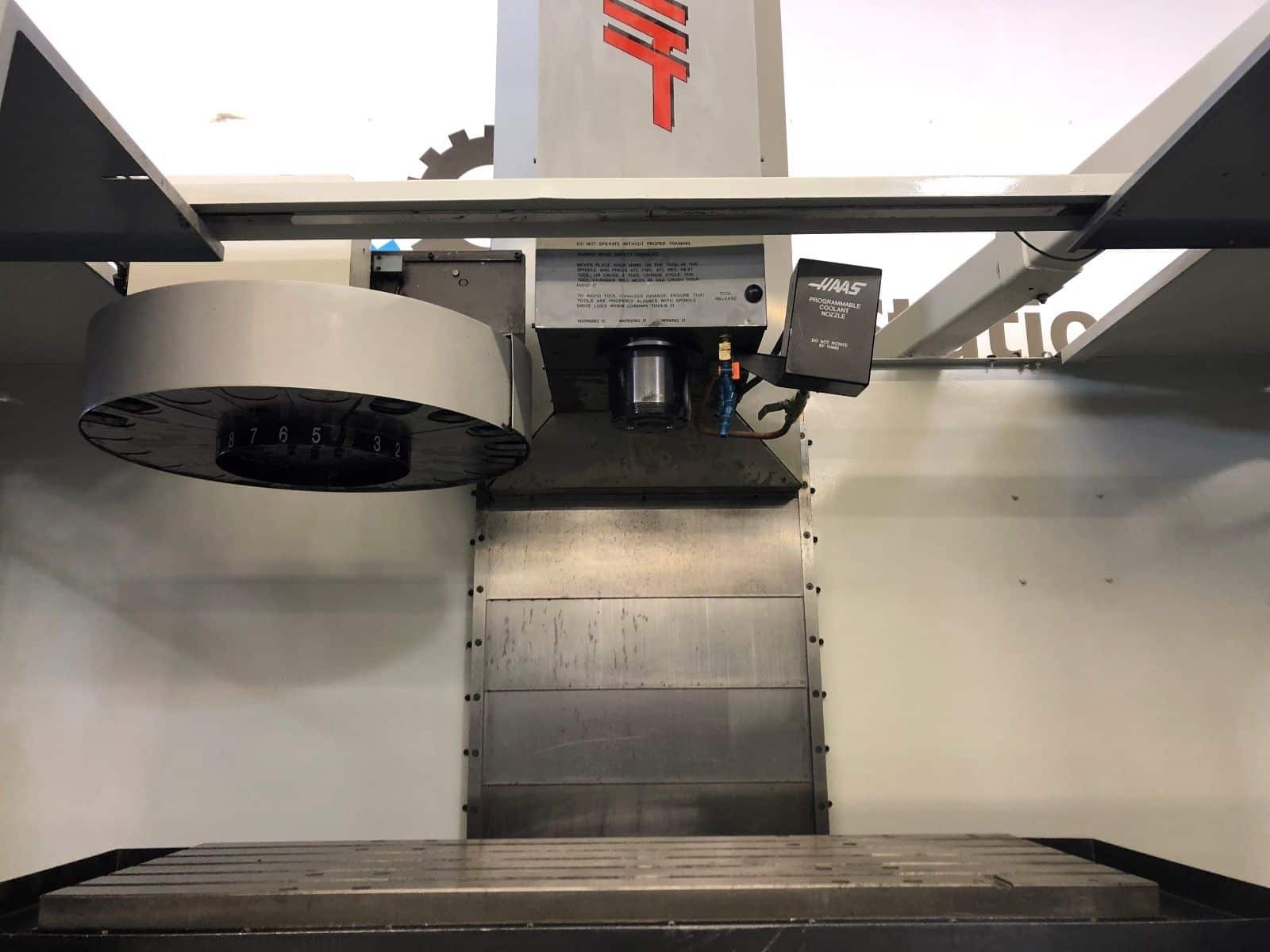

  • Automatic Tool Changer:
  • Capacity: 20 + 1
  • Max Tool Weight: 12 lbs
  • Max Tool Dia: 3.6″
  • Max Tool Length: 13″
  • Tool Changing Time: 4.2 Seconds

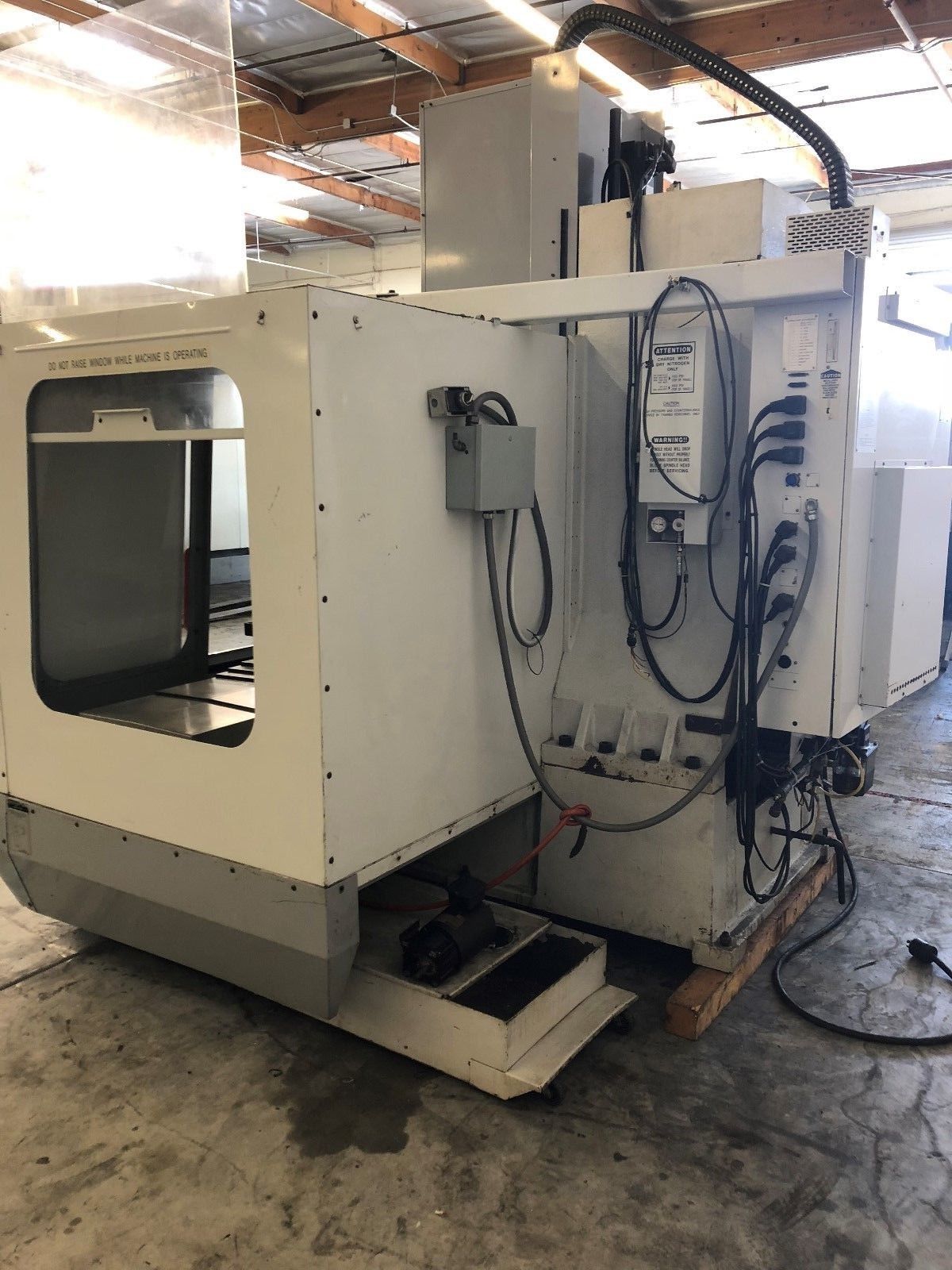

  • General:
  • Air Required: 100 psi, 4 scfm
  • Power: 220v / 66FLA / 3-Phase
  • Overall Dimensions: 118″ x 98″ x 100″ High
  • Weight: 12,500 lbs
