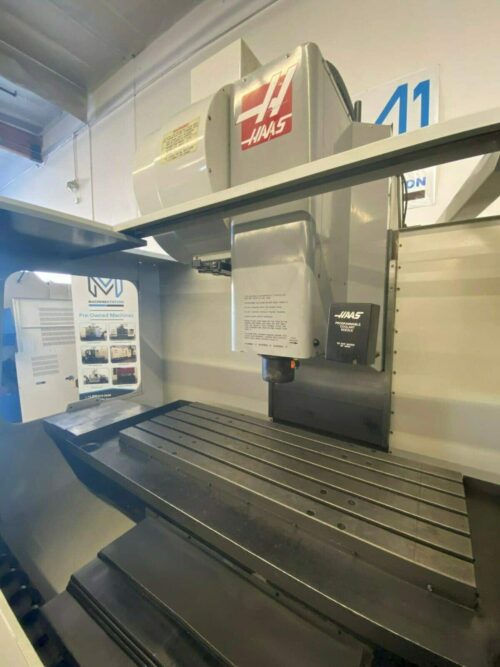

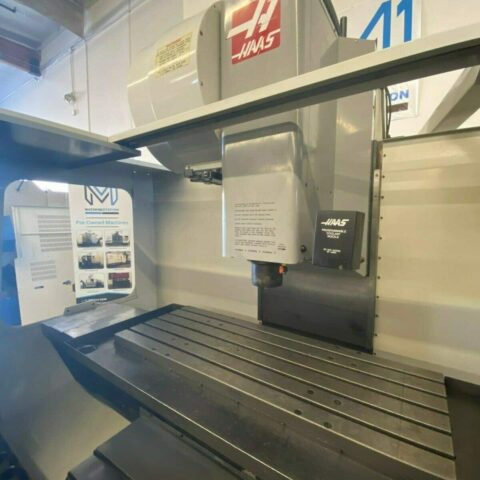

Haas VF-3 CNC Vertical Machining Center
Out of stock
- HAAS VF-3 CNC Features:
- 10,000 RPM Gear Head Spindle
- Manual Plulse Generator
- 4h Axis Ready ( wiring and Drive installed )
- Rigid Tapping
- 1 MB Memory
- Floppy Drive
- User Definable Macros
- Quick Code Programming
- Spindle Orientation and Coordinate Rotational Scaling
- Brushless servo drive motors on all axis
- 24 + 1 automatic high speed tool changer
- Programmable coolant

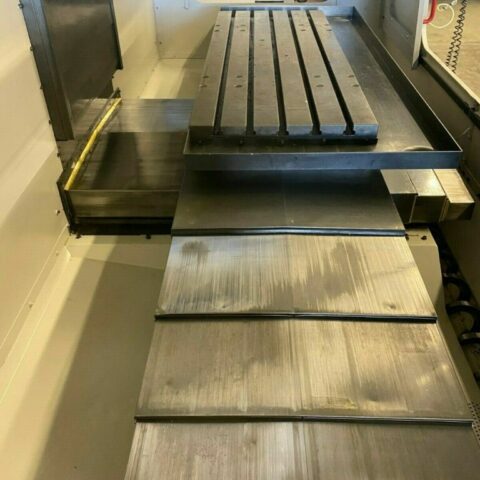

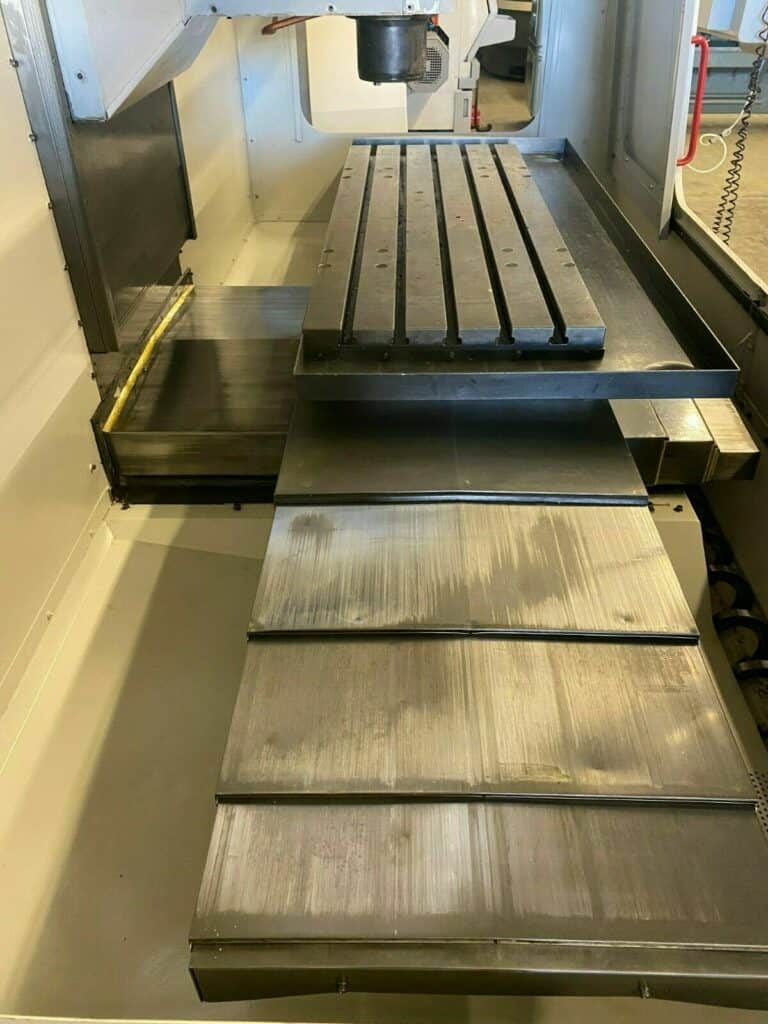

- Telescopic way covers
- Flood Coolant system
- Levelling Pads.
- HAAS VF-3 Specifications:
- Travels:
- X-Axis: 40″
- Y-Axis: 20″
- Z-Axis: 25″
- Rapid Traverse Rates: 710 Inch Per Minute Cutting
- Feed Rates: 650 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 29″
- Table:
- Length: 48″
- Width: 18″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 3500 lbs
- Spindle:
- Spindle: Taper Size: 40
- Speed Range: 0 – 10000 RPM
- Spindle Type: Gear Head
- Spindle Power: 30 HP Vector Dual Drive
- Max Torque: 90ft-lb @ 2000 RPM
- Automatic Tool Changer:
- Capacity: 24 + 1 Max
- Tool Weight: 12 lbs
- Max Tool Dia: 5″
- Max Tool Length: 11″
- Tool Changing Time: 1.6 Seconds
- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 118″ x 96″ x 100″ High
- Weight: 12500 lbs
