HAAS VF-3 CNC VERTICAL MACHINING CENTER

Share

Description

HAAS VF-3 CNC VERTICAL MACHINING CENTER 4th AXIS
Make Haas
Model No. VF-3
Year of Manufacture:  05/2000
Serial # 20729
Condition Very Good
Run Hours: 15531
  • HAAS VF-3 CNC Features:
  • 10,000 RPM Gear Head Spindle
  • Manual Plulse Generator
  • 4h Axis Ready ( wiring and Drive installed )
  • Rigid Tapping
  • 1 MB Memory
  • Floppy Drive
  • User Definable Macros
  • Quick Code Programming
  • Spindle Orientation and Coordinate Rotational Scaling
  • Brushless servo drive motors on all axis
  • 24 + 1 automatic high speed tool changer
  • Programmable coolant

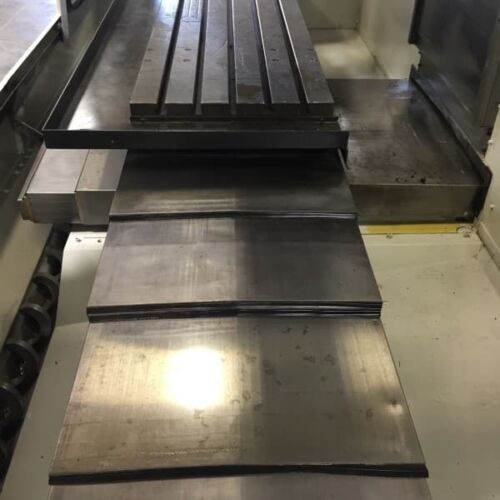

  • Telescopic way covers
  • Flood Coolant system
  • Levelling Pads.
  • HAAS VF-3 Specifications:
  • Travels:
  • X-Axis: 40″
  • Y-Axis: 20″
  • Z-Axis: 25″
  • Rapid Traverse Rates: 710 Inch Per Minute Cutting
  • Feed Rates: 650 Inch Per Minute
  • Spindle Nose to Table (Min.- Max.): 4″ – 29″

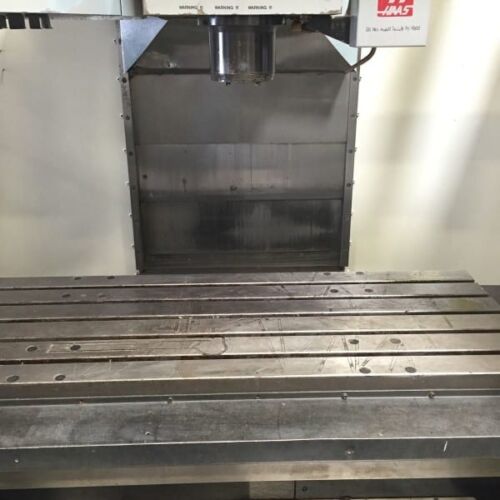

  • Table:
  • Length: 48″
  • Width: 18″
  • Number of Std T-Slots: 5
  • T-Slot Width: 5/8″
  • Max Weight on Table: 3500 lbs

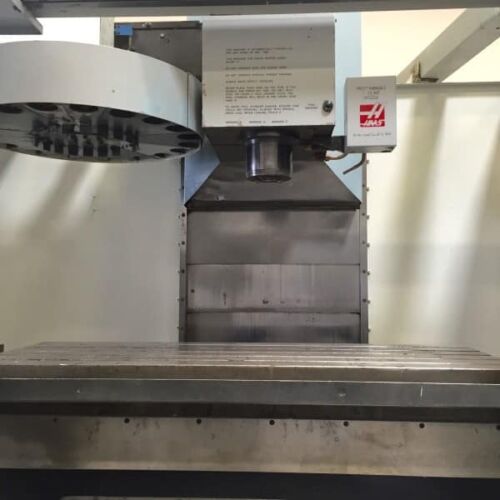

  • Spindle:
  • Spindle: Taper Size: 40
  • Speed Range: 0 – 10000 RPM
  • Spindle Type: Gear Head
  • Spindle Power: 30 HP Vector Dual Drive
  • Max Torque: 90ft-lb @ 2000 RPM
  • Automatic Tool Changer:
  • Capacity: 24 + 1 Max
  • Tool Weight: 12 lbs
  • Max Tool Dia: 5″
  • Max Tool Length: 11″
  • Tool Changing Time: 1.6 Seconds
  • General:
  • Air Required: 100 psi, 4 scfm
  • Power: 220v / 66FLA / 3-Phase
  • Overall Dimensions: 118″ x 96″ x 100″ High
  • Weight: 12500 lbs

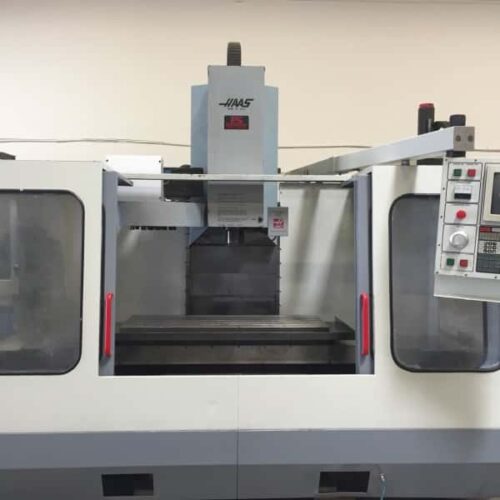

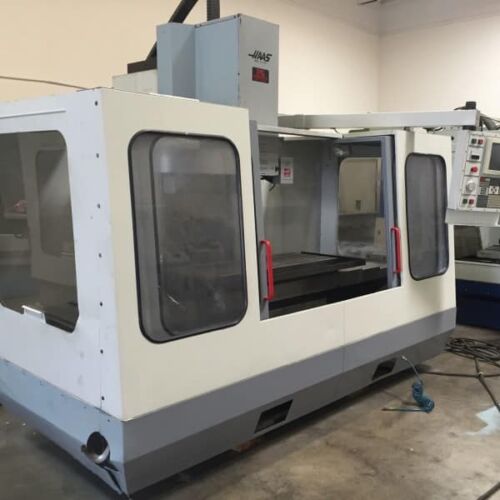

HAAS VF-3 Comes as shown in pictures..
