Haas VF-3 Vertical Machining Center

Out of stock

One Owner Machine equipped with 20HP Gear Head Spindle, 7500rpm, 4th Axis Ready. On our Floor now, fully powered / tested & is in Great working condition.”

SKU: 1579
Make/Model: Haas VF-3
Video: [fusion_button link=”https://www.youtube.com/watch?v=1k0gsZXjzWw” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1579
HAAS VF-3 VERTICAL MACHINING CENTER
Make Haas
Model No. VF-3

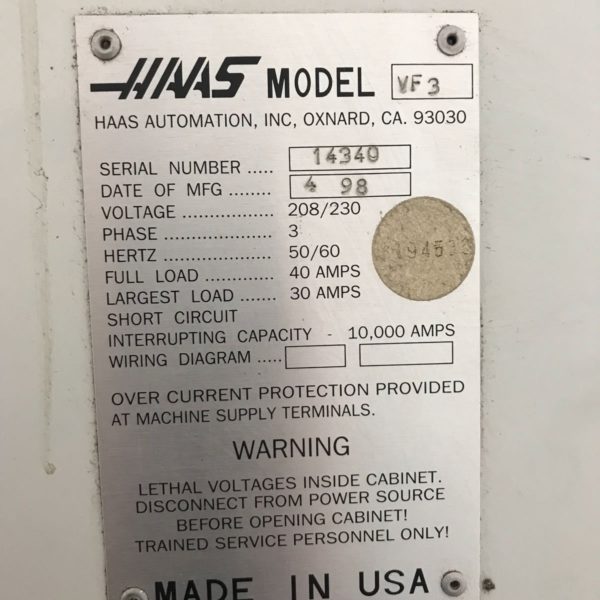

Year of Manufacture: 1998
Serial # 14340
Condition Very Good

“One Owner Machine equipped with 20HP Gear Head Spindle, 7500rpm, 4th Axis Ready. On our Floor now, fully powered / tested & is in Great working condition.”

  • Haas VF-3 Features:
  • 20HP High Torque Geared Head Spindle
  • 2 Speed Gearbox
  • 4th Axis Ready ( drives and wiring installed )
  • 1MB Expanded  Memory
  • Rigid Tapping
  • Power Failure Detection Module
  • User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling

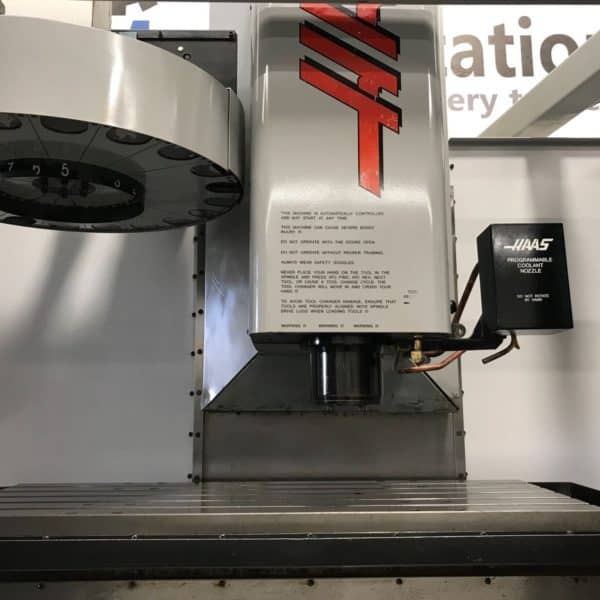

  • 20 + 1 automatic tool changer

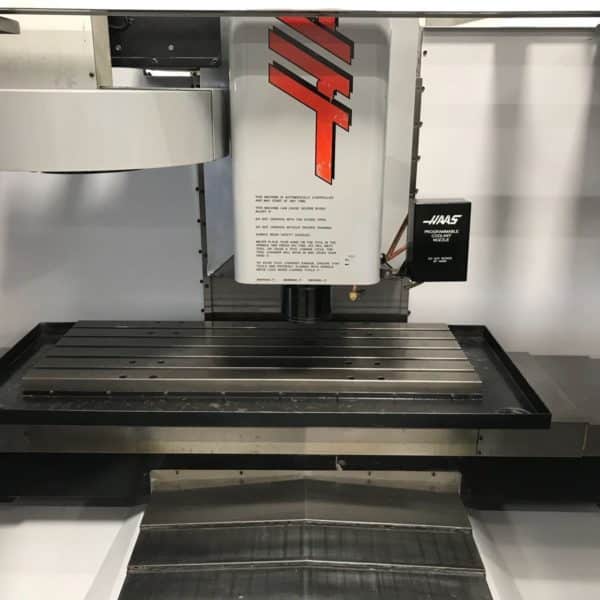

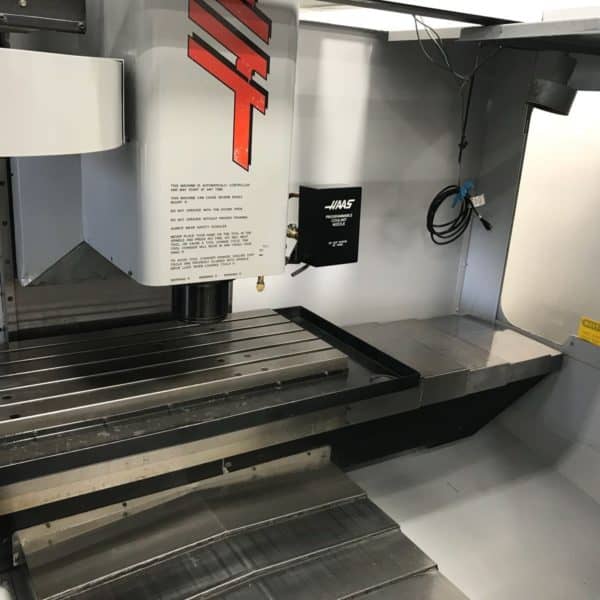

  • Programmable coolant

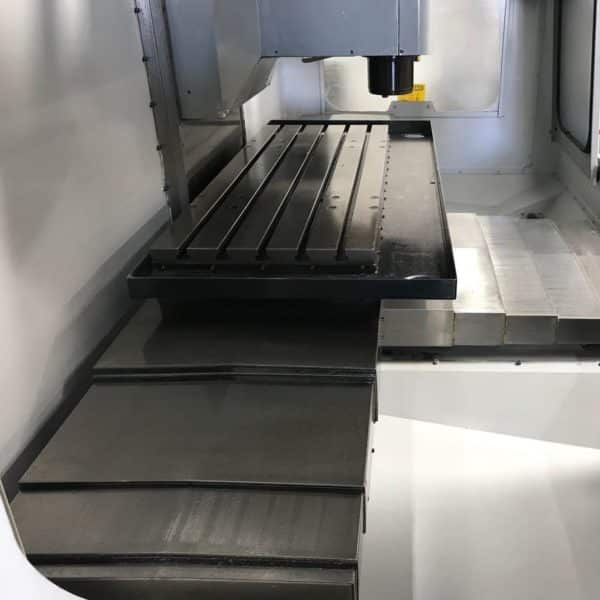

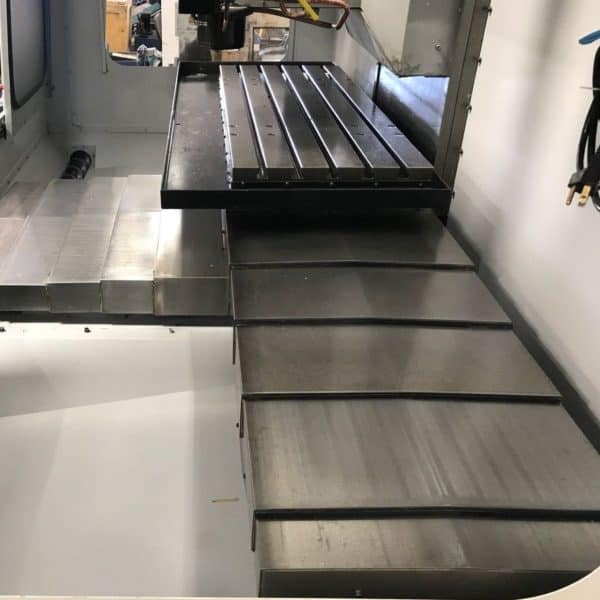

  • Telescopic way covers

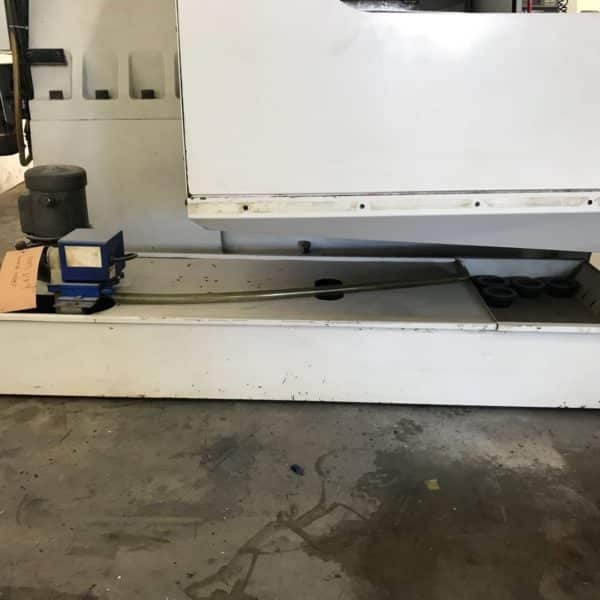

  • Chip auger
  • Floppy Drive
  • Flood Coolant system
  • RS-232 Port
  • Haas VF-3 Specifications:
  • Travels:
  • X-Axis: 40″
  • Y-Axis: 20″
  • Z-Axis: 25″
  • Rapid Traverse Rates: 710 Inch Per Minute
  • Cutting Feed Rates: 500 Inch Per Minute
  • Spindle Nose to Table (Min.- Max.): 4″ – 29″
  • Table:
  • Length: 48″
  • Width: 18″
  • Number of Std T-Slots: 5
  • T-Slot Width: 5/8″
  • Max Weight on Table: 1500 lbs
  • Spindle:
  • Taper Size:  40
  • Speed Range: 0 – 7500 RPM
  • Spindle Type: Gear Head
  • Spindle Power: 20 HP Vector Dual Drive
  • Max Torque: 90ft-lb @ 2000 RPM
  • Automatic Tool Changer:
  • Capacity: 20 + 1
  • Max Tool Weight: 12 lbs
  • Max Tool Dia: 3.6″
  • Max Tool Length: 13″
  • Tool Changing Time: 4.2 Seconds
  • General:
  • Air Required: 100 psi, 4 scfm
  • Power: 220v / 66FLA / 3-Phase
  • Overall Dimensions: 118″ x 98″ x 100″ High
  • Weight: 12,500 lbs

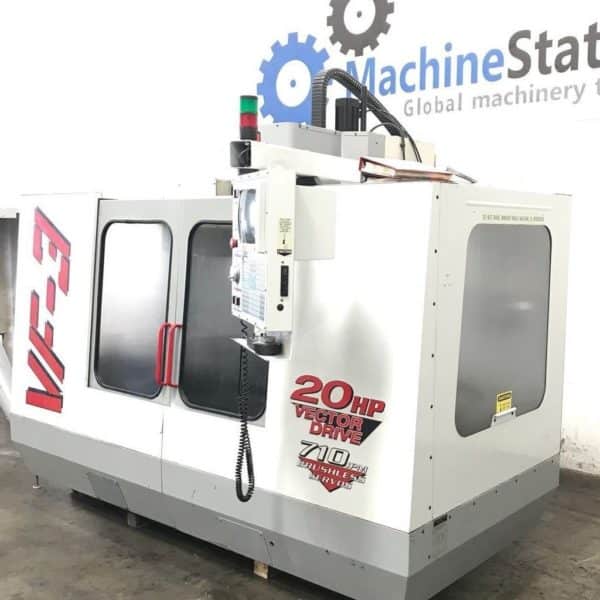

Haas VF-3 Comes as shown in pictures..
