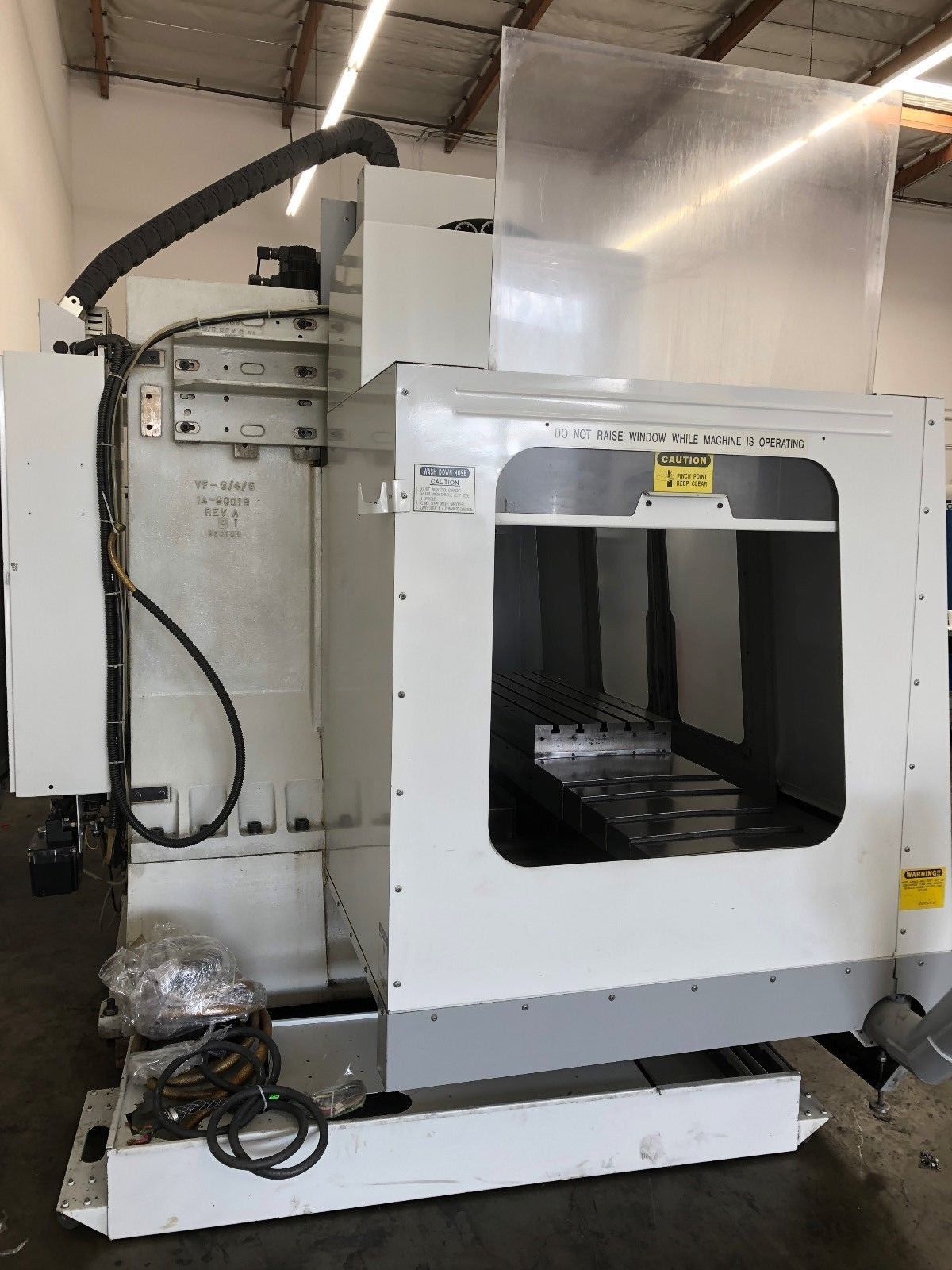

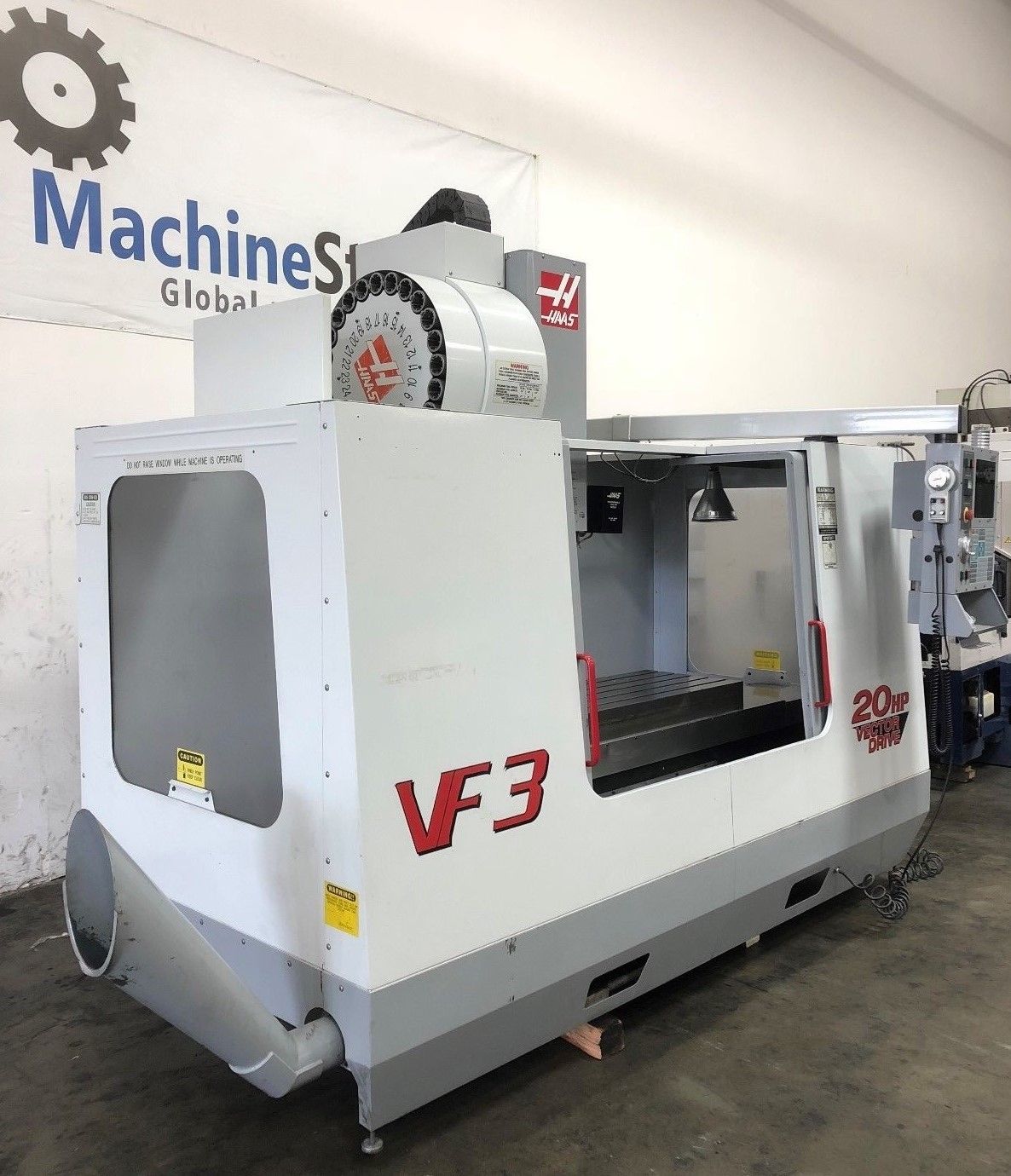

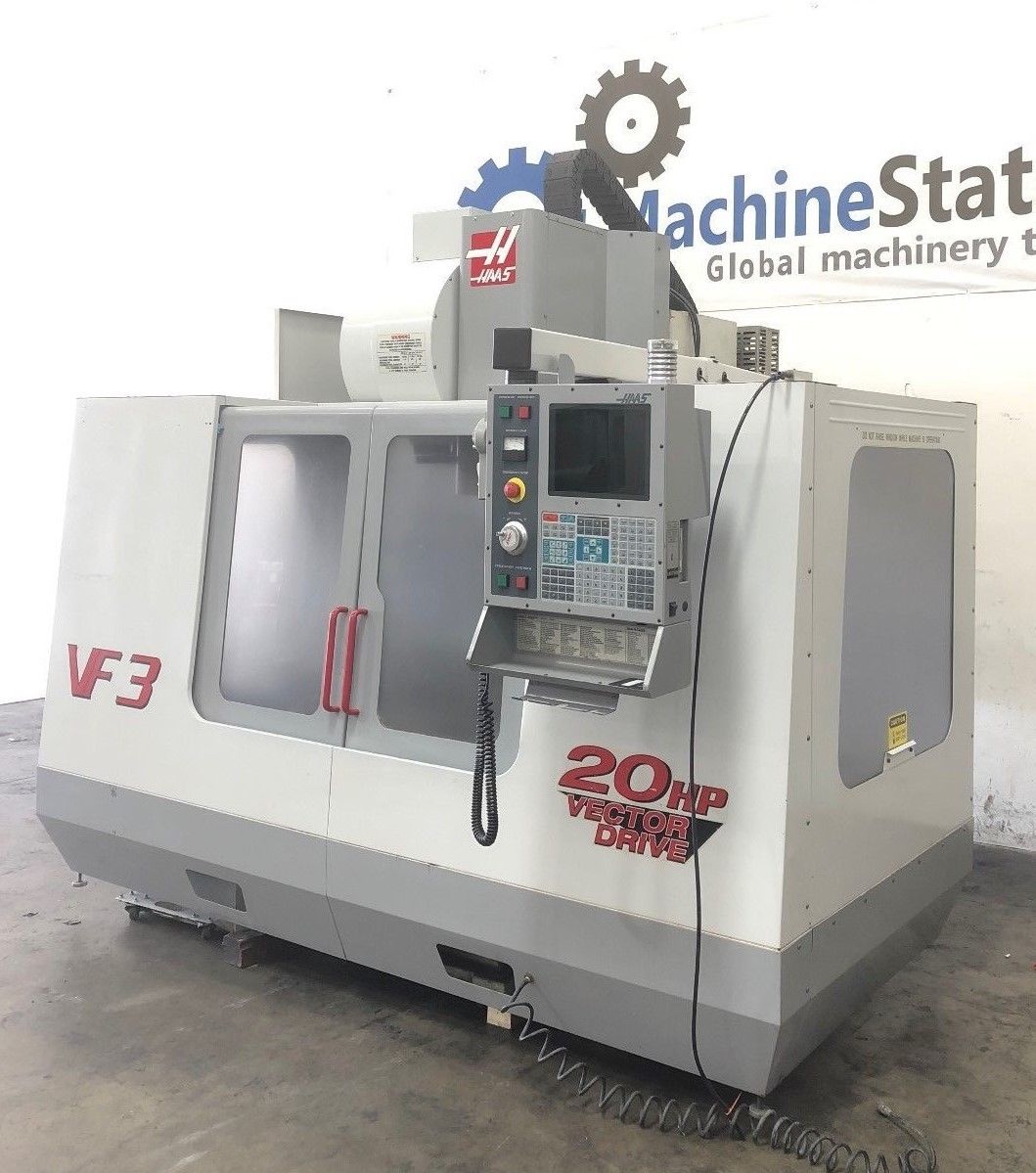

Haas VF-3B CNC Vertical Machining Center
Out of stock
| SKU: |
1615 |
| Make/Model: |
HAAS VF-3B |
| Video: |
[fusion_button link=”https://www.youtube.com/watch?v=DCXmNoDSt1I” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button] |
| HAAS VF-3B CNC VERTICAL MACHINING CENTER |
| Make |
Haas |
| Model No. |
VF-3B |
| Year of Manufacture: |
04/01 |

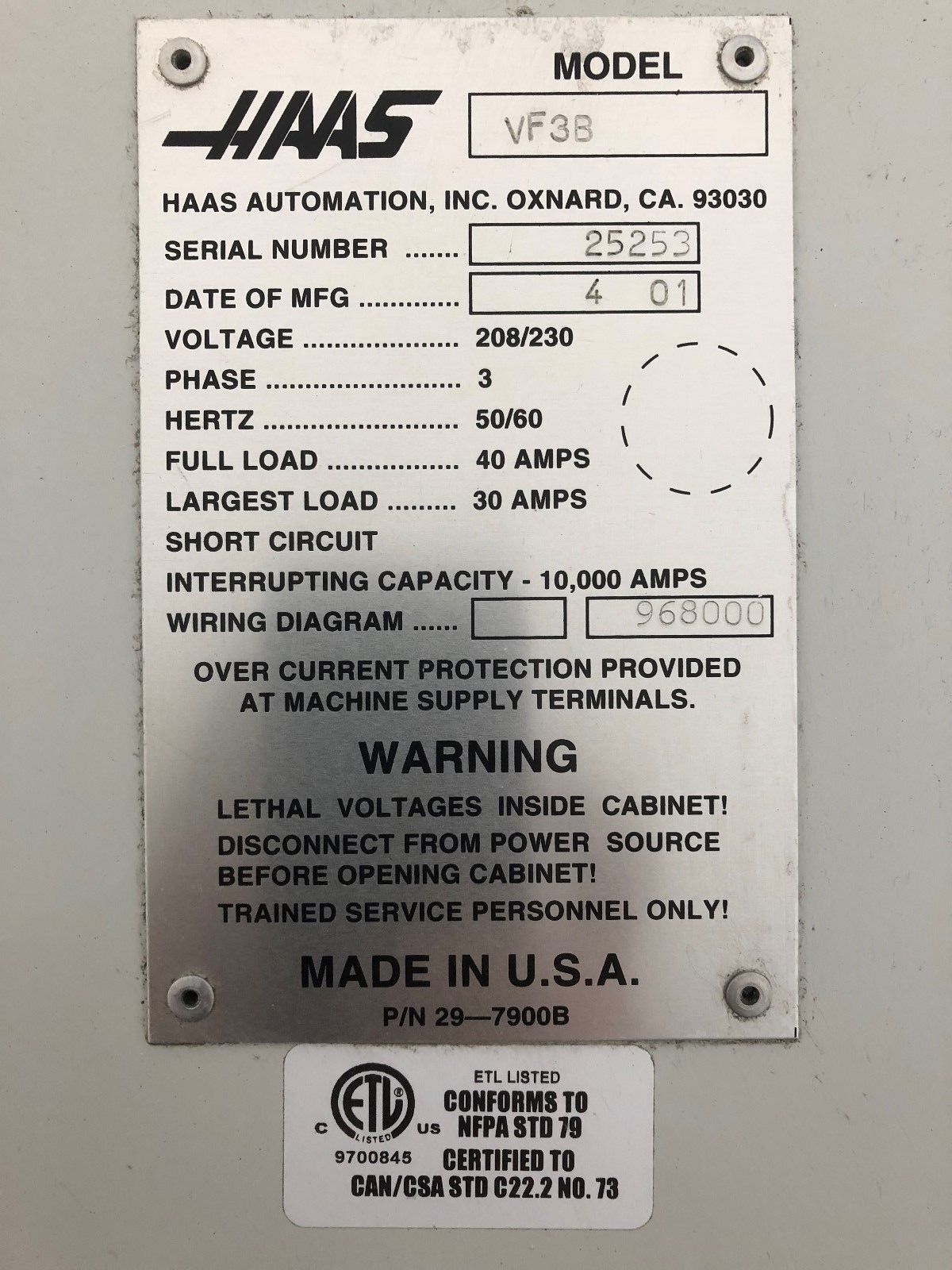

| Serial # |
25253 |
| Condition |
Very Good |
- HAAS VF-3B CNC Features:
- 20HP High Torque Geared Head Spindle
- 2 Speed Gearbox
- 4th Axis Ready ( drives and wiring installed ) 5th Axis Ready ( drives and wiring installed )
- 1MB Expanded Memory

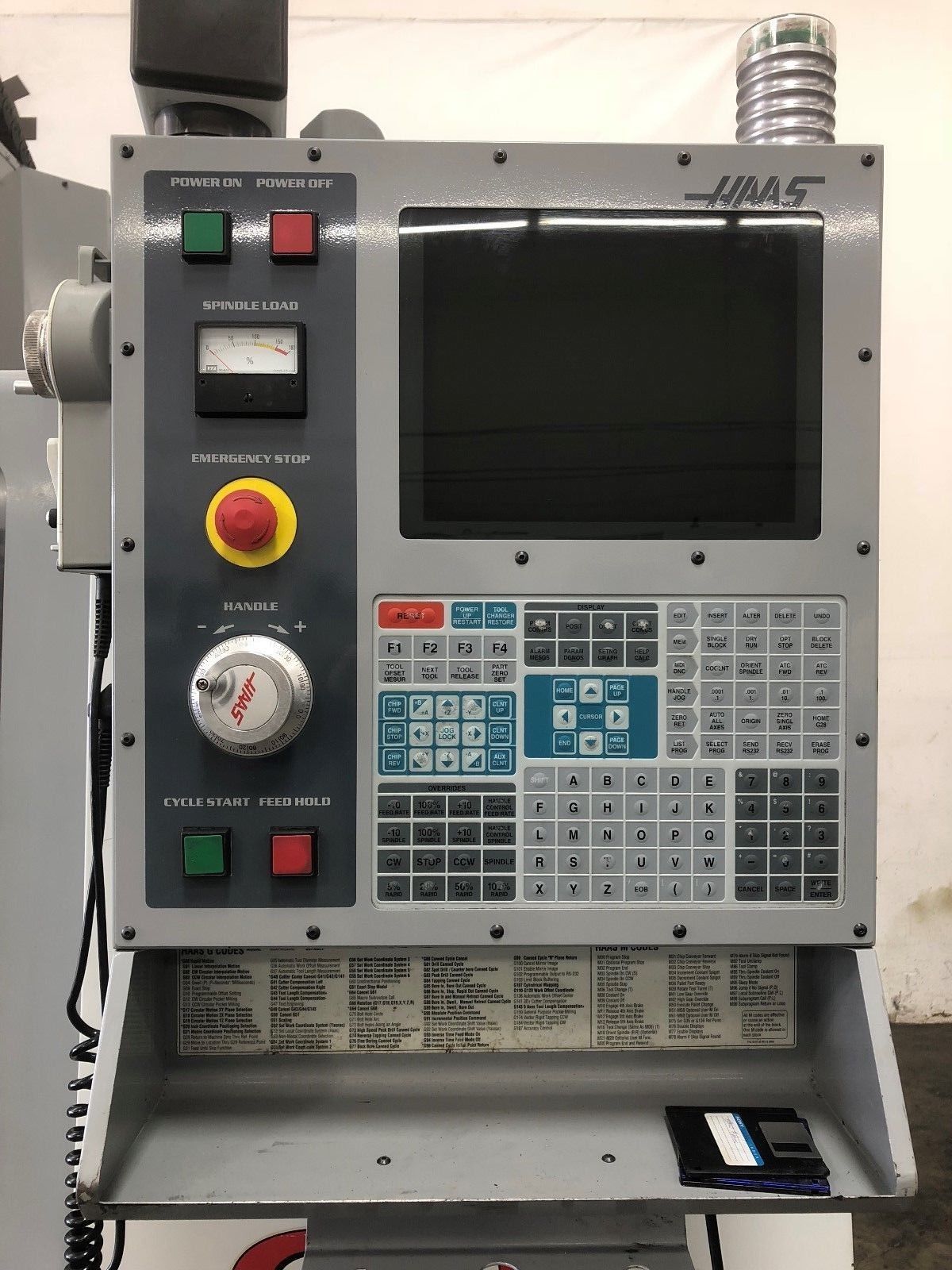

- MPG Controller
- Rigid Tapping
- Power Failure Detection Module
- User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
- 24 + 1 Side Mount Automatic tool changer
- Programmable coolant
- Telescopic way covers
- Chip auger
- Floppy Drive
- Flood Coolant system

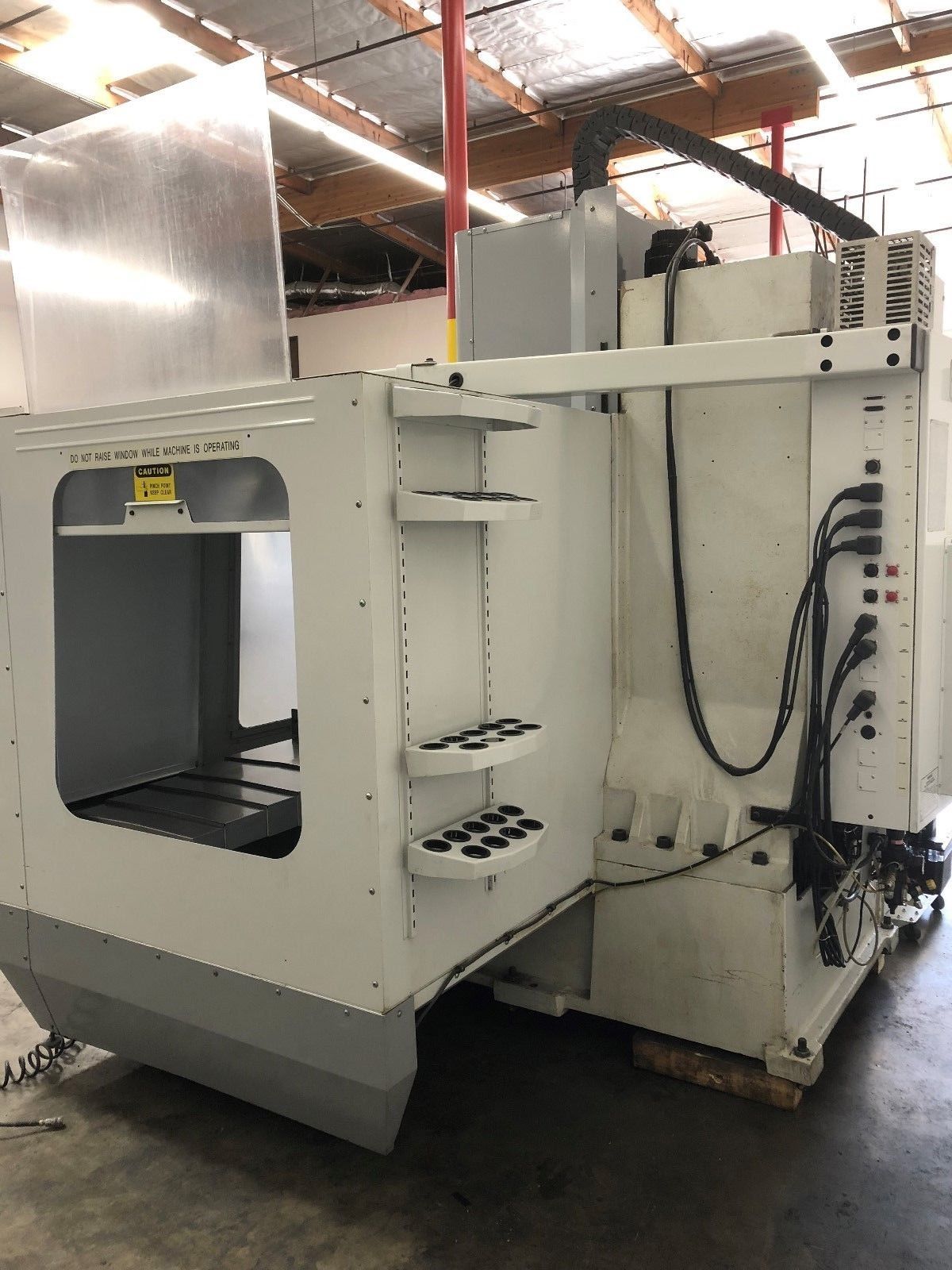

- Tool Holder’s Tray
- HAAS VF-3B CNC Specifications:
- Travels:
- X-Axis: 40″
- Y-Axis: 20″
- Z-Axis: 25″
- Rapid Traverse Rates: 710 Inch Per Minute
- Cutting Feed Rates: 500 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 29″
- Table:
- Length: 48″
- Width: 18″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 1500 lbs
- Spindle:
- Taper Size: 40
- Speed Range: 0 – 7500 RPM
- Spindle Type: Gear Head
- Spindle Power: 20 HP Vector Dual Drive
- Max Torque: 90ft-lb @ 2000 RPM
- Automatic Tool Changer:
- Capacity: 20 + 1
- Max Tool Weight: 12 lbs
- Max Tool Dia: 3.6″
- Max Tool Length: 13″
- Tool Changing Time: 4.2 Seconds
- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 118″ x 98″ x 100″ High
- Weight: 12,500 lbs
