Haas VF 3B Vertical Machining Center | |
---|---|
Make | Haas |
Model No. | VF-3B |
Year of Manufacture: | 2006 |
Serial # | 47529 |
Condition | Very Good |
All specifications are approximations and are subject to verification.
- Haas VF 3B Vertical Machining Center Features:
- 4th Axis Ready
- Thru Coolant Spindle
- Haas VOP-D Package
- 1000 Inch Per Minute
- 2-Speed Gear Box
- 220HP High Torque Spindle
- Brushless Servo Motors
- Remote Jog Handle
- Full Enclosure
- Rigid Tapping
- 24+1 Tool Automatic Tool Changer
- Quick Code Programming
- Coolant Filtration System
- Chip Auger
- Floppy Drive
- Extended Memory
- RS-232 Port
- Comes with All Original Manuals
- Haas VF 3B Vertical Machining Center Specifications:
- Travels:
- X-Axis: 40″
- Y-Axis: 20″
- Z-Axis: 25″
- Rapid Traverse Rates: 1000 Inch Per Minute
- Cutting Feed Rates: 650 IPM
- Spindle Nose to Table (Min.- Max.): 4″ – 29″
- Table:
- Length: 48″
- Width: 18″
- Max Weight on Table: 3500 lbs
- Spindle:
- Taper Size: No. 40
- Speed Range: 60 – 7500 RPM
- Spindle Power: 20 HP
- Automatic Tool Changer:
- Capacity: 24
- Max Tool Weight: 12 lbs
- Max Tool Length: 16″
- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 120″ x 110″ x 105″ High
- Weight: 12500 lbs

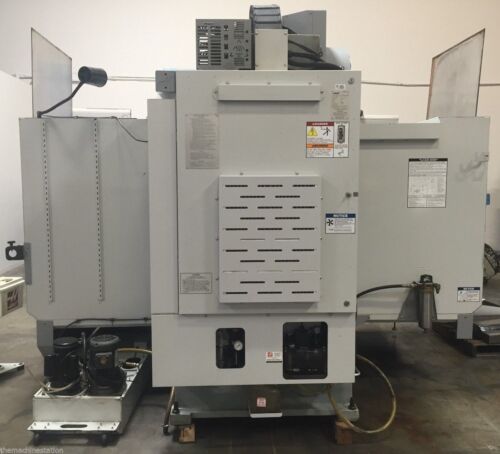

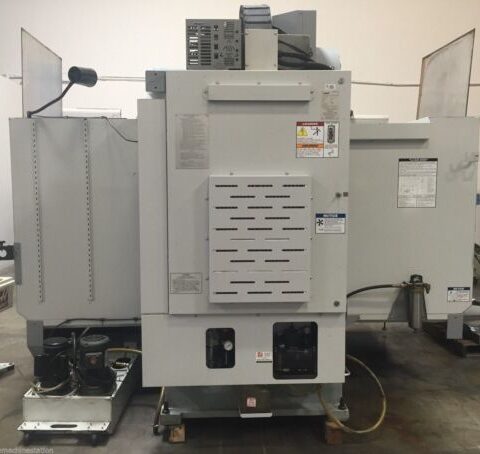

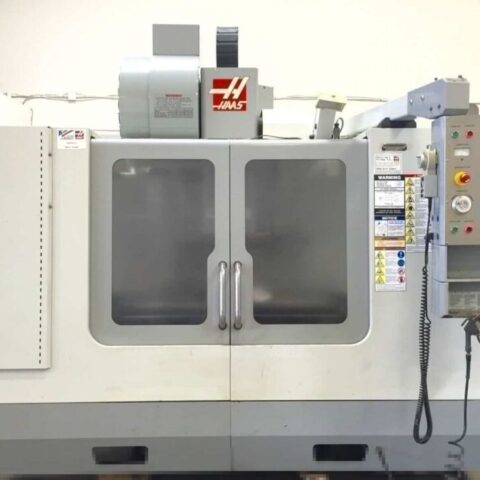

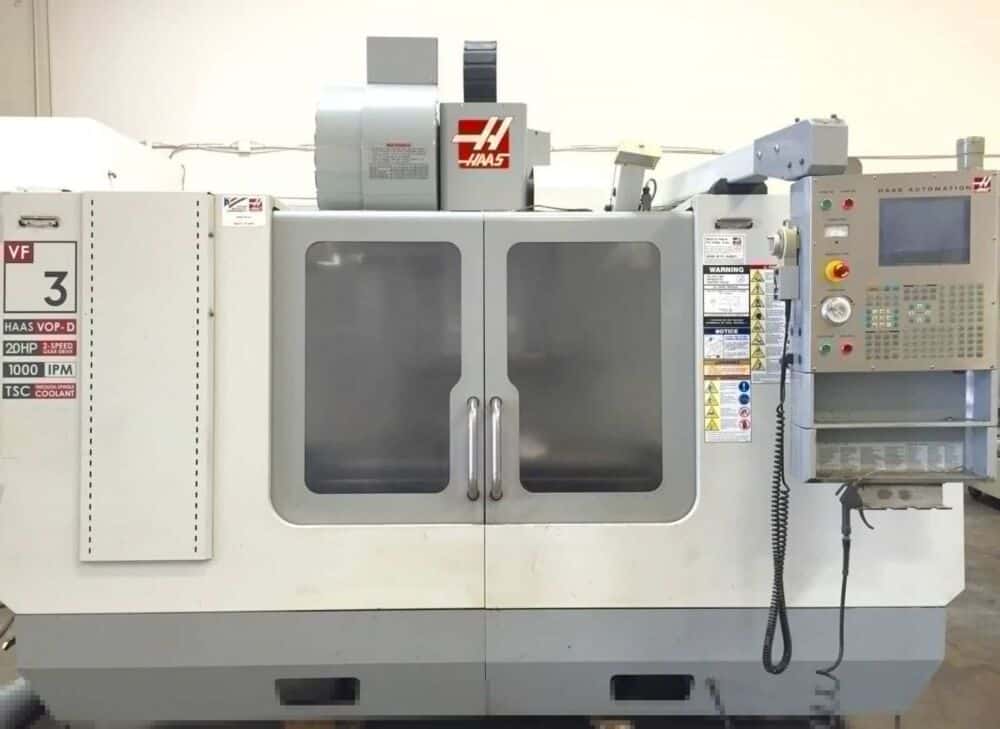

Haas VF 3B Vertical Machining Center Comes as shown in pictures.
