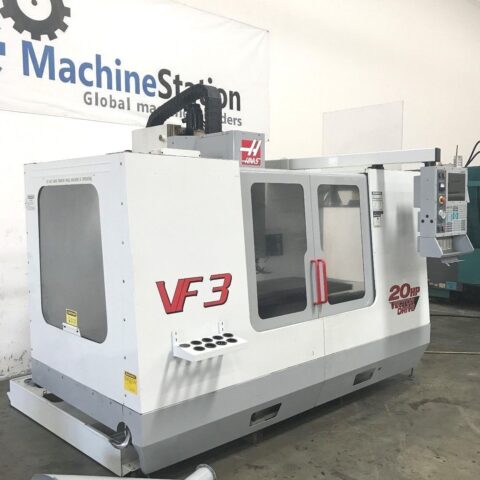

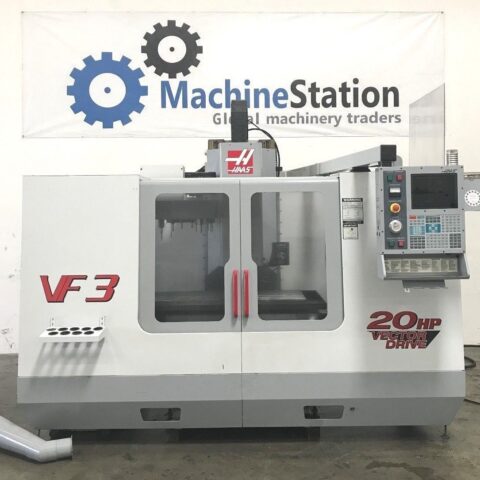

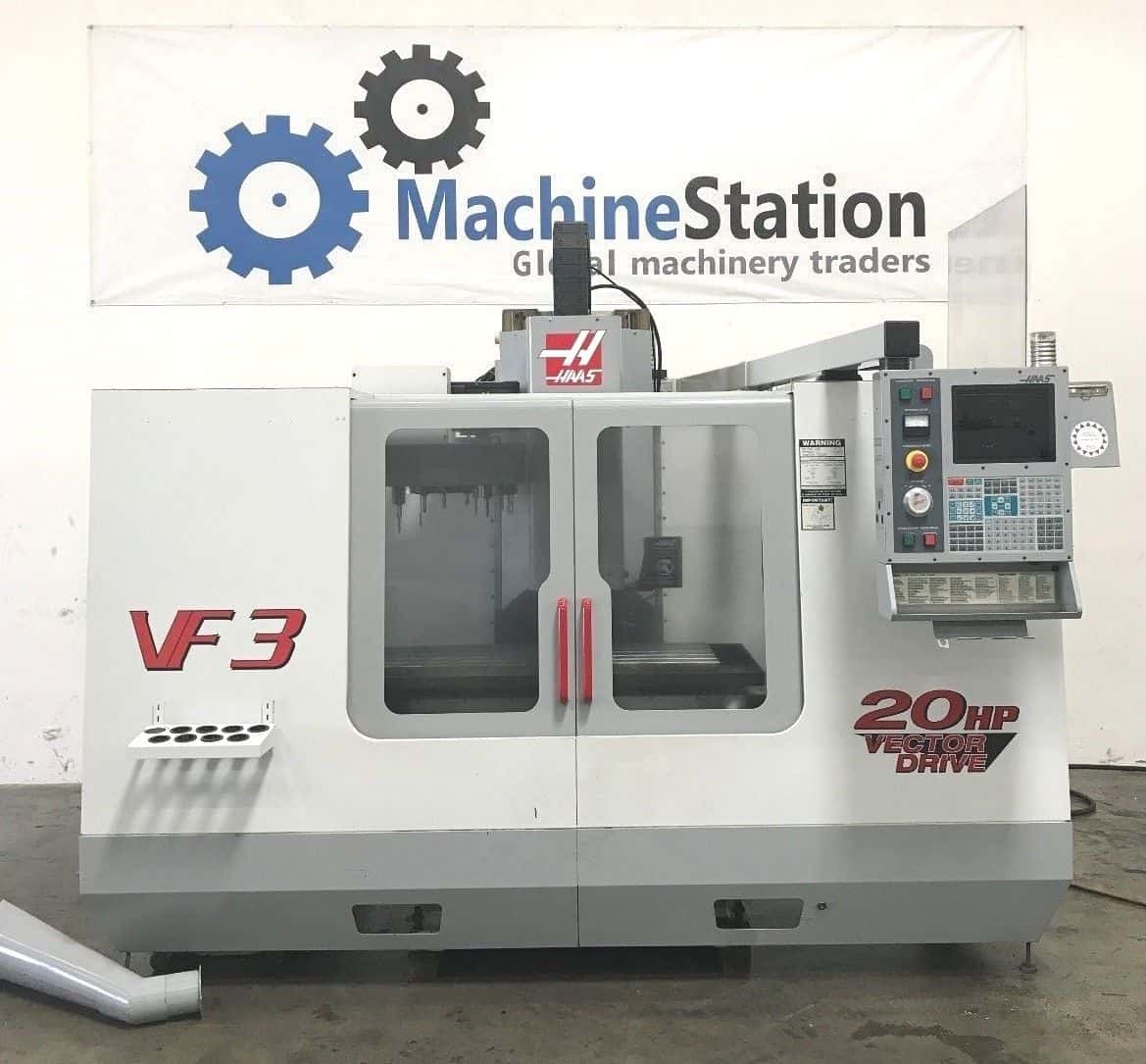

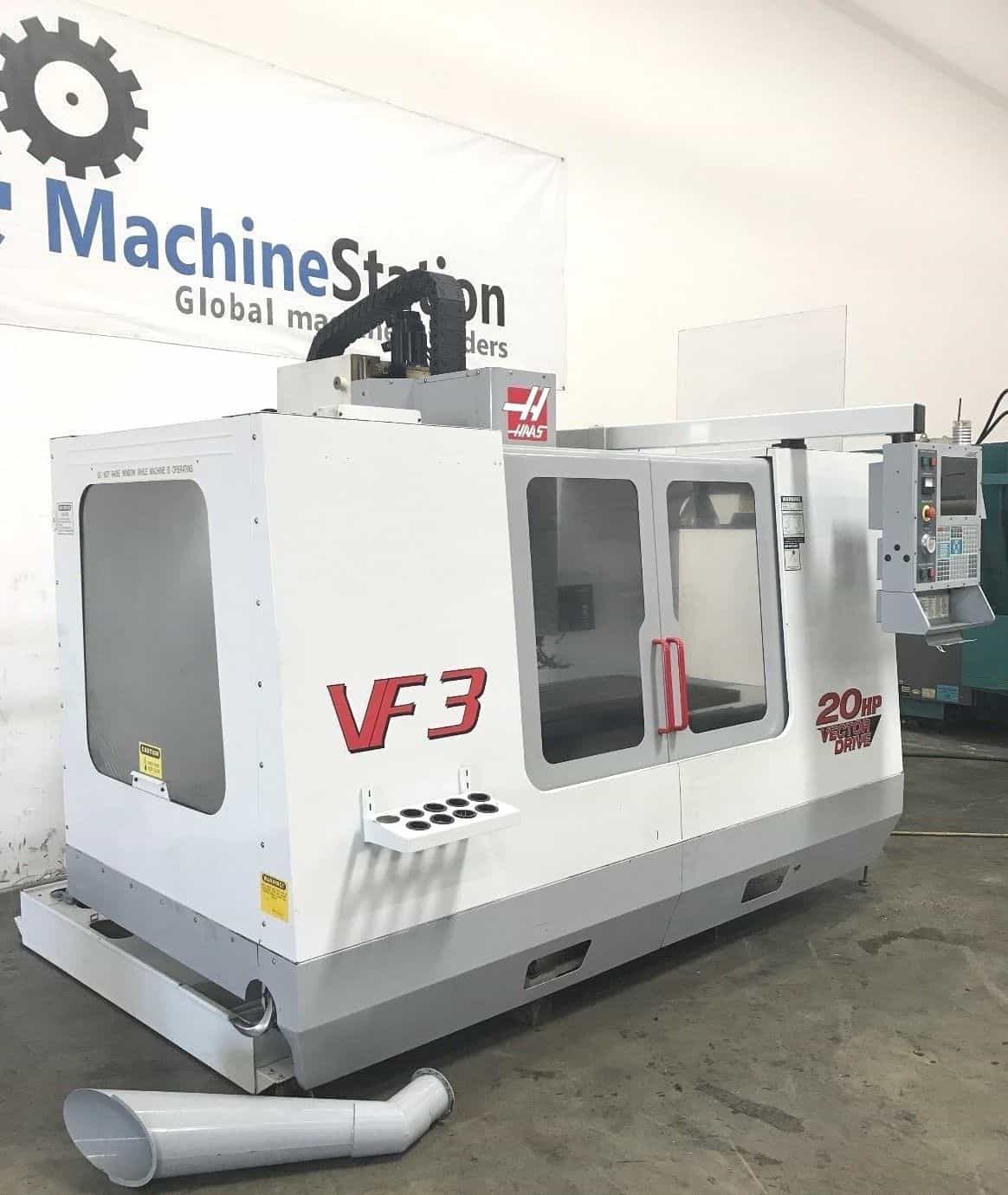

HAAS VF-3B VMC Features:
- 20HP High Torque Spindle Motor
- 4th Axis Ready ( drives and wiring installed )
- Rigid Tapping
- High Speed Machining
- Advanced Tool Management
- Power Failure Detection Module
- User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
- Brush-type servo drive motors on all axis
- 20 + 1 automatic tool changer
- Programmable coolant
- Telescopic way covers
- Chip auger
- Floppy Drive
- Flood Coolant system
- Original Books
-
HAAS VF-3B VMC Specifications:
- Travels:
- X-Axis: 40″
- Y-Axis: 20″
- Z-Axis: 25″
- Rapid Traverse Rates: 7100 Inch Per Minute
- Cutting Feed Rates: 500 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 29″
-

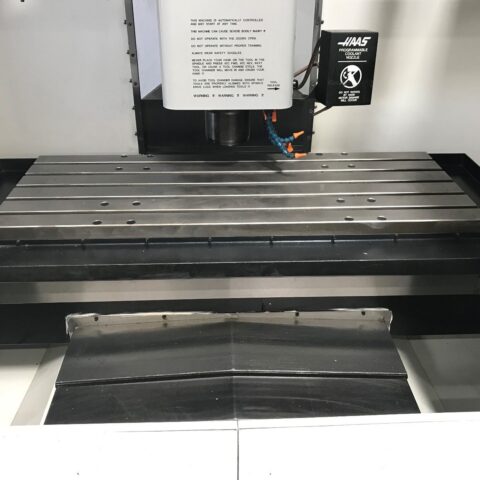

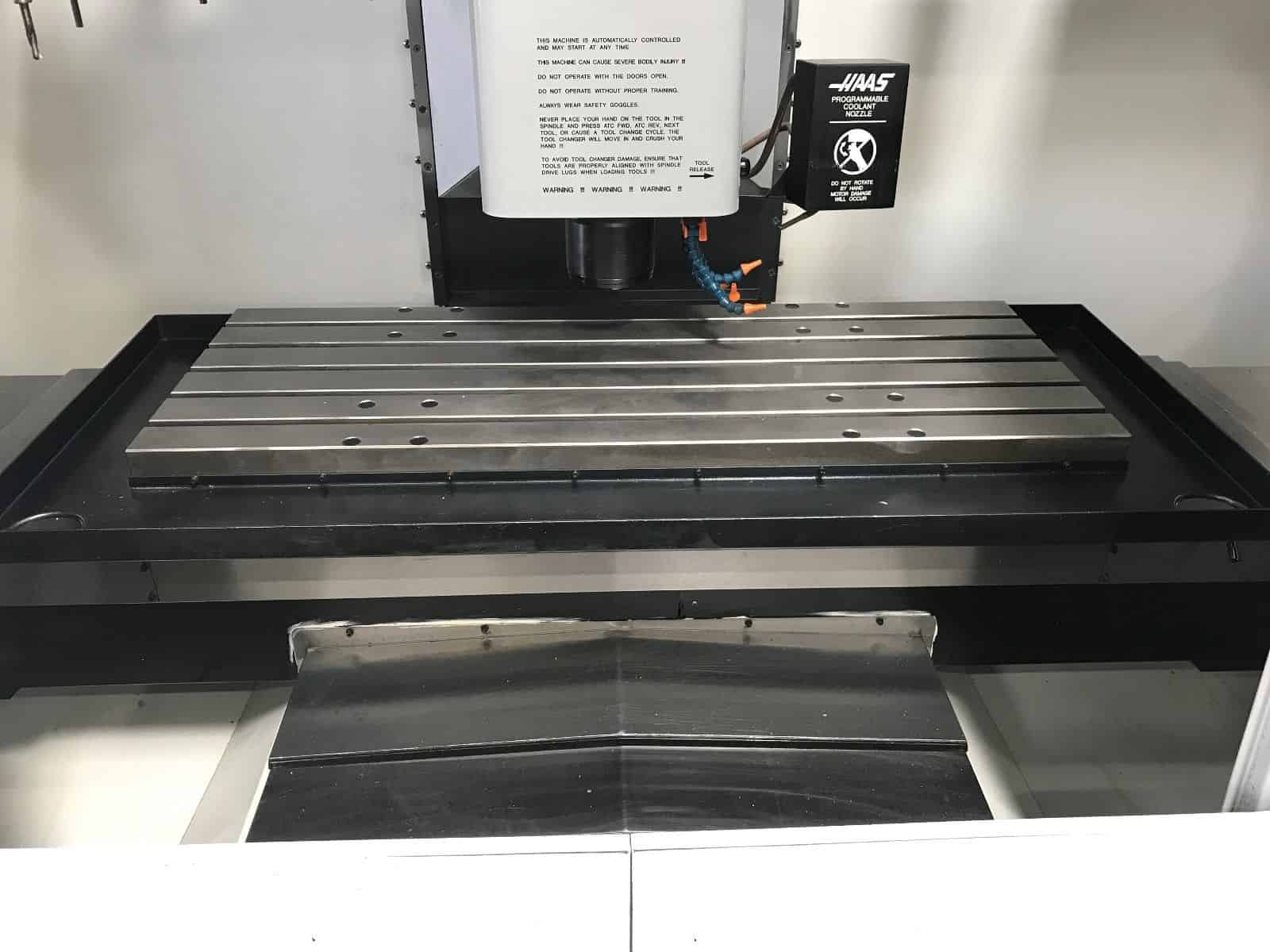

Table:
- Length: 48″
- Width: 18″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 1500 lbs
-
Spindle:
- Taper Size: CAT 40
- Speed Range: 0 – 7500 RPM
- Spindle Power: 20 HP Vector Dual Drive
- Max Torque: 90ft-lb @ 2000RPM
-
Automatic Tool Changer:
- Capacity: 20 + 1
- Max Tool Weight: 12 lbs
- Max Tool Dia: 3.6″
- Max Tool Length: 13″
- Tool Changing Time: 3.2 Seconds
-
General:
- Air Required: 100 psi, 4 scfm

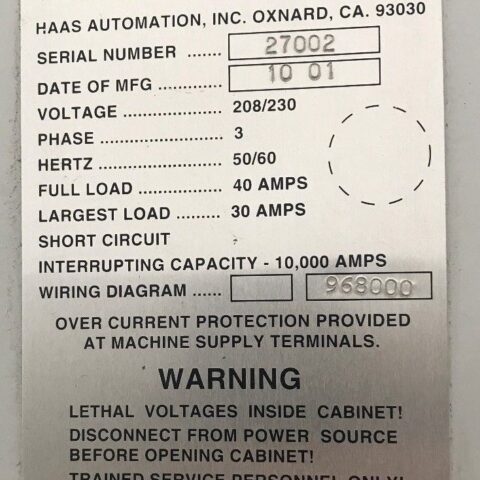

- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 118″ x 96″ x 100″ High
- Weight: 12500 lbs
