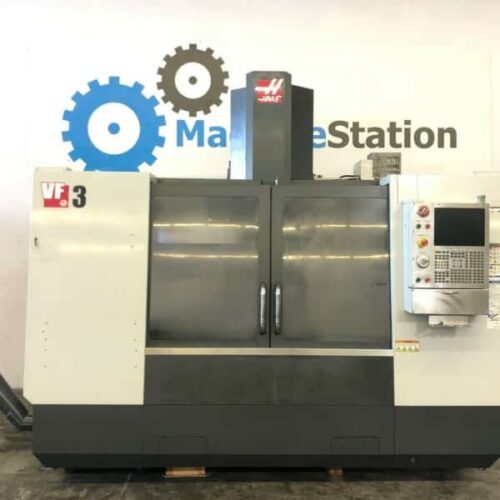

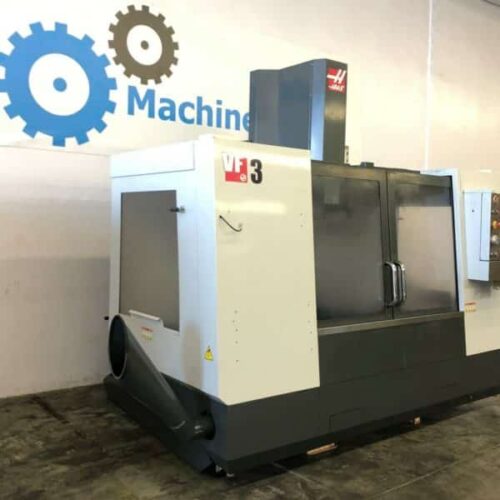

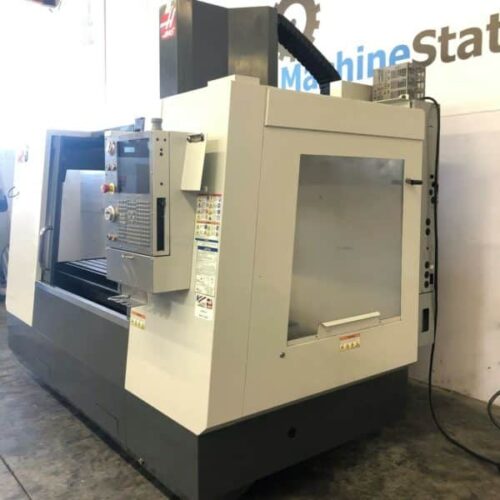

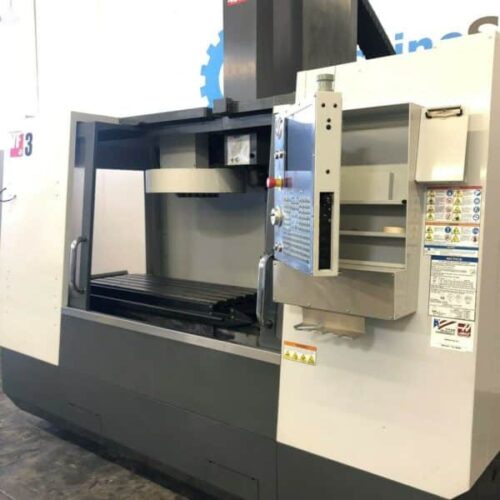

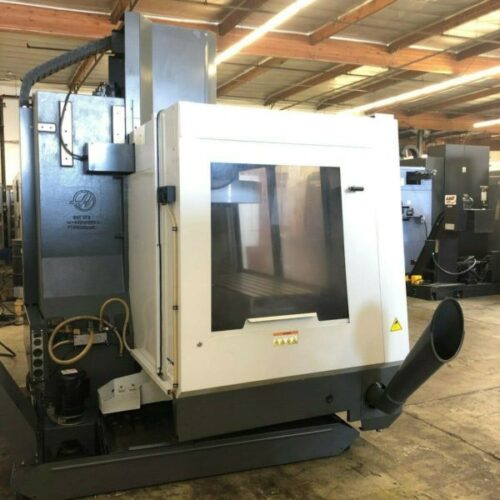

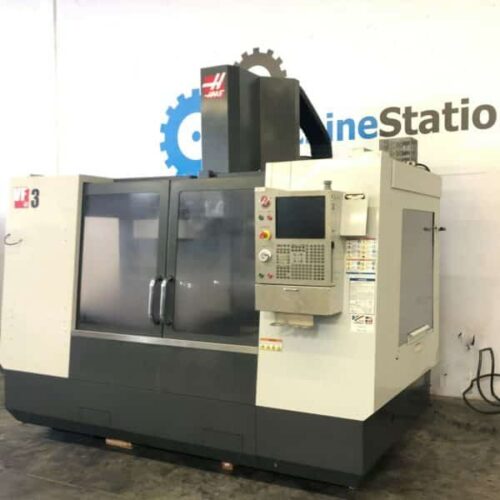

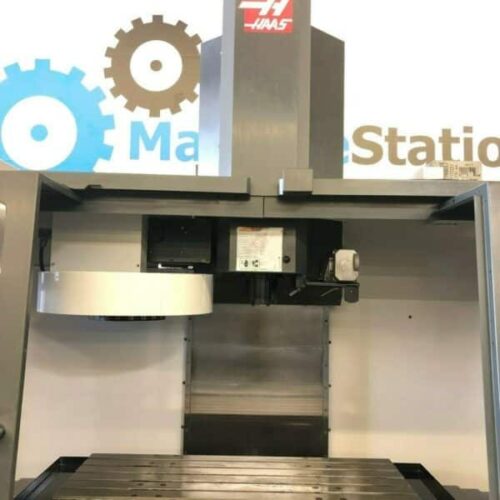

Haas VF-3D Vertical Machining Center

Out of stock

“One Owner, all original paint Machine on our Floor now, fully powered / tested & is in Great working condition. Less than 2500 Hours”

SKU:	1816
Make/Model:	Haas VF-3D
Video:	[fusion_button link=”https://www.youtube.com/watch?v=dXsfWf8dNhI” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 1816

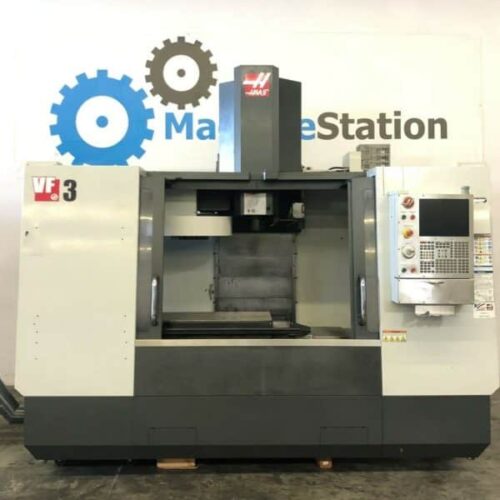

HAAS VF-3D VERTICAL MACHINING CENTER
Make	Haas
Model No.	VF-3D
Year of Manufacture:	04/2010

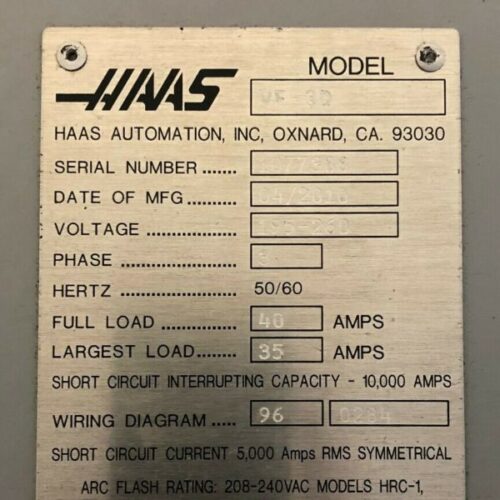

Serial #	1077388
Condition	Very Good
Cutting Hours:	less than 2500

All specifications are approximations and are subject to verification.

“One Owner, all original paint Machine on our Floor now, fully powered / tested & is in Great working condition. Less than 2500 Hours”

Haas VF-3D Features:
8100 RPM Direct Drive Spindle
4th Axis Ready
Rigid Tapping
USB Drive
User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
Brushless servo drive motors on all axis
20 + 1 automatic high speed tool changer
Programmable coolant
Telescopic way covers
Flood Coolant system
Levelling Pads

Haas VF-3D Specifications:
Travels:
X-Axis: 40″
Y-Axis: 20″
Z-Axis: 25″
Rapid Traverse Rates: 1000 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″

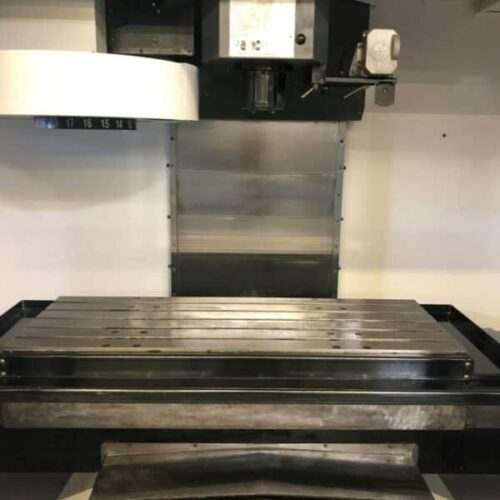

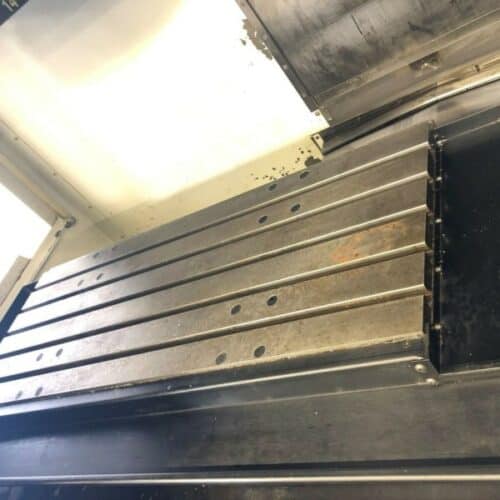

Table:
Length: 48″
Width: 18″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 1750 lbs

Spindle:
Taper Size: 40
Speed Range: 0 – 8100 RPM
Spindle Type: Direct Drive
Spindle Power: 20 HP Vector Dual Drive
Max Torque: 90ft-lb @ 2000 RPM

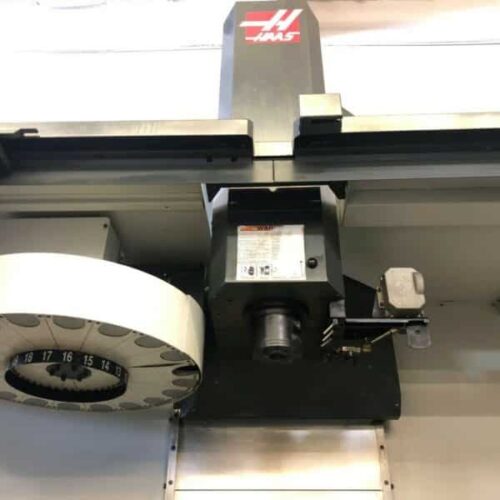

Automatic Tool Changer:
Capacity: 24 + 1
Max Tool Weight: 12 lbs
Max Tool Dia: 5″
Max Tool Length: 11″
Tool Changing Time: 1.6 Seconds

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 118″ x 96″ x 100″ High
Weight: 12500 lbs

Haas VF-3D Comes as shown in pictures..
