*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
HAAS |
| Model: |
VF-3SSAPC |
| Year: |
2013 |
| Condition: |
Used – Good |

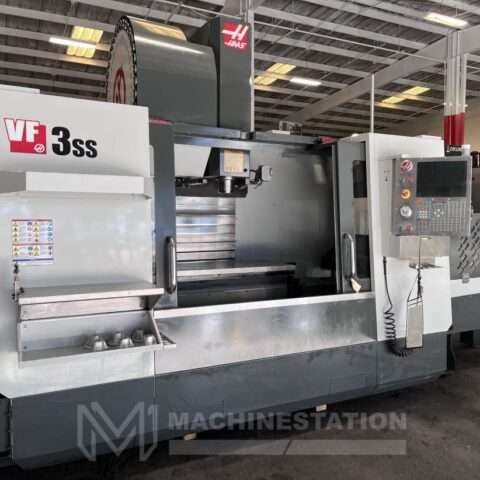

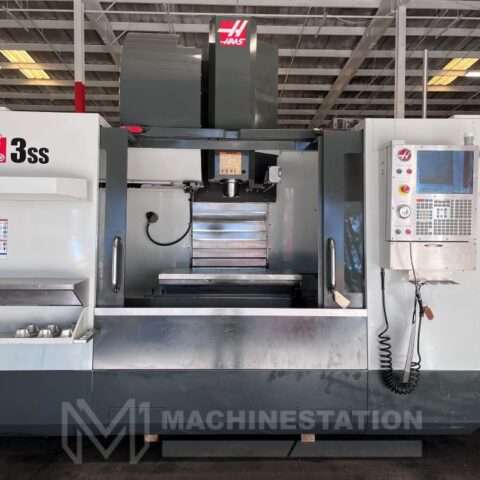

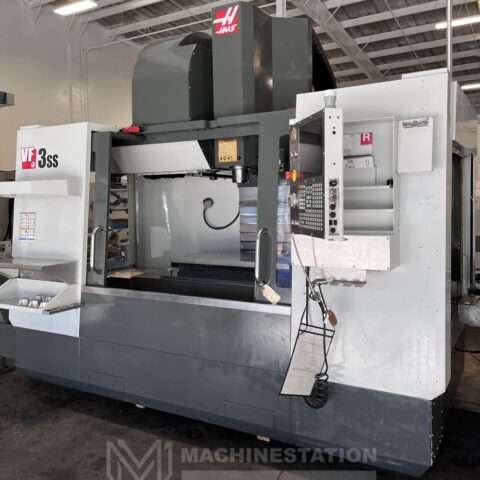

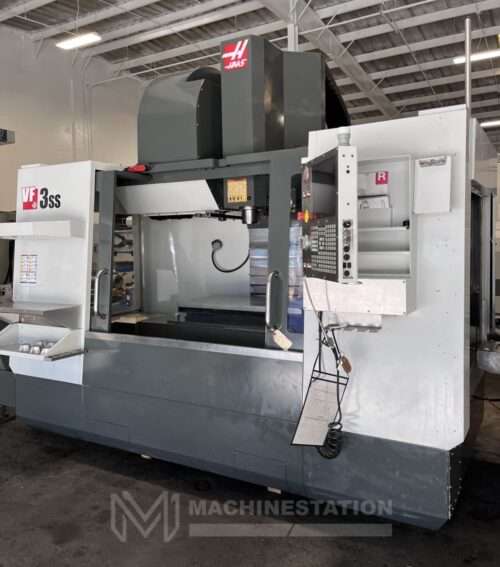

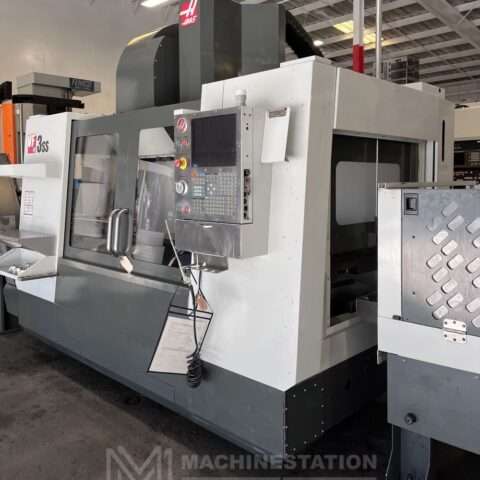

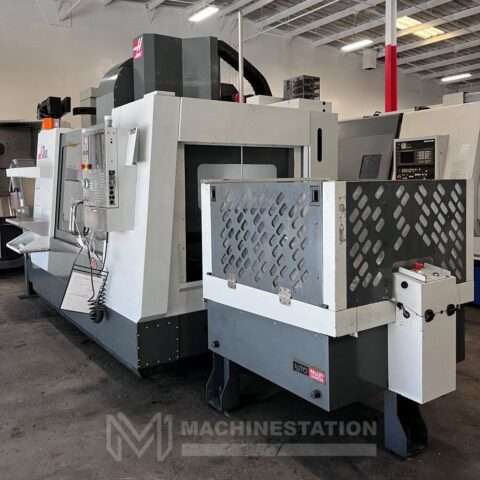

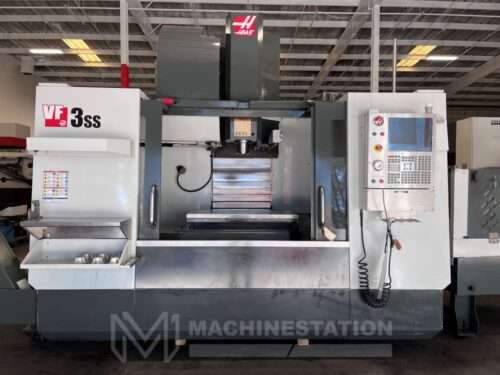

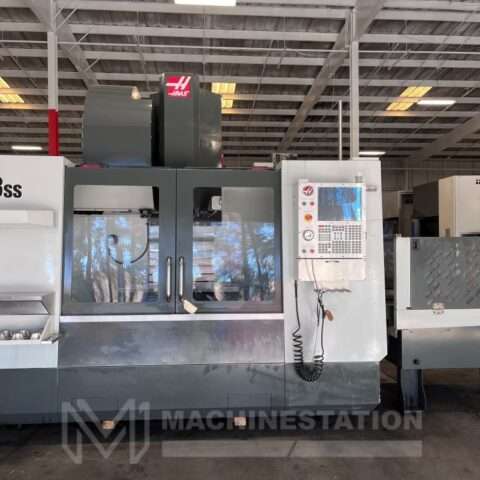

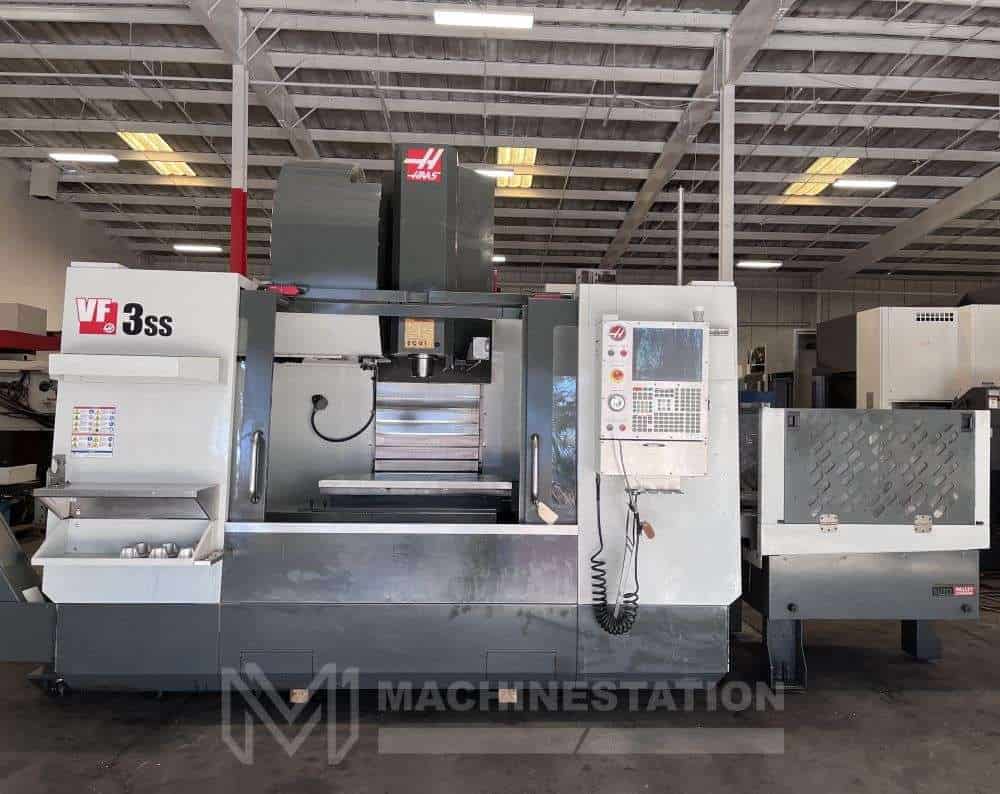

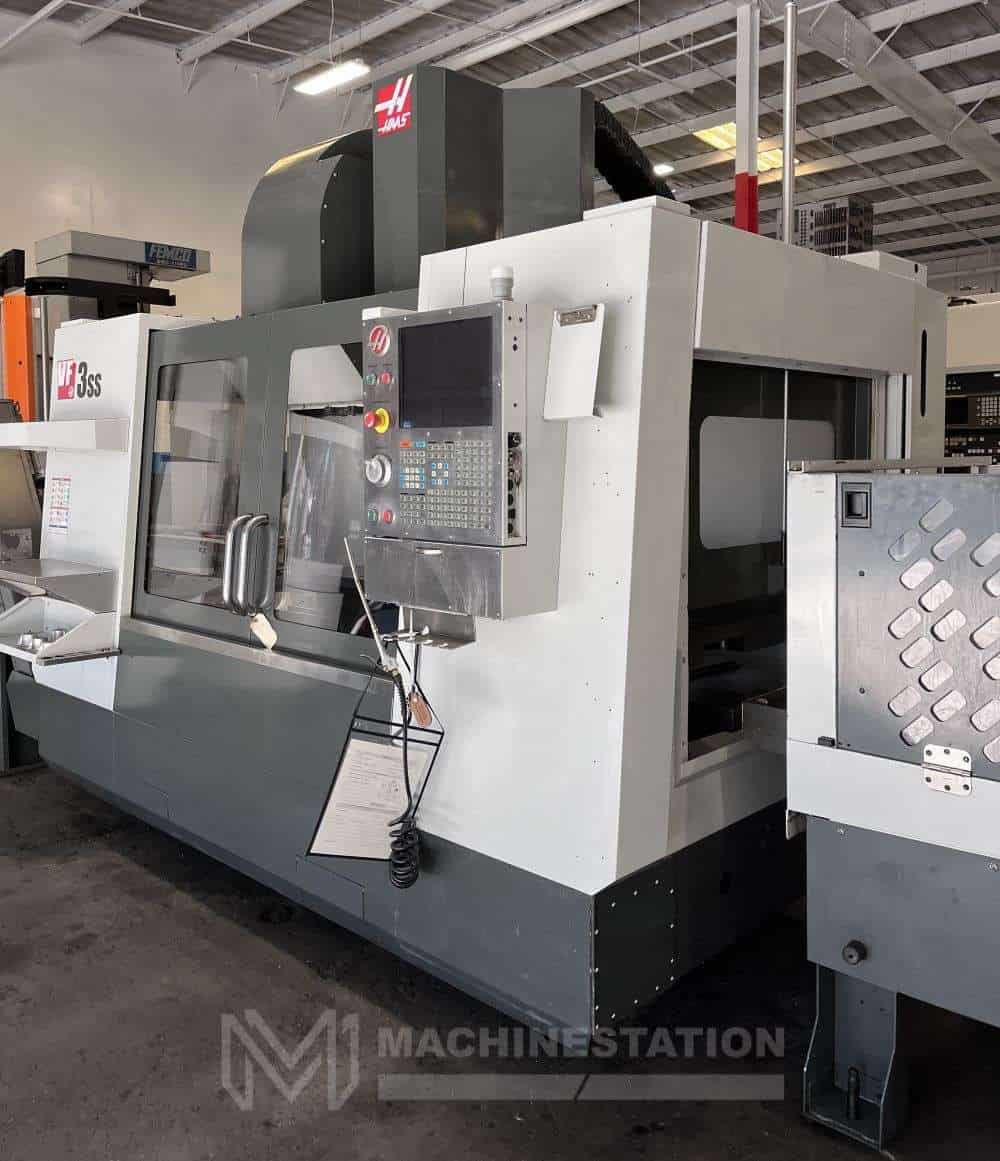

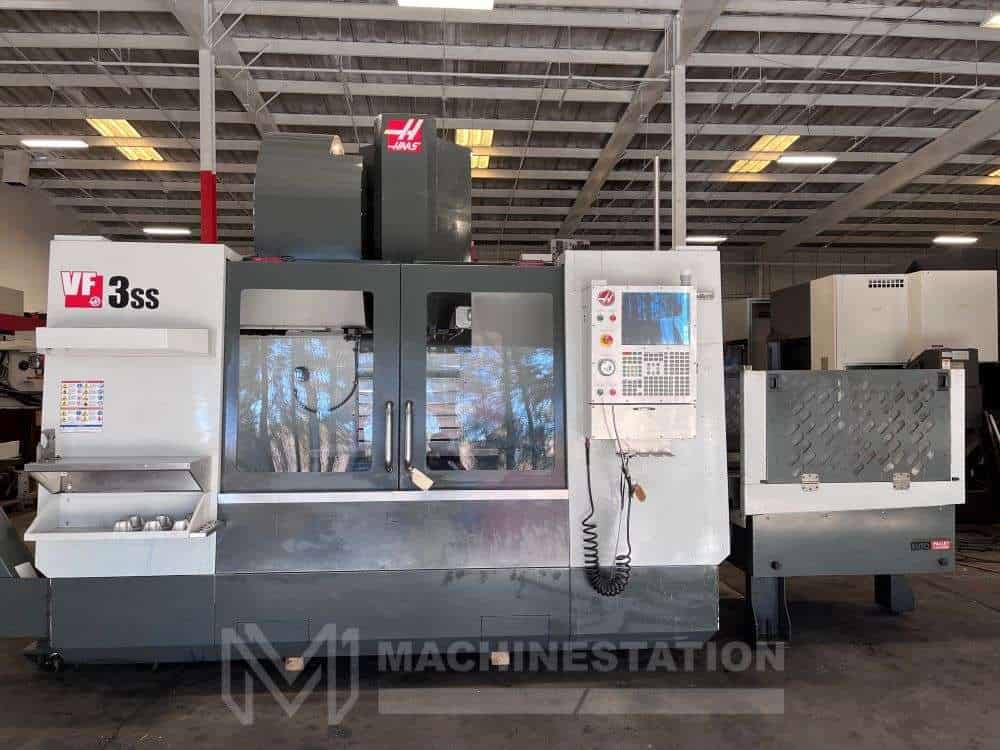

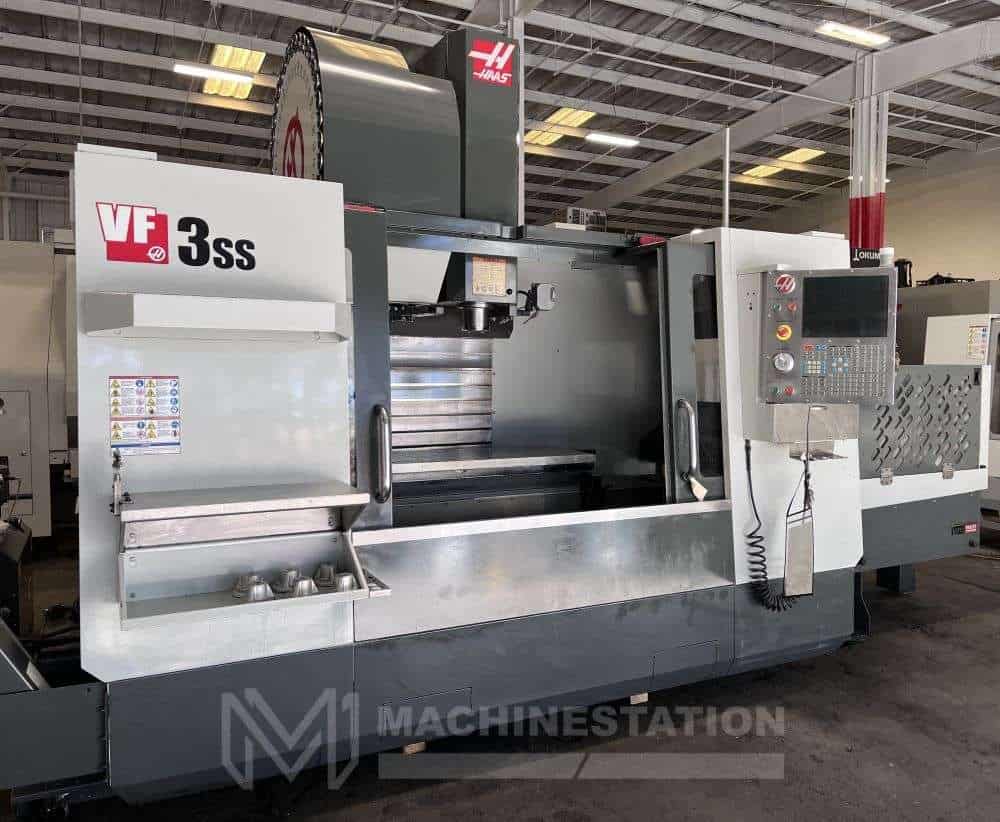

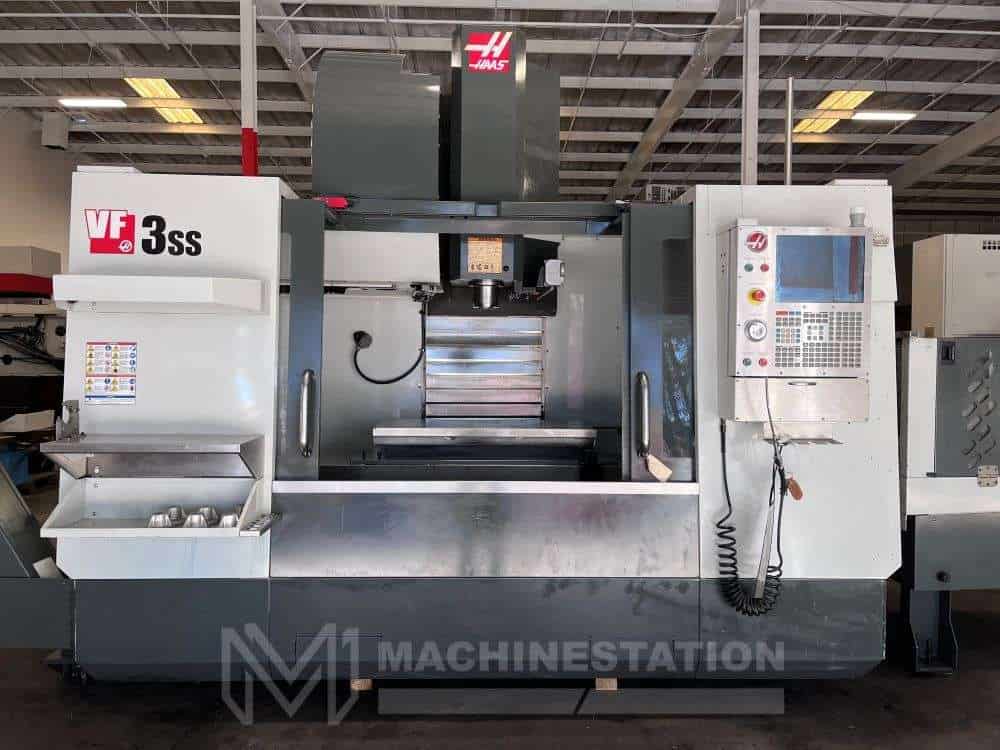

Key Features of the Haas VF-3SSAPC

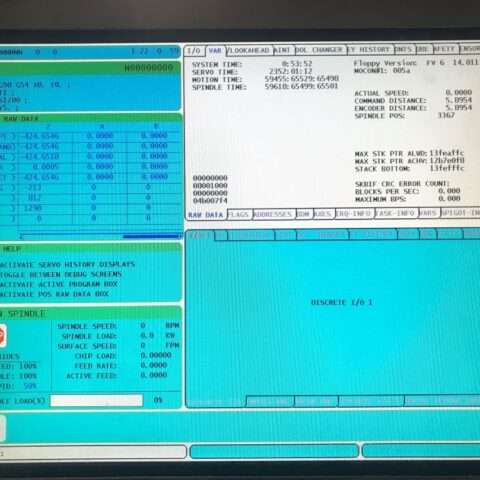

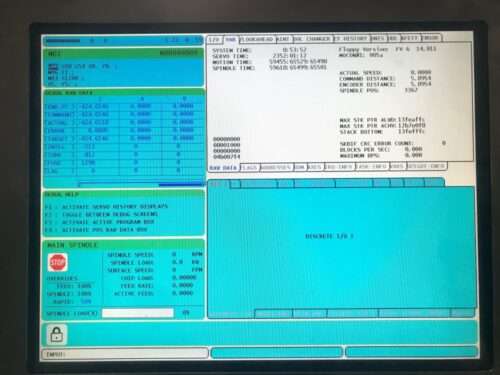

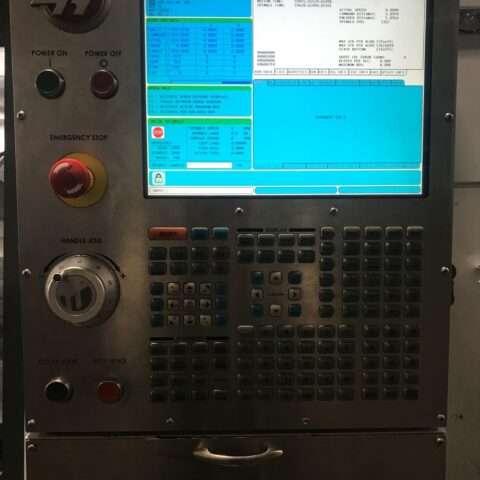

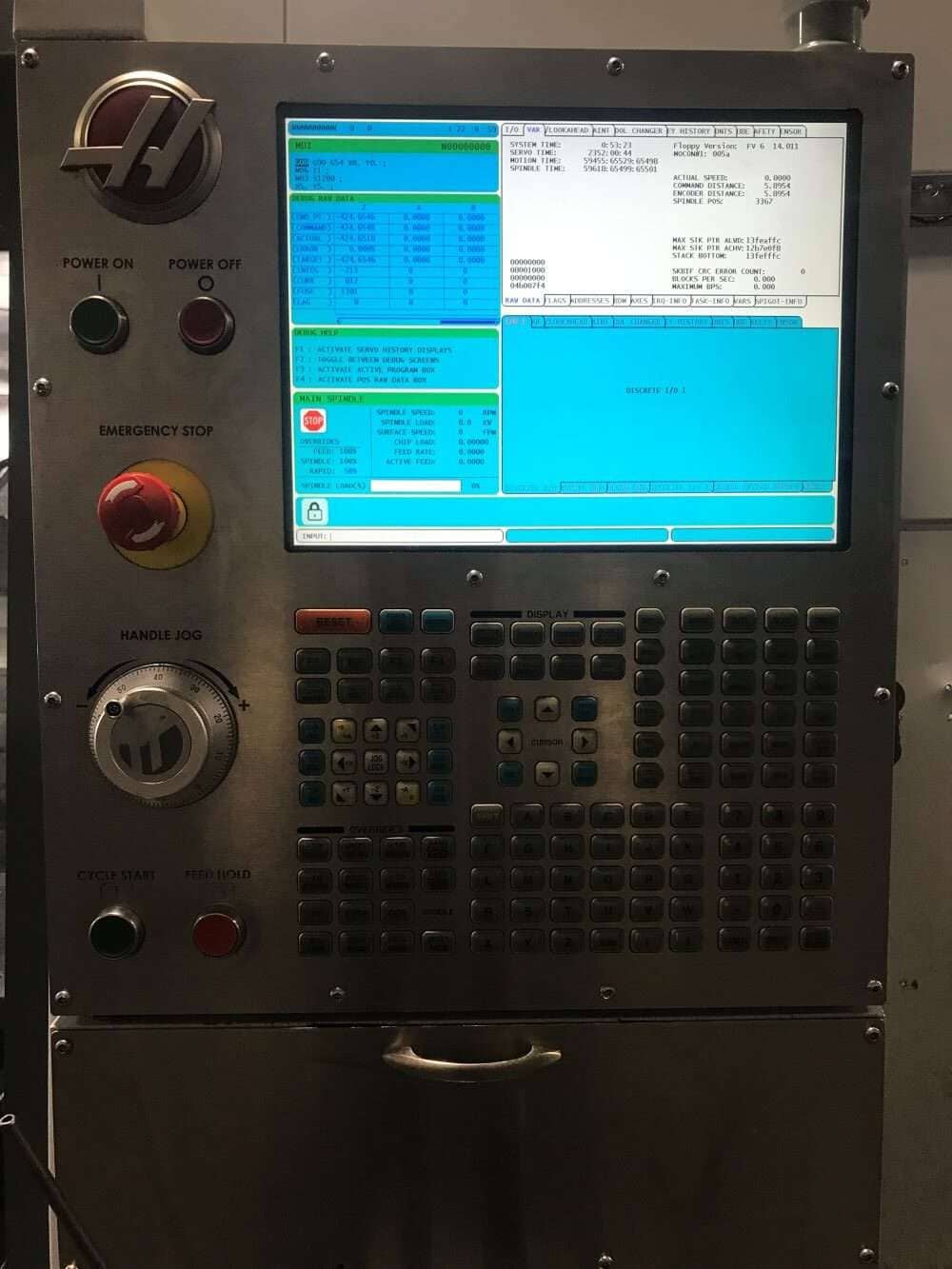

- Haas CNC Control

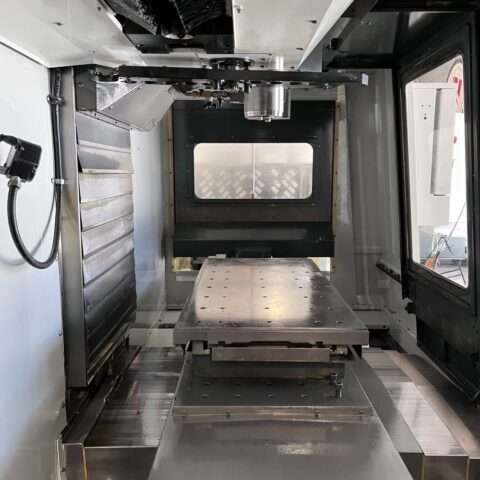

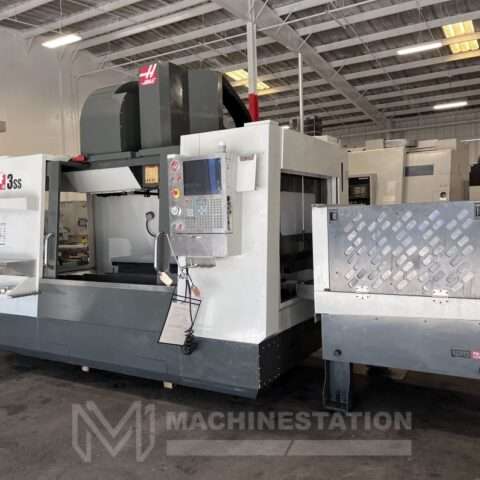

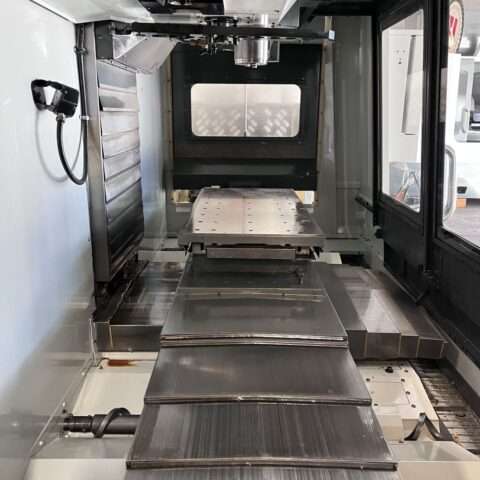

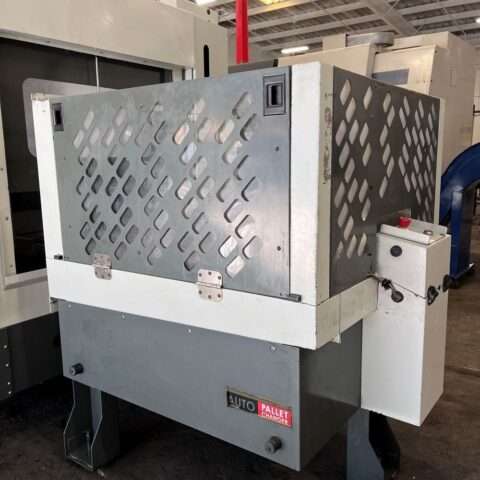

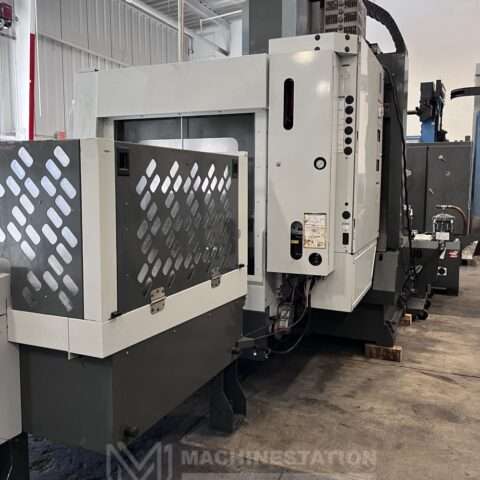

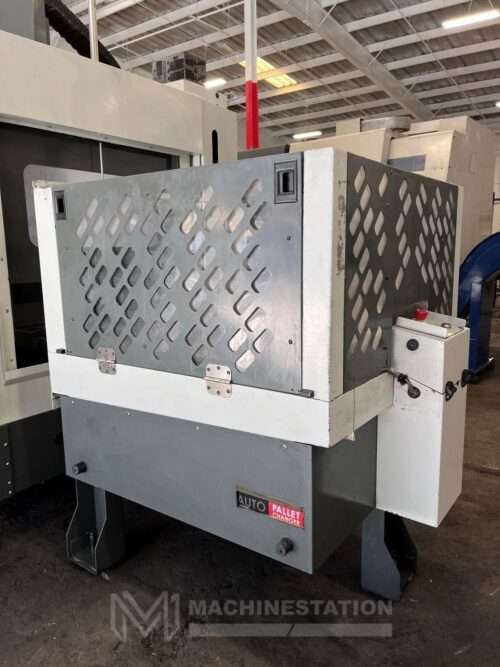

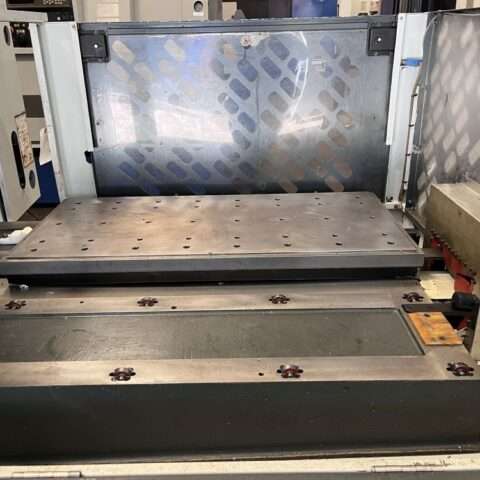

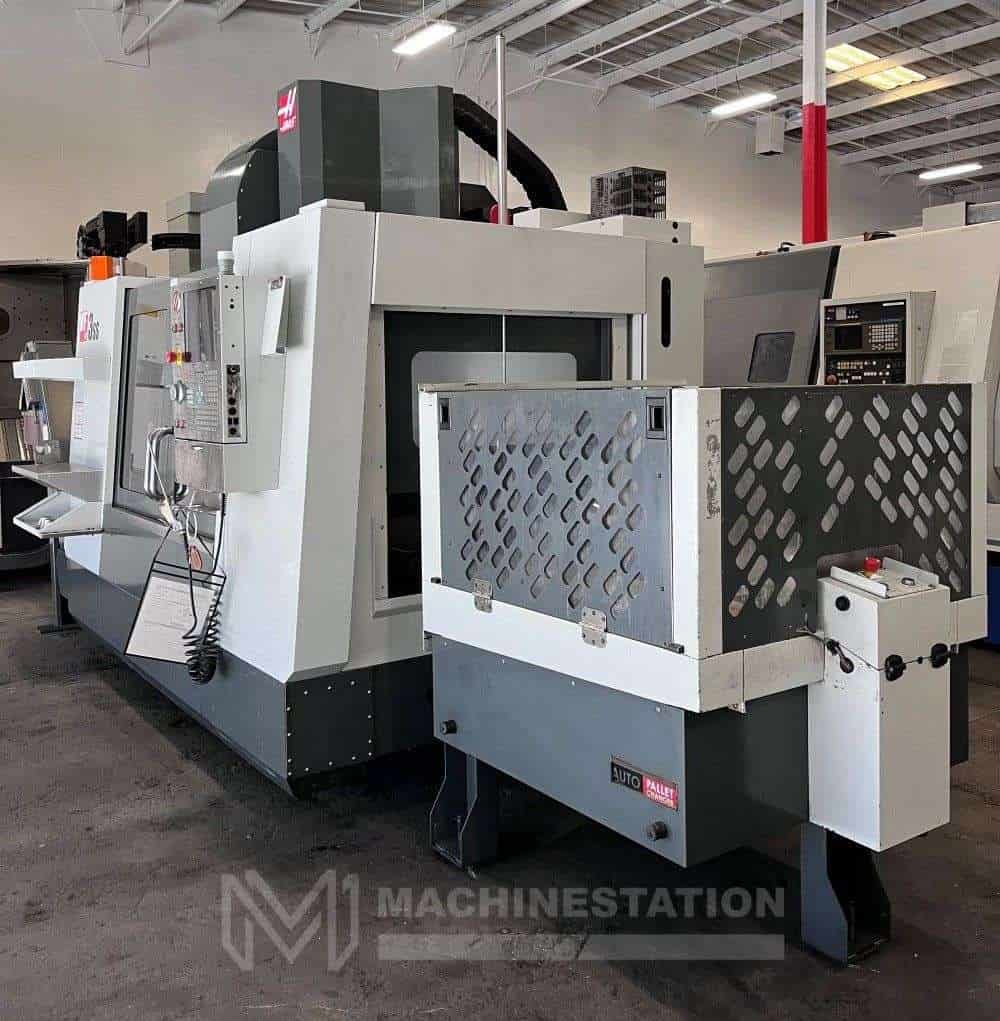

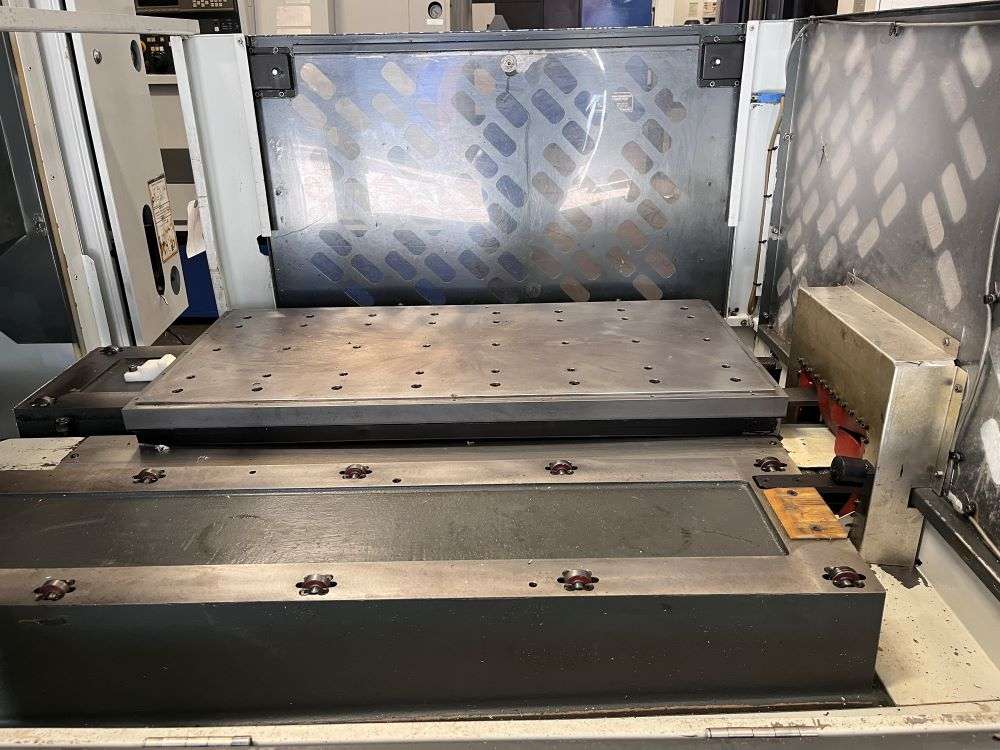

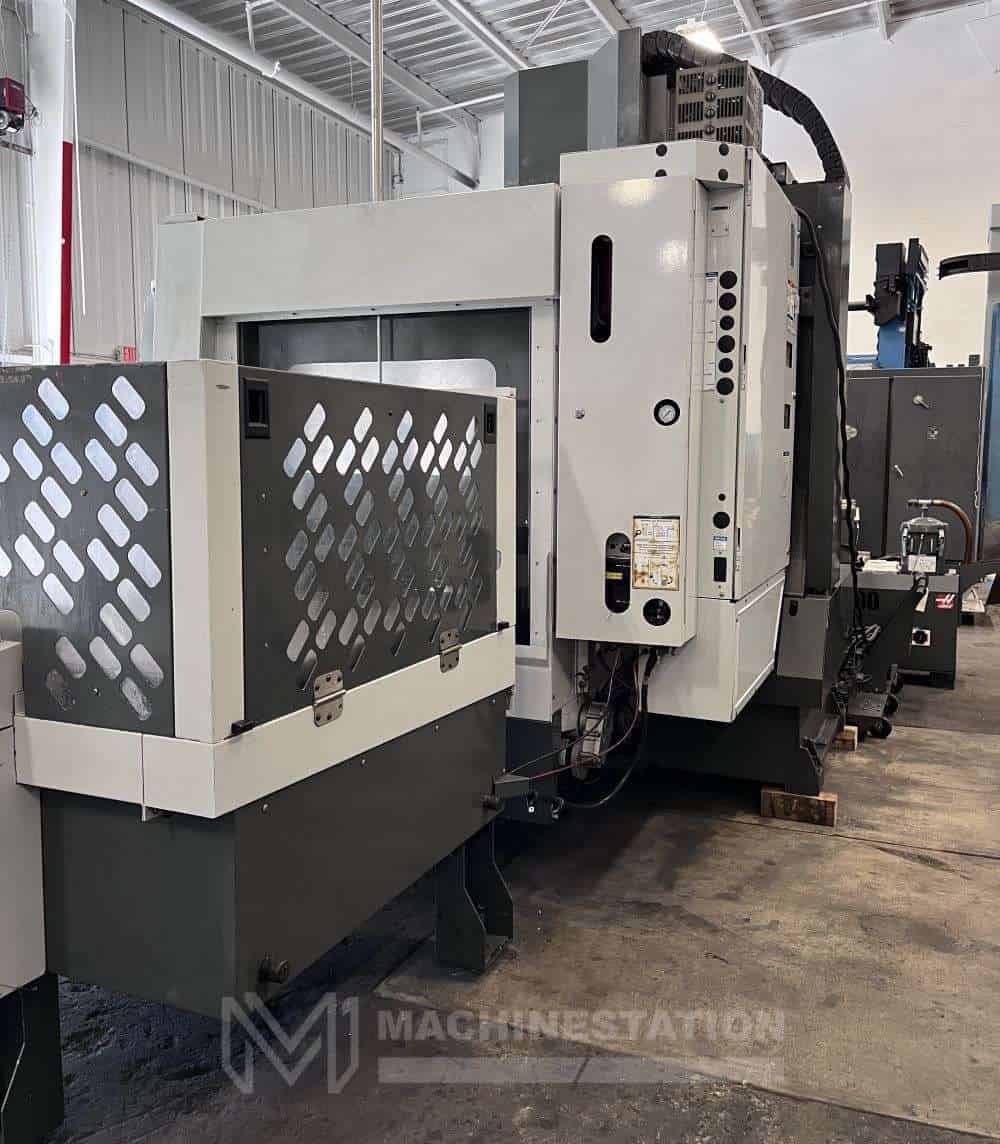

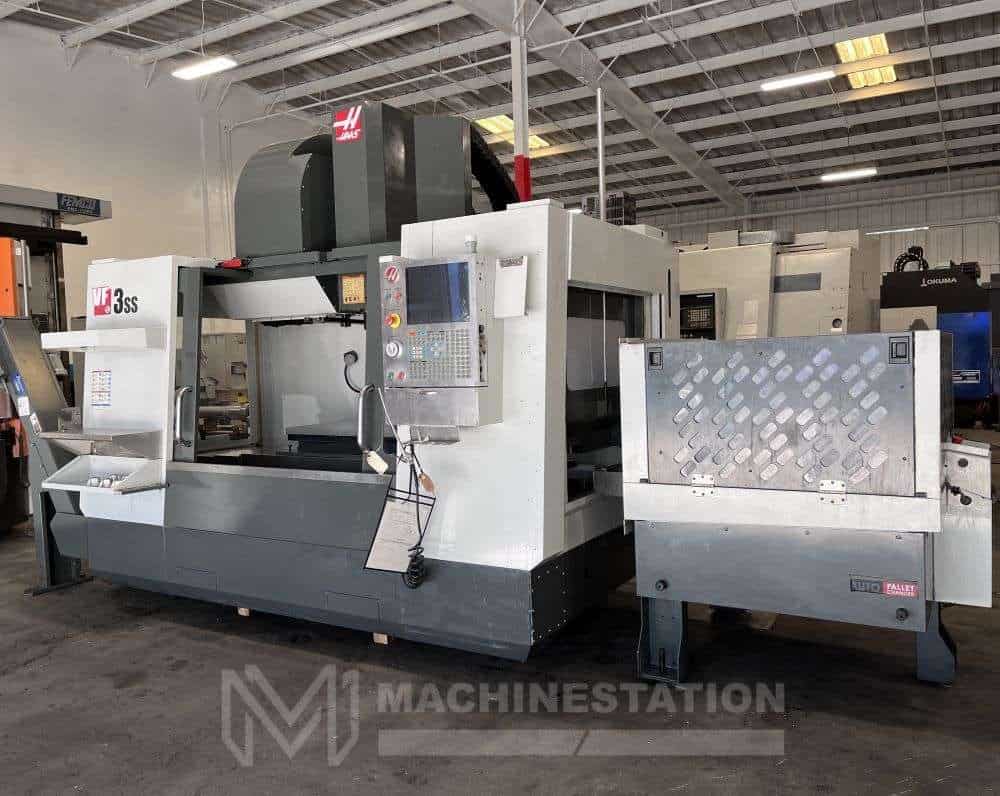

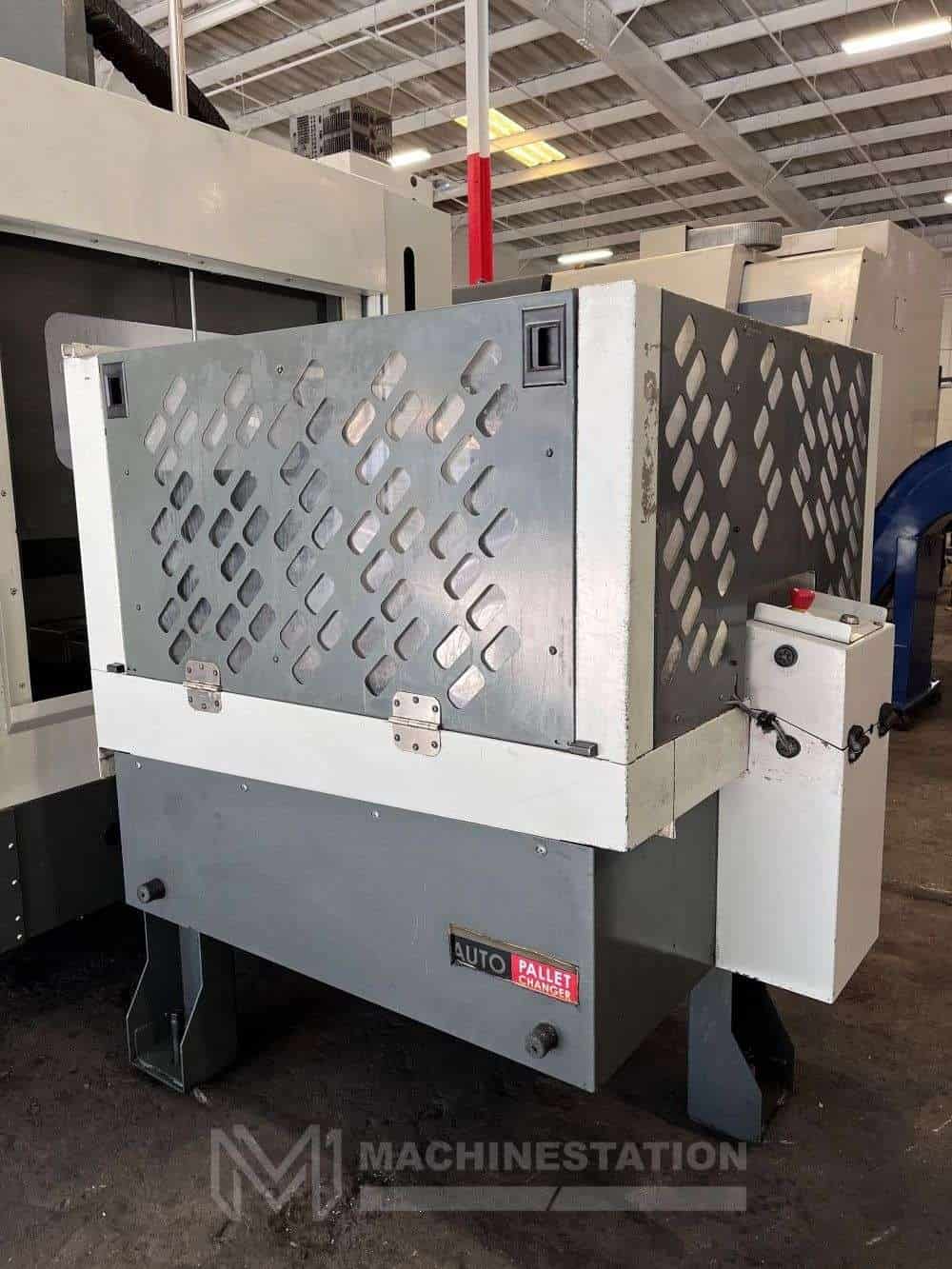

- APC – Automatic Pallet Changer
- 12,000 RPM High-Speed Spindle

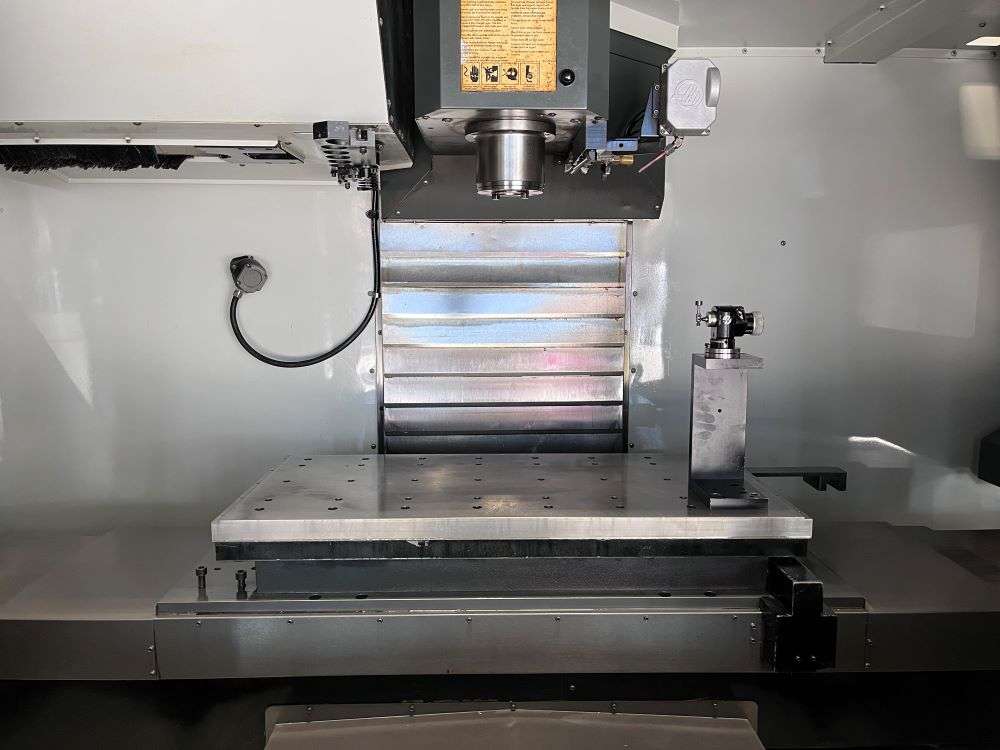

- WIPS-R Renishaw Probing System (Upgraded $5795 value Included)

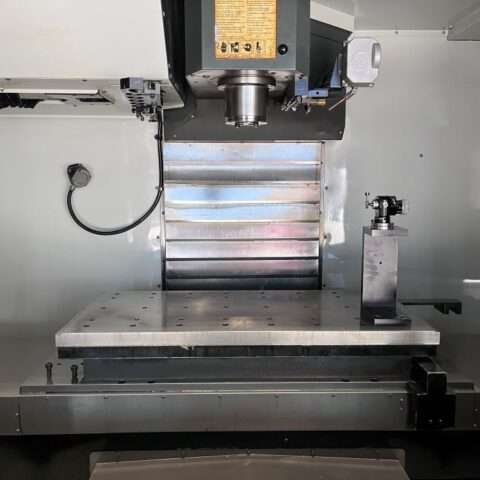

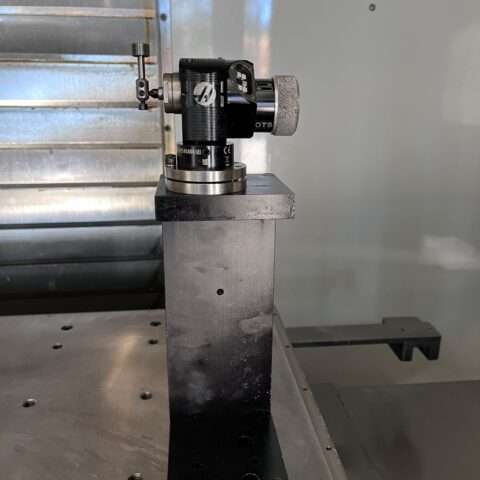

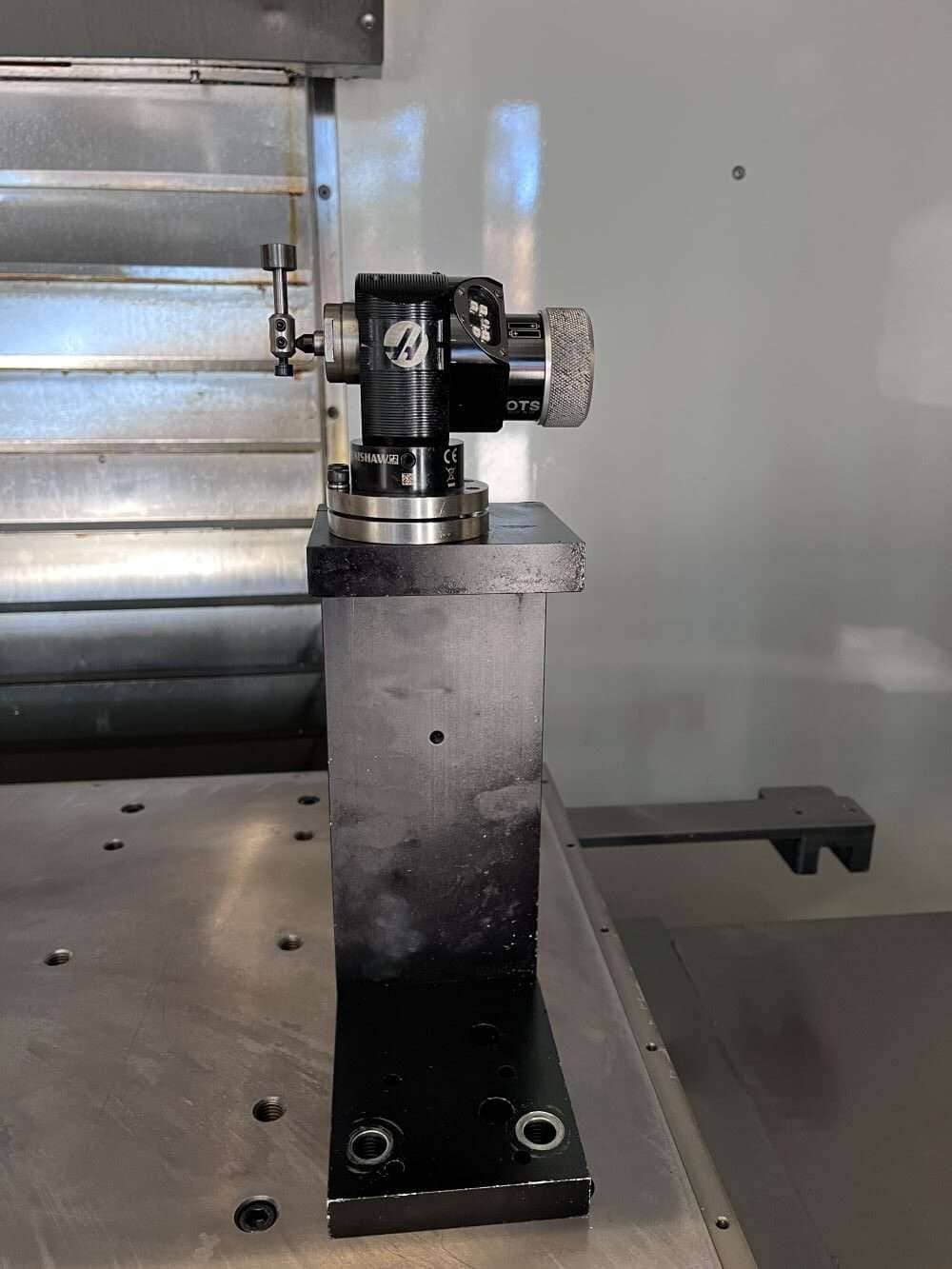

- Tool Pre-setter (Upgraded $495 value Included)

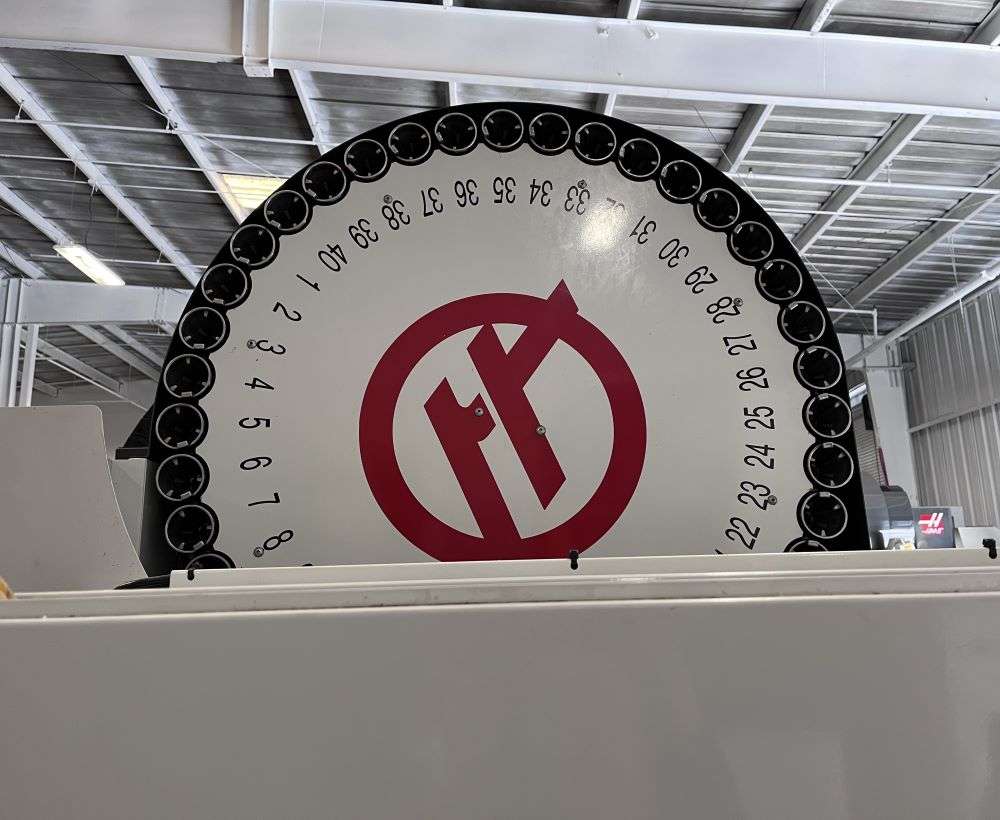

- 40 Station High-Speed Tool Changer (Upgraded $11295 value Included)
- 30 HP High Torque Spindle

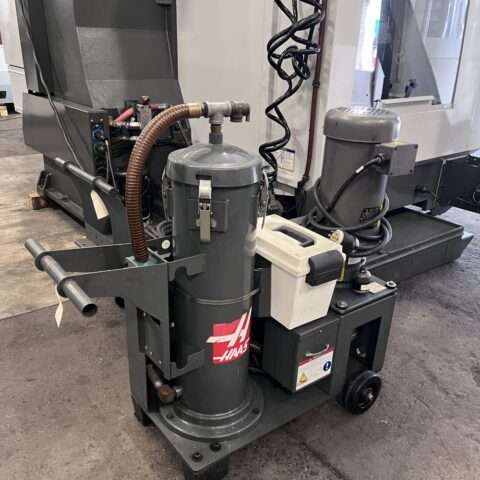

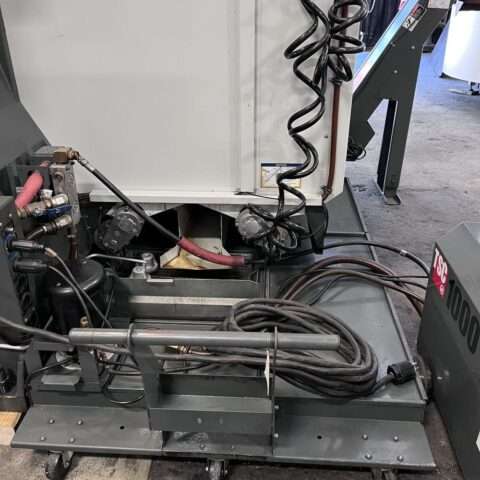

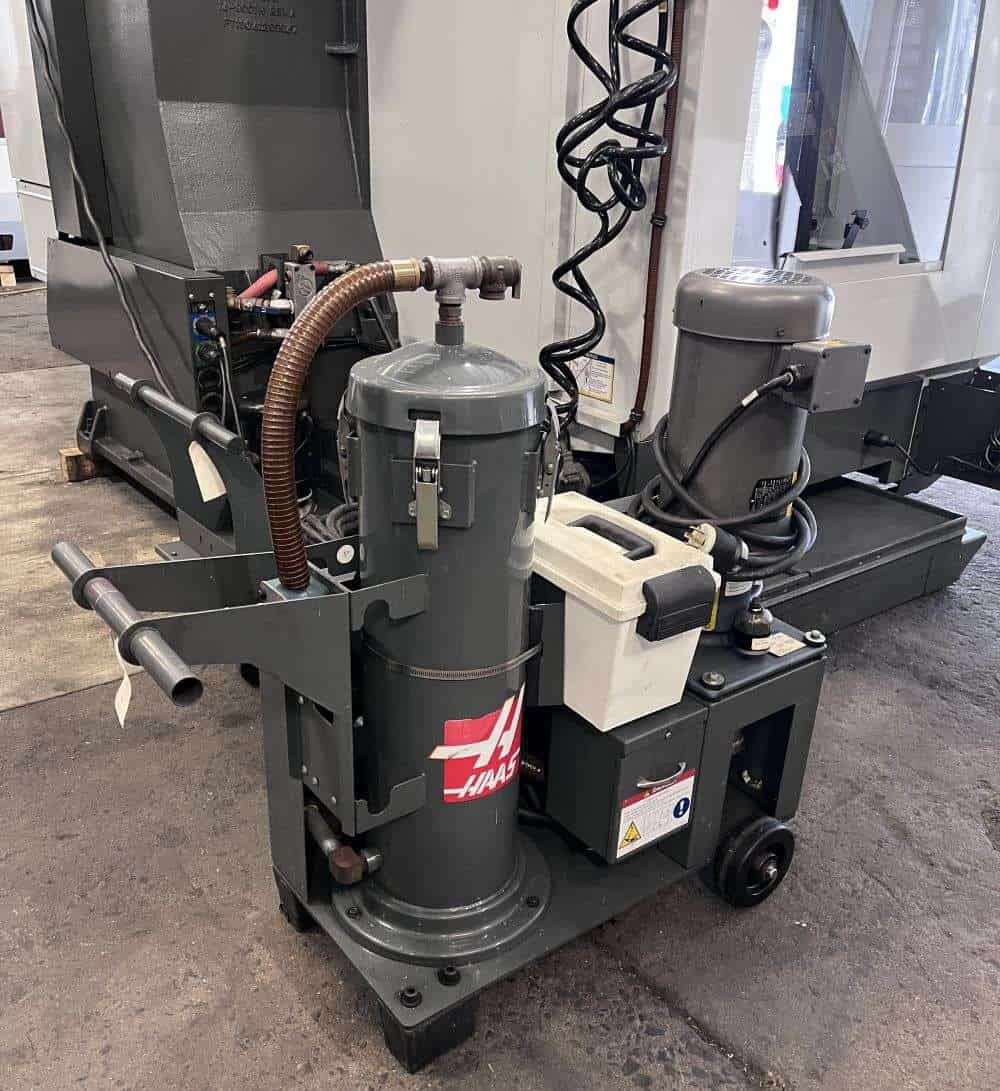

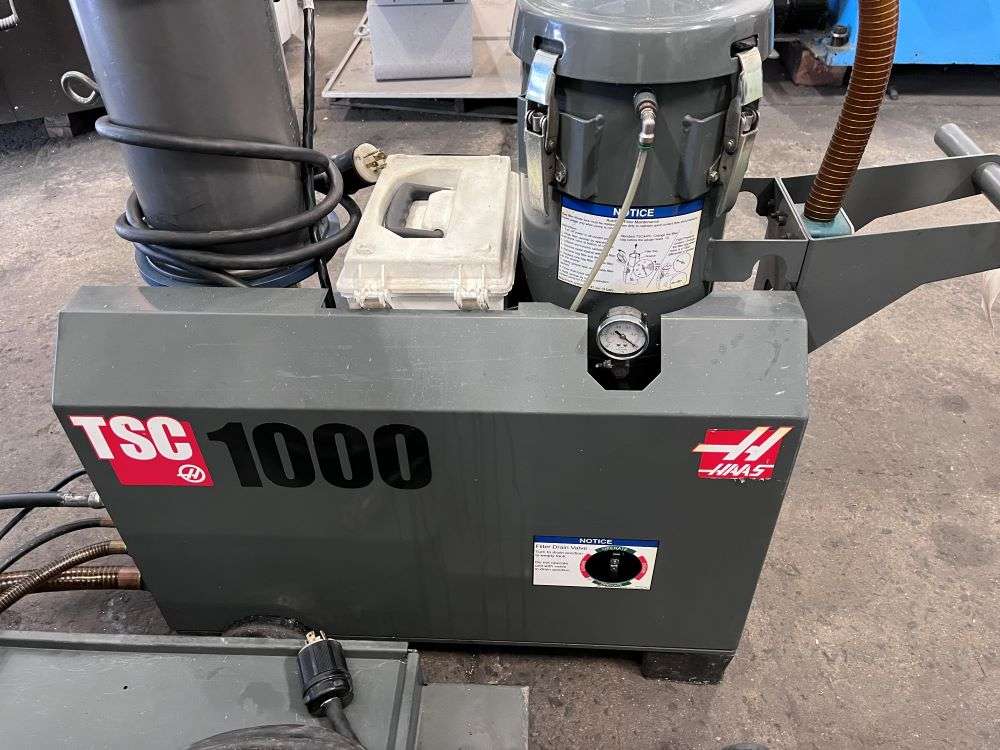

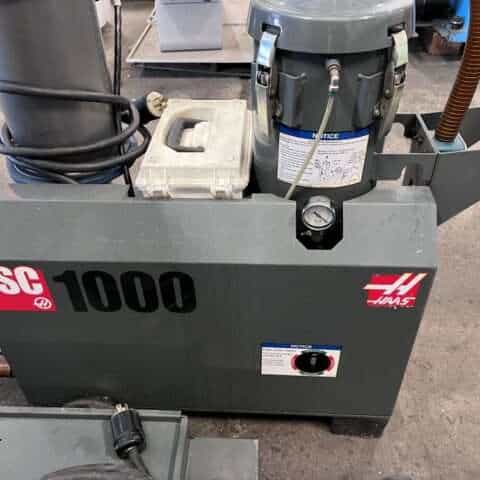

- Through Spindle Coolant – 1000 psi (Upgraded $9995 value Included)
- Auxiliary Coolant Filter (Upgraded $2795 value Included)
- 1400 IPM Fast Rapid Traverse
- MPG Control
- Rigid Tapping
- Spindle Orientation
- Programmable Coolant
- Coolant System

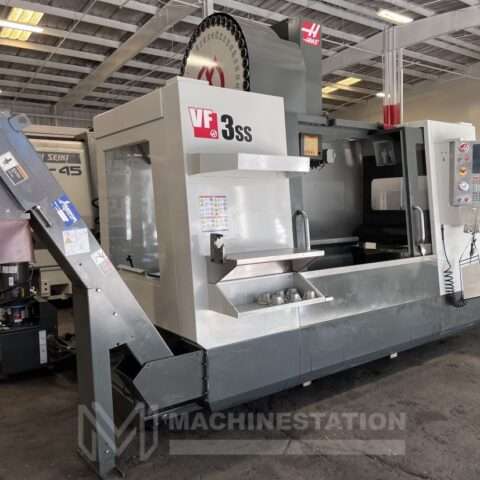

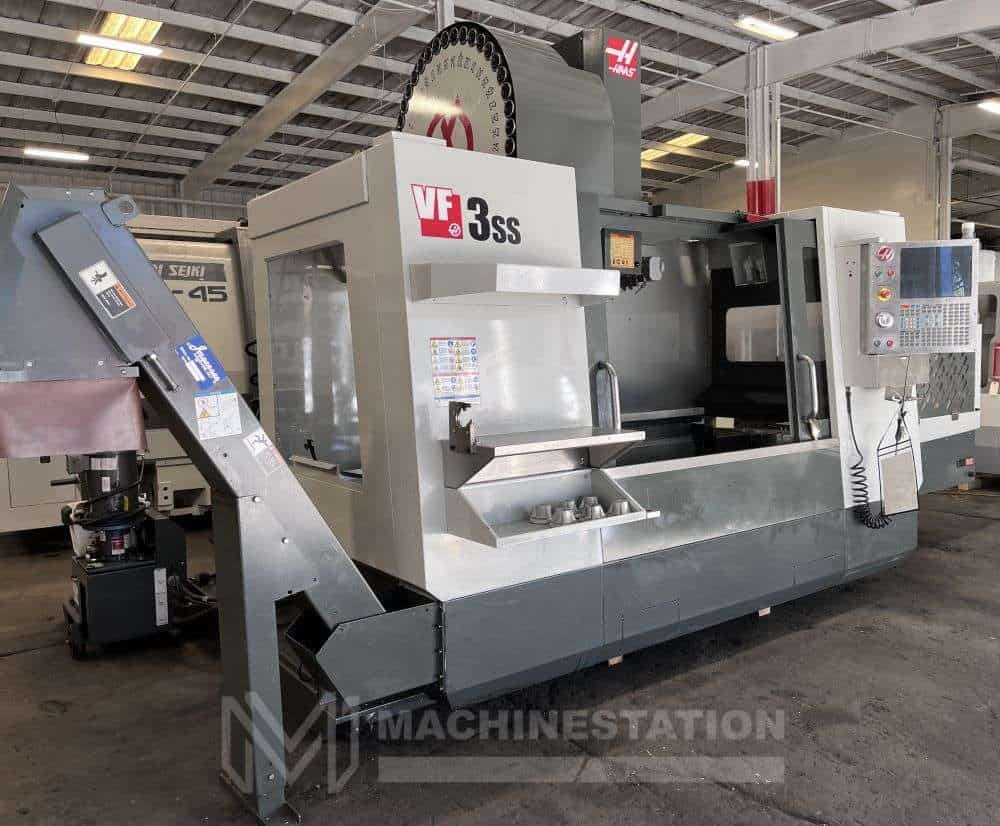

- Chip Conveyor (Upgraded $12595 value Included)

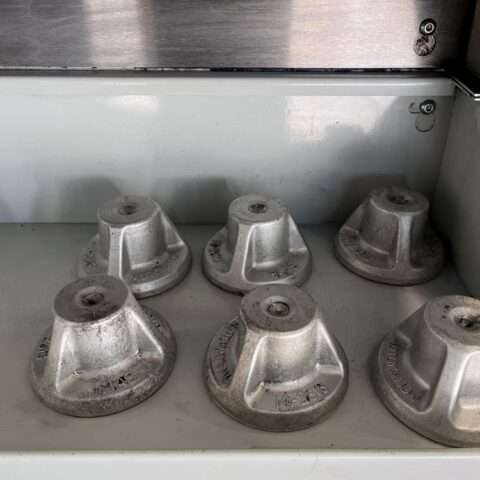

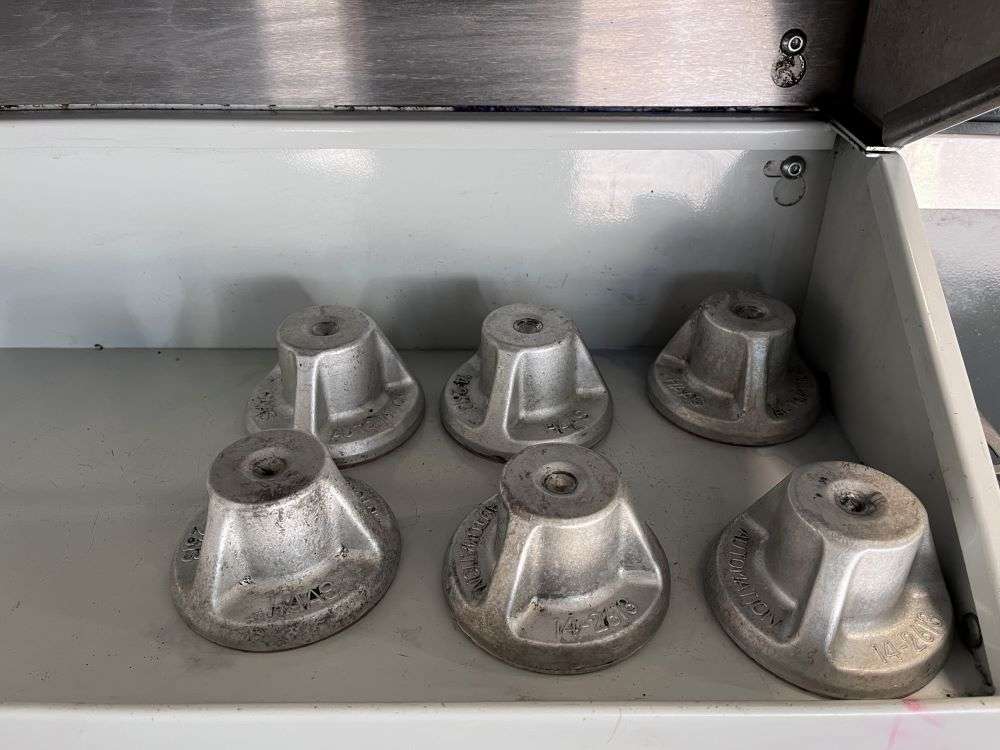

- Levelling Pads
|
Travel:
- X-Axis: 40″
- Y-Axis: 20″
- Z-Axis: 25″
- Rapid Traverse Rates: 1400 Inch Per Minute
- Cutting Feed Rates: 833 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″
|

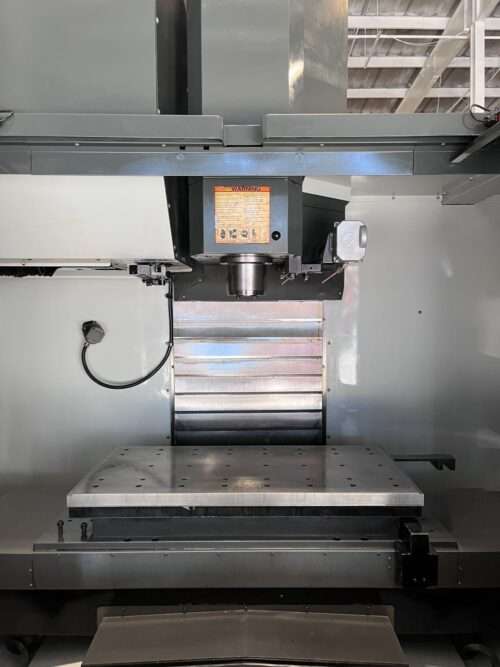

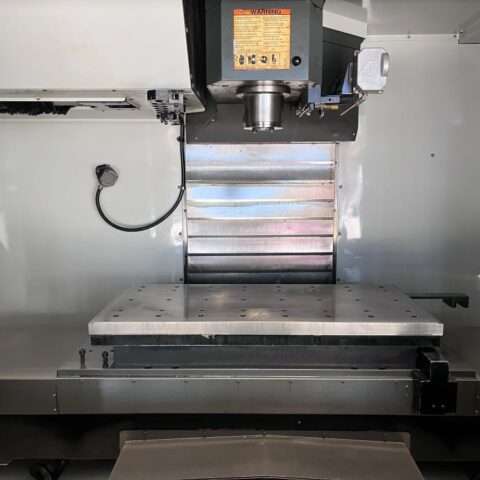

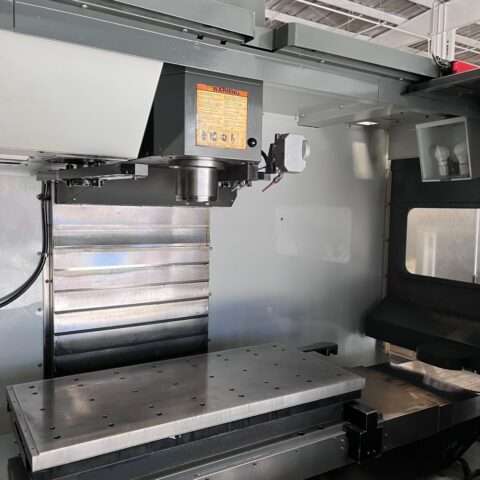

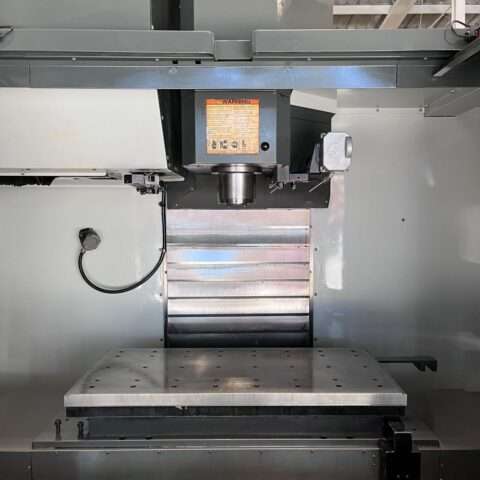

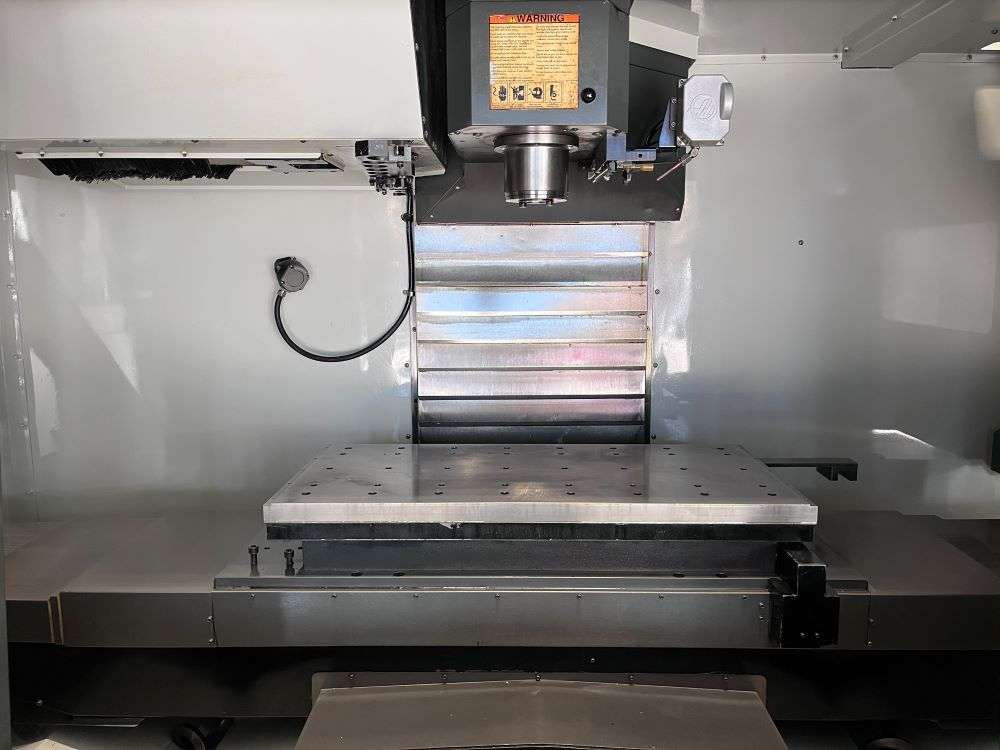

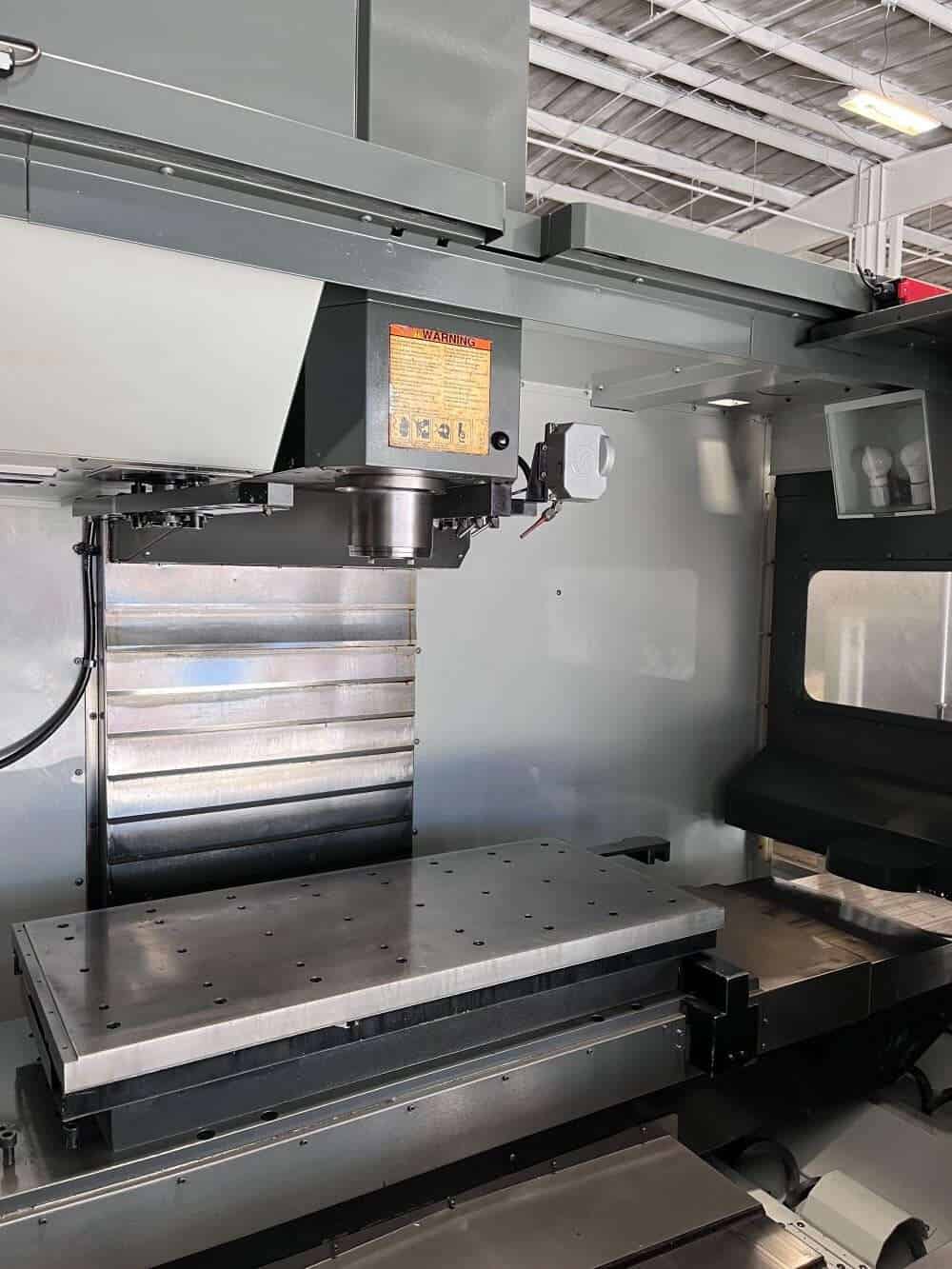

Table:
- Length: 48″
- Width: 18″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 1750 lbs
|

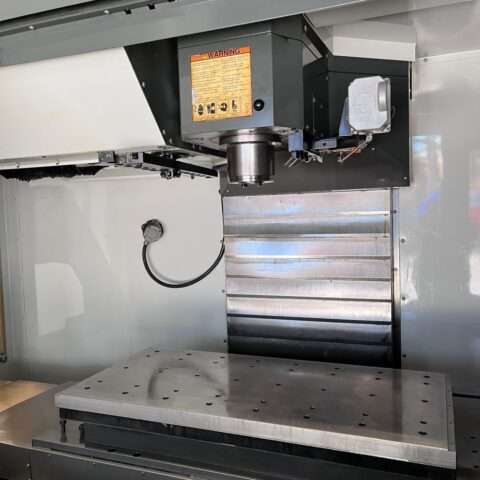

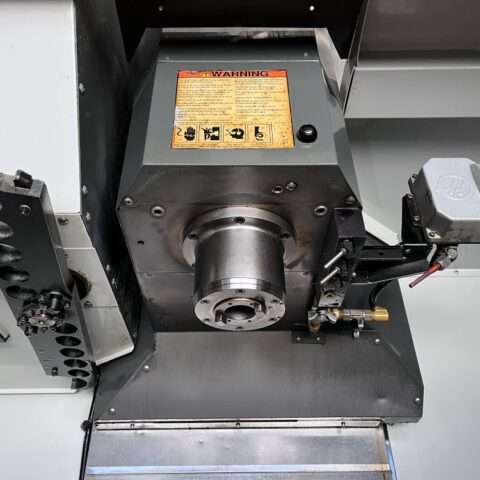

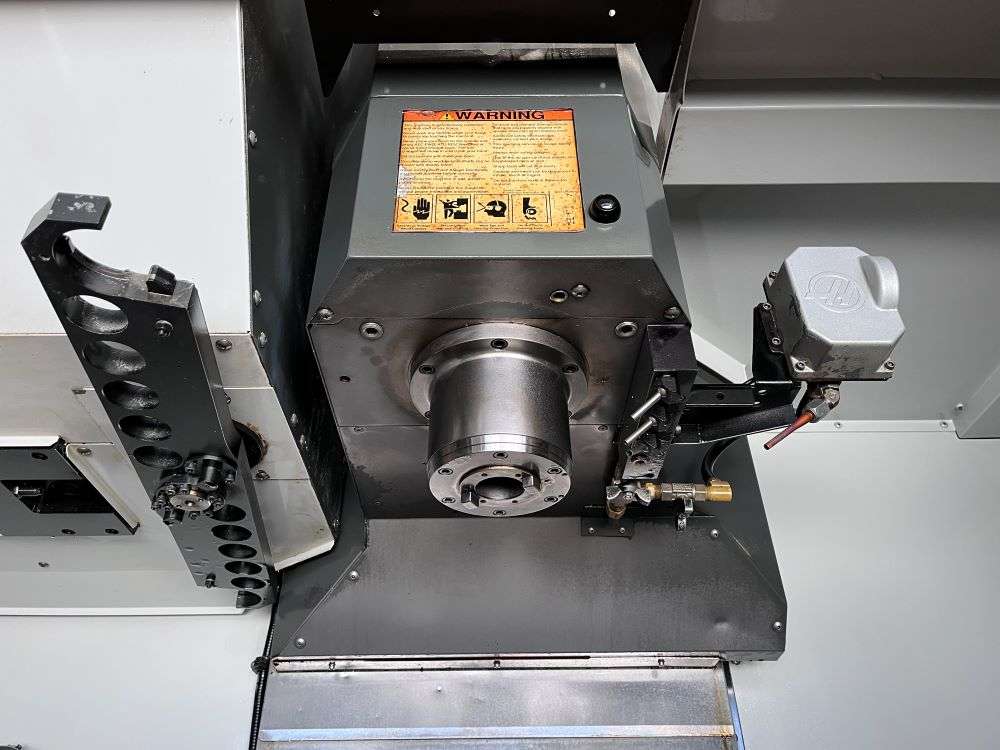

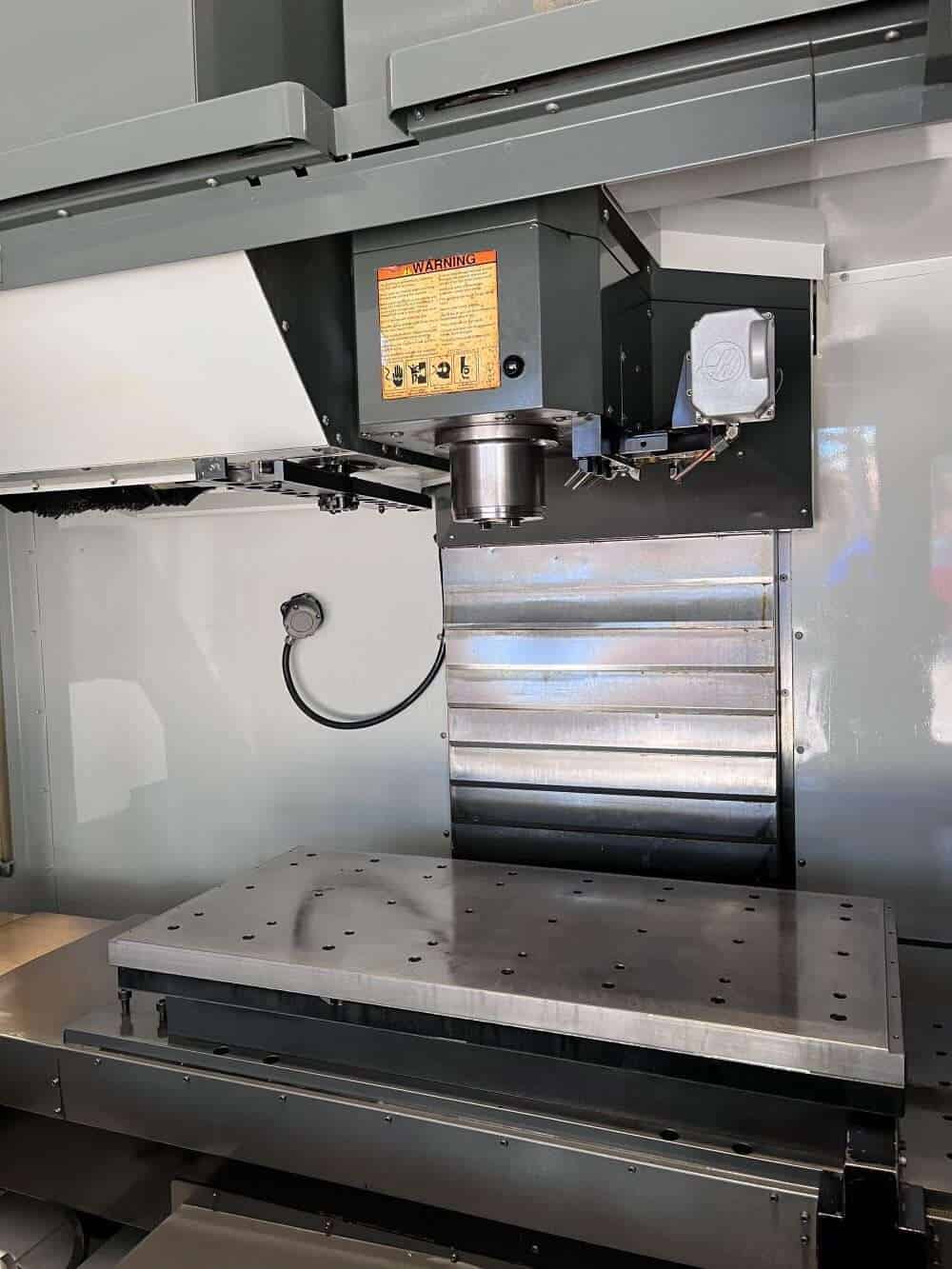

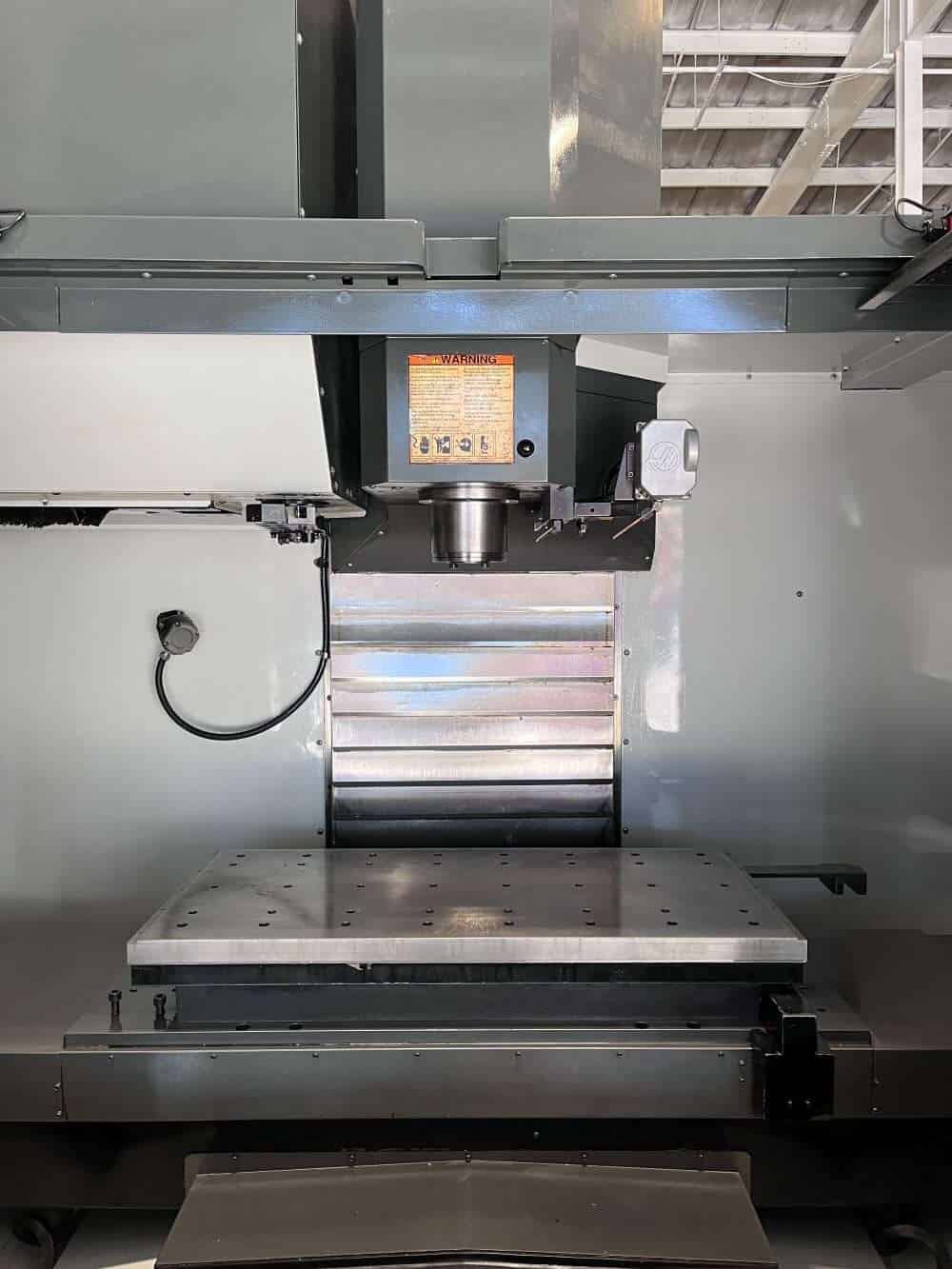

Spindle:
- Taper Size: CAT-40
- Speed Range: 12,000 RPM
- Spindle Power: 30 HP
|

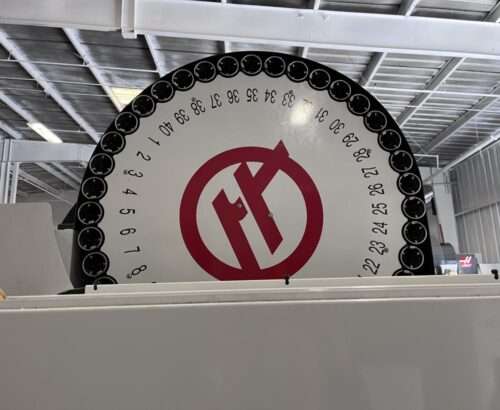

Automatic Tool Changer:
- Capacity: 40 Tools
- Max Tool Weight: 12 lbs
- Max Tool Dia: 2.5″ – 5.0″
- Max Tool Length: 13″
- Tool Changing Time: 1.80 Seconds
|
General:
- Air Required: 100 psi 4 scfm

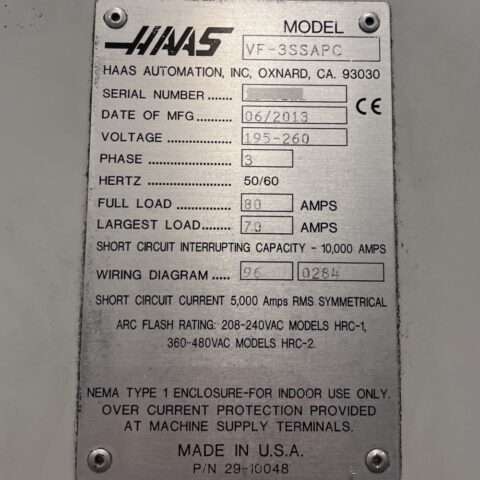

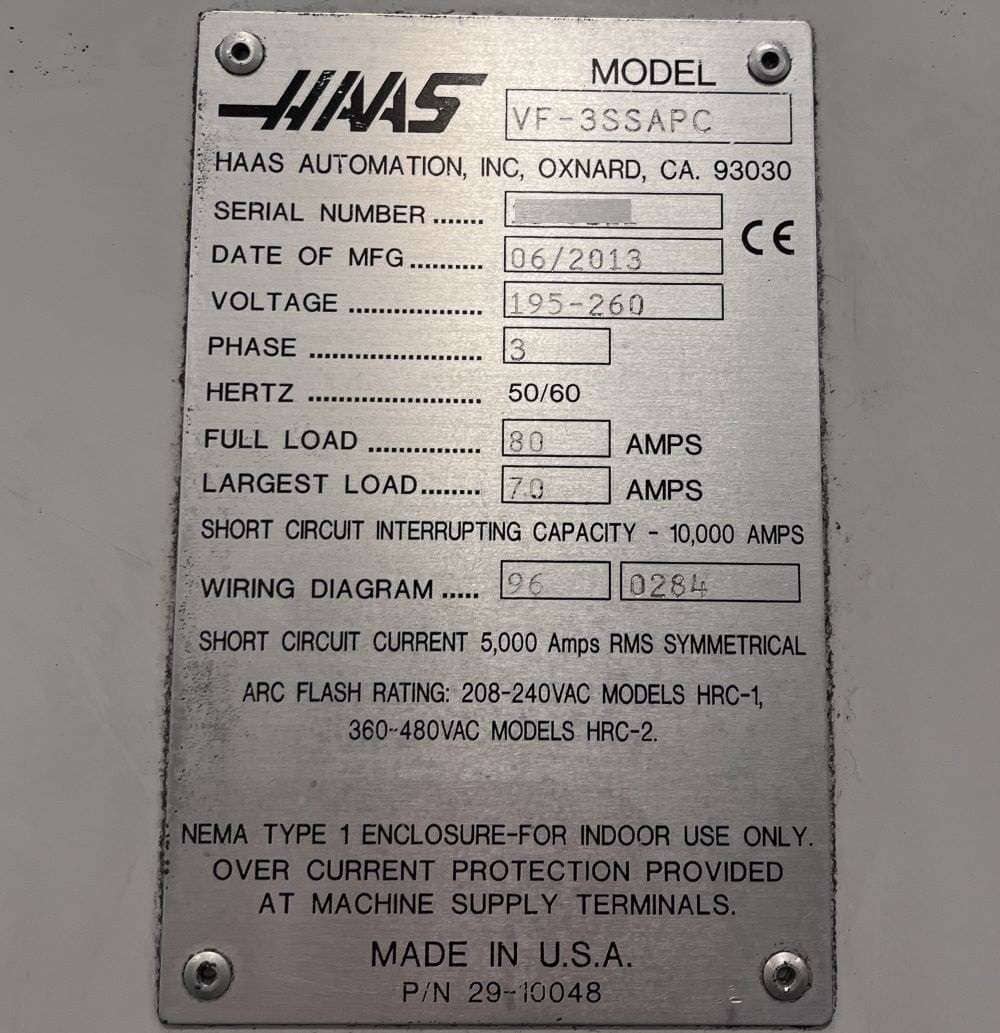

- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 152″ x 99″ x 106″ High (Without APC)
- Weight: 11,720 lbs Approx.
|
