*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

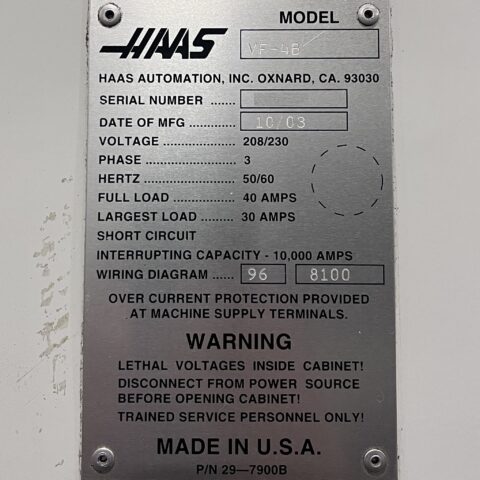

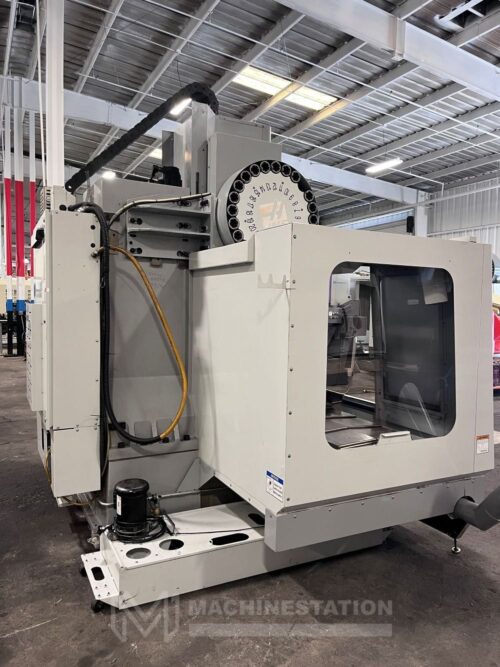

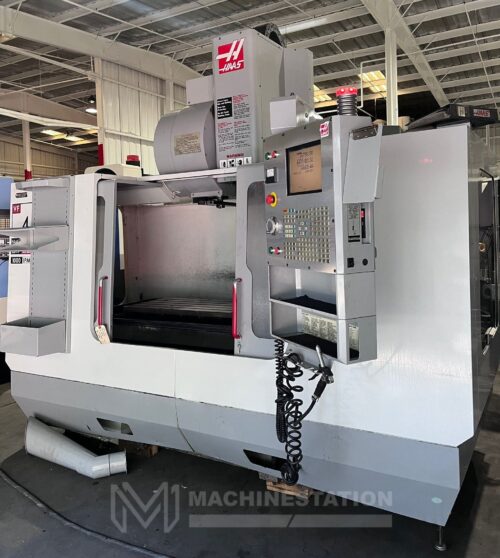

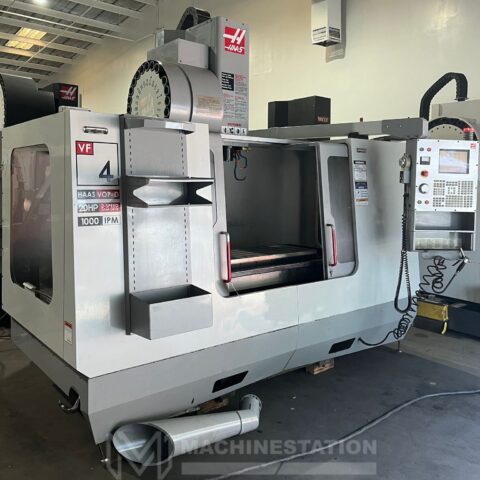

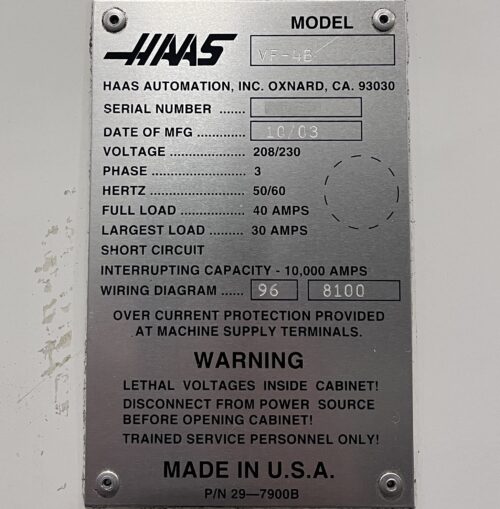

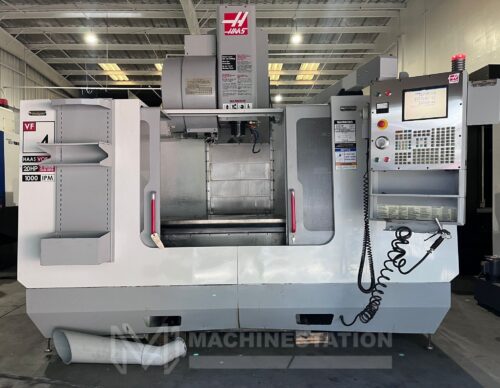

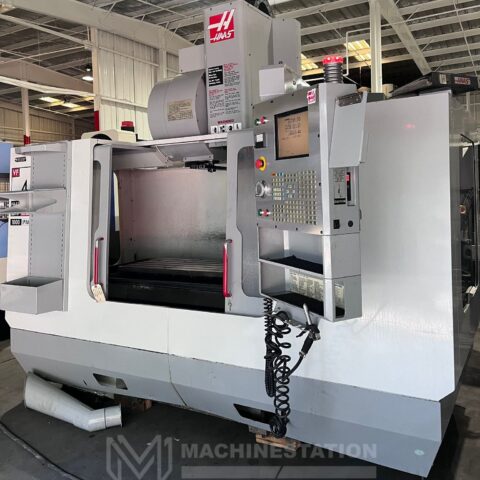

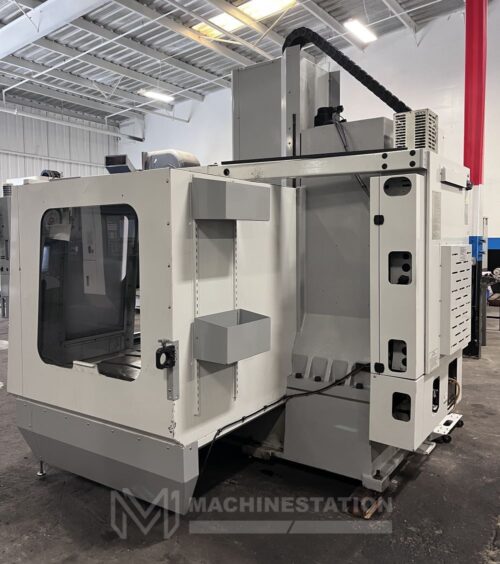

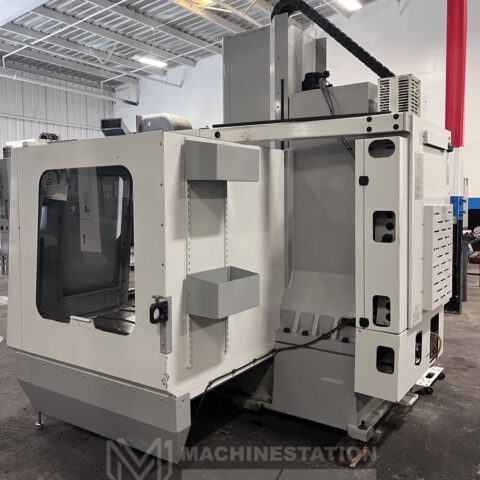

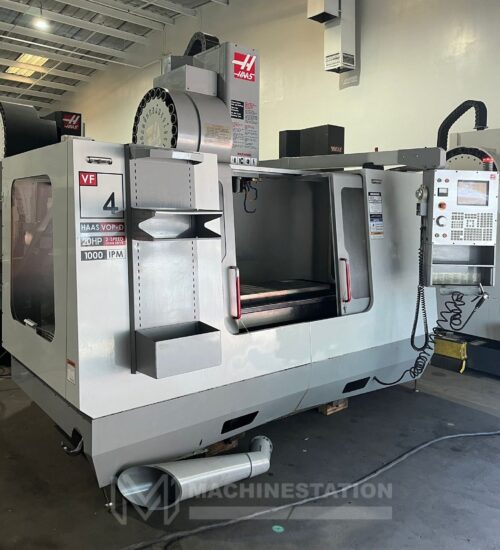

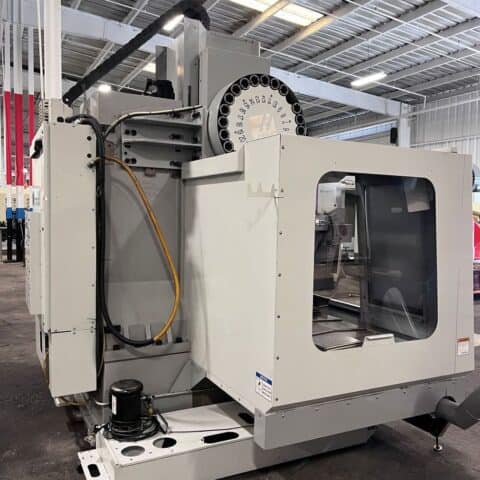

| Make: | Haas |
| Model: | VF-4 |
| Year: | 2003 |
| Condition: | Used – Good |
| Equipped With: |
|---|

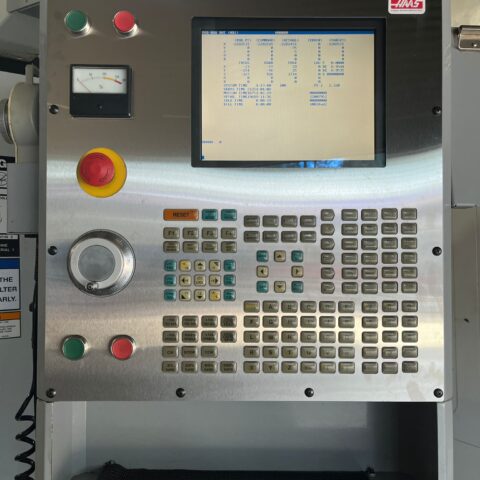

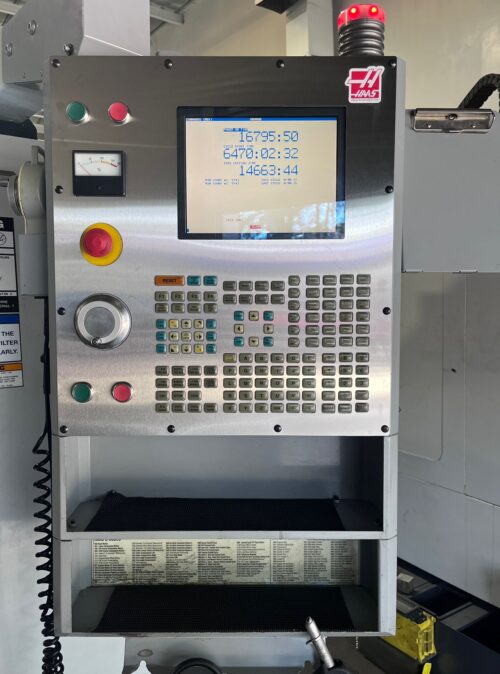

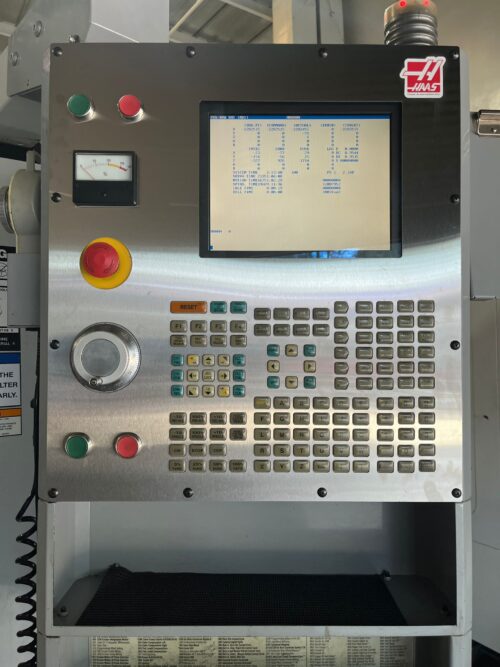

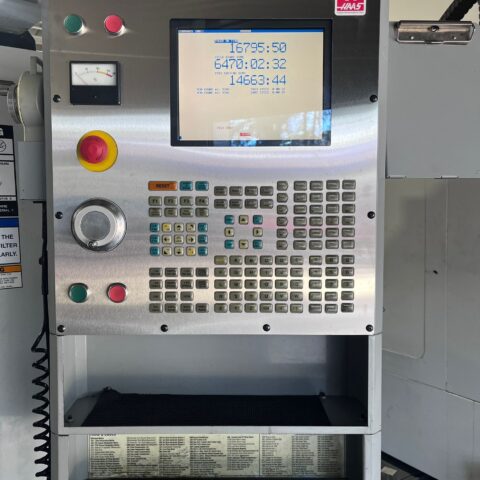

| Haas CNC Control |
| 4th Axis Ready |
| 10,000 RPM Spindle |
| 24 Station Automatic Tool Changer |
| Haas VOP-D Package |
| 1000 IPM Fast Rapid Traverse |
| 20 HP 2-Speed Gear Drive |

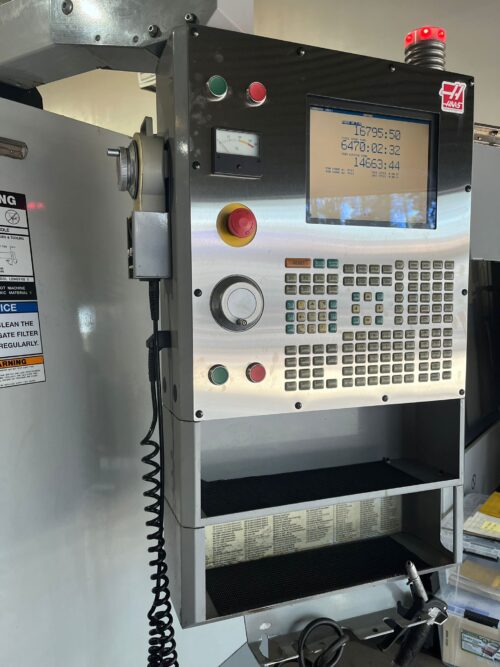

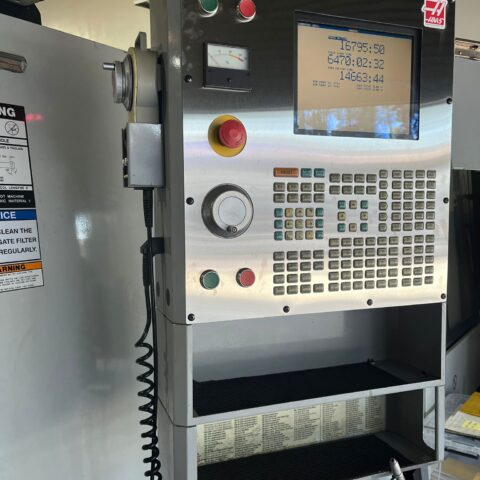

| MPG Control |
| Rigid Tapping |
| Spindle Orientation |

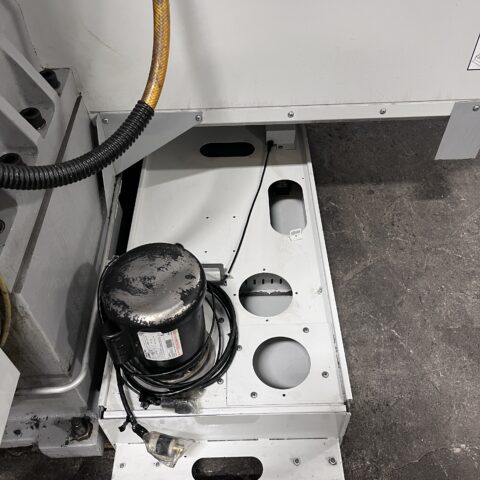

| Coolant System |

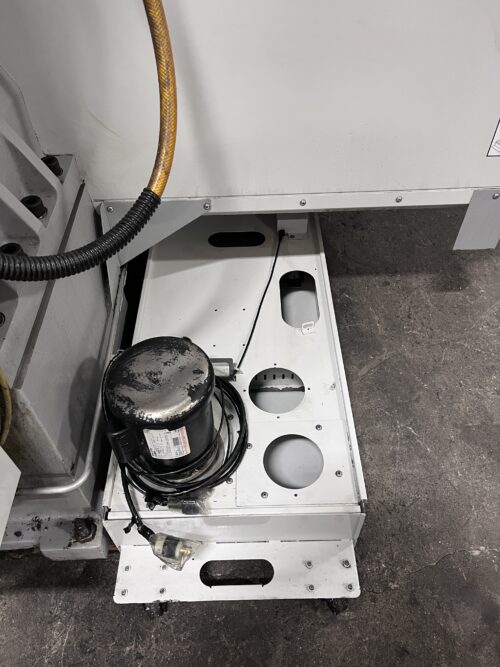

| Chip Auger |

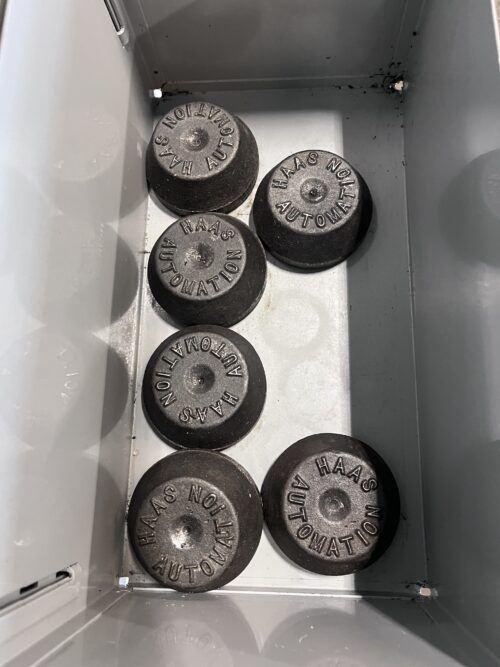

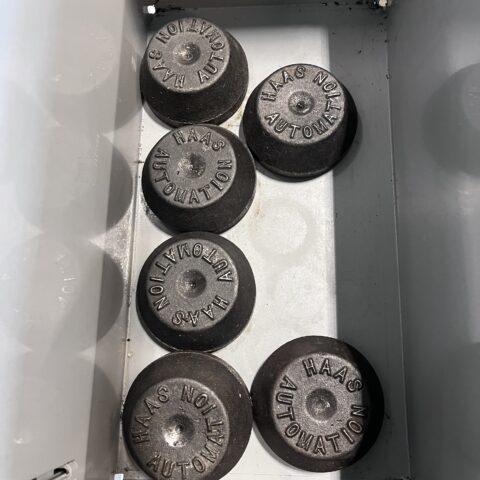

| Levelling Pads |
| Travels: |
|---|
| X-axis: 50″ |
| Y-Axis: 20″ |
| Z-Axis: 25″ |
| Rapid Traverse Rates: 1000 IPM |
| Cutting Feed Rates: 650 IPM |
| Spindle Nose To Table (Min.- Max.): 4.2″ – 29.2″ |

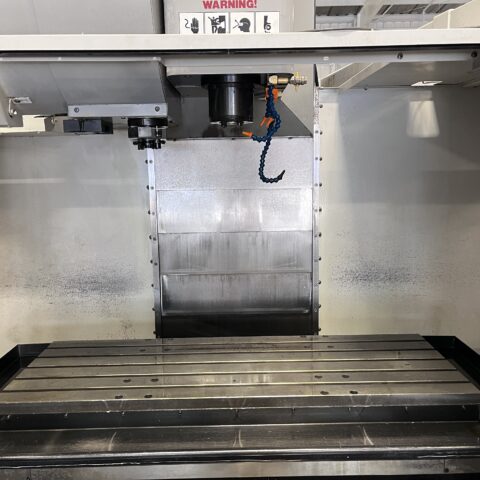

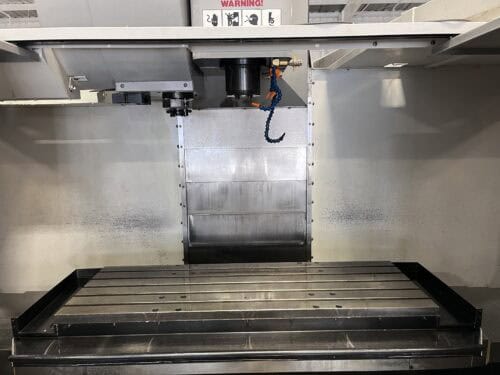

| Table: |
|---|
| Length: 52″ |
| Width: 19.5″ |
| Number Of Std T-slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight On Table: 3500 Lbs |
| Spindle: |
|---|

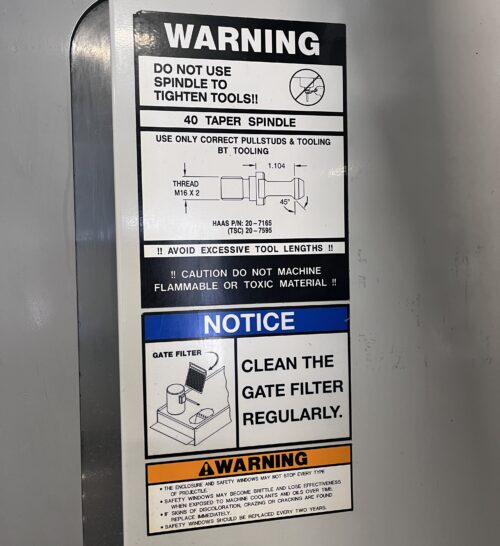

| Taper Size: BT-40 |
| Speed Range: 10,00 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 24 Station Side Mounted |
| Tool Weight: 12 Lbs |
| Max Tool Length: 11″ |
| Max Tool Dia.: 3.5″ |
| Tool Changing Time: 4.2 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 152″ x 99″ x 106″ High |
| Weight: 12,500 lbs Approx. |
