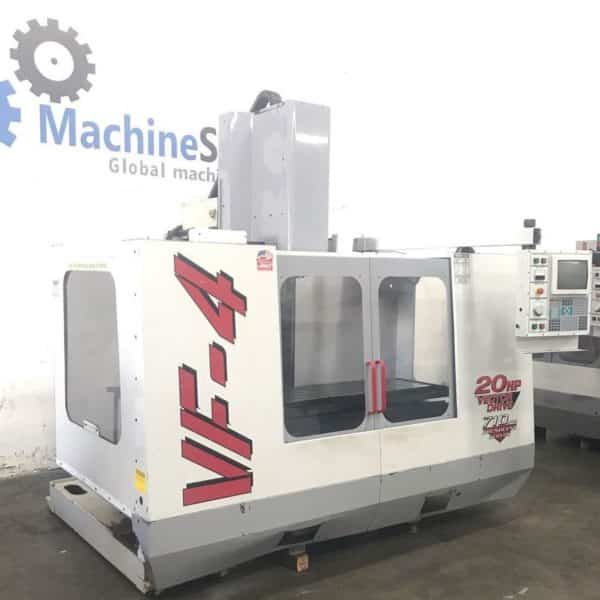

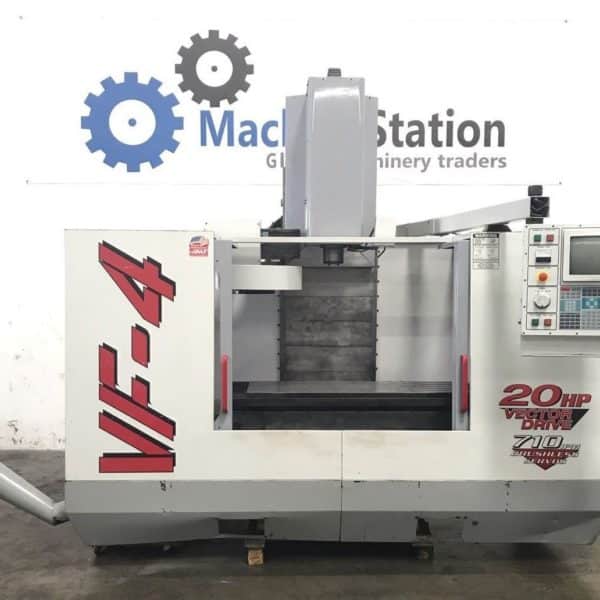

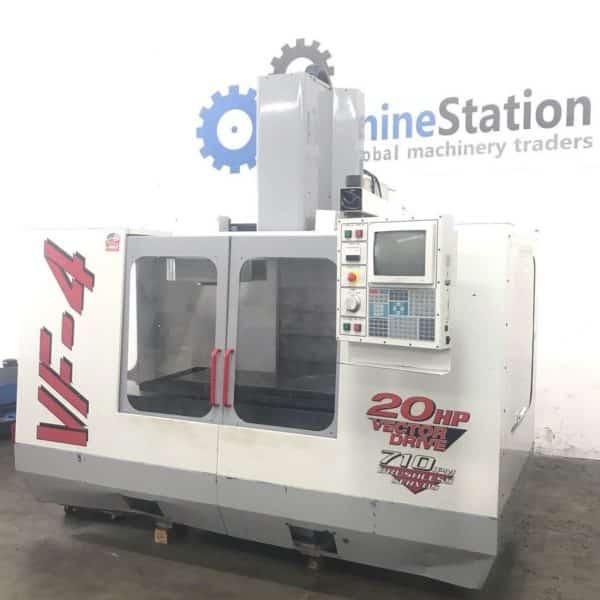

HAAS VF-4 VERTICAL MACHINING CENTER | |
---|---|
Make | Haas |
Model No. | VF-4 |
Year of Manufacture: | 1999 |

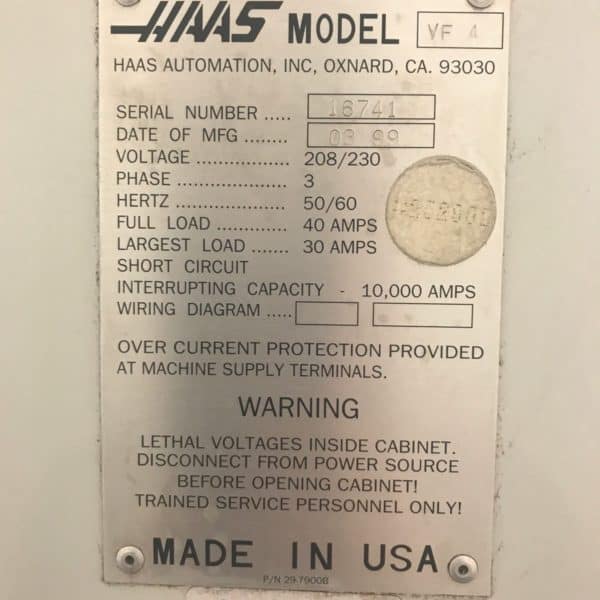

Serial # | 16741 |
Condition | Very Good |
All specifications are approximations and are subject to verification.
“One Owner Machine equipped with 20HP Gear Head Spindle, thru spindle coolant, 7500rpm, 4th Axis Ready. On our Floor now, fully powered / tested & is in Great working condition.”
- HAAS VF-4 Features:
- 20HP High Torque Geared Head Spindle
- Through Spindle Coolant
- 4th Axis Ready ( drives and wiring installed )
- Rigid Tapping
- Power Failure Detection Module
- User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
- Brushless servo drive motors on all axis
- Expanded 1MB Memory
- 20 + 1 automatic tool changer
- Programmable coolant

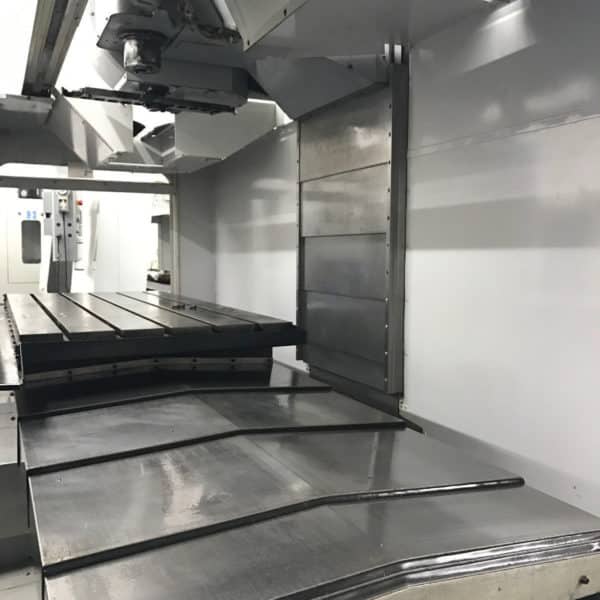

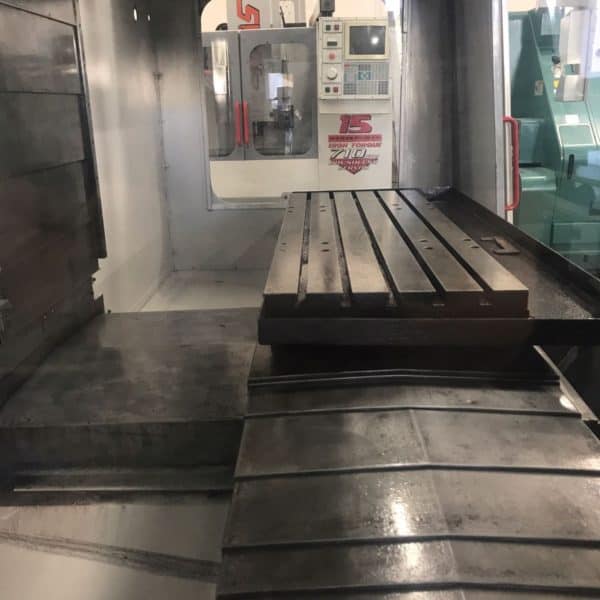

- Telescopic way covers
- Chip auger
- Floppy Drive
- Flood Coolant system
- RS-232 Port
- HAAS VF-4 Specifications:
- Travels:
- X-Axis: 50″
- Y-Axis: 20″
- Z-Axis: 25″
- Rapid Traverse Rates: 710 Inch Per Minute
- Cutting Feed Rates: 500 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 24″

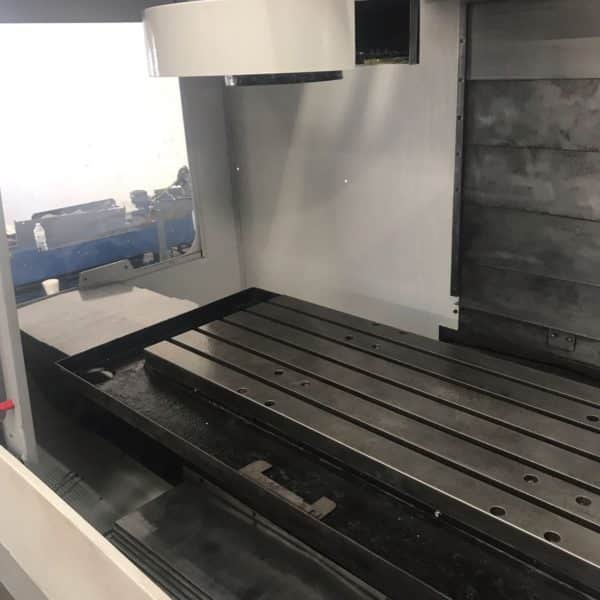

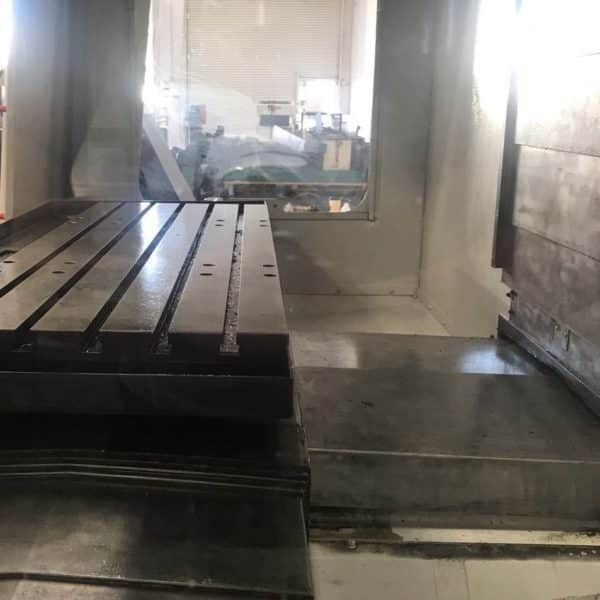

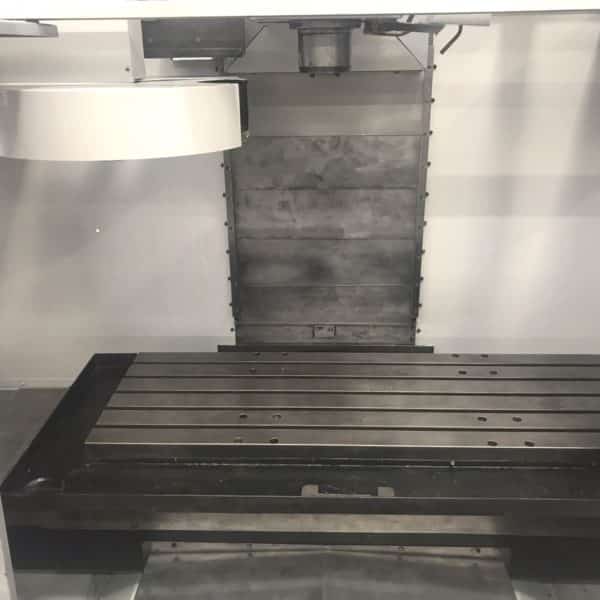

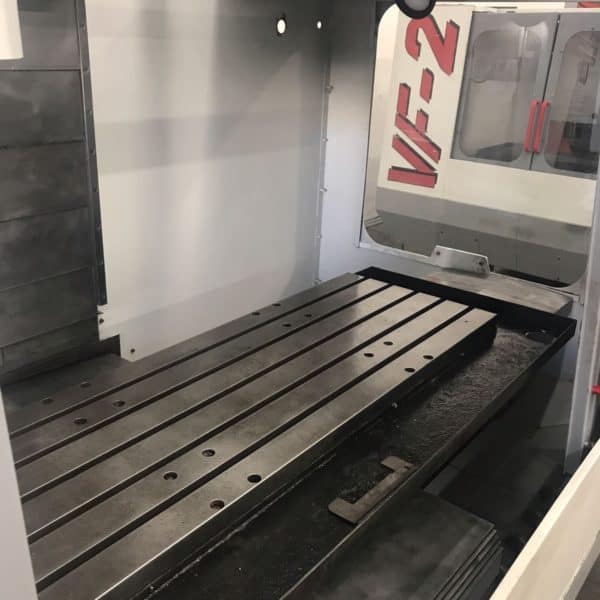

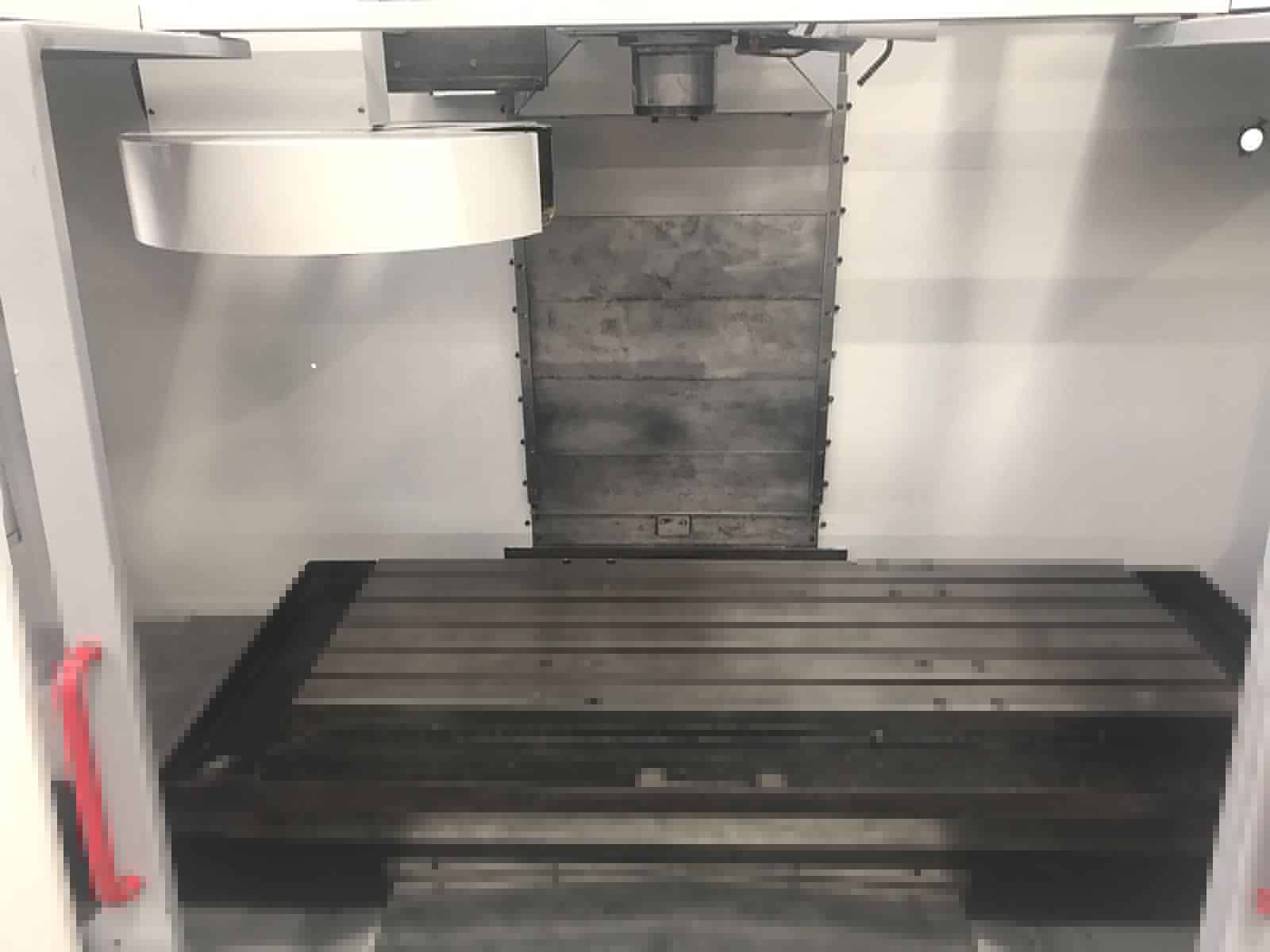

- Table:
- Length: 52″
- Width: 18″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 3500 lbs
- Spindle:
- Taper Size: 40
- Speed Range: 0 – 7500 RPM
- Spindle Type: Gear Head
- Spindle Power: 20 HP Vector Dual Drive
- Max Torque: 90ft-lb @ 2000 RPM
- Automatic Tool Changer:
- Capacity: 20 + 1
- Max Tool Weight: 12 lbs
- Max Tool Dia: 3.6″
- Max Tool Length: 13″
- Tool Changing Time: 4.2 Seconds
- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 118″ x 98″ x 110″ High
- Weight: 13,500 lbs
HAAS VF-4 Comes as shown in pictures..
