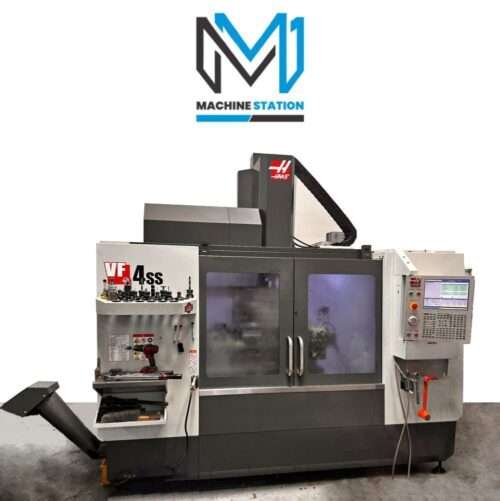

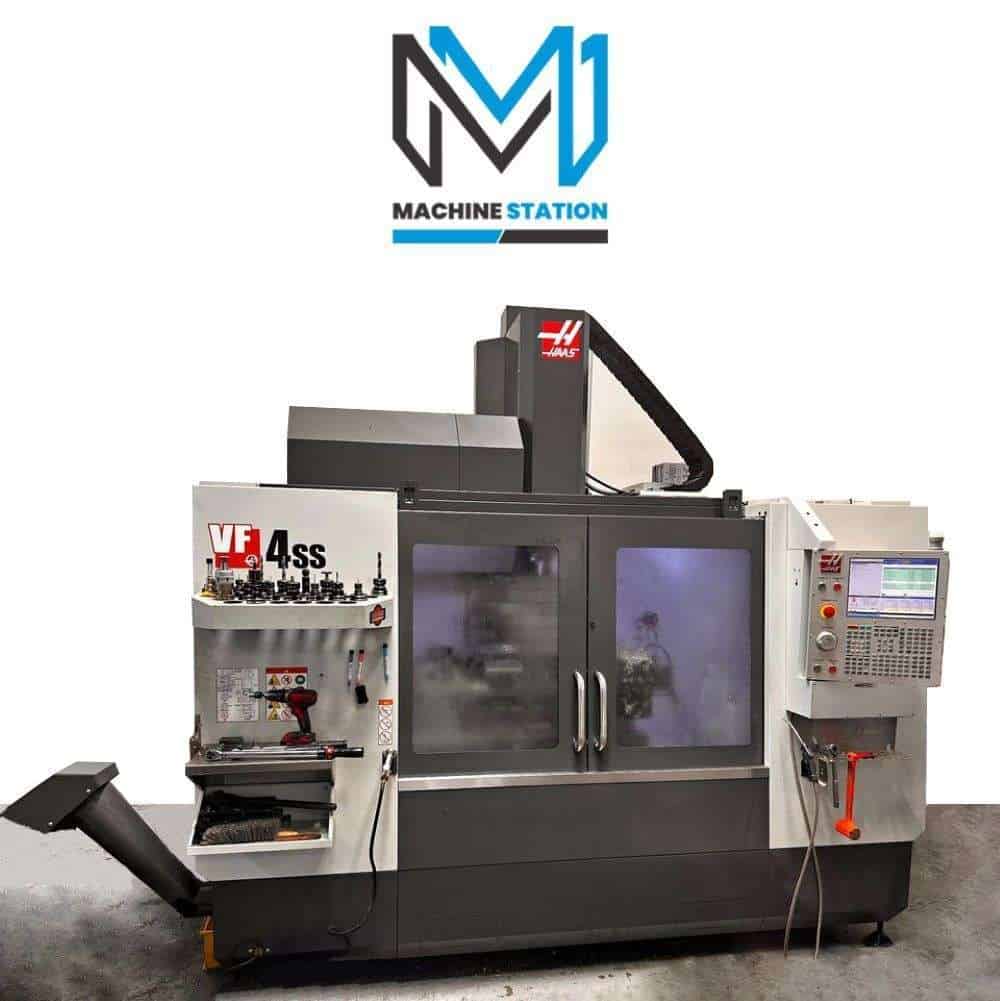

Haas VF-4SS CNC Vertical Machining Center

Haas VF-4SS CNC Vertical Machining Center

Out of stock

SKU: 7007

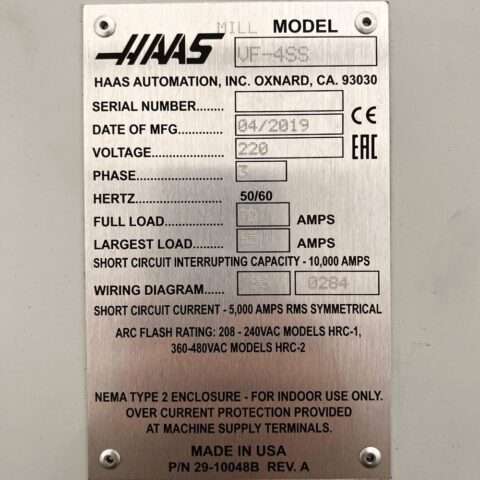

Make/Model: HAAS VF-4SS
Video: No Video



SKU: 7007 Category: Tag:

Description

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

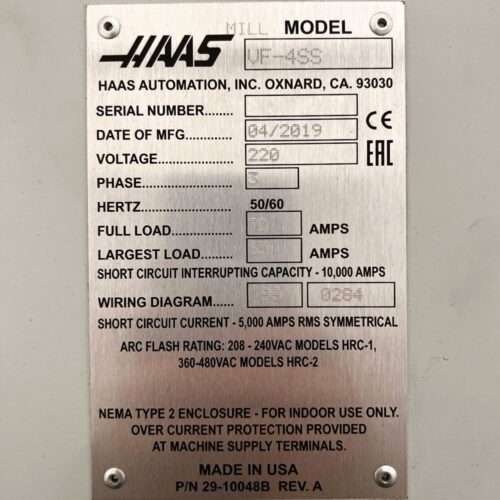

Make:HAAS
Model:VF-4SS
Year:2019

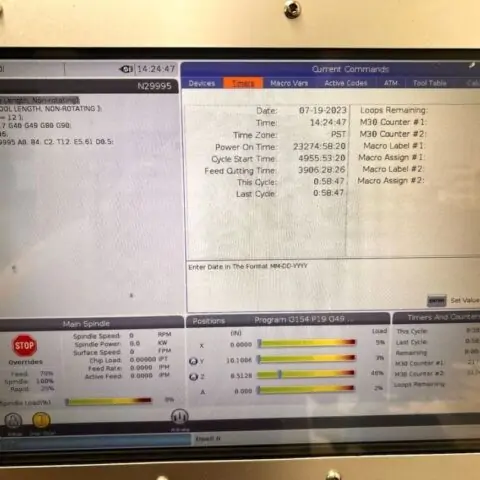

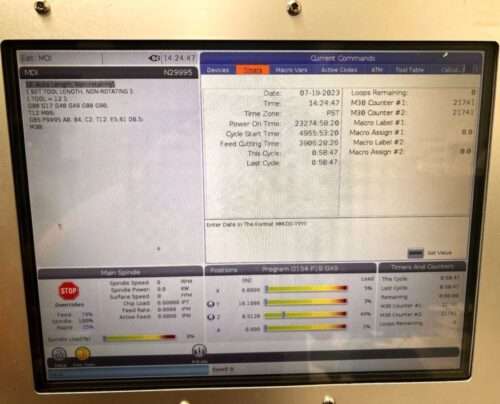

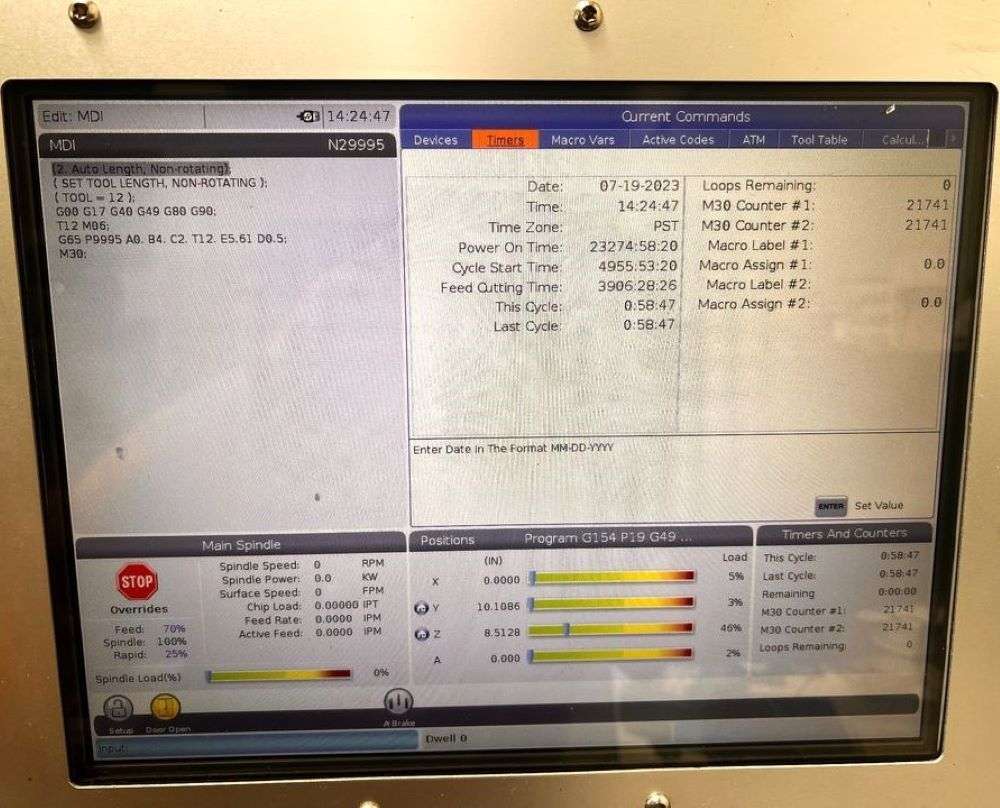

Cutting Time:3906 Hours
Condition:Used – Excellent

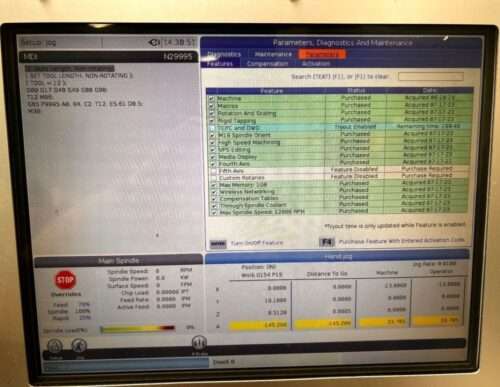

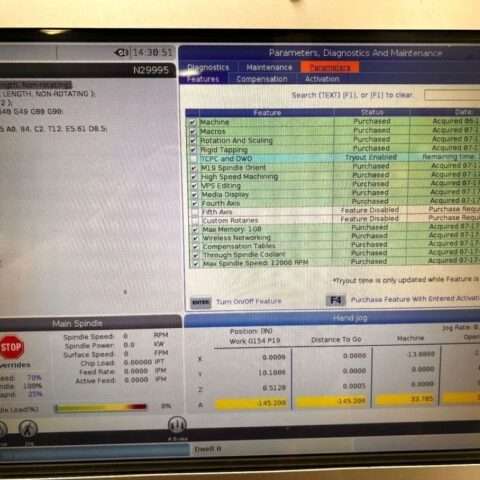

Features:
Haas Next Gen CNC Control
12000 RPM Inline Direct Drive Spindle

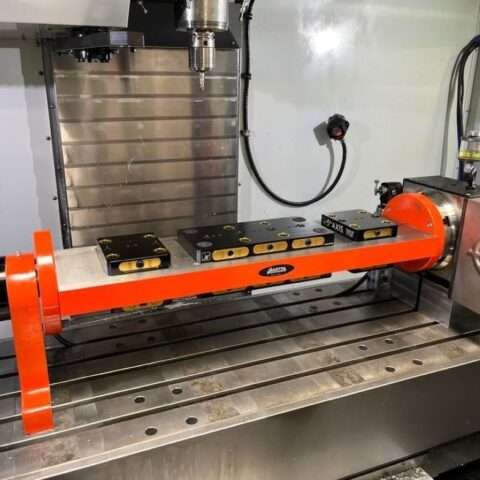

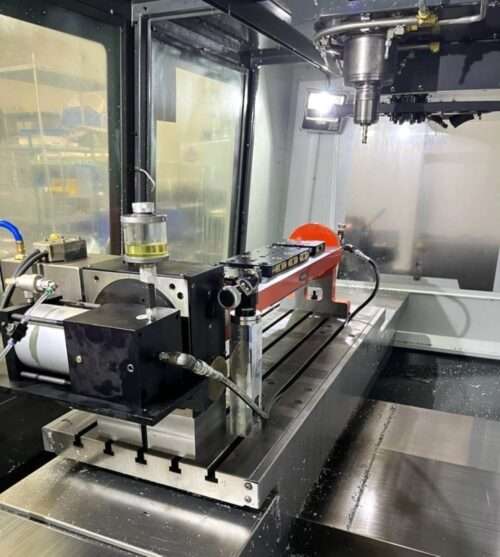

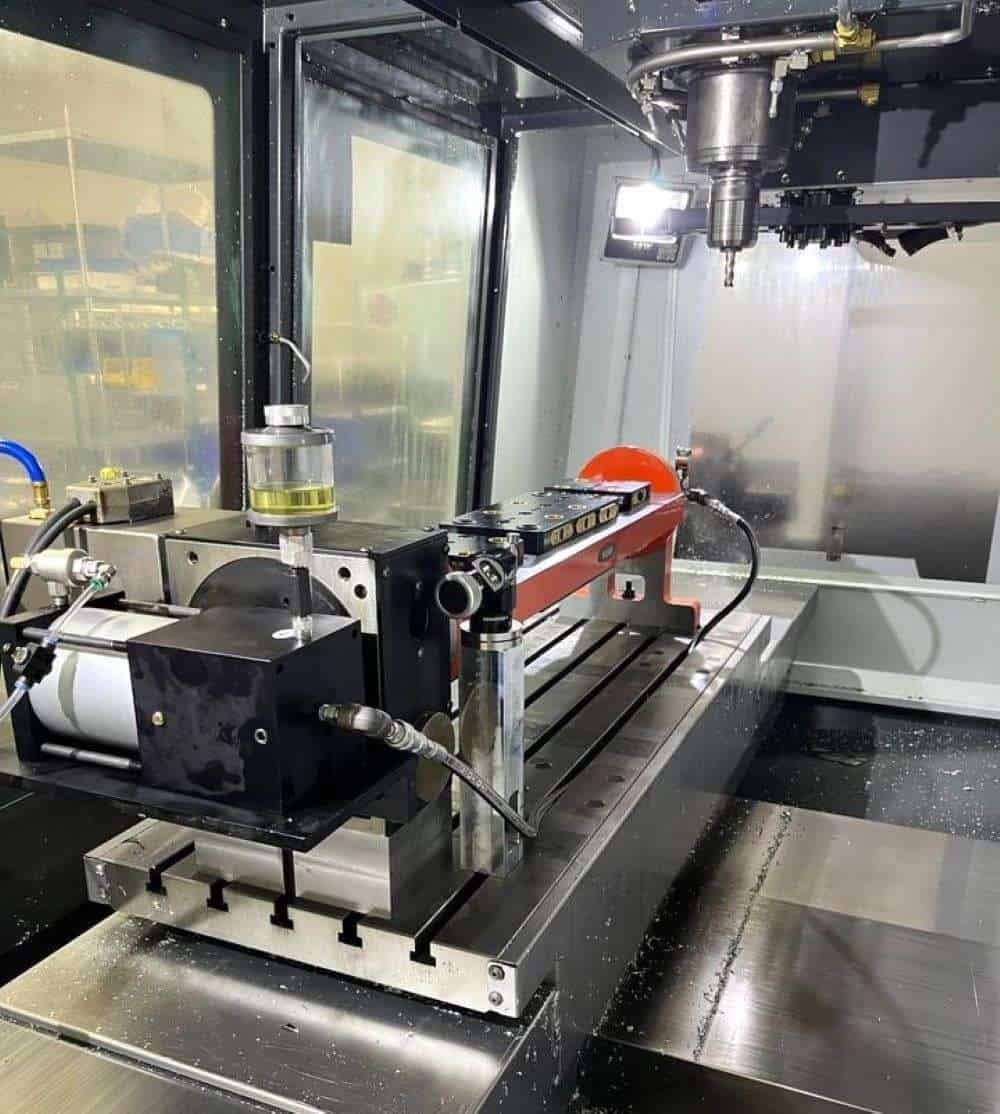

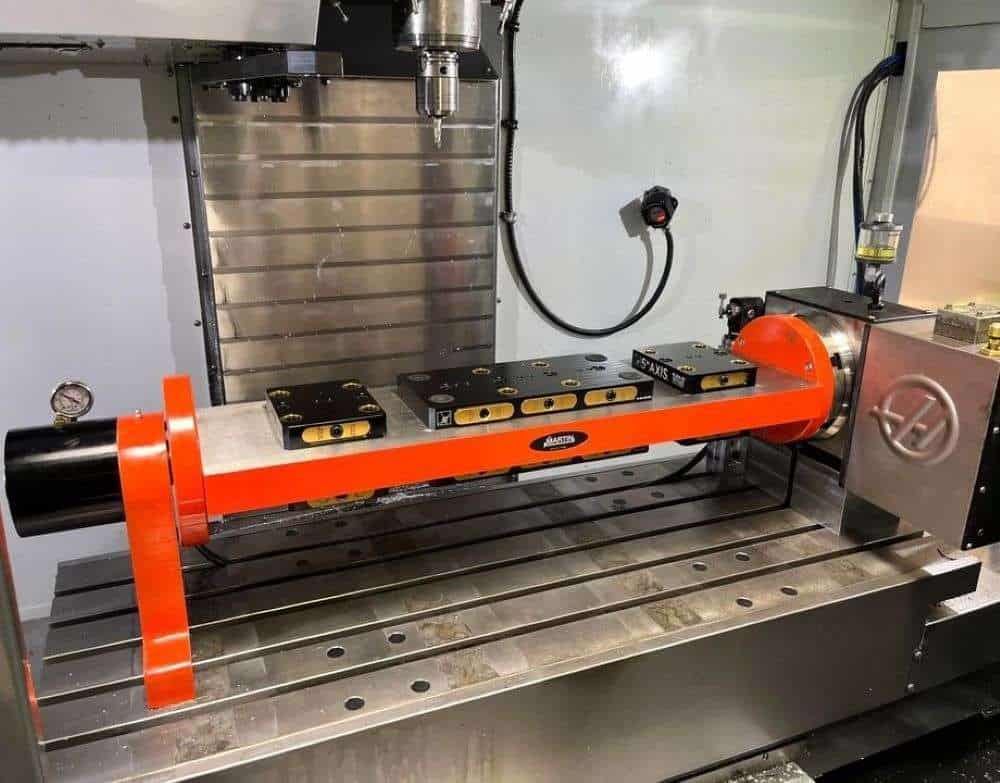

HRT-210 4th Axis Rotary Table with Trunnion
24 Station Super Speed Side Mount Tool changer
Through Spindle Coolant
Renishaw Probe
1400 IPM Fast Rapid
High speed Machining
Rotation and Scaling
VPS Editing
1 GB Memory
Wireless Networking
Compensation Tables
Rigid Tapping
Telescopic way covers
Automatic Chip auger





Specifications:
Travels:
X-Axis: 50.0″
Y-Axis: 20.0″
Z-Axis: 25.0″
Rapid Traverse Rates Axis: 1417 IPM
Cutting Feed Rates: 833 IPM
Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″





Table
Length: 52.0″
Width: 19.5″
Max Weight on Table: 1750 lbs





Spindle:
Taper Size: 40
Speed Range: 12000 RPM
Spindle Power: 30 HP





Automatic Tool Changer:
Capacity: 24 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Dia: 2.5″ – 5.0″
Max Tool Length: 13.0″
Tool Changing Time : 1.8 Seconds





General:
Air Required: 100 psi, 4 scfm
Power: 220v / 30 kva / 3-Phase
Overall Dimensions: 131″ x 102 x 109” High
Weight: 13,500 lbs
