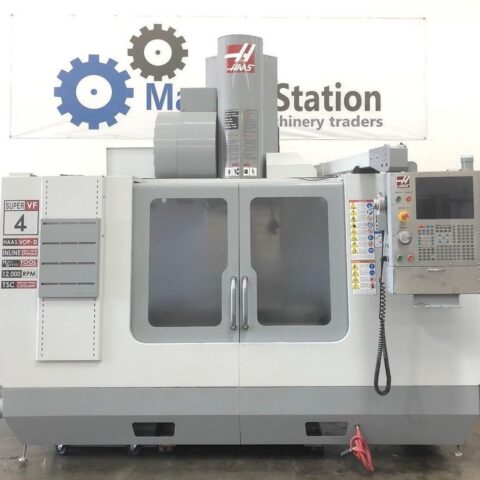

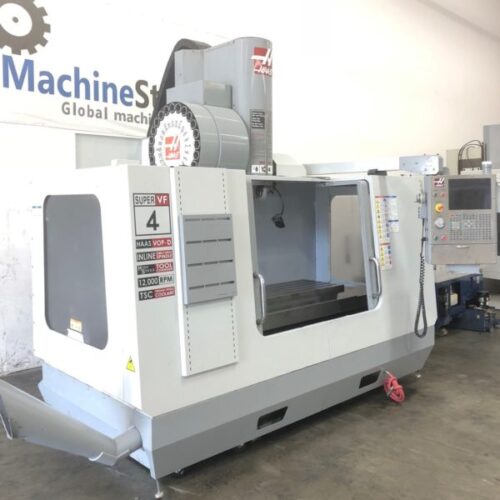

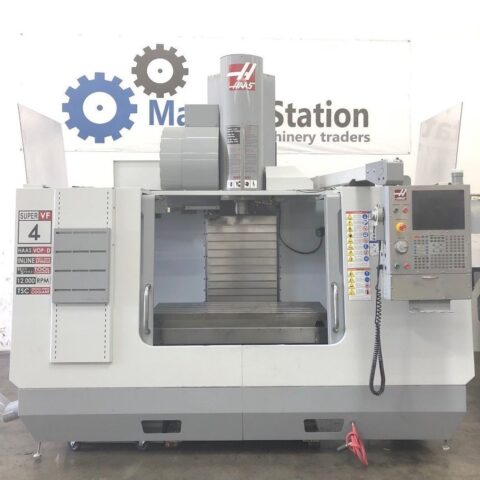

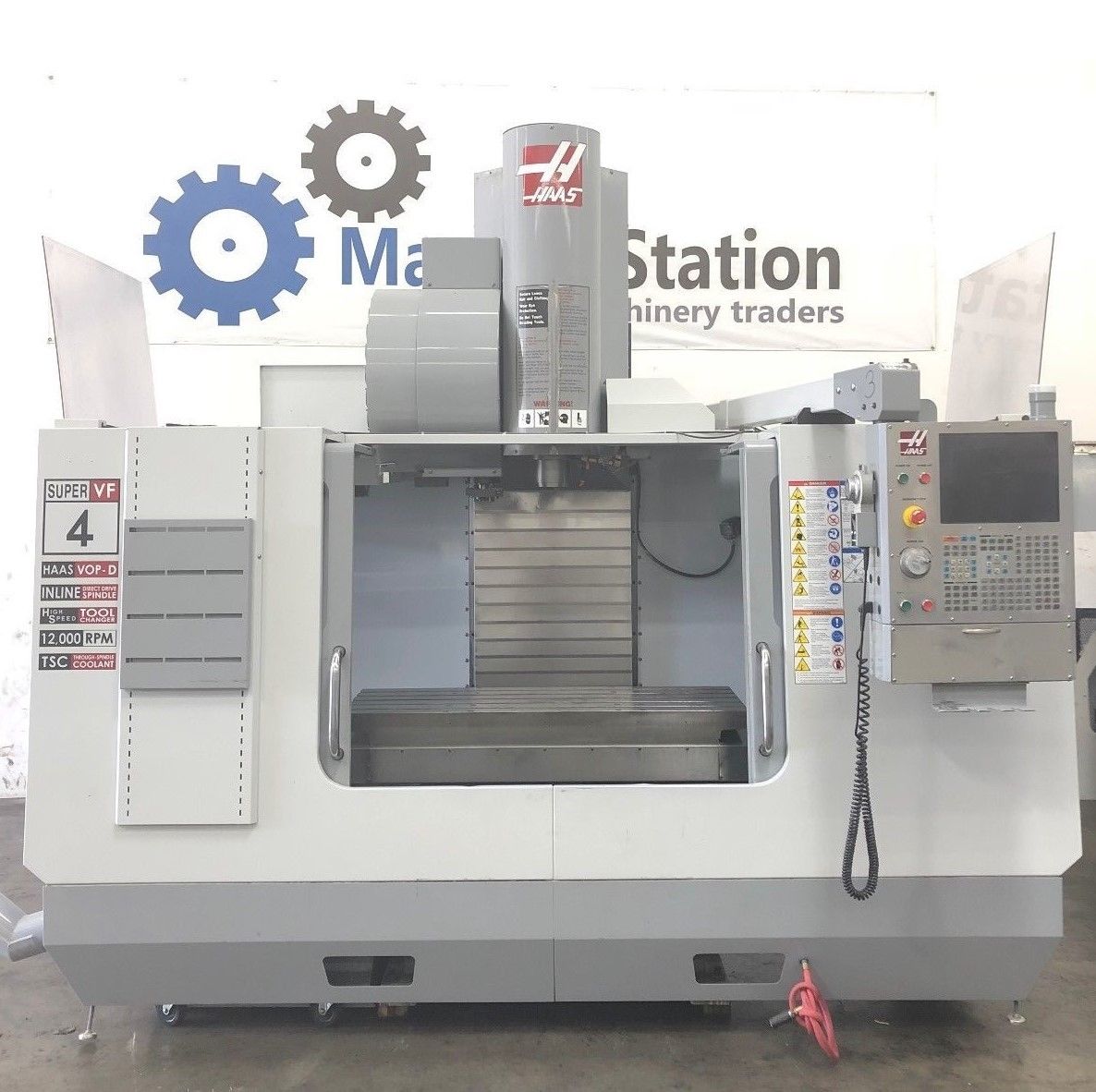

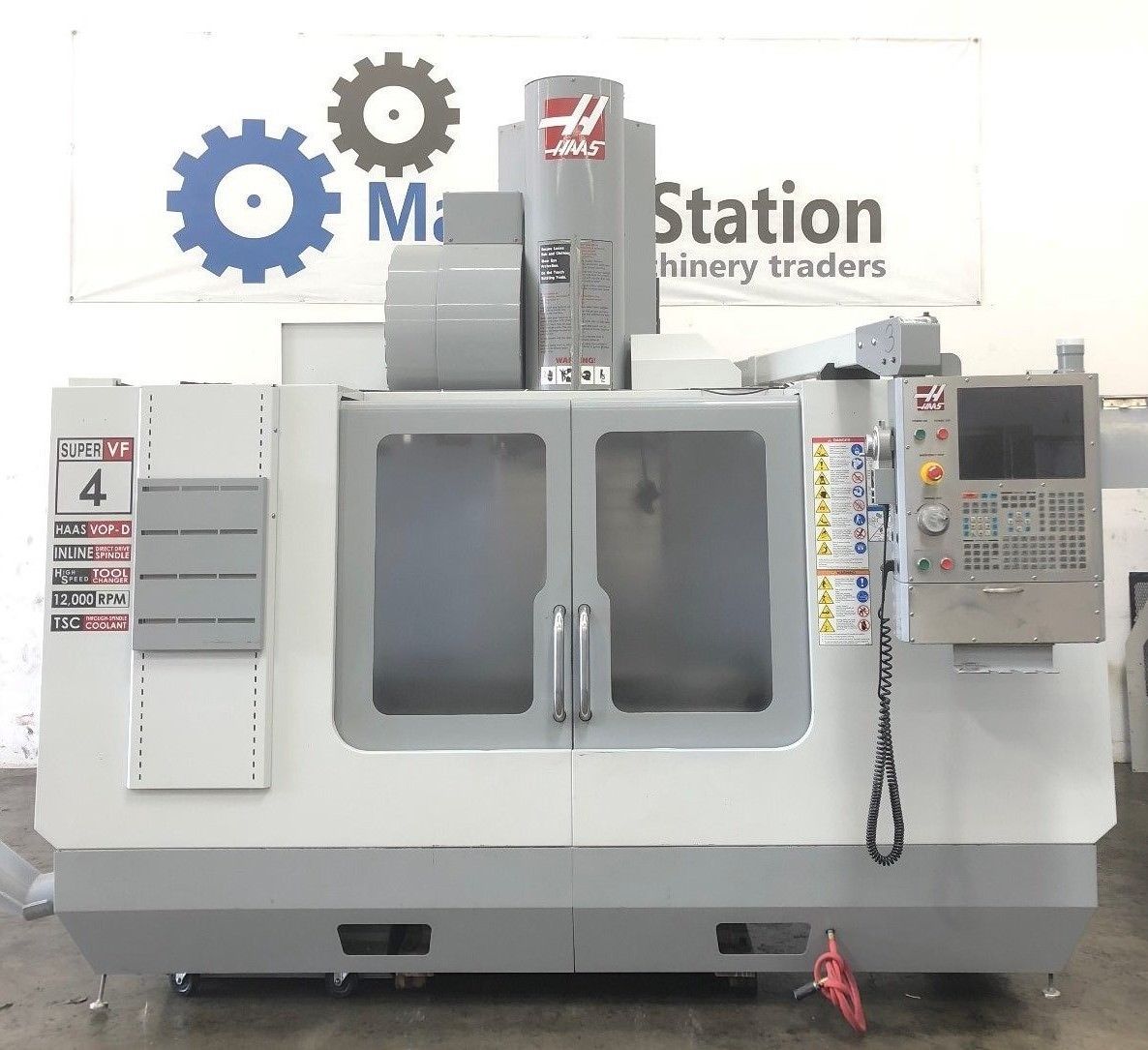

HAAS VF-4SS VERTICAL MACHINING CENTER | |
---|---|
Make | Haas |
Model No. | VF-4SS |
Year of Manufacture: | 07/07 |

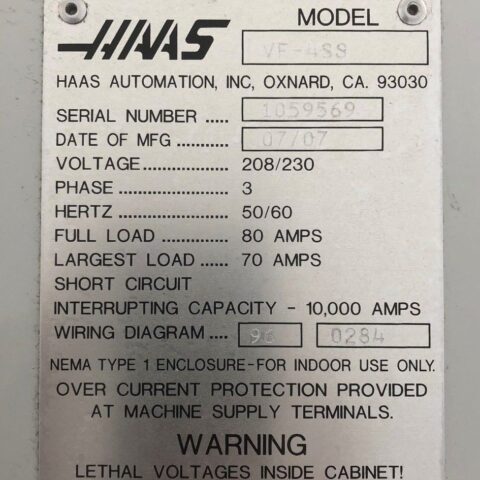

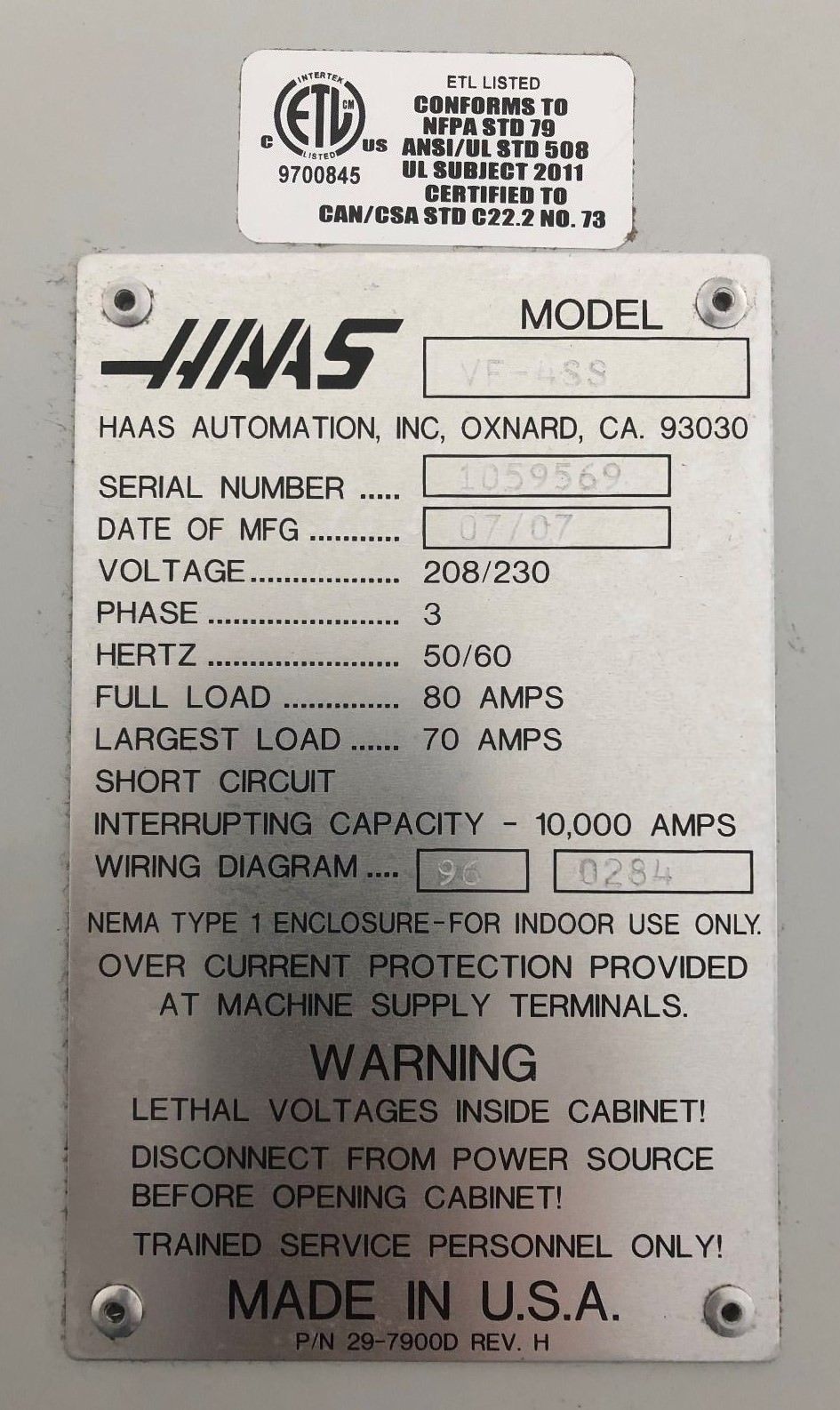

Serial # | 1059569 |
Condition | Very Good |
Replacement Cost approx. $110,000.00 with the Installed options.
All specifications are approximations and are subject to verification.
“One Owner Machine ran on Aluminium. Fully Equipped with 12,000 RPM, thru spindle coolant, wireless probing, 4th Ready and many more features. On our Floor now, fully powered / tested & is in Great working condition.”
Watch *VIDEO* in Spanish
- HAAS VF-4SS Features:
- 30HP Inline Direct Drive Spindle
- High Torque 12,000 RPM
- Rapid Travels 1200 Inch Per Minute
- Through Spindle Coolant
- 4th ( drives and wiring installed )

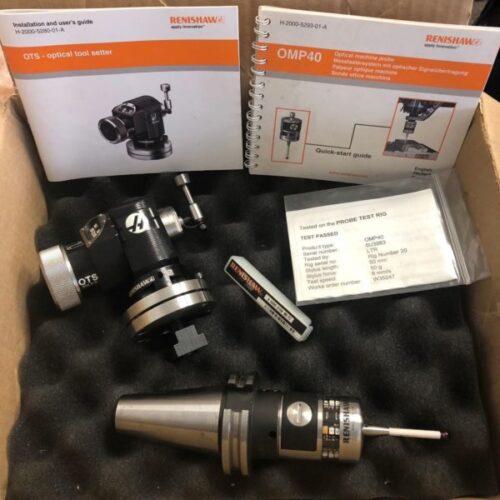

- Wireless Intuitive Probing System ( New in Box )
- Rigid Tapping
- User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
- Quick Code Programming
- Brushless servo drive motors on all axis
- Expanded Memory

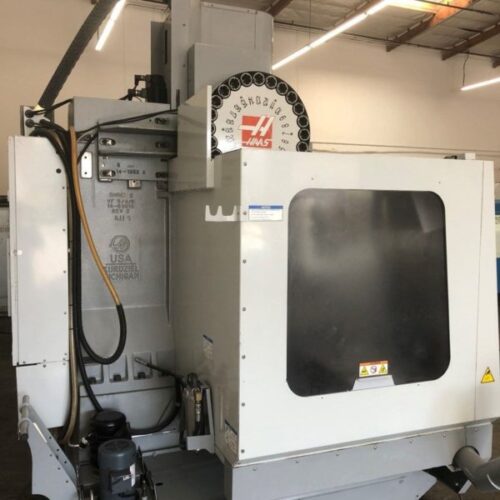

- 24 + 1 automatic tool changer
- Programmable coolant
- Telescopic way covers
- Chip auger
- USB Drive
- Flood Coolant system
- HAAS VF-4SS Specifications:
- Travels:
- X-Axis: 50″
- Y-Axis: 20″
- Z-Axis: 25″
- Rapid Traverse Rates: 1200 Inch Per Minute
- Cutting Feed Rates: 500 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 29″

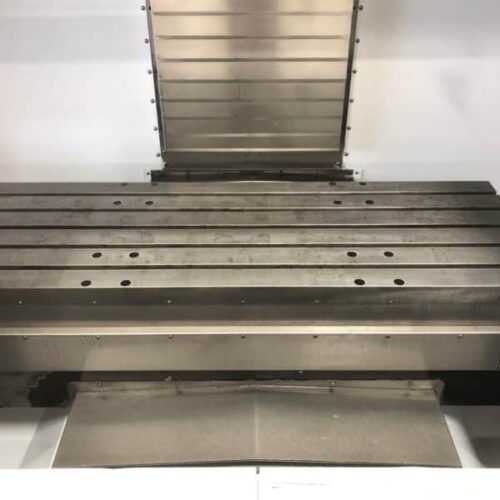

- Table:
- Length: 52″
- Width: 18″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 3500 lbs
- Spindle:
- Taper Size: CAT 40
- Speed Range: 0 – 12,000 RPM
- Spindle Type: Inline Direct Drive
- Spindle Power: 20 HP Vector Dual Drive
- Max Torque: 90ft-lb @ 2000 RPM
- Automatic Tool Changer:
- Capacity: 24 + 1
- Max Tool Weight: 12 lbs
- Max Tool Dia: 3.6″
- Max Tool Length: 13″
- Tool Changing Time: 1.5 Seconds
- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 118″ x 92″ x 100″ High
- Weight: 13,500 lbs

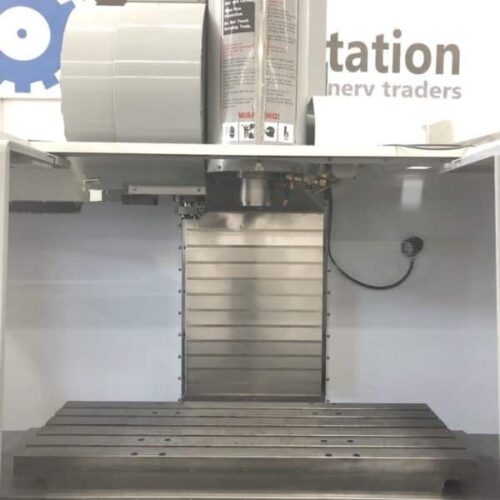

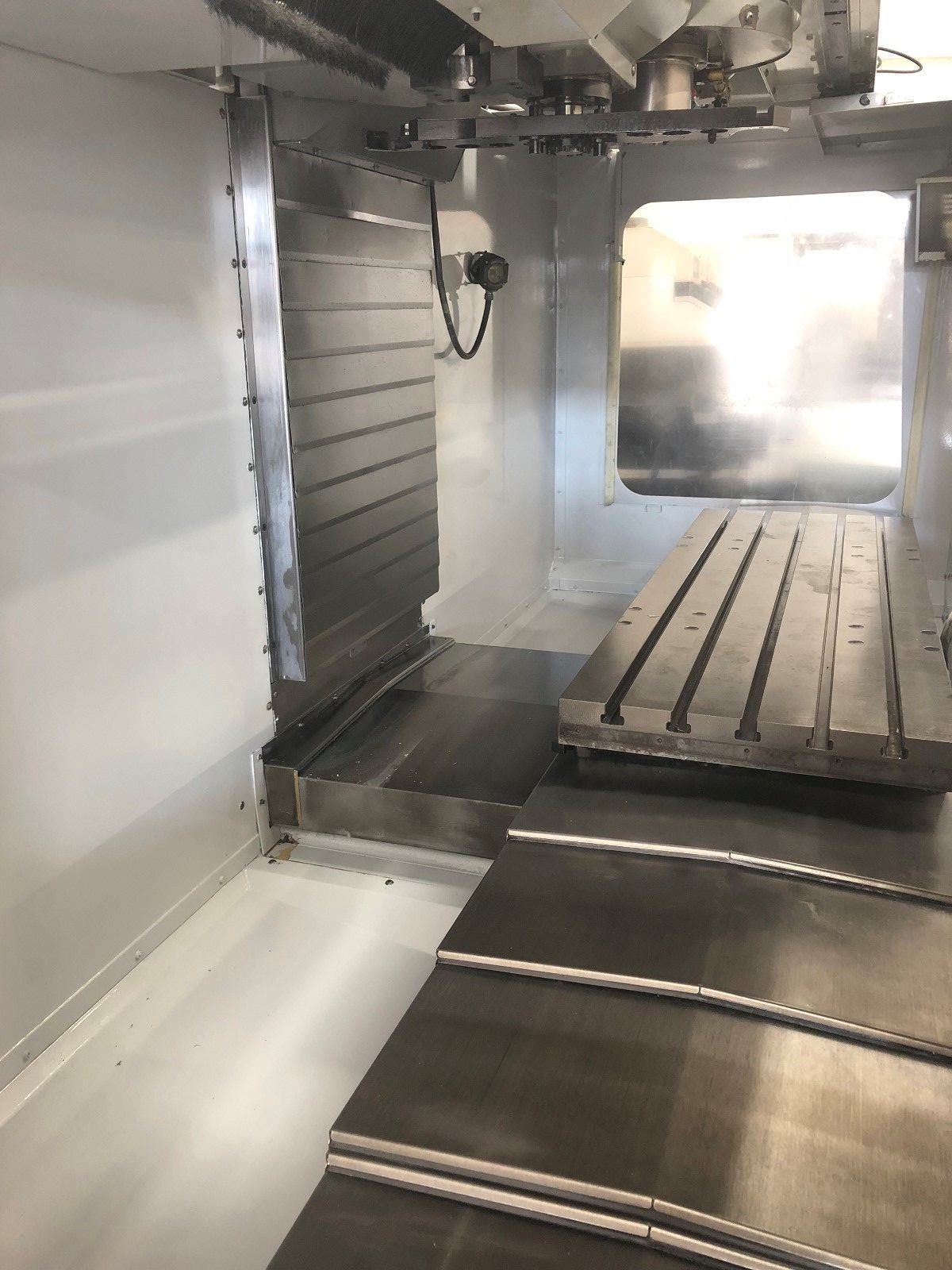

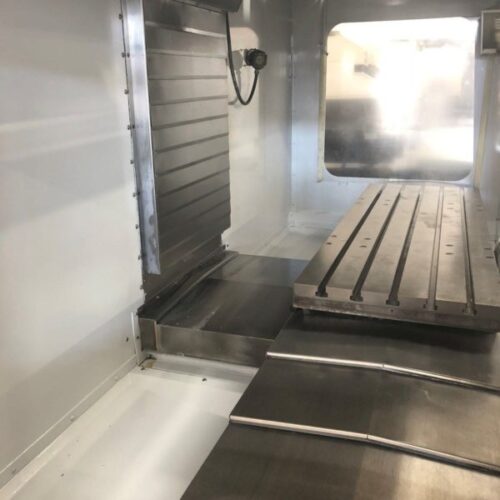

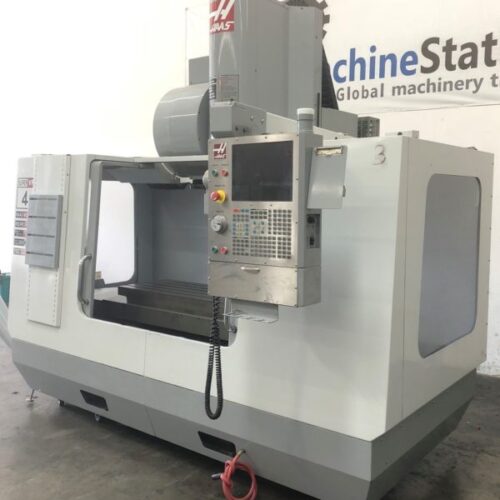

HAAS VF-4SS Comes as shown in pictures..
