HAAS VF-4SS Vertical Machining Center 4TH & 5TH Axis

Out of stock
SKU: 1720
Make/Model: Haas VF-4SS
Video: [fusion_button link=”https://www.youtube.com/watch?v=lJ4Nmx-L6nw” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1720

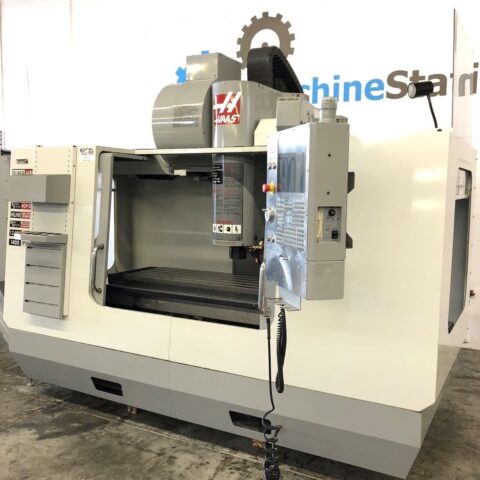

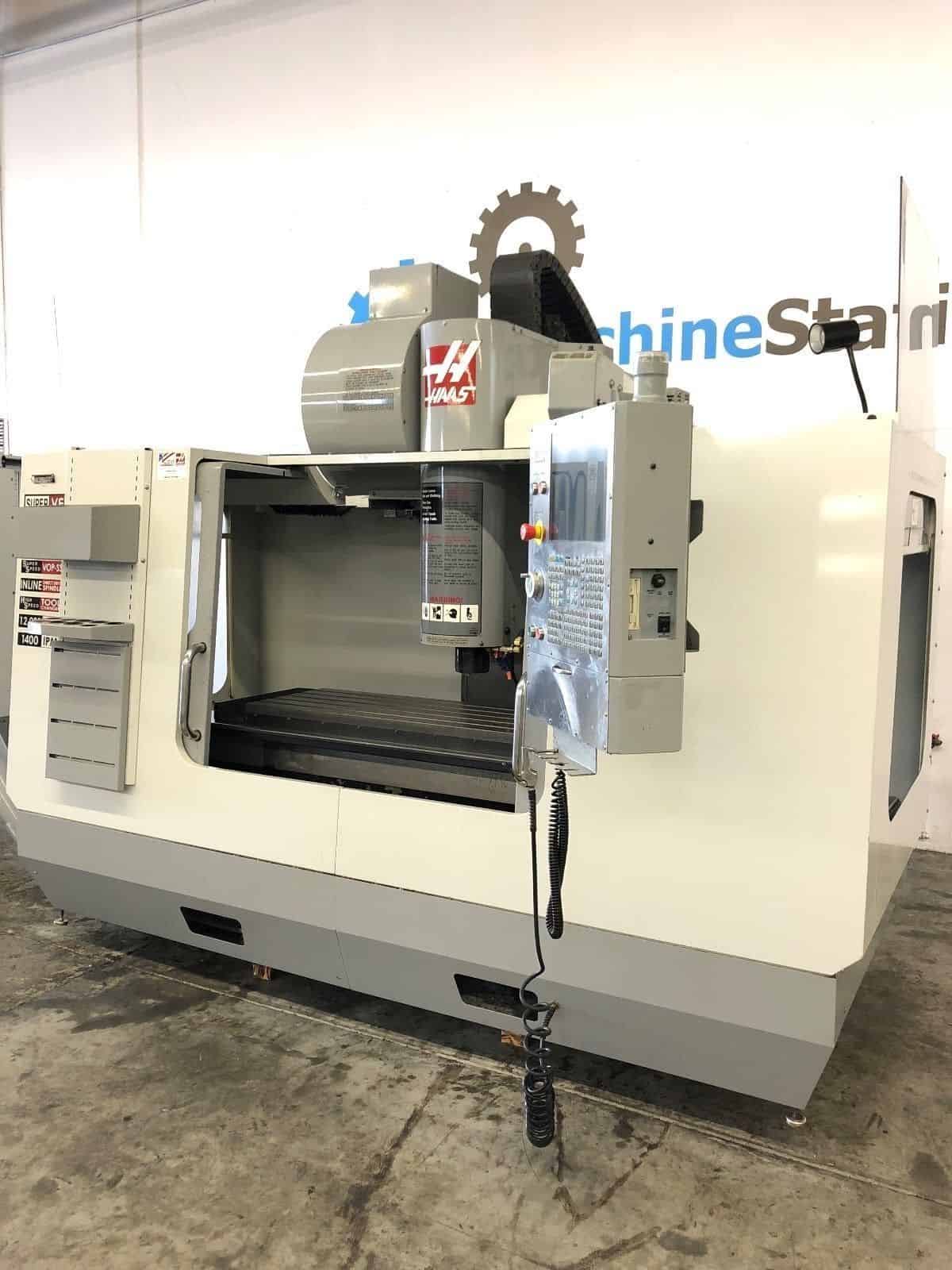

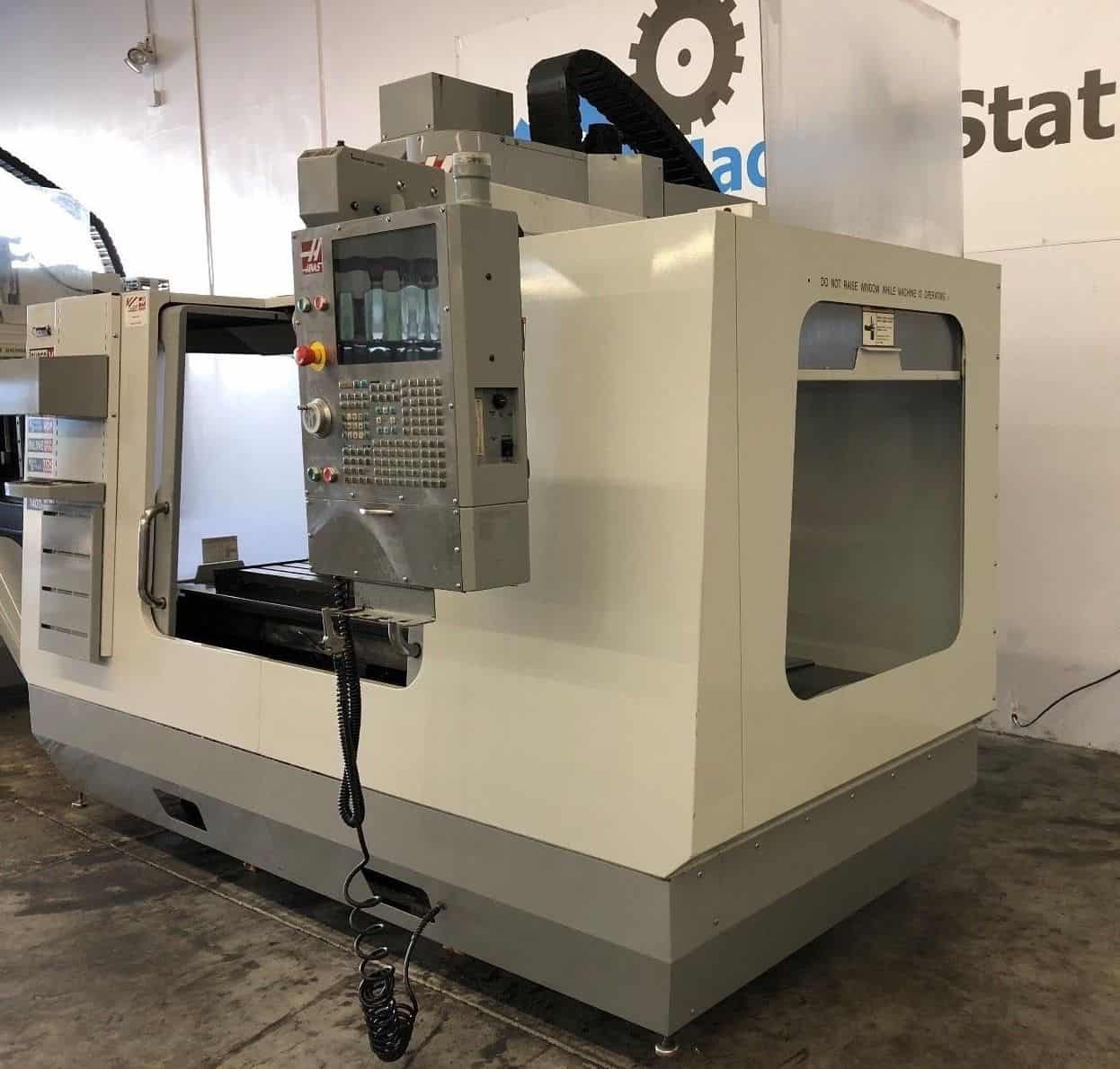

HAAS VF-4SS VERTICAL MACHINING CENTER 4TH & 5TH AXIS

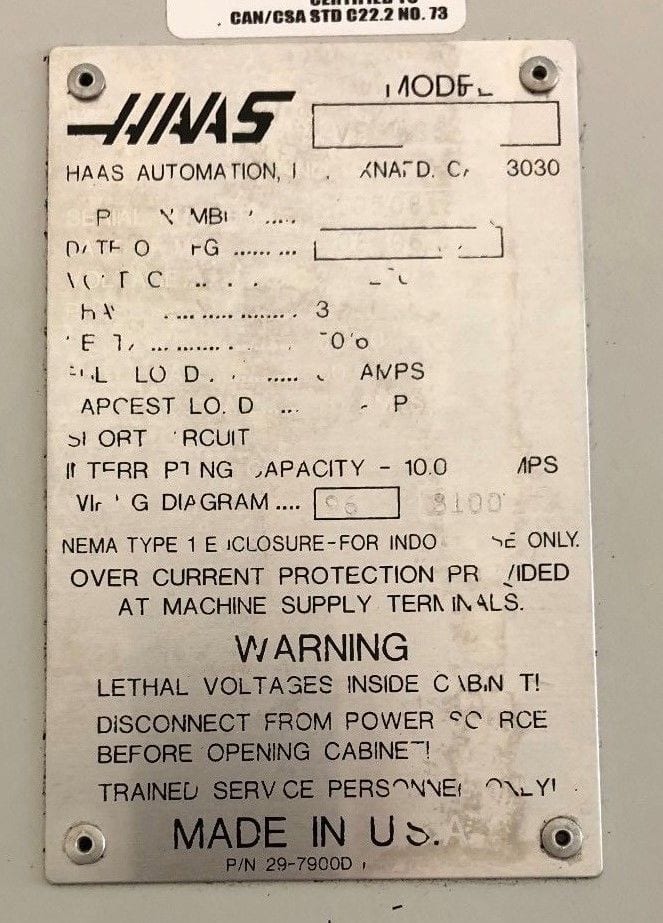

Make Haas
Model No. VF-4SS
Year of Manufacture: 2006
Serial # 1050818
Condition Very Good
  • HAAS VF-4SS Features:
  • 12,000 RPM Direct Drive Spindle
  • 4th Axis Ready
  • 5th Axis Ready
  • 1400 Inch Per Min. Rapid
  • Rigid Tapping
  • USB Drive
  • User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
  • Brushless servo drive motors on all axis
  • 24 + 1 automatic high speed tool changer
  • Programmable coolant
  • Telescopic way covers
  • Chip auger
  • Flood Coolant system
  • Tooling Shelves
  • Levelling Pads
  • HAAS VF-4SS Specifications:
  • Travels:
  • X-Axis: 50″
  • Y-Axis: 20″
  • Z-Axis: 25″
  • Rapid Traverse Rates: 1400 Inch Per Minute
  • Cutting Feed Rates: 833 Inch Per Minute
  • Spindle Nose to Table (Min.- Max.): 4″ – 249

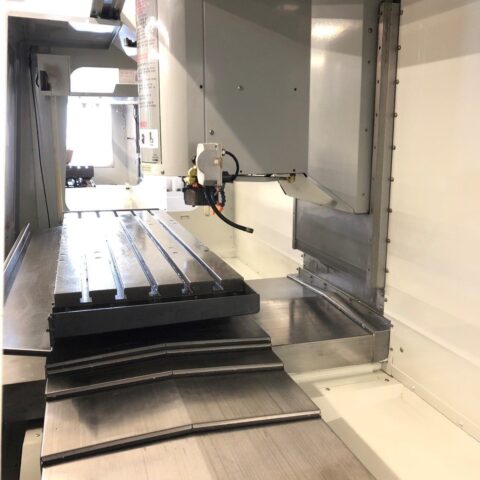

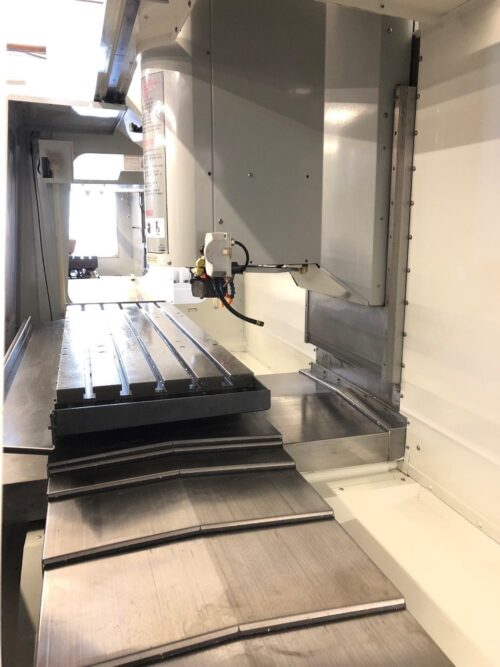

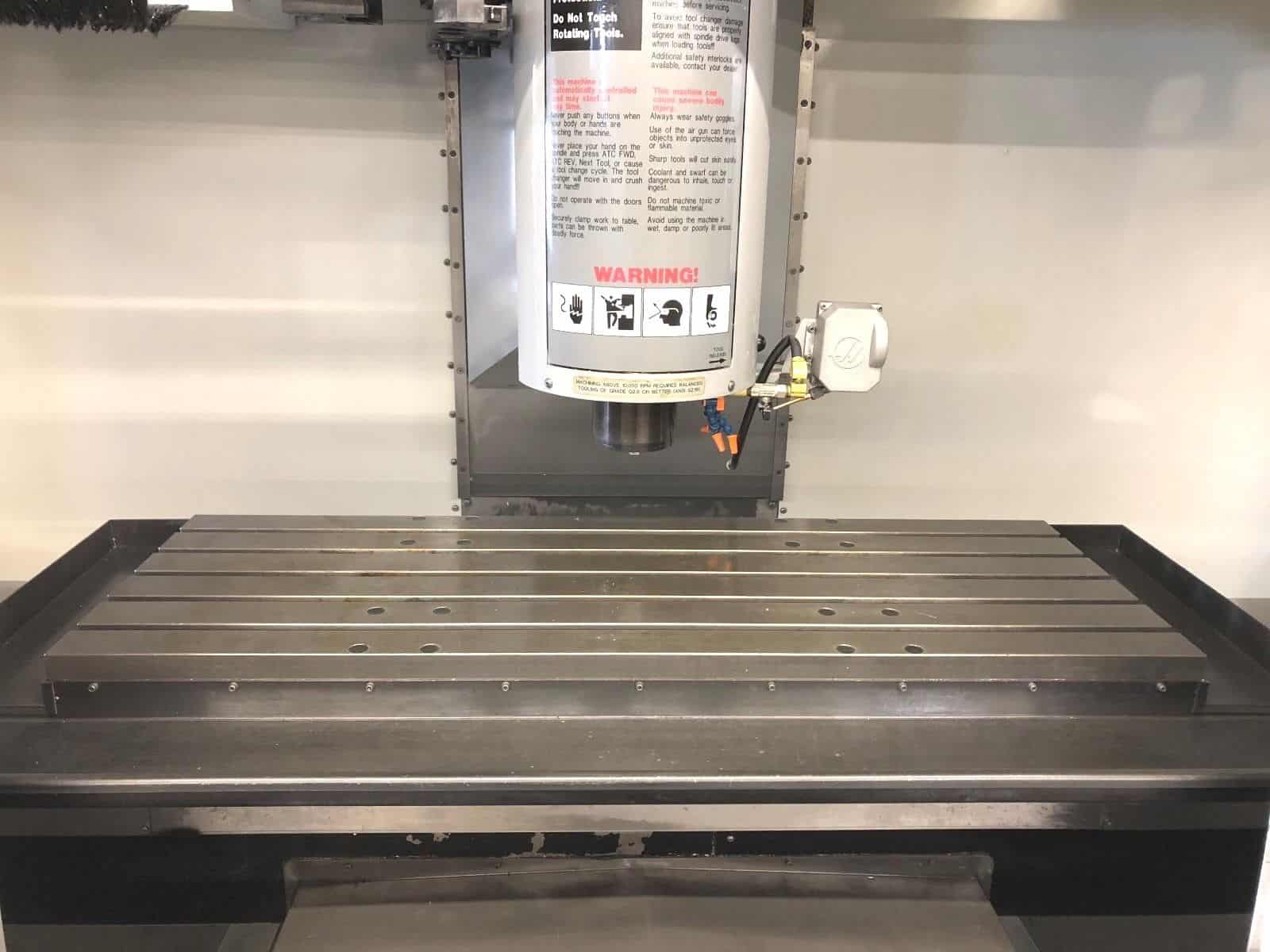

  • Table:
  • Length: 52″
  • Width: 18″
  • Number of Std T-Slots: 5
  • T-Slot Width: 5/8″
  • Max Weight on Table: 3500 lbs

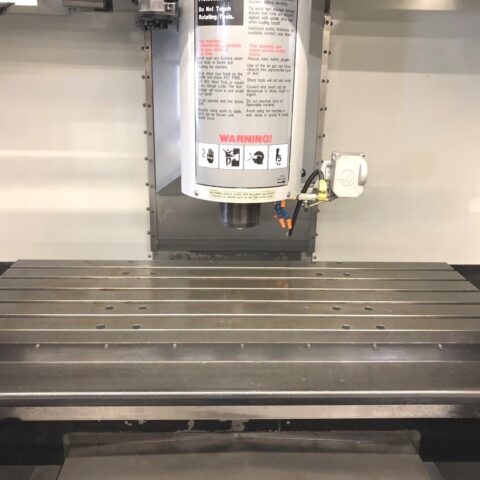

  • Spindle:
  • Taper Size:  40
  • Speed Range: 0 – 12000 RPM
  • Spindle Type: Inline Direct Drive

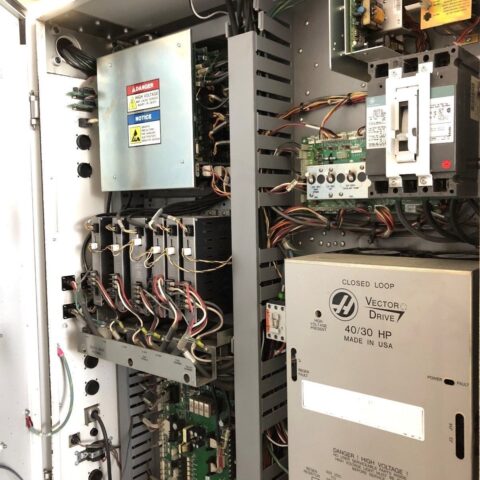

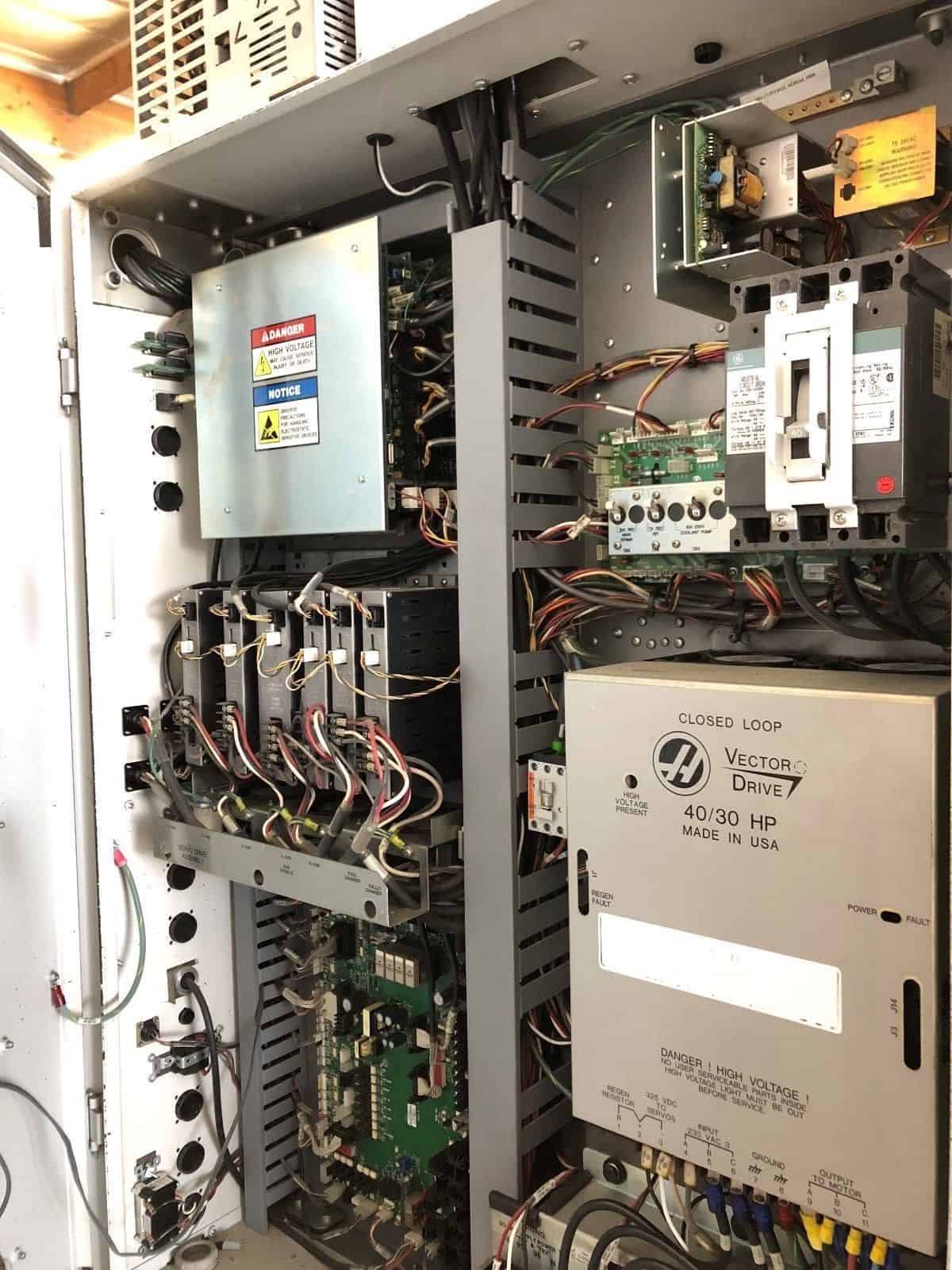

  • Spindle Power: 30 HP Vector Dual Drive
  • Max Torque: 90ft-lb @ 2000 RPM

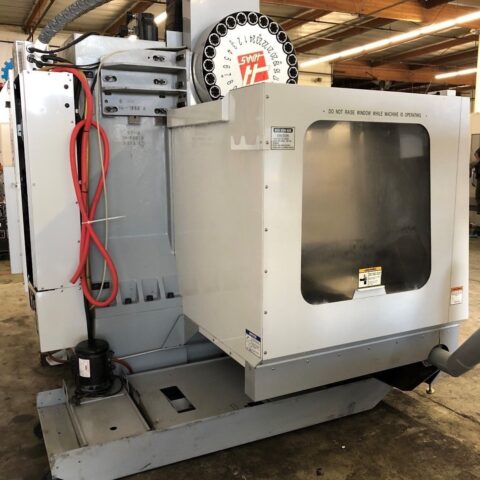

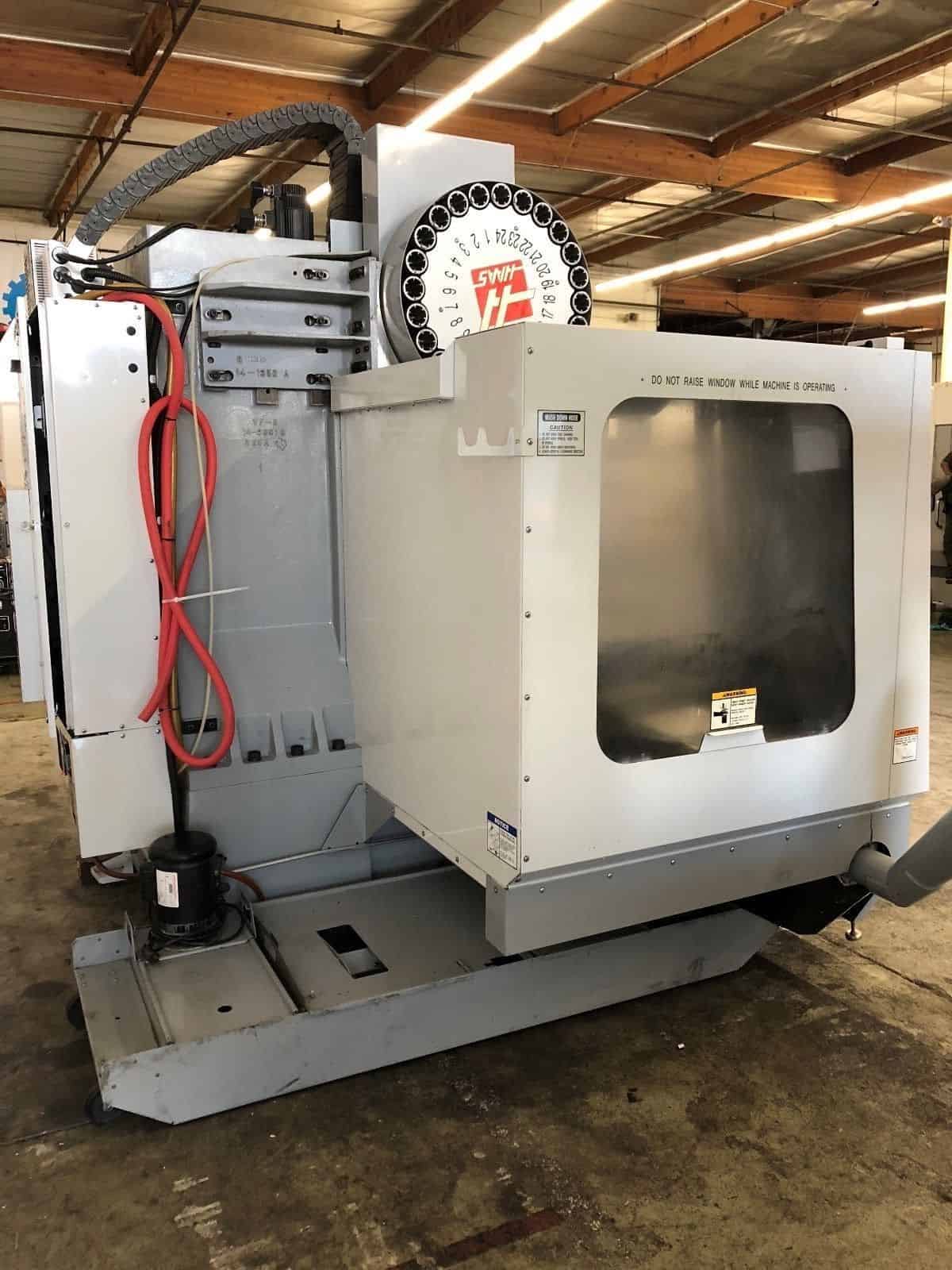

  • Automatic Tool Changer:
  • Capacity: 24 + 1
  • Max Tool Weight: 12 lbs
  • Max Tool Dia: 5″
  • Max Tool Length: 13″
  • Tool Changing Time: 1.6 Seconds
  • General:
  • Air Required: 100 psi, 4 scfm
  • Power: 220v / 66FLA / 3-Phase
  • Overall Dimensions: 118″ x 92 x 100″ High
  • Weight: 13,500 lbs
