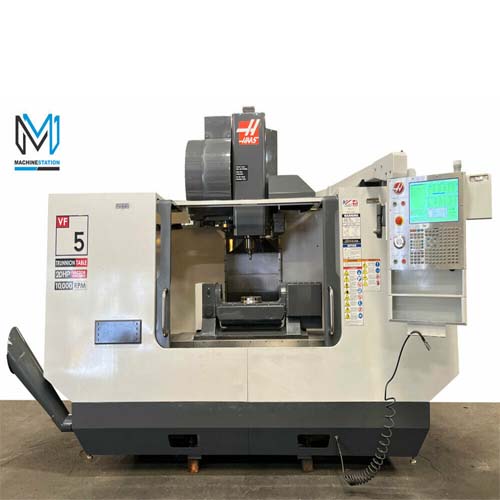

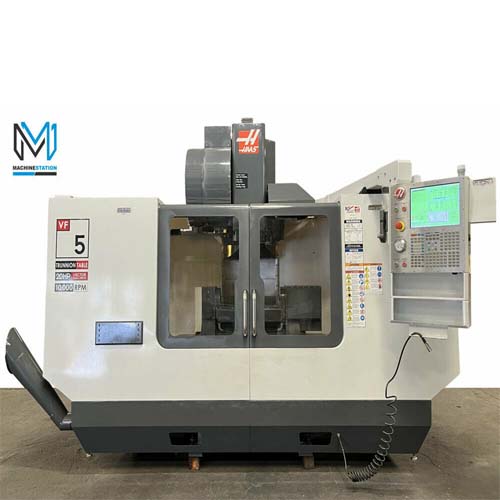

Haas VF-5/40TR 5 Axis Machining Center CNC Mill

Share

Description

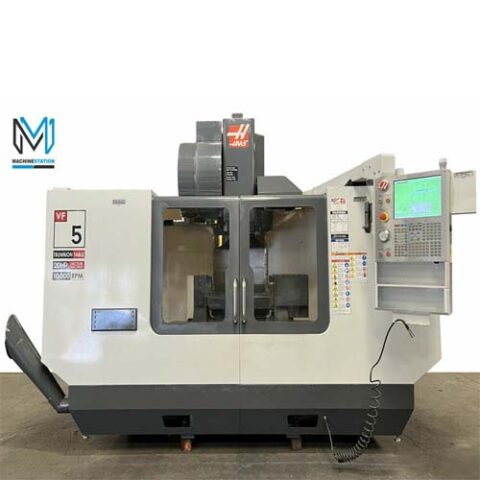

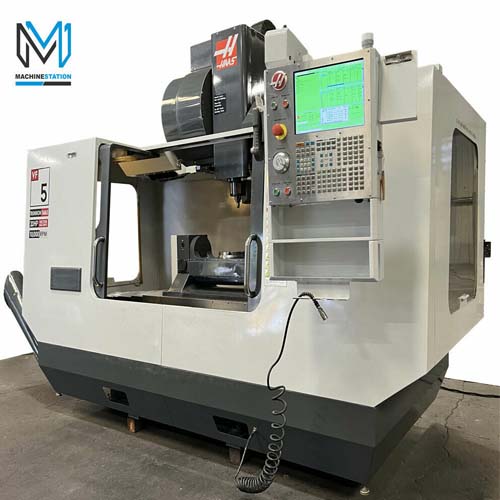

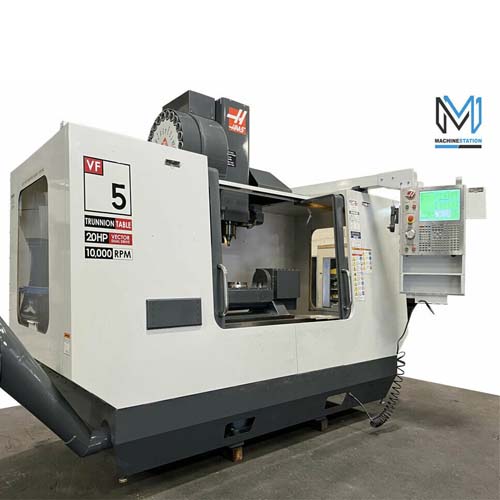

HAAS VF-5/40TR 5 AXIS MACHINING CENTER CNC TRUNNION MILL
SKU 2276
Make Haas
Model No. VF-5/40TR
Serial # 46745
Year 2006/2008
Condition Excellent
Cutting Hours: 3923 Only
(Replacement cost over $190k)
  • Features:

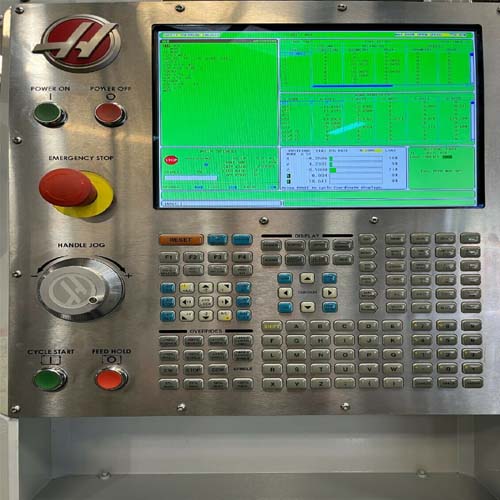

  • Haas CNC Control with Color LCD
  • 10000 RPM Spindle
  • Linear Scales

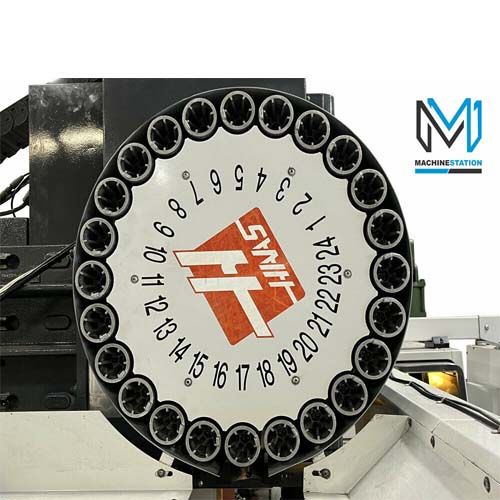

  • 24 + 1 Side Mount Automatic tool changer
  • Thru Spindle Coolant
  • MPG Control with Display
  • High Speed Machining
  • USB Drive
  • Expanded Memory
  • Rigid Tapping
  • Programmable Coolant
  • Advanced Tool Management
  • Power Failure Detection Module
  • User Definable Macros
  • Spindle Orientation
  • Coordinate Rotational Scaling
  • Programmable Coolant

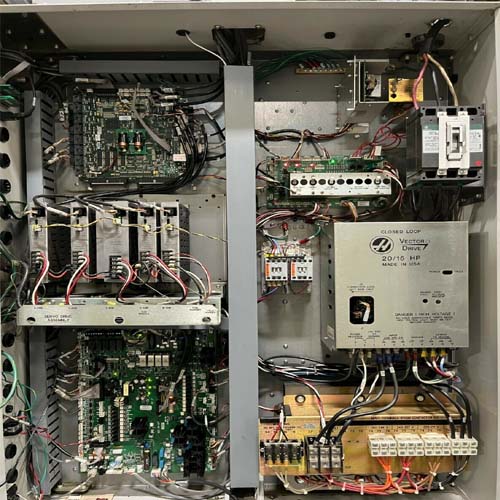

  • Brushless-type servo drive motors on all axis
  • Telescopic way covers
  • Chip auger
  • Specifications:
  • Travels:
  • X-Axis: 50″
  • Y-Axis: 26″
  • Z-Axis: 25″
  • A-Axis: ±120°
  • B-Axis: 360°
  • Rapid Traverse Rates: 710 Inch Per Minute
  • Cutting Feed Rates: 500 Inch Per Minute
  • Spindle Nose to Table (Min.- Max.): 4″ – 29.2″

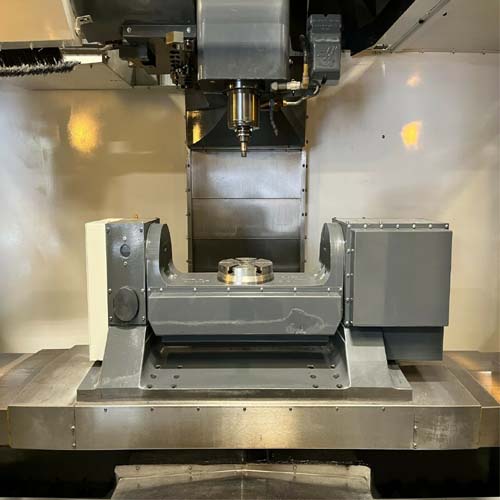

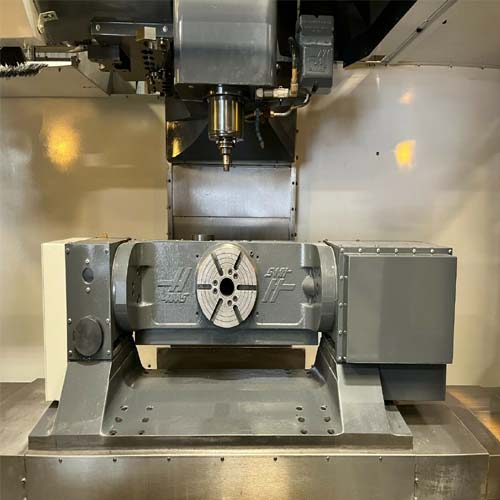

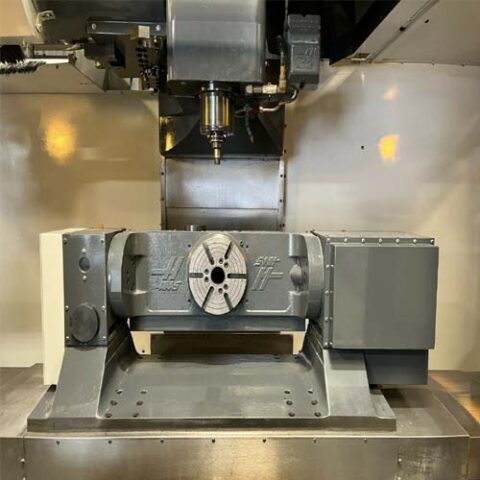

  • Table/Trunnion
  • Length: 54″
  • Width: 24″
  • Number of Std T-Slots: 7 in Y & 3 in X
  • T-Slot Width: 5/8″
  • Max Weight on Table: 4000 lbs
  • Platter Diameter: 8.30 “
  • Max Weight on Platter: 200lb
  • Max Part Swing (reduced at tilt angles > ± 90°): 24 “
  • T-Slot Width: 0.625″/span>
  • Number of Std T-Slots: 8
  • Pilot Bore Depth: 4.90″
  • Rapids on A: 60 °/sec
  • Rapids on B: 60 °/sec
  • Max Cutting A: 33 °/sec
  • Max Cutting B: 33 °/sec
  • Spindle:
  • Taper Size: 40
  • Speed Range: 10000 RPM
  • Spindle Power: 30 HP
  • Automatic Tool Changer:
  • Capacity: 24 Side Mount
  • Max Tool Weight: 12 lbs
  • Max Tool Dia: 2.5″
  • Max Tool Length: 11″
  • Tool Changing Time: 2.8 Seconds
  • General:
  • Air Required: 100 psi, 4 scfm
  • Power: 220v / 66FLA / 3-Phase
  • Overall Dimensions: 160″ x 100″ x 106″ High
  • Weight: 12700 lbs

“No Charges for loading at list Price”
