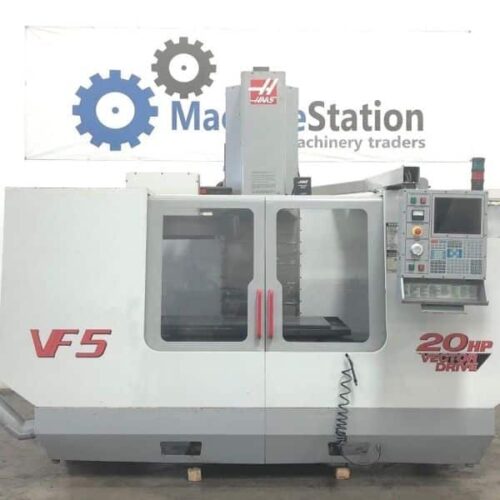

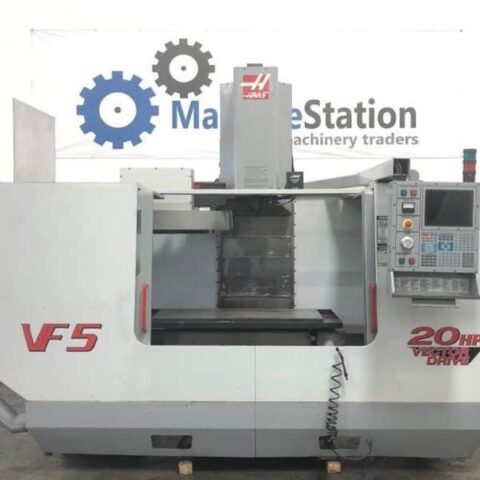

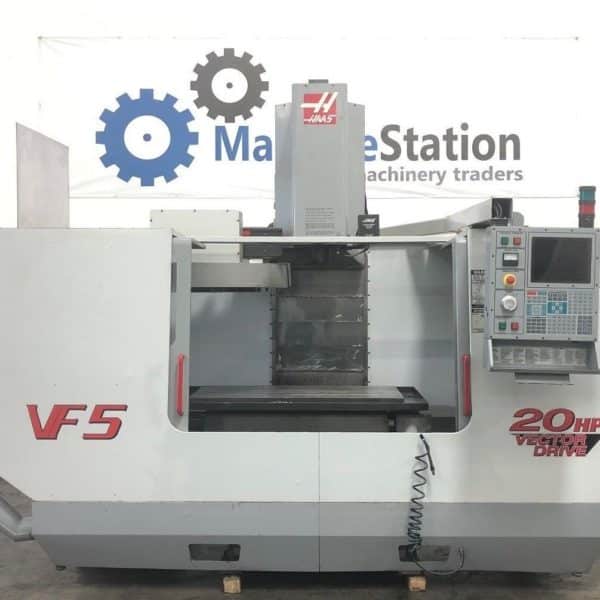

Haas VF-5 Vertical Machining Center
Out of stock
SKU: |
1354 |
Make/Model: |
Haas VF-5 |
Video: |
[fusion_button link=”https://www.youtube.com/watch?v=bJiAJxP67fo” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button] |
- HAAS VF-5 Features:
- 20HP High Torque Spindle Motor
- 4th Axis Ready ( drives and wiring installed )
- 7500 RPM Spindle
- 32 + 1 automatic tool changer ( Upgrade )

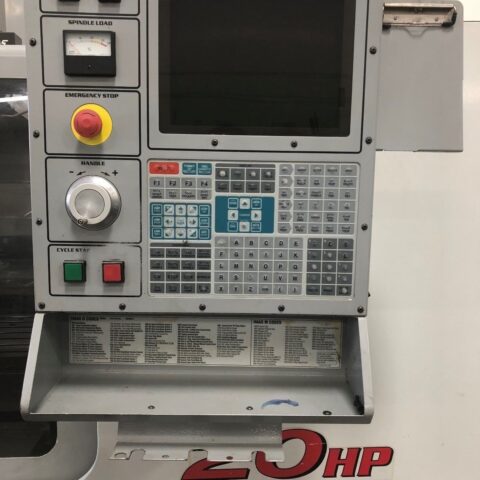

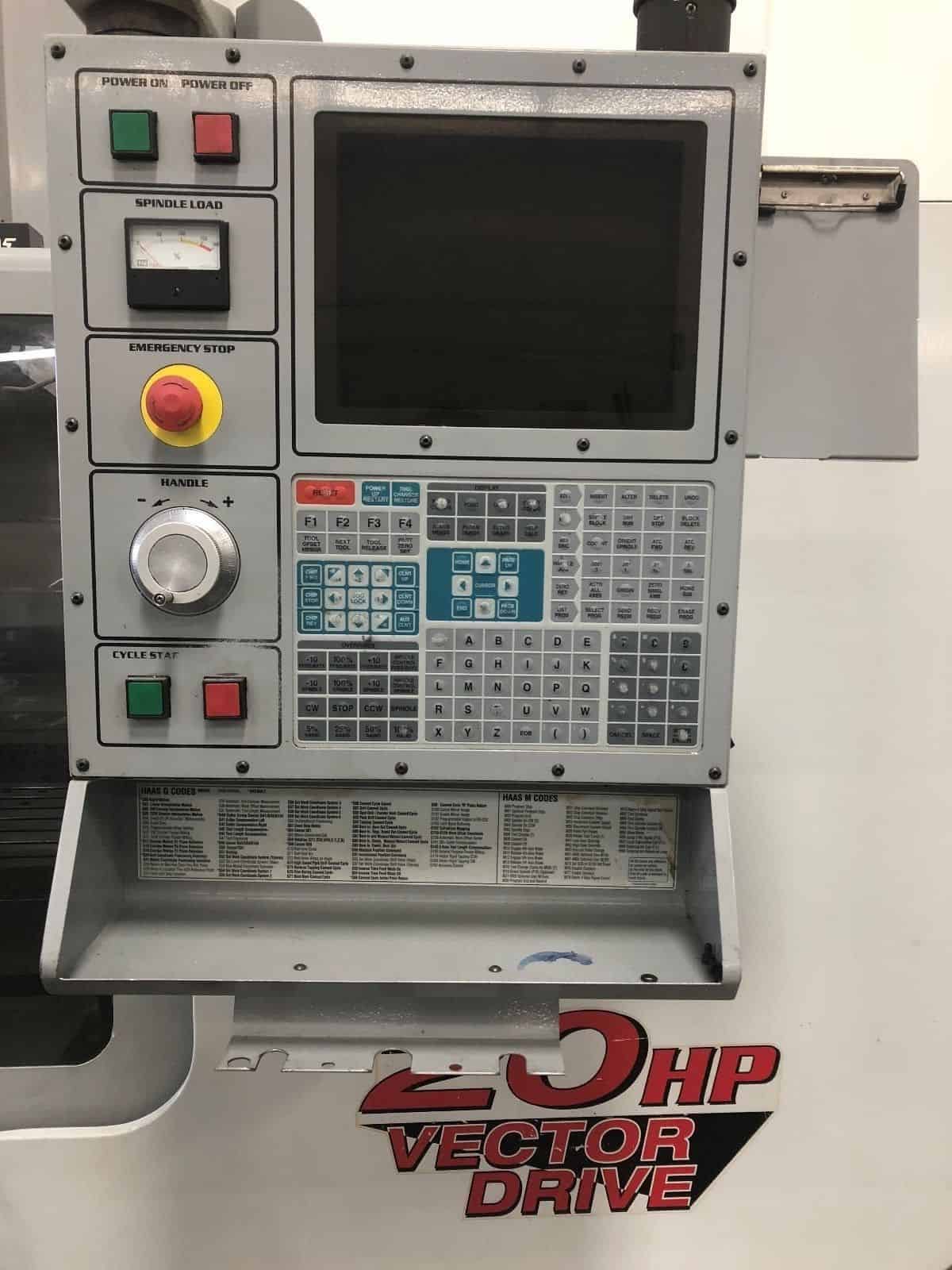

- Remote Jog Handle
- Rigid Tapping
- Advanced Tool Management
- Power Failure Detection Module
- User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
- Brush-type servo drive motors on all axis
- Programmable coolant
- Telescopic way covers
- Chip auger
- Floppy Drive
- Flood Coolant system
- HAAS VF-5 Specifications:
- Travels:
- X-Axis: 50″
- Y-Axis: 26″
- Z-Axis: 25″
- Rapid Traverse Rates: 710 Inch Per Minute
- Cutting Feed Rates: 500 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 7″ – 32″

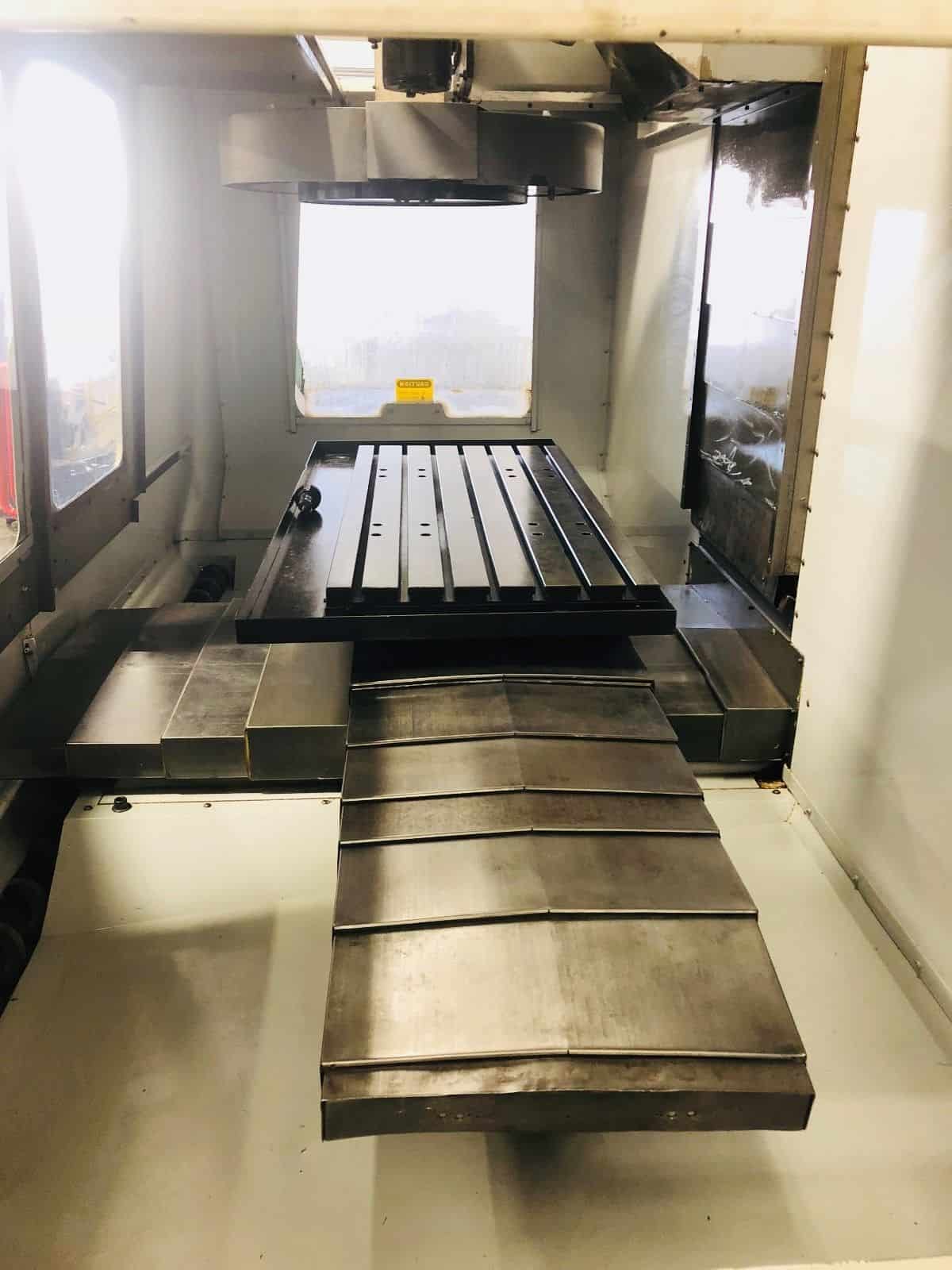

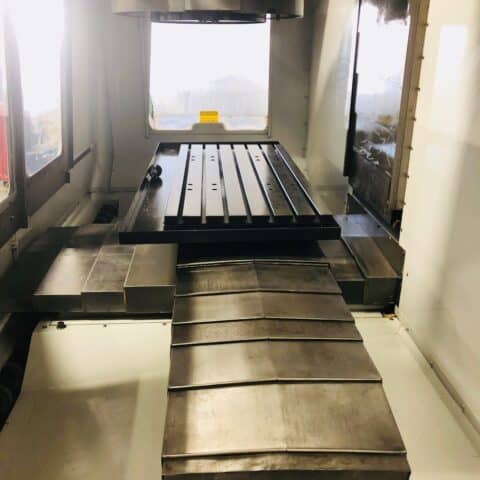

- Table:
- Length: 52″
- Width: 23″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 4000 lbs
- Spindle:
- Taper Size: 40
- Speed Range: 7500 RPM
- Spindle Power: 20 HP Vector Dual Drive
- Max Torque: 90ft-lb @ 2000RPM
- Automatic Tool Changer:
- Capacity: 32 + 1
- Max Tool Weight: 12 lbs
- Max Tool Dia: 6″
- Max Tool Length: 16″
- Tool Changing Time: 4.2 Seconds

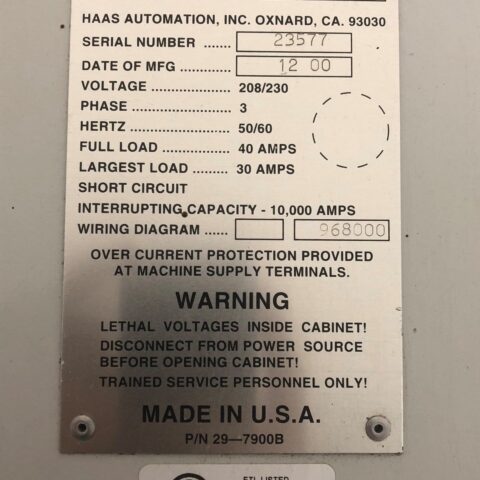

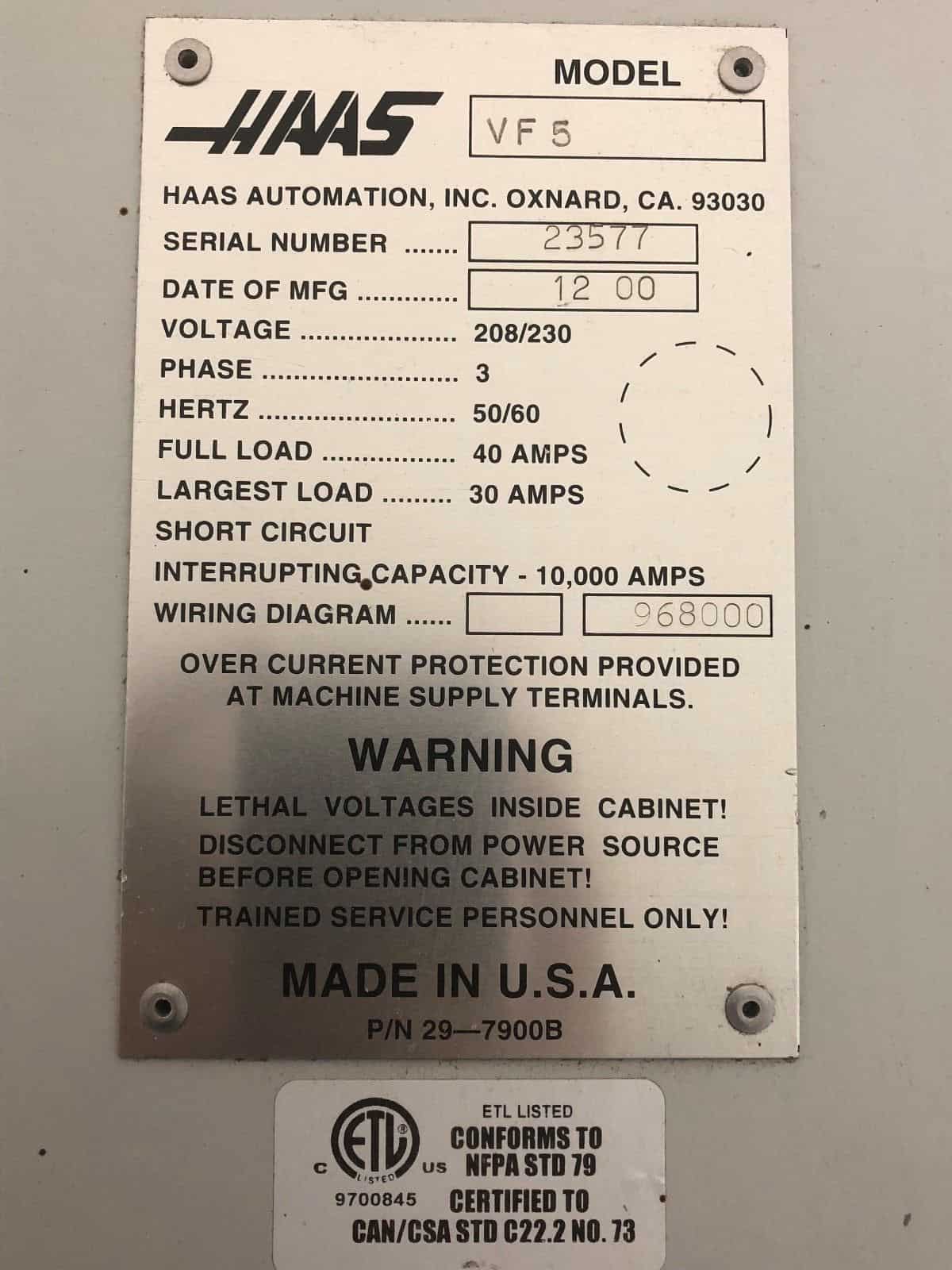

- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 158″ x 98″ x 118″ High
- Weight: 16500 lbs
