*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2557 |

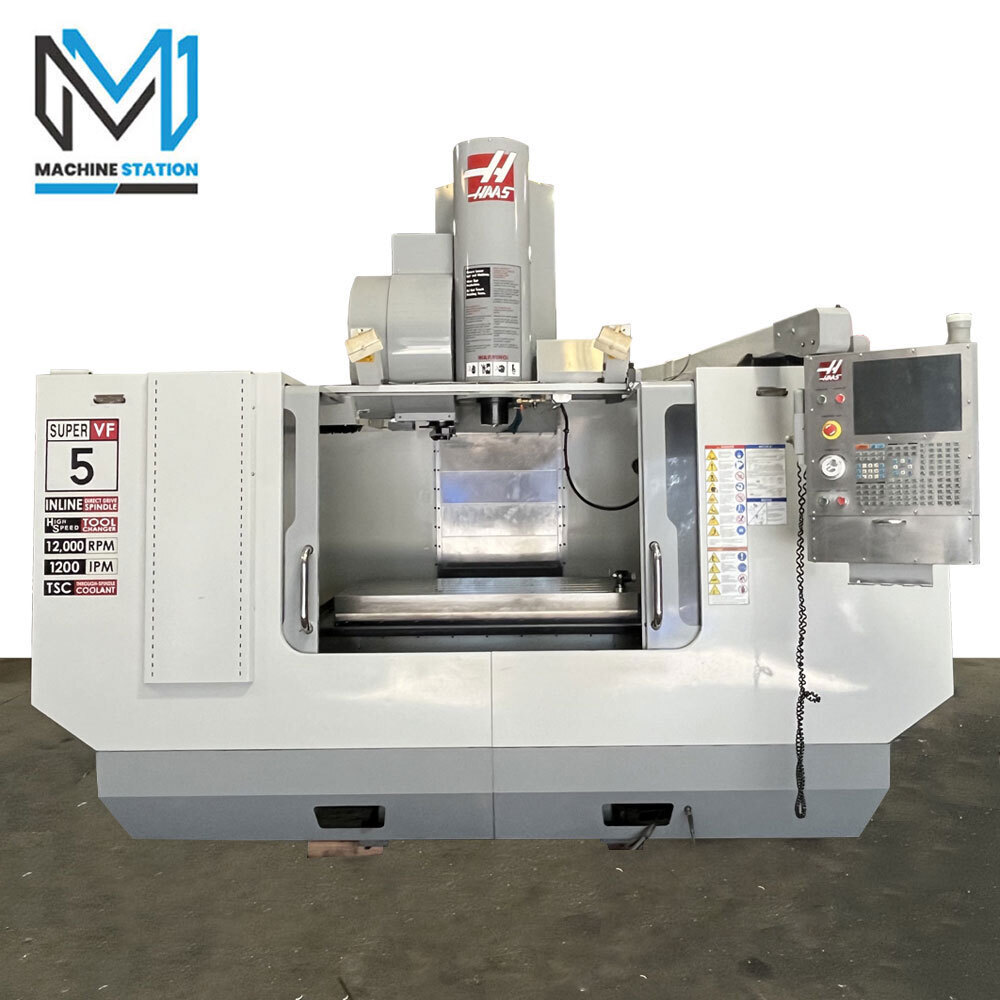

| Make: | Haas |

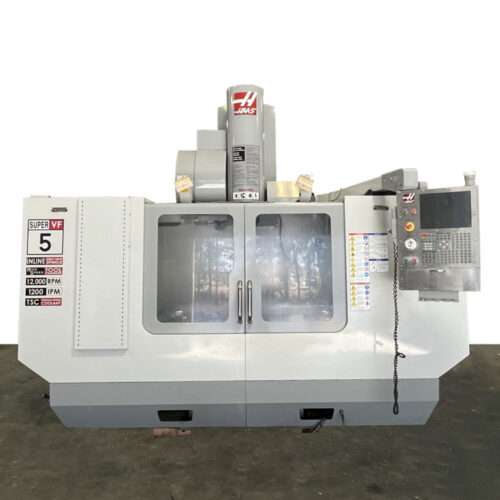

| Model: | VF-5SS |
| Year of Manufacture: | 2009 |
| Condition: | Used – Good |
| Equipped With: |
|---|

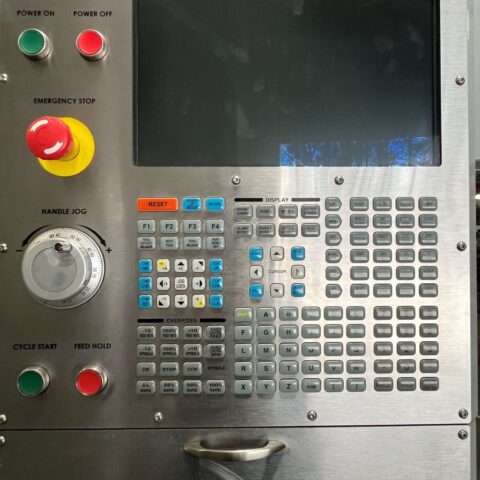

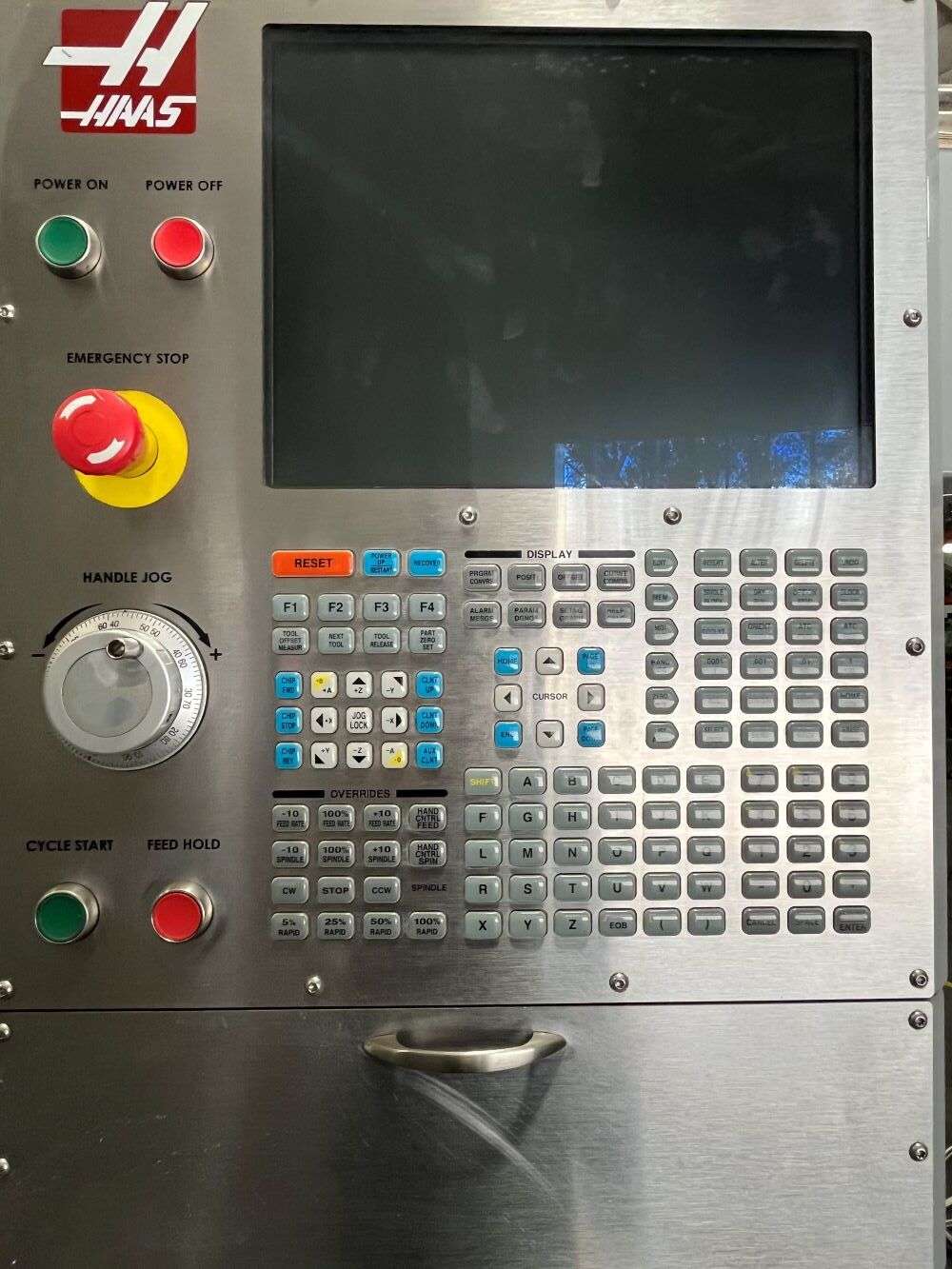

| Haas CNC Control |
| 4th & 5th Axis Ready |
| 12000 RPM High Speed Inline Direct Drive Spindle |
| 30 HP High Torque Spindle Motor |

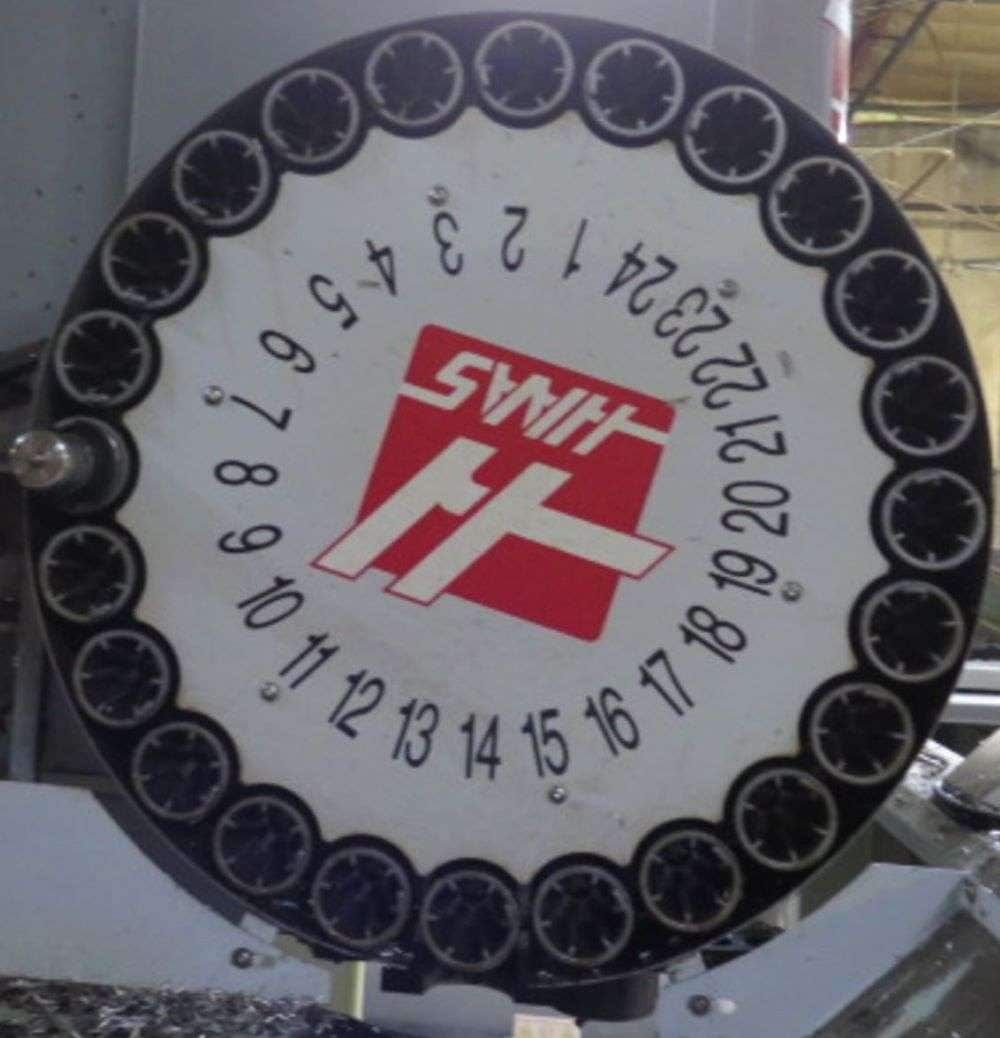

| 24 Station Super Speed Side Mount Automatic tool changer |
| Coolant Through Spindle |
| 1200 IPM Fast Rapid |
| Renishaw Probing System |
| High Speed Machining |
| Rigid Tapping |
| Coordination Rotation and Scaling |
| 16MB Expanded Memory |
| Second MOCON Board |
| Spindle Orientation |
| Macros |
| Coolant System |
| Chip Auger |

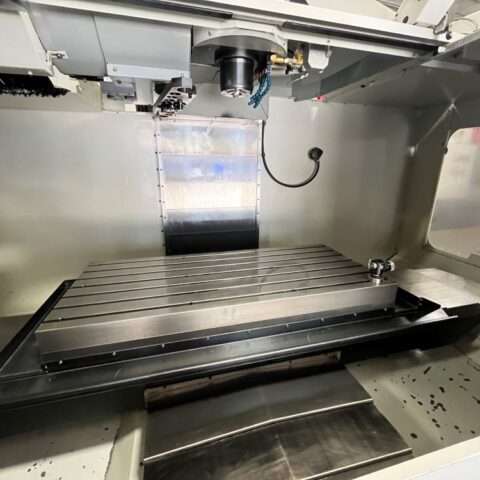

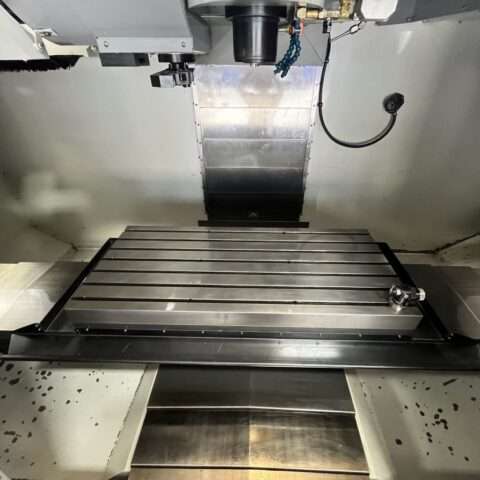

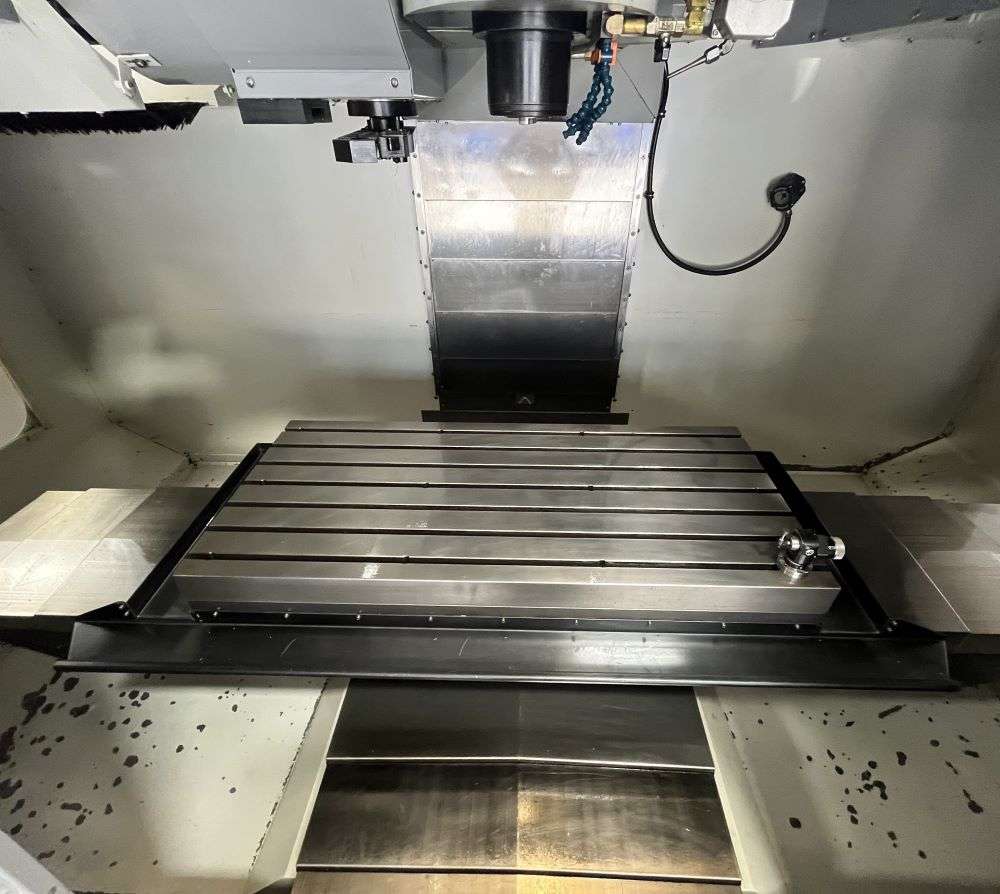

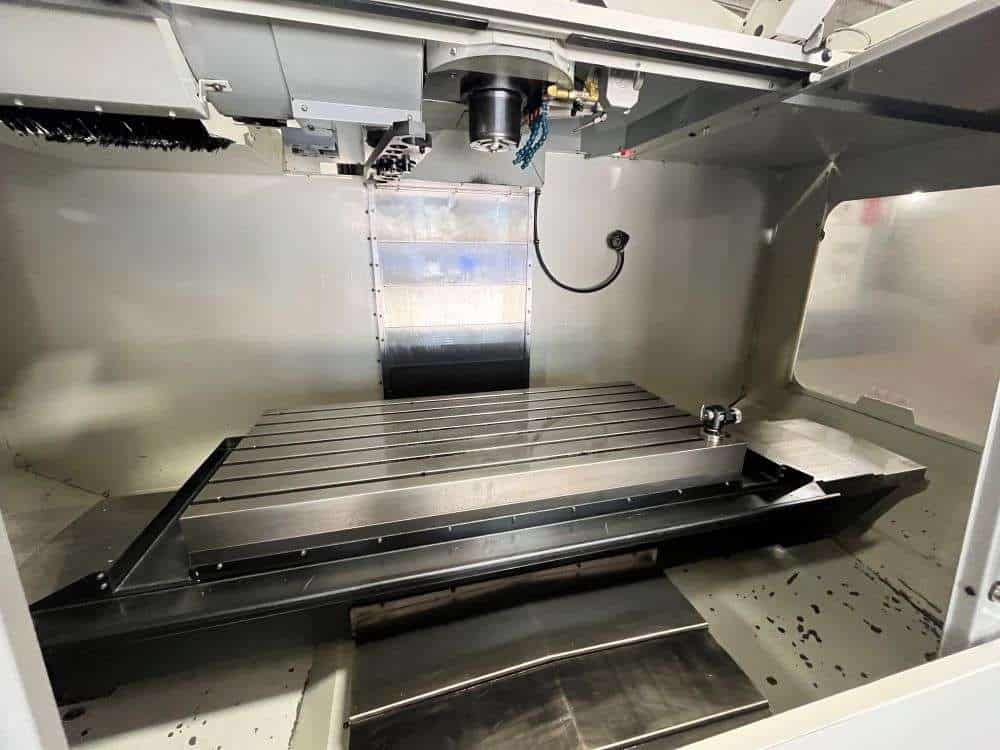

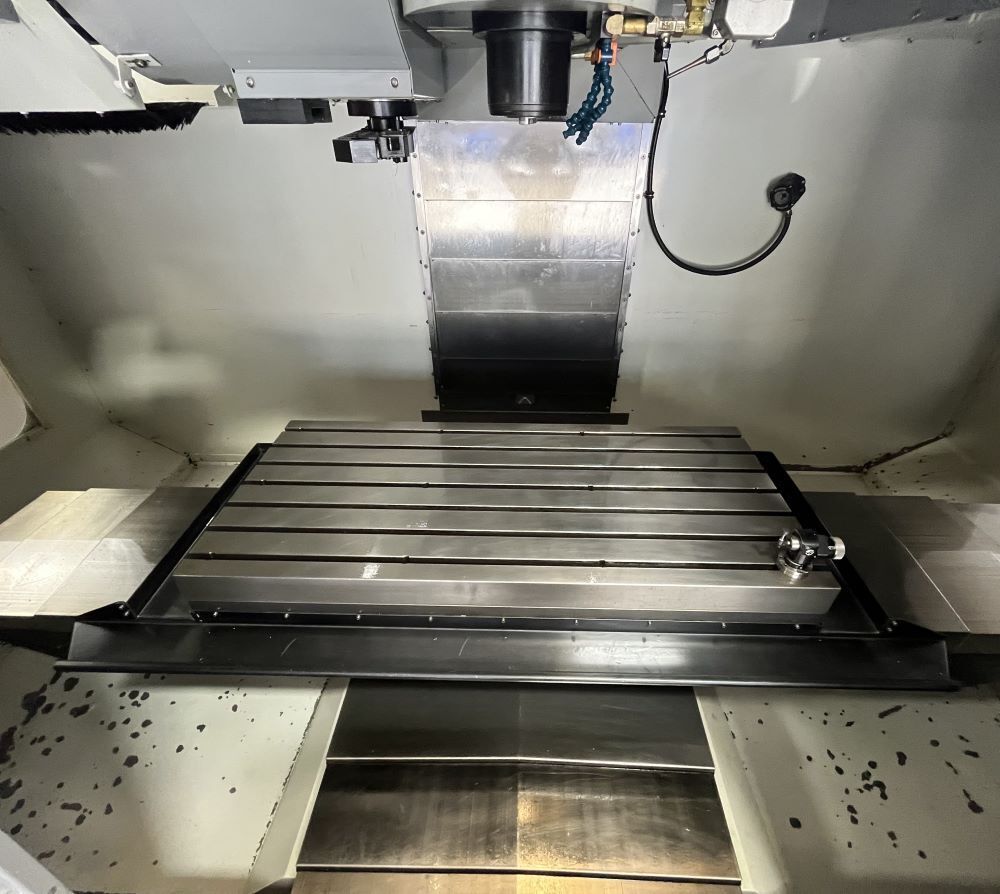

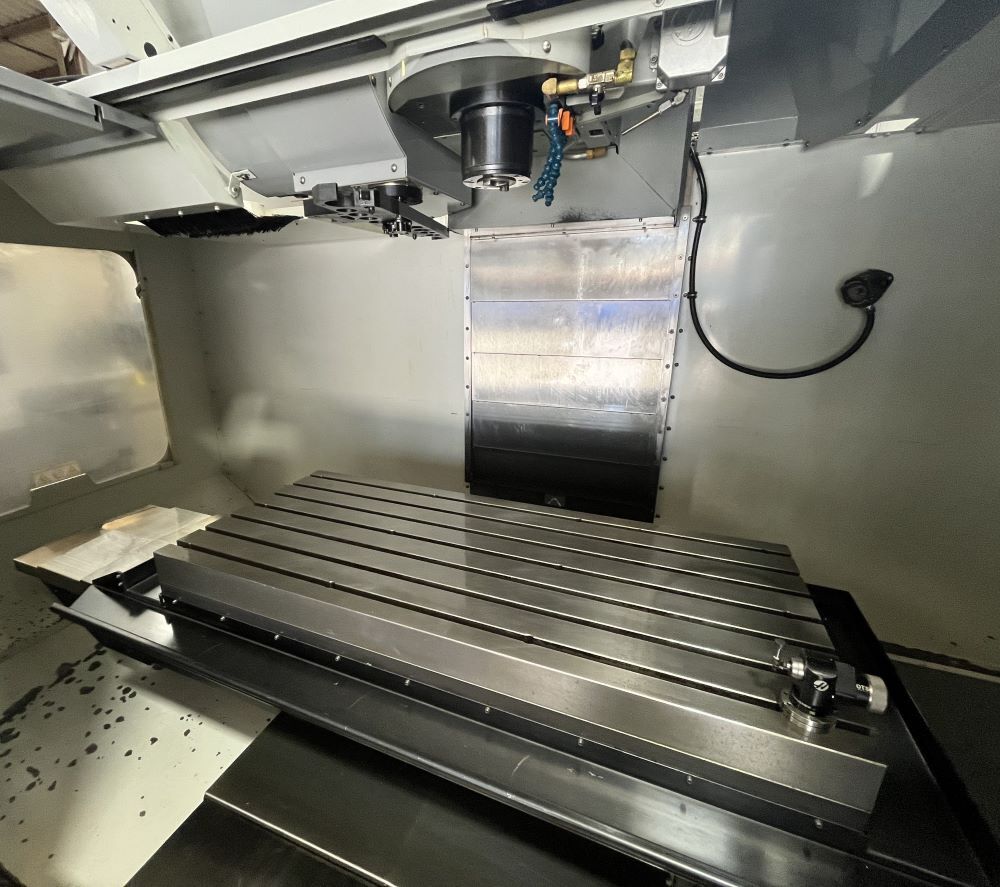

| Table: |
|---|
| Length: 54.0″ |
| Width: 24.0″ |
| Number of Std T-Slots: 7 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1750 lbs |
| Travels: |
|---|
| X-Axis: 50″ |
| Y-Axis: 26″ |
| Z-Axis: 25″ |
| Rapid Traverse Rates: 1200 Inch Per Minute |
| Cutting Feed Rates: 833 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″ |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12000 RPM |
| Spindle Power: 30 HP |
| Max Torque: 90 ft-lb @ 2000 RPM |

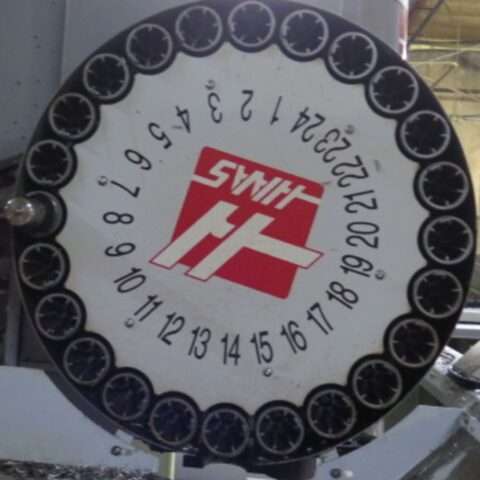

| Automatic Tool Changer: |
|---|
| Capacity: 24 |
| Max Tool Weight: 12 lbs |
| Max Tool Diameter (Full): 2.5″ |
| Max Tool Diameter (Adjacent empty): 5.0″ |
| Max Tool Length: 16″ |
| Tool Changing Time: 1.8 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

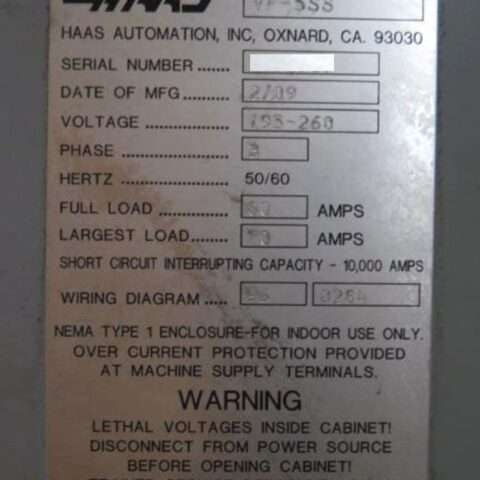

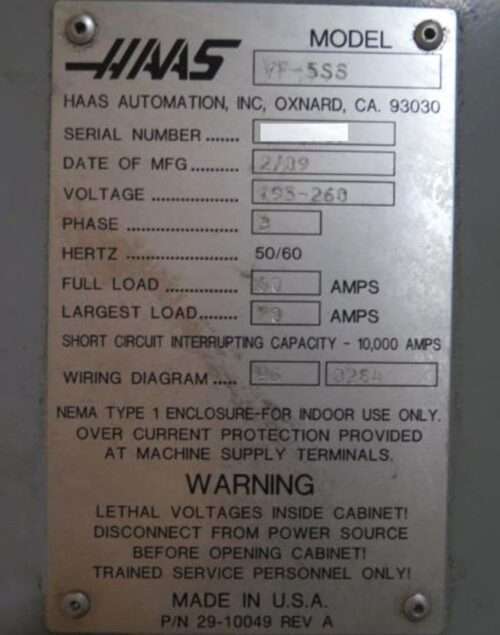

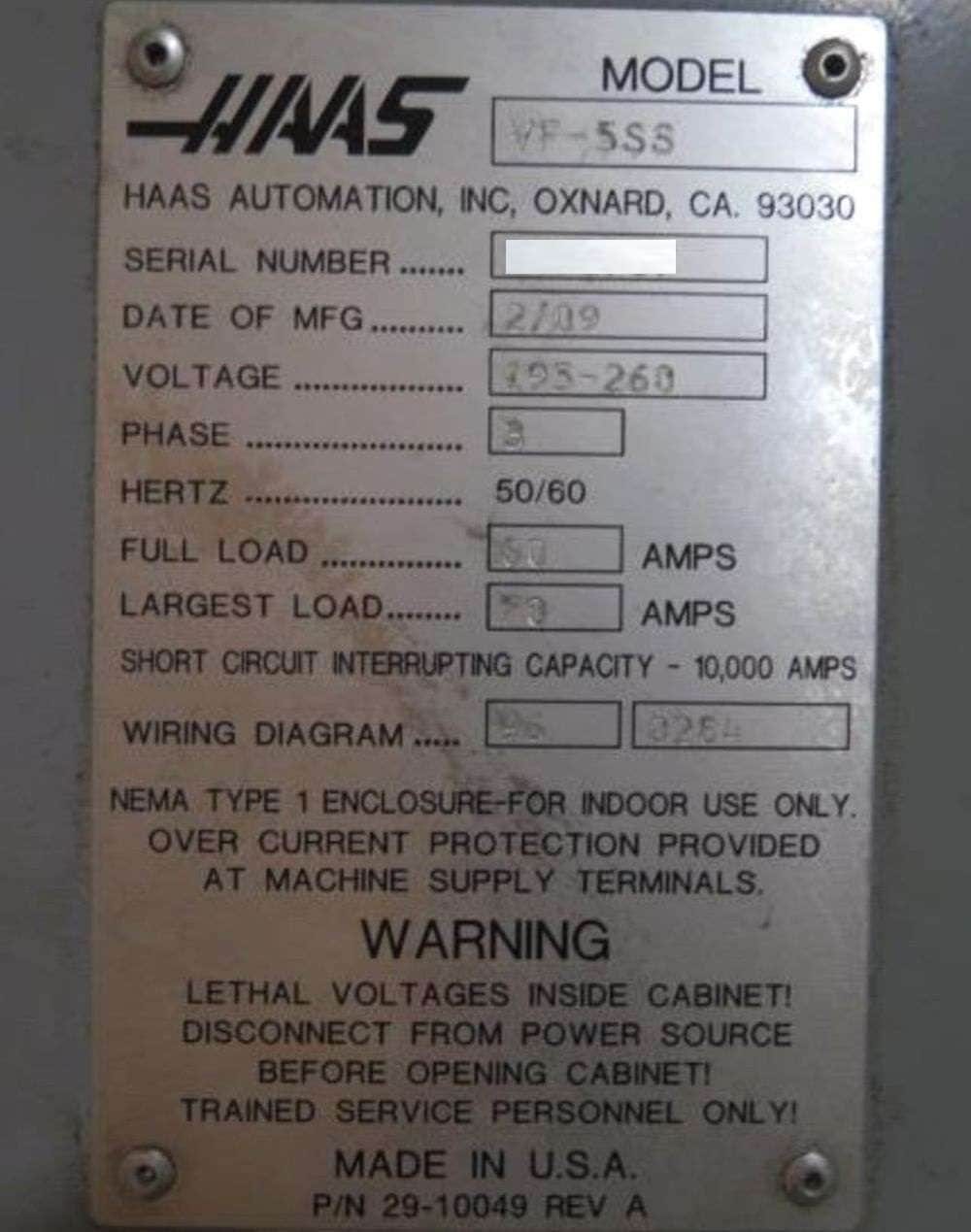

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 168″ x 101″ x 109″ High |
| Weight: 12700 lbs |
