Haas VF-6/50 CNC VMC 5th Axis Ready

Out of stock

““This One Owner Machine has 30 Hp 10,000rpm 50 Taper Gear Head Spindle, 30 tool side mount tool changer, 4th axis ready, Expanded Memory ,High Speed Machining and many more options. Replacement Cost with similar options is 165,000 USD.On our Floor now, fully powered / tested & is in Great working condition.

SKU: 1275
Make/Model: Haas VF-6/50
Video: [fusion_button link=”https://www.youtube.com/watch?v=8vLC8gj46UE” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1275
HAAS VF-6/50 CNC VMC 5th Axis Ready
Make Haas
Model No. VF-6/50

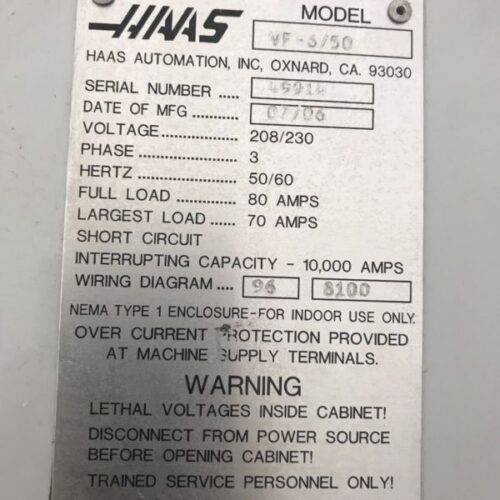

Year of Manufacture: 2006/07
Serial # 49914
Condition  Very Good

“This One Owner Machine has 30 Hp 10,000rpm 50 Taper Gear Head Spindle, 30 tool side mount tool changer, 4th axis ready, Expanded Memory ,High Speed Machining and many more options. Replacement Cost with similar options is 165,000 USD.On our Floor now, fully powered / tested & is in Great working condition.”

  • HAAS VF-6/50 CNC VMC Features:
  • 30HP High Torque Spindle Motor
  • 4th Axis Ready ( drives and wiring installed )
  • 10,000 RPM Geared Head Spindle
  • 30 + 1 automatic 50 Taper Side Mount tool changer
  • Remote Jog Handle
  • Rigid Tapping
  • High Speed Machining
  • Advanced Tool Management
  • Power Failure Detection Module
  • User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
  • Brush-type servo drive motors on all axis
  • Programmable coolant
  • Telescopic way covers
  • Chip auger
  • Floppy Drive
  • Flood Coolant system
  • HAAS VF-6/50 CNC VMC Specifications:
  • Travels:
  • X-Axis: 64″
  • Y-Axis: 32″
  • Z-Axis: 30″
  • Rapid Traverse Rates: 600 Inch Per Minute
  • Cutting Feed Rates: 500 Inch Per Minute
  • Spindle Nose to Table (Min.- Max.): 5″ – 35″

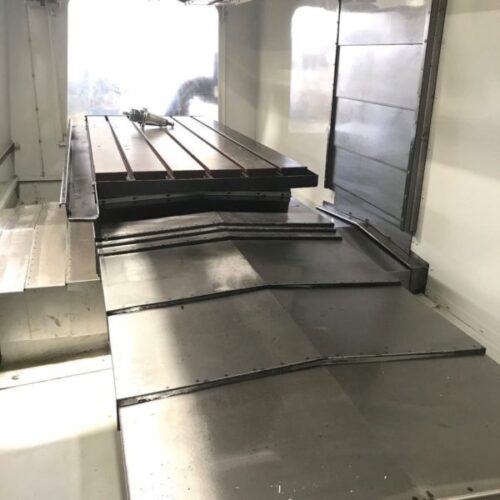

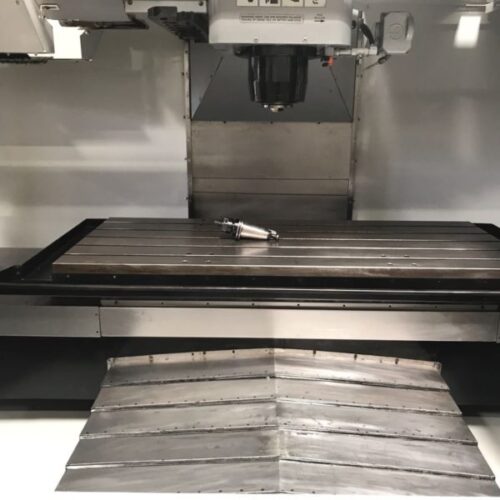

  • Table:
  • Length: 64″
  • Width: 28″
  • Number of Std T-Slots: 5
  • T-Slot Width: 5/8″
  • Max Weight on Table: 4000 lbs

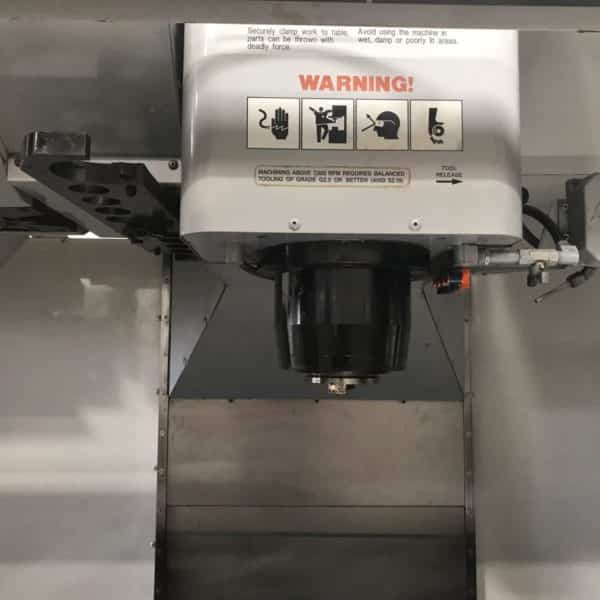

  • Spindle:
  • Taper Size: CAT 50
  • Speed Range: 0 – 10,000 RPM Geared Head
  • Spindle Power: 30 HP Vector Dual Drive
  • Max Torque: 90ft-lb @ 2000RPM
  • Automatic Tool Changer:
  • Capacity: 30 + 1
  • Max Tool Weight: 12 lbs
  • Max Tool Dia: 6″
  • Max Tool Length: 16″
  • Tool Changing Time: 4.2 Seconds
  • General:
  • Air Required: 100 psi, 4 scfm
  • Power: 220v / 66FLA / 3-Phase
  • Overall Dimensions: 158″ x 98″ x 118″ High
  • Weight: 22000 lbs

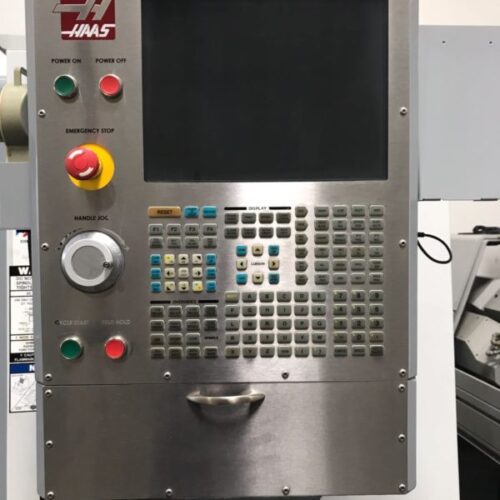

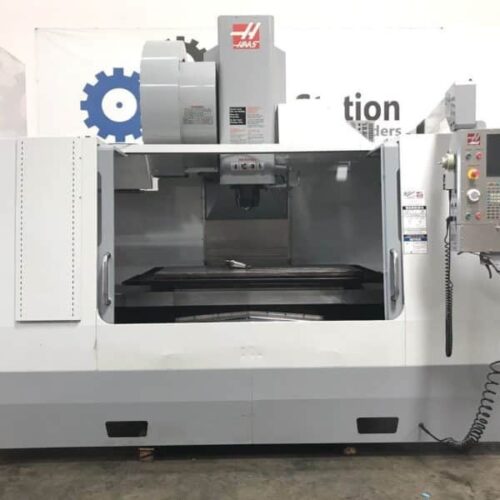

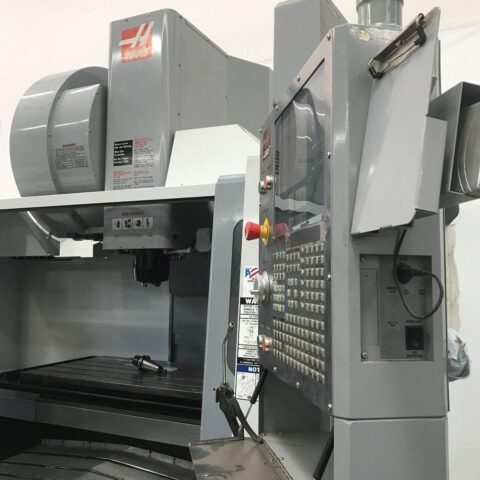

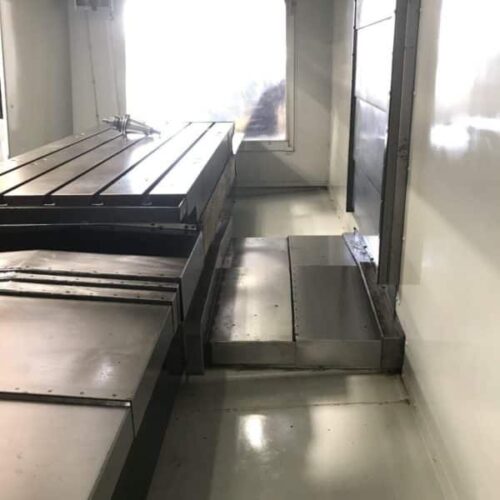

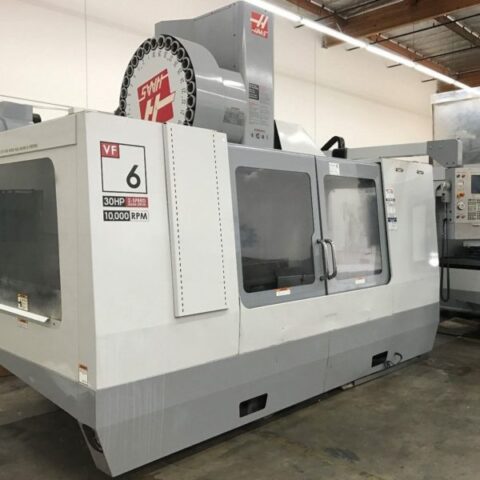

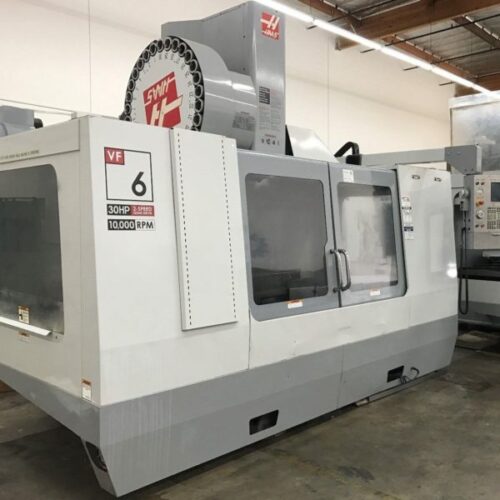

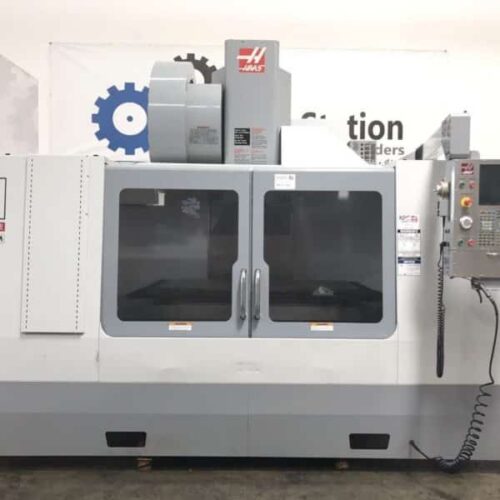

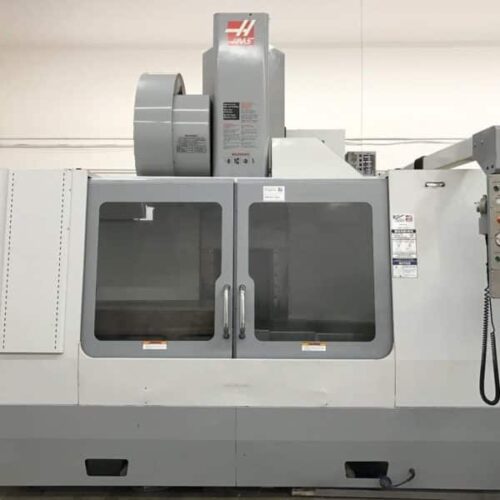

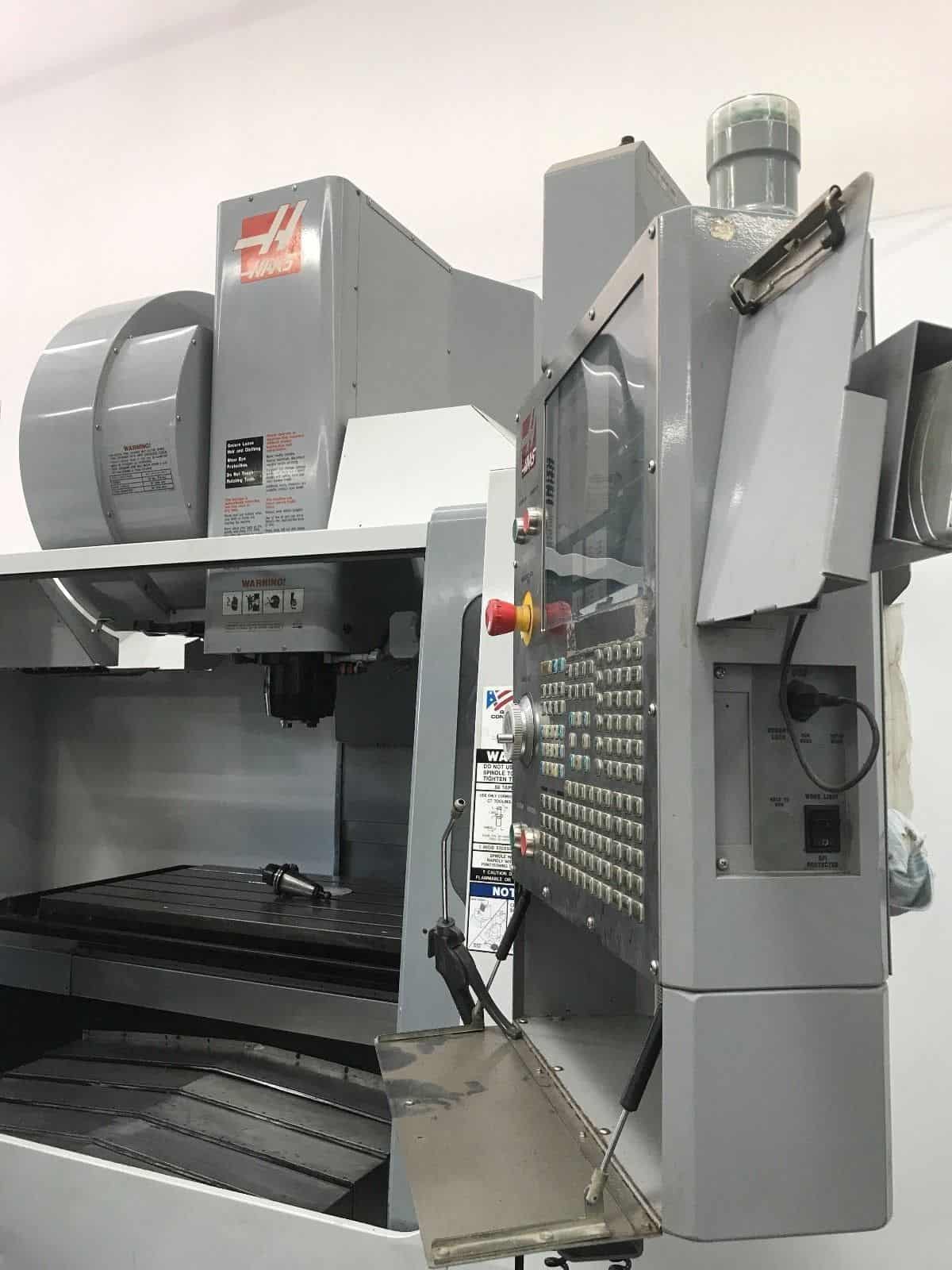

HAAS VF-6/50 CNC VMC Comes as shown in pictures..
