*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

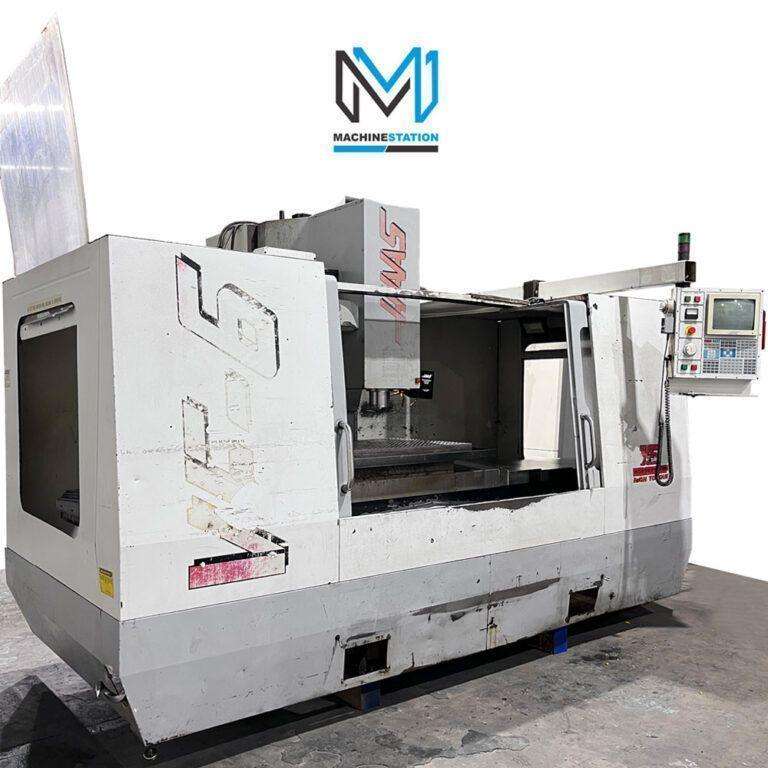

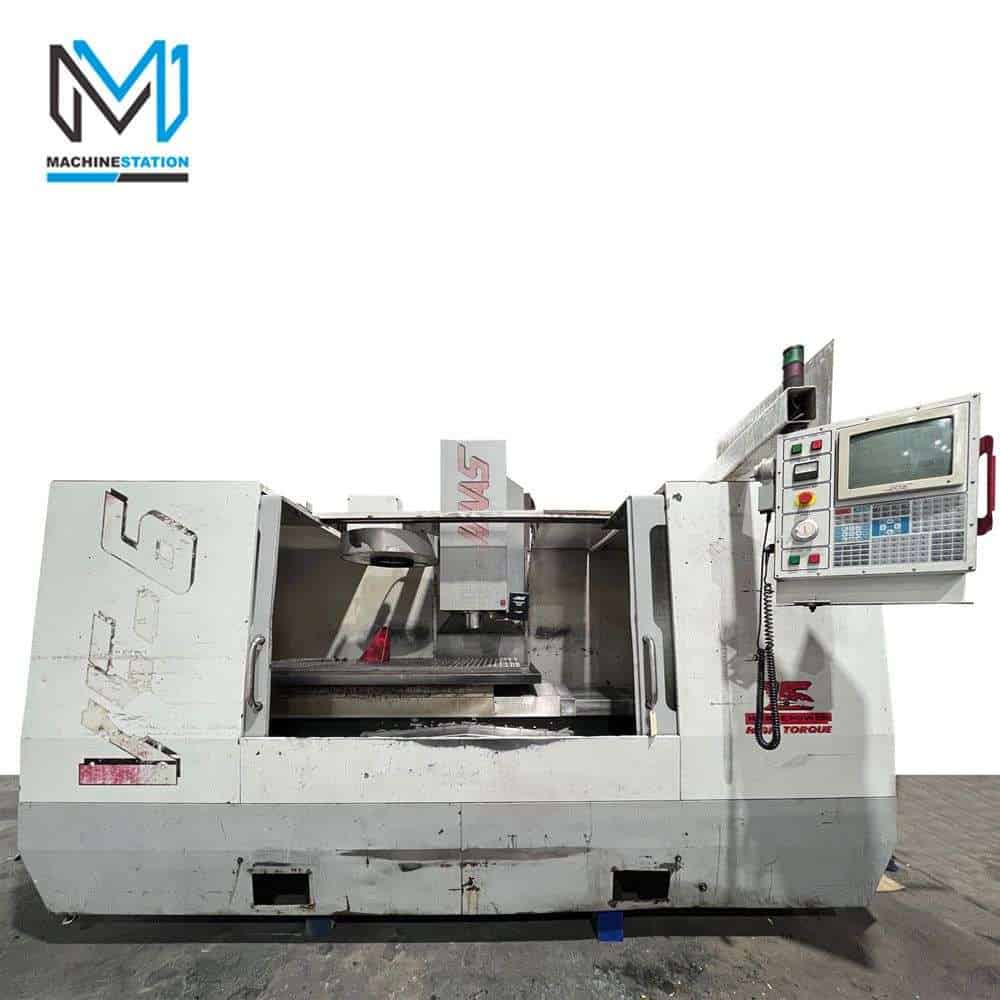

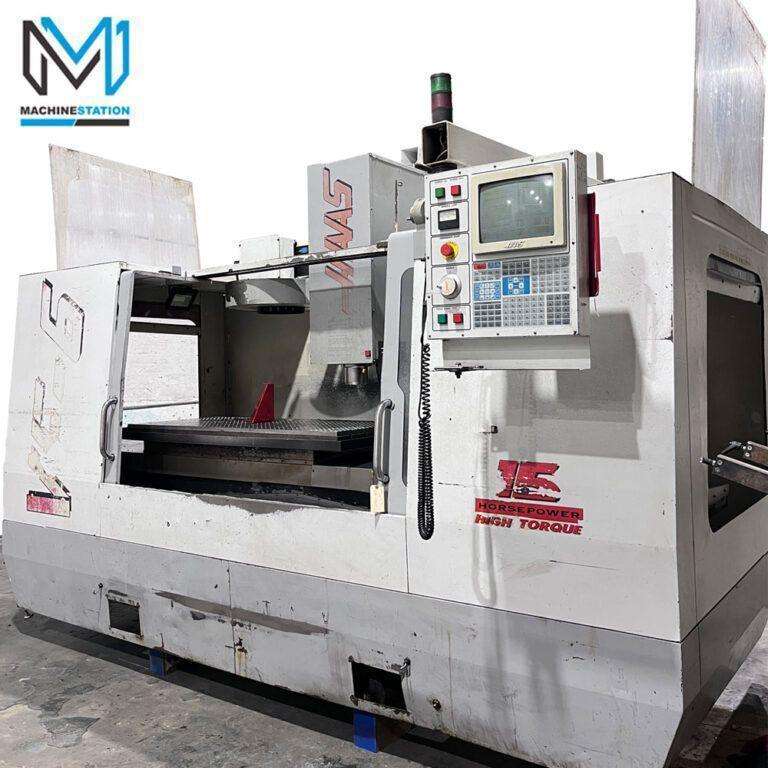

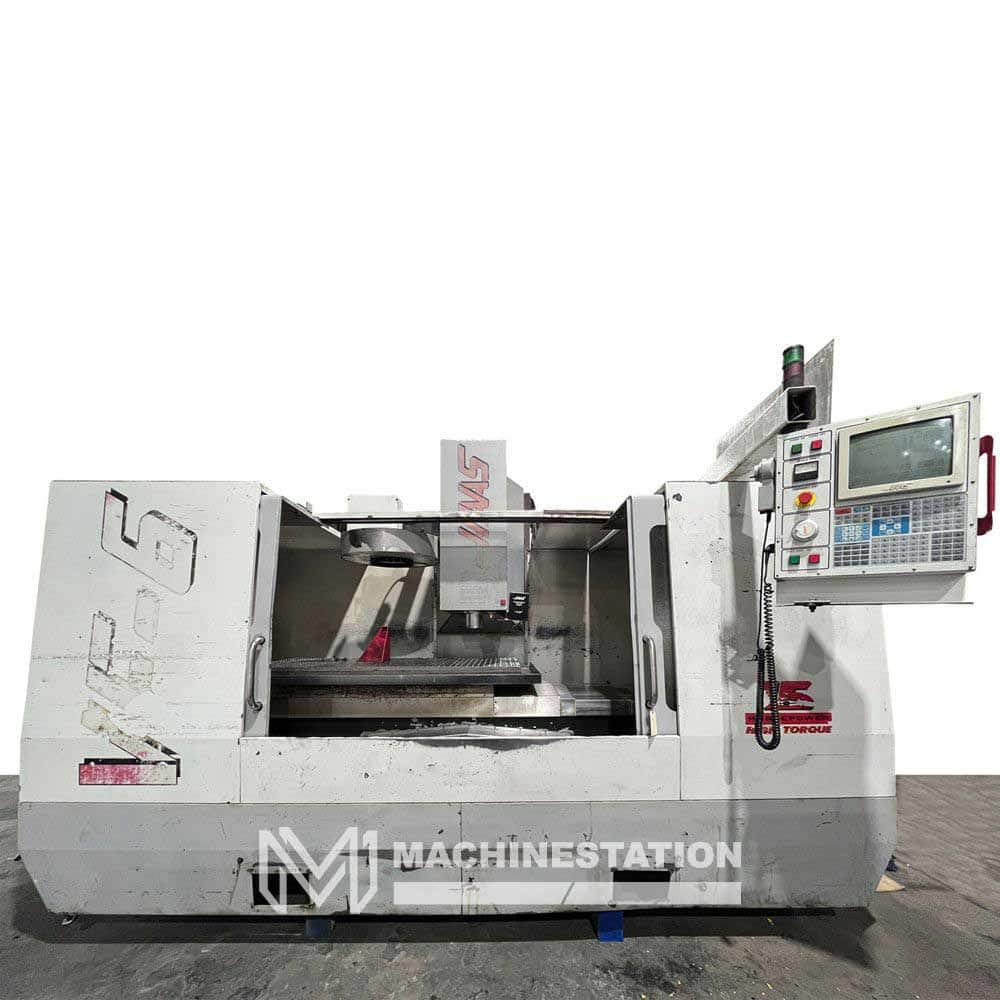

| Make: |
HAAS |
| Model: |
VF-6 |
| Year: |
1996 |
| Condition: |
Used – Good |
| Features: |

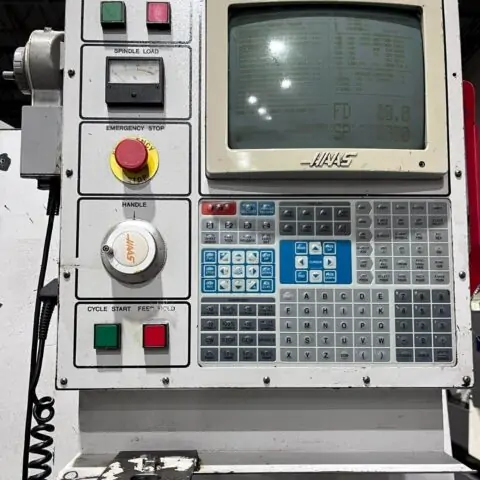

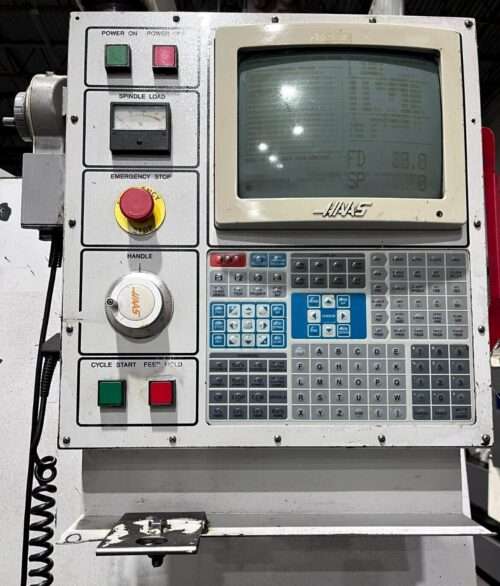

- Haas CNC Control
- 7500 RPM Spindle
- 15 HP High Torque Spindle
- 20 Station Automatic Tool Changer
- 4th Axis Ready
- MPG Handwheel Control
- Rigid Tapping
- Spindle Orientation
- Programmable Coolant

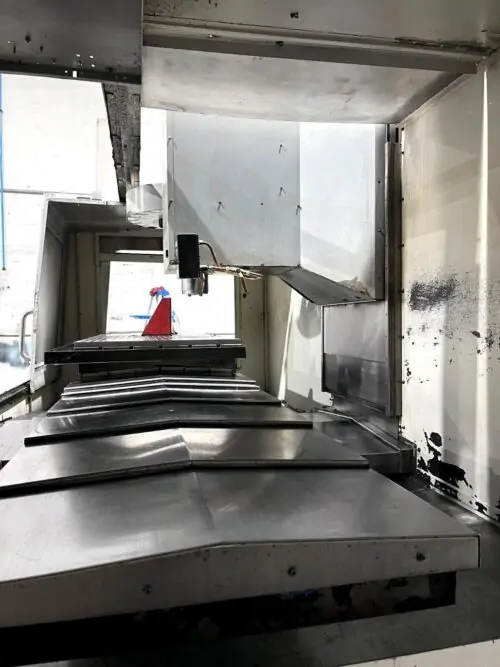

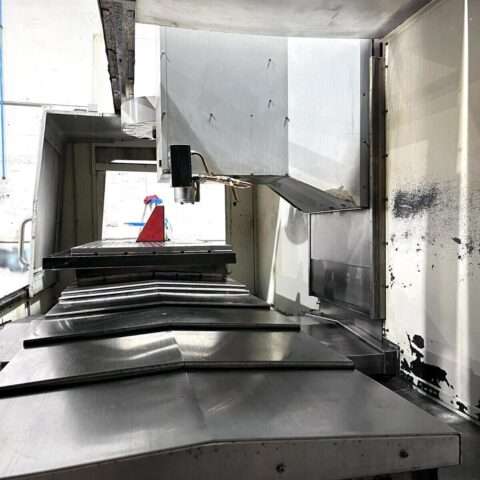

- Telescopic Way Covers

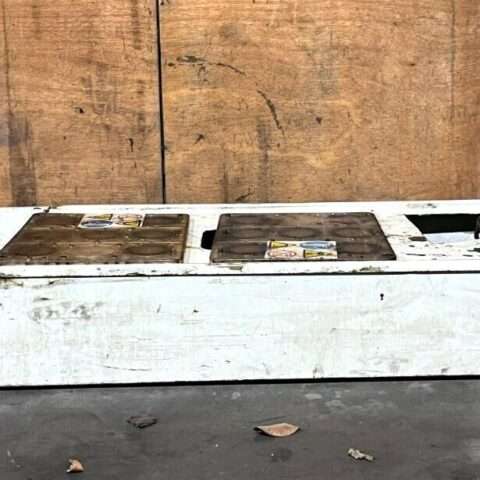

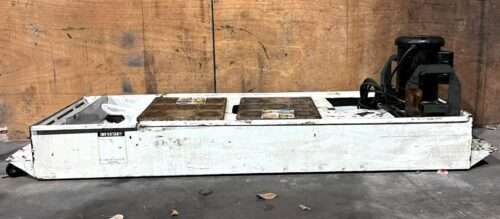

- Coolant System
|
| Travels: |
- X-Axis: 64″
- Y-Axis: 32″
- Z-Axis: 30″
- Rapid Traverse Rates: 600 Inch Per Minute
- Cutting Feed Rates: 500 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 5″ – 35″
|

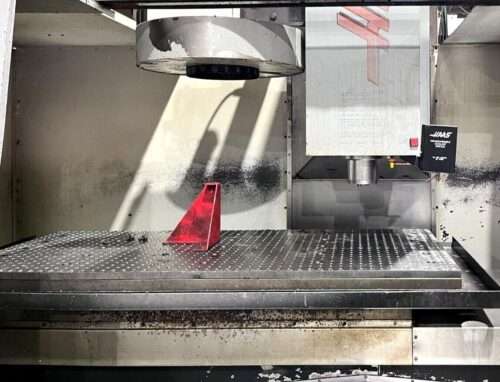

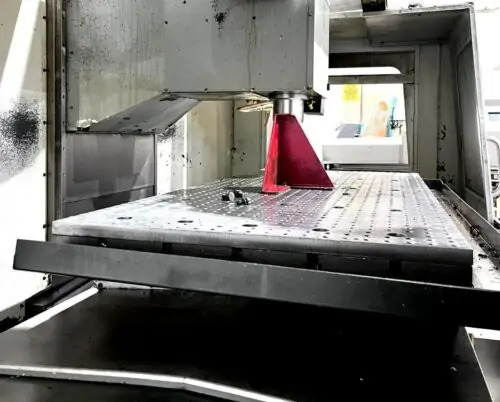

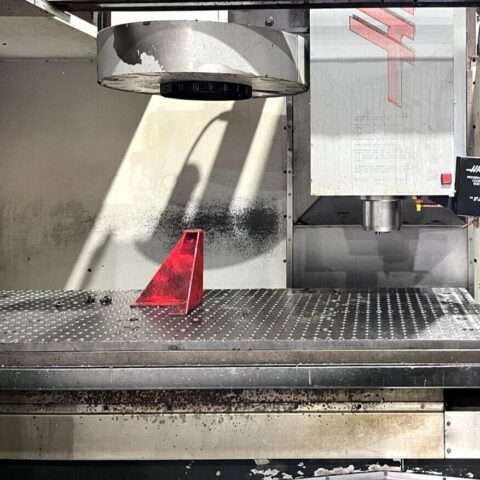

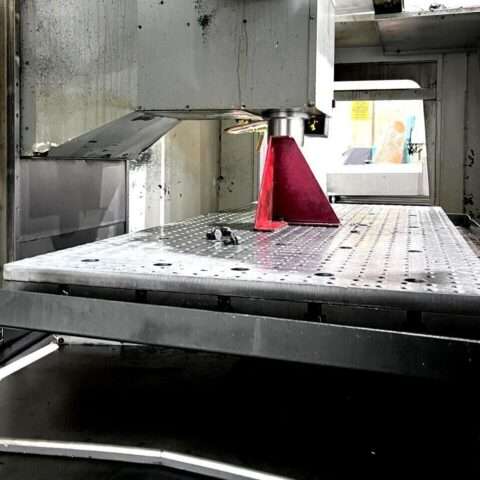

| Table: |
- Length: 64″
- Width: 28″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 4000 lbs
|
| Spindle: |
- Taper Size: CAT-40
- Speed Range: 7500 RPM
- Spindle Power: 15 HP
- Vector Drive Max Torque: 90ft-lb @ 2000 RPM
|

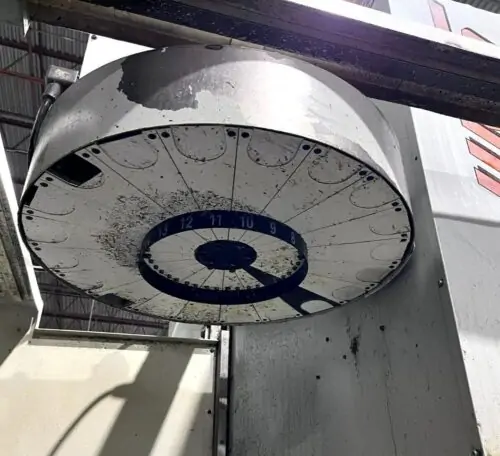

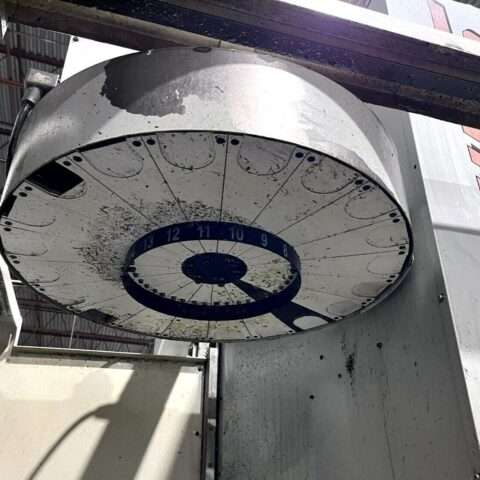

| Automatic Tool Changer: |
- Capacity: 20 Station Umbrella Type
- Max Tool Weight: 12 lbs
- Max Tool Diameter (Full): 2.5″
- Max Tool Diameter (adjacent empty): 5″
- Max Tool Length: 16″
- Tool Changing Time: 4.2 Seconds
|
| General: |
- Air Required: 100 psi 4 scfm

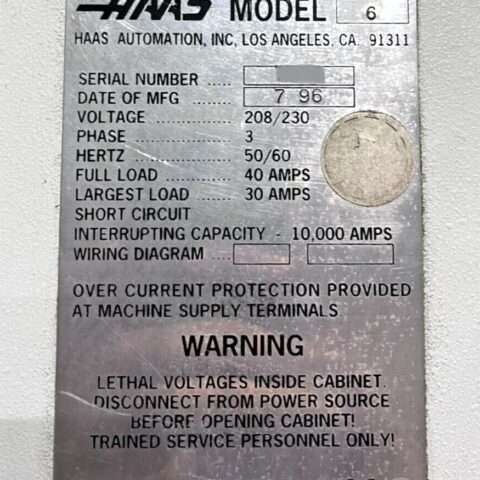

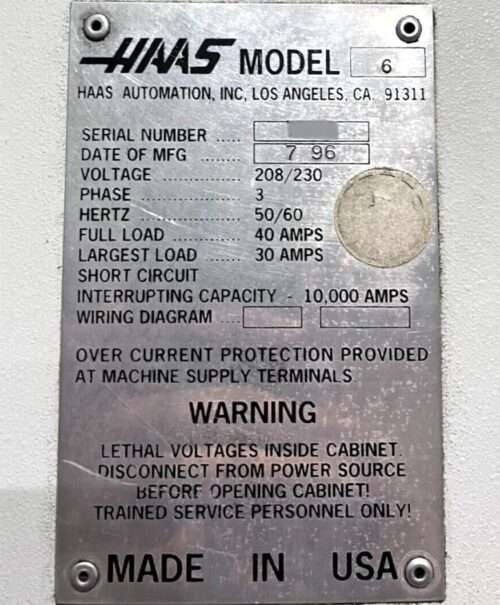

- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 158″ x 98″ x 118″ High
- Weight: 22000 lbs
|
