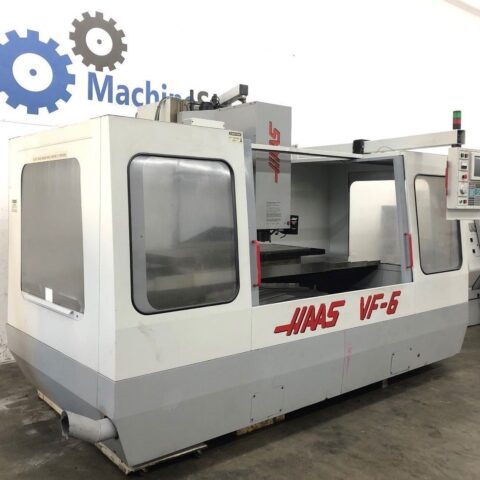

HAAS VF-6 VERTICAL MACHINING CENTER | |
---|---|
Make | Haas |
Model No. | VF-6 |
Year of Manufacture: | 10.1995 |

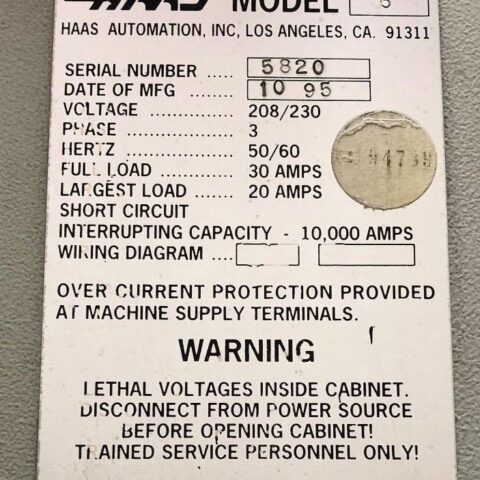

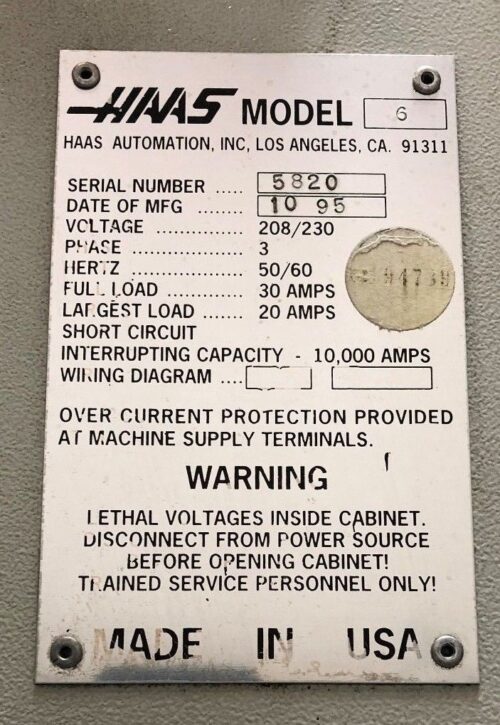

Serial # | 5820 |
Condition | Very Good |
All specifications are approximations and are subject to verification.
“This One Owner Machine is 4th axis ready, Expanded Memory. On our Floor now, fully powered / tested & is in Great working condition.”
- Haas VF-6 Features:
- 20HP High Torque Spindle Motor
- 4th Axis Ready ( drives and wiring installed )
- 7500 RPM Geared Head Spindle
- 2 Speed Gearbox
- 20 tool changer
- Rigid Tapping
- Advanced Tool Management
- Power Failure Detection Module
- User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
- Programmable coolant
- Telescopic way covers
- Chip auger
- Floppy Drive
- Flood Coolant system
- Haas VF-6 Specifications:
- Travels:
- X-Axis: 64″
- Y-Axis: 32″
- Z-Axis: 30″
- Rapid Traverse Rates: 600 Inch Per Minute
- Cutting Feed Rates: 500 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 5″ – 35″
- Table:
- Length: 64″
- Width: 28″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 4000 lbs
- Spindle:
- Taper Size: CAT 40
- Speed Range: 7500 RPM
- Spindle Power: 20 HP
- Max Torque: 90ft-lb @ 2000RPM
- Automatic Tool Changer:
- Capacity: 20 + 1
- Max Tool Weight: 12 lbs
- Max Tool Dia: 6″
- Max Tool Length: 16″
- Tool Changing Time: 4.2 Seconds
- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 158″ x 98″ x 118″ High
- Weight: 22000 lbs

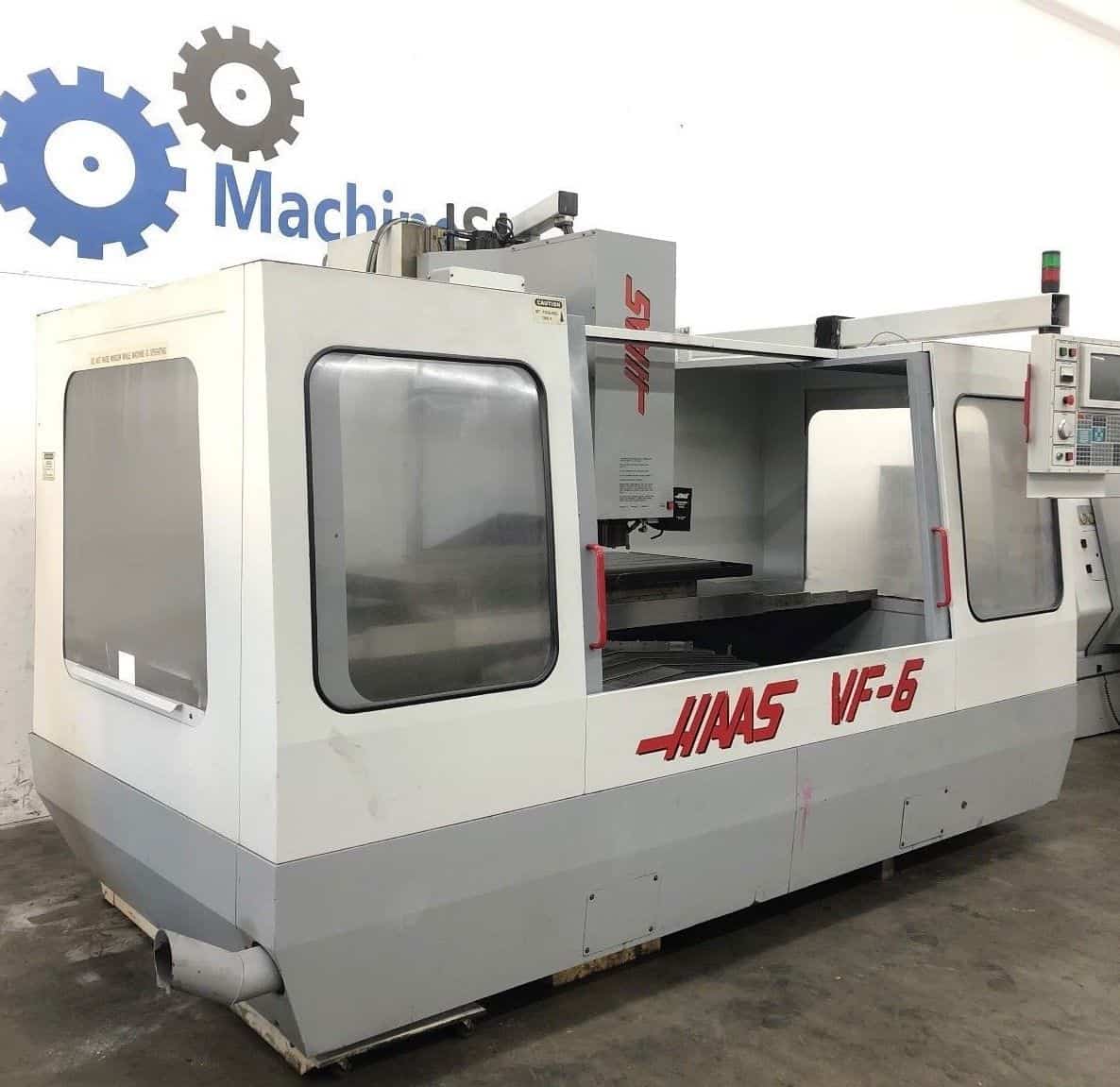

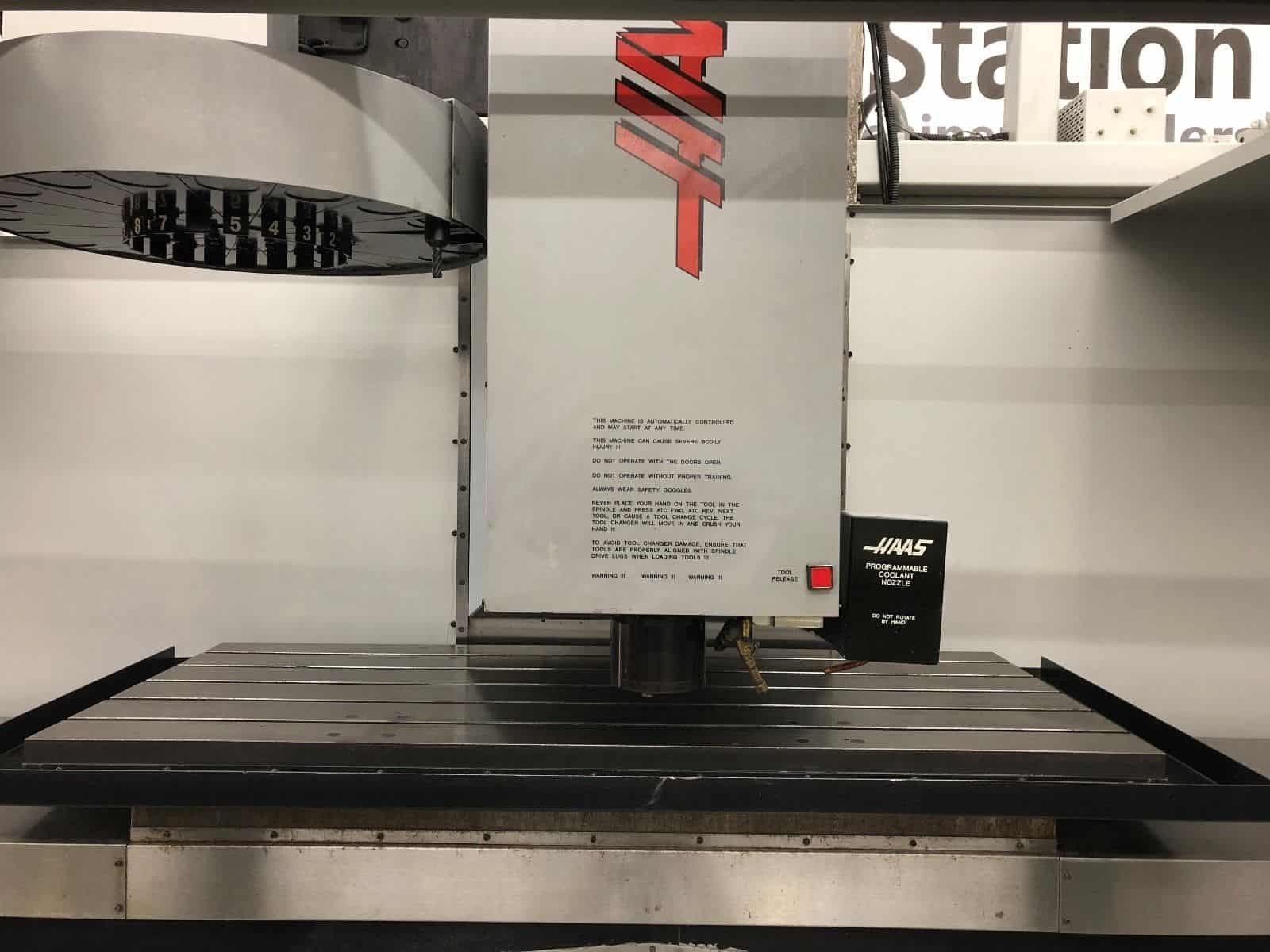

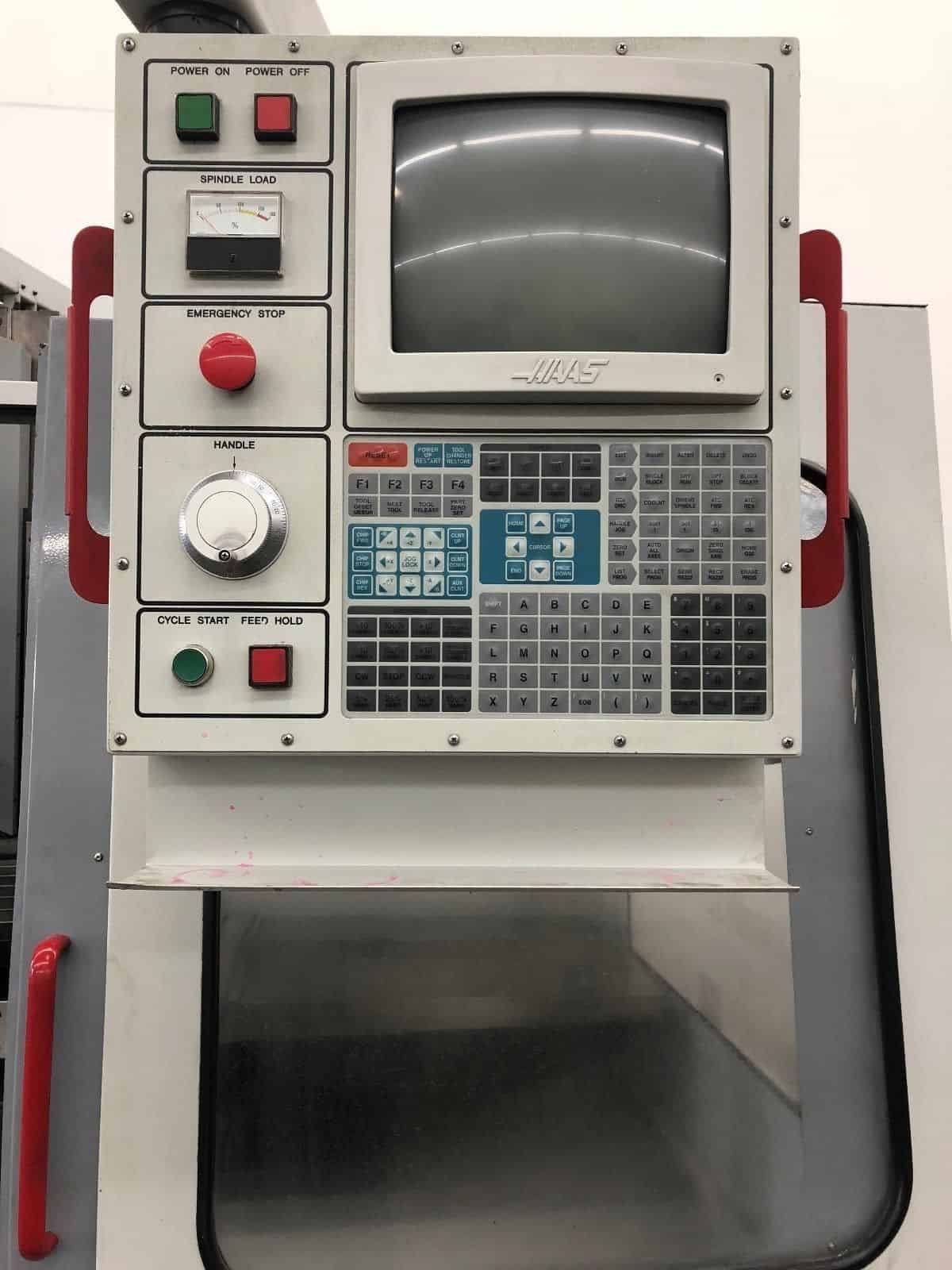

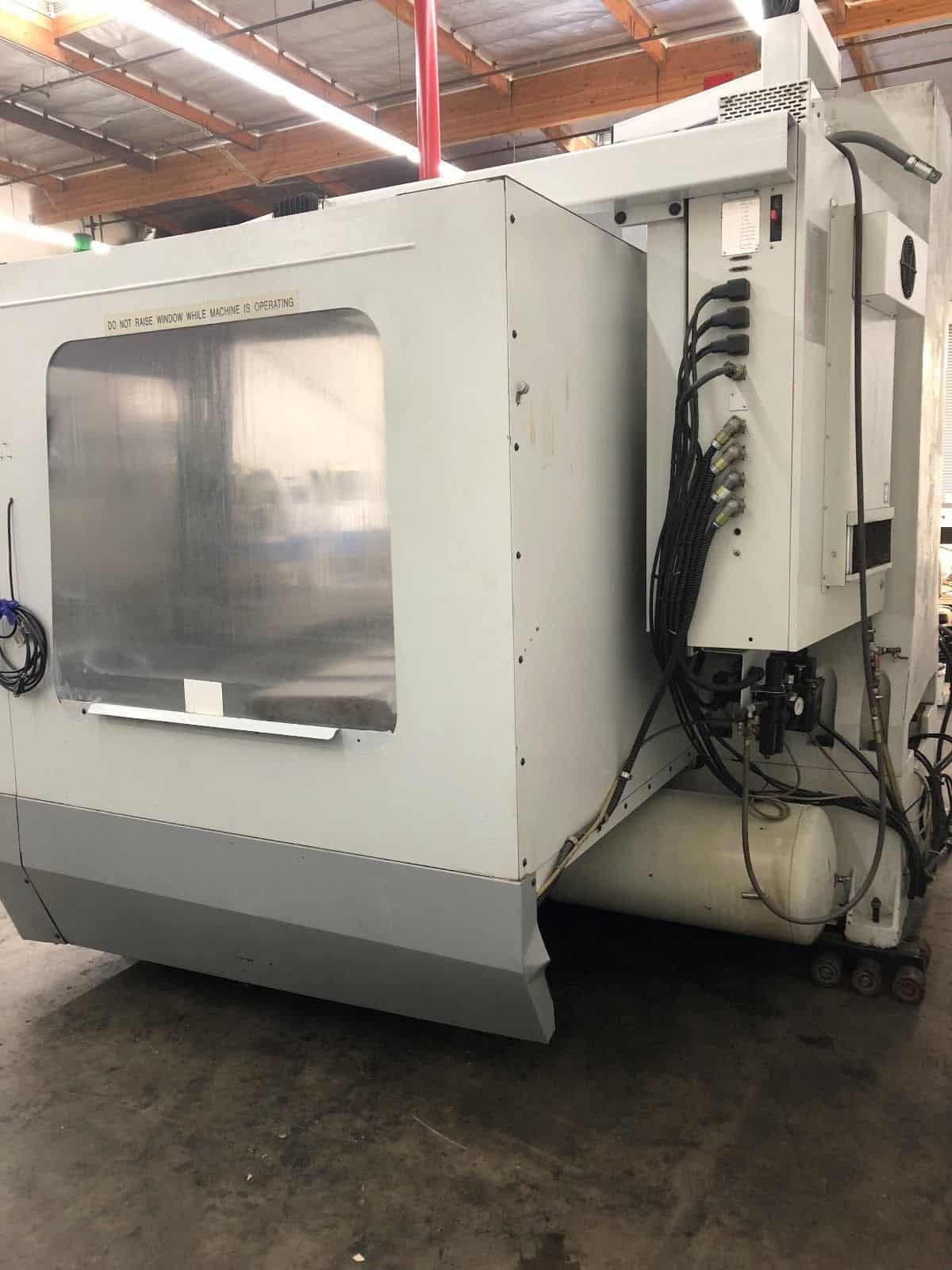

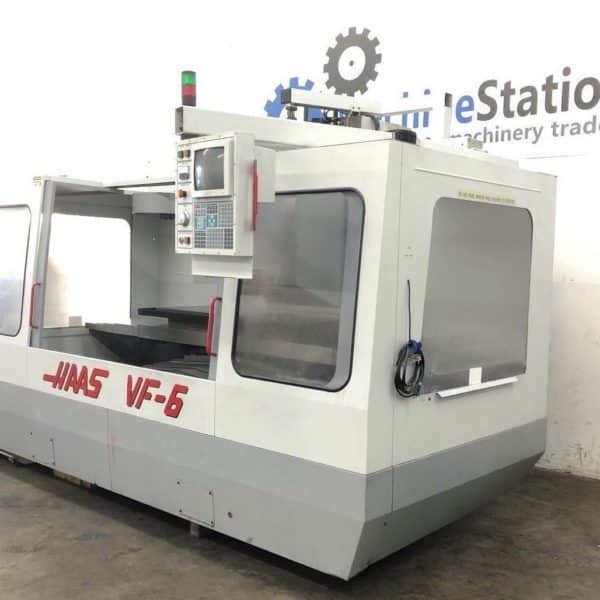

Haas VF-6 Comes as shown in pictures..
