Haas VF-6 Vertical Machining Center

Out of stock

*Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details*

“On our Floor now, fully powered / tested & is in Great working condition”

SKU:	1598
Make/Model:	Haas VF-6
Video:	[fusion_button link=”https://www.youtube.com/watch?v=rHgY7ehdlnM” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 1598

HAAS VF-6 VERTICAL MACHINING CENTER
Make	Haas
Model No.	VF-6
Year	1995

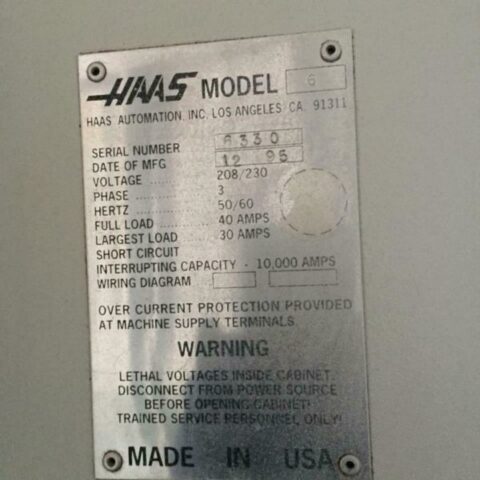

Serial #	6330
Condition	Good

All specifications are approximations and are subject to verification.

“On our Floor now, fully powered / tested & is in Great working condition.”

Haas VF-6 Features:
20 HP High Torque Spindle Motor
7500 RPM Spindle
4th Axis Ready

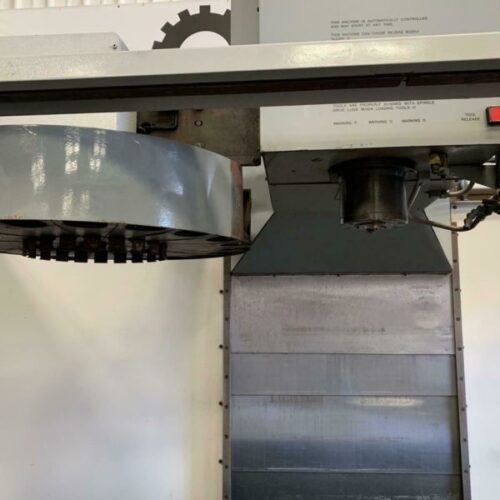

20 + 1 automatic tool changer
Rigid Tapping
Advanced Tool Management
Power Failure Detection Module
User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
Brush-type servo drive motors on all axis
Programmable coolant

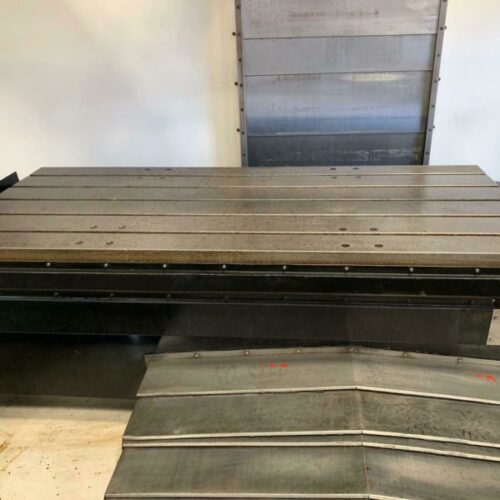

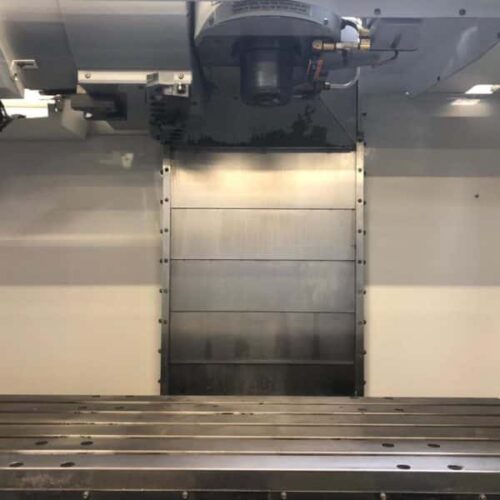

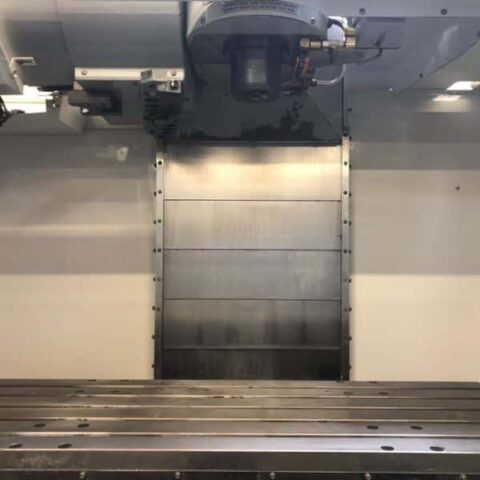

Telescopic way covers

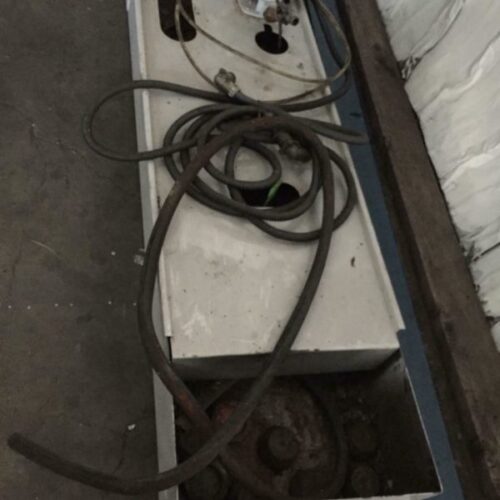

Chip auger
Floppy Drive
Flood Coolant system

Haas VF-6 Specifications:
Travels:
X-Axis: 64″
Y-Axis: 32
Z-Axis: 30″
Rapid Traverse Rates: 600 Inch Per Minute
Cutting Feed Rates: 300 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 34″

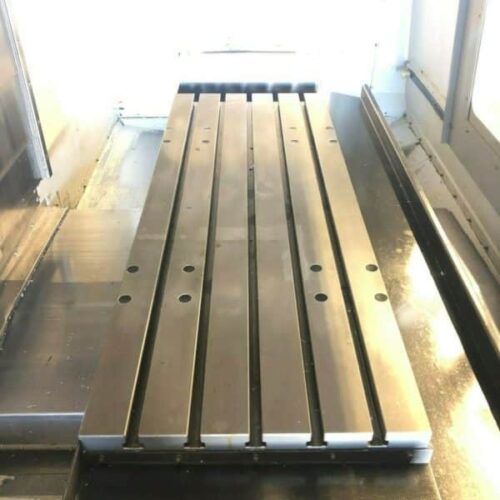

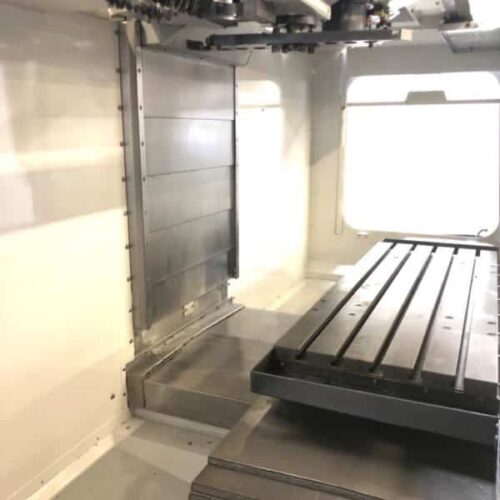

Table:
Length: 64″
Width: 28″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 4000 lbs

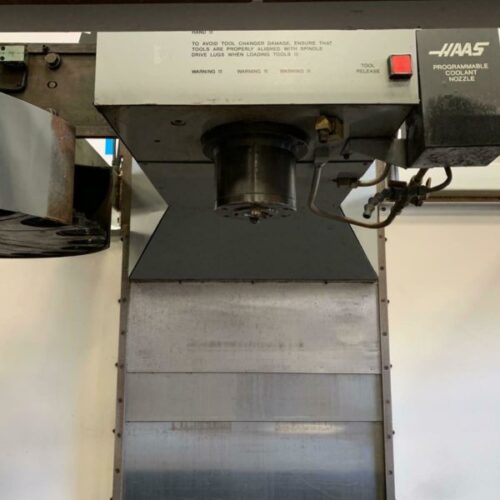

Spindle:
Taper Size: CAT 40
Speed Range: 7500 RPM
Spindle Power: 20 HP Vector Dual Drive
Max Torque: 90ft-lb @ 2000RPM

Automatic Tool Changer:
Capacity: 20 + 1
Max Tool Weight: 17 lbs
Max Tool Dia: 6″
Max Tool Length: 16″
Tool Changing Time: 4.2 Seconds

General:
Air Required: 100 psi, 4 scfm

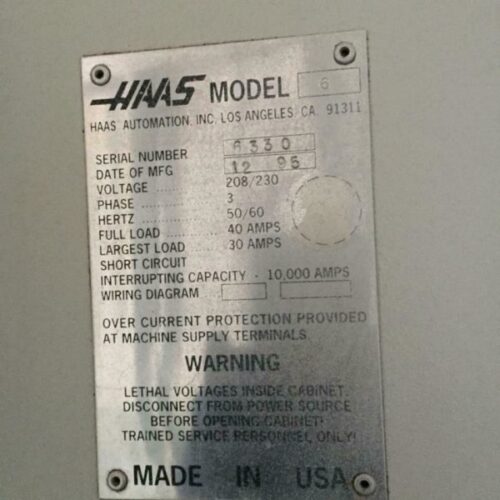

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 158″ x 98″ x 118″ High
Weight: 22500 lbs

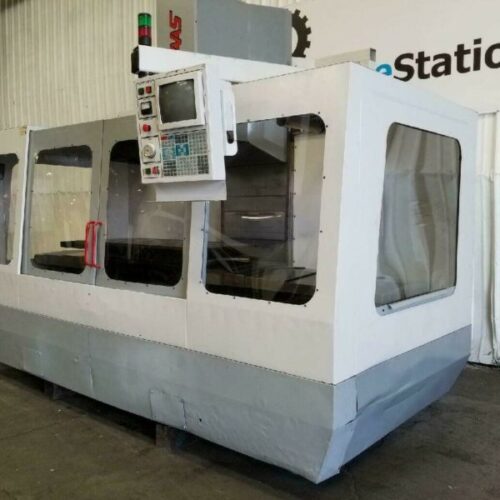

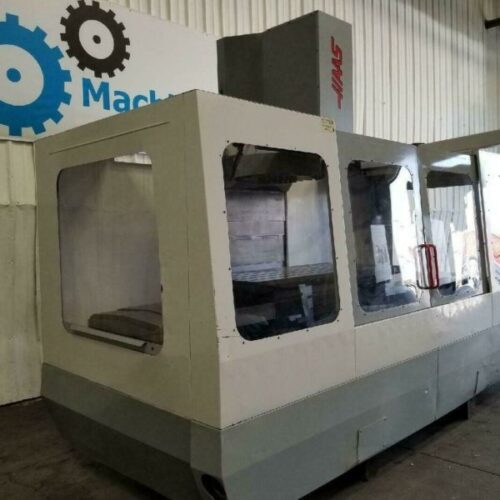

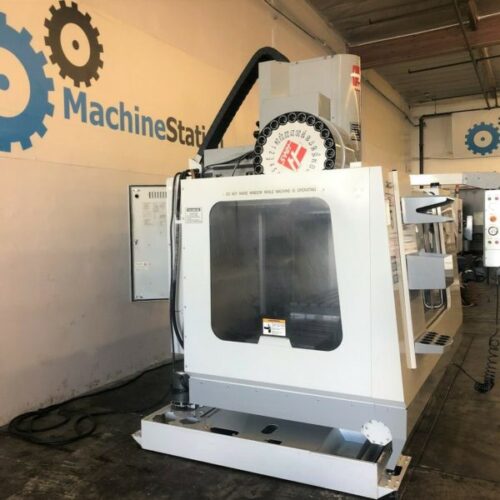

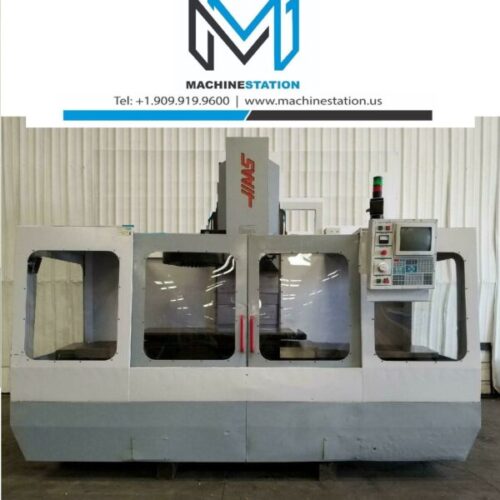

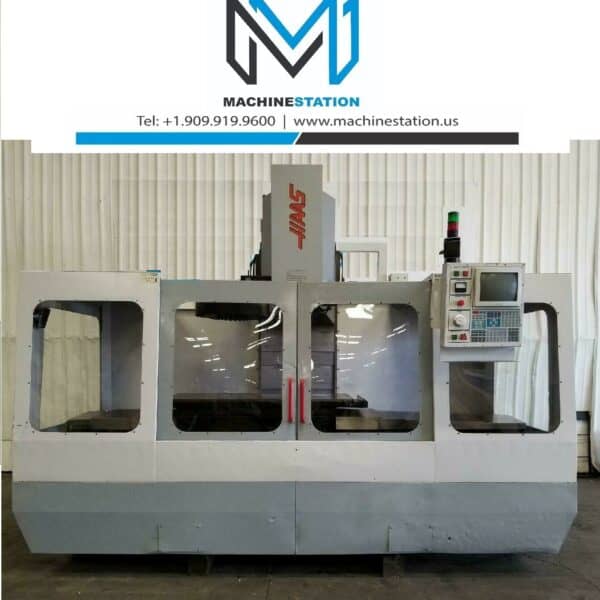

Haas VF-6 Comes as shown in pictures..
