All specifications are approximations and are subject to verification.
“This One Owner Machine has 10,000rpm, 24 tool side mount tool changer, 4th Axis Ready, 1MB Memory, USB, Panel AC. On our Floor now, fully powered / tested & is in Great working condition.”
-

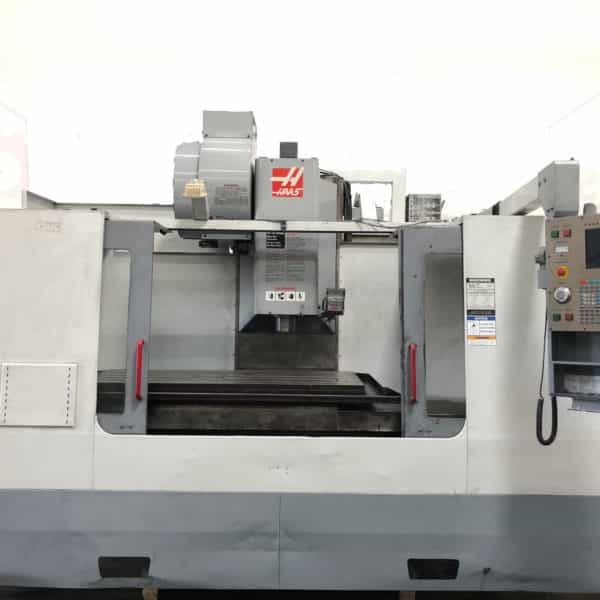

HAAS VF- 6D/40 VERTICAL MACHINING CENTER Features:
- 20HP High Torque Spindle Motor
- 4th Axis Ready ( drives and wiring installed )
- 10,000 RPM Spindle
- 24 + 1 automatic Side Mount tool changer
- Remote Jog Handle
- Rigid Tapping
- USB Drive
- Electrical Panel Air Conditioner
- Power Failure Detection Module
- Brush-type servo drive motors on all axis
- Programmable coolant
- Telescopic way covers
- Chip auger
- Flood Coolant system
- Work Lights
-
HAAS VF- 6D/40 VERTICAL MACHINING CENTER Specifications:
- Travels:
- X-Axis: 64″
- Y-Axis: 32″
- Z-Axis: 30″
- Rapid Traverse Rates: 600 Inch Per Minute
- Cutting Feed Rates: 500 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 5″ – 35″
-
Table:
- Length: 64″
- Width: 28″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 4000 lbs
-
Spindle:
- Taper Size: 40
- Speed Range: 10000 RPM
- Spindle Power: 20 HP Vector Dual Drive
- Max Torque: 90ft-lb @ 2000RPM
-
Automatic Tool Changer:
- Capacity: 24 + 1
- Max Tool Weight: 12 lbs
- Max Tool Dia: 6″
- Max Tool Length: 16″
- Tool Changing Time: 4.2 Seconds
-
General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 158″ x 98″ x 118″ High
- Weight: 22000 lbs
