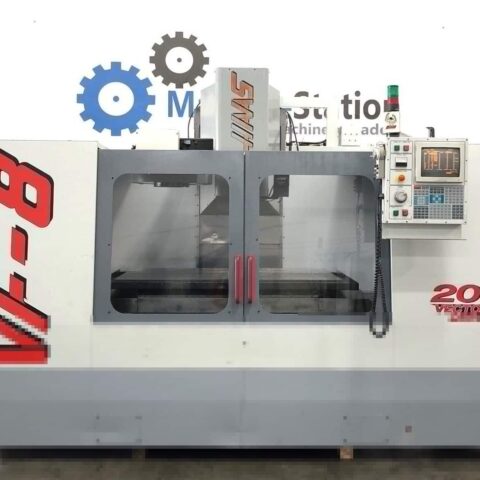

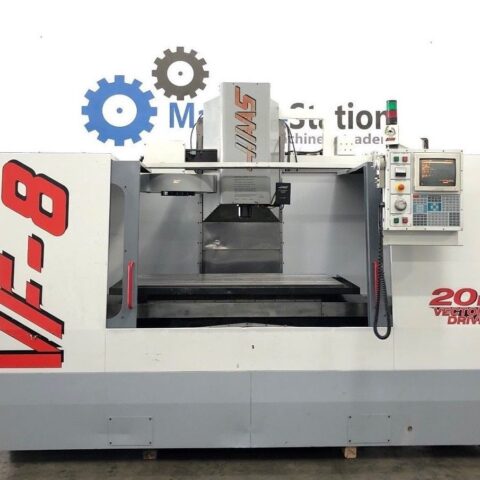

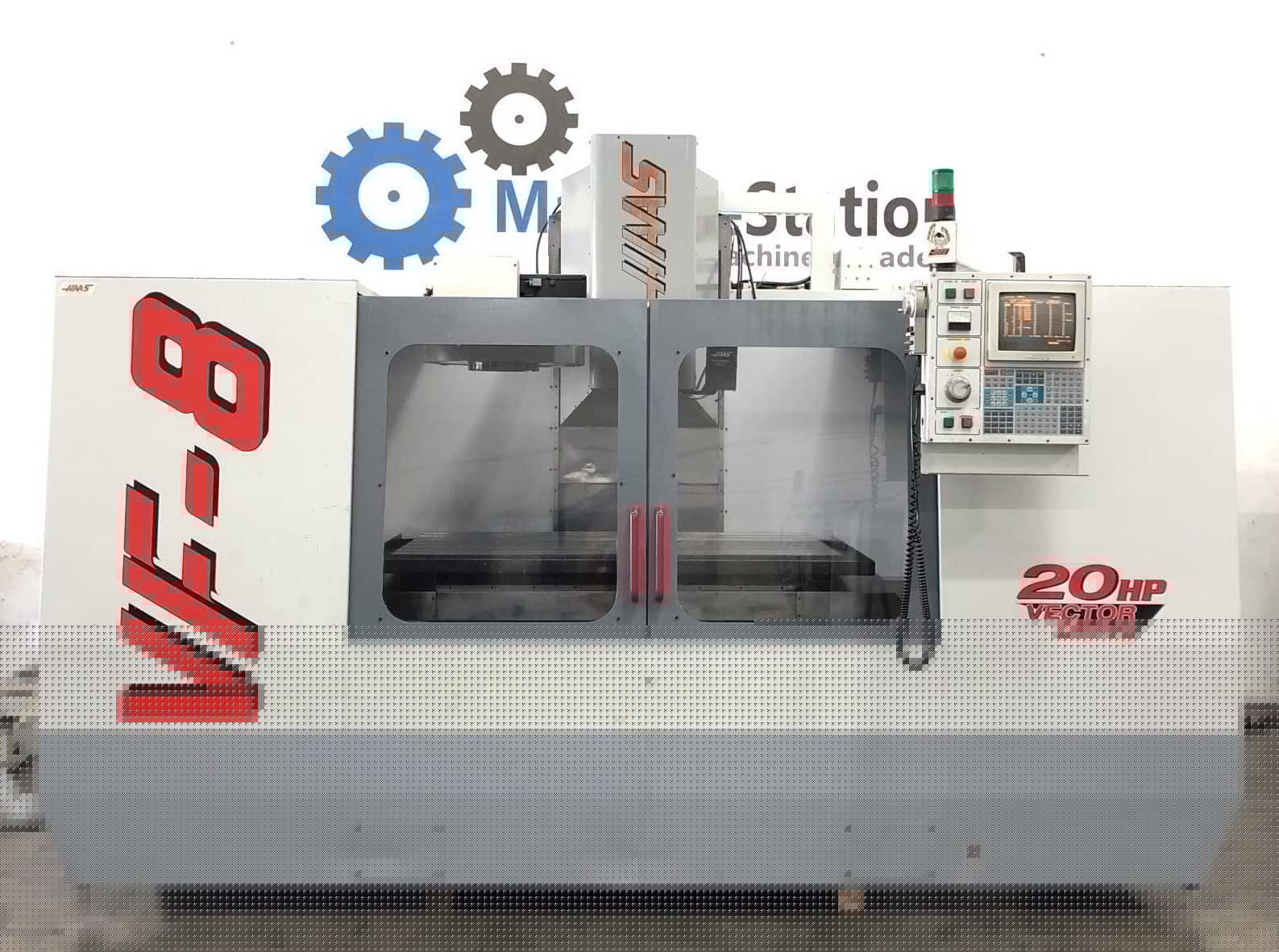

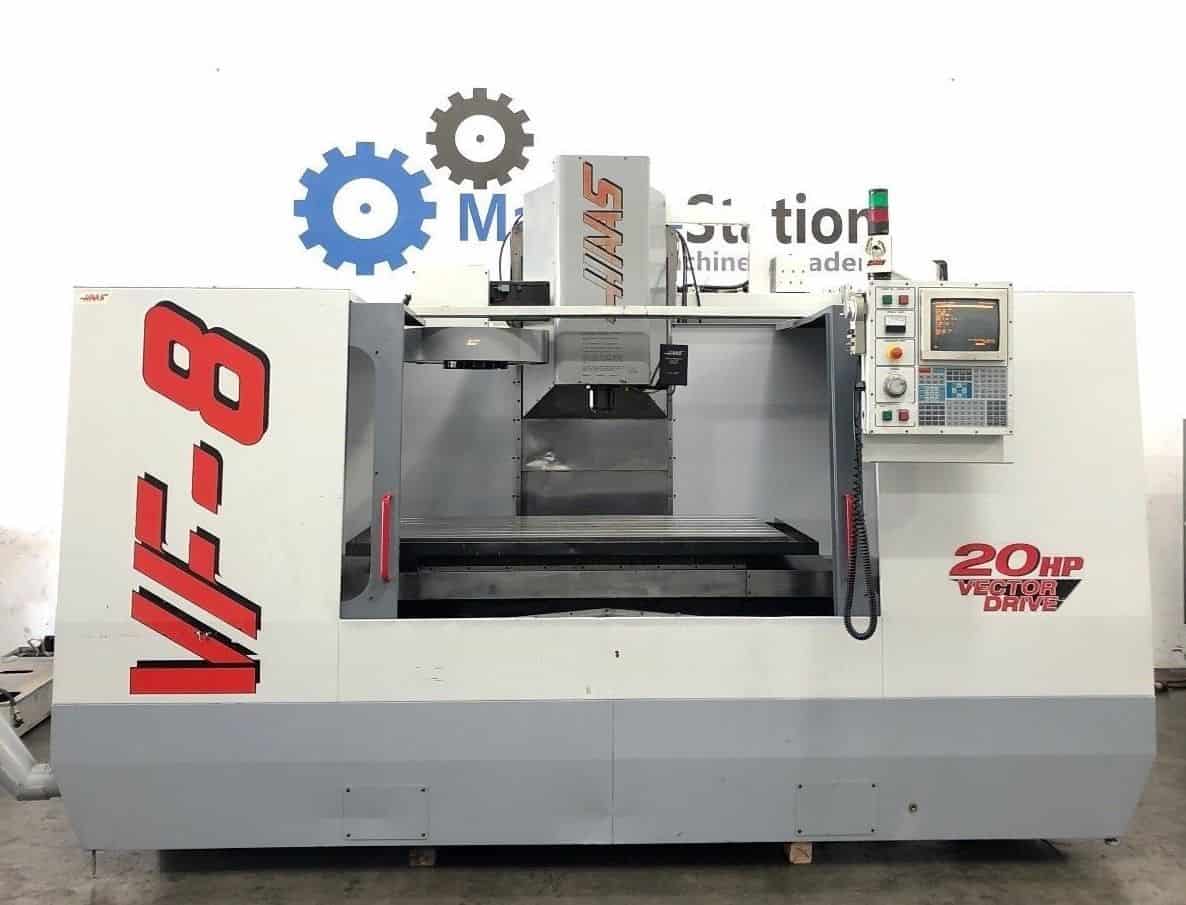

HAAS VF-8 VERTICAL MACHINING CENTER | |
---|---|

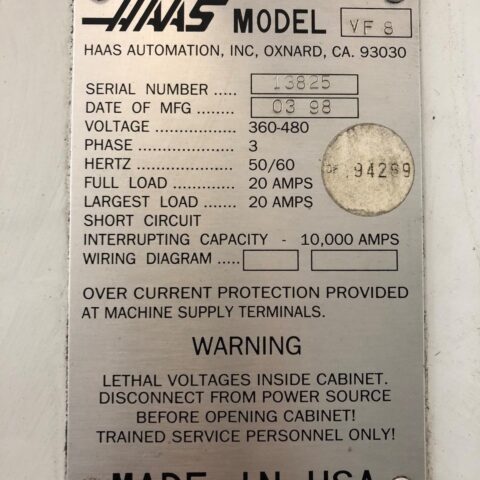

Make | Haas |
Model No. | VF-8 |
Year of Manufacture: | 03/1998 |

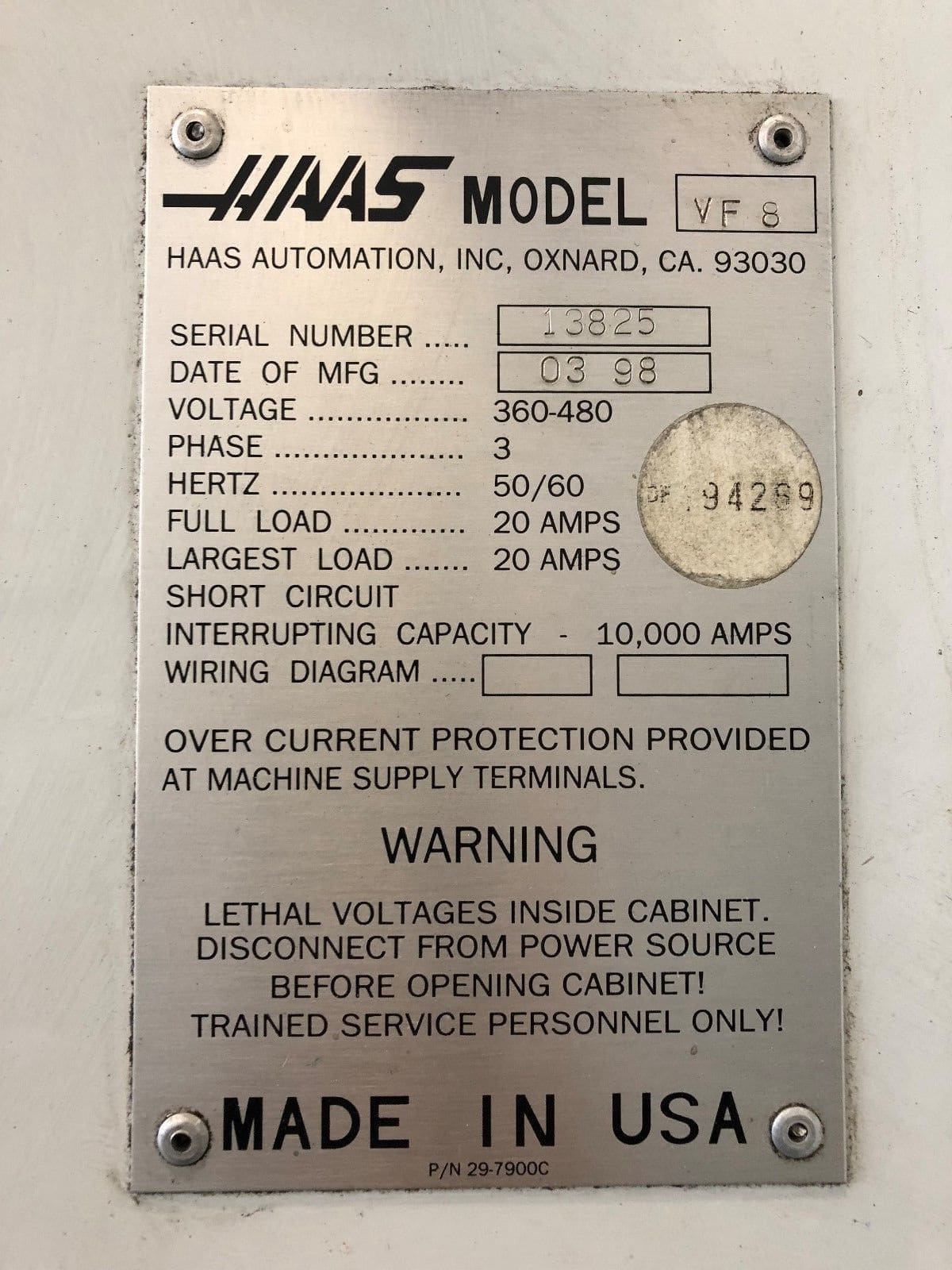

Serial # | 13825 |
Condition | Very Good |
All specifications are approximations and are subject to verification.
“This One Owner Machine has 20Hp Geared Head 7500rpm Spindle, 20 station tool changer, 4th axis ready, Spindle time 14270 hours only and many more options. On our Floor now, fully powered / tested & is in Great working condition.”
- HAAS VF-8 Features:
- 20HP High Torque Spindle Motor
- Thru Spindle Coolant
- 4th Axis Ready ( drives and wiring installed )
- 7500 RPM Geared Head Spindle
- 2 Speed GearBox
- 20 + 1 automatic tool changer
- Remote Jog Handle
- 1MB Memory
- Floppy Drive
- Rigid Tapping
- Advanced Tool Management
- Power Failure Detection Module
- Quick Code Programming
- User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
- Brushless servo drive motors on all axis
- Programmable coolant
- Telescopic way covers
- Chip auger
- Flood Coolant system
- HAAS VF-8 Specifications:
- Travels:
- X-Axis: 64″
- Y-Axis: 40″
- Z-Axis: 30″
- Rapid Traverse Rates: 600 Inch Per Minute
- Cutting Feed Rates: 500 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 34″

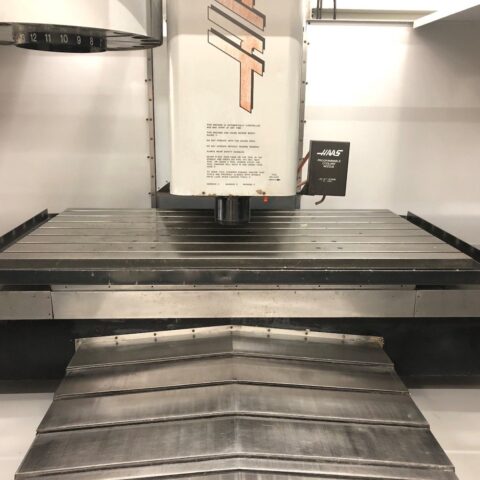

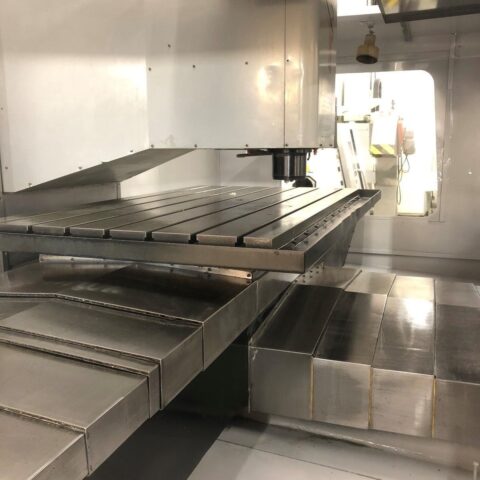

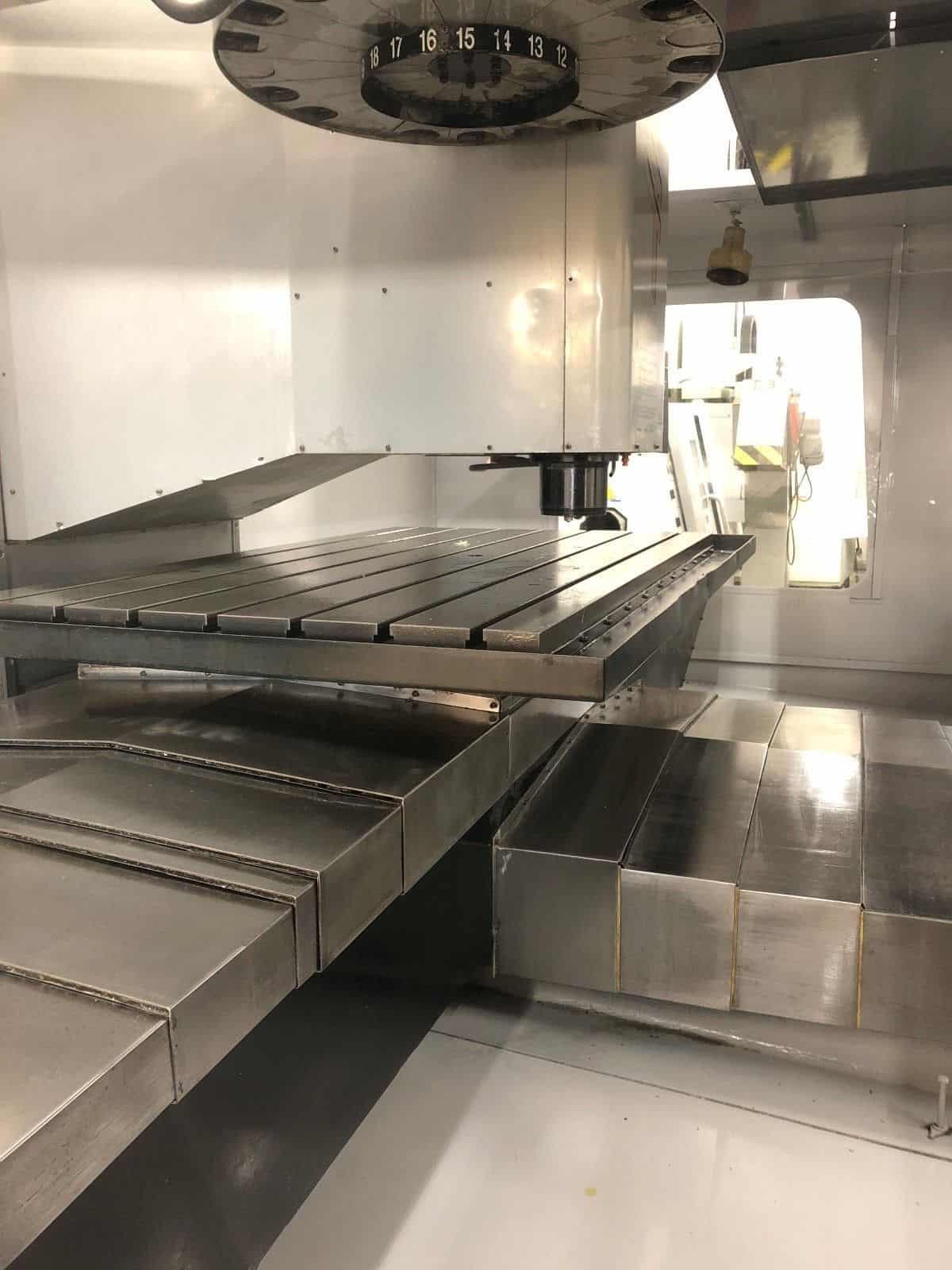

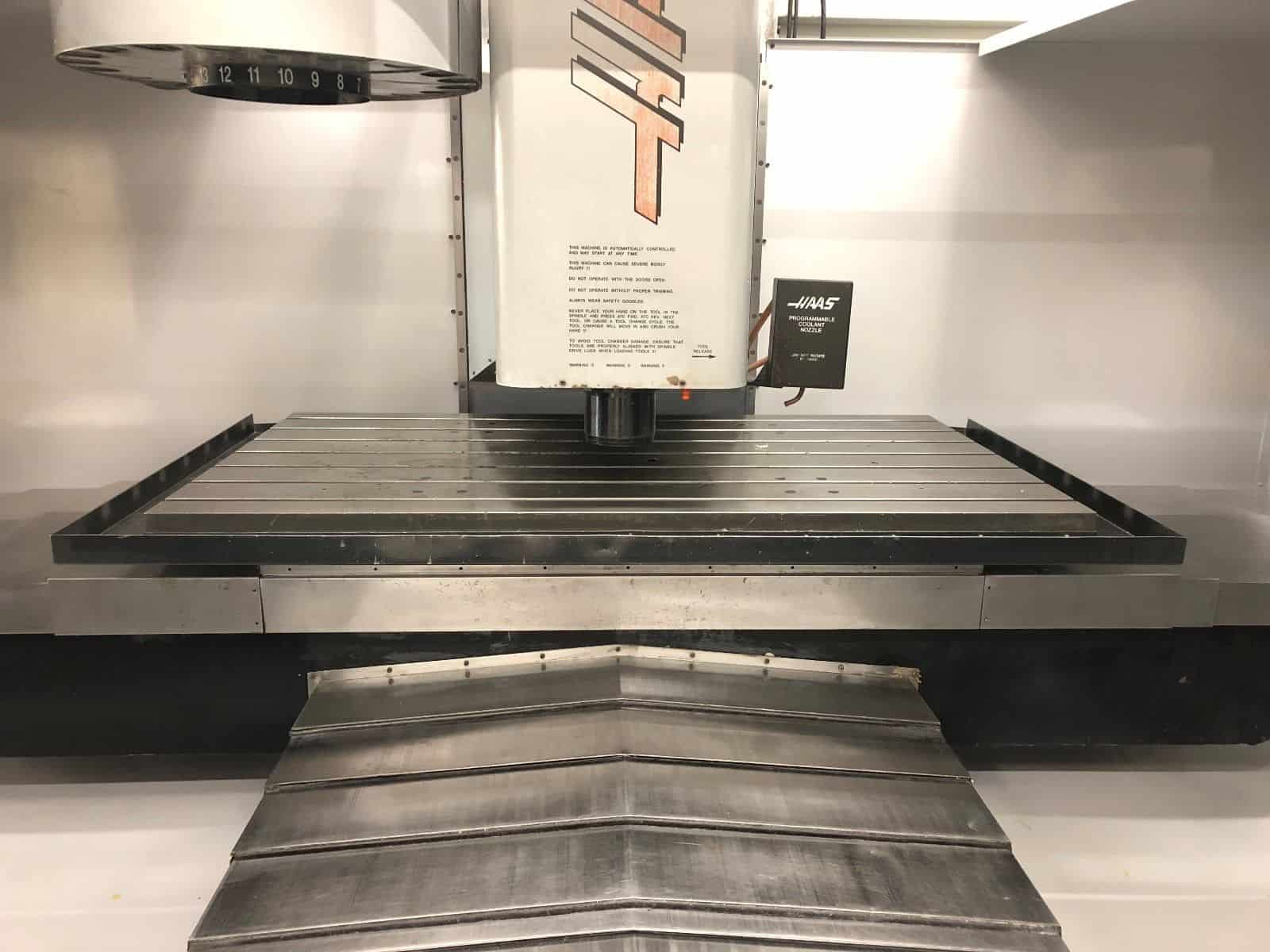

- Table:
- Length: 64″
- Width: 36″
- Number of Std T-Slots: 7
- T-Slot Width: 5/8″
- Max Weight on Table: 4000 lbs
- Spindle:
- Taper Size: BT-40
- Speed Range: 0 – 7500 RPM Geared Head
- Spindle Power: 20 HP Vector Dual Drive
- Max Torque: 230ft-lb @ 500RPM
- Automatic Tool Changer:
- Capacity: 20 + 1
- Max Tool Weight: 12 lbs
- Max Tool Dia: 6″
- Max Tool Length: 16″
- Tool Changing Time: 4.2 Seconds
- General:
- Air Required: 100 psi, 4 scfm
- Power: 360-480 v / 66FLA / 3-Phase
- Overall Dimensions: 158″ x 120″ x 110″ High
- Weight: 24000 lbs

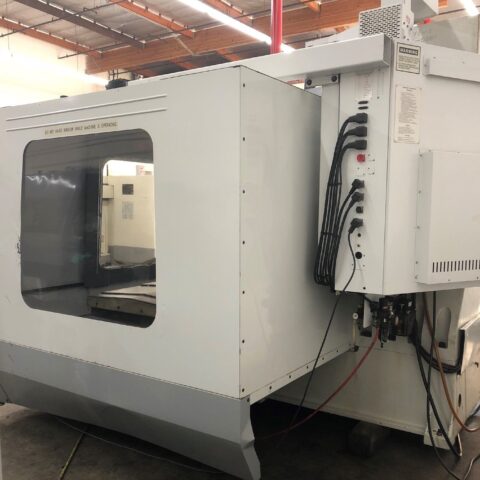

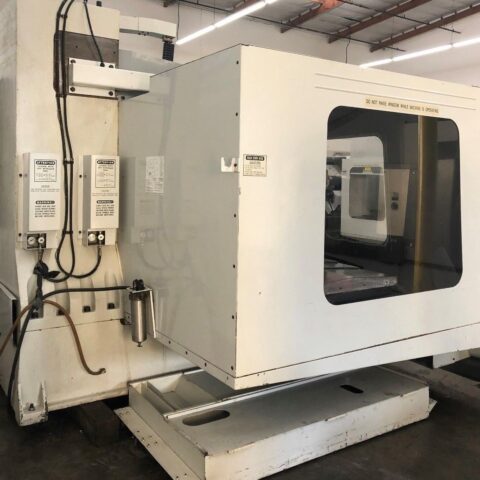

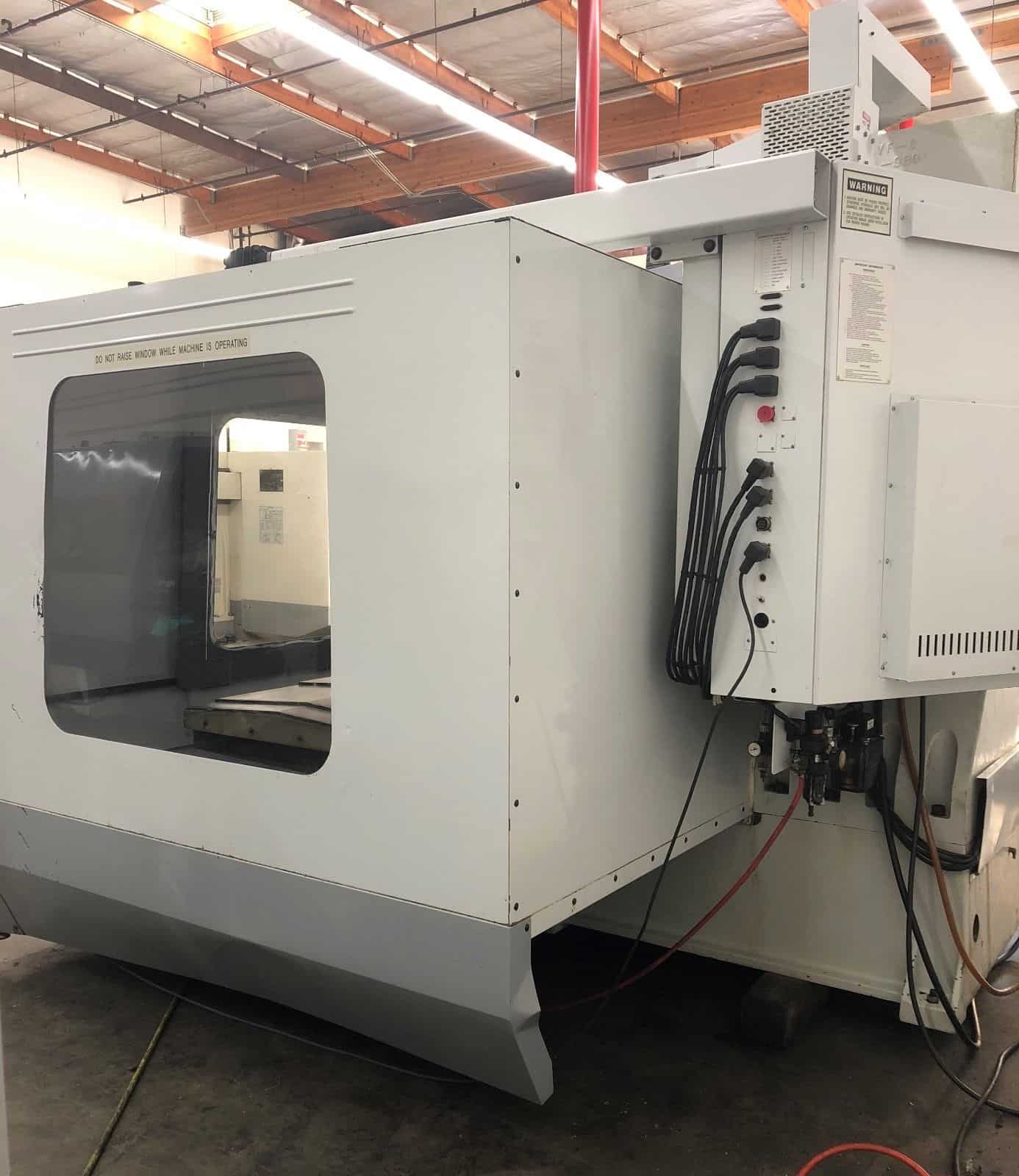

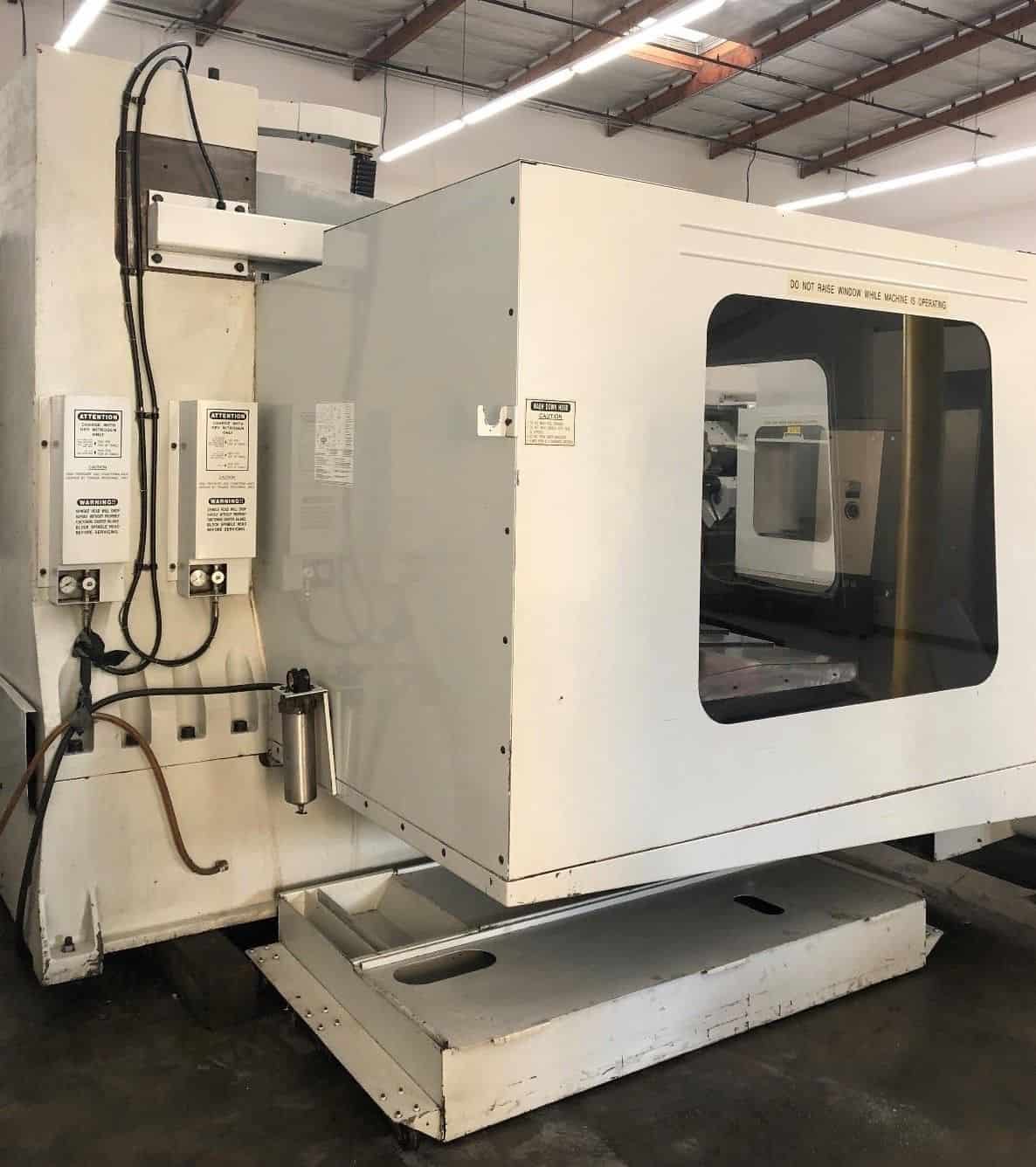

HAAS VF-8 Comes as shown in pictures..
