*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

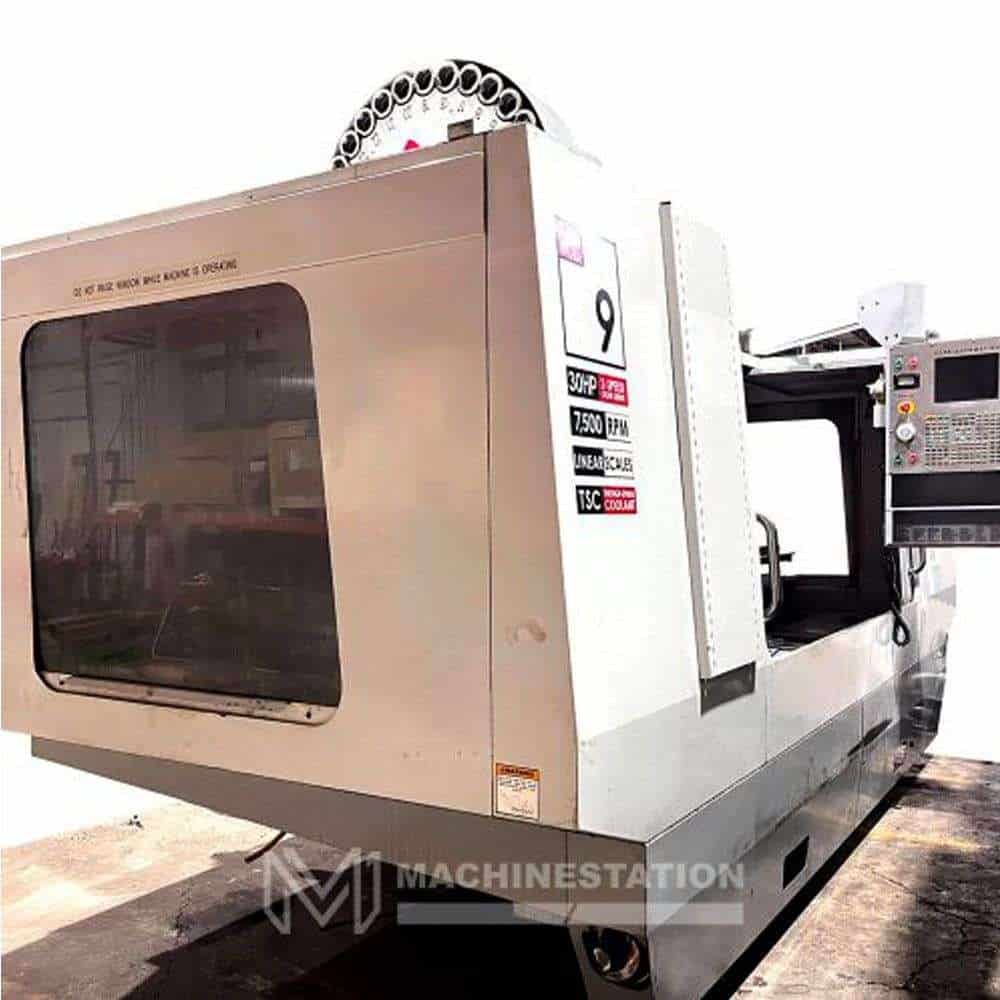

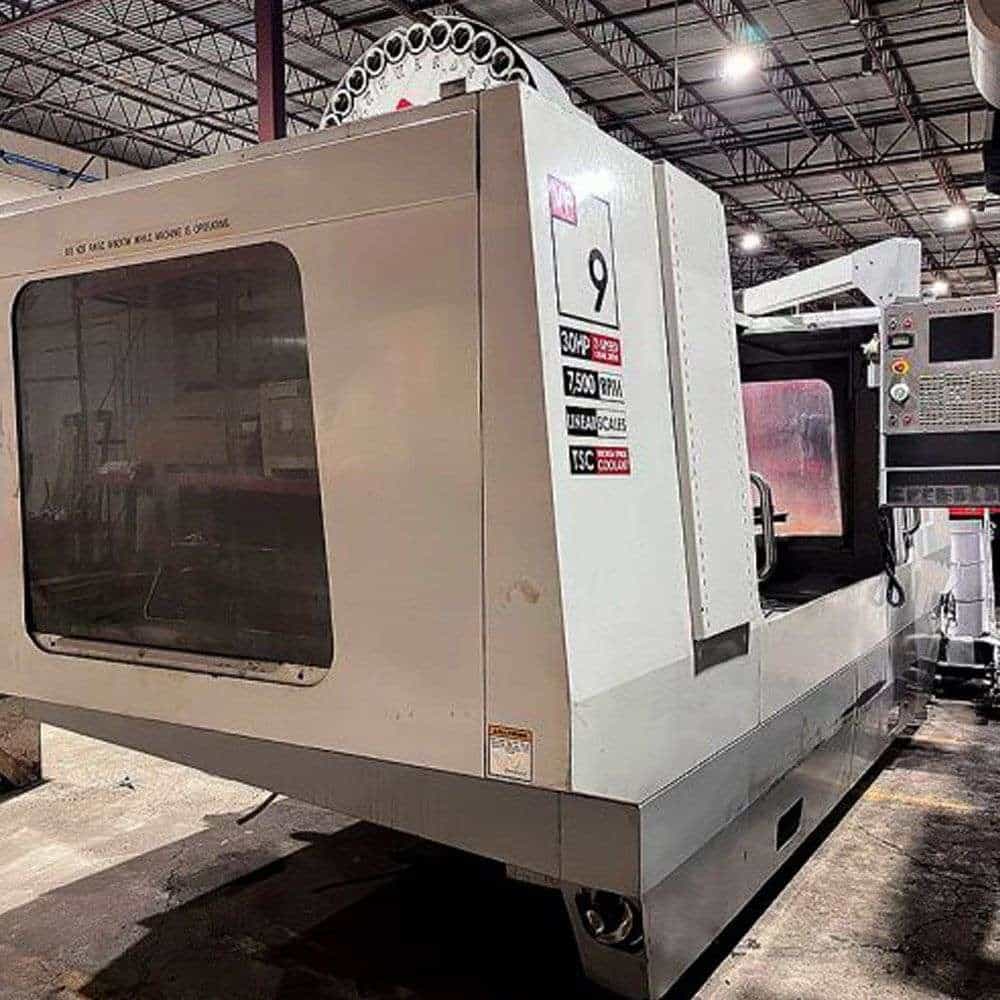

| Make: | Haas |
| Model: | VF-9/50 |
| Year: | 2006 |
| Condition: | Very Good |
| Equipped With: |
|---|

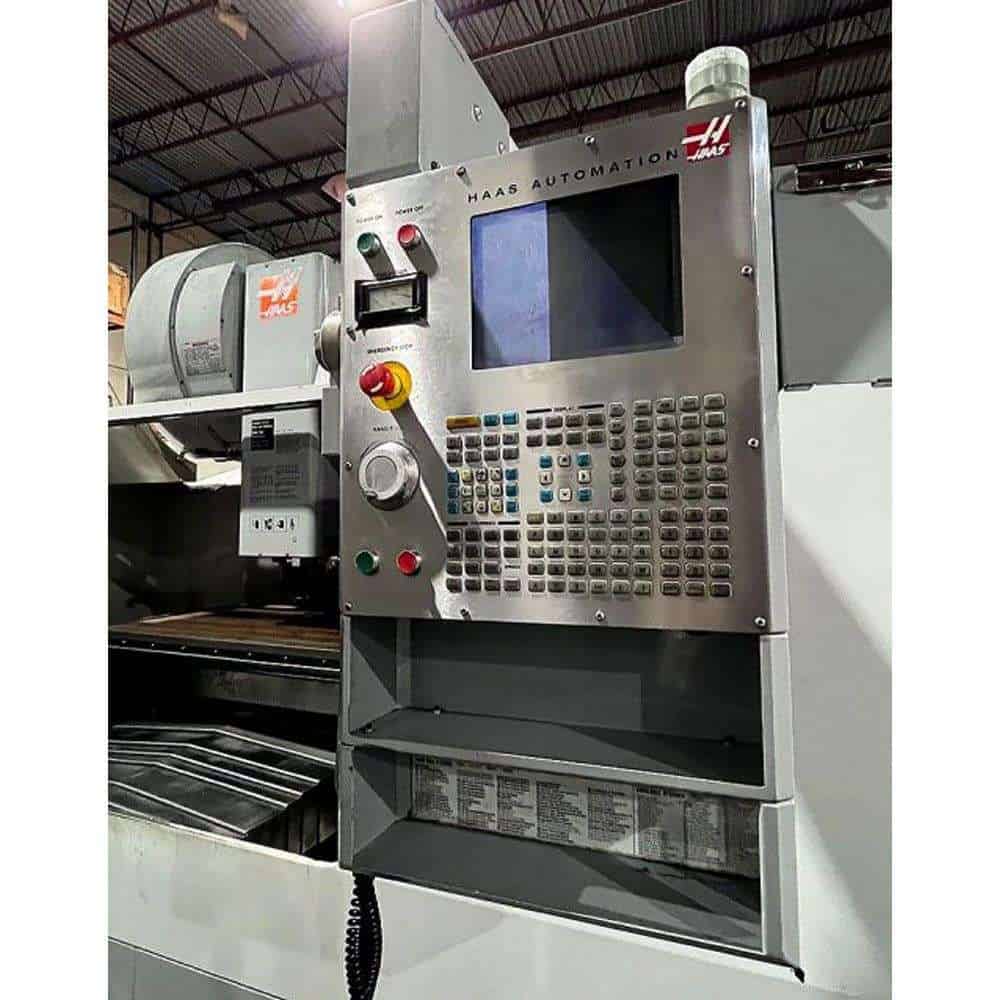

| Haas CNC Control |
| 7500 RPM High Torque Spindle |
| 30 HP 2 Speed Gear Drive |
| Linear Scales |
| Through Spindle Coolant |
| 30 Station Automatic Tool Changer |
| USB Drive |
| Expanded Memory |
| MPG Handwheel Control |
| Rigid Tapping |
| Spindle Orientation |
| Programmable Coolant |

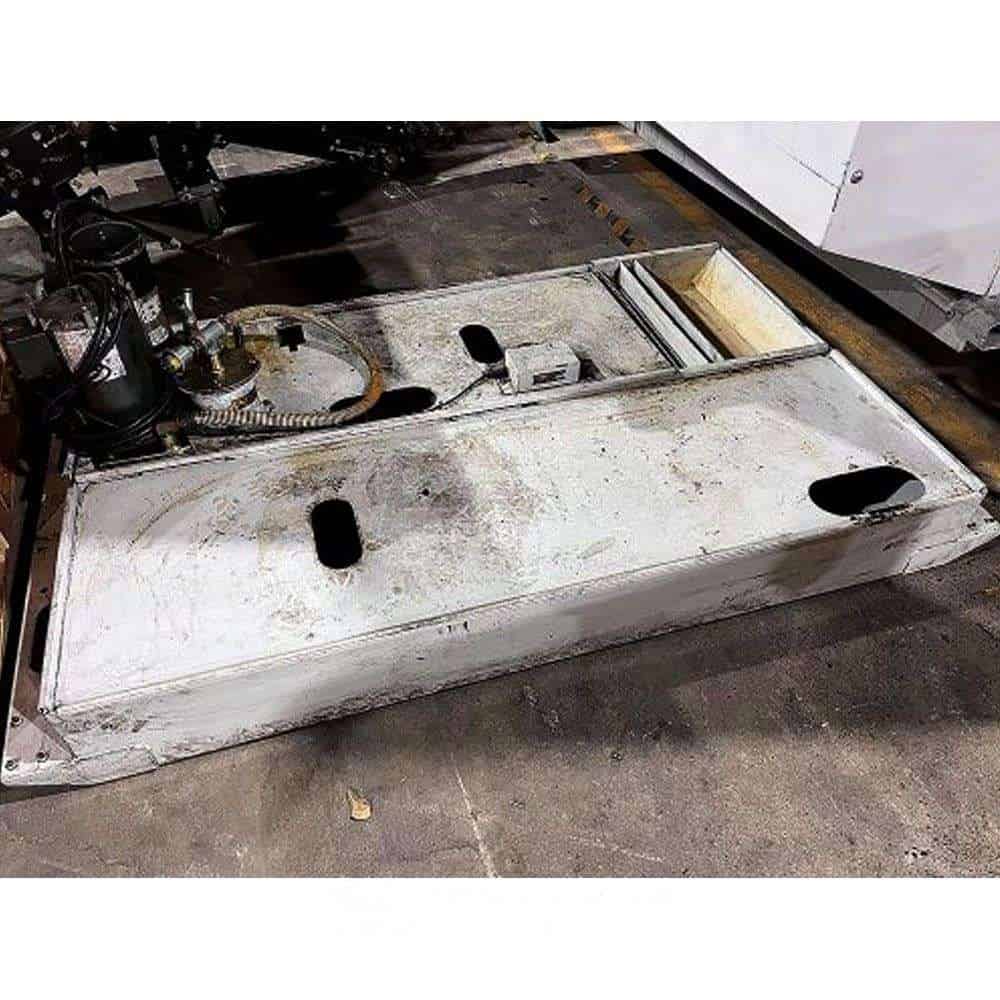

| Coolant System |
| Telescopic Way Covers |
| Chip Auger |
| Travels: |
|---|
| X-Axis: 84″ |
| Y-Axis: 40″ |
| Z-Axis: 30″ |
| Rapid Traverse rates Axis: 600 IPM |
| Cutting Feed Rates: 500 IPM |
| Spindle Nose to Table (Min.- Max.): 5″ – 35″ |

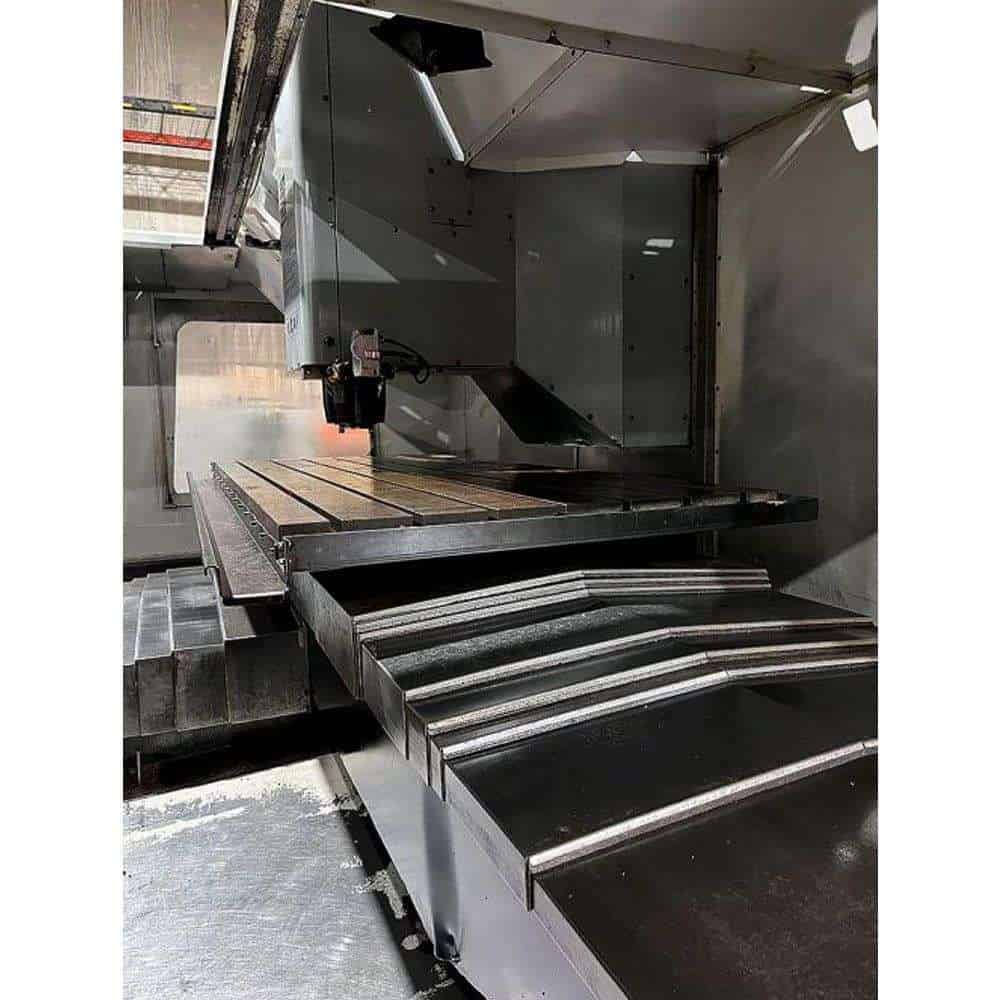

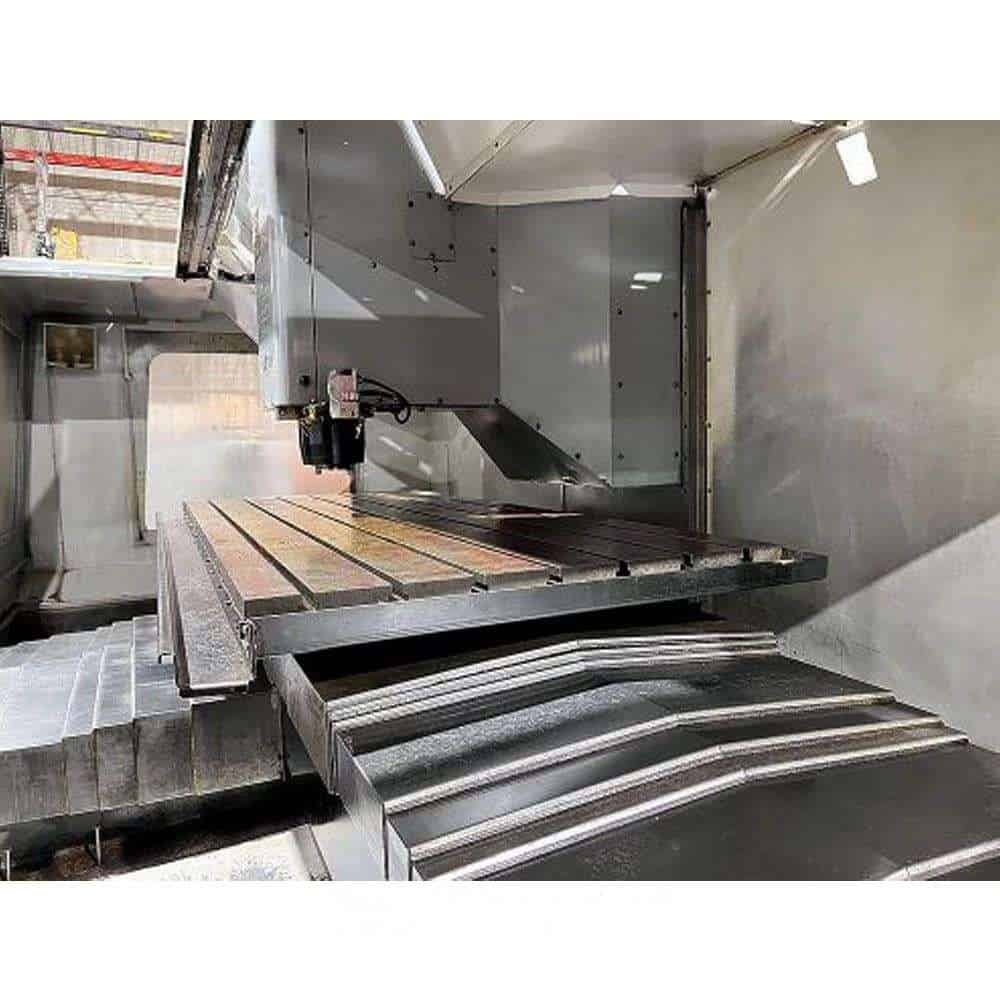

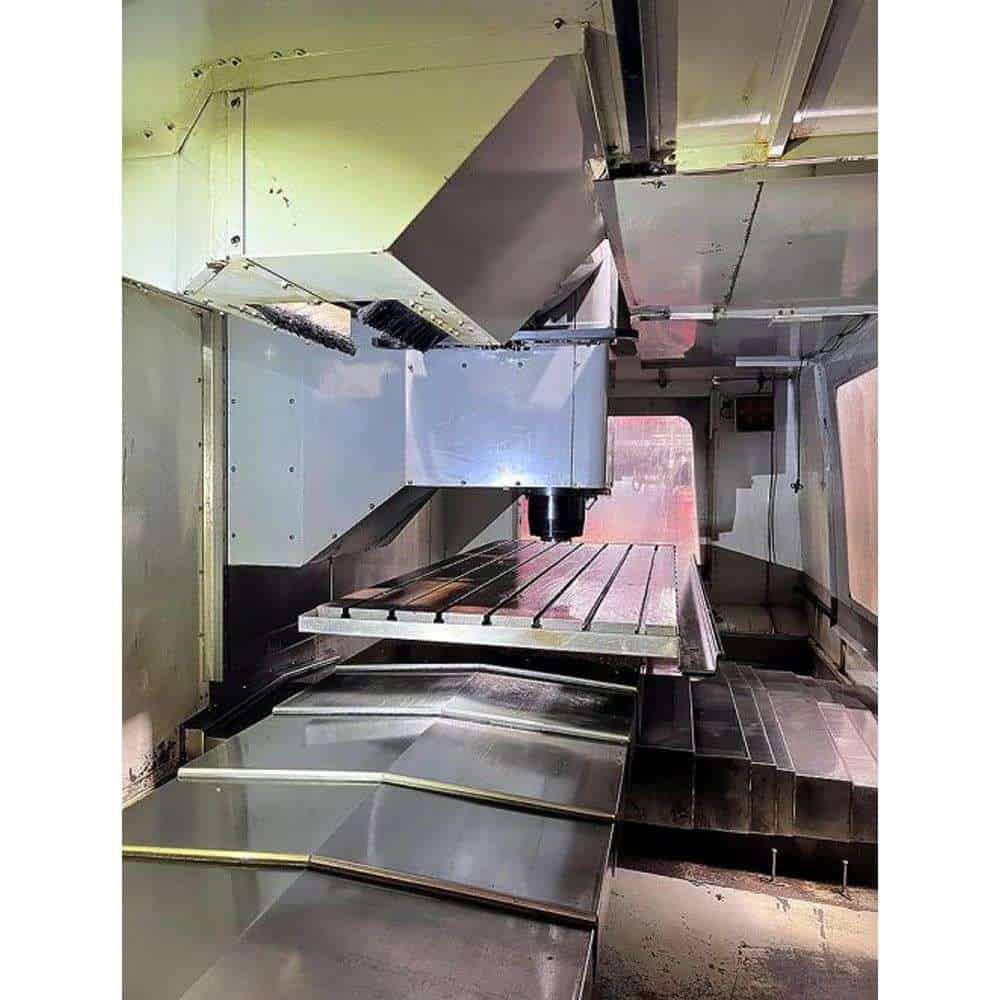

| Table: |
|---|
| Length: 84″ |
| Width: 36″ |
| Number of Std T-Slots: 7 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 4000 lbs |

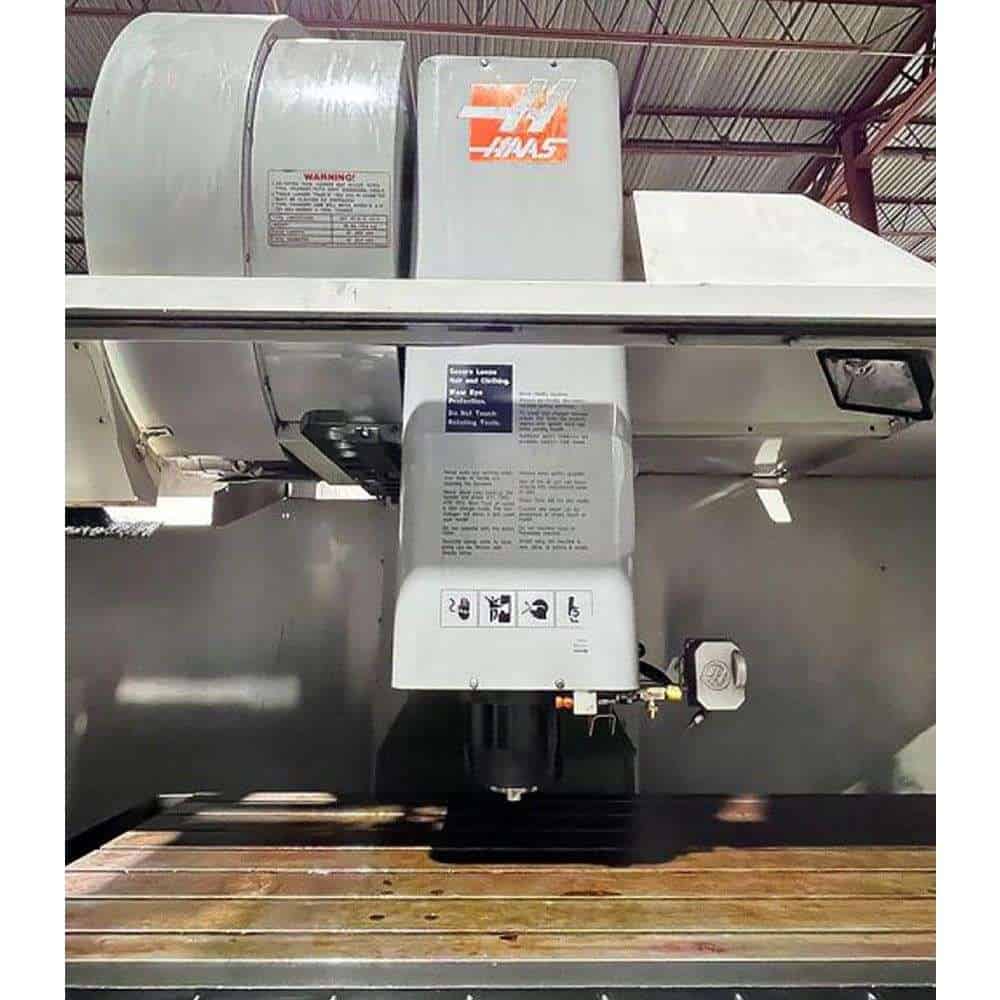

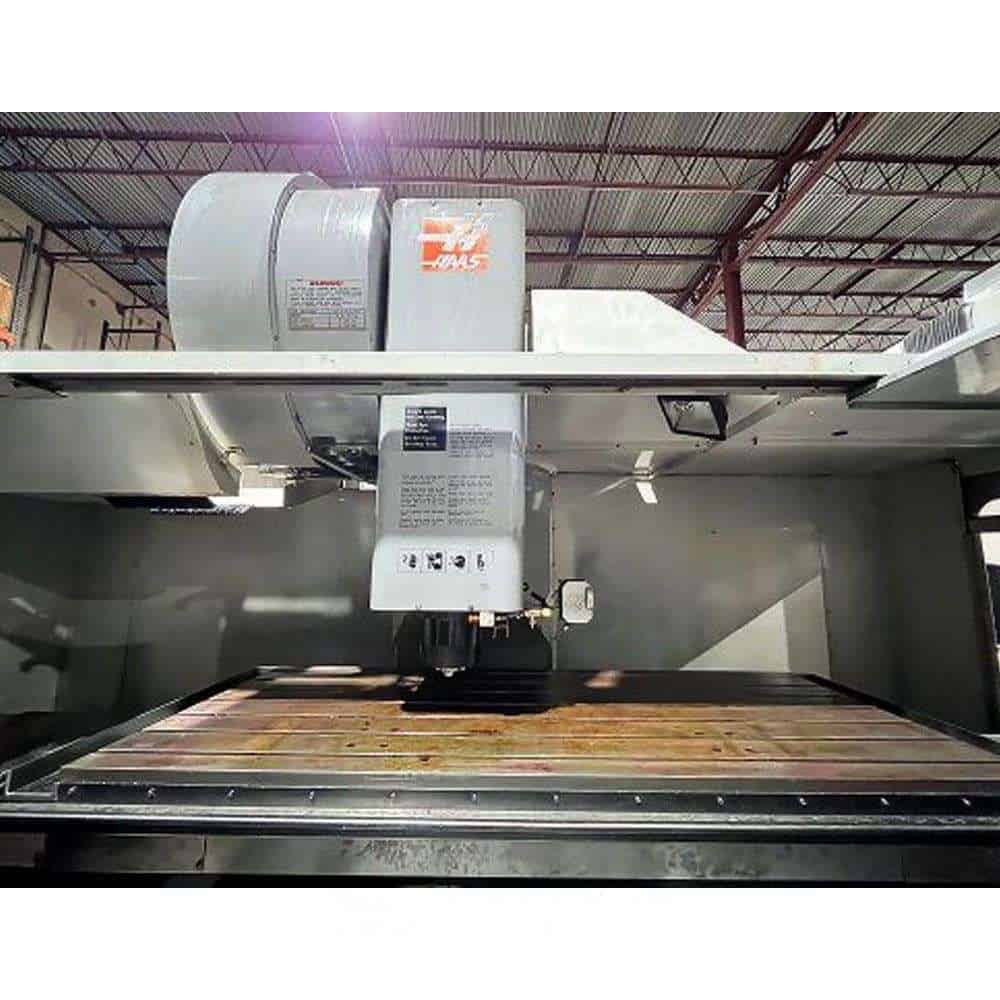

| Spindle: |
|---|
| Taper Size: 50 |
| Speed Range: 7500 RPM |
| Spindle Power: 30 HP |
| Vector Dual Drive Max Torque: 340ft-lb @ 700 RPM |

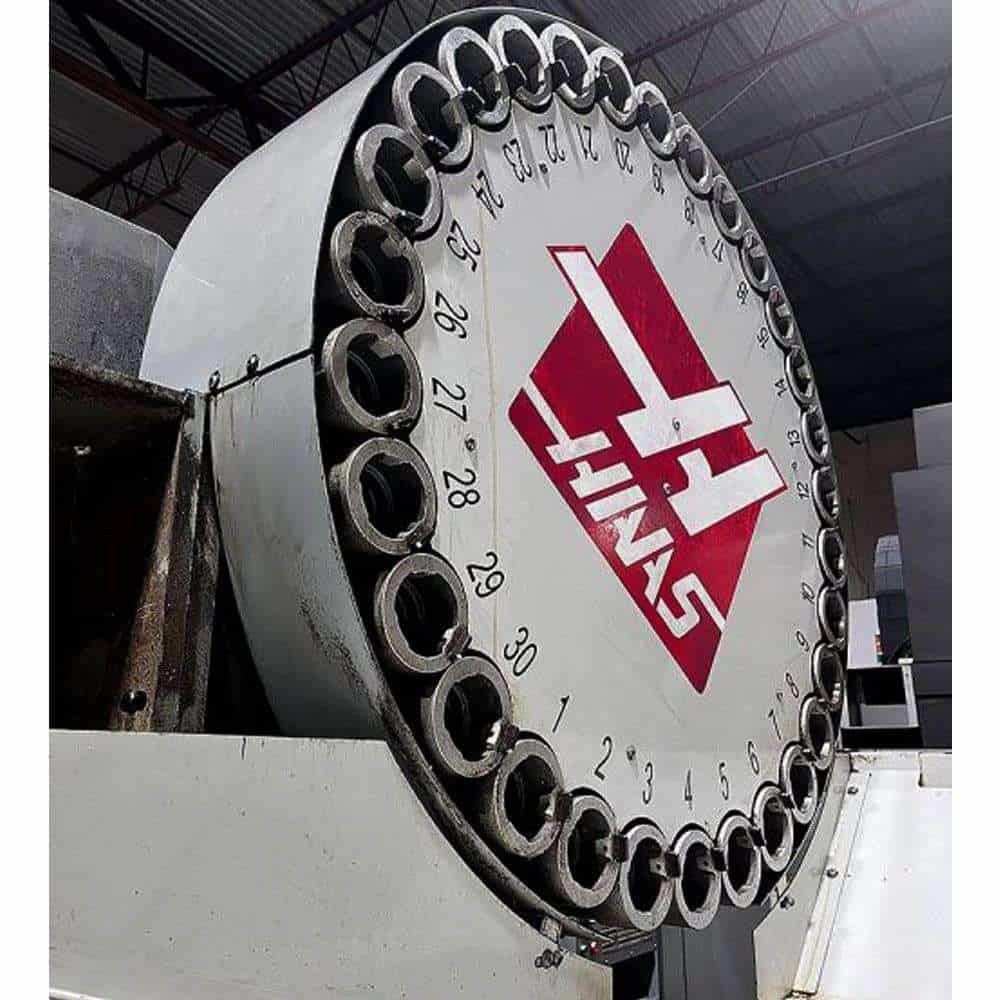

| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 30 lbs |
| Max Tool Diameter (Full): 4″ |
| Max Tool Diameter (adjacent empty): 10″ |
| Max Tool Length: 16″ |
| Tool Changing Time: Seconds: 4.2 seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 214″ x 120″ x 132″ High |
| Weight: 28900 lbs |
