Haas VF 9 Vertical Machining Center | |
---|---|

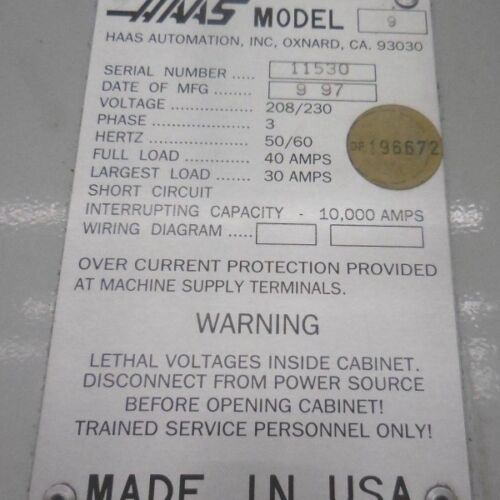

Make | Haas |
Model No. | VF-9 |
Year of Manufacture: | 1997 |
Serial # | 11530 |
Condition | Very Good |
All specifications are approximations and are subject to verification.
- Haas VF 9 Features:
- 4th Axis Ready
- 2-Speed Gear Box
- 22 HP High Torque Spindle
- Brushless Servo Motors
- Remote Jog Handle
- Full Enclosure
- Programmable Coolant
- 24 Tool Automatic Tool Changer
- Quick Code Programming
- Chip Auger, Coolant tank & pump
- Rigid Tapping
- Floppy Drive
- RS-232 Port
- Haas VF 9 Specifications:
- Travels:
- X-Axis: 84″
- Y-Axis: 40″
- Z-Axis: 30″
- Spindle Nose to Table (Min.- Max.): 4″ – 34″
- Table:
- Length: 84″
- Width: 36″
- Max Weight on Table: 4000 lbs
- Spindle:
- Taper Size: No. 40
- Speed Range: 60 – 7500 RPM
- Spindle Power: 22 HP
- Automatic Tool Changer:
- Capacity: 32
- Max Tool Weight: 12 lbs
- Max Tool Length: 16″
- Tool-to-Tool(avg.): 2.8 seconds
- Chip to Chip(avg.): 4.7 seconds
- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 181″ x 114″ x 105″ High
- Weight: 26,000 lbs

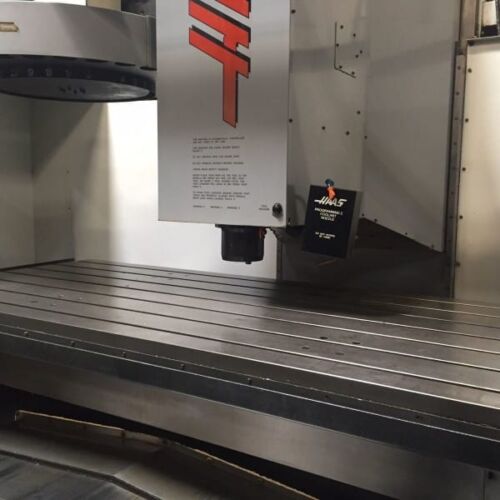

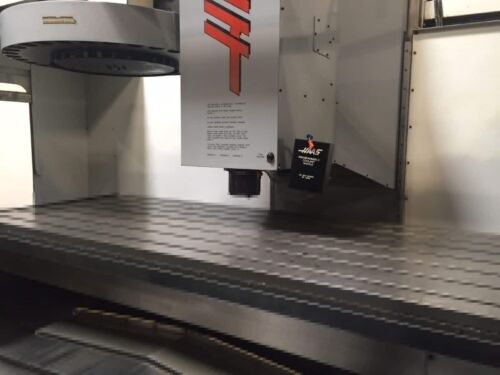

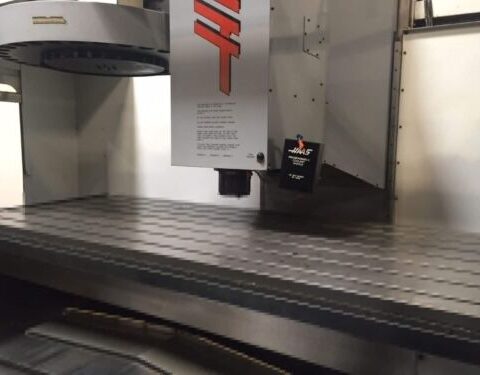

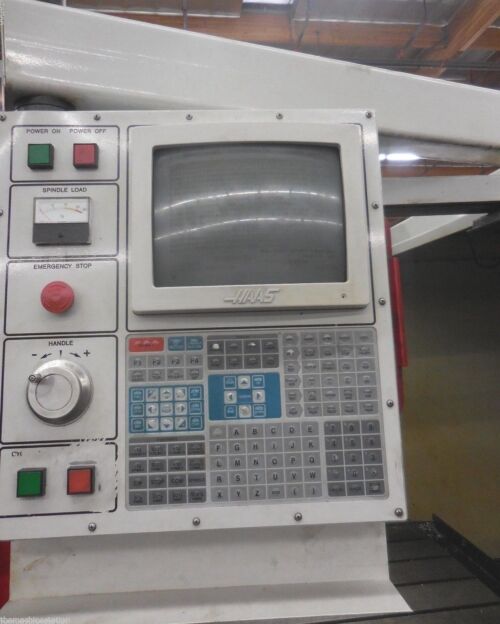

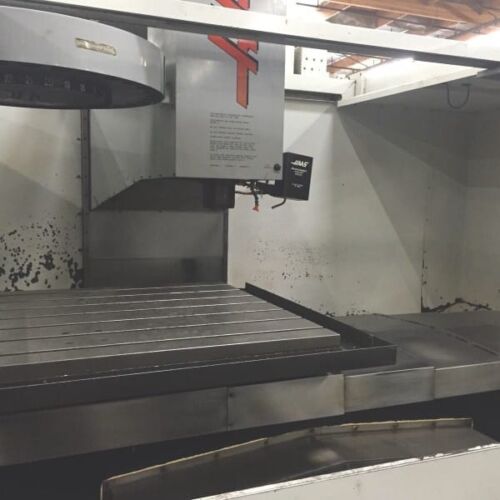

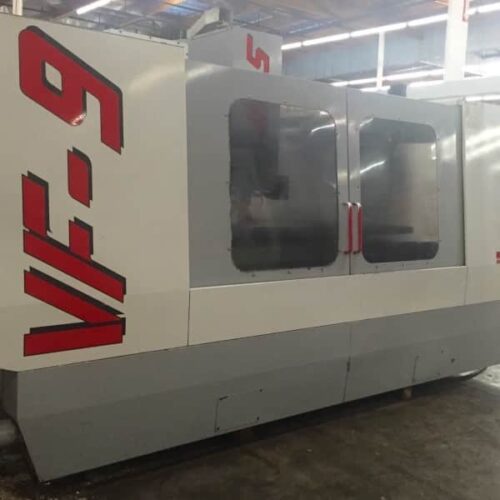

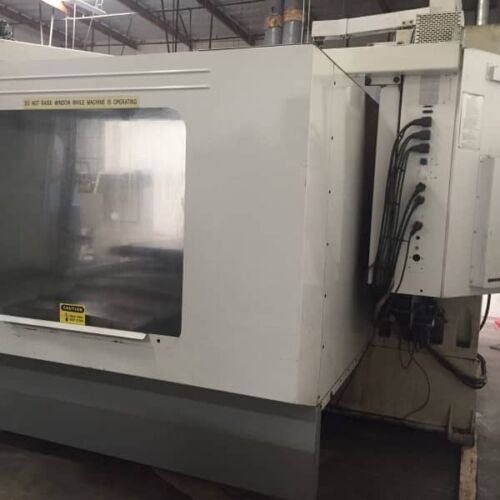

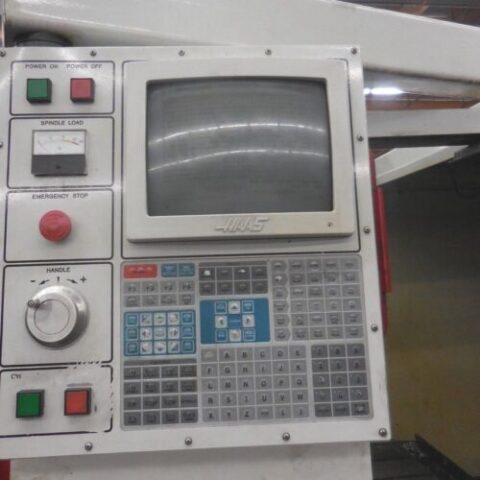

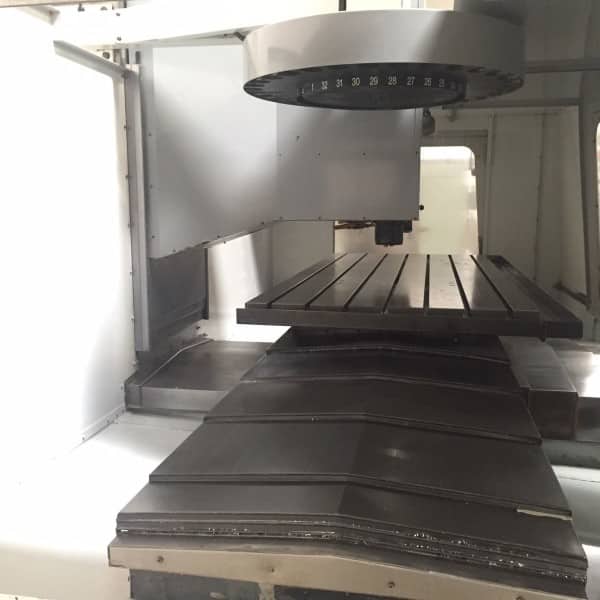

Haas VF 9 Comes as shown in pictures.
