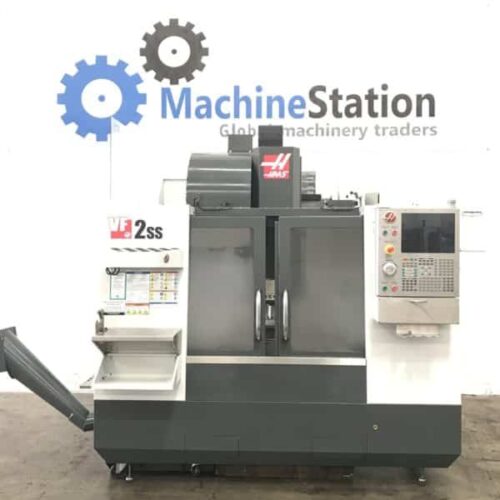

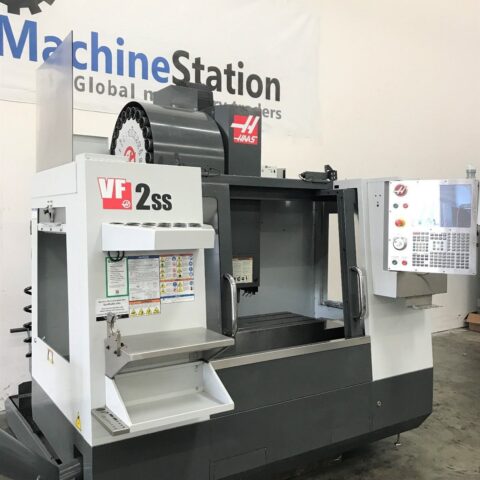

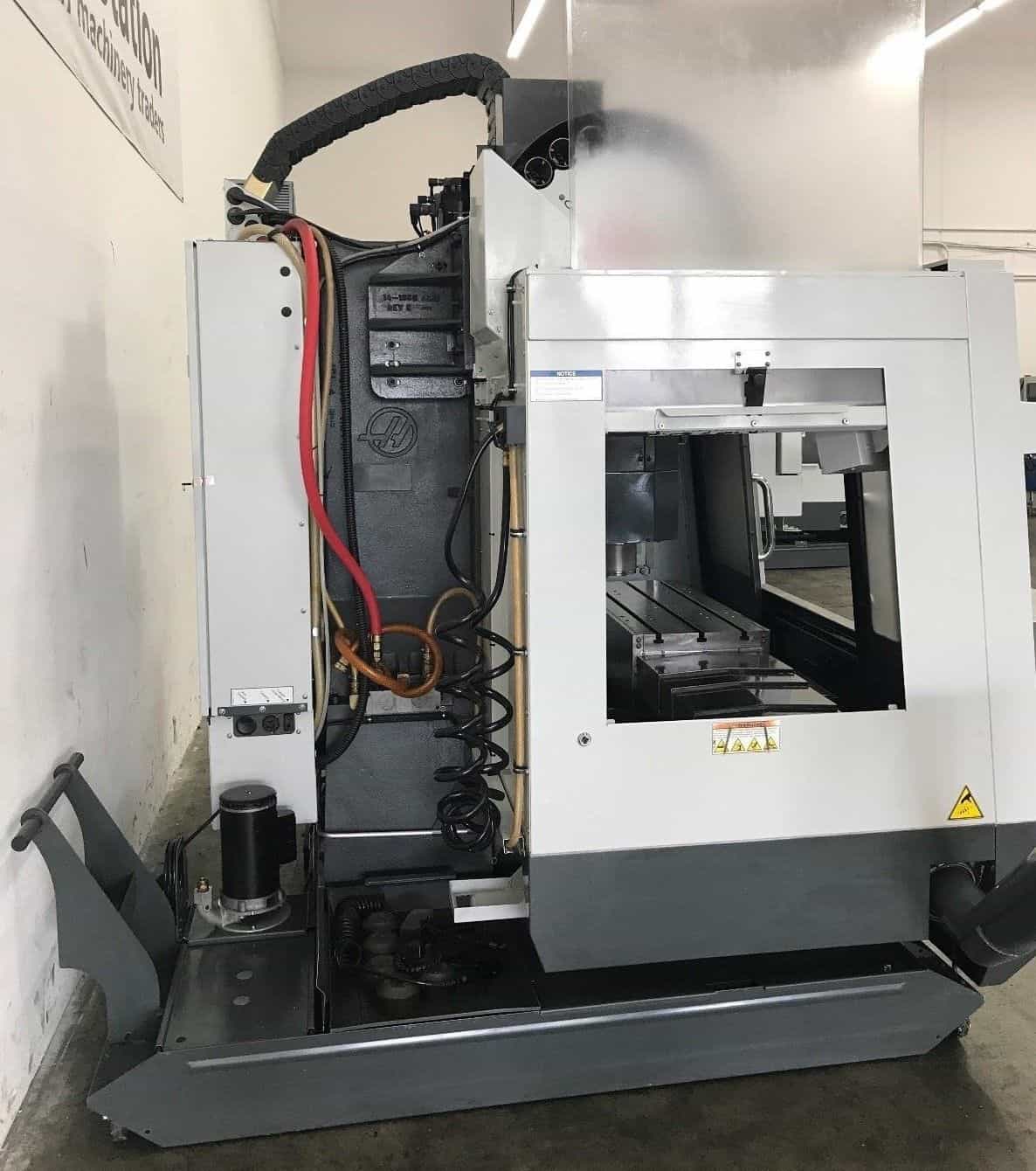

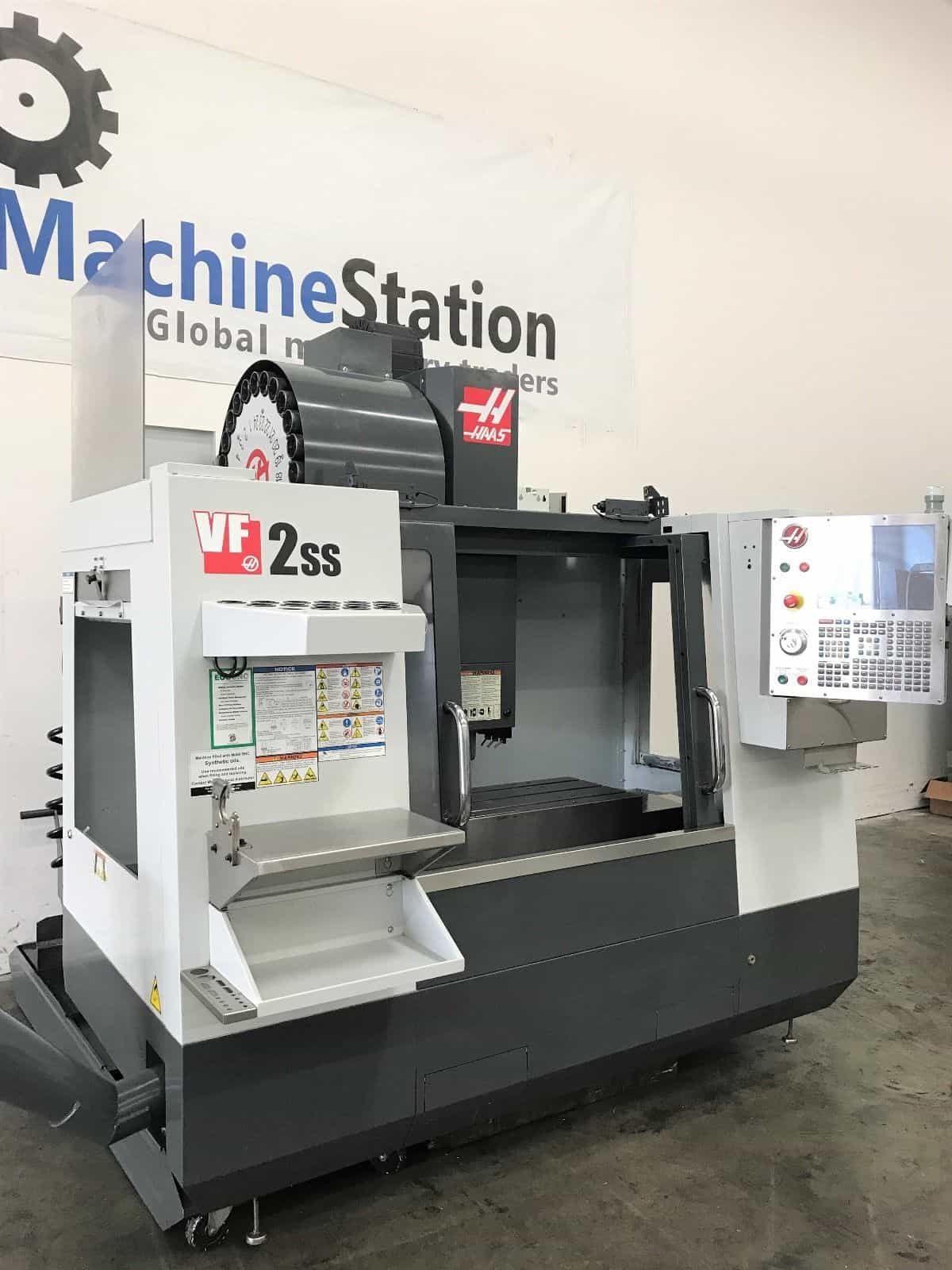

Haas VF2SS CNC Vertical Machining Center
Out of stock
| HAAS VF2SS CNC VERTICAL MACHINING CENTER |
| Make |
Haas |
| Model No. |
VF-2SS |
| Year of Manufacture: |
10/2011 |
| Serial # |
1089496 |
| Condition |
Very Good |
- HAAS VF2SS CNC Equipped With:
- 12,000 RPM Direct Drive Spindle
- 1400 Inch Per Min. Rapid
- Rigid Tapping
- USB Drive
- User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
- Brushless servo drive motors on all axis
- 24 + 1 automatic high speed tool changer
- Programmable coolant
- Telescopic way covers
- Chip auger
- Flood Coolant system
- Tooling Shelves
- Tool Clamping Vise
- Levelling Pads
- Original Manuals
- HAAS VF2SS CNC Specifications:
- Travels:
- X-Axis: 30″
- Y-Axis: 16″
- Z-Axis: 20″
- Rapid Traverse Rates: 1400 Inch Per Minute
- Cutting Feed Rates: 833 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 24″

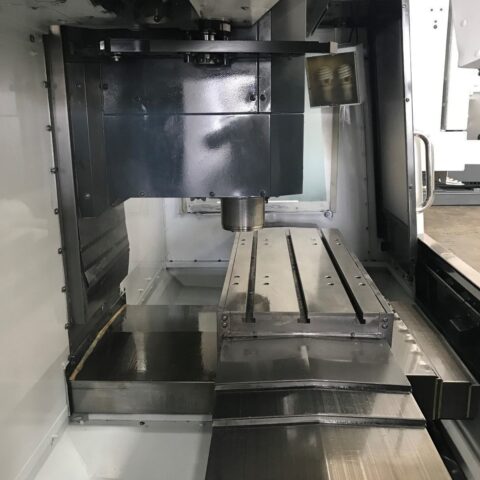

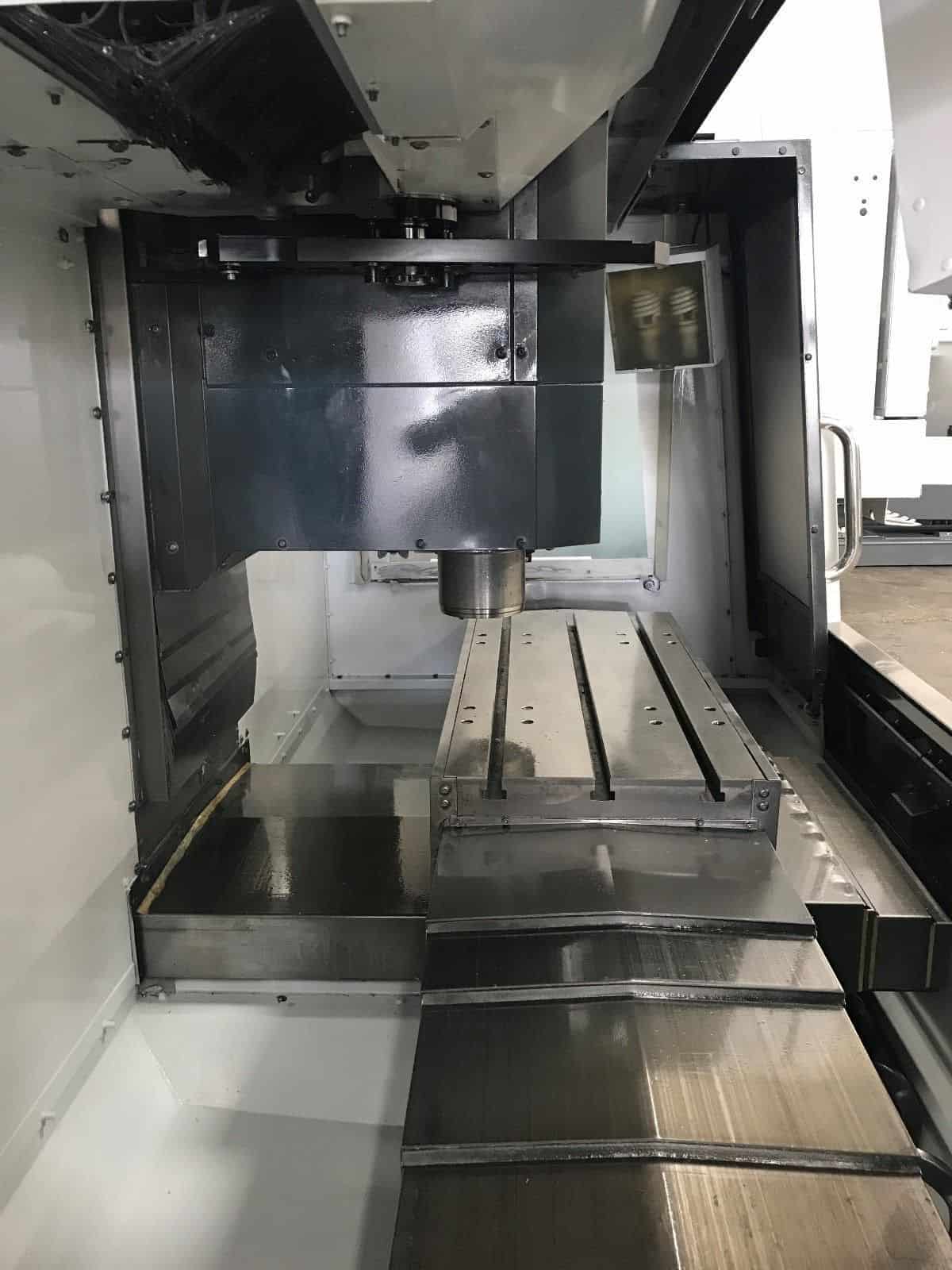

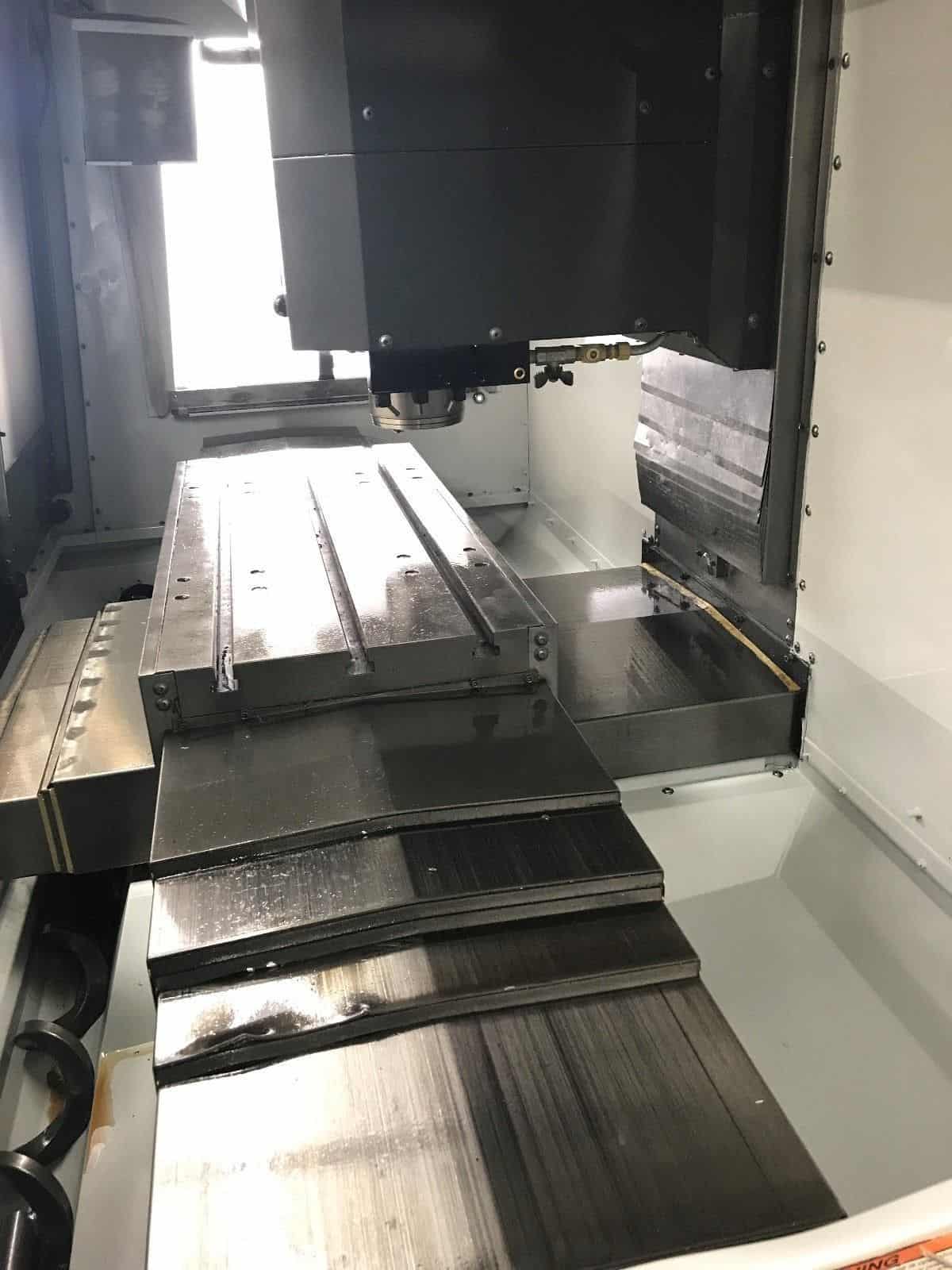

- Table:
- Length: 36″
- Width: 14″
- Number of Std T-Slots: 3
- T-Slot Width: 5/8″
- Max Weight on Table: 1500 lbs

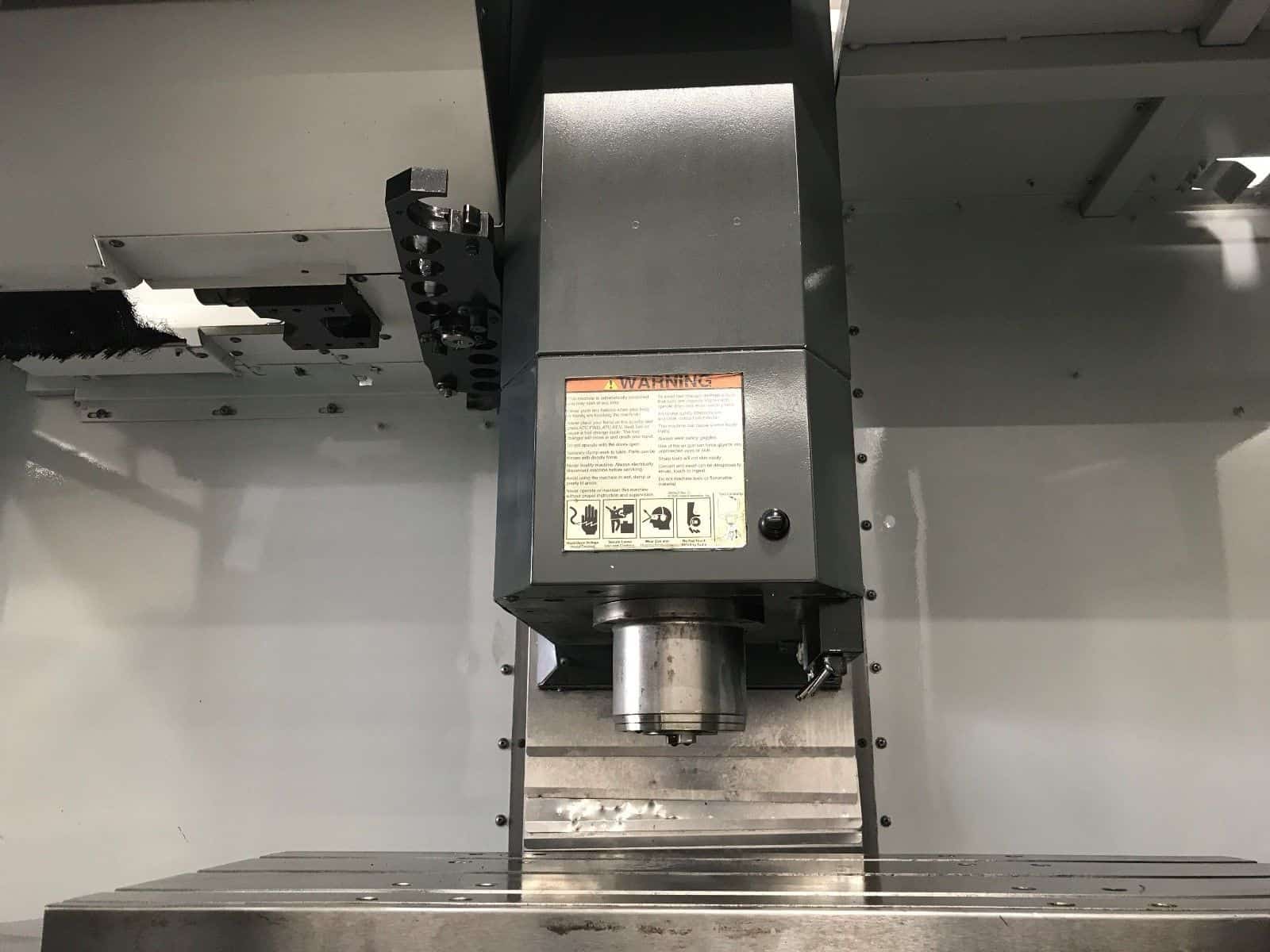

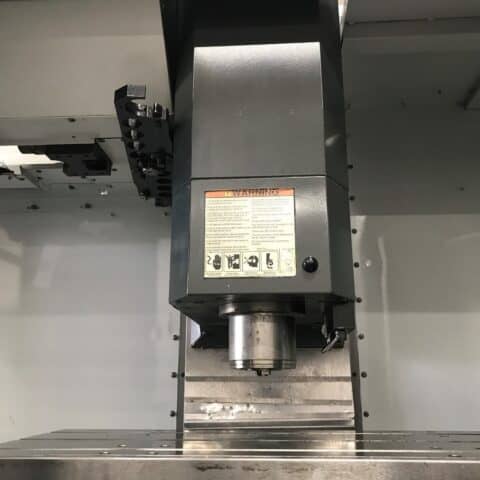

- Spindle:
- Taper Size: 40
- Speed Range: 0 – 12,000 RPM
- Spindle Power: 30 HP
- Max Torque: 90ft-lb @ 2000RPM
- Automatic Tool Changer:
- Capacity: 24 + 1
- Max Tool Weight: 12 lbs
- Max Tool Dia: 5″
- Max Tool Length: 11″
- Tool-to-Tool (avg.): 1.6 seconds
- Chip to Chip (avg.): 2.2 seconds
- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 89″ x 92″ x 104″ HighWeight: 9200 lbs
