Haas VF3 VMC 4TH Axis Ready

This One Owner Machine was cutting Aluminium only. Equipped with 7500rpm, Very Clean Machine, 4th Axis Ready. Cutting Hours 3055 Only. On our Floor now, fully powered / tested & is in Great working condition.”

Share

Description

HAAS VF3 VMC 4TH AXIS READY

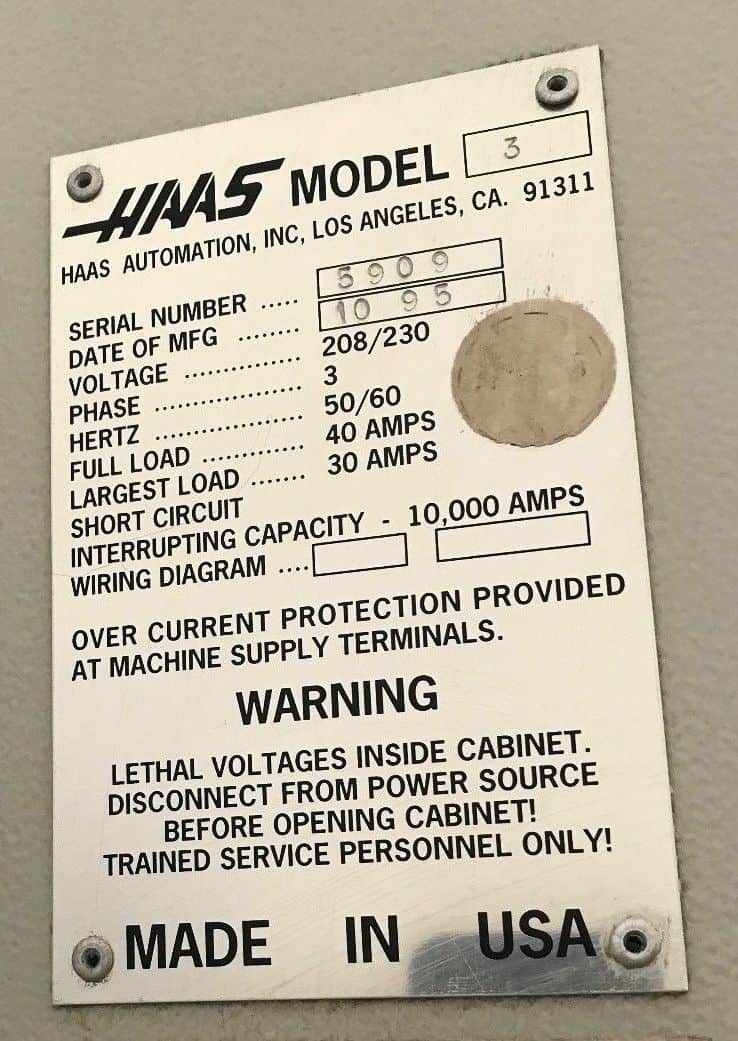

Make Haas
Model No. VF-3
Year of Manufacture: 1995

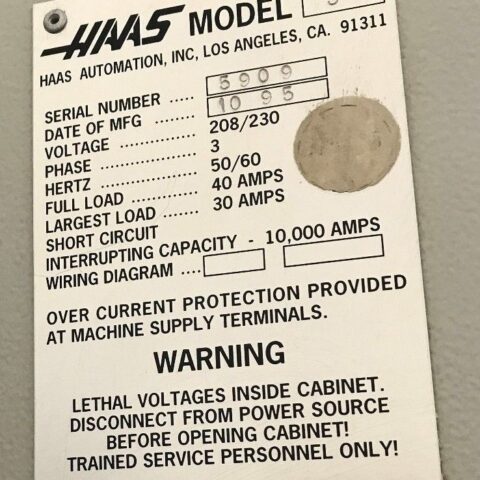

Serial # 5909
Condition Very Good

“This One Owner Machine was cutting Aluminium only. Equipped with 7500rpm, Very Clean Machine, 4th Axis Ready. Cutting Hours 3055 Only. On our Floor now, fully powered / tested & is in Great working condition.”

  • HAAS VF3 VMC Features:
  • 7.5kw Mitsubishi Spindle Drive Upgrade
  • 4th Axis Ready ( drives and wiring installed )
  • Rigid Tapping
  • User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
  • Brush-type servo drive motors on all axis
  • 20 + 1 automatic tool changer
  • Programmable coolant
  • Telescopic way covers
  • Chip auger
  • Flood Coolant system
  • HAAS VF3 VMC Specifications:
  • Travels:
  • X-Axis: 40″
  • Y-Axis: 20″
  • Z-Axis: 25″
  • Rapid Traverse Rates: 7100 Inch Per Minute
  • Cutting Feed Rates: 500 Inch Per Minute
  • Spindle Nose to Table (Min.- Max.): 4″ – 29″

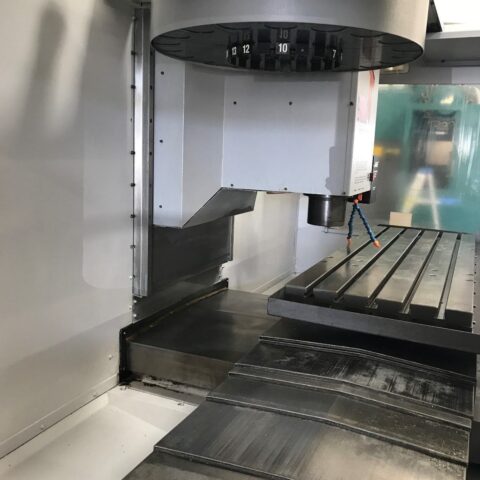

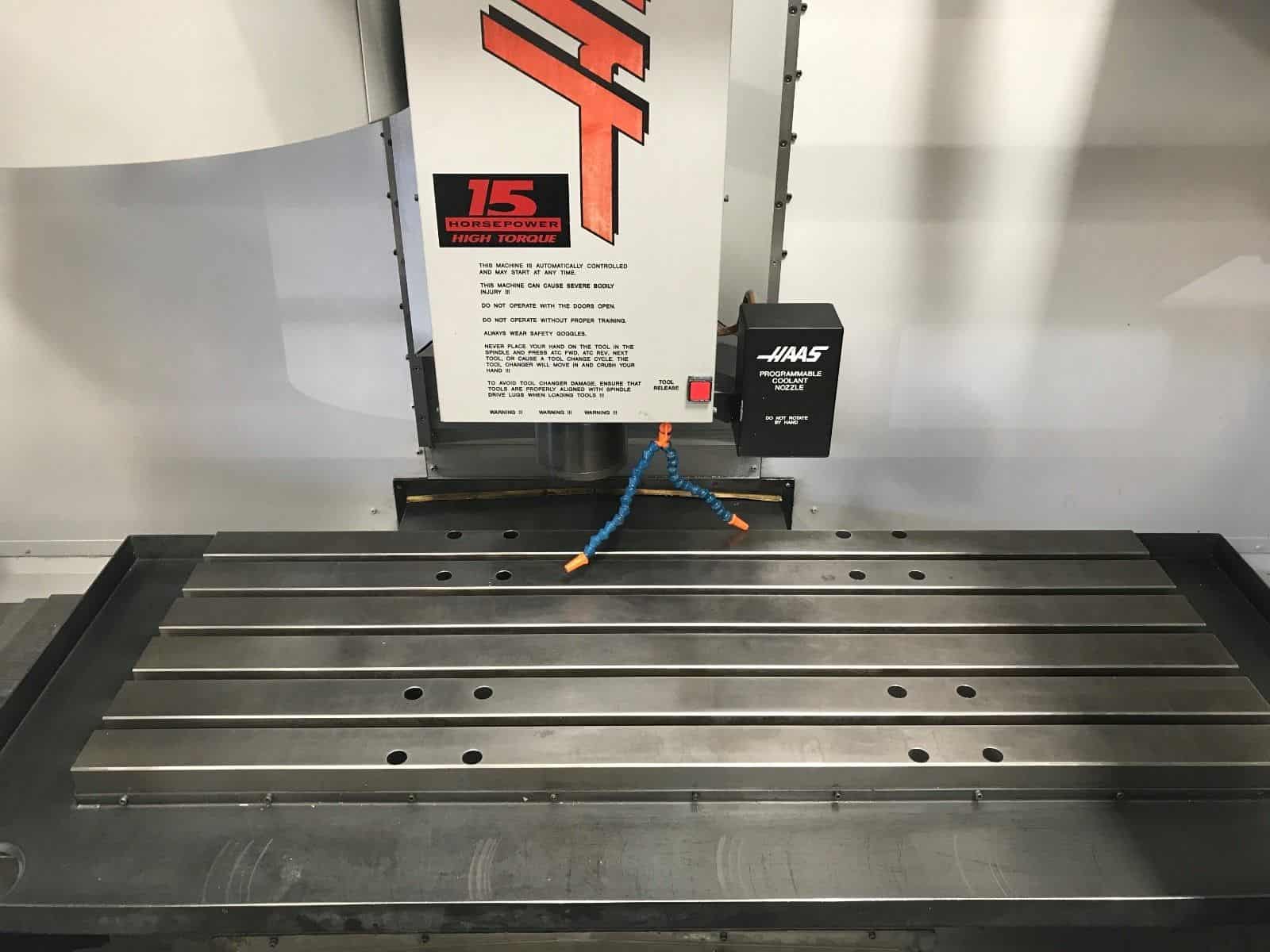

  • Table:
  • Length: 48″
  • Width: 18″
  • Number of Std T-Slots: 5
  • T-Slot Width: 5/8″
  • Max Weight on Table: 1500 lbs
  • Spindle:
  • Taper Size: CAT 40
  • Speed Range: 0 – 7500 RPM
  • Spindle Power: 7.5kw Mitsubishi A220E Spindle Drive
  • Max Torque: 90ft-lb @ 2000RPM

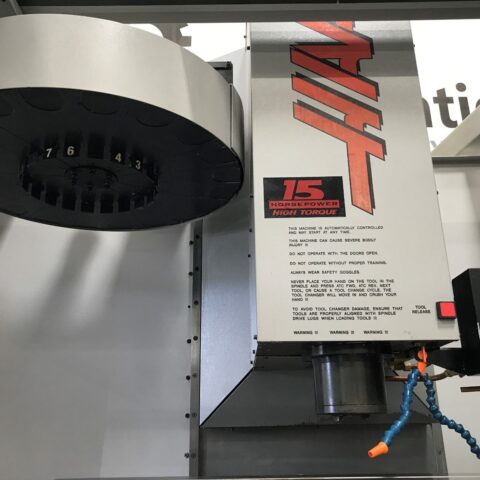

  • Automatic Tool Changer:
  • Capacity: 20 + 1
  • Max Tool Weight: 12 lbs
  • Max Tool Dia: 3.6″
  • Max Tool Length: 13″
  • Tool Changing Time: 3.2 Seconds
  • General:
  • Air Required: 100 psi, 4 scfm
  • Power: 220v / 66FLA / 3-Phase
  • Overall Dimensions: 158″ x 98″ x 118″ High
  • Weight: 22000 lbs

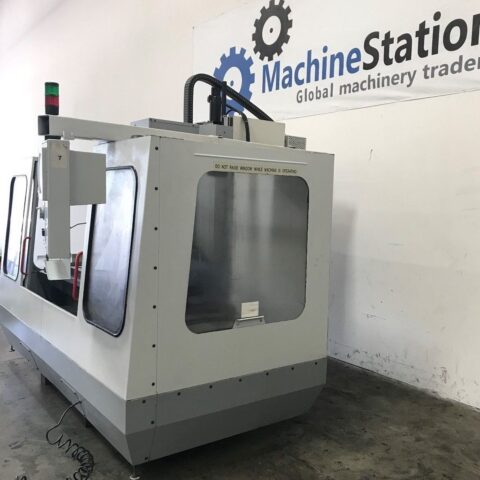

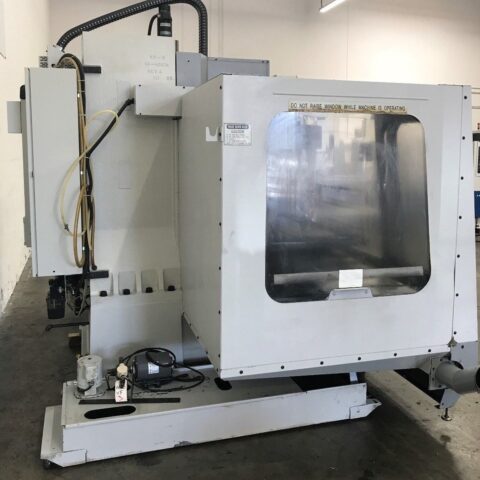

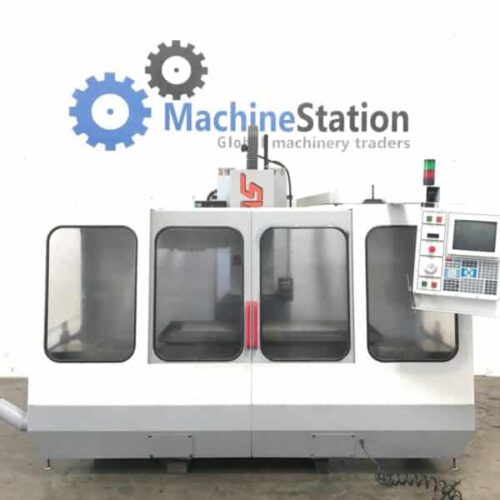

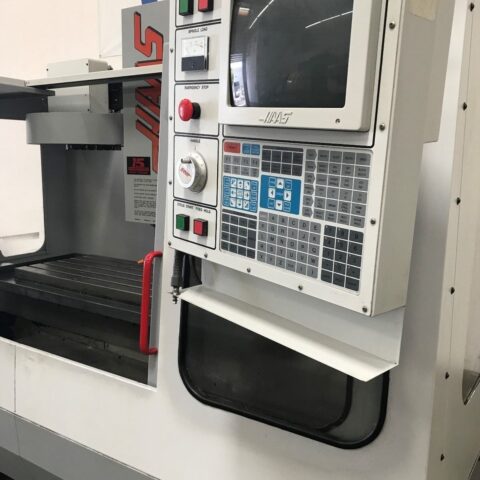

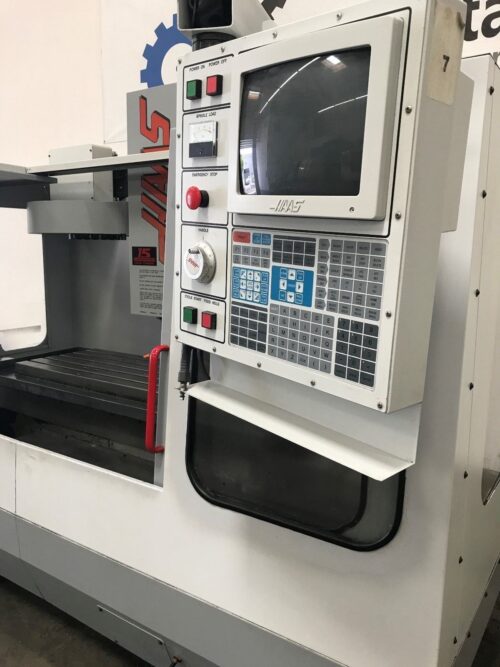

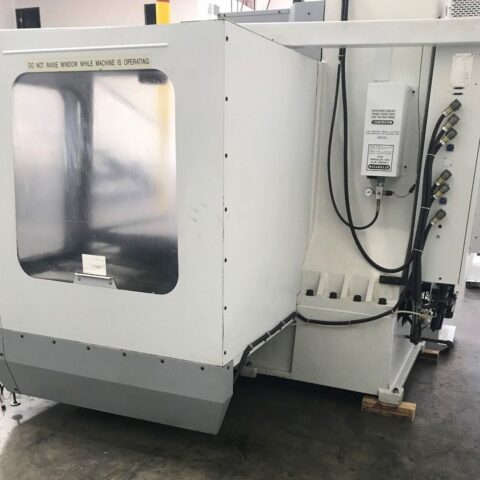

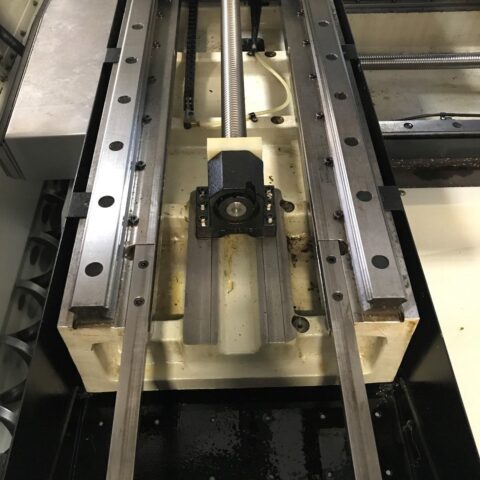

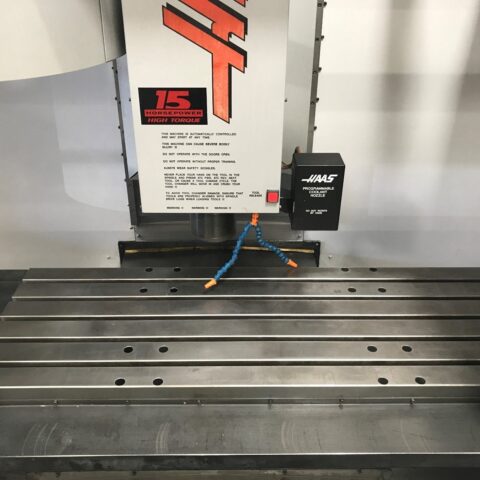

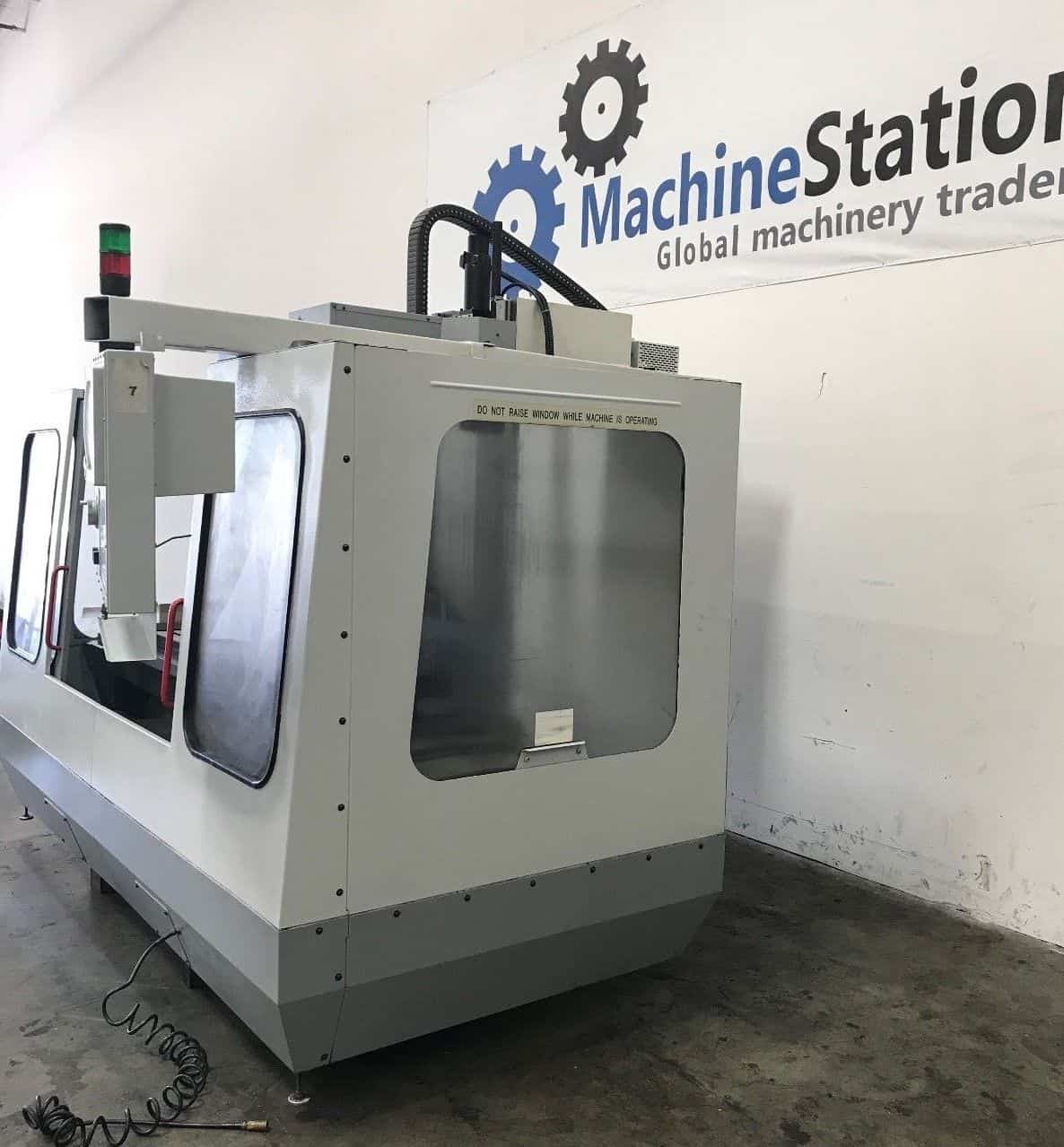

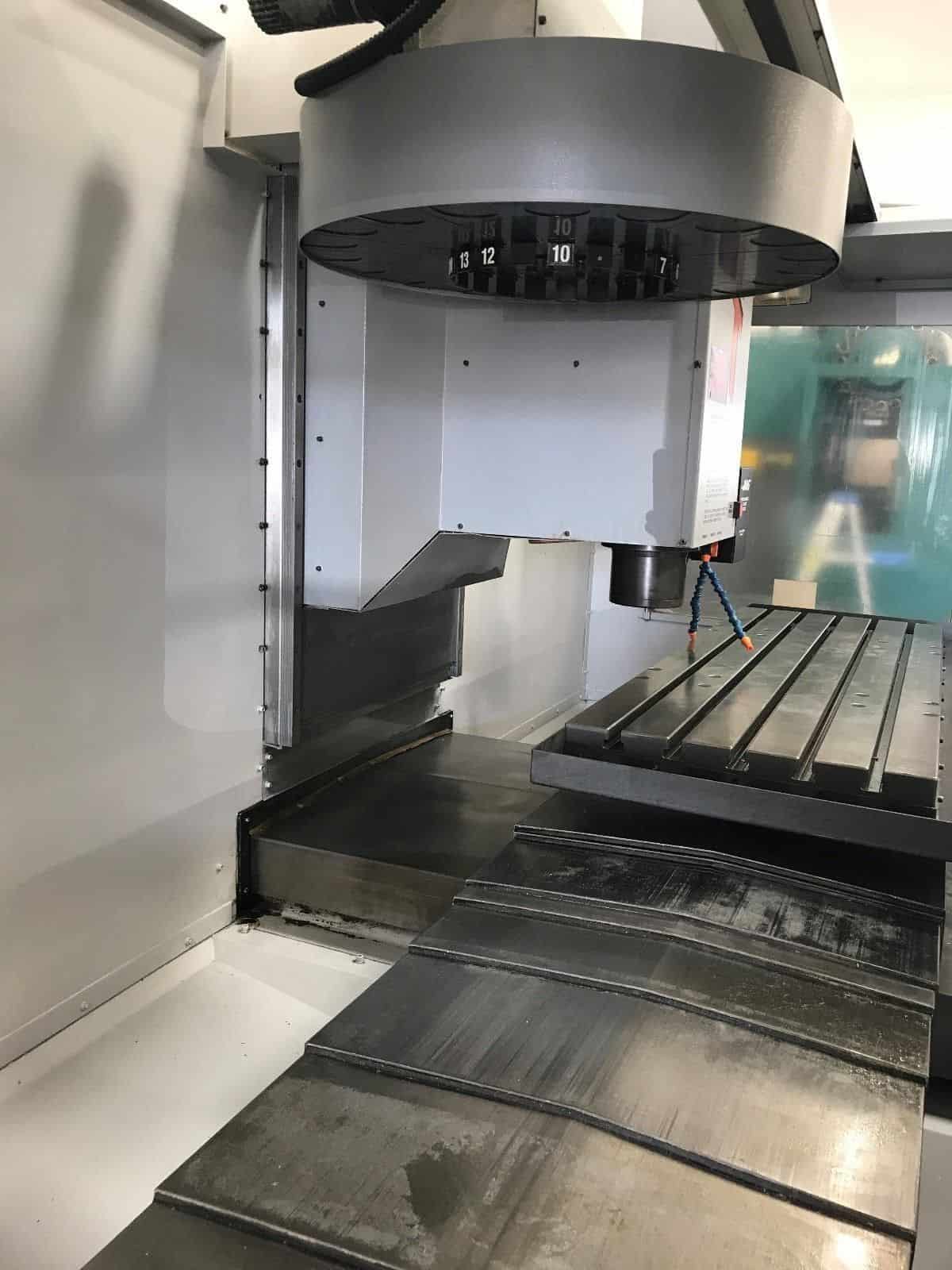

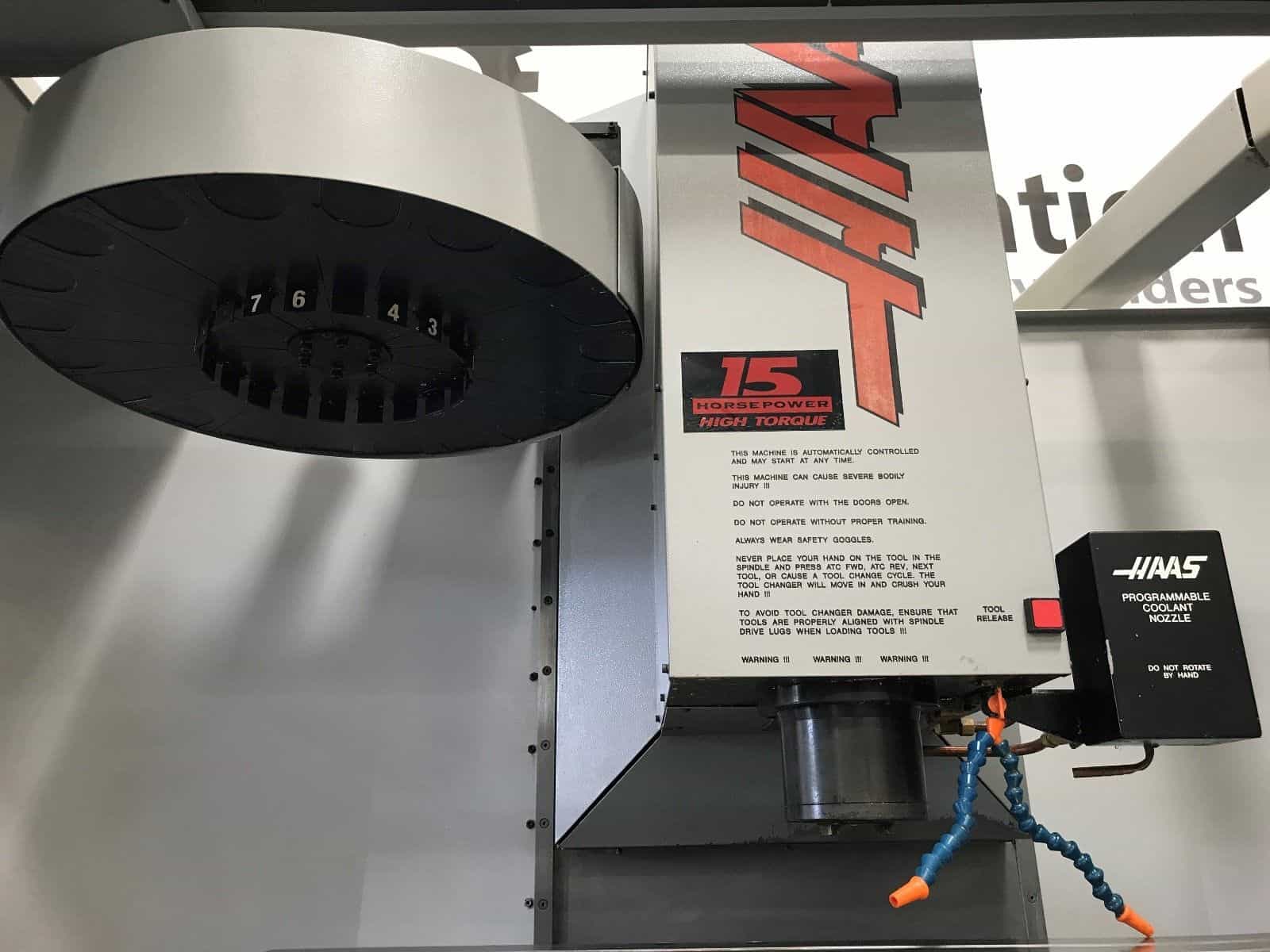

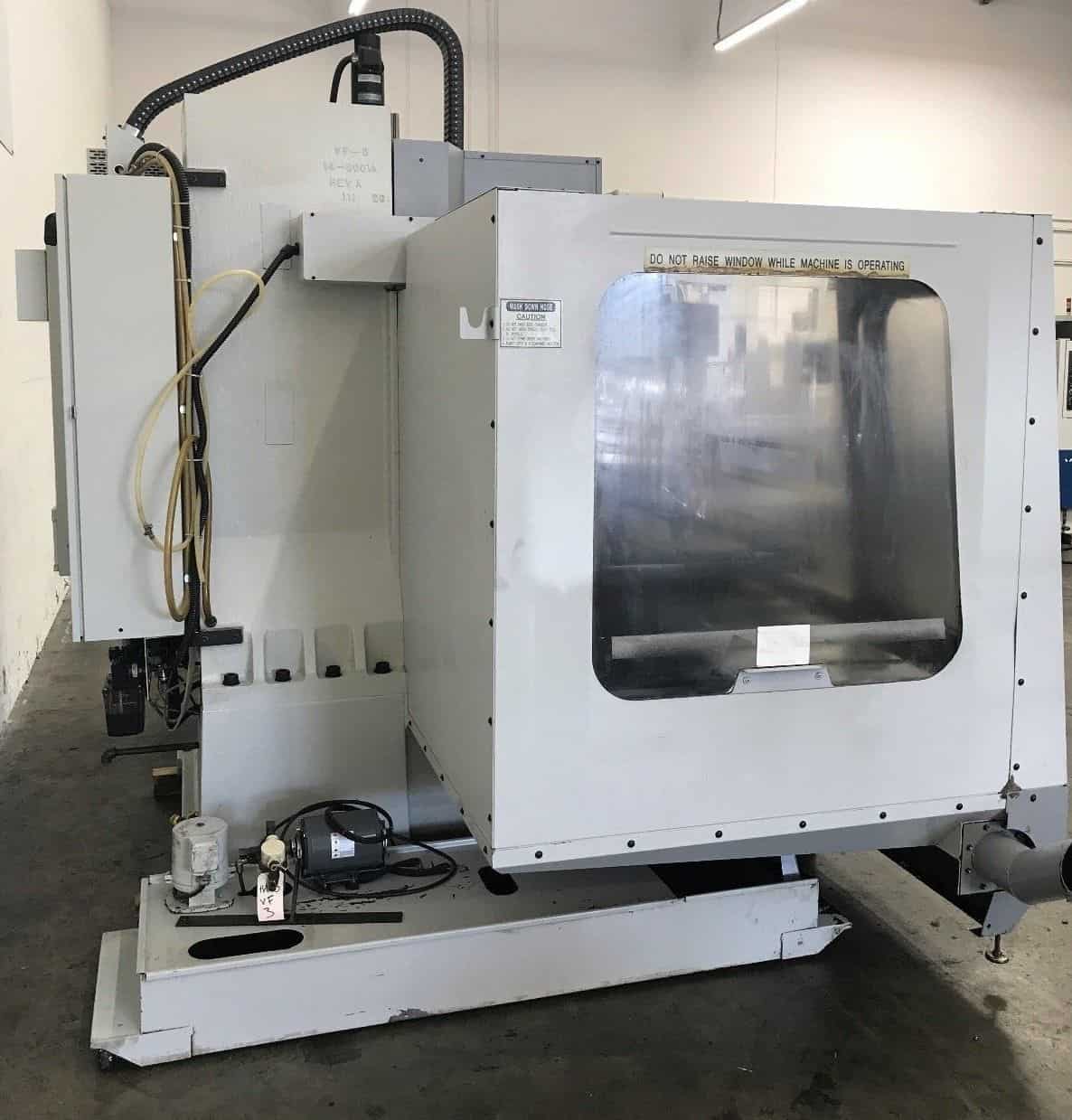

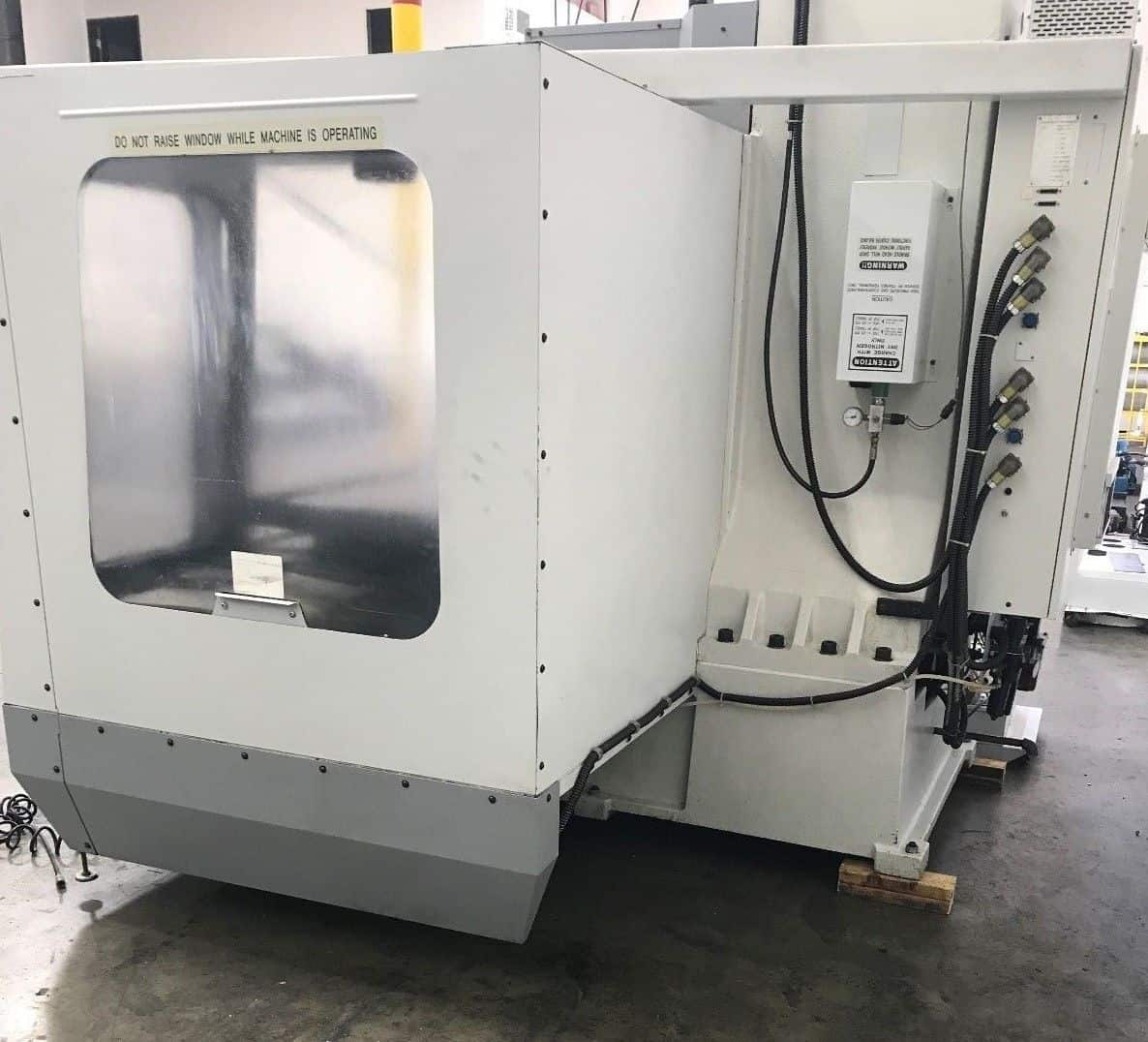

HAAS VF3 VMC Comes as shown in pictures..
