Haas VM-3 Vertical Machining Center

Out of stock

SKU:	1961
Make/Model:	Haas VM-3
Video:	[fusion_button link=”https://www.youtube.com/watch?v=tLwy3_9xMtk” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 1961

HAAS VM-3 VERTICAL MACHINING CENTER
Make	Haas
Model No.	VM-3
Year	2008
Serial #	1065657
Condition	Very Good

All specifications are approximations and are subject to verification.

Haas VM-3 Vertical Machining Center Features:
Haas CNC Control with 15″ Color LCD
12000 RPM Spindle
4th Axis Ready
Linear scales
24 + 1 Automatic Side Mount tool changer
MPG Control with Display
Wireless Probing system Ready
High Speed Machining
USB Drive
Expanded Memory
Rigid Tapping
Advanced Tool Management
Power Failure Detection Module
User Definable Macros
Spindle Orientation
Coordinate Rotational Scaling
Brush-type servo drive motors on all axis
Programmable coolant
Telescopic way covers
Chip auger

Haas VM-3 Vertical Machining Center Specifications:
Travels:
X-Axis: 40″
Y-Axis: 26″
Z-Axis: 25″
Rapid Traverse Rates: 710 Inch Per Minute
Cutting Feed Rates: 500 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 29″

Table:
Length: 54″
Width: 25″
Die Mold Jig Table
Max Weight on Table: 4000 lbs

Spindle:
Taper Size: 40
Speed Range: 12,000 RPM
Spindle Power: 30 HP

Automatic Tool Changer:
Capacity: 24 Side Mount
Max Tool Weight: 12 lbs
Max Tool Dia: 5″
Max Tool Length: 13″
Tool Changing Time: 2.6 Seconds

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 125″ x 93″ x 102″ High
Weight: 15300 lbs

“No Charges for loading at list Price”

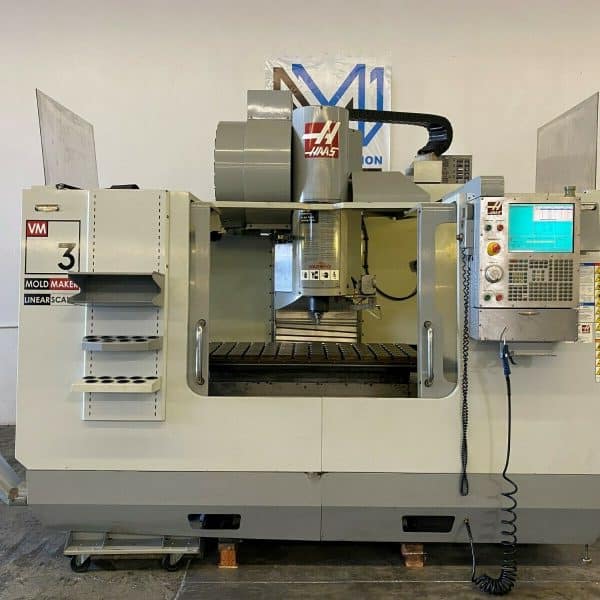

Haas VM-3 Vertical Machining Center Comes as shown in pictures..
