*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

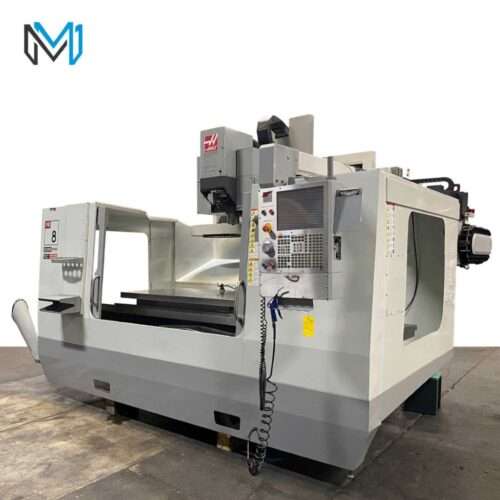

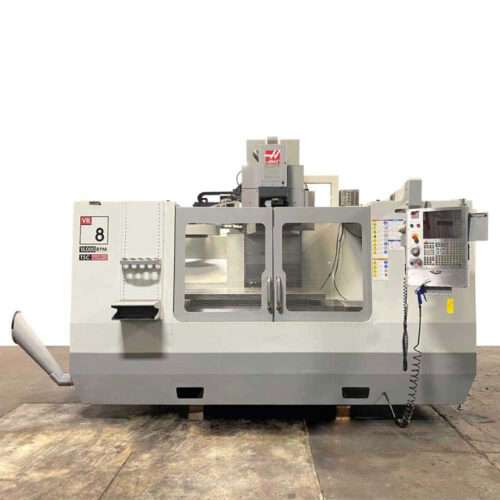

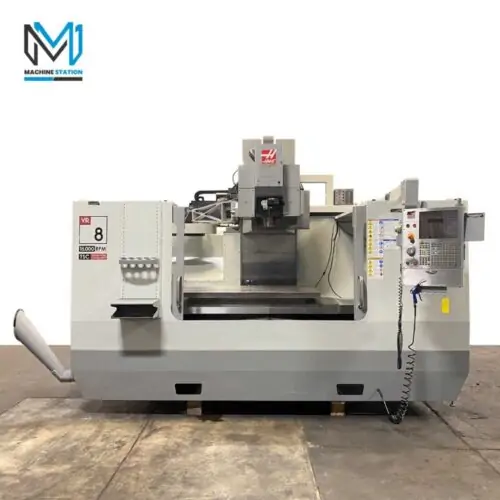

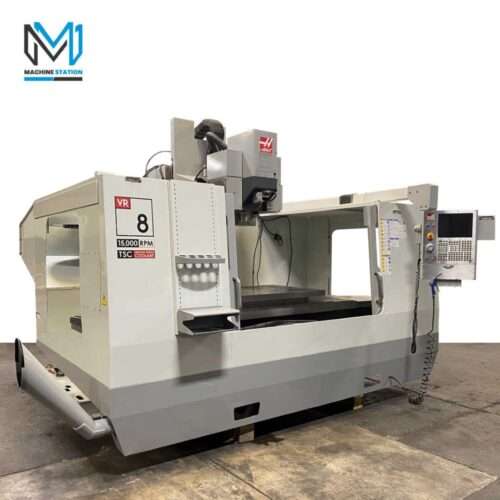

| Make: | Haas |
| Model: | VR-8 |
| Year: | 2008 |
| Condition: | Used – Good |
| Equipped With: |
|---|

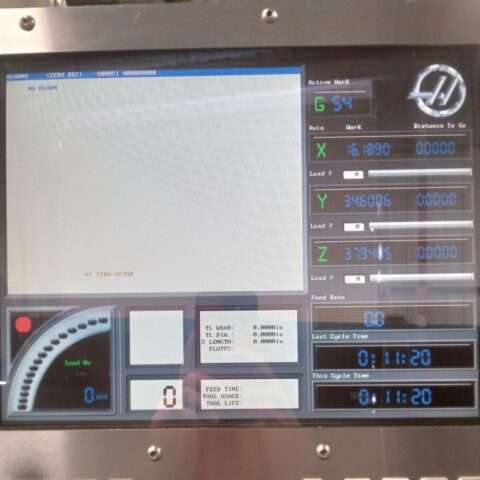

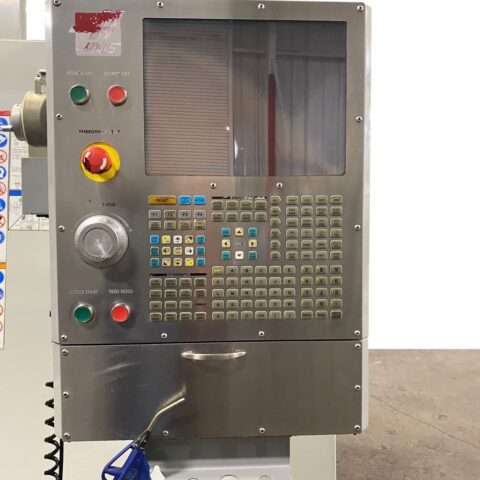

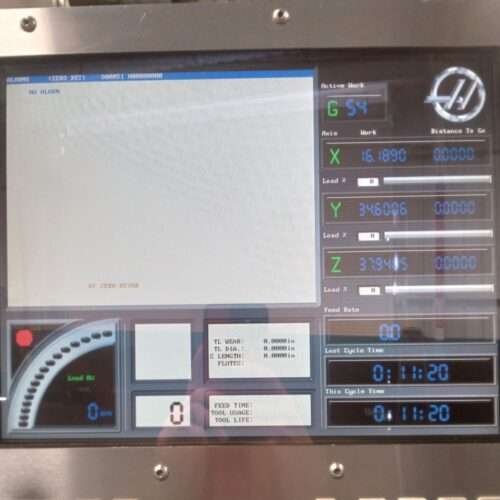

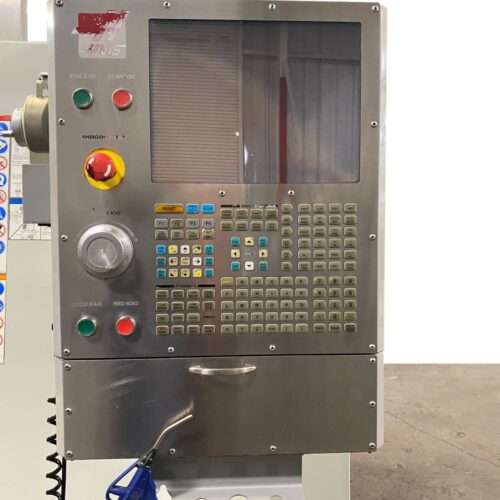

| Haas 5 Axis CNC Control |

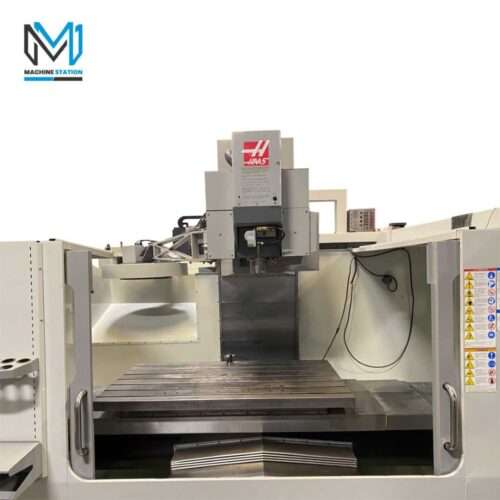

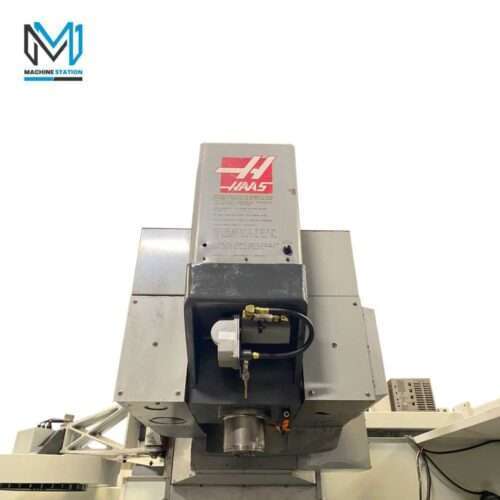

| Articulating Spindle Head |
| 15000 RPM Inline Direct Drive Spindle |
| 32 Station Automatic tool changer |
| 5-axis simultaneous machining |
| Through Spindle Coolant |
| High Speed Machining |

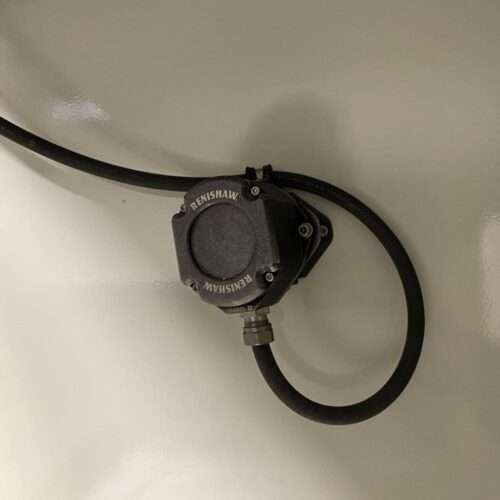

| Renshaw Probing System with Tool Presetter |

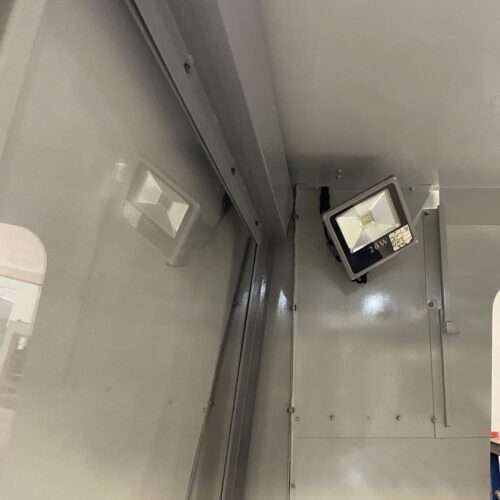

| High Intensity Lighting |

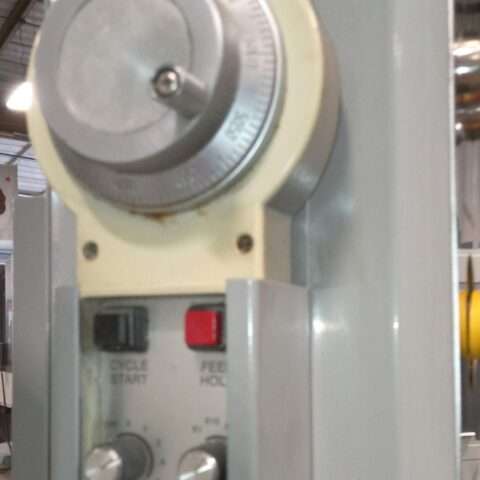

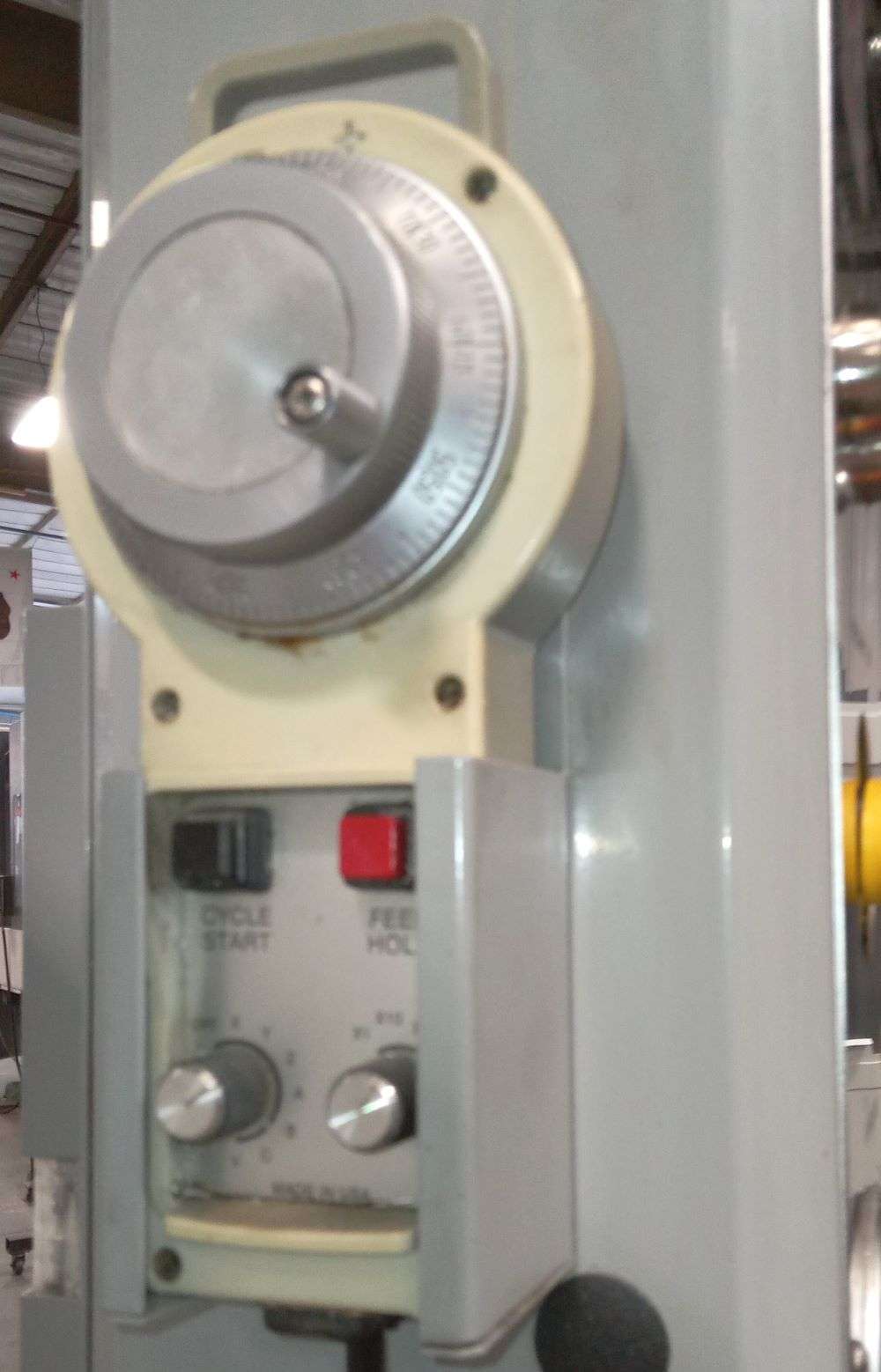

| Hand Wheel MPG Control |
| Auxiliary Home Button |
| USB Port |
| Rigid Tapping |
| Quick Code Programming |

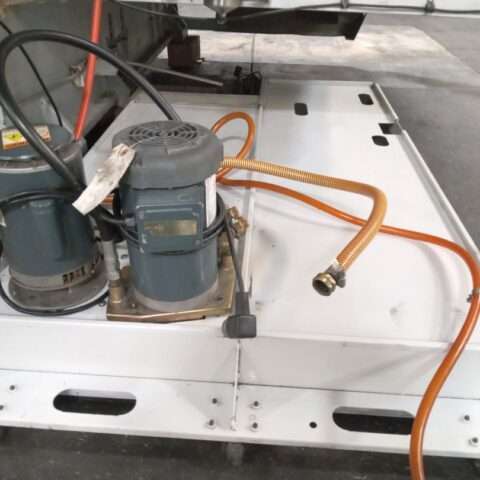

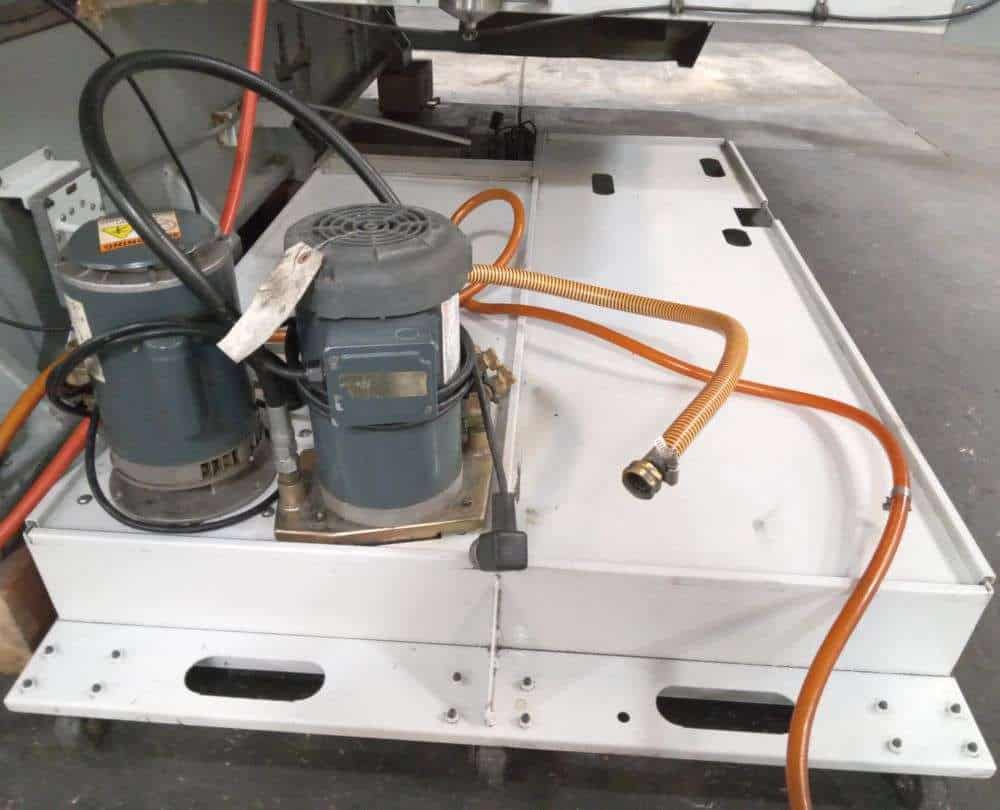

| Programmable Coolant |
| Telescopic way covers |

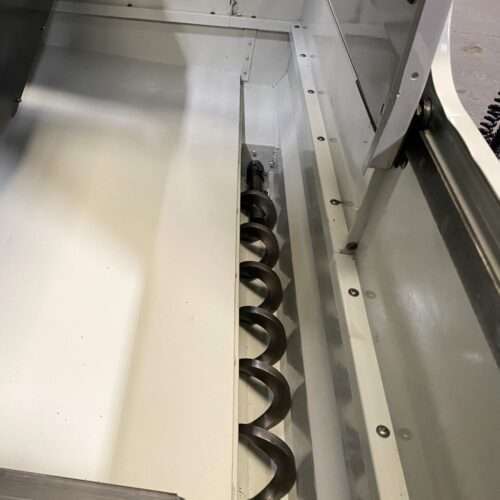

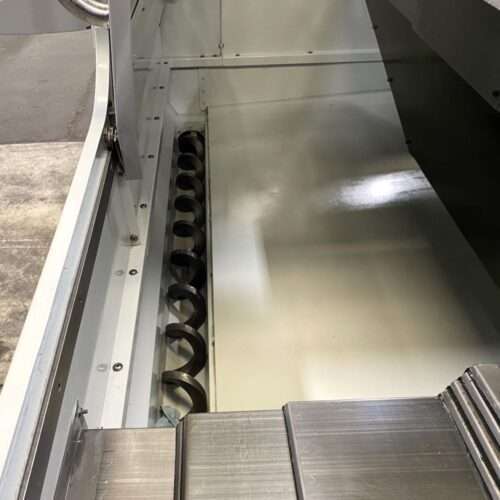

| Automatic Chip Auger |
| Travels: |
|---|
| X-Axis: 64″ |
| Y-Axis: 40″ |
| Z-Axis: 30″ |
| Rapid Traverse Rates: 600 Inch Per Minute |
| Cutting Feed Rates: 500 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 34″ |

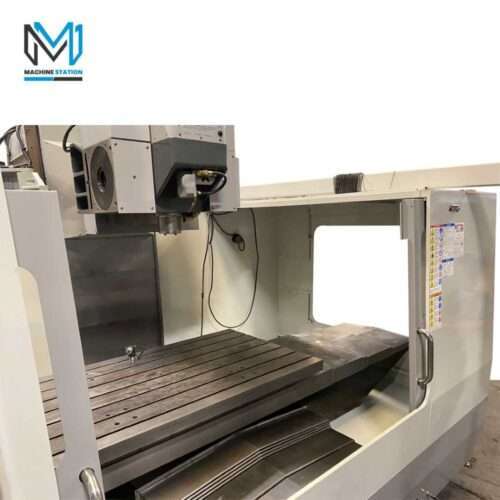

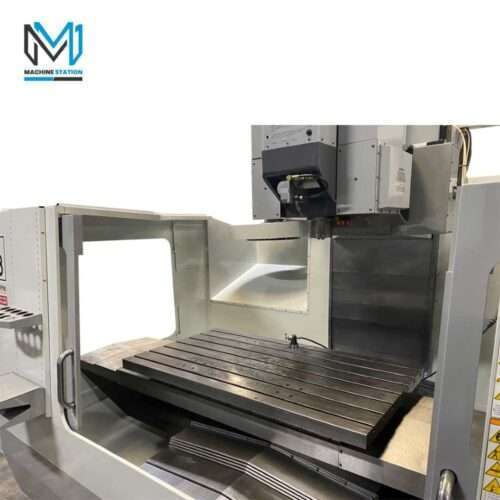

| Table: |
|---|
| Length: 64″ |
| Width: 36″ |
| Number of Std T-Slots: 7 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 4000 lbs |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 15000 RPM |
| Spindle Power: 30 HP |
| Vector Dual Drive Max Torque: 90ft-lb @2000 RPM |

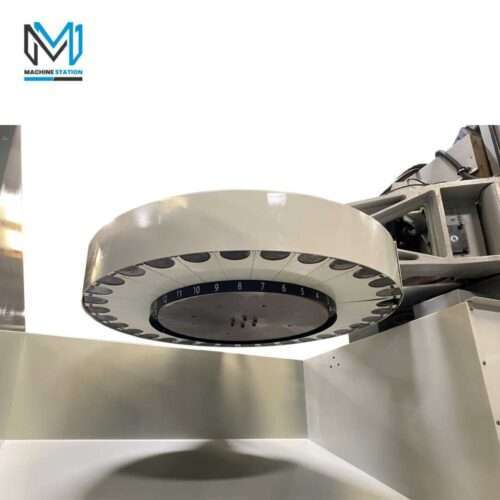

| Automatic Tool Changer: |
|---|
| Capacity: 32 |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 2.5″ |
| Max Tool Length: 16″ |
| Tool Changing Time: 2.8 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 193″ x 120″ x 130″ High |
| Weight: 24800 lbs |
