PENDING SALE
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

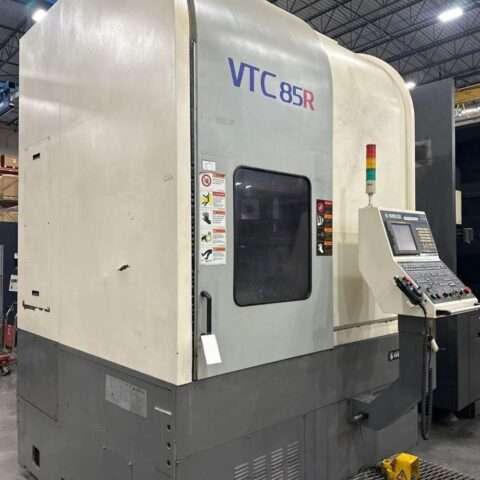

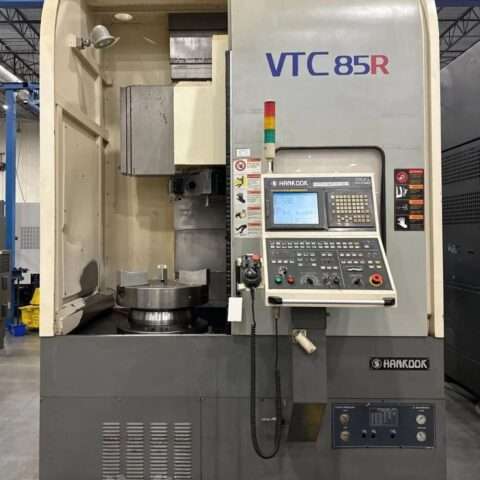

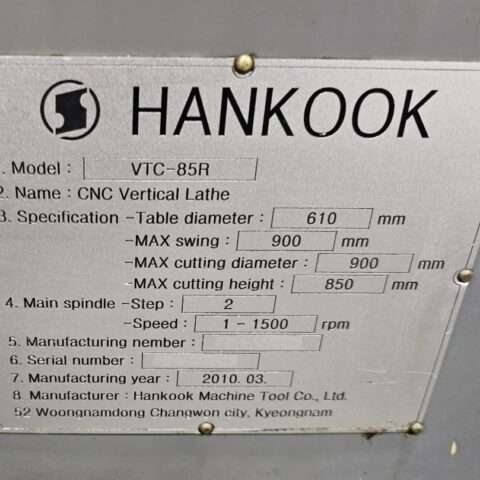

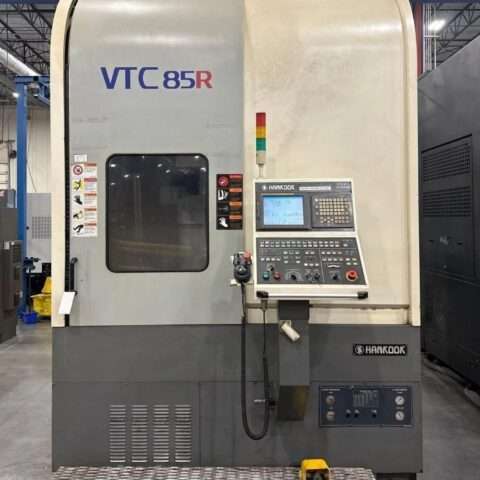

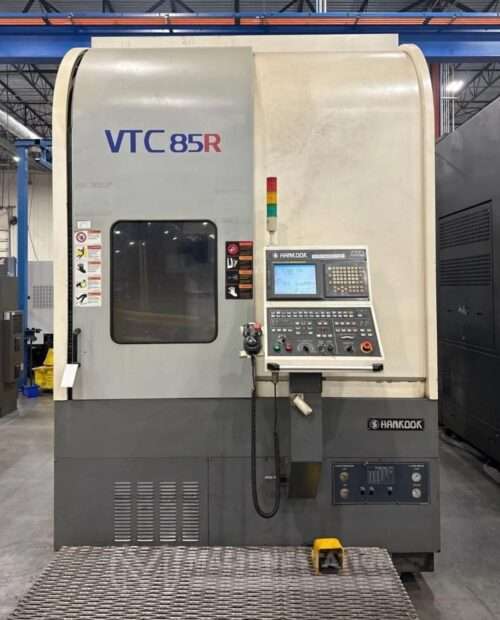

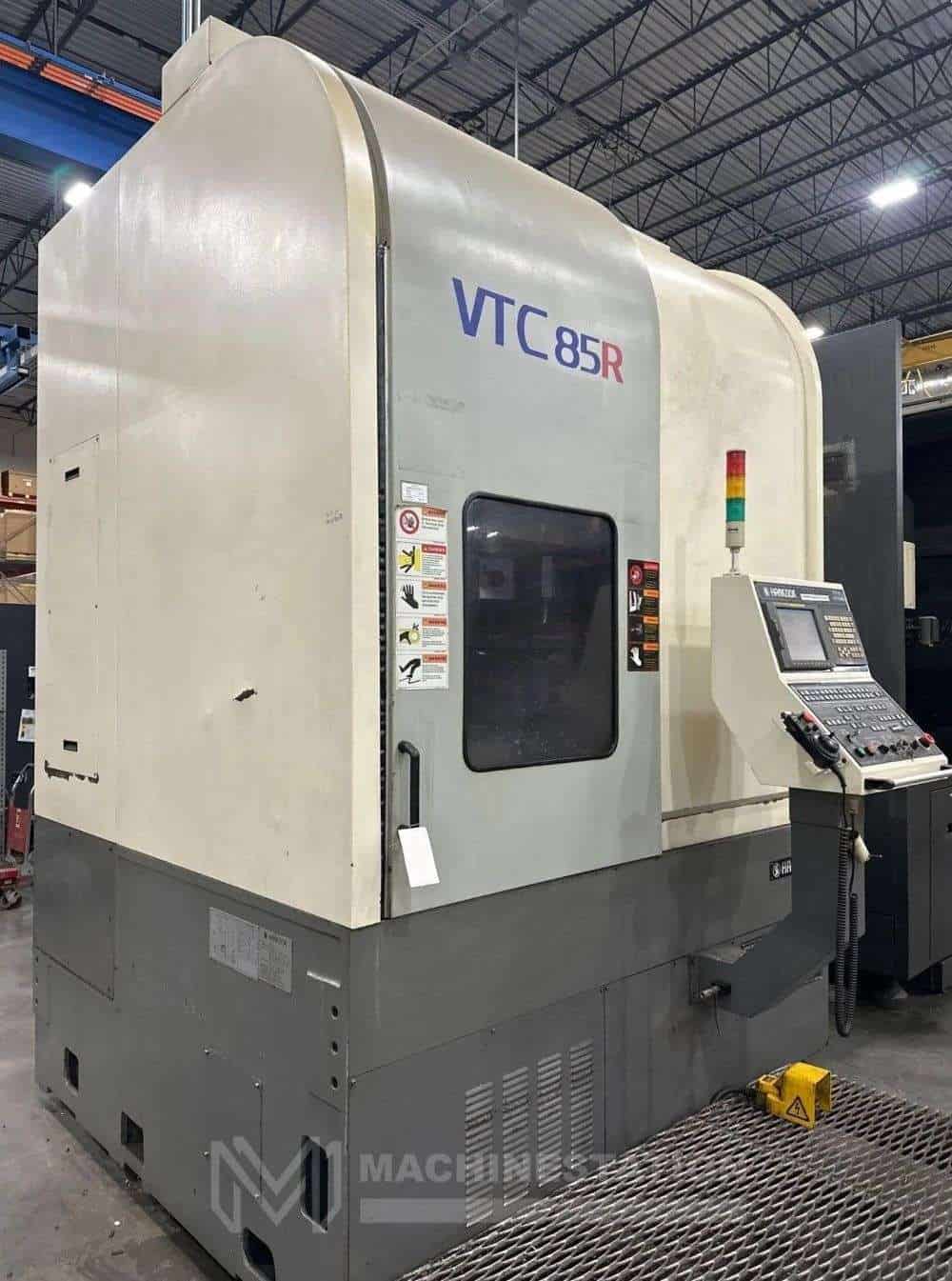

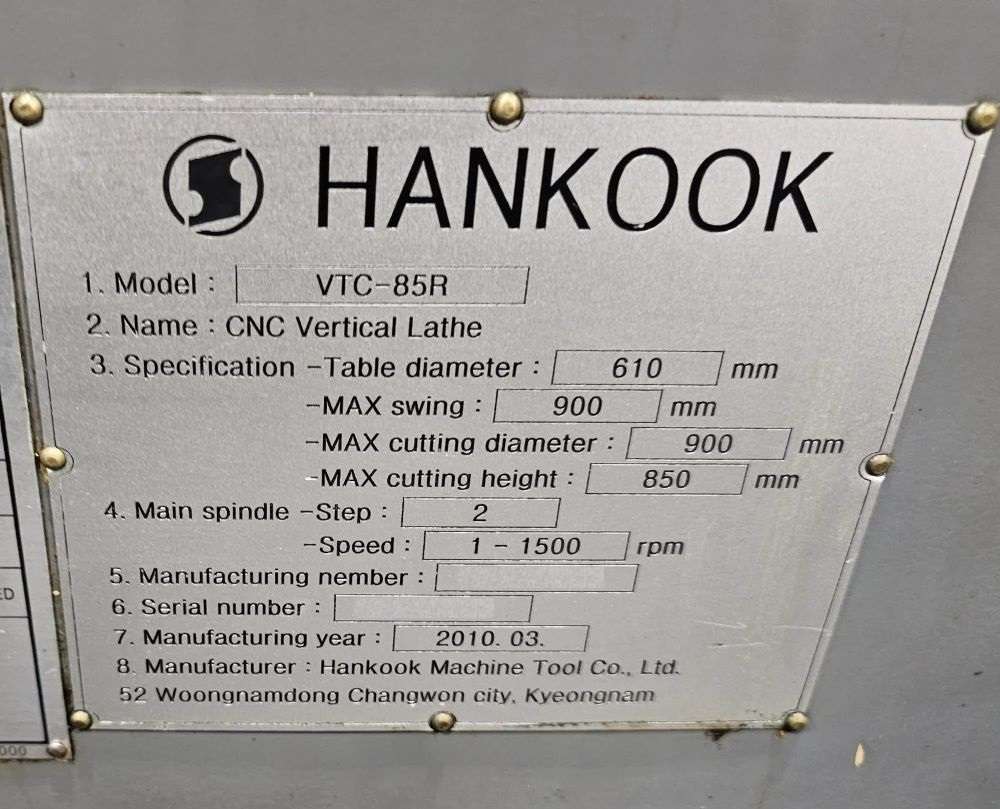

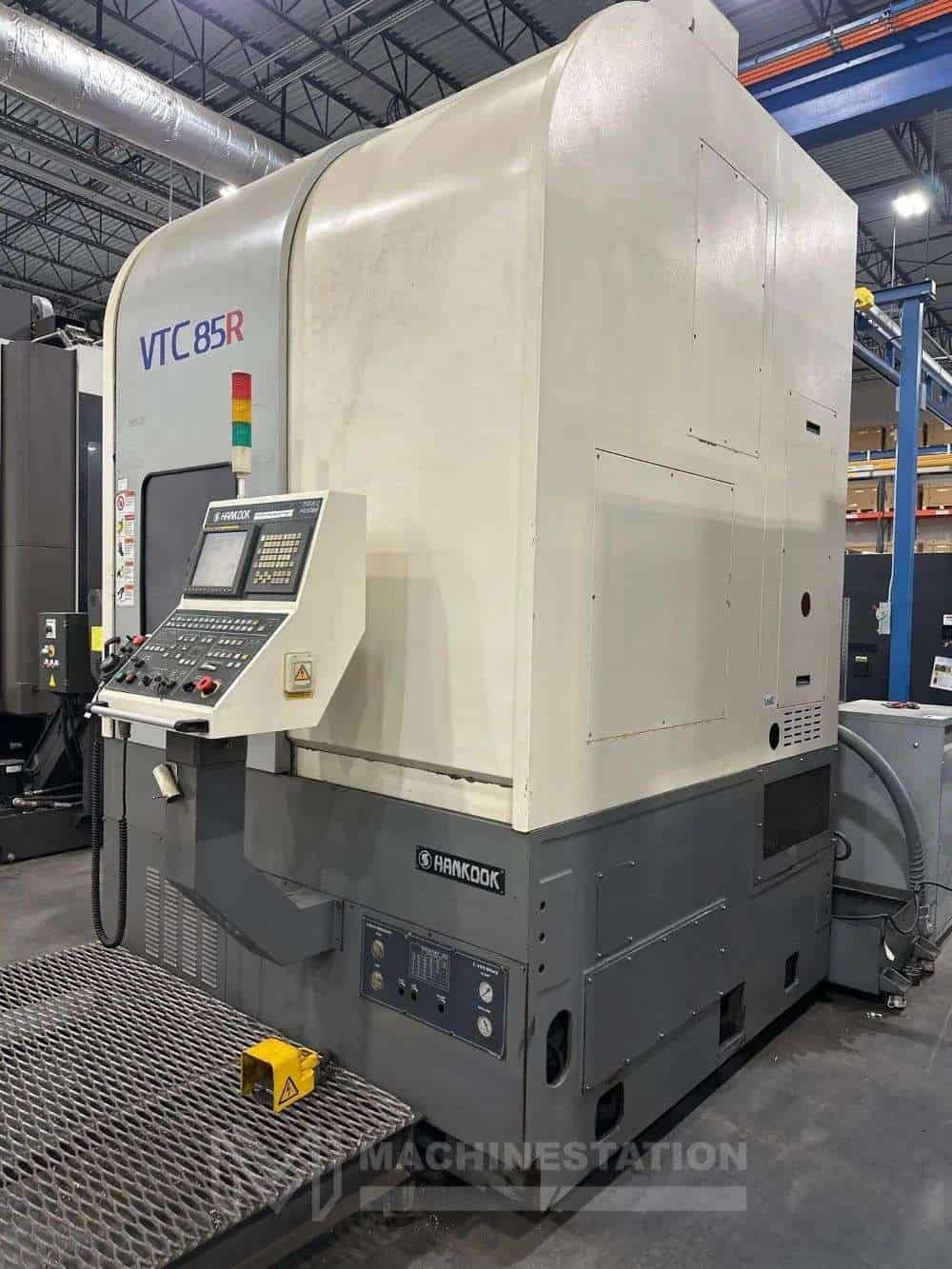

| Make: | Hankook |

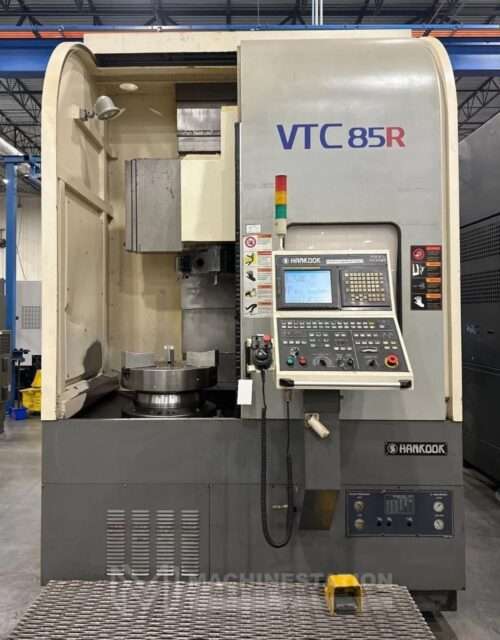

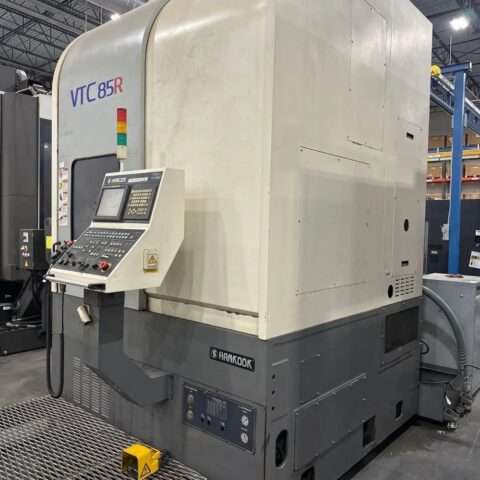

| Model: | VTC-85R-MC |
| Year: | 2010 |
| Equipped With: |
|---|

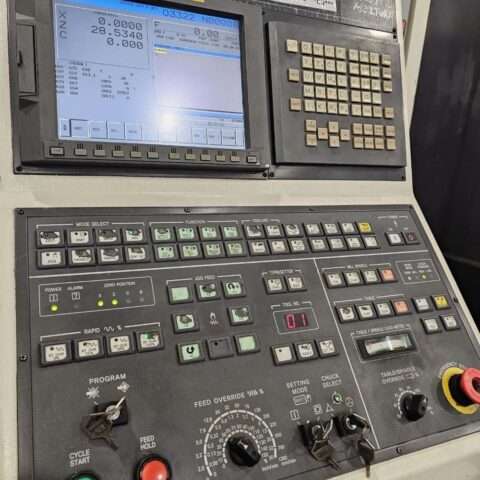

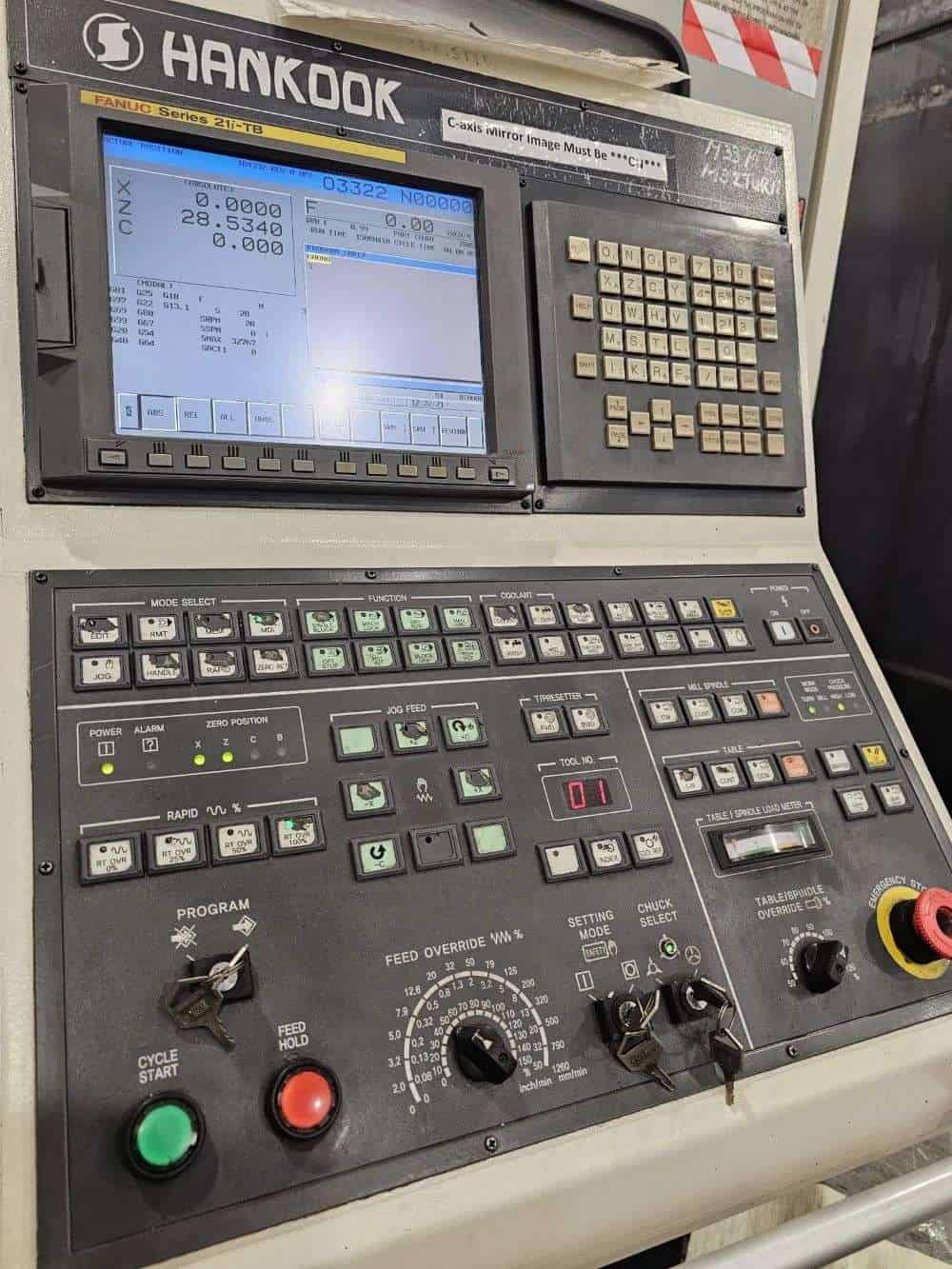

| Fanuc 21i-TB CNC Control |

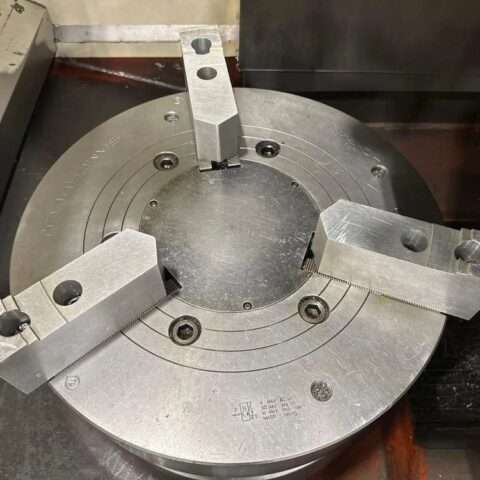

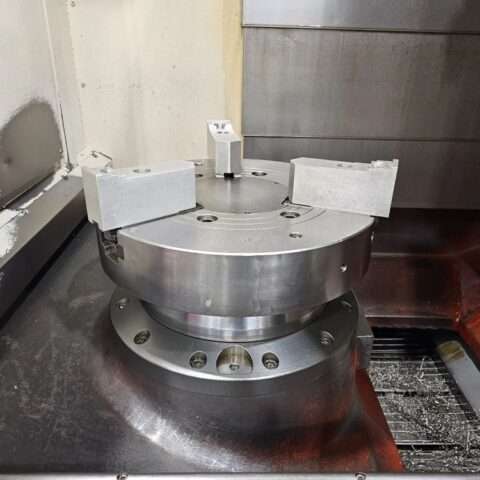

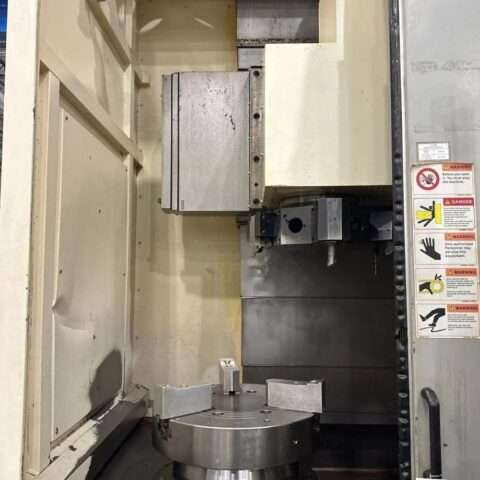

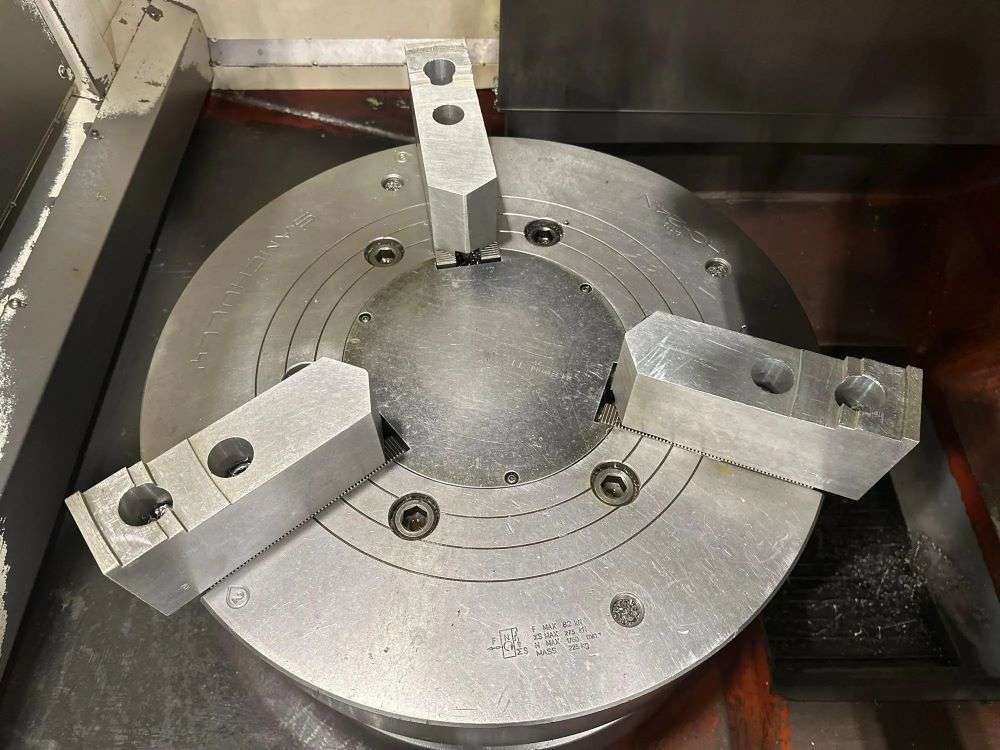

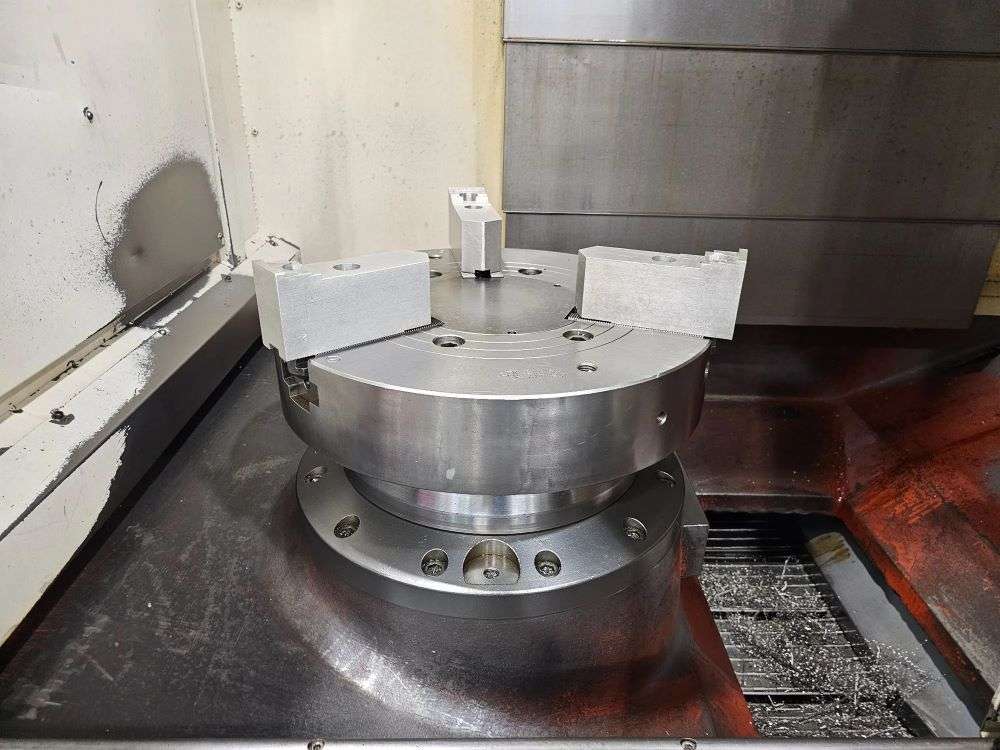

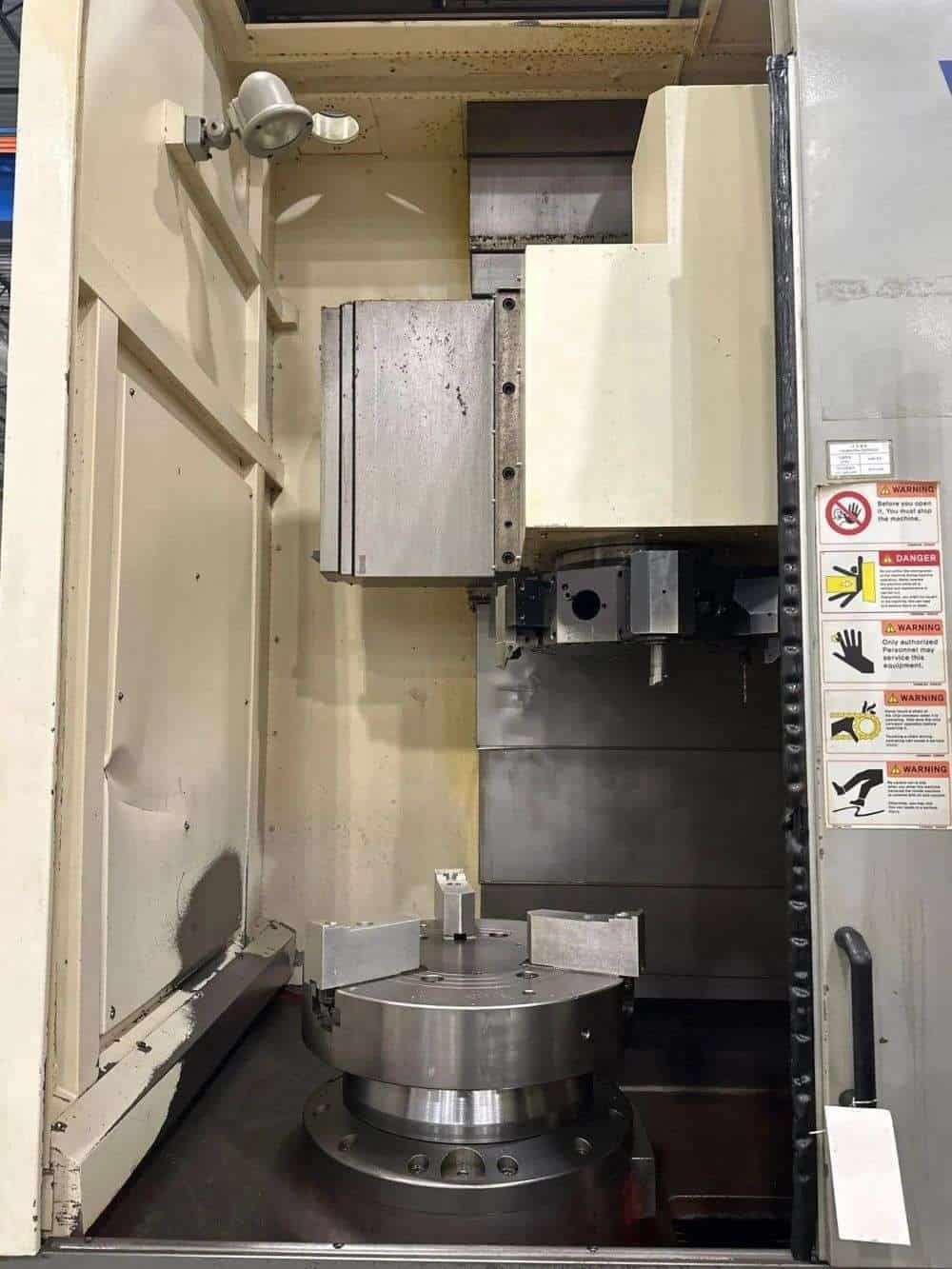

| 24″ 3-jaw Hydraulic Chuck |

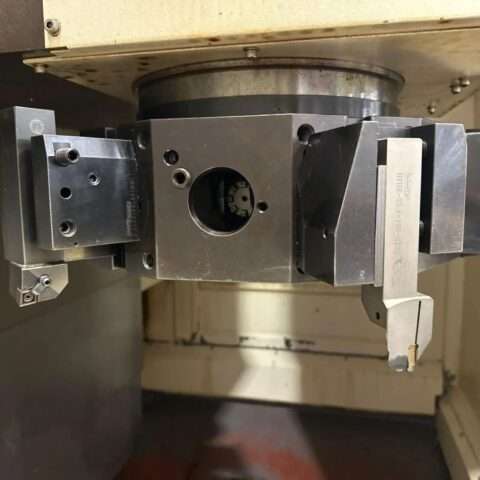

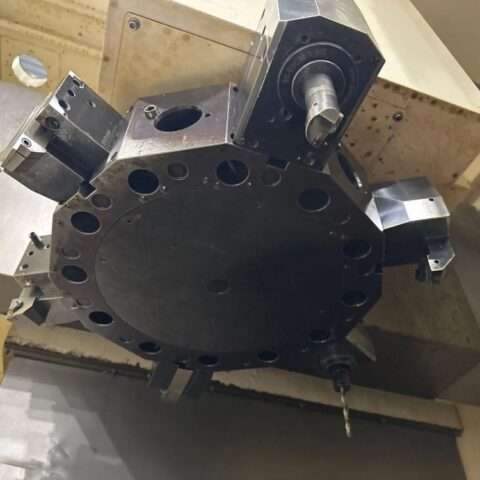

| 12 Station Turret – 6 Positions Live |
| C Axis |
| High Pressure Coolant System |

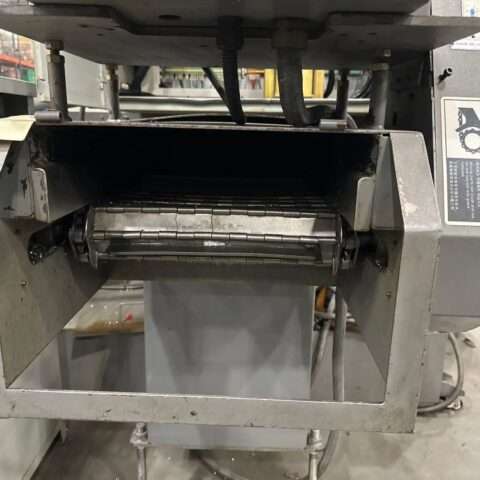

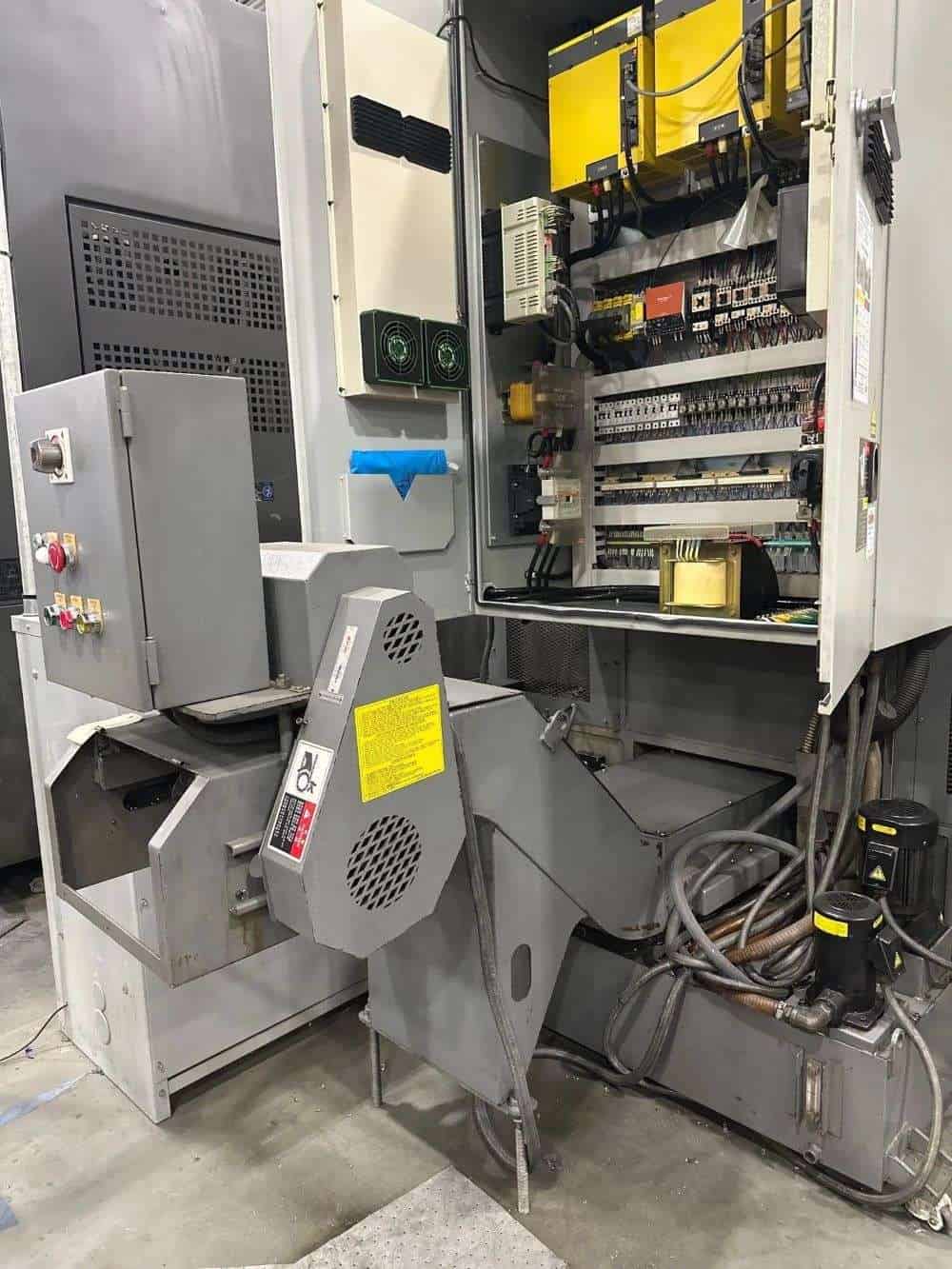

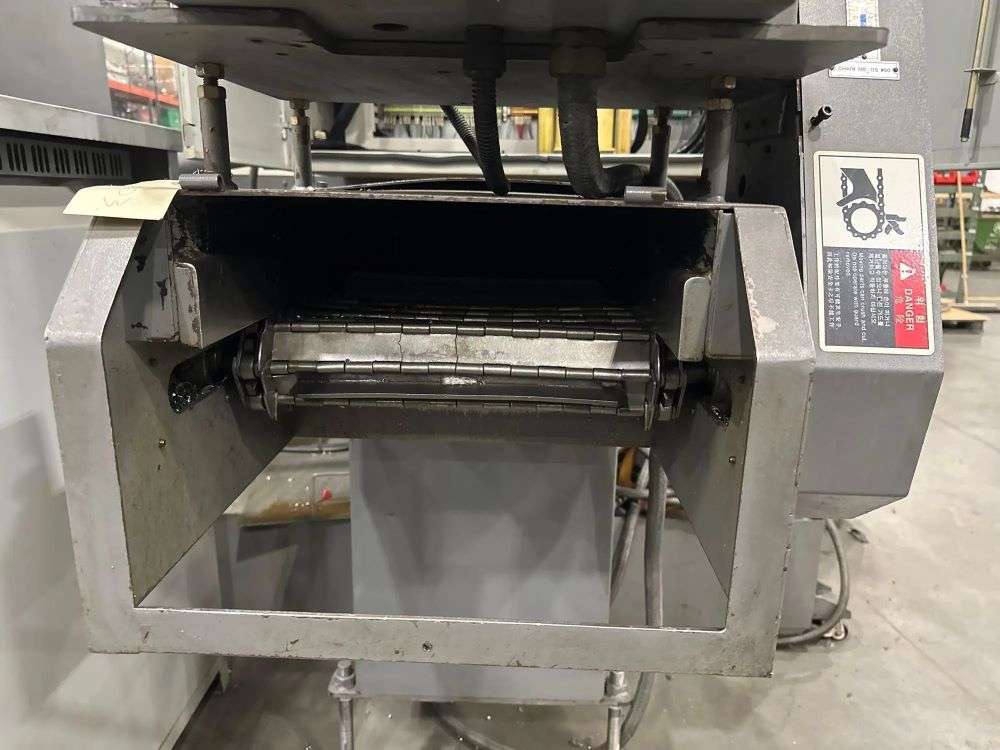

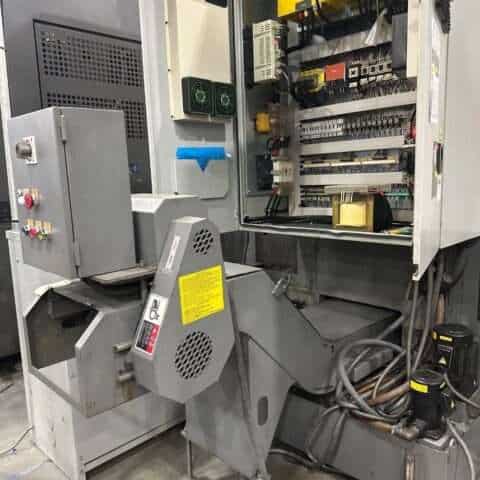

| Chip Conveyor |
| Books & Manuals |
| MPG Handwheel Control |
| Foot Switch |
| Statics & Live Tool Holders |
| Capacity: |
|---|
| Max Turning Diameter: 35.43″ |
| Max Swing Over Bed: 35.43″ |
| Max Working Height Under Rail: 33.46″ |
| Travel: |
|---|
| X Axis Travel: 18.90″ |
| Z Axis Travel: 34.64″ |
| Rapid Traverse X Axis: 590 IPM |
| Rapid Traverse Z Axis: 590 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-15 |
| Spindle Speed: 1500 RPM |
| Spindle Motor: 60 HP |

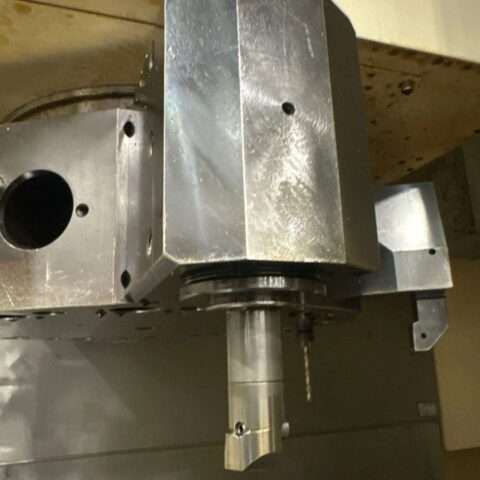

| Turret: |
|---|

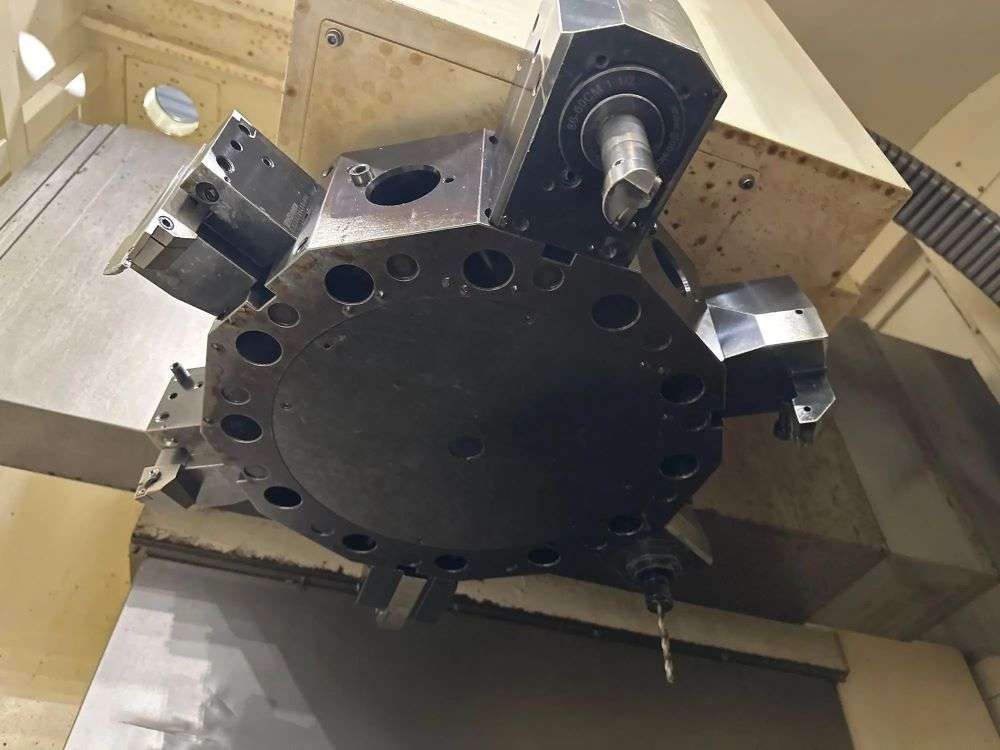

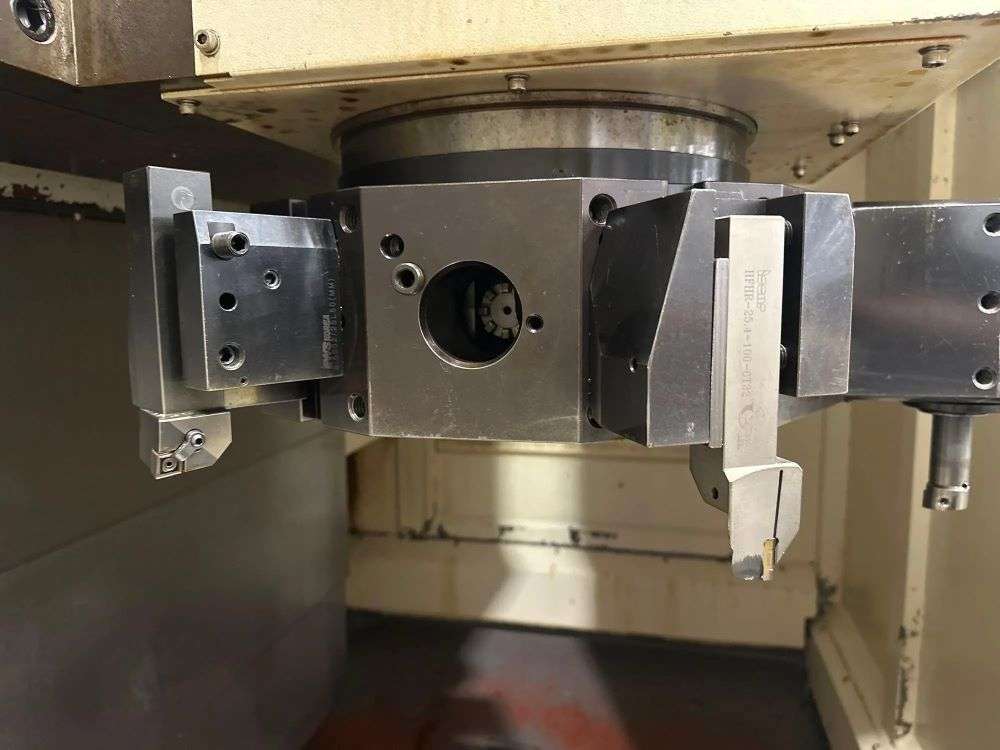

| Turret Capacity: 12 Stations ( 6 Positions Live) |

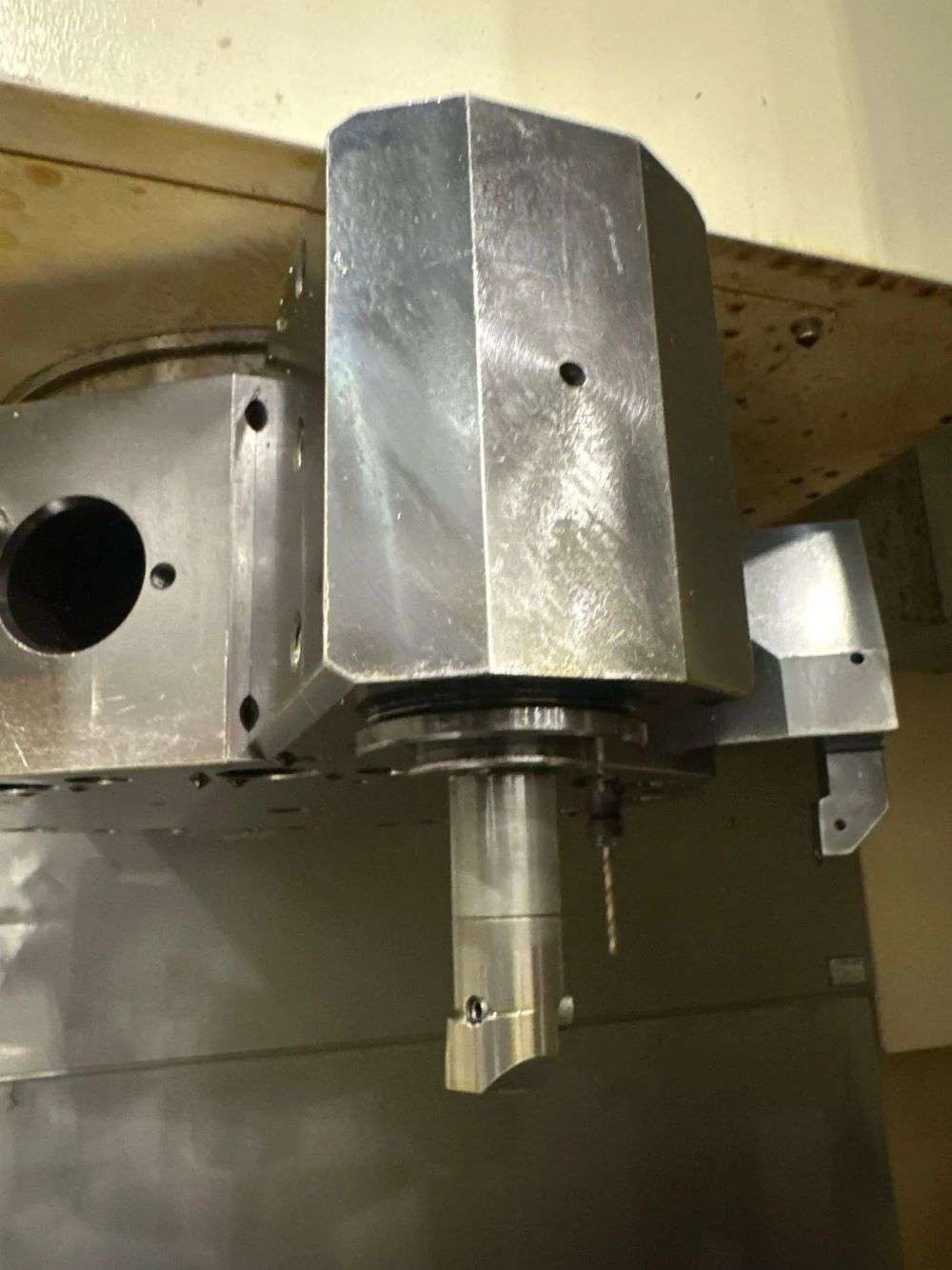

| Live Tool Motor: 7.5 HP |
| Turret Index Time: 1.7 Second |
| Tool Size: 1.25” |
| Boring Bar Size: 2.4” |
| General: |
|---|
| Power: 75 kva, 220v / 3-Phase |
| Overall Dimensions: ″ X ″ X ” High |
| Weight: 33,000 lbs. Approx. |
