Hardinge Bridgeport DT480 P3 VMC

Out of stock

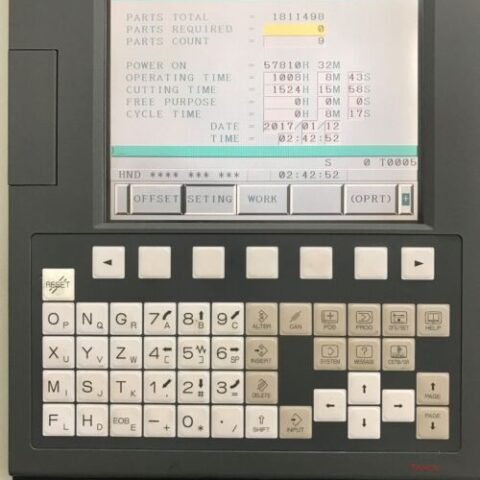

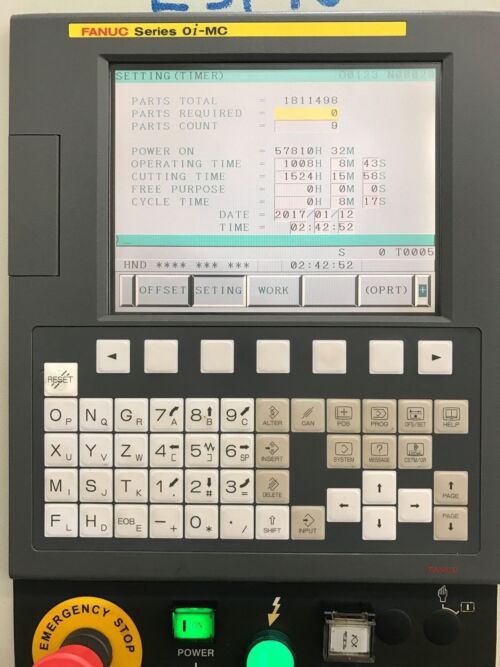

This One Owner Machine has only 1524 Cutting Hours, 10000rpm, 20 tool side mount High speed tool changer, expanded Memory and many more features. On our Floor now, fully powered / tested & is in Great working condition. check *VIDEO

SKU: 1272
Make/Model: Hardinge Bridgeport TDT-480 P3
Video: [fusion_button link=”https://www.youtube.com/watch?v=sqTVrvbCWe8″ title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



Compare
SKU: 1272

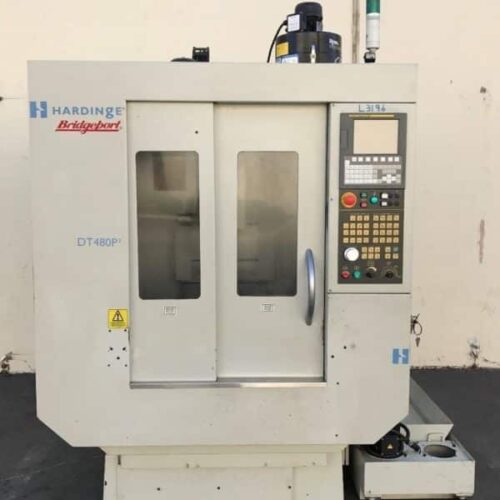

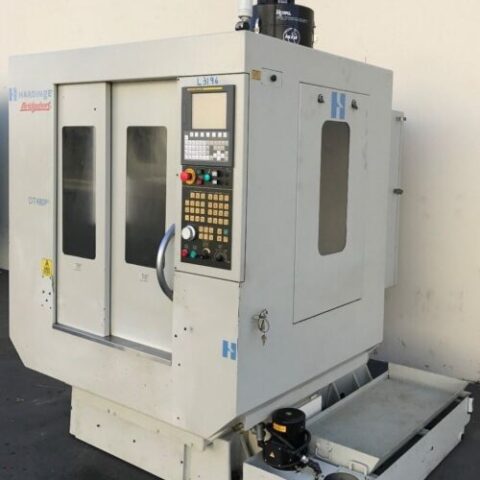

HARDINGE BRIDGEPORT DT480 VMC
Make Hardinge Bridgeport
Model No. TDT-480 P3
Year of Manufacture: 2008
Serial # NVJA6K0051
Condition Very Good

“This One Owner Machine has only 1524 Cutting Hours, 10000rpm, 20 tool side mount High speed tool changer, expanded Memory and many more features. On our Floor now, fully powered / tested & is in Great working condition. check *VIDEO”

  • HARDINGE BRIDGEPORT DT480 Features:

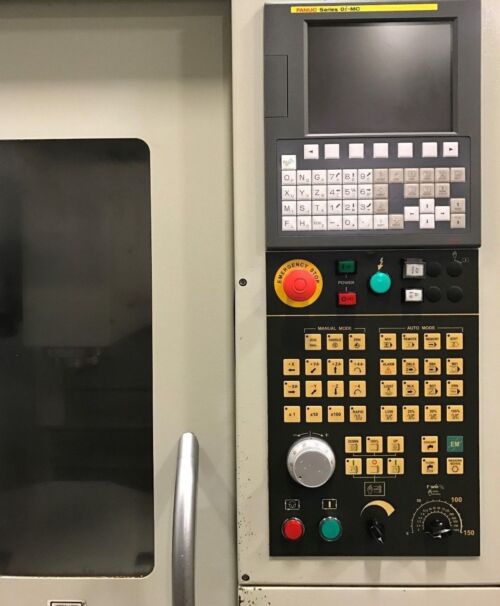

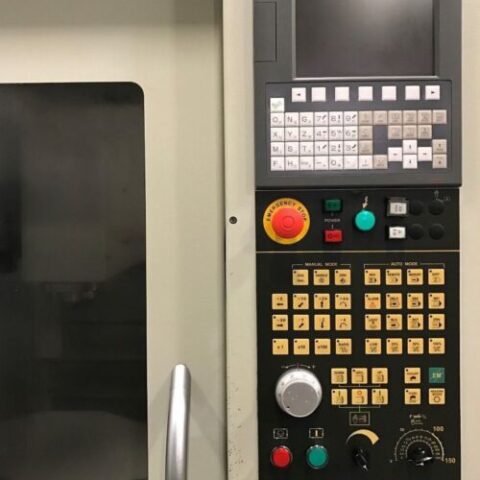

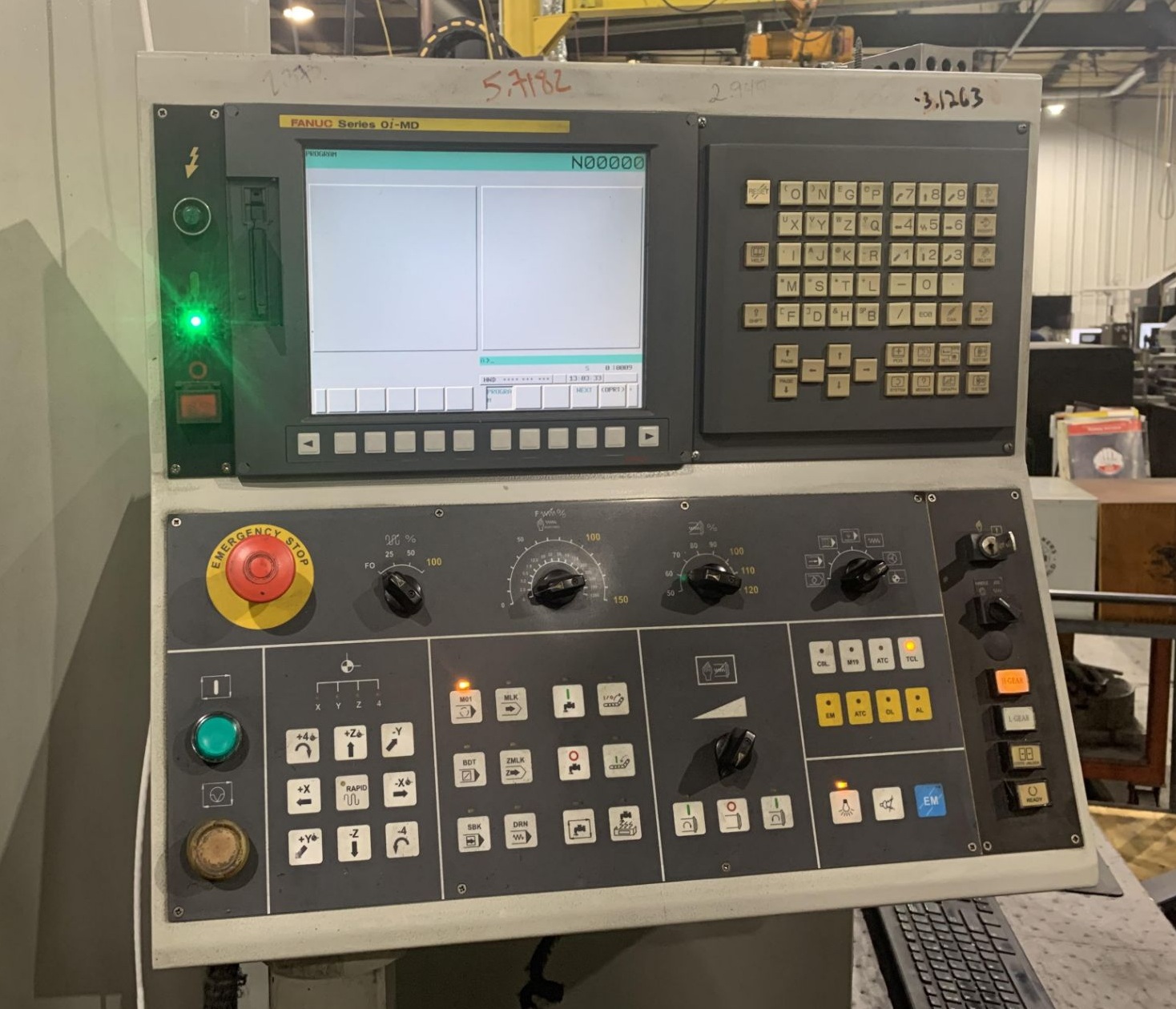

  • Fanuc 0i-MC CNC Control
  • High Speed Arm Type Tool Changer (Optional)
  • High precision 10,000 RPM Spindle
  • PCMCIA Card Slot
  • Royal Filtermist System
  • Powerful 7.5 hp high torque spindle motor
  • Spindle Orientation
  • Rigid Tapping
  • Custom Micro B (User Definable)
  • Fast 1890 IPM Rapid Traverse Rate
  • Flood coolant with large separate coolant tank
  • Work light
  • HARDINGE BRIDGEPORT DT480 Specifications:
  • Travels:
  • X-Axis: 18.90″
  • Y-Axis: 15.75″
  • Z-Axis: 16.93″
  • Spindle Nose to Table (Min.- Max.): 5.9″ – 18.9″
  • Spindle Center to Column: 20.5″

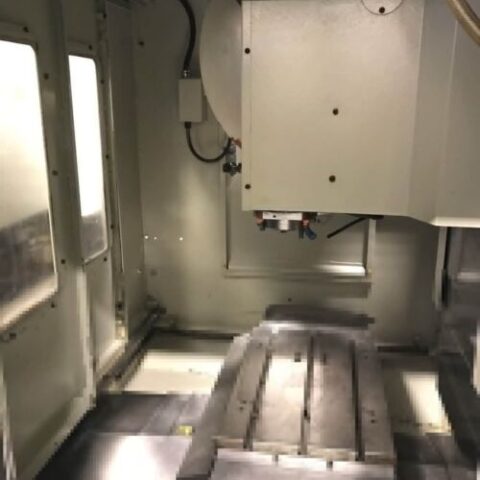

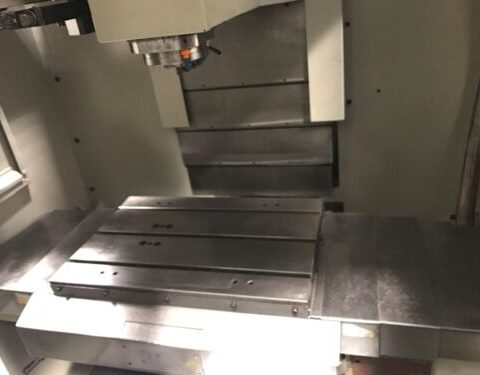

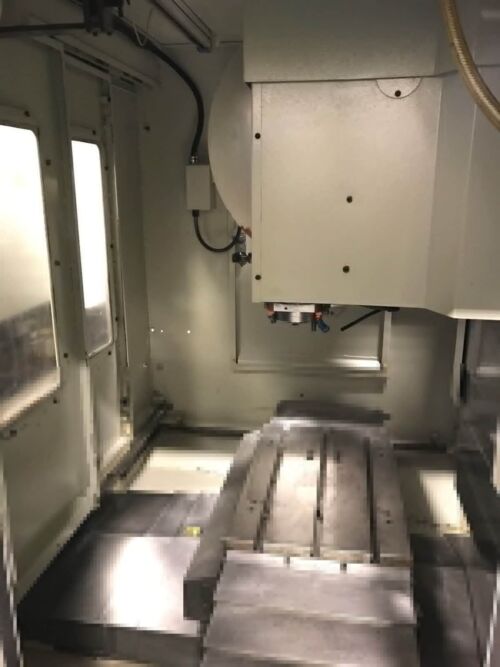

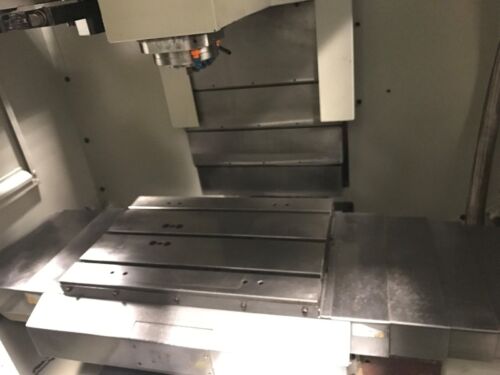

  • Table:
  • Length: 23.6″
  • Width: 15.8″
  • Max Weight on Table: 661 lbs
  • Spindle:
  • Taper Size: BT 30
  • Speed Range: 60 – 10,000 RPM
  • Spindle Power: 7.5 HP
  • Feed rates:
  • Rapid X,Y & Z: 1890 inch/P.M
  • Cutting Feedrate: 591″ inch/ P.M
  • Automatic Tool Changer:
  • 30 Taper
  • Capacity: 20
  • Max Tool Weight: 15.4 lbs
  • Max Tool Length: 7.48″
  • Max Tool Dia.: 5.90″
  • Tool Change Time: 0.8 second
  • General:
  • Air Required: 80 psi, 4 scfm

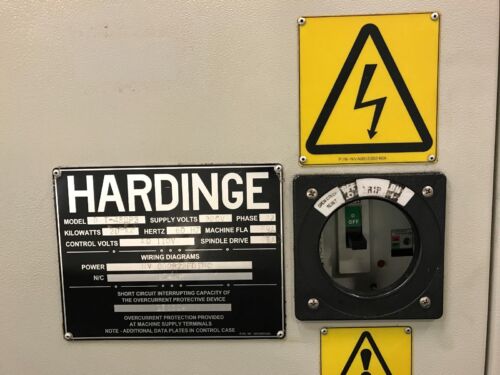

  • Power: 205-220v / 66FLA / 3-Phase
  • Overall Dimensions: 62″ x 84″ x 82″ High
  • Weight: 6200 lbs

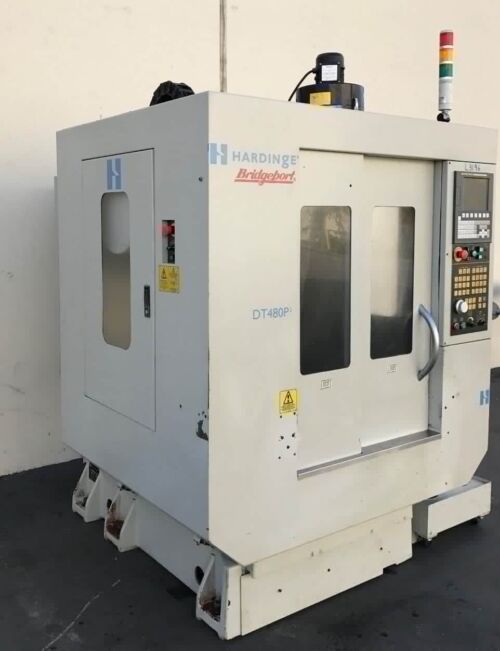

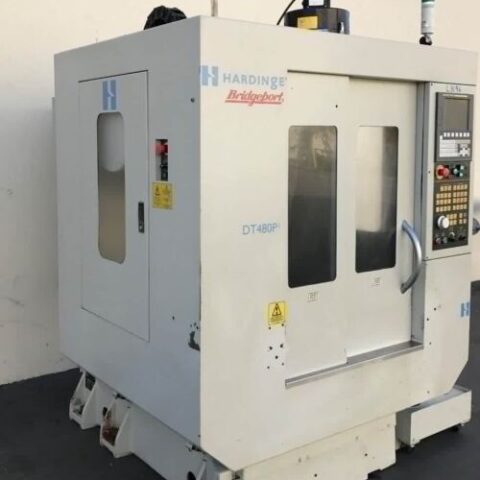

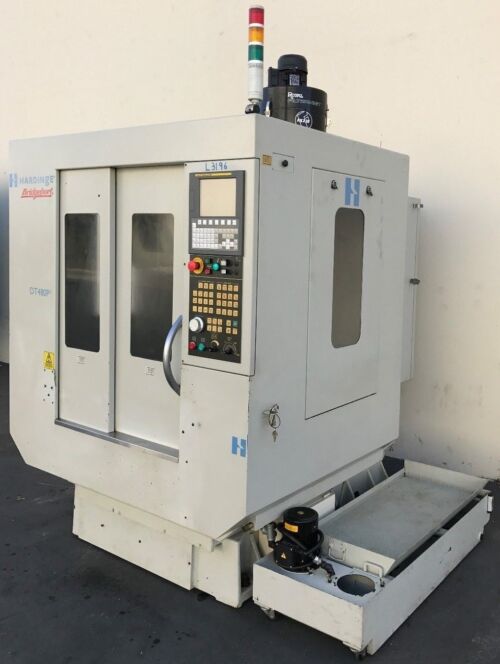

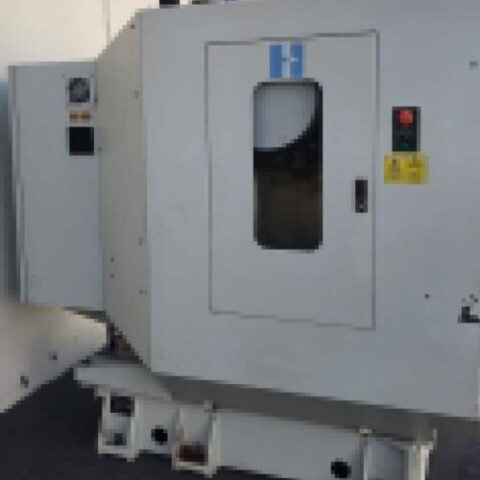

HARDINGE BRIDGEPORT DT480 Comes as shown in pictures.
