| USED-HARDINGE CNC VERTICAL MACHINING CENTER Model VMC 1000 II | |
|---|---|
| Make | Hardinge |
| Model No. | VMC 1000 II |
| Year of Manufacture: | 2000 |
| Serial # | NVC-235 |
| Condition | Very Good |
- Features:
- Troyke 6″ 4th Axis Rotary Table
- Spindle Taper Cleaner
- Side Doors with Windows
- Rigid Tapping
- 20 Tool Automatic Tool Changer
- Air Hose w/ Air Gun
- Worklight
- Manual Pulse Generator
- Self-Contained Enclosure
- Specifications:
- Travels:
- X-Axis: 40.16″
- Y-Axis: 20.08″
- Z-Axis: 20.08″
- Spindle Nose to Table (Min.- Max.): 6.10″ – 26.10″
- Spindle Center to Column: 23″
- Table:
- Length: 44″
- Width: 20″
- T-Slot Width x No. of Slots: 18mm x 3
- T-Slot Center Distance: 6.3″ / 160mm
- Max Weight on Table: 1,540 lbs
- Spindle:
- Taper Size: No. 40
- Speed Range: 8,000 RPM
- Transmission: Direct Belt Drive
- Orientation: Non-Contact Magnetic Encoder
- Draw Bar Tool Clamp Force: 1,760 lbs
- Draw Bar Tool Ejection Force: 5,390 lbs
- Torque Base Speed: 61.1 ft-lb / 82.9 Nm (1500 RPM)
- Feedrates: (All Axes)
- Rapid and Jog (Max.): 1181ipm / 30m/min
- Cutting Feed Rate (Max.): 472ipm / 12m/min
- Axis Motors:
- Axis Motor Rating: 1.9 hp / 1.42 kW
- Axis Thrust Rating: 1000 lbs. / 4400N
- Automatic Tool Changer:
- Type: Carousel
- Capacity: 20
- Max Tool Diameter: 3.5″
- Max Tool Weight: 13.2 lbs
- Max Tool Length: 12″
- Tool-to-Tool(avg.): 6.5 seconds
- Chip to Chip(avg.): 8.5 seconds
- General:
- Air Required: 70 psi, 5 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 160″ x 90″ x 120″
- Weight: 11,000 lbs

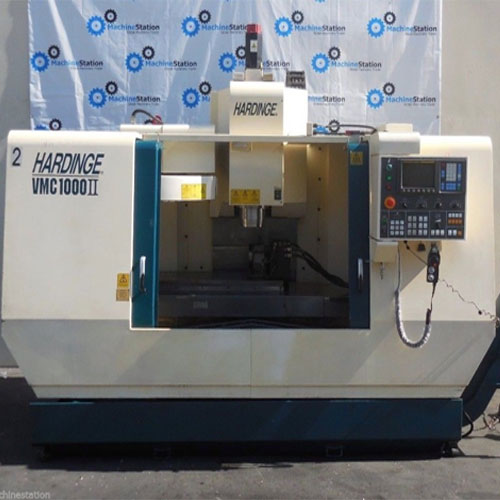

USED-HARDINGE CNC VERTICAL MACHINING CENTER Model VMC 1000 II and Comes as shown in pictures.
