*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2215 |

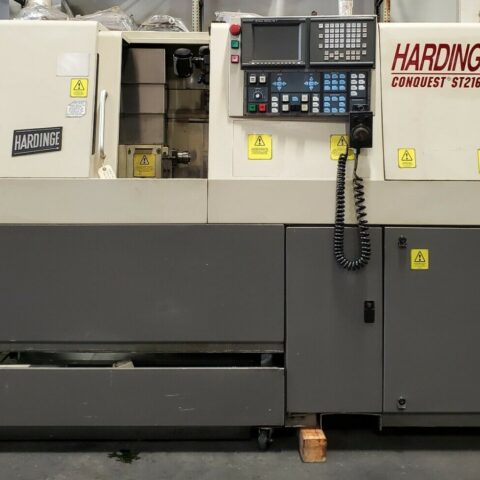

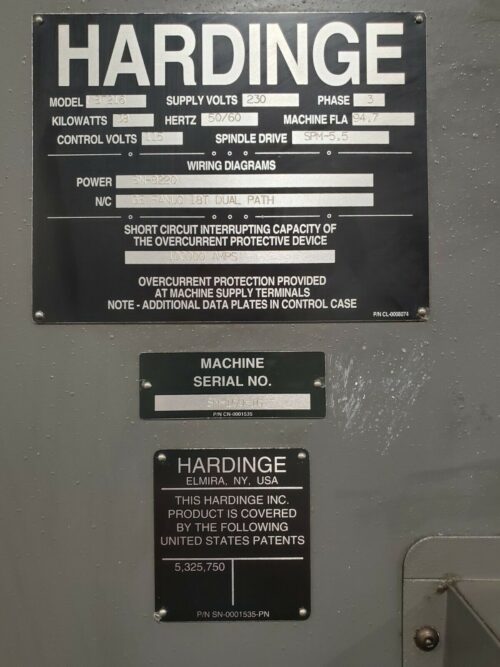

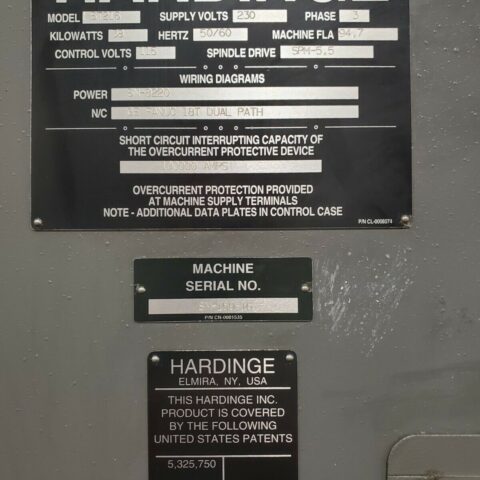

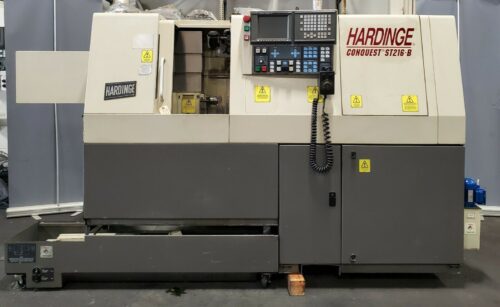

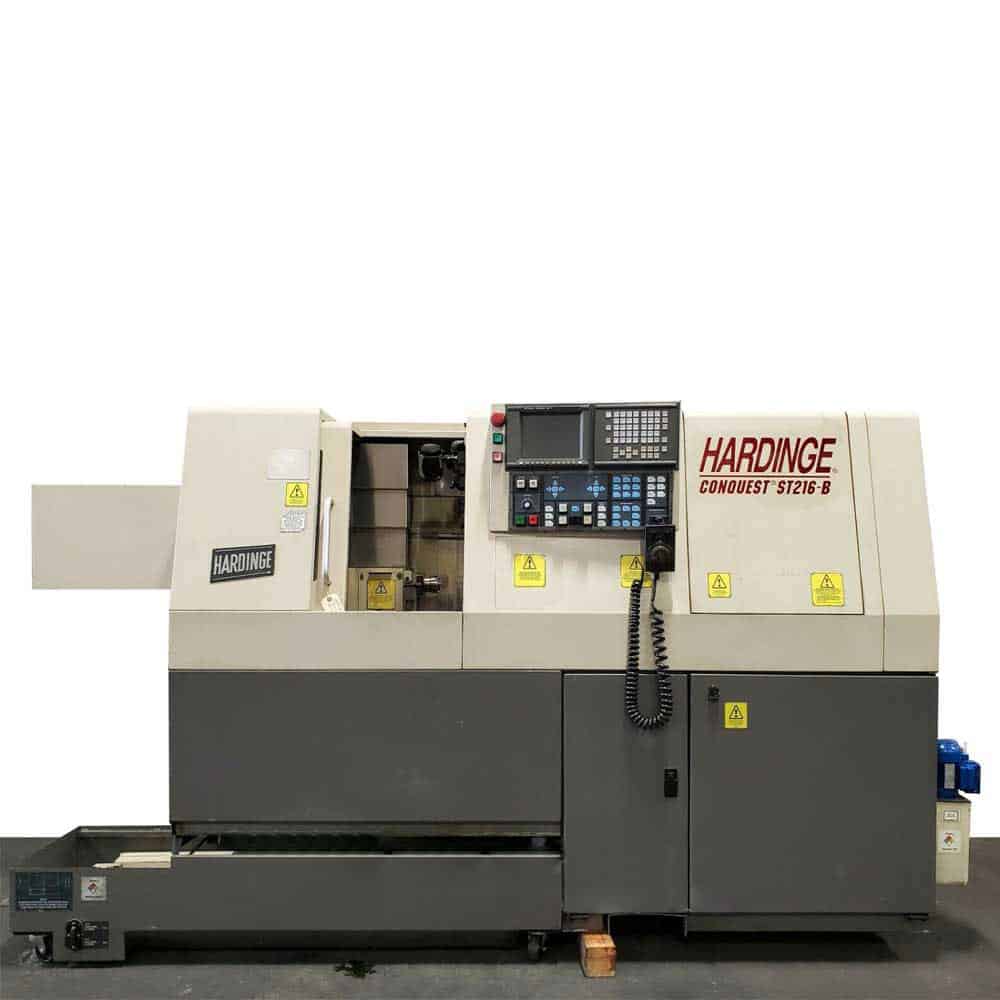

| Make: | Hardinge |
| Model: | ST-216-B |
| Year: | 2000 |
| Serial: | 159-16 |
| Equipped With: |
|---|

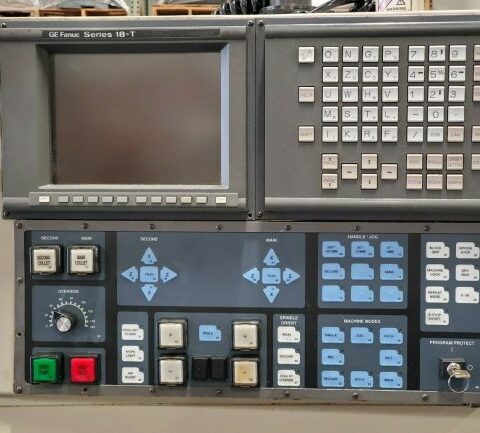

| Fanuc 18T CNC Control |
| C Axis and Live Tools Capable |
| 12000 RPM Main Spindle |
| Precision Hardinge 5/8″ Collet Spindle |
| MPG Control |
| Front access quick change guide bushings |

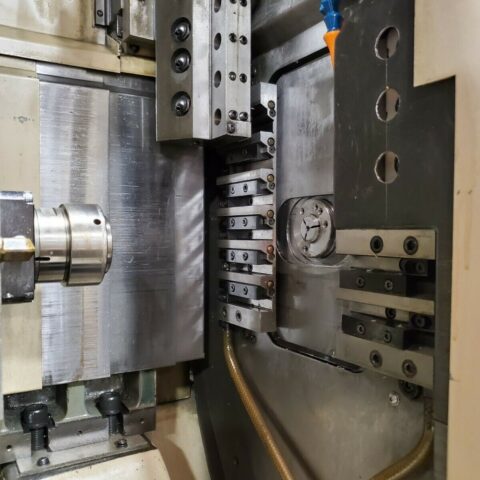

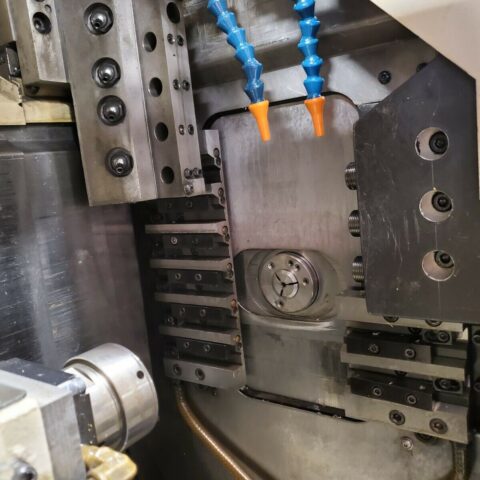

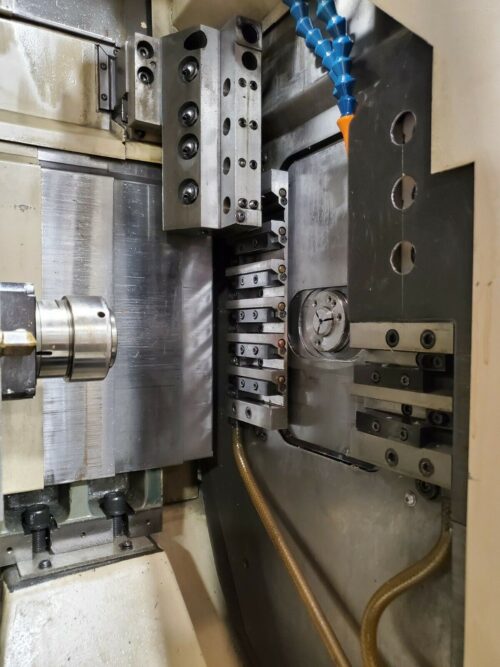

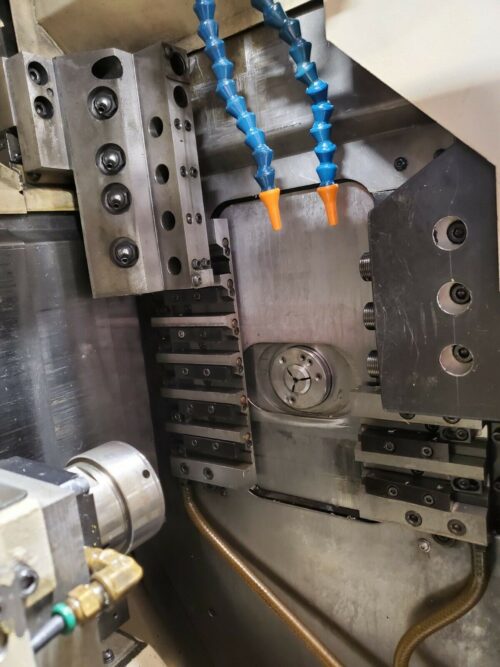

| 12 Station Tool slide for front and back turning |
| Coolant System |
| Foot Switch |

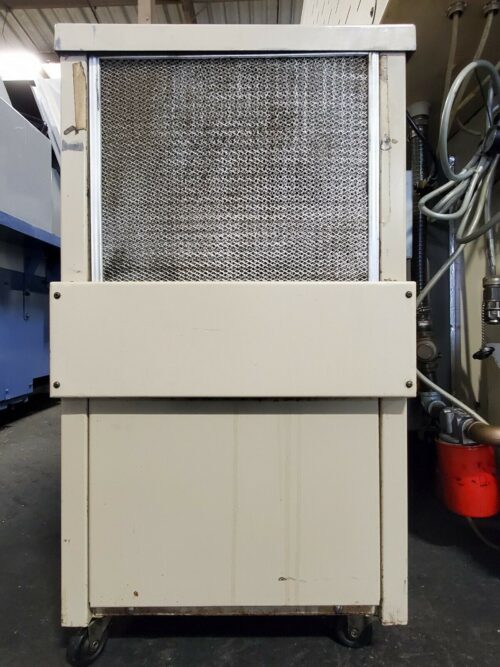

| Spindle Cooler |

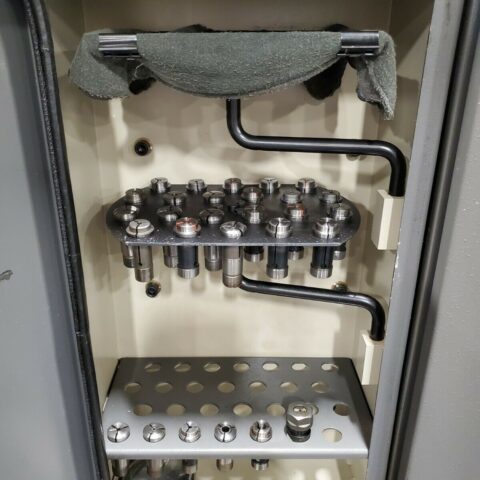

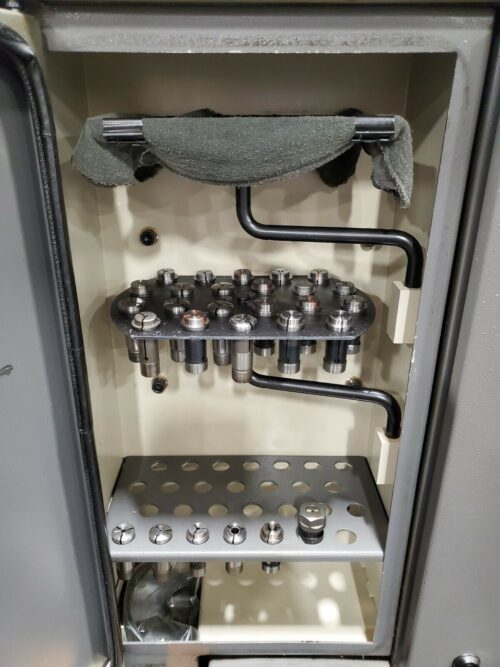

| Comes with lot of Collets |
| Capacity: |
|---|
| Max Bar Diameter: 5/8″ (16mm) |
| Max Turning Length: 10.35″ |
| Travels: |
|---|
| X1 Axis Travel: 2.75″ |
| Y1 Axis Travel: 7.50″ |
| Z1 Axis Travel: 10.35″ |
| Y2 Axis Travel: 9.00″ |
| Z2 Axis Travel: 8.50″ |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Spindle: |
|---|
| Main Spindle Indexing: 5° |
| Main Spindle Bore: 2.31″ |
| Main Spindle Speed: 300-12000 RPM |
| Spindle Motor: 5 HP |
| Sub Spindle Indexing: 5° |
| Sub Spindle Bore: 2.31″ |
| Sub Spindle Speed: 200-8000 RPM |
| Spindle Motor: 3 HP |
| Tools: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.15 Second |
| Max. Tool Size: 0.8″ Square X 1.26″ Round |
| General: |
|---|
| Power: 45 kva, 220v / 3-Phase |
| Overall Dimensions: 90″ X 60″ X 80 ” High |
| Weight: 7500 lbs |
