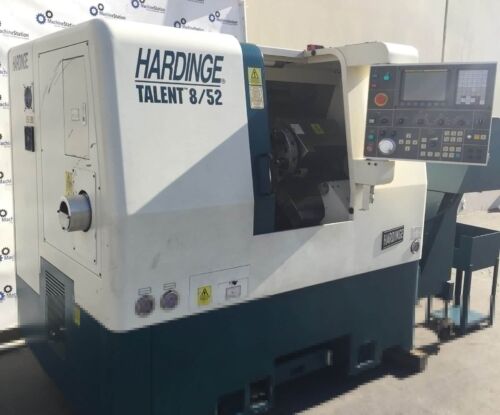

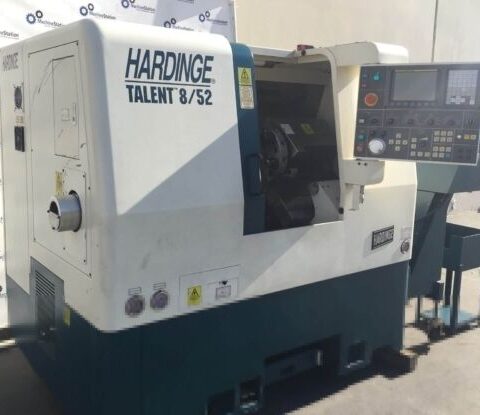

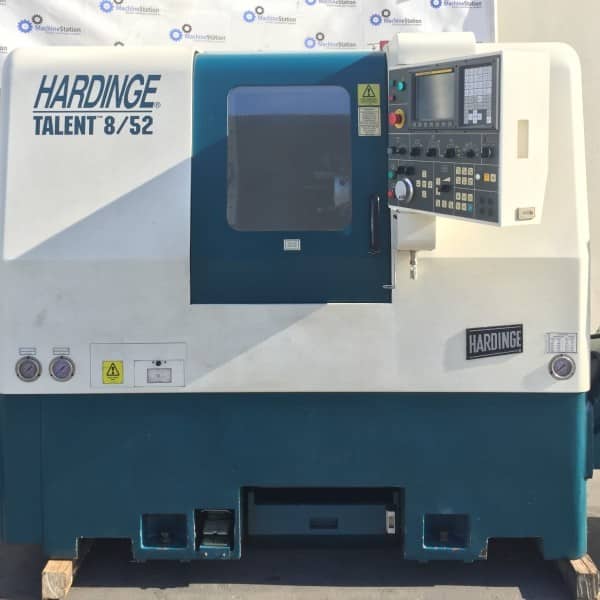

HARDINGE TALENT 8 52 CNC TURNING | |
---|---|
Make | HARDINGE |
Model No. | Talent 8/52 |
Year of Manufacture: | 2004 |
Serial # | BLB 244 |
Condition | Very Good |
Mfg. No.: | BLBA4D 0040 |
Comes with All Manuals |
All specifications are approximations and are subject to verification.
Check VIDEO.
- HARDINGE TALENT 8 52 Features:

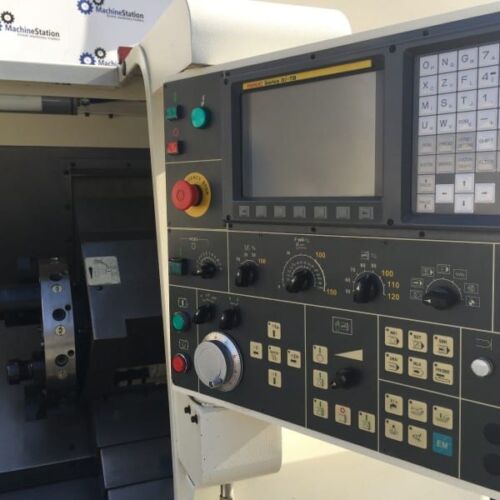

- Fanuc 32 bit Oi-tb CNC Control
- 8.4″ Color LCD Display
- Flash Card Slot (upto 64 MB)
- 8.25″ 3 Jaw Hydraulic Chuck
- Hydraulic Tailstock

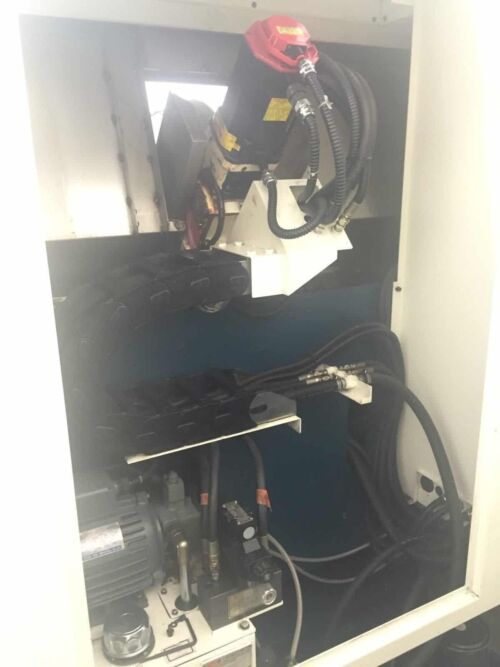

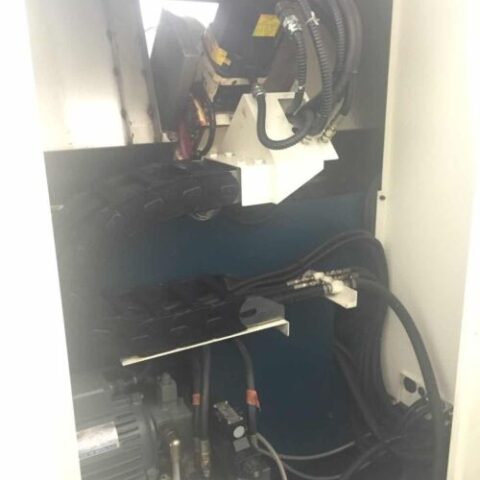

- Barfeed Interface
- Parts Catcher
- RS-232 port

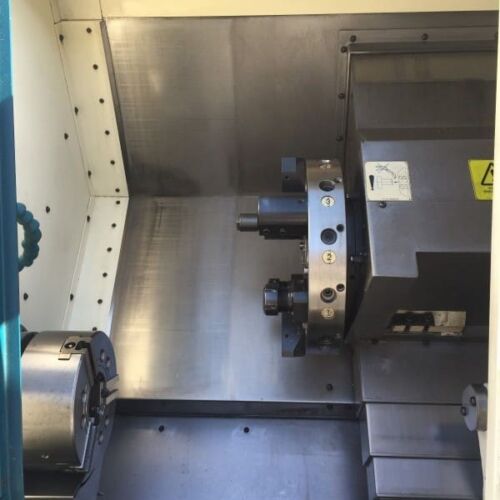

- 12 Station Automatic Turret

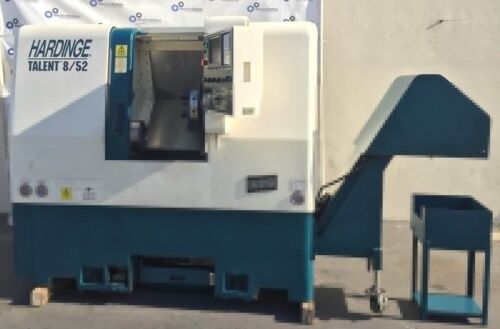

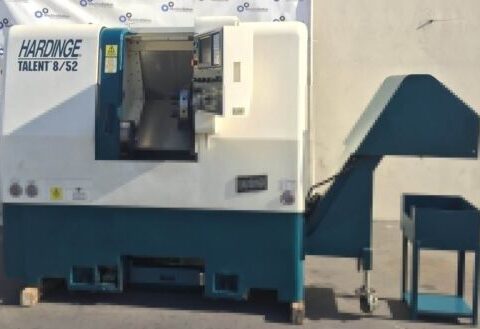

- Chip Conveyor
- Coolant Tank
- HARDINGE TALENT 8 52 Specifications:
- Capacity:
- MAXIMUM TURNING DIAMETER: 11.10″
- MAXIMUM TURNING LENGTH: 15″
- SWING OVER CROSS SLIDE: 18″
- MAXIMUM BAR TUBE CAPACITY: 2.05″
- Travels:
- X AXIS TRAVEL 9.0″
- Z AXIS TRAVEL 16.00″
- RAPID TRAVERSE RATE X AXIS 1181 IPM
- RAPID TRAVERSE RATE Z AXIS 1181 IPM
- Spindle:
- SPINDLE NOSE: A2-6
- SPINDLE SPEEDS: 0 – 5,000 RPM
- SPINDLE MOTOR: 15 HP / 11kw

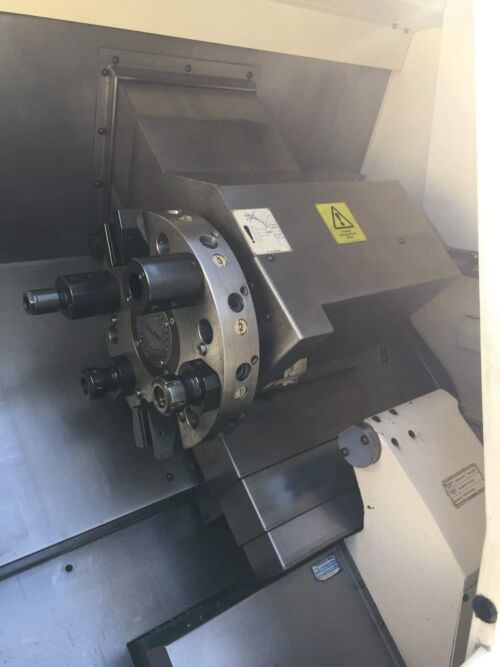

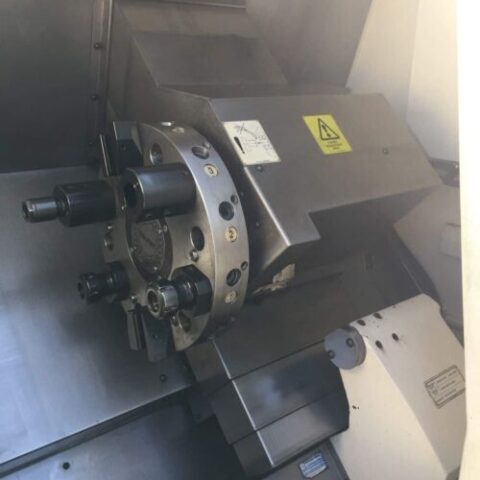

- Turret:
- TURRET Type: VDI 30
- CAPACITY: 12 STATIONS
- TURRET INDEX (Single Step): 0.78 Second
- Tool Size Max Square/ Round Max: 3/4″ / 1-1/4″
- TailStock:
- QUILL TAPER: MT #4
- Base Travel: 13.42″
- QUILL TRAVEL: 2.0″
- TAILSTOCK QUILL THRUST: 225 – 900 LB
- General:

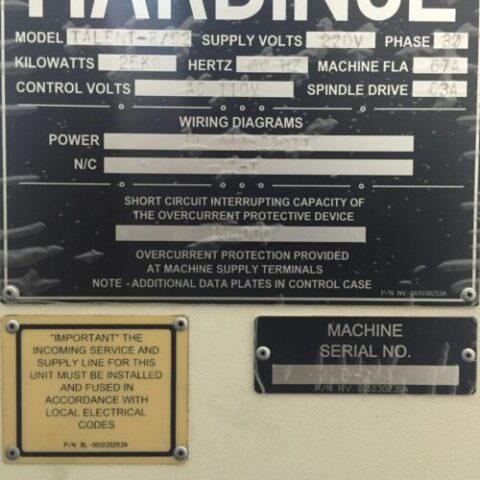

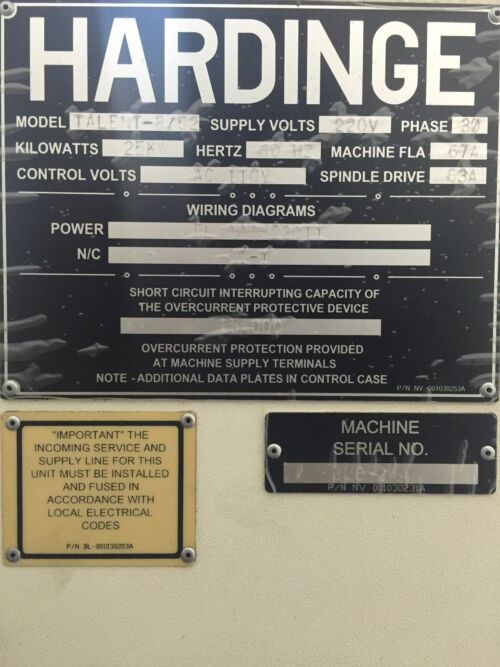

- Power: 220v / 3-Phase
- Overall Dimensions: 80″ x 65″ x 70″ High ( with Chip Conveyor)
- Overall Dimensions: 120″ x 65″ x 70″ High ( without Chip Conveyor)
- Weight: 6200 lbs
HARDINGE TALENT 8 52 Comes as shown in pictures.
