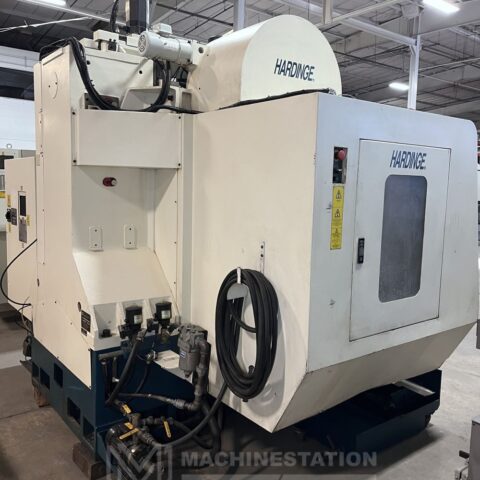

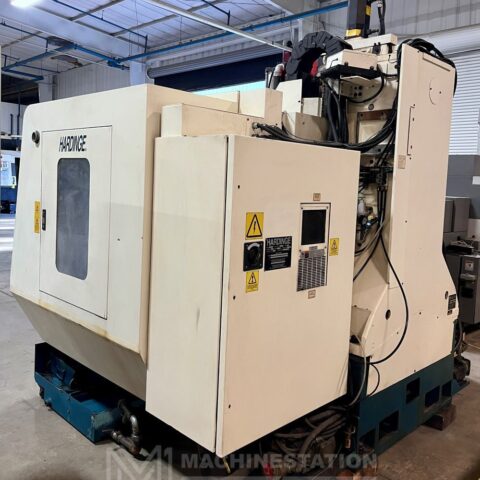

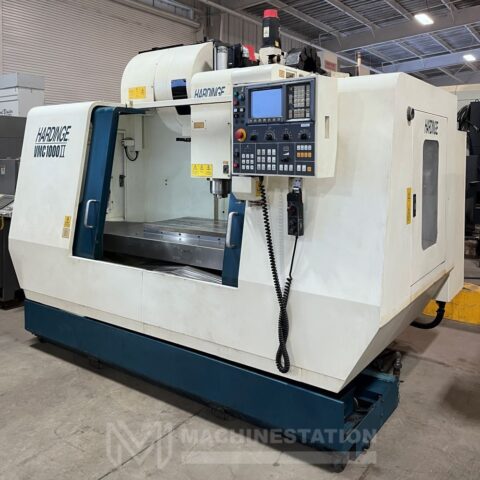

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Hardinge |
| Model: |
VMC 1000II |
| Year: |
2002 |
| Condition: |
Used – Good |

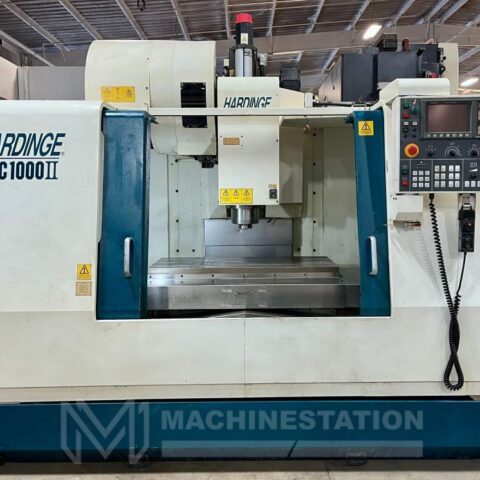

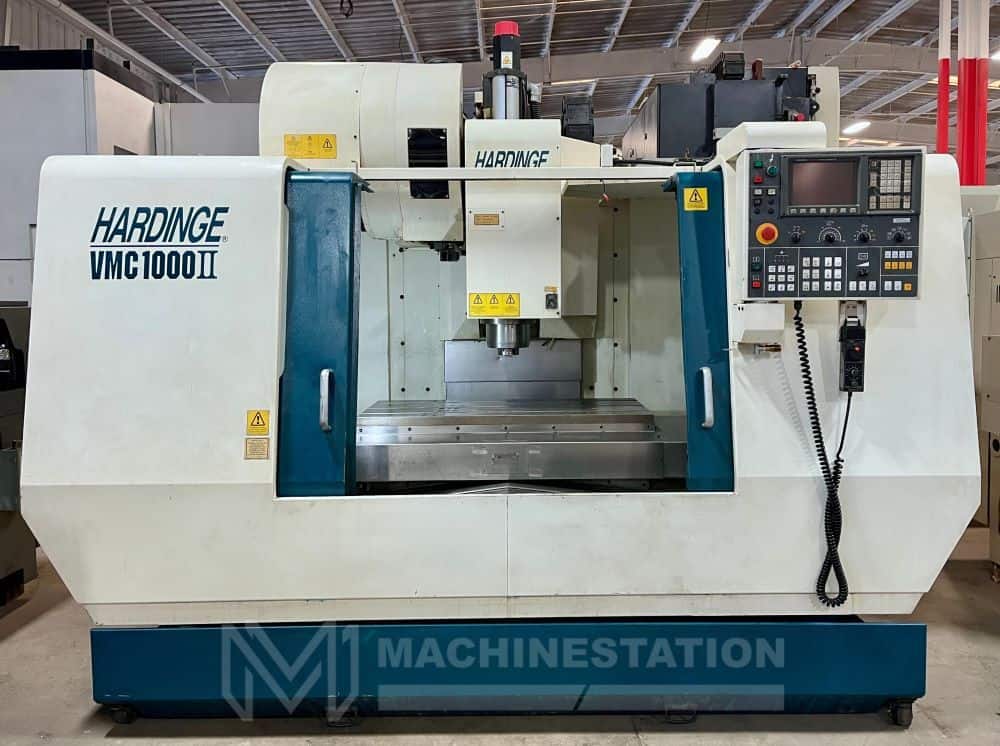

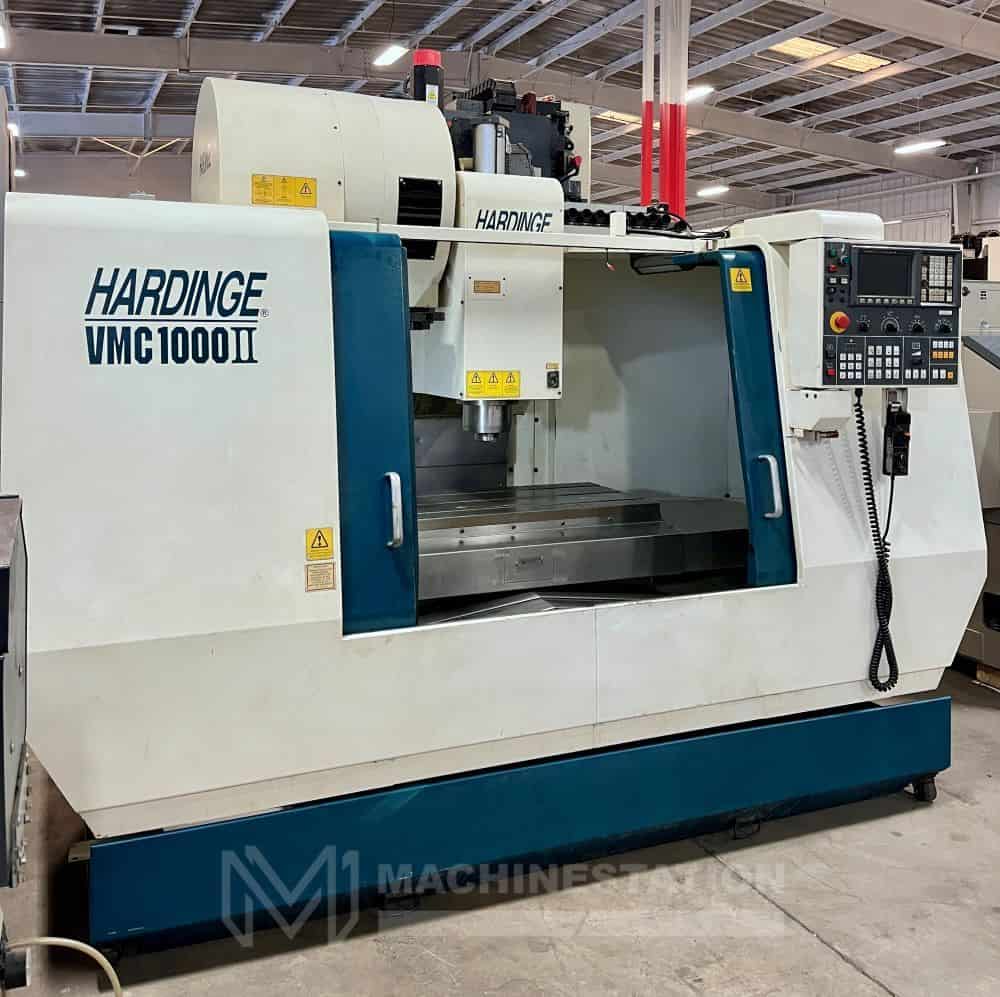

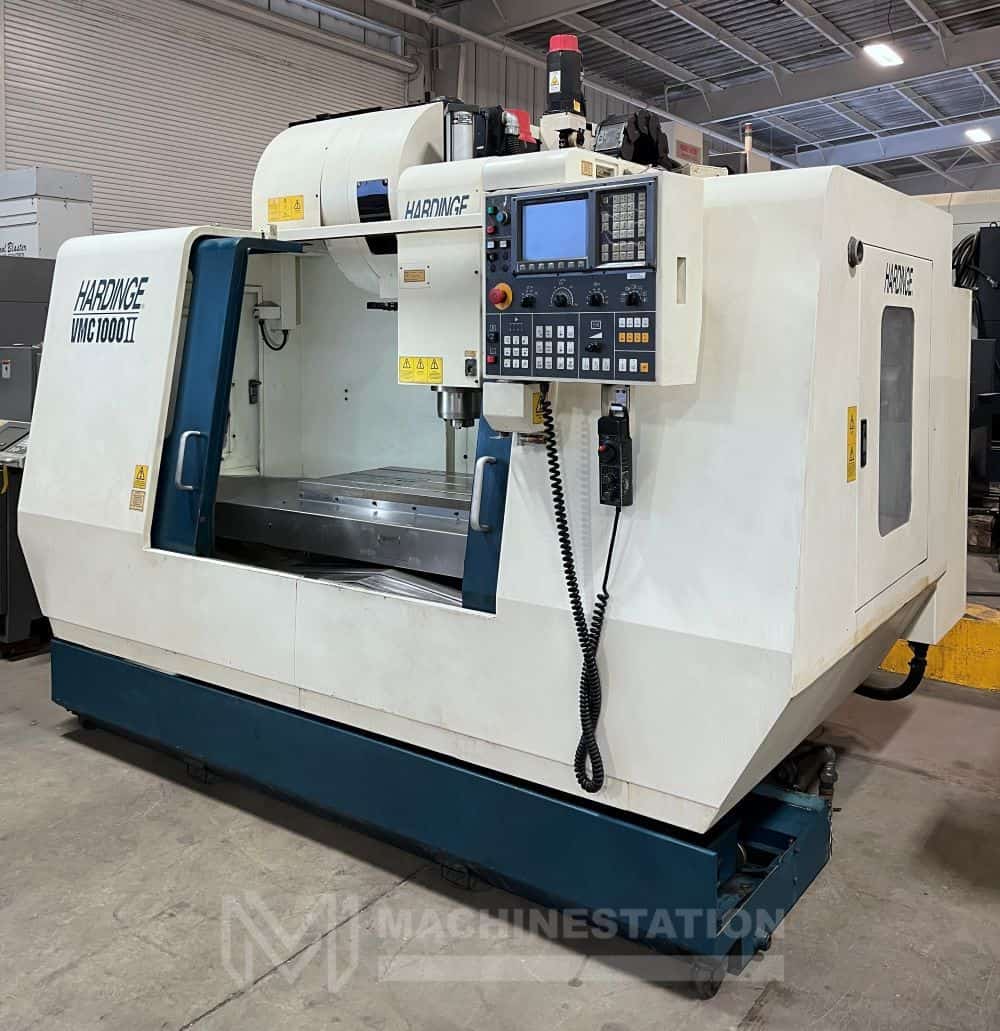

Key Features of the Hardinge VMC 1000II:
- Hardinge-Fanuc CNC Control System II
- 8000 RPM Precision Spindle
- 24 Station Automatic Tool Changer
- 40 Taper Spindle
- MPG Handwheel Control
- Rigid Tapping
- Telescopic way covers
- Flood Coolant system
- Levelling Pads
|
Travel:
- X-Axis: 40.16″
- Y-Axis: 20.08″
- Z-Axis: 20.08″
- Rapid Traverse Rates: 1181 Inch Per Minute
- Cutting Feed Rates: 472 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 6.1″ – 26.1″
|

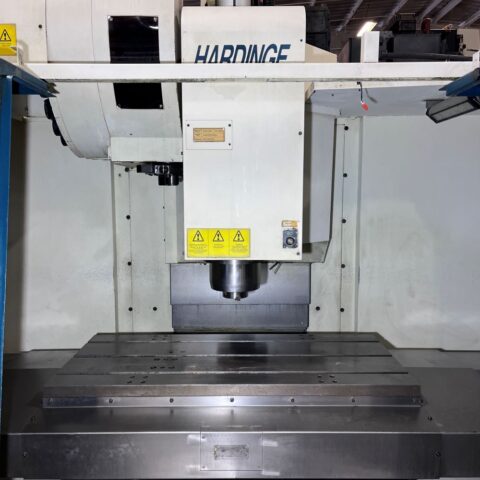

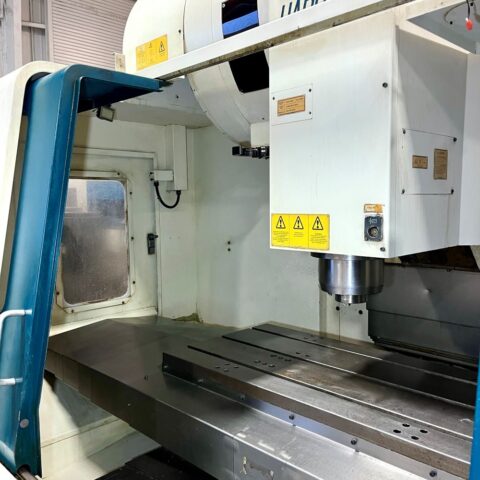

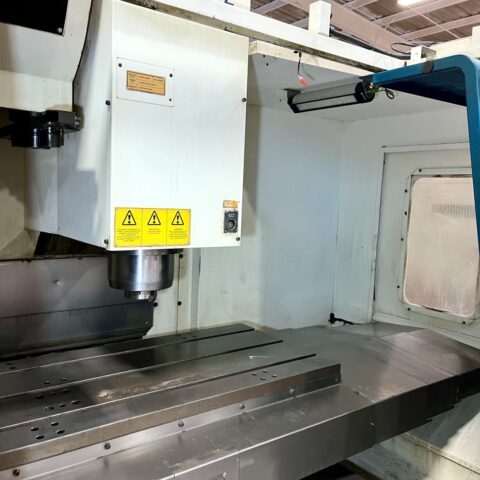

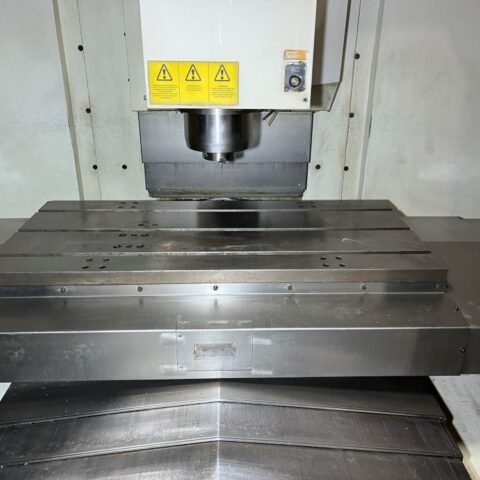

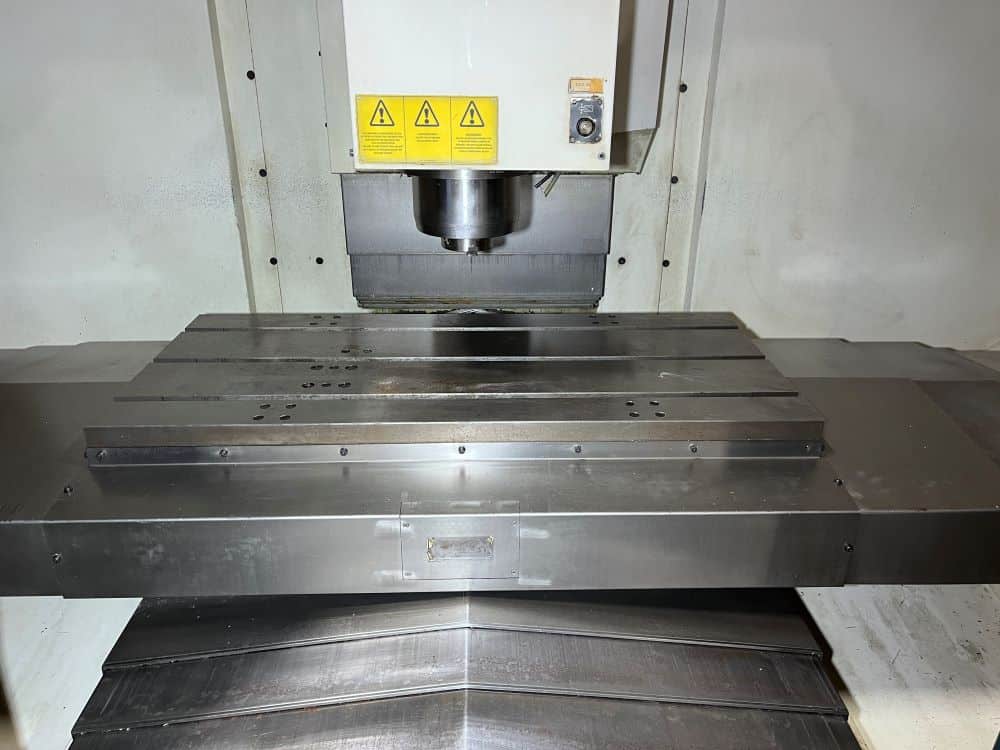

Table:
- Length: 44.4″
- Width: 20.0″
- Number of Std T-Slots: 3
- Max Weight on Table: 1540 lbs
|

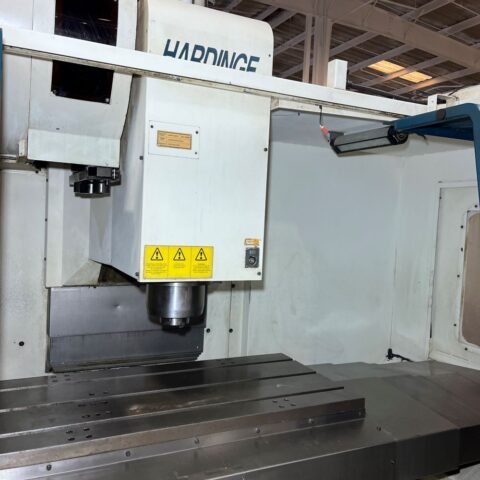

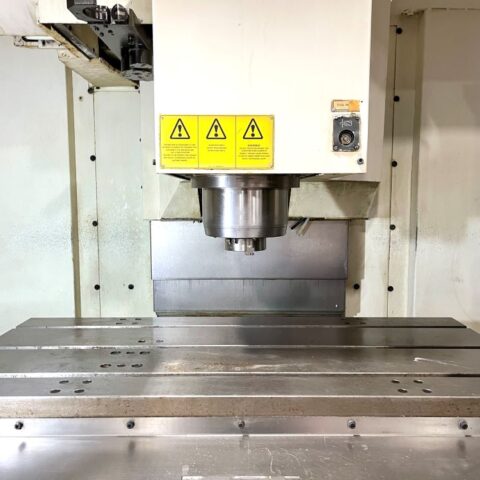

Spindle:
- Taper Size: 40
- Speed Range: 8,000 RPM
- Spindle Power: 20 HP
|

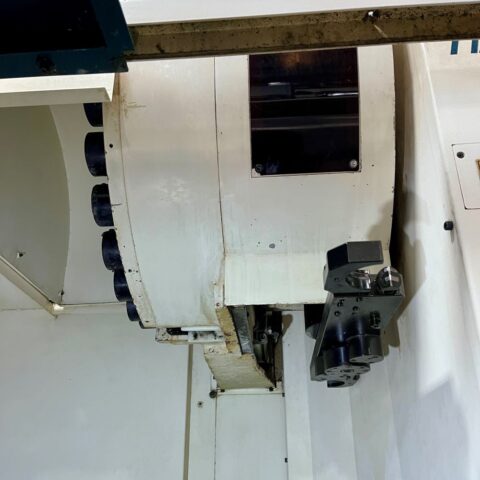

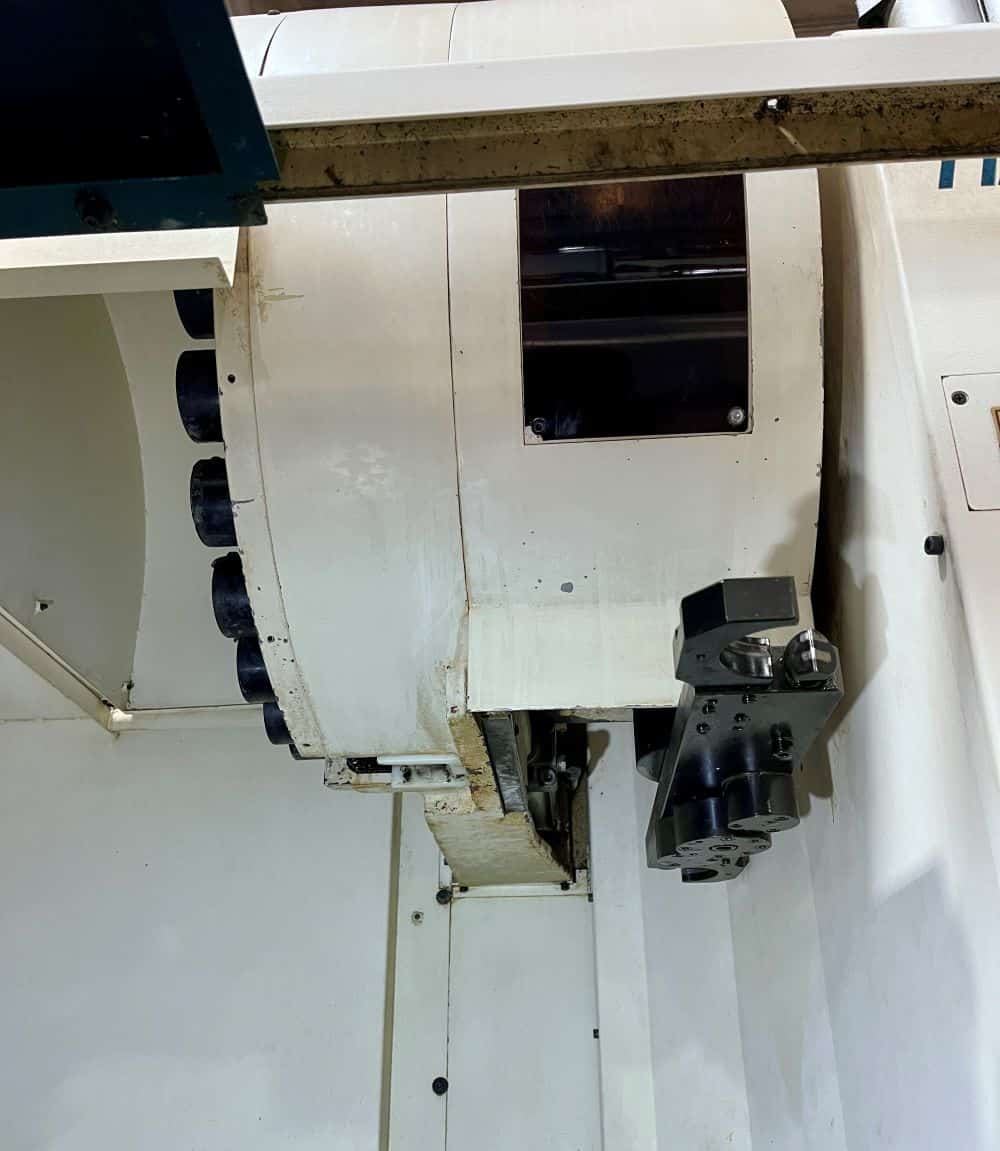

Automatic Tool Changer:
- Capacity: 24 Tools
- Max Tool Weight: 13.2 lbs
- Max Tool Dia: 5.9″
- Max Tool Length: 9.8″
- Tool Changing Time: 1.5 Seconds
|
General:
- Air Required: 800 psi 4 scfm

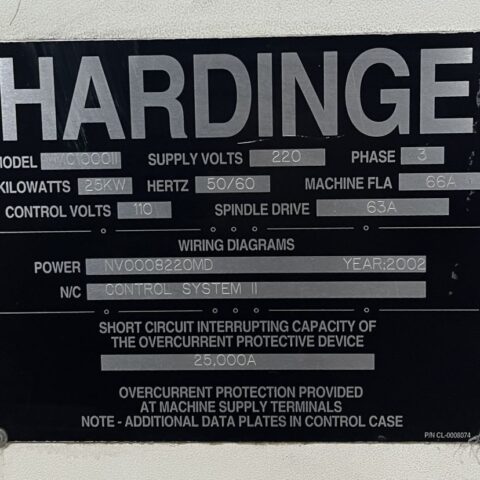

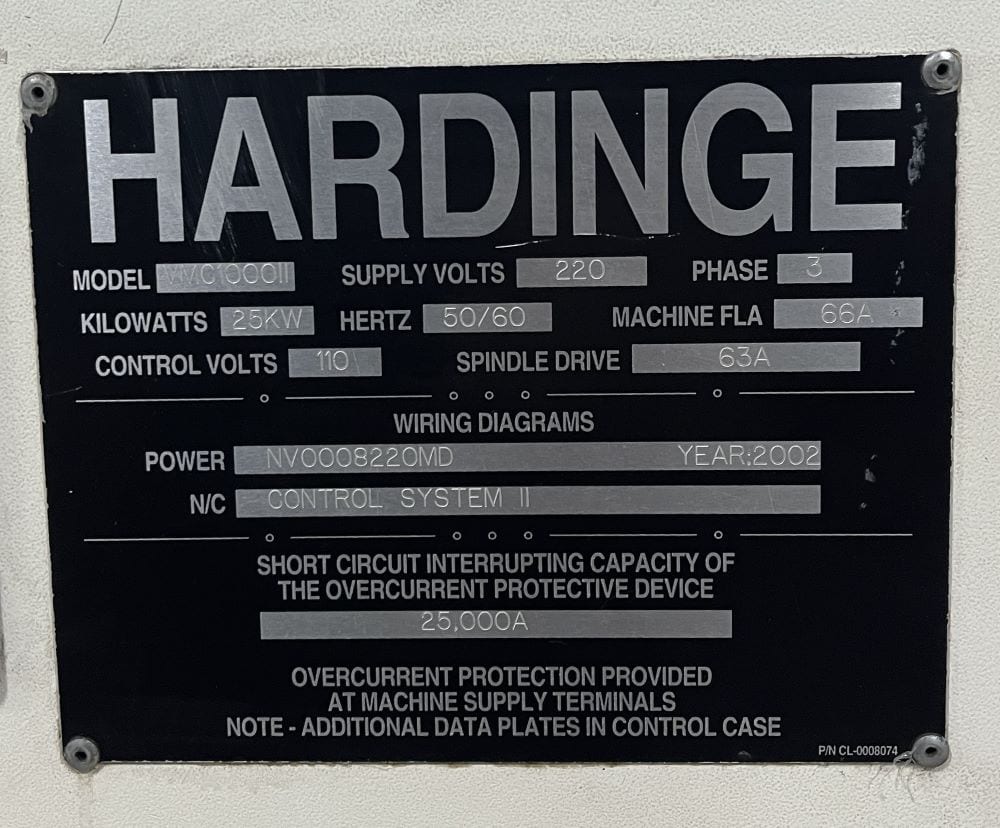

- Power: 220v / 66FLA / 3-Phase / 25 kw
- Overall Dimensions: 126″ x 90″ x 104″ High Approx.
- Weight: 10,500 lbs. Approx.
|
