All specifications are approximations and are subject to verification.
“This One Owner Machine has low Cutting Hours only, 8000rpm, 20 tool High speed tool changer, expanded Memory and many more features. On our Floor now fully powered / tested & is in Great working condition.”
-

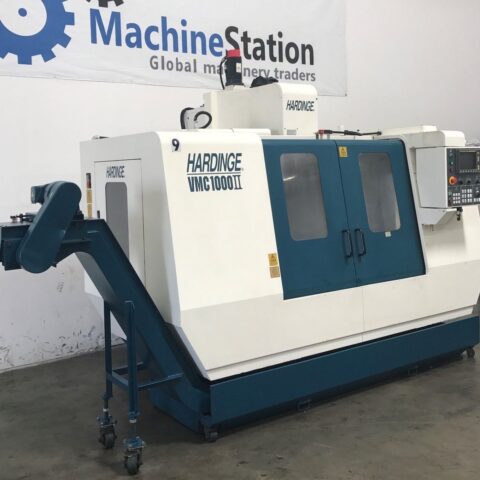

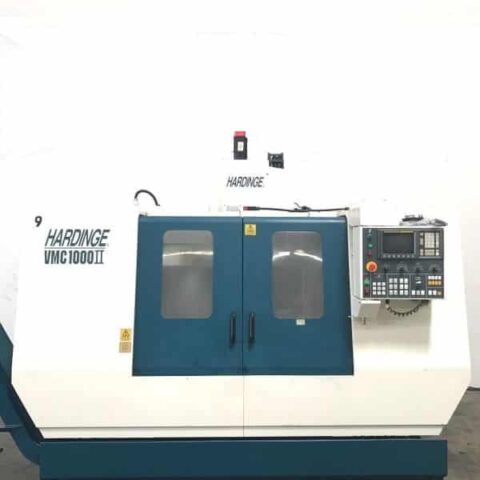

HARDINGE VMC-1000II CNC Features:
- Fanuc 0-MD CNC Control
- 20 Tools High Speed Tool Changer
- High precision 8,000 RPM Spindle
- Powerful high torque spindle motor
- Manual Pulse Generator
- Rigid Tapping
- Custom Micro B (User Definable)
- Fast Rapid Traverse Rate
- Flood coolant with large separate coolant tank
- Work light

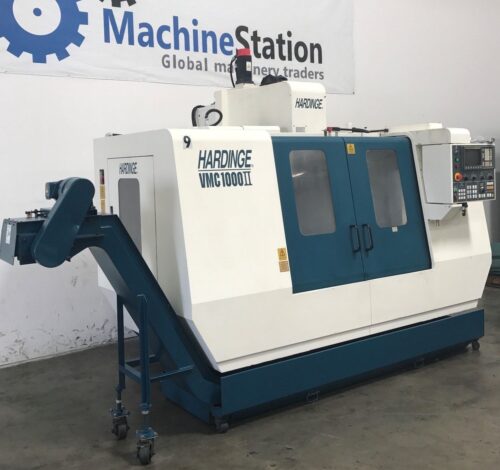

- Chip Conveyor
- Book and Manuals
- 6 X Tool Holders
-
HARDINGE VMC-1000II CNC Specifications:
- Travels:
- X-Axis: 40.16″
- Y-Axis: 20.08
- Z-Axis: 20.08″
- Spindle Nose to Table (Min.- Max.): 6.1″ – 26.1″
- Spindle Center to Column: 23″
-

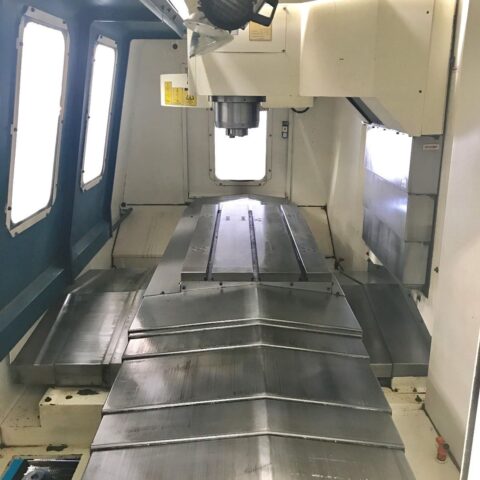

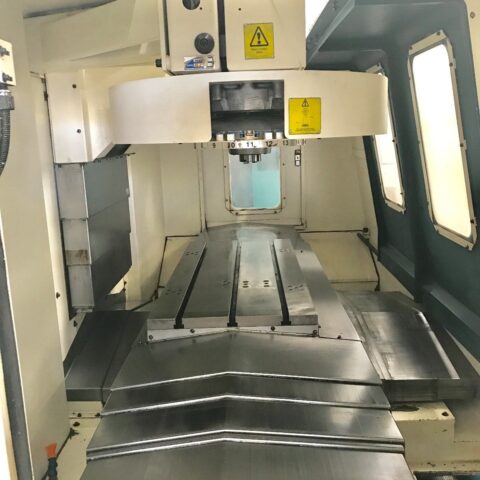

Table:
- Length: 44.4″
- Width: 20.0″
- Max Weight on Table: 1540 lbs
-
Spindle:
- Taper Size: 40
- Speed Range: 60 – 8,000 RPM
- Spindle Power: 17.3 HP
-
Feed rates:
- Rapid X,Y & Z: 1181 inch/P.M
- Cutting Feedrate: 472″ inch/ P.M
-
Automatic Tool Changer:
- 40 Taper
- Capacity: 20
- Max Tool Weight: 13.2 lbs
- Max Tool Length: 9.84″
- Max Tool Dia.: 5.90″
-
General:
- Air Required: 80 psi, 4 scfm

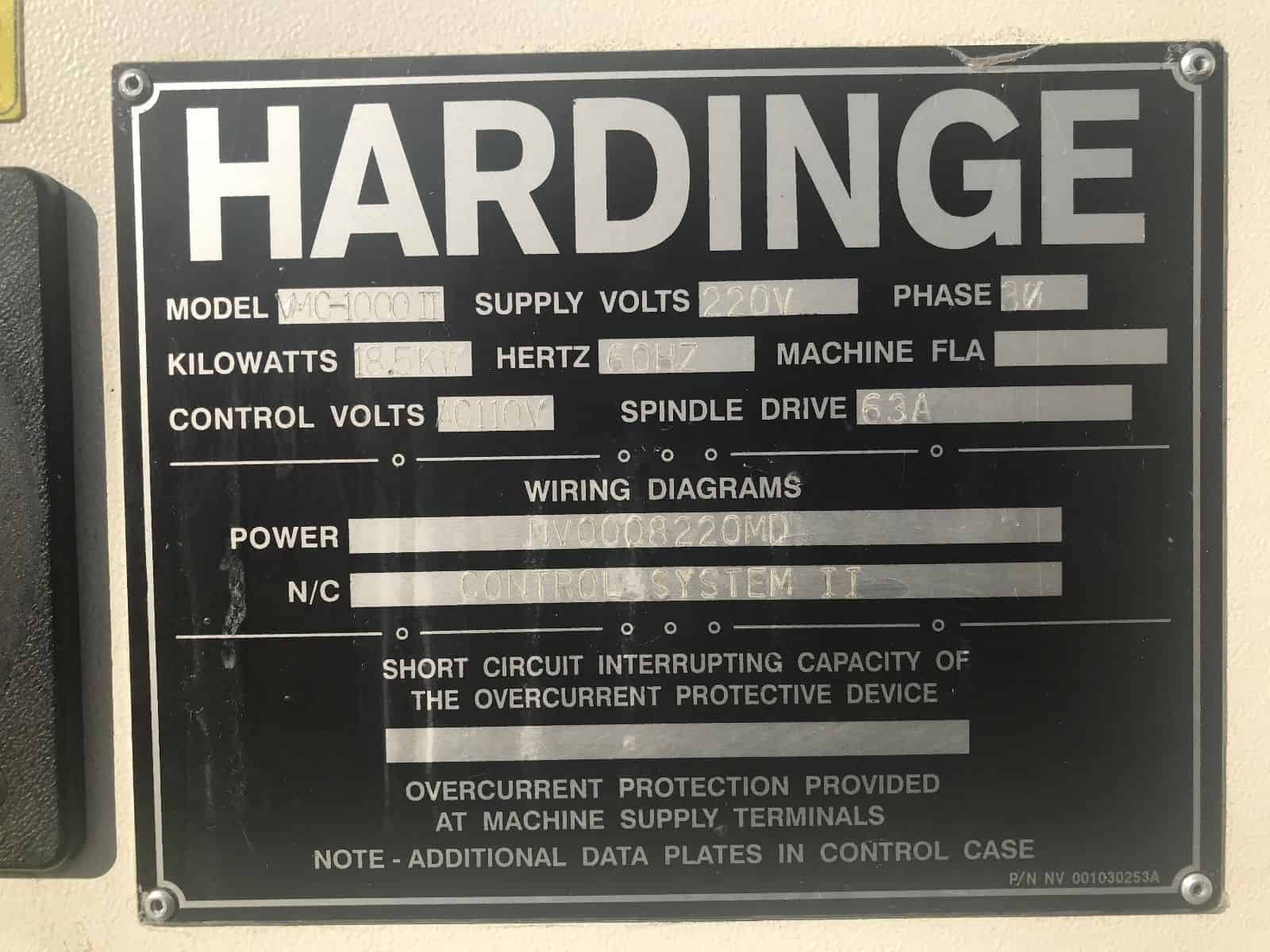

- Power: 205-220v / 66FLA / 3-Phase
- Overall Dimensions: 160″ x 88″ x 90″ High
- Weight: 11000 lbs
