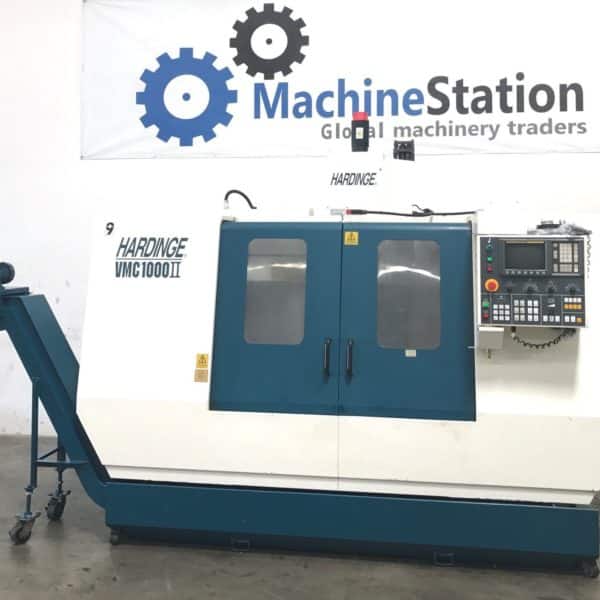

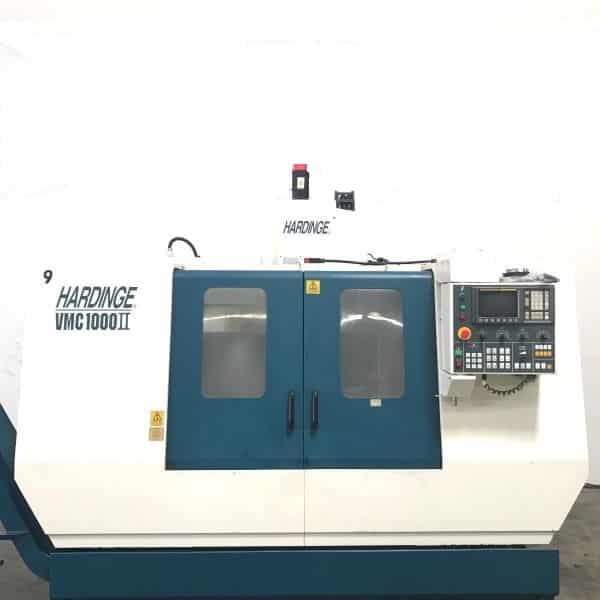

Hardinge VMC-1000II Vertical Machining Center

“Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details”

One Owner, All original Paint machine on our Floor now, fully powered / tested & is in Great working condition.”

Share

Description

HARDINGE VMC-1000II VERTICAL MACHINING CENTER
Make Hardinge
Model No. VMC-100II
Year 2002.07

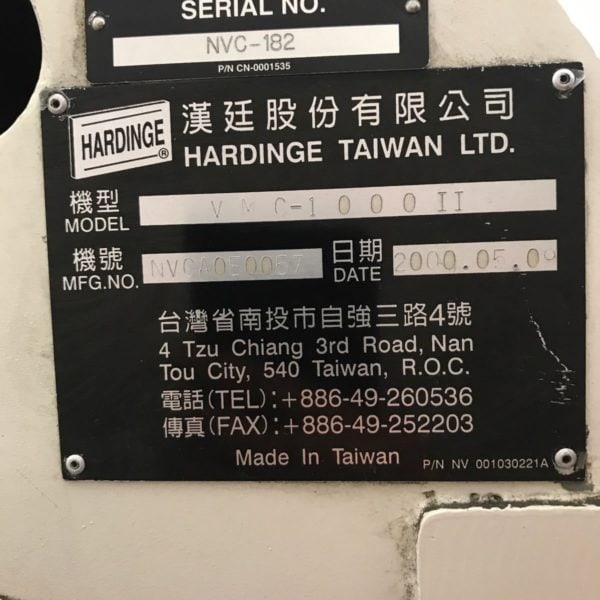

Serial # NVCA2C0075
Condition Very Good
Cutting Hours: 8459

“One Owner, All original Paint machine on our Floor now, fully powered / tested & is in Great working condition.”

  • Hardinge VMC-1000II Features:

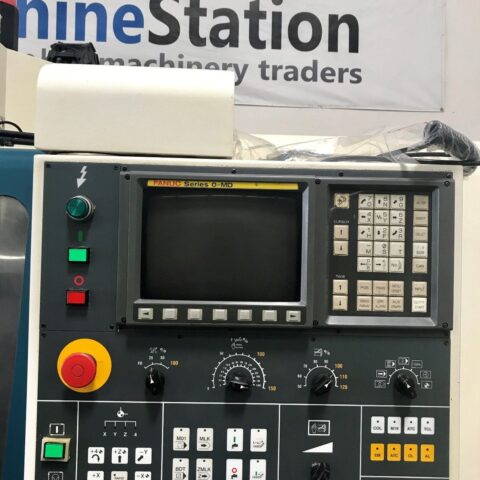

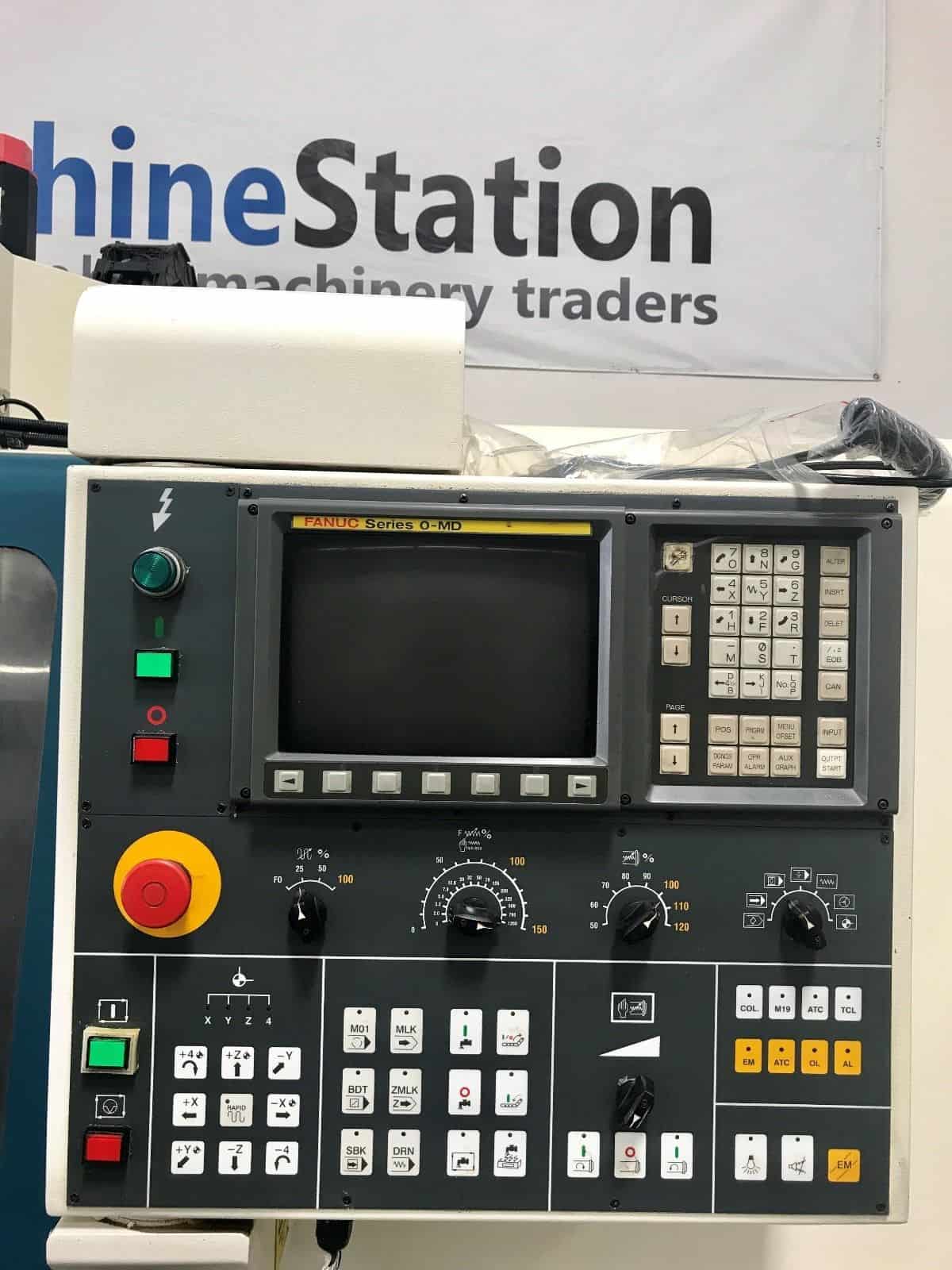

  • Fanuc CNC Control
  • 8000 RPM Precision Spindle
  • 4th Axis Wired
  • USB/DNC sysytem installed
  • MPG Control
  • Rigid Tapping
  • Spindle Orientation
  • Brushless servo drive motors on all axis
  • Automatic high speed tool changer
  • Telescopic way covers
  • Flood Coolant system
  • Levelling Pads
  • Manuals
  • Hardinge VMC-1000II Specifications:
  • Travels:
  • X-Axis: 40.16″
  • Y-Axis: 20.08″
  • Z-Axis: 20.08″
  • Rapid Traverse Rates: 1181″ Per Minute
  • Feed Rates: 472″ Per Minute
  • Spindle Nose to Table (Min.- Max.): 6.1″ – 26.1″

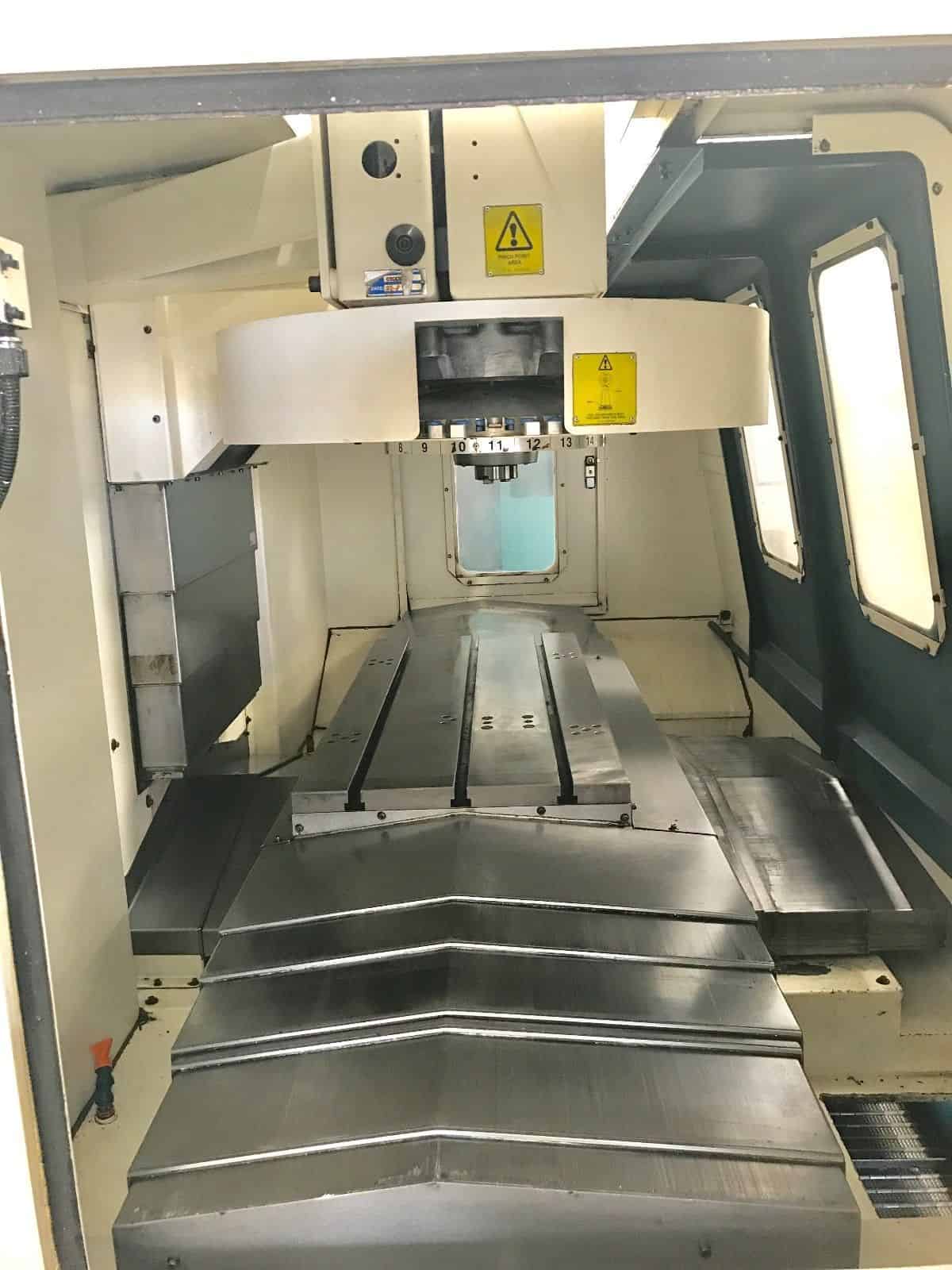

  • Table:
  • Length: 44.4″
  • Width: 20.0″
  • Number of Std T-Slots: 5
  • T-Slot Width: 5/8″
  • Max Weight on Table: 1540 lbs

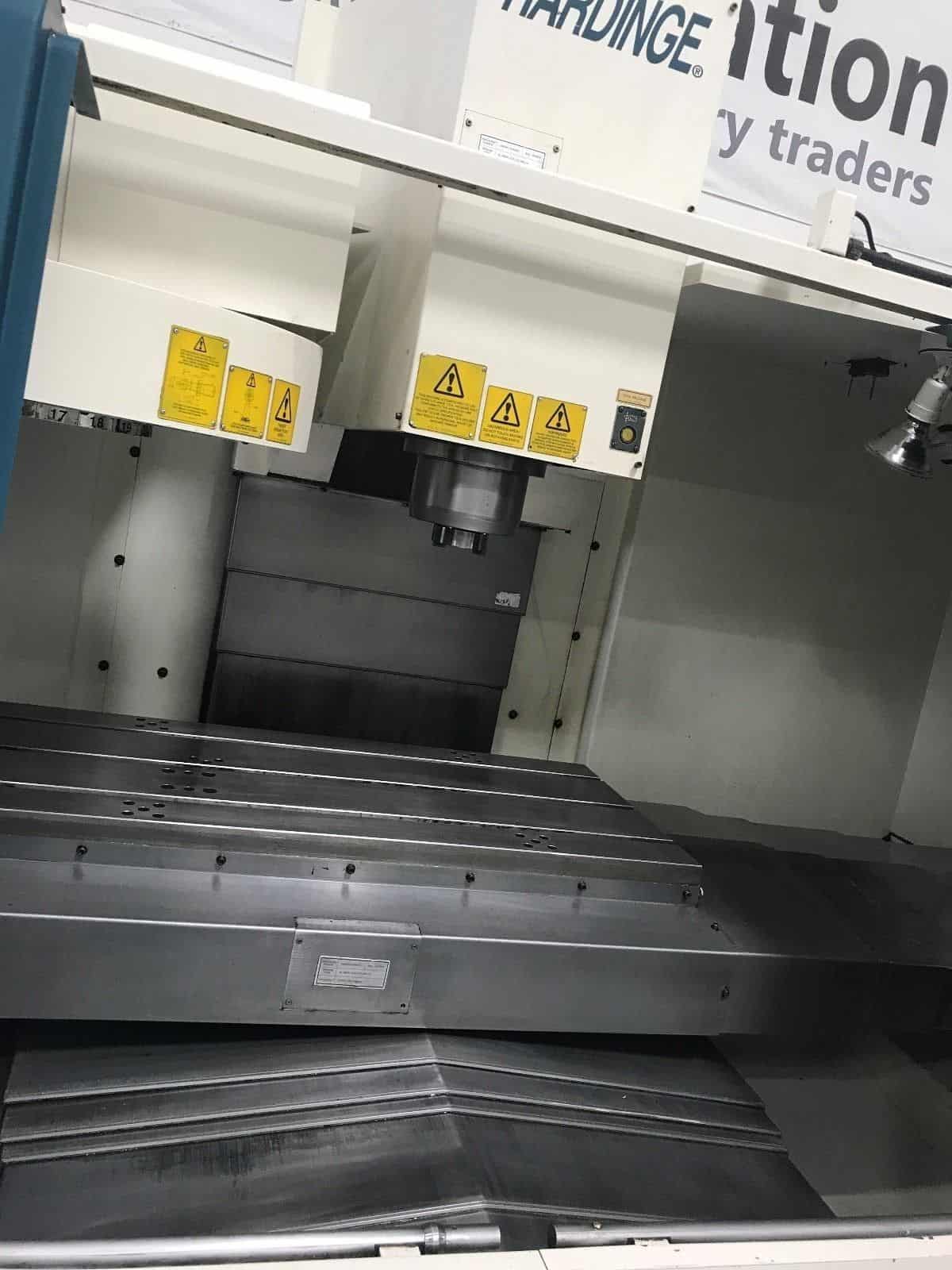

  • Spindle:
  • Spindle: Taper Size:  40
  • Speed Range: 60 – 8,000 RPM
  • Spindle Type: Belt Drive
  • Spindle Power: 20 HP
  • Automatic Tool Changer:
  • Capacity: 20
  • Tool Weight: 13.2 lbs
  • Max Tool Dia: 5.9″
  • Max Tool Length: 9.8″
  • Tool Changing Time: 1.5 Seconds
  • General:
  • Air Required: 80 psi, 4 scfm
  • Power: 220v / 66FLA / 3-Phase
  • Overall Dimensions: 140″ x 100″ x 110″ High
  • Weight: 11500 lbs

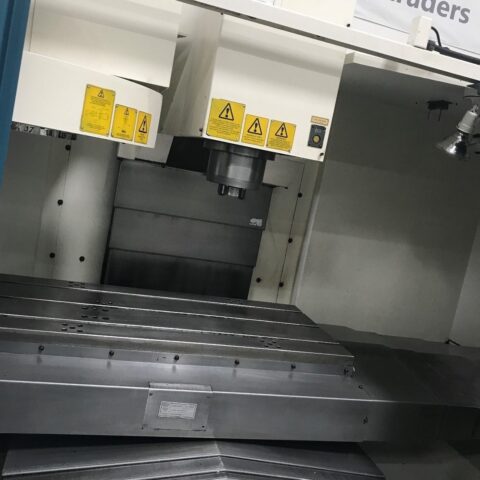

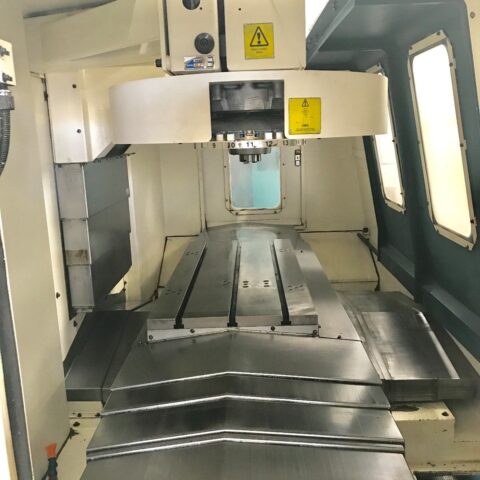

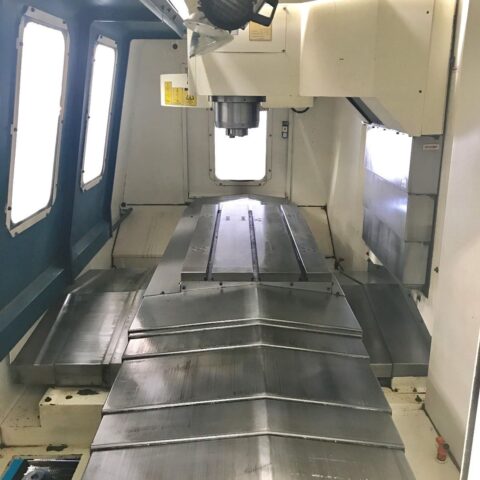

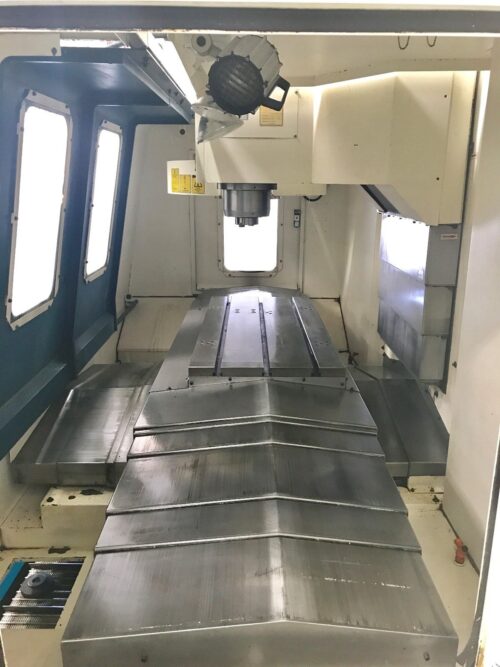

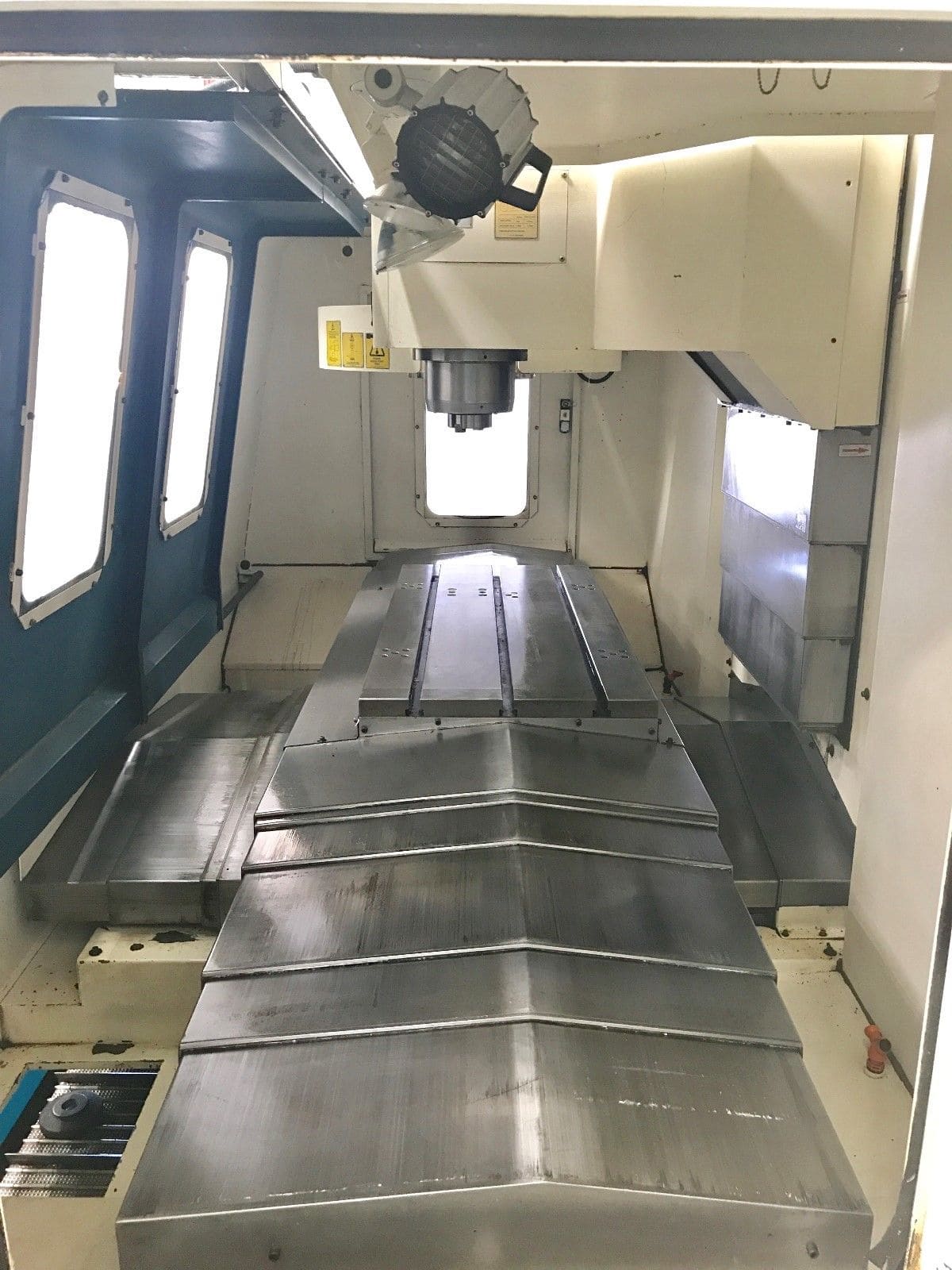

Hardinge VMC-1000II Comes as Shown in Pictures….
