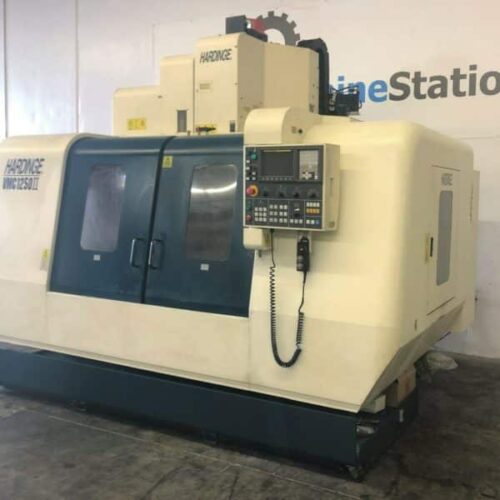

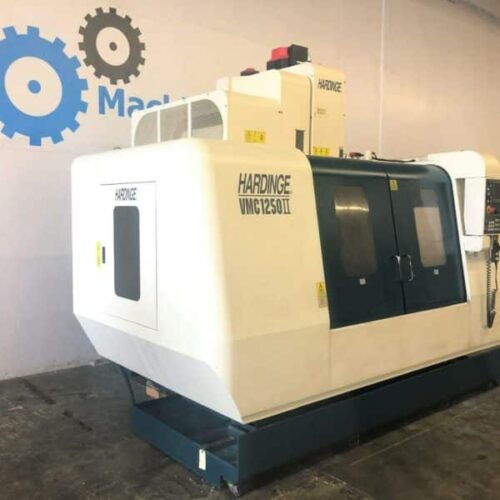

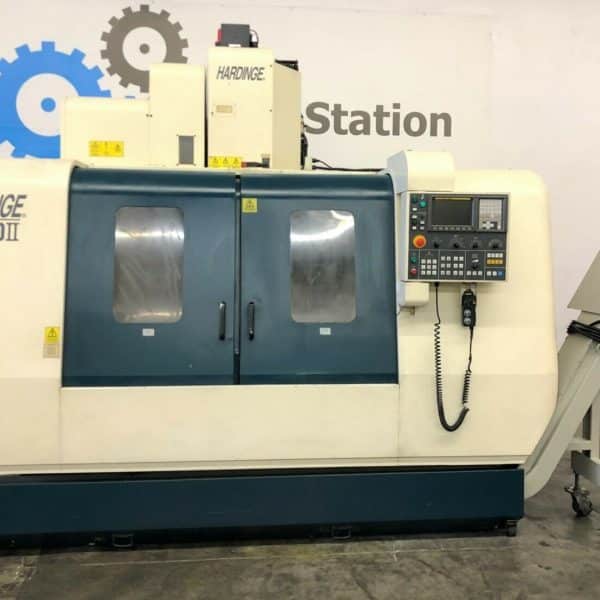

Hardinge VMC-1250II CNC Vertical Machining Center

Out of stock

“This One Owner Machine has only 14995 Cutting Hours, 32 side mount toolchanger, 6,000 RPM, Chip Conveyor, Jig Table and many more features. On our Floor now fully powered / tested & is in Great working condition.”

SKU:	1766
Make/Model:	Hardinge VMC-1250II
Video:	[fusion_button link=”https://www.youtube.com/watch?v=Z_NnXIluS2o” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 1766

HARDINGE VMC-1250II CNC VERTICAL MACHINING CENTER
Make	Hardinge
Model No.	VMC-1250II
Year	2005
Serial #	792
Condition	Very Good

All specifications are approximations and are subject to verification.

Hardinge VMC-1250II Features:

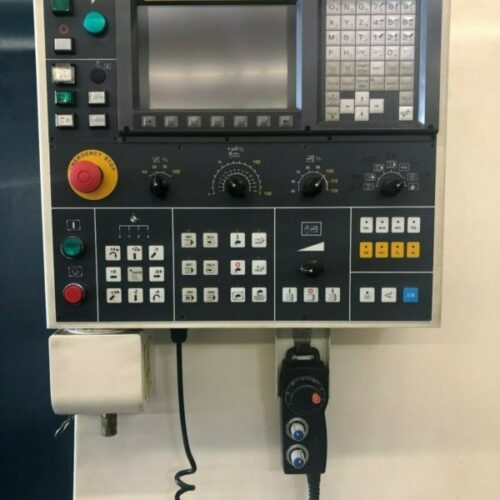

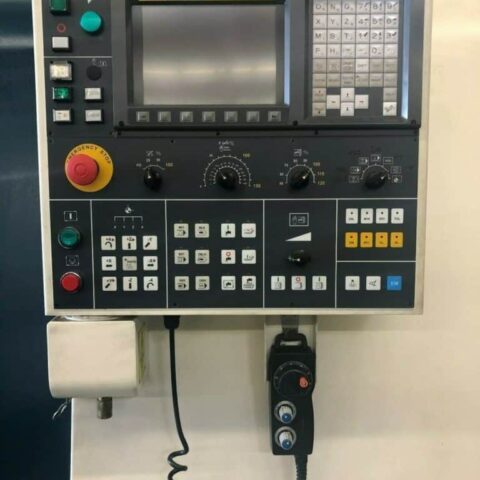

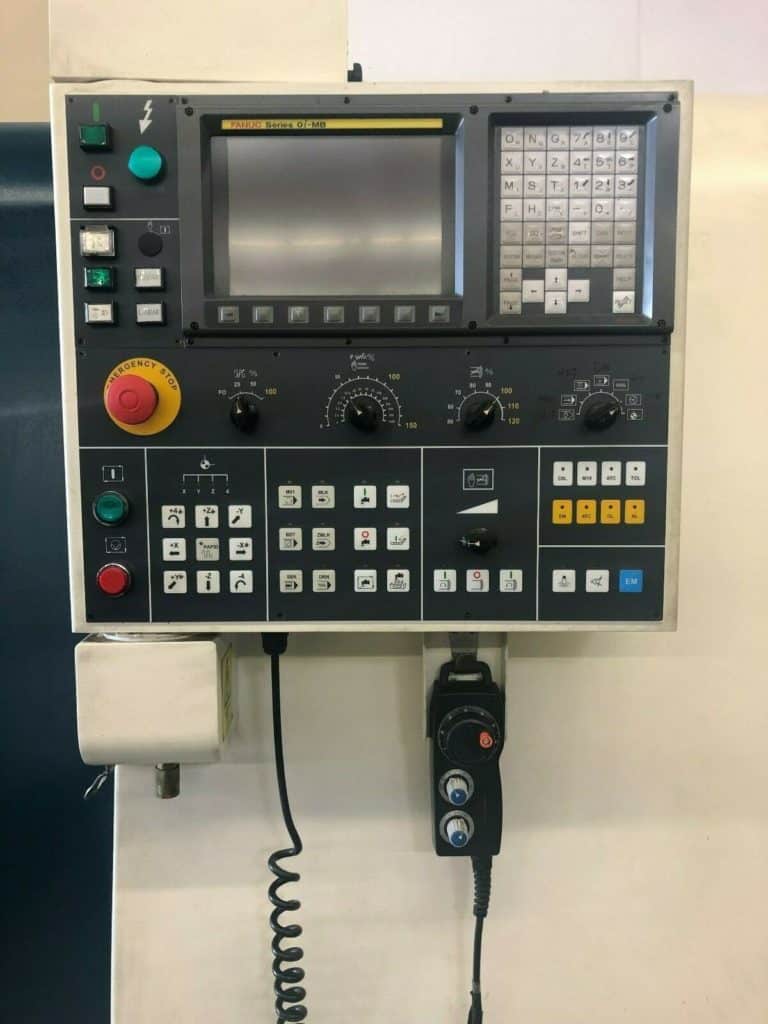

Fanuc Oi-M series CNC Control
6,000 RPM High Precision Spindle

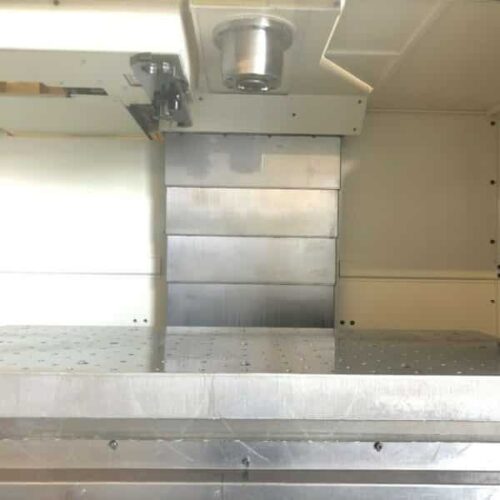

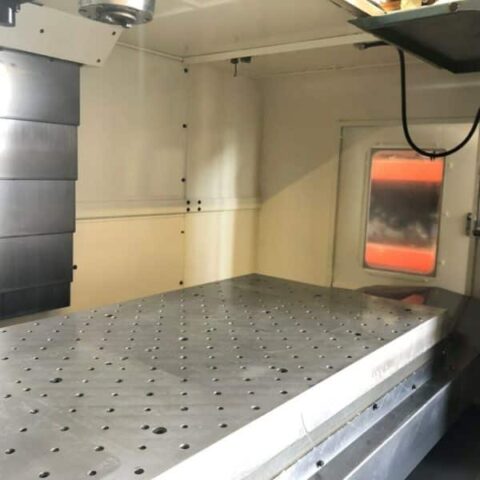

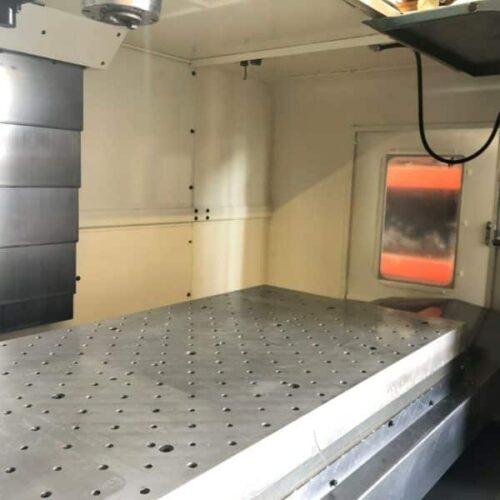

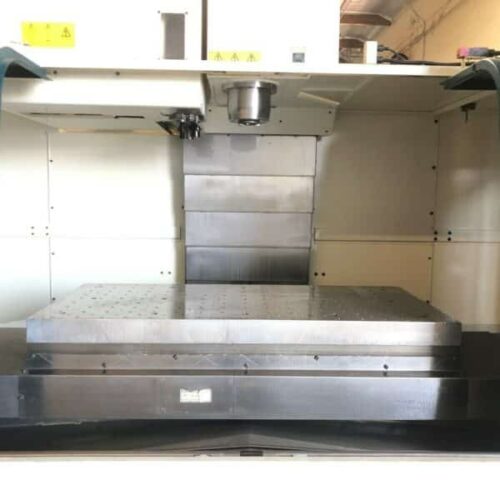

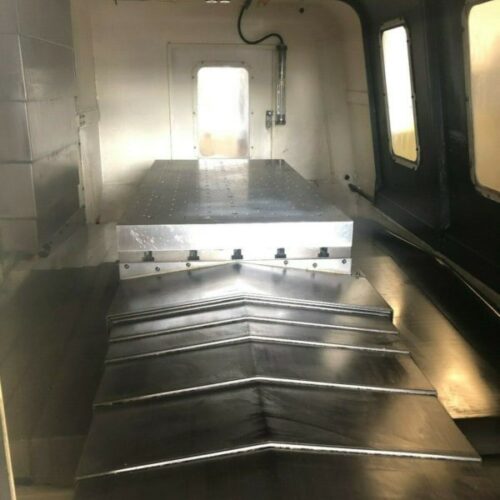

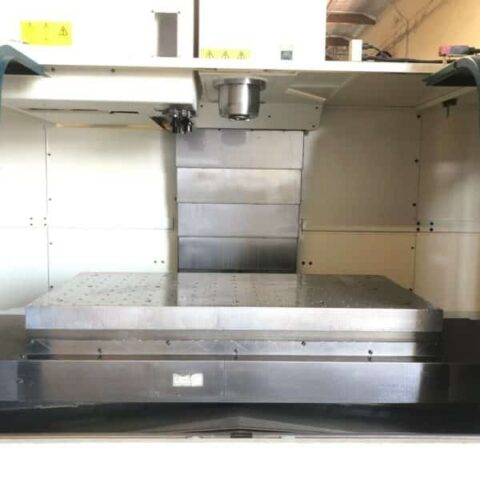

Jig Table Installed
MPG Control
32 Tools Bidirectional Tool Changer
Tool Load Monitoring
Wide Spaced Linear Guides Way Construction
Powerful 15 kw high torque spindle motor
Spindle Orientation
Rigid Tapping
Helical Interpolation
Fast Rapid Traverse Rate
High Flow coolant with large separate coolant tank
Work light
Chip Conveyor
Original Books and Manuals

Hardinge VMC-1250II Specifications:
Travels:
X-Axis: 50.02″
Y-Axis: 25.98″
Z-Axis: 25.01″
Spindle Nose to Table (Min.- Max.): 5.91″ – 30.5″

Table:
Length: 54.0″
Width: 26.0″
Max Weight on Table: 1765 lbs
T-Slot no. & Width: 5 X 0.71″

Spindle:
Taper Size: 40
Speed Range: 60 – 6,000 RPM
Spindle Power: 22hp

Feed rates:
Rapid X,Y & Z: 1417 inch/Per Minute
Cutting Feedrate: 595″ inch/ Per Minute

Automatic Tool Changer:
40 Taper
Capacity: 32
Max Tool Weight: 17.6 lbs
Max Tool Length: 11.8″
Max Tool Dia.: 5.9″
Tool Change Time: 1.5 second

General:
Air Required: 90 psi, 4 scfm

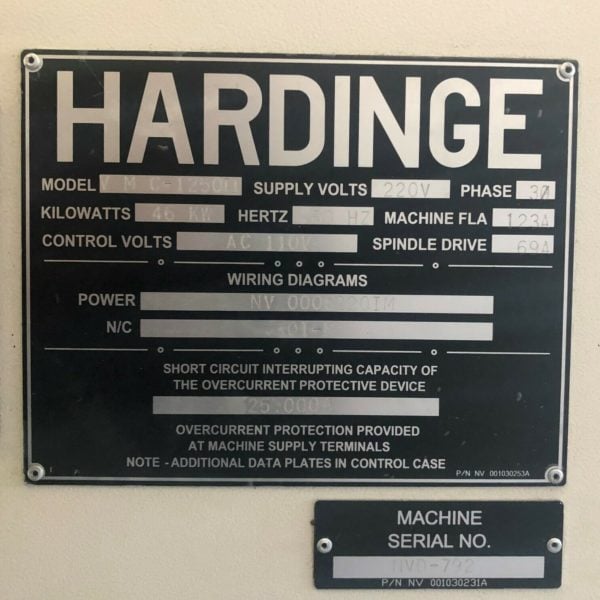

Power: 205-220v / 50kva / 3-Phase
Overall Dimensions: 175″ x 103″ x 110″ High
Weight: 24000 lbs

Hardinge VMC-1250II Comes as shown in pictures.
