Hitachi Seiki TS-15 CNC Turning Center Lathe

Out of stock
SKU: 1604
Make/Model: Hitachi Seiki TS-15
Video: [fusion_button link=”https://www.youtube.com/watch?v=jradaBULojk” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1604

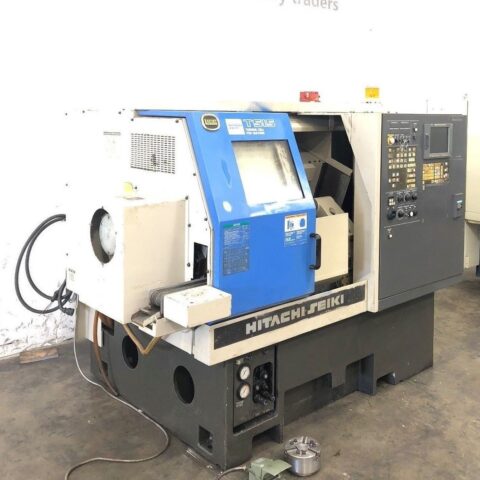

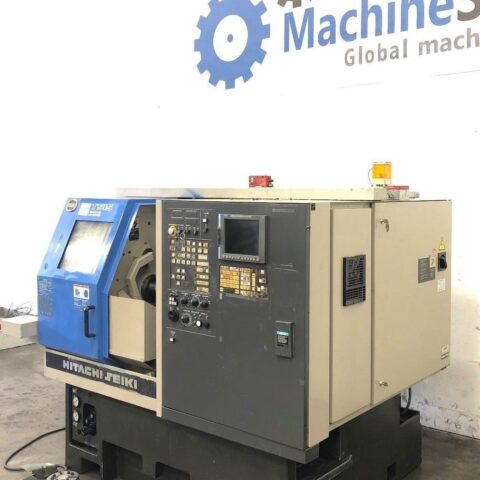

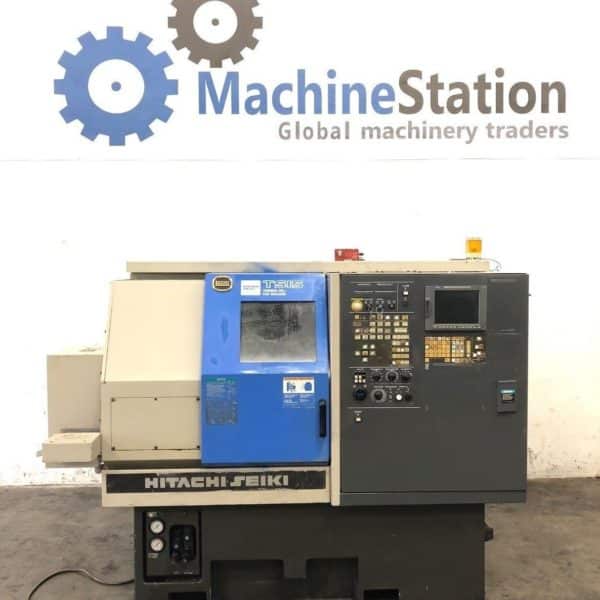

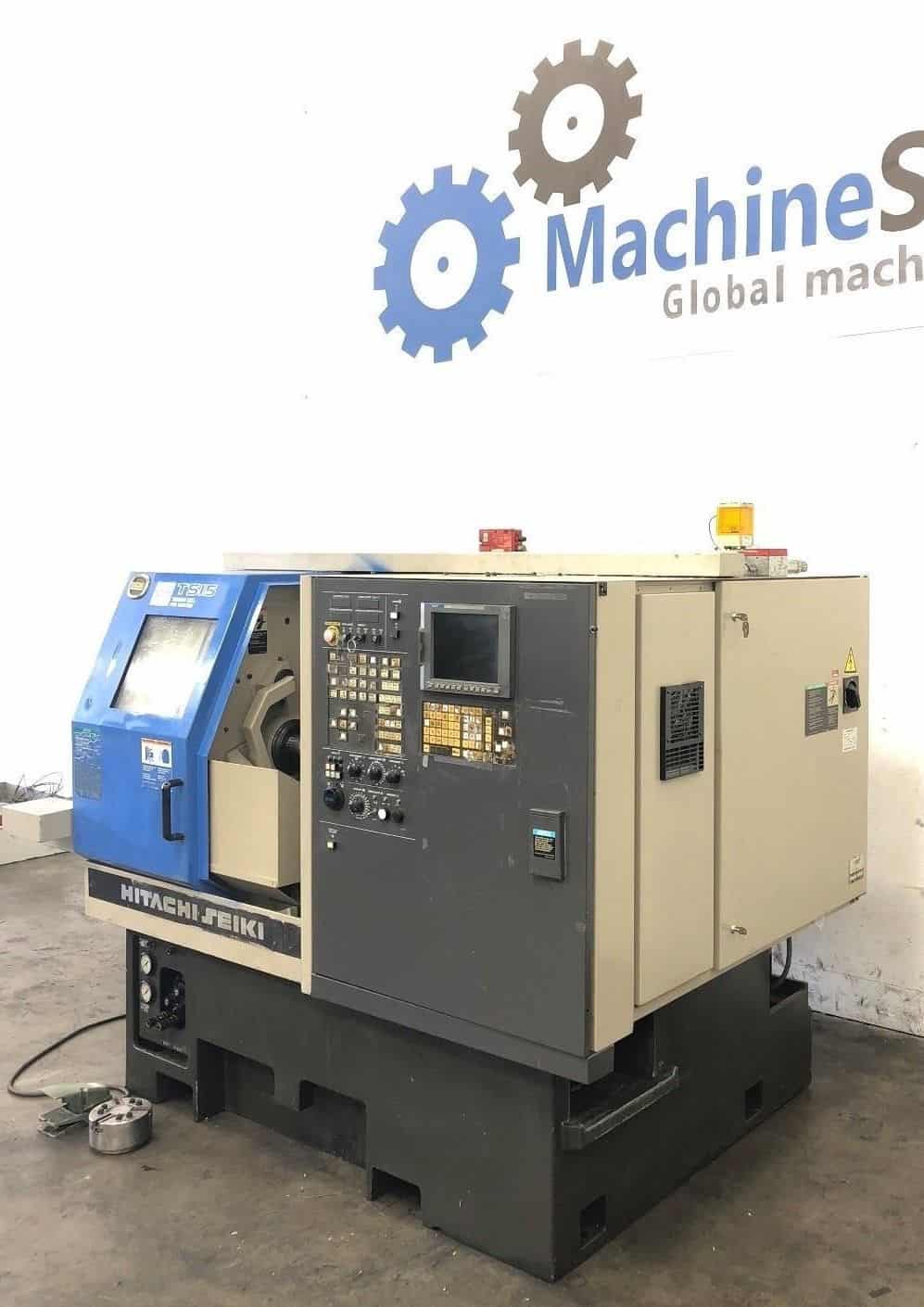

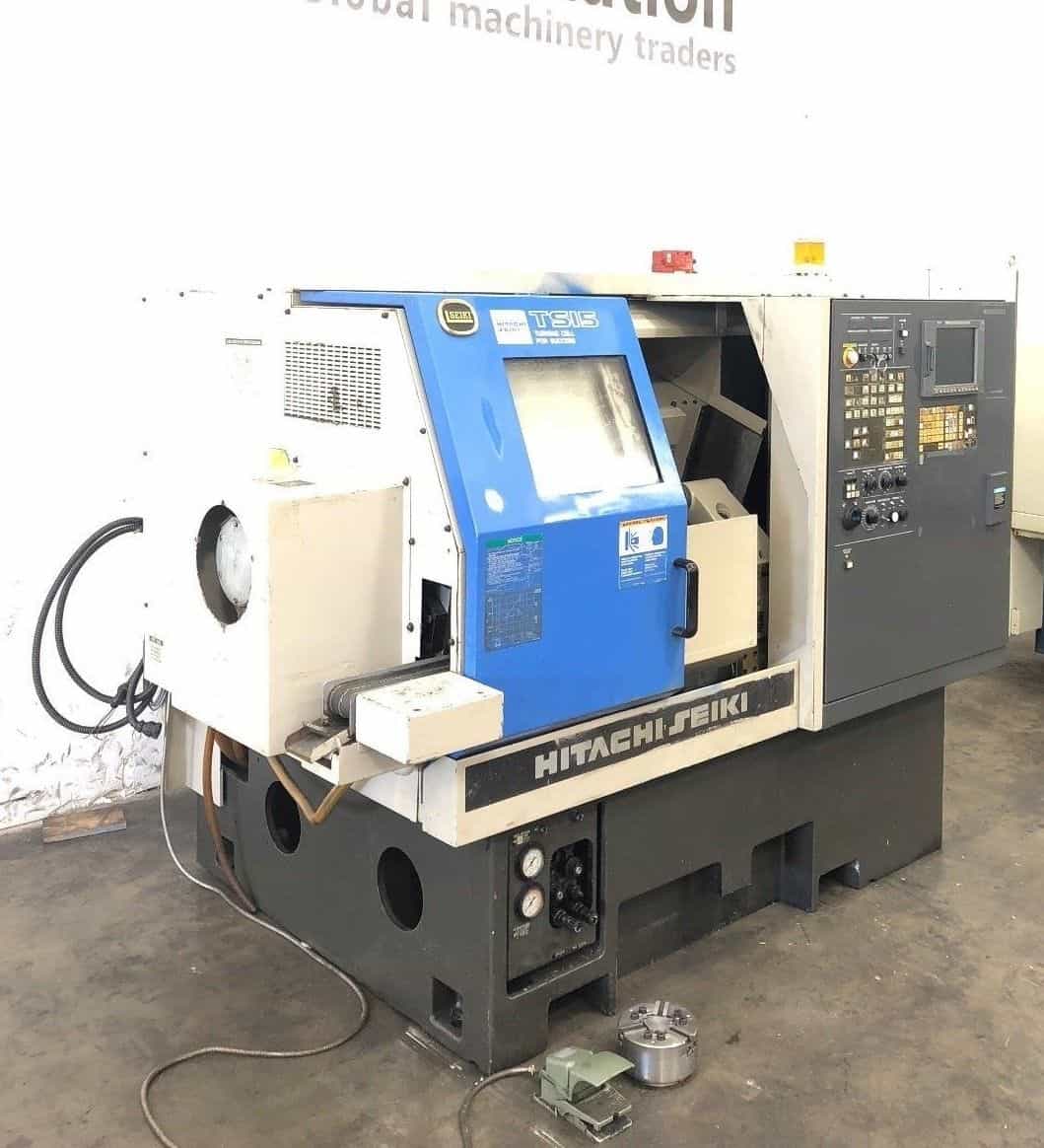

HITACHI SEIKI TS-15 CNC TURNING CENTER
Make Hitachi Seiki
Model No. TS-15
Country of Origin:  Japan
Serial # TS15161
Condition Very Good
  • HITACHI SEIKI TS-15 CNC Equipped With:

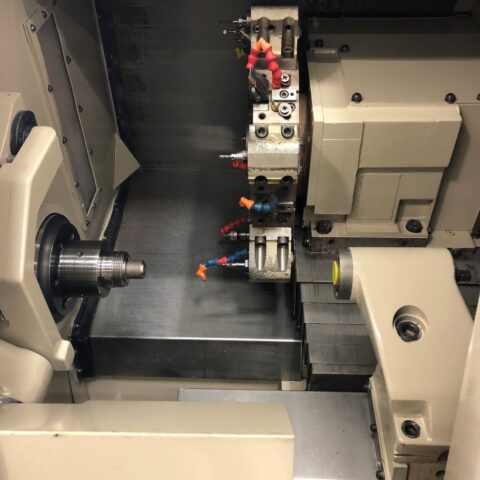

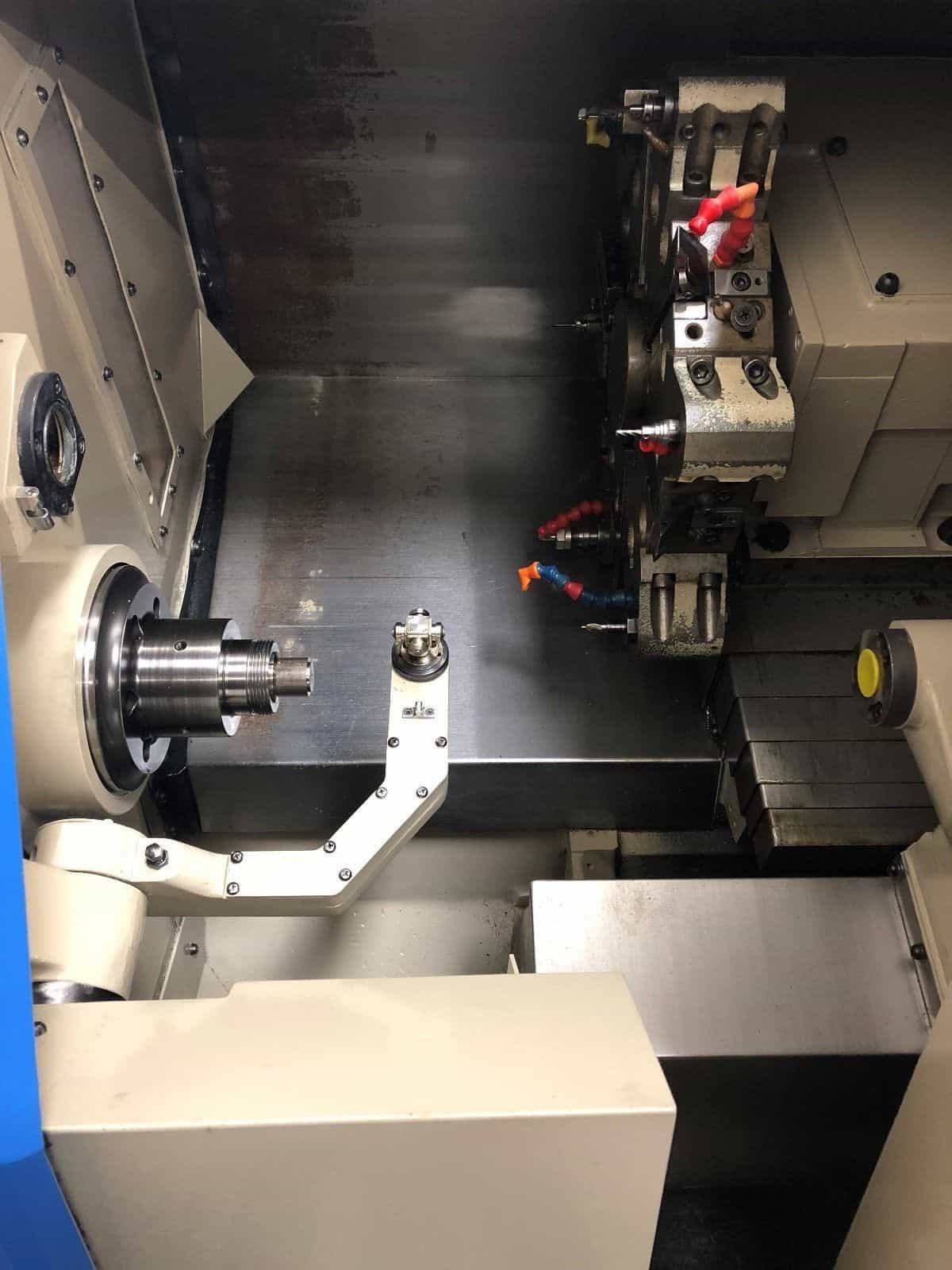

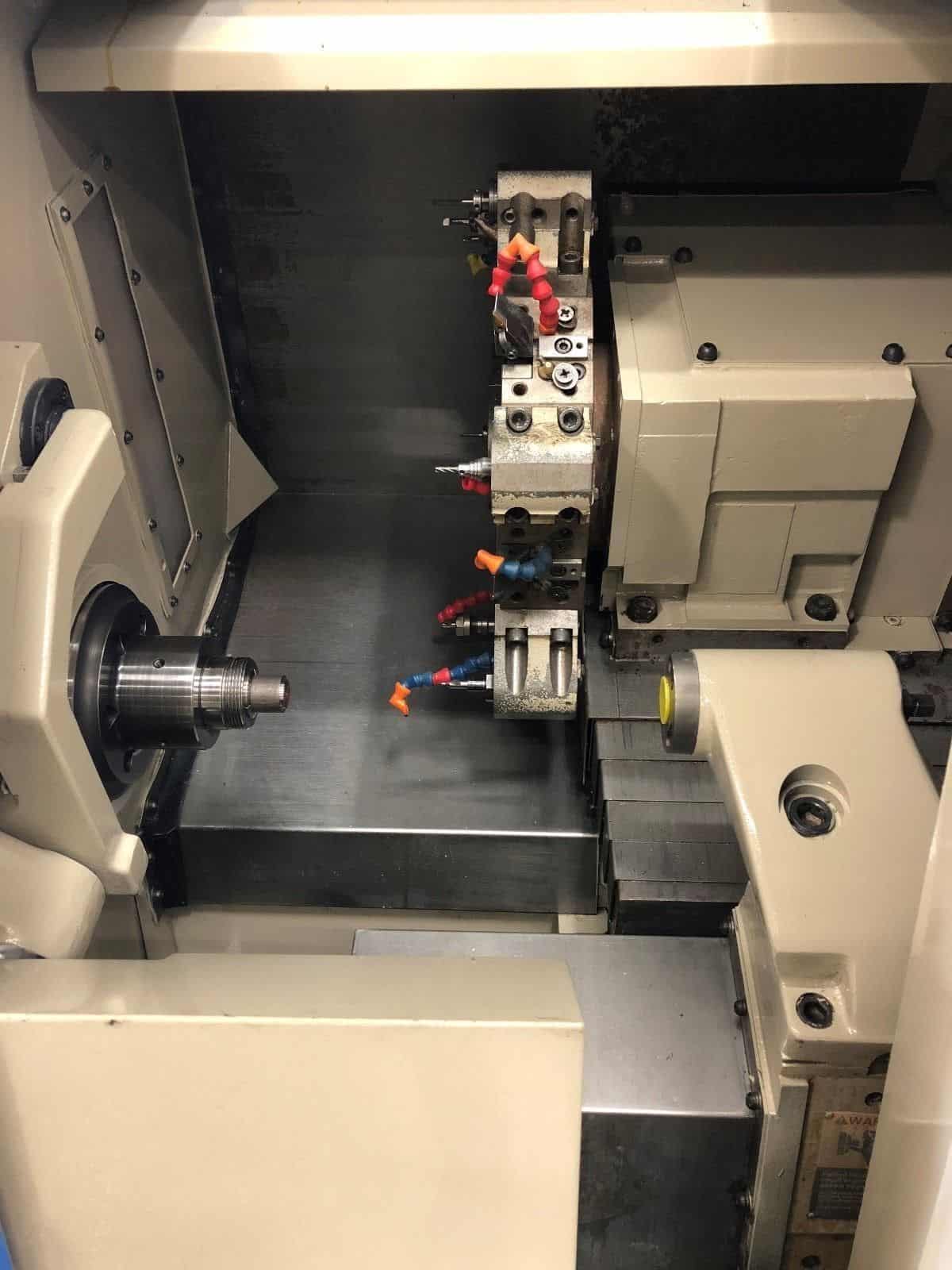

  • 12-Station Turret with Tools

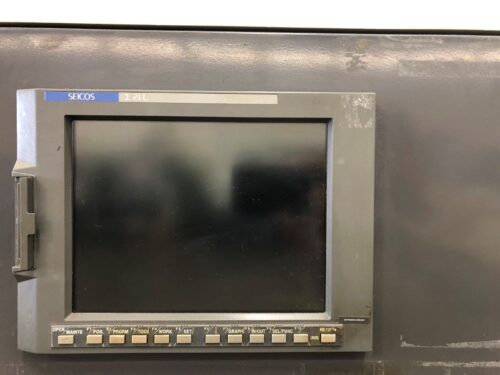

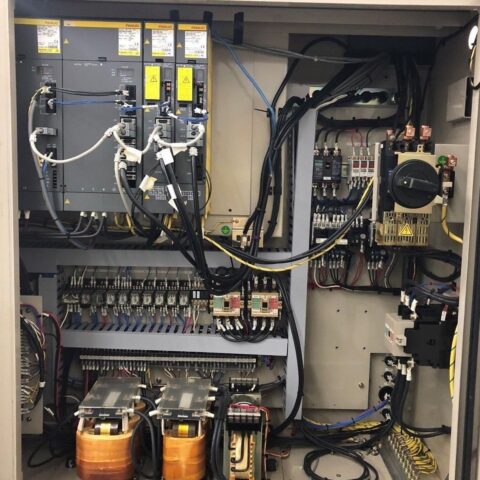

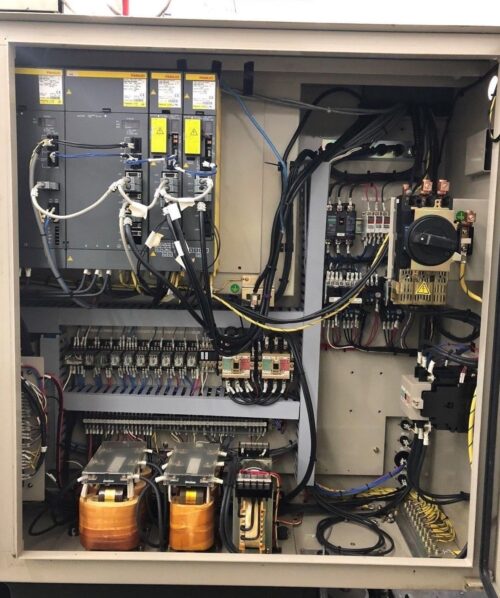

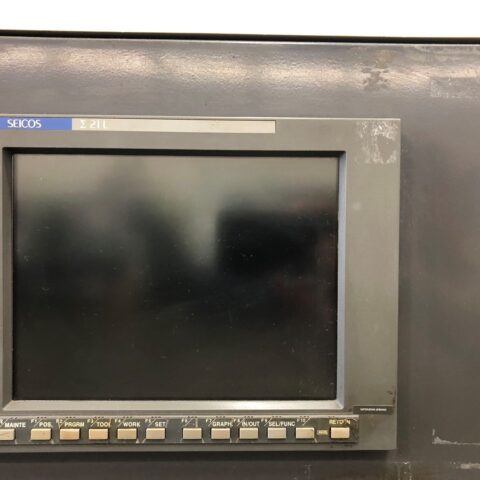

  • Seicos 21L (Fanuc 21-iT) CNC Control

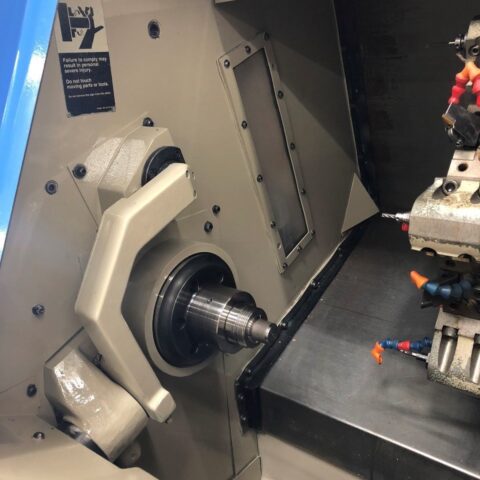

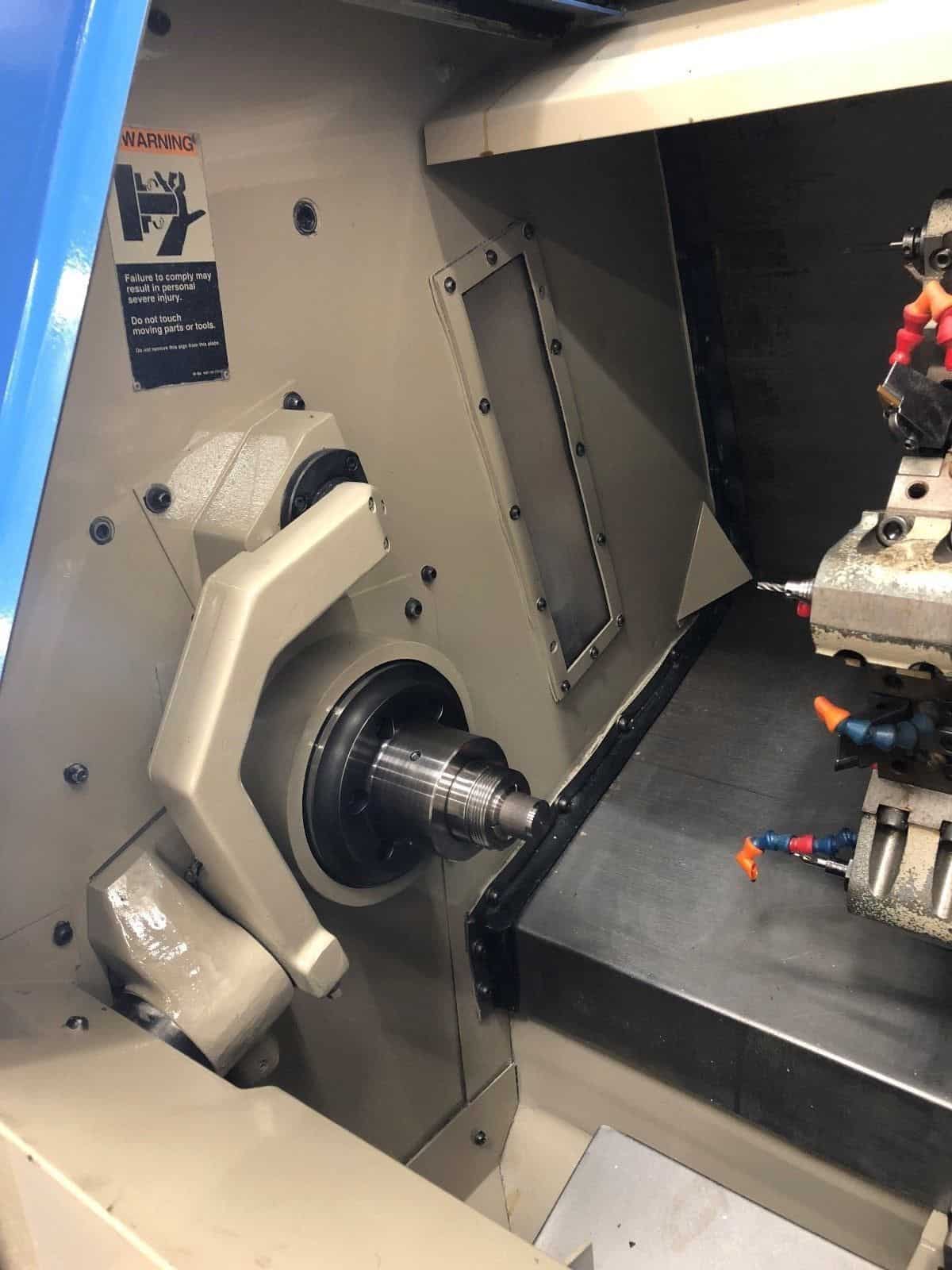

  • Collet Hydraulic Chuck
  • Parts Catcher
  • Parts Conveyor

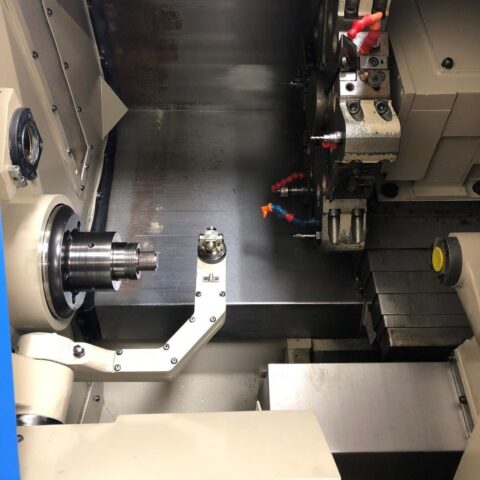

  • Tool Presetter
  • PCMCIA Memory Card
  • Programmable Hydraulic Tailstock
  • Chip Pan and Tank
  • Coolant System.
  • Automatic Lubrication system
  • Foot Operated Control for Chuck
  • Original Books and Manuals, Tooling & Cutting Tools.
  • General:
  • Power Source: AC 220 V, Three Phase, 60 Hz
  • Power Requirement: 15kva
  • Overall Dimensions: 90″ x 65″ x 72″ High
  • Weight : 7500 lbs Approx.
  • HITACHI SEIKI TS-15 CNC Specifications:
  • Max Turning Diameter: 6.49″
  • Max Turning Length: 11.80″
  • Max Bar Capacity: 1.77″
  • Distance Between Centers: 14.6″
  • X Axis Travel: 7.48″
  • Z Axis Travel: 12.59″
  • Rapid Traverse X Axis: 1181 IPM
  • Rapid Traverse Z Axis: 1181 IPM
  • Spindle Nose: A2-5
  • Spindle Bore: 1.77″
  • Spindle Speed: 30-6000 RPM
  • Spindle Motor: 7.5 kw
  • Turret Capacity: 12 Stations
  • Turret Index Time: 0.5 Second
  • Tailstock Body Travel: 11.4″
  • Tailstock Taper: MT-4
